AN INTRODUCTION TO CARBOXYLIC ACIDS AND THEIR DERIVATIVES
AN INTRODUCTION TO CARBOXYLIC ACIDS AND THEIR DERIVATIVES KNOCKHARDY PUBLISHING
KNOCKHARDY PUBLISHING CARBOXYLIC ACIDS INTRODUCTION This Powerpoint show is one of several produced to help students understand selected topics at AS and A 2 level Chemistry. It is based on the requirements of the AQA and OCR specifications but is suitable for other examination boards. Individual students may use the material at home for revision purposes or it may be used for classroom teaching if an interactive white board is available. Accompanying notes on this, and the full range of AS and A 2 topics, are available from the KNOCKHARDY SCIENCE WEBSITE at. . . www. argonet. co. uk/users/hoptonj/sci. htm Navigation is achieved by. . . either clicking on the grey arrows at the foot of each page or using the left and right arrow keys on the keyboard
CARBOXYLIC ACIDS CONTENTS • Structure of carboxylic acids • Nomenclature • Physical properties of carboxylic acids • Preparation of carboxylic acids • Chemical properties of carboxylic acids • Esters • Acyl chlorides • Revision check list
CARBOXYLIC ACIDS Before you start it would be helpful to… • Recall the definition of a covalent bond • Recall the difference types of physical bonding • Be able to balance simple equations • Be able to write out structures for simple organic molecules • Understand the IUPAC nomenclature rules for simple organic compounds • Recall the chemical properties of alkanes and alkenes
STRUCTURE OF CARBOXYLIC ACIDS • contain the carboxyl functional group COOH • the bonds are in a planar arrangement
STRUCTURE OF CARBOXYLIC ACIDS • contain the carboxyl functional group COOH • the bonds are in a planar arrangement • include a carbonyl (C=O) group a hydroxyl (O-H) group and
STRUCTURE OF CARBOXYLIC ACIDS • contain the carboxyl functional group COOH • the bonds are in a planar arrangement • include a carbonyl (C=O) group a hydroxyl (O-H) group • are isomeric with esters : - RCOOR’ and
HOMOLOGOUS SERIES Carboxylic acids form a homologous series HCOOH CH 3 COOH C 2 H 5 COOH
HOMOLOGOUS SERIES Carboxylic acids form a homologous series HCOOH CH 3 COOH C 2 H 5 COOH With more carbon atoms, there can be structural isomers C 3 H 7 COOH (CH 3)2 CHCOOH
INFRA-RED SPECTROSCOPY IDENTIFYING CARBOXYLIC ACIDS USING INFRA RED SPECTROSCOPY Differentiation ALCOHOL O-H absorption Compound O-H C=O ALCOHOL YES NO CARBOXYLIC ACID YES ESTER NO YES CARBOXYLIC ACID O-H + C=O absorption ESTER C=O absorption
NAMING CARBOXYLIC ACIDS Acids are named according to standard IUPAC rules • select the longest chain of C atoms containing the COOH group; • remove the e and add oic acid after the basic name • number the chain starting from the end nearer the COOH group • as in alkanes, prefix with alkyl substituents • side chain positions are based on the C in COOH being 1 e. g. CH 3 - CH(CH 3) - CH 2 - COOH is called 4 -methylpentanoic acid
NAMING CARBOXYLIC ACIDS Acids are named according to standard IUPAC rules • select the longest chain of C atoms containing the COOH group; • remove the e and add oic acid after the basic name • number the chain starting from the end nearer the COOH group • as in alkanes, prefix with alkyl substituents • side chain positions are based on the C in COOH being 1 METHANOIC ACID PROPANOIC ACID
NAMING CARBOXYLIC ACIDS Acids are named according to standard IUPAC rules • select the longest chain of C atoms containing the COOH group; • remove the e and add oic acid after the basic name • number the chain starting from the end nearer the COOH group • as in alkanes, prefix with alkyl substituents • side chain positions are based on the C in COOH being 1 BUTANOIC ACID 2 -METHYLPROPANOIC ACID
NAMING CARBOXYLIC ACIDS Acids are named according to standard IUPAC rules Many carboxylic acids are still known under their trivial names, some having been called after characteristic properties or their origin. Formula HCOOH CH 3 COOH C 6 H 5 COOH Systematic name methanoic acid benzenecarboxylic acid (trivial name) formic acid acetic acid benzoic acid origin of name latin for ant latin for vinegar from benzene
PHYSICAL PROPERTIES BOILING POINT Increases as size increases - due to increased van der Waals forces 101°C 118°C 141°C 164°C
PHYSICAL PROPERTIES BOILING POINT Increases as size increases - due to increased van der Waals forces 101°C 118°C 141°C 164°C Boiling point is higher for “straight” chain isomers. 164°C 154°C Greater branching = lower inter-molecular forces = lower boiling point
PHYSICAL PROPERTIES BOILING POINT Increases as size increases - due to increased van der Waals forces Carboxylic acids have high boiling points for their relative mass The effect of hydrogen bonding on the boiling point of compounds of similar mass Compound ethanoic acid propan-1 -ol propanal butane Formula CH 3 COOH C 3 H 7 OH C 2 H 5 CHO C 4 H 10 Mr 60 60 58 58 b. pt. (°C) 118 97 49 - 0. 5 Comments h-bonding dipole-dipole basic V der W
PHYSICAL PROPERTIES BOILING POINT Increases as size increases - due to increased van der Waals forces Carboxylic acids have high boiling points for their relative mass • arises from inter-molecular hydrogen bonding due to polar O—H bonds HYDROGEN BONDING AN EXTREME CASE. . . DIMERISATION • extra inter-molecular attraction = more energy to separate molecules
PHYSICAL PROPERTIES SOLUBILITY • carboxylic acids are soluble in organic solvents • they are also soluble in water due to hydrogen bonding HYDROGEN BONDING
PHYSICAL PROPERTIES SOLUBILITY • carboxylic acids are soluble in organic solvents • they are also soluble in water due to hydrogen bonding HYDROGEN BONDING • small ones dissolve readily in cold water • as mass increases, the solubility decreases • benzoic acid is fairly insoluble in cold but soluble in hot water
PREPARATION OF CARBOXYLIC ACIDS Oxidation of aldehydes RCHO + [O] Hydrolysis of esters RCOOR + H 2 O Hydrolysis of acyl chlorides RCOCl + Hydrolysis of nitriles RCN Hydrolysis of amides ——> RCOOH + ROH H 2 O ——> RCOOH + HCl 2 H 2 O ——> RCOOH + NH 3 RCONH 2 + H 2 O ——> RCOOH + NH 3 +
CHEMICAL PROPERTIES ACIDITY weak acids RCOOH + H 2 O(l) RCOO¯(aq) + H 3 O+(aq) form salts RCOOH + Na. OH(aq) ——> RCOO¯Na+(aq) + H 2 O(l)
CHEMICAL PROPERTIES ACIDITY weak acids RCOOH + H 2 O(l) RCOO¯(aq) + H 3 O+(aq) form salts RCOOH + Na. OH(aq) ——> RCOO¯Na+(aq) + H 2 O(l) The acid can be liberated from its salt by treatment with a stronger acid. e. g. RCOO¯ Na+(aq) + HCl(aq) ——> RCOOH + Na. Cl(aq) Conversion of an acid to its water soluble salt followed by acidification of the salt to restore the acid is often used to separate acids from a mixture.
CHEMICAL PROPERTIES ACIDITY weak acids RCOOH + H 2 O(l) RCOO¯(aq) + H 3 O+(aq) form salts RCOOH + Na. OH(aq) ——> RCOO¯Na+(aq) + H 2 O(l) The acid can be liberated from its salt by treatment with a stronger acid. e. g. RCOO¯ Na+(aq) + HCl(aq) ——> RCOOH + Na. Cl(aq) Conversion of an acid to its water soluble salt followed by acidification of the salt to restore the acid is often used to separate acids from a mixture. QUALITATIVE ANALYSIS Carboxylic acids are strong enough acids to liberate CO 2 from carbonates Phenols are also acidic but not are not strong enough to liberate CO 2
ESTERIFICATION Reagent(s) alcohol + strong acid catalyst (e. g. conc. H 2 SO 4 ) Conditions reflux Product ester Equation e. g. CH 3 CH 2 OH(l) + CH 3 COOH(l) ethanol ethanoic acid CH 3 COOC 2 H 5(l) + H 2 O(l) ethyl ethanoate
ESTERIFICATION Reagent(s) alcohol + strong acid catalyst (e. g. conc. H 2 SO 4 ) Conditions reflux Product ester Equation Notes e. g. CH 3 CH 2 OH(l) + CH 3 COOH(l) ethanol ethanoic acid CH 3 COOC 2 H 5(l) + H 2 O(l) ethyl ethanoate Conc. H 2 SO 4 is a dehydrating agent - it removes water causing the equilibrium to move to the right and thus increases the yield of the ester
ESTERIFICATION Reagent(s) alcohol + strong acid catalyst (e. g conc. H 2 SO 4 ) Conditions reflux Product ester Equation e. g. CH 3 CH 2 OH(l) + CH 3 COOH(l) ethanol ethanoic acid CH 3 COOC 2 H 5(l) + H 2 O(l) ethyl ethanoate Notes Conc. H 2 SO 4 is a dehydrating agent - it removes water causing the equilibrium to move to the right and thus increases the yield of the ester Naming esters Named from the original alcohol and carboxylic acid CH 3 OH + CH 3 COOH from ethanoic acid CH 3 COOCH 3 + H 2 O CH 3 COOCH 3 METHYL ETHANOATE from methanol
CHLORINATION OF CARBOXYLIC ACIDS Chlorination involves replacing the OH with a Cl Product acyl chloride Reagent thionyl chloride SOCl 2 Conditions dry conditions Equation CH 3 COOH + SOCl 2 ——> CH 3 COCl + SO 2 + HCl
ESTERS Structure Substitute an organic group for the H in carboxylic acids Nomenclature first part from alcohol, second part from acid e. g. methyl ethanoate CH 3 COOCH 3 METHYL ETHANOATE ETHYL METHANOATE
ESTERS Structure Substitute an organic group for the H in carboxylic acids Nomenclature first part from alcohol, second part from acid e. g. methyl ethanoate CH 3 COOCH 3 METHYL ETHANOATE ETHYL METHANOATE Preparation From carboxylic acids or acyl chlorides Reactivity Unreactive compared with acids and acyl chlorides
ESTERS Structure Substitute an organic group for the H in carboxylic acids Nomenclature first part from alcohol, second part from acid e. g. methyl ethanoate CH 3 COOCH 3 METHYL ETHANOATE ETHYL METHANOATE Preparation From carboxylic acids or acyl chlorides Reactivity Unreactive compared with acids and acyl chlorides Isomerism Esters are structural isomers of carboxylic acids
STRUCTURAL ISOMERISM – FUNCTIONAL GROUP Classification Functional Group Name CARBOXYLIC ACID ESTER R-COOH R-COOR PROPANOIC ACID METHYL ETHANOATE Physical properties O-H bond gives rise to hydrogen bonding; get higher boiling point and solubility in water No hydrogen bonding insoluble in water Chemical properties acidic reacts with alcohols fairly unreactive hydrolysed to acids
PREPARATION OF ESTERS - 1 Reagent(s) alcohol + carboxylic acid Conditions reflux with a strong acid catalyst (e. g. conc. H 2 SO 4 ) Equation Notes e. g. CH 3 CH 2 OH(l) + CH 3 COOH(l) ethanol ethanoic acid CH 3 COOC 2 H 5(l) + H 2 O(l) ethyl ethanoate Conc. H 2 SO 4 is a dehydrating agent - it removes water causing the equilibrium to move to the right and thus increases the yield of the ester For more details see under ‘Reactions of carboxylic acids’
PREPARATION OF ESTERS - 2 Reagent(s) alcohol + acyl chloride Conditions reflux under dry conditons Equation Notes e. g. CH 3 OH(l) + CH 3 COCl(l) ——> CH 3 COOCH 3(l) + HCl(g) methanol ethanoyl methyl chloride ethanoate Acyl chlorides are very reactive but must be kept dry as they react with water
PREPARATION OF ESTERS - 3 Reagent(s) alcohol + acid anhydride Conditions reflux under dry conditons Equation Notes e. g. CH 3 OH(l) + (CH 3 CO)2 O(l) ——> CH 3 COOCH 3(l) + CH 3 COOH(l) methanol ethanoic methyl ethanoic anhydride ethanoate acid Acid anhydrides are not as reactive as acyl chlorides so the reaction is slower. The reaction is safer - it is less exothermic. Acid anhydrides are less toxic.

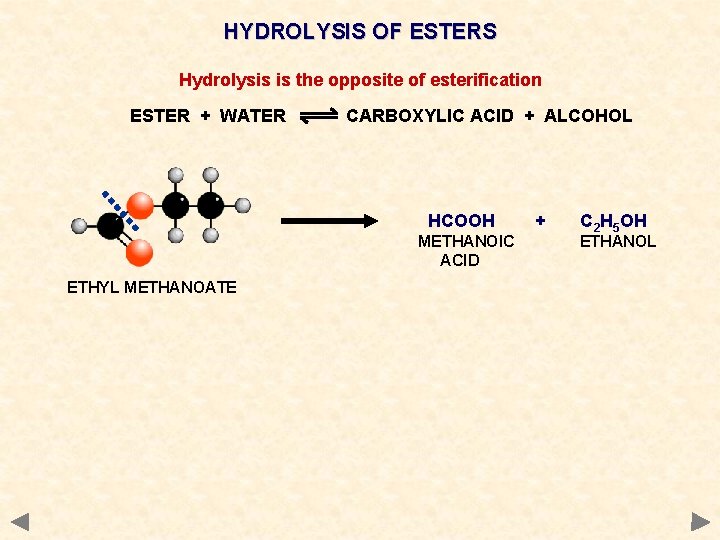

HYDROLYSIS OF ESTERS Hydrolysis is the opposite of esterification ESTER + WATER CARBOXYLIC ACID + ALCOHOL HCOOH METHANOIC ACID ETHYL METHANOATE + C 2 H 5 OH ETHANOL
HYDROLYSIS OF ESTERS Hydrolysis is the opposite of esterification ESTER + WATER CARBOXYLIC ACID + ALCOHOL HCOOH METHANOIC ACID ETHYL METHANOATE METHYL ETHANOATE + C 2 H 5 OH ETHANOL
HYDROLYSIS OF ESTERS Hydrolysis is the opposite of esterification ESTER + WATER CARBOXYLIC ACID + ALCOHOL HCOOH + METHANOIC ACID C 2 H 5 OH ETHANOL ETHYL METHANOATE CH 3 COOH ETHANOIC ACID METHYL ETHANOATE + CH 3 OH METHANOL

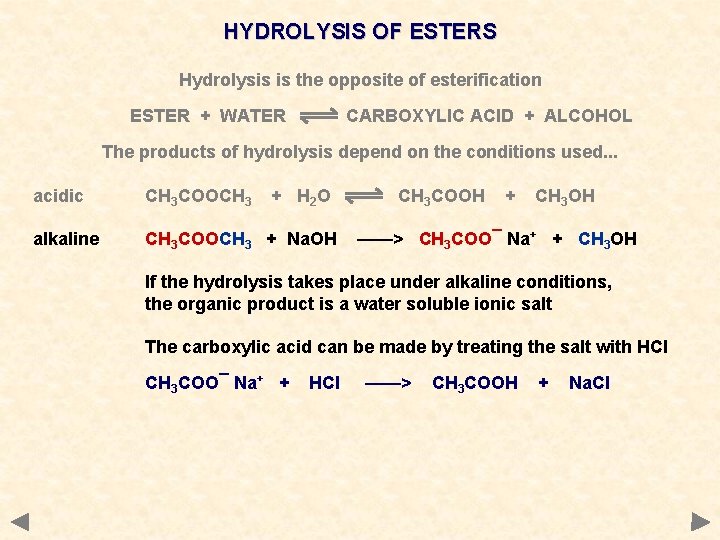

HYDROLYSIS OF ESTERS Hydrolysis is the opposite of esterification ESTER + WATER CARBOXYLIC ACID + ALCOHOL The products of hydrolysis depend on the conditions used. . . acidic CH 3 COOCH 3 + H 2 O alkaline CH 3 COOCH 3 + Na. OH CH 3 COOH + CH 3 OH ——> CH 3 COO¯ Na+ + CH 3 OH
HYDROLYSIS OF ESTERS Hydrolysis is the opposite of esterification ESTER + WATER CARBOXYLIC ACID + ALCOHOL The products of hydrolysis depend on the conditions used. . . acidic CH 3 COOCH 3 + H 2 O alkaline CH 3 COOCH 3 + Na. OH CH 3 COOH + CH 3 OH ——> CH 3 COO¯ Na+ + CH 3 OH If the hydrolysis takes place under alkaline conditions, the organic product is a water soluble ionic salt
HYDROLYSIS OF ESTERS Hydrolysis is the opposite of esterification ESTER + WATER CARBOXYLIC ACID + ALCOHOL The products of hydrolysis depend on the conditions used. . . acidic CH 3 COOCH 3 + H 2 O alkaline CH 3 COOCH 3 + Na. OH CH 3 COOH + CH 3 OH ——> CH 3 COO¯ Na+ + CH 3 OH If the hydrolysis takes place under alkaline conditions, the organic product is a water soluble ionic salt The carboxylic acid can be made by treating the salt with HCl CH 3 COO¯ Na+ + HCl ——> CH 3 COOH + Na. Cl
NATURALLY OCCURING ESTERS - TRIGLYCERIDES • triglycerides are the most common component of edible fats and oils • they are esters of the alcohol glycerol (propane-1, 2, 3 -triol) CH 2 OH Saponification • • alkaline hydrolysis of triglycerol esters produces soaps a simple soap is the salt of a fatty acid as most oils contain a mixture of triglycerols, soaps are not pure the quality of a soap depends on the oils from which it is made
USES OF ESTERS Despite being fairly chemically unreactive, esters are useful as. . . • flavourings apple pear banana pineapple rum • solvents nail varnish remover - ethyl ethanoate • plasticisers 2 -methylbutanoate 3 -methylbutylethanoate 1 -methylbutylethanoate butylbutanoate 2 -methylpropanoate
ACYL CHLORIDES Nomenclature Chemical Properties Named from the corresponding carboxylic acid remove -ic add -yl chloride CH 3 COCl ethanoyl chloride C 6 H 5 COCl benzene carbonyl (benzoyl) chloride • • colourless liquids which fume in moist air attacked at the positive carbon centre by nucleophiles these include water, alcohols, ammonia and amines undergo addition-elimination reactions

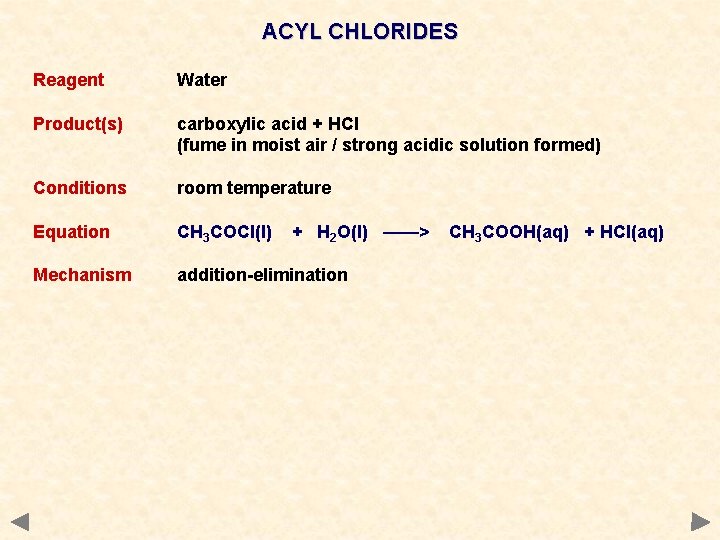

ACYL CHLORIDES Reagent Water Product(s) carboxylic acid + HCl (fume in moist air / strong acidic solution formed) Conditions room temperature Equation CH 3 COCl(l) Mechanism addition-elimination + H 2 O(l) ——> CH 3 COOH(aq) + HCl(aq)
ACYL CHLORIDES Reagent Alcohols Product(s) ester + hydrogen chloride Conditions reflux in dry (anhydrous) conditions Equation CH 3 COCl(l) Mechanism addition-elimination + CH 3 OH(l) ——> CH 3 COOCH 3(l) + HCl(g)
ACYL CHLORIDES Reagent Ammonia Product(s) amide + hydrogen chloride Conditions Low temperature and excess ammonia; vigorous reaction. Equation CH 3 COCl(l) + NH 3(aq) ——> CH 3 COCl(l) + 2 NH 3(aq) ——> or Mechanism addition-elimination CH 3 CONH 2(s) + HCl(g) CH 3 CONH 2(s) + NH 4 Cl(s)
ACYL CHLORIDES Reagent Amines Product(s) N-substituted amide + hydrogen chloride Conditions anhydrous Equation Mechanism CH 3 COCl + C 2 H 5 NH 2 ——> CH 3 CONHC 2 H 5 + HCl or CH 3 COCl + 2 C 2 H 5 NH 2 ——> CH 3 CONHC 2 H 5 + C 2 H 5 NH 3 Cl addition-elimination - similar to that with ammonia.
REVISION CHECK What should you be able to do? Recall and explain the physical properties of carboxylic acids Recall the structures of carboxylic acids, esters and acyl chlorides Recall the acidic properties of carboxylic acids Recall and explain the esterification of carboxylic acids Write balanced equations representing any reactions in the section Recall and explain the structure and naming of esters Recall the methods for making esters Recall the conditions for, and products of, the hydrolysis of esters. CAN YOU DO ALL OF THESE? YES NO
You need to go over the relevant topic(s) again Click on the button to return to the menu
WELL DONE! Try some past paper questions
AN INTRODUCTION TO CARBOXYLIC ACIDS AND THEIR DERIVATIVES THE END © JONATHAN HOPTON & KNOCKHARDY PUBLISHING
