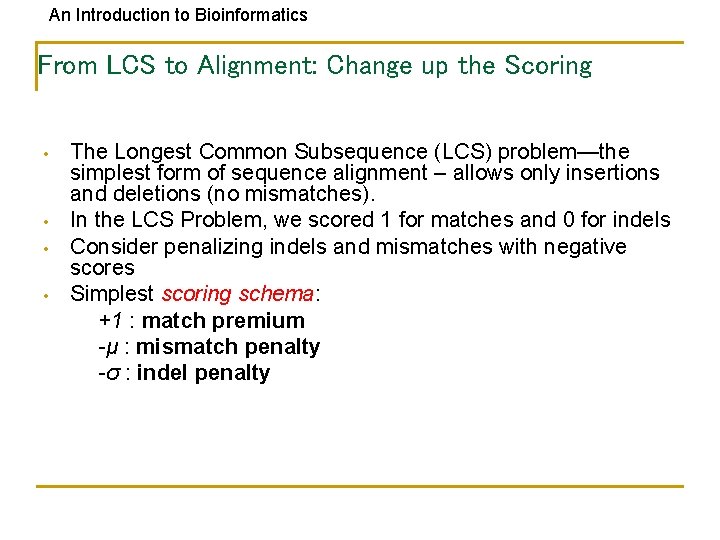

An Introduction to Bioinformatics From LCS to Alignment: Change up the Scoring • • The Longest Common Subsequence (LCS) problem—the simplest form of sequence alignment – allows only insertions and deletions (no mismatches). In the LCS Problem, we scored 1 for matches and 0 for indels Consider penalizing indels and mismatches with negative scores Simplest scoring schema: +1 : match premium -μ : mismatch penalty -σ : indel penalty

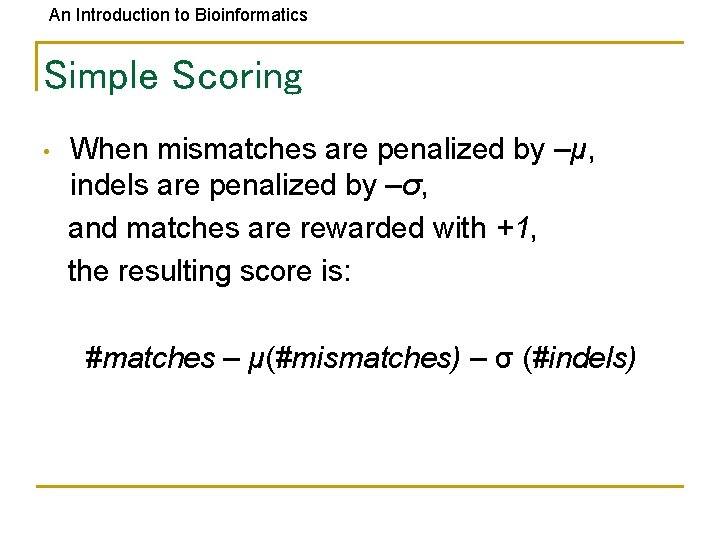

An Introduction to Bioinformatics Simple Scoring • When mismatches are penalized by –μ, indels are penalized by –σ, and matches are rewarded with +1, the resulting score is: #matches – μ(#mismatches) – σ (#indels)

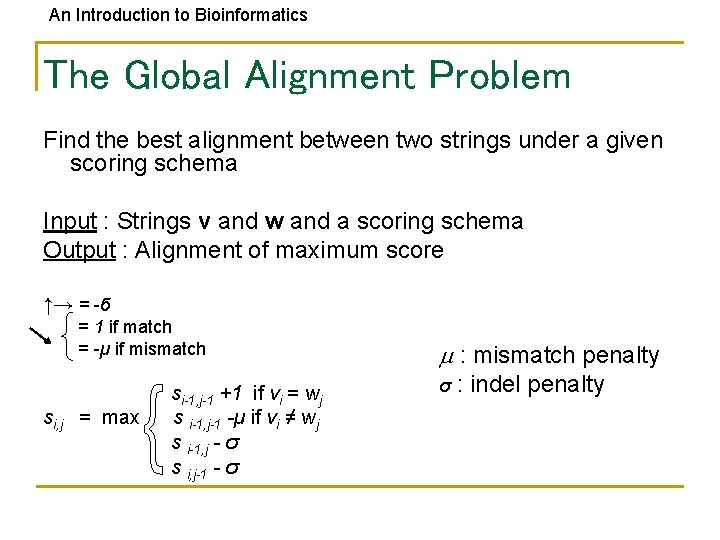

An Introduction to Bioinformatics The Global Alignment Problem Find the best alignment between two strings under a given scoring schema Input : Strings v and w and a scoring schema Output : Alignment of maximum score ↑→ = -б = 1 if match = -µ if mismatch si, j = max si-1, j-1 +1 if vi = wj s i-1, j-1 -µ if vi ≠ wj s i-1, j - σ s i, j-1 - σ m : mismatch penalty σ : indel penalty

An Introduction to Bioinformatics Scoring Matrices To generalize scoring, consider a (4+1) x(4+1) scoring matrix δ. In the case of an amino acid sequence alignment, the scoring matrix would be a (20+1)x(20+1) size. The addition of 1 is to include the score for comparison of a gap character “-”. This will simplify the algorithm as follows: si-1, j-1 + δ (vi, wj) si, j = max s i-1, j + δ (vi, -) s i, j-1 + δ (-, wj)

An Introduction to Bioinformatics Measuring Similarity • Measuring the extent of similarity between two sequences • Based on percent sequence identity • Based on conservation

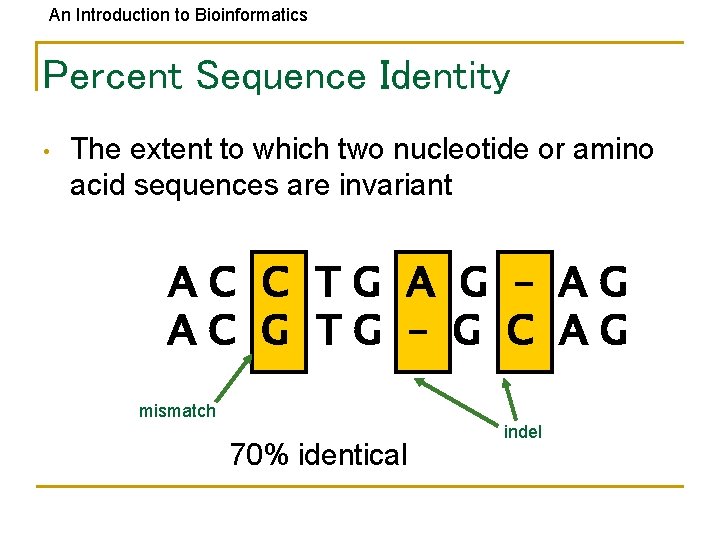

An Introduction to Bioinformatics Percent Sequence Identity • The extent to which two nucleotide or amino acid sequences are invariant AC C TG A G – AG AC G TG – G C AG mismatch 70% identical indel

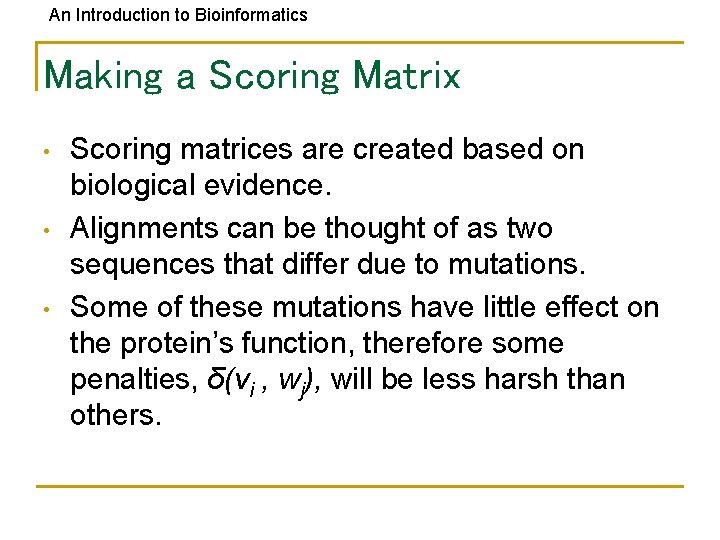

An Introduction to Bioinformatics Making a Scoring Matrix • • • Scoring matrices are created based on biological evidence. Alignments can be thought of as two sequences that differ due to mutations. Some of these mutations have little effect on the protein’s function, therefore some penalties, δ(vi , wj), will be less harsh than others.

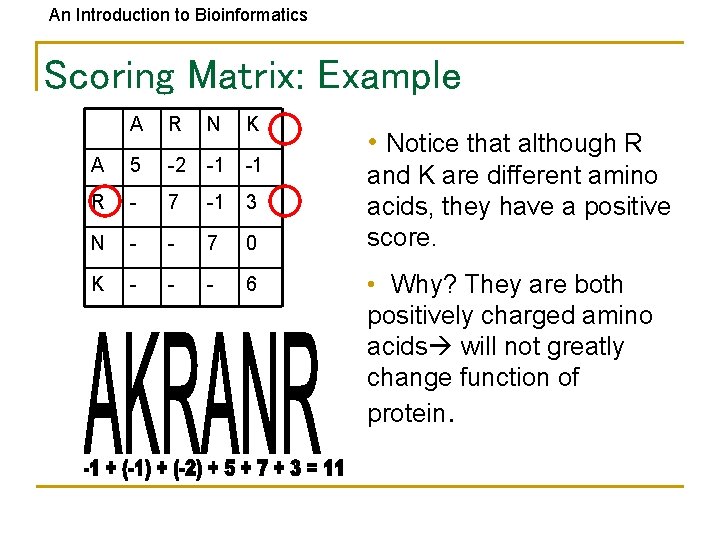

An Introduction to Bioinformatics Scoring Matrix: Example A R N K A 5 -2 -1 -1 R - 7 -1 3 N - - 7 0 K - - - 6 • Notice that although R and K are different amino acids, they have a positive score. • Why? They are both positively charged amino acids will not greatly change function of protein.

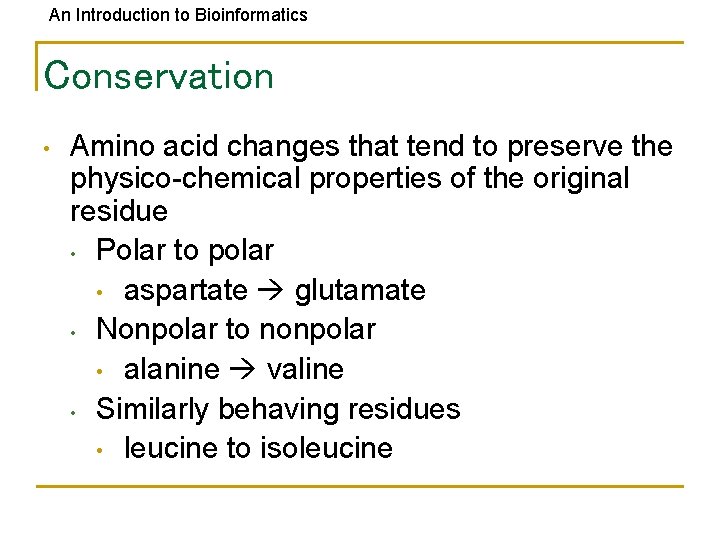

An Introduction to Bioinformatics Conservation • Amino acid changes that tend to preserve the physico-chemical properties of the original residue • Polar to polar • aspartate glutamate • Nonpolar to nonpolar • alanine valine • Similarly behaving residues • leucine to isoleucine

An Introduction to Bioinformatics Scoring matrices • Amino acid substitution matrices • PAM • BLOSUM • DNA substitution matrices • DNA is less conserved than protein sequences • Less effective to compare coding regions at nucleotide level

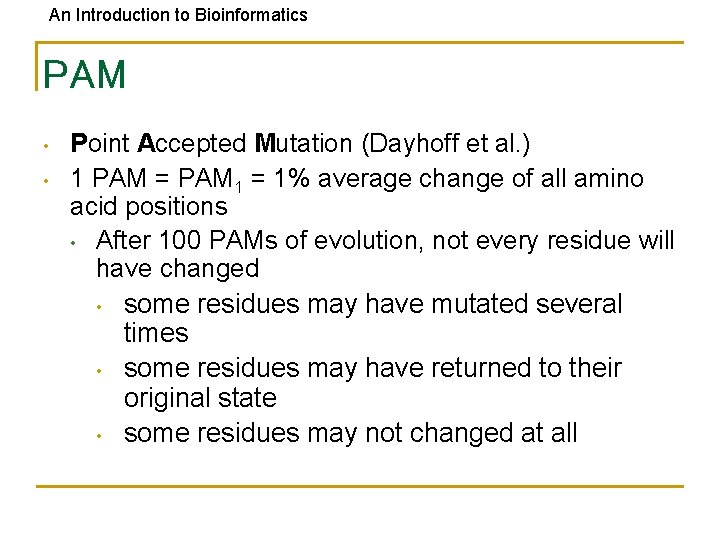

An Introduction to Bioinformatics PAM • • Point Accepted Mutation (Dayhoff et al. ) 1 PAM = PAM 1 = 1% average change of all amino acid positions • After 100 PAMs of evolution, not every residue will have changed • some residues may have mutated several times • some residues may have returned to their original state • some residues may not changed at all

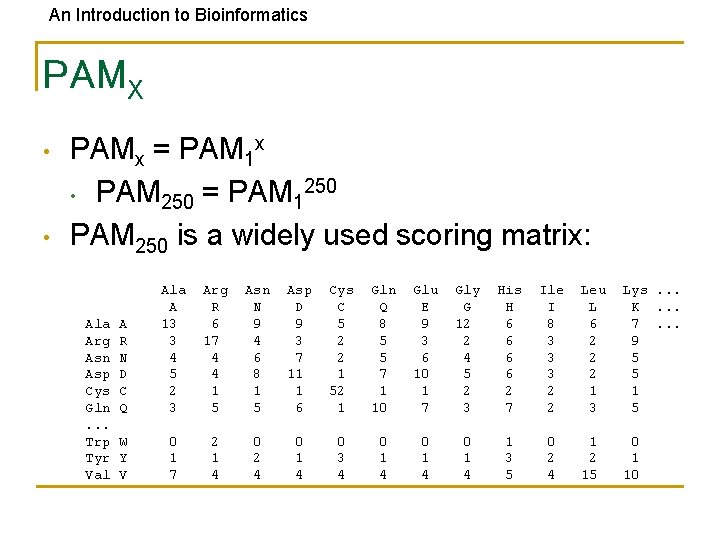

An Introduction to Bioinformatics PAMX • • PAMx = PAM 1 x • PAM 250 = PAM 1250 PAM 250 is a widely used scoring matrix: Ala Arg Asn Asp Cys Gln. . . Trp Tyr Val A R N D C Q Ala A 13 3 4 5 2 3 Arg R 6 17 4 4 1 5 Asn N 9 4 6 8 1 5 Asp D 9 3 7 11 1 6 Cys C 5 2 2 1 52 1 Gln Q 8 5 5 7 1 10 Glu E 9 3 6 10 1 7 Gly G 12 2 4 5 2 3 His H 6 6 2 7 Ile I 8 3 3 3 2 2 W Y V 0 1 7 2 1 4 0 2 4 0 1 4 0 3 4 0 1 4 1 3 5 0 2 4 Leu L 6 2 2 2 1 3 Lys. . . K. . . 7. . . 9 5 5 1 2 15 0 1 10

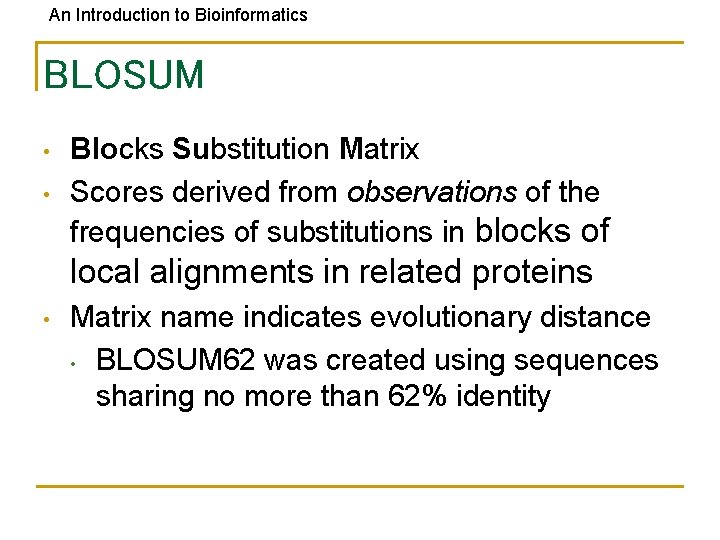

An Introduction to Bioinformatics BLOSUM • • Blocks Substitution Matrix Scores derived from observations of the frequencies of substitutions in blocks of local alignments in related proteins • Matrix name indicates evolutionary distance • BLOSUM 62 was created using sequences sharing no more than 62% identity

An Introduction to Bioinformatics The Blosum 50 Scoring Matrix

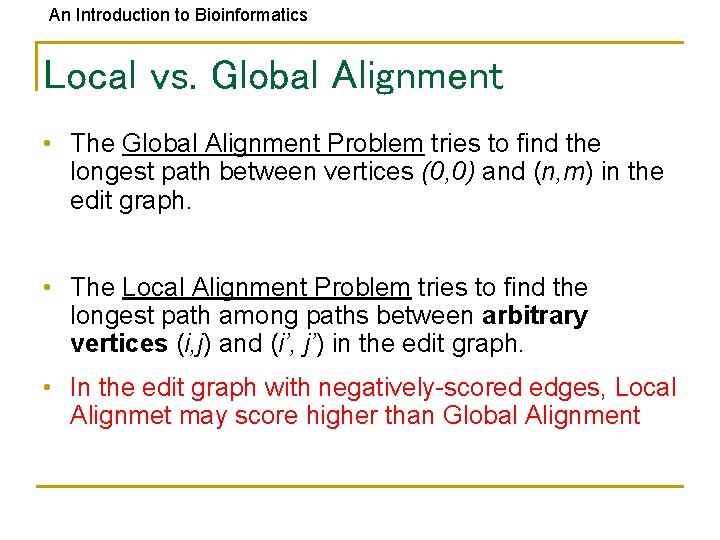

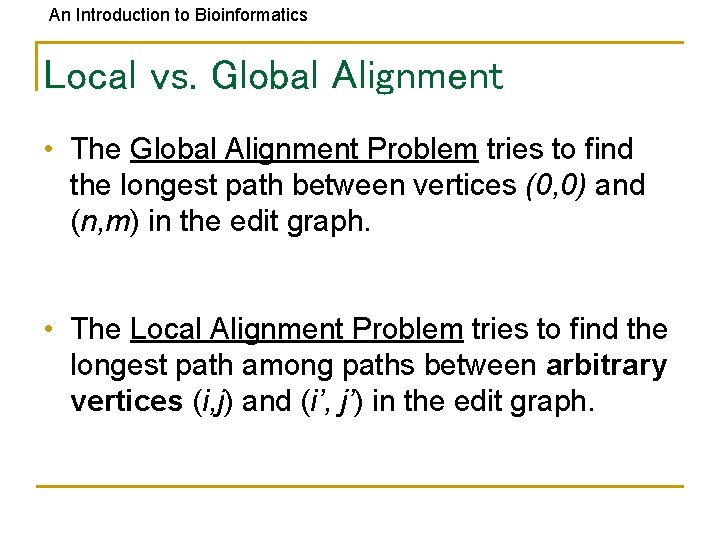

An Introduction to Bioinformatics Local vs. Global Alignment • The Global Alignment Problem tries to find the longest path between vertices (0, 0) and (n, m) in the edit graph. • The Local Alignment Problem tries to find the longest path among paths between arbitrary vertices (i, j) and (i’, j’) in the edit graph.

An Introduction to Bioinformatics Local vs. Global Alignment • The Global Alignment Problem tries to find the longest path between vertices (0, 0) and (n, m) in the edit graph. • The Local Alignment Problem tries to find the longest path among paths between arbitrary vertices (i, j) and (i’, j’) in the edit graph. • In the edit graph with negatively-scored edges, Local Alignmet may score higher than Global Alignment

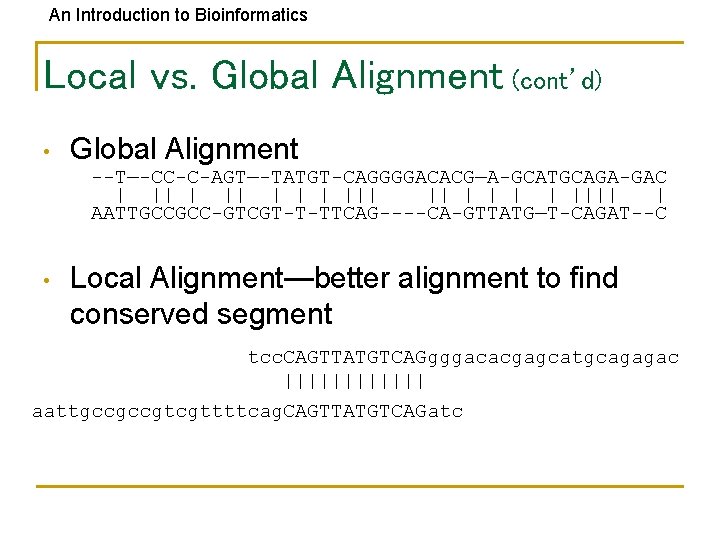

An Introduction to Bioinformatics Local vs. Global Alignment (cont’d) • Global Alignment --T—-CC-C-AGT—-TATGT-CAGGGGACACG—A-GCATGCAGA-GAC | ||| || | | |||| | AATTGCCGCC-GTCGT-T-TTCAG----CA-GTTATG—T-CAGAT--C • Local Alignment—better alignment to find conserved segment tcc. CAGTTATGTCAGgggacacgagcatgcagagac |||||| aattgccgccgtcgttttcag. CAGTTATGTCAGatc

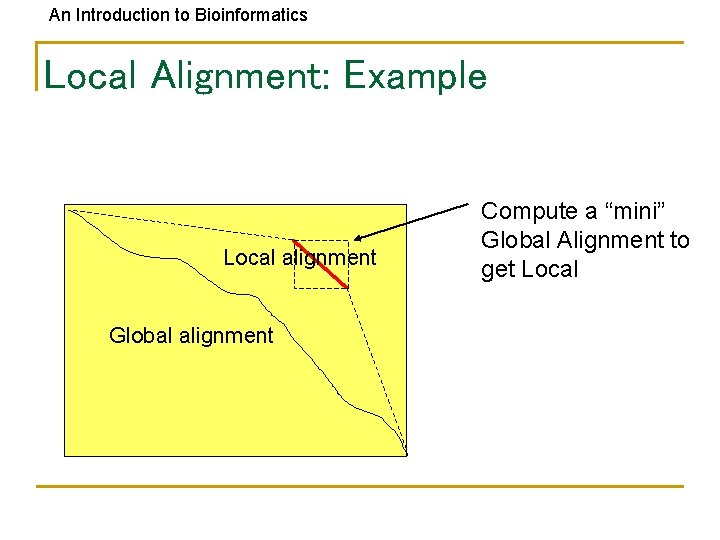

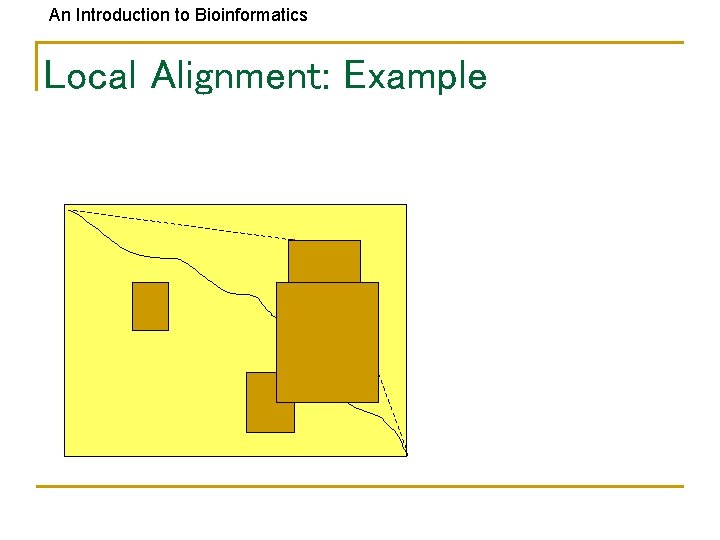

An Introduction to Bioinformatics Local Alignment: Example Local alignment Global alignment Compute a “mini” Global Alignment to get Local

An Introduction to Bioinformatics Local Alignments: Why? • • Two genes in different species may be similar over short conserved regions and dissimilar over remaining regions. Example: • Homeobox genes have a short region called the homeodomain that is highly conserved between species. • A global alignment would not find the homeodomain because it would try to align the ENTIRE sequence

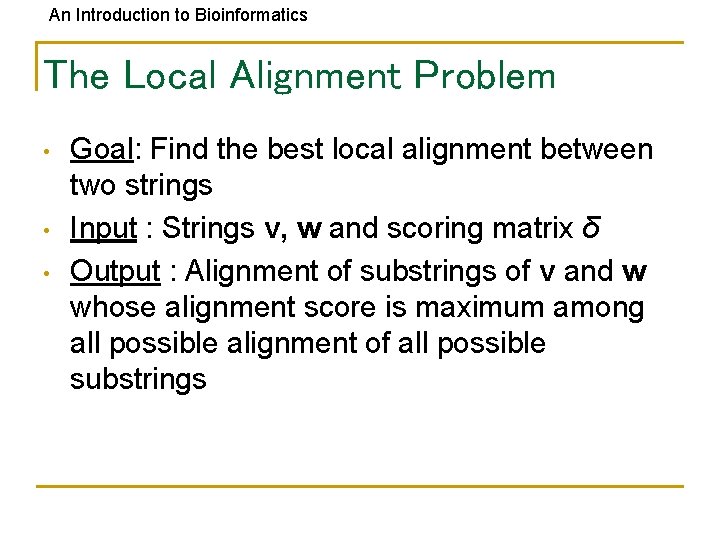

An Introduction to Bioinformatics The Local Alignment Problem • • • Goal: Find the best local alignment between two strings Input : Strings v, w and scoring matrix δ Output : Alignment of substrings of v and w whose alignment score is maximum among all possible alignment of all possible substrings

An Introduction to Bioinformatics The Problem with this Problem • Long run time O(n 4): - In the grid of size n x n there are ~n 2 vertices (i, j) that may serve as a source. - For each such vertex computing alignments from (i, j) to (i’, j’) takes O(n 2) time. • This can be remedied by giving free rides

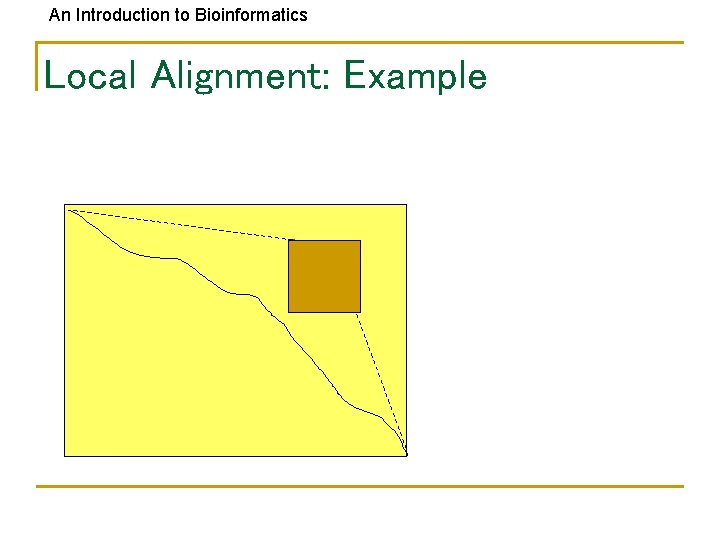

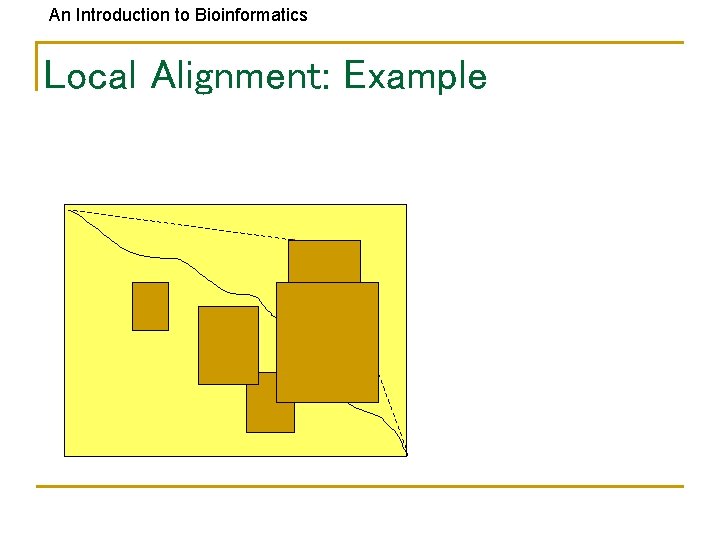

An Introduction to Bioinformatics Local Alignment: Example Local alignment Global alignment Compute a “mini” Global Alignment to get Local

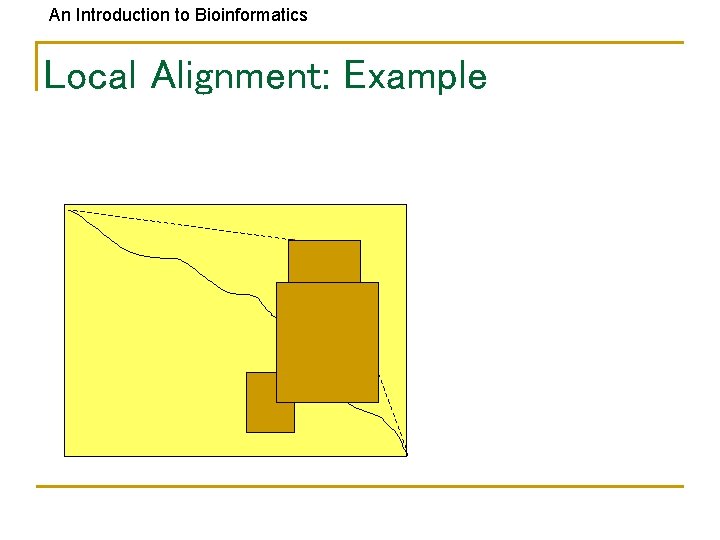

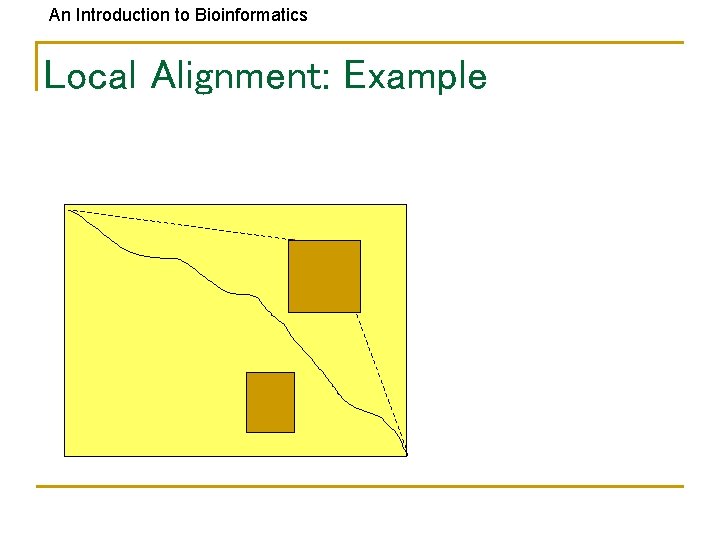

An Introduction to Bioinformatics Local Alignment: Example

An Introduction to Bioinformatics Local Alignment: Example

An Introduction to Bioinformatics Local Alignment: Example

An Introduction to Bioinformatics Local Alignment: Example

An Introduction to Bioinformatics Local Alignment: Example

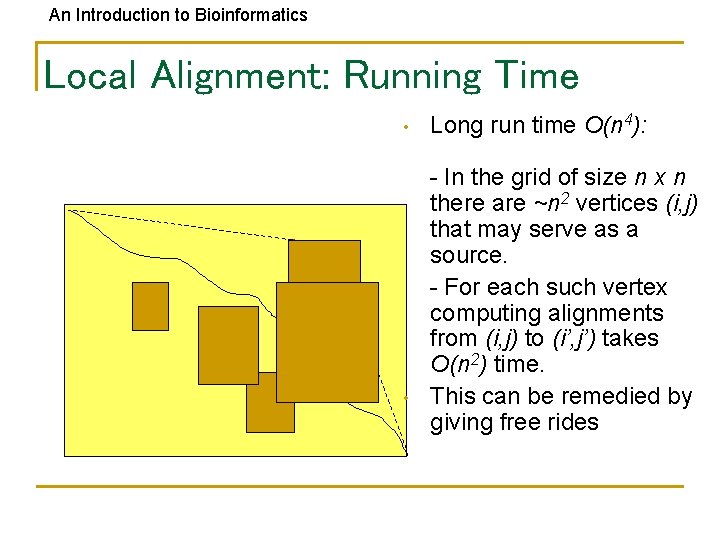

An Introduction to Bioinformatics Local Alignment: Running Time • • Long run time O(n 4): - In the grid of size n x n there are ~n 2 vertices (i, j) that may serve as a source. - For each such vertex computing alignments from (i, j) to (i’, j’) takes O(n 2) time. This can be remedied by giving free rides

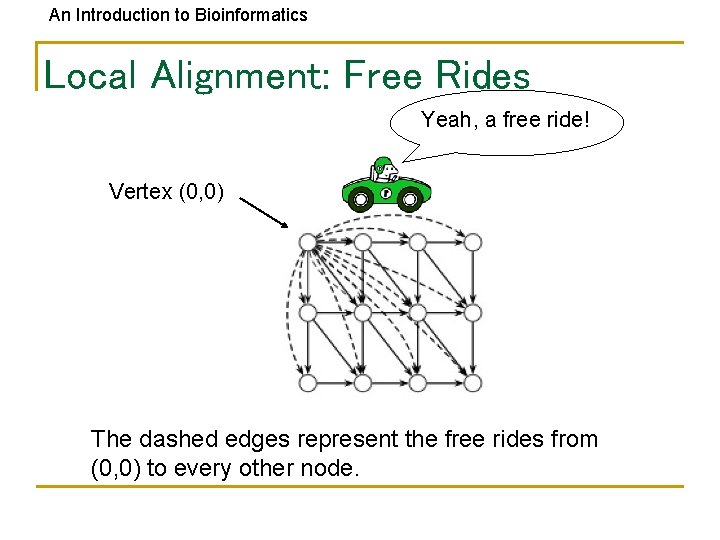

An Introduction to Bioinformatics Local Alignment: Free Rides Yeah, a free ride! Vertex (0, 0) The dashed edges represent the free rides from (0, 0) to every other node.

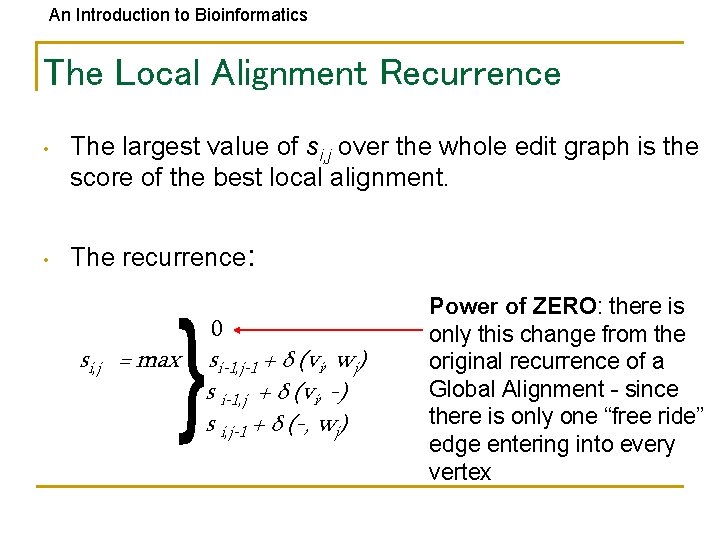

An Introduction to Bioinformatics The Local Alignment Recurrence • The largest value of si, j over the whole edit graph is the score of the best local alignment. • The recurrence: si, j = max 0 si-1, j-1 + δ (vi, wj) s i-1, j + δ (vi, -) s i, j-1 + δ (-, wj) Notice there is only this change from the original recurrence of a Global Alignment

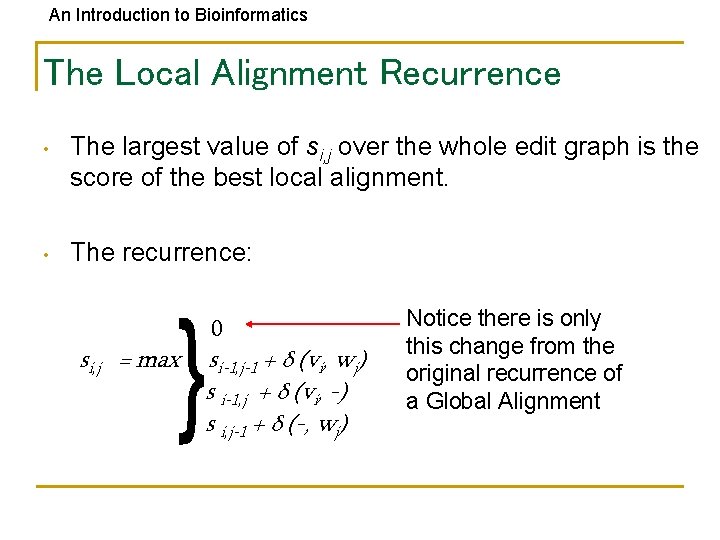

An Introduction to Bioinformatics The Local Alignment Recurrence • • The largest value of si, j over the whole edit graph is the score of the best local alignment. The recurrence: si, j = max 0 si-1, j-1 + δ (vi, wj) s i-1, j + δ (vi, -) s i, j-1 + δ (-, wj) Power of ZERO: there is only this change from the original recurrence of a Global Alignment - since there is only one “free ride” edge entering into every vertex

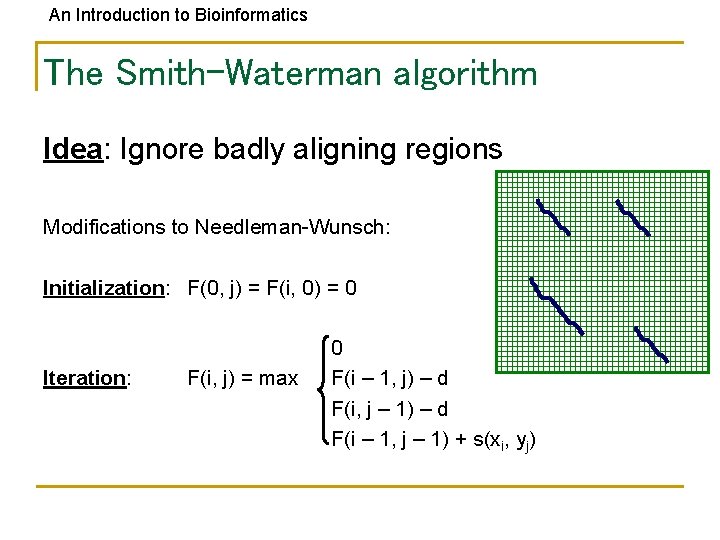

An Introduction to Bioinformatics The Smith-Waterman algorithm Idea: Ignore badly aligning regions Modifications to Needleman-Wunsch: Initialization: F(0, j) = F(i, 0) = 0 Iteration: F(i, j) = max 0 F(i – 1, j) – d F(i, j – 1) – d F(i – 1, j – 1) + s(xi, yj)

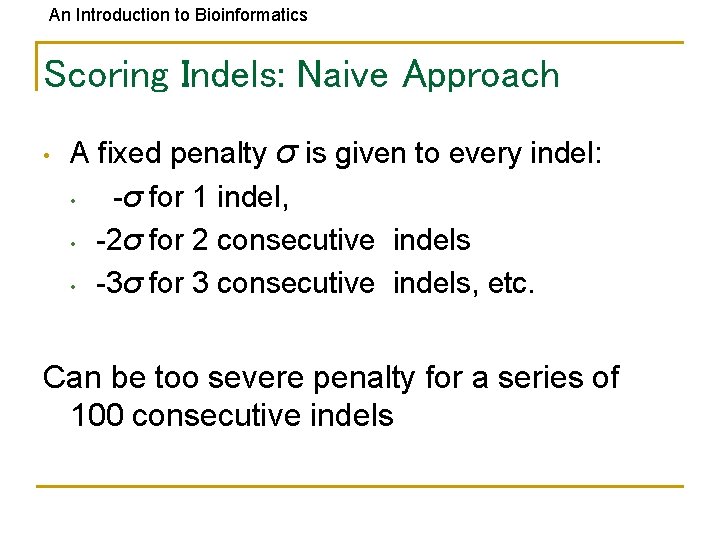

An Introduction to Bioinformatics Scoring Indels: Naive Approach • A fixed penalty σ is given to every indel: • -σ for 1 indel, • -2σ for 2 consecutive indels • -3σ for 3 consecutive indels, etc. Can be too severe penalty for a series of 100 consecutive indels

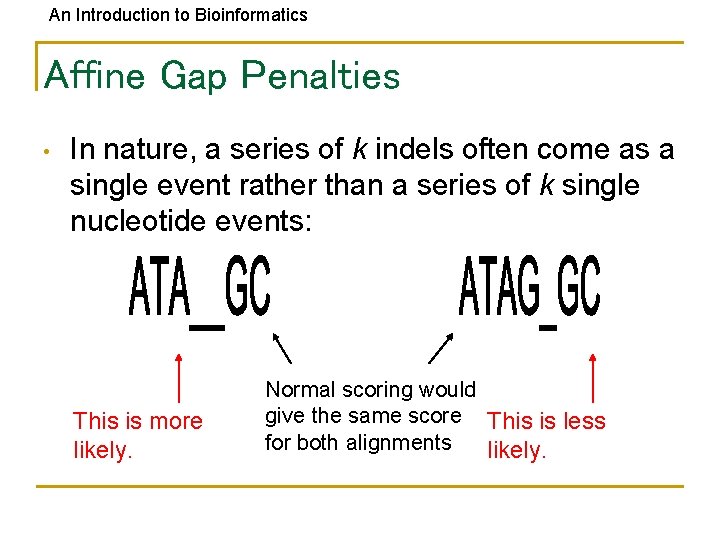

An Introduction to Bioinformatics Affine Gap Penalties • In nature, a series of k indels often come as a single event rather than a series of k single nucleotide events: This is more likely. Normal scoring would give the same score This is less for both alignments likely.

An Introduction to Bioinformatics Accounting for Gaps • Gaps- contiguous sequence of spaces in one of the rows • Score for a gap of length x is: -(ρ + σx) where ρ >0 is the penalty for introducing a gap: gap opening penalty ρ will be large relative to σ: gap extension penalty because you do not want to add too much of a penalty for extending the gap.

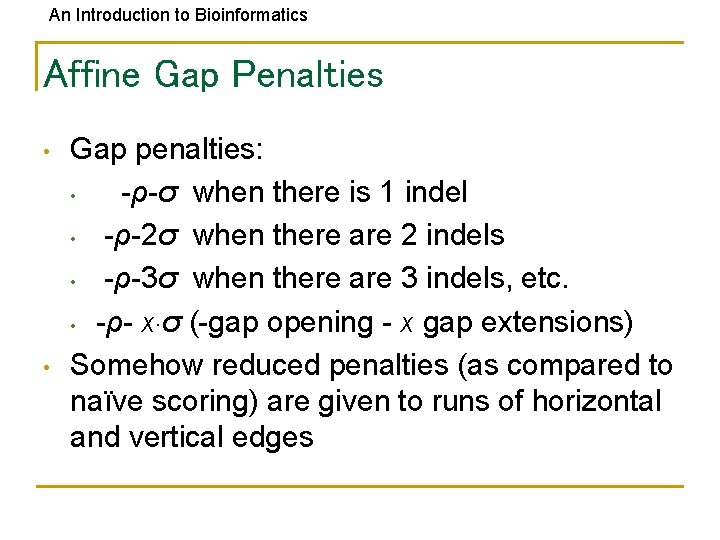

An Introduction to Bioinformatics Affine Gap Penalties • • Gap penalties: • -ρ-σ when there is 1 indel • -ρ-2σ when there are 2 indels • -ρ-3σ when there are 3 indels, etc. • -ρ- x·σ (-gap opening - x gap extensions) Somehow reduced penalties (as compared to naïve scoring) are given to runs of horizontal and vertical edges

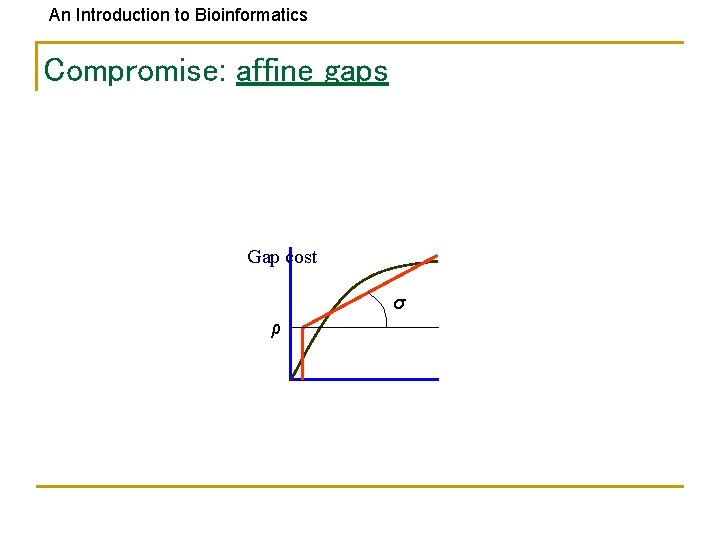

An Introduction to Bioinformatics Compromise: affine gaps Gap cost σ ρ

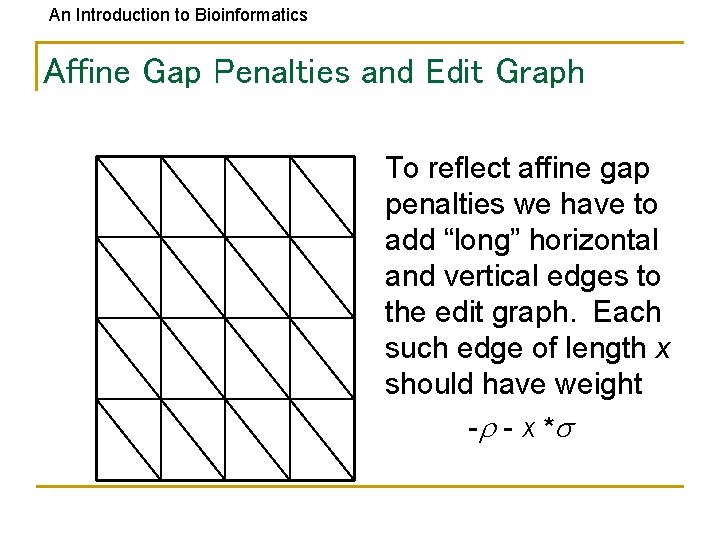

An Introduction to Bioinformatics Affine Gap Penalties and Edit Graph To reflect affine gap penalties we have to add “long” horizontal and vertical edges to the edit graph. Each such edge of length x should have weight - - x *

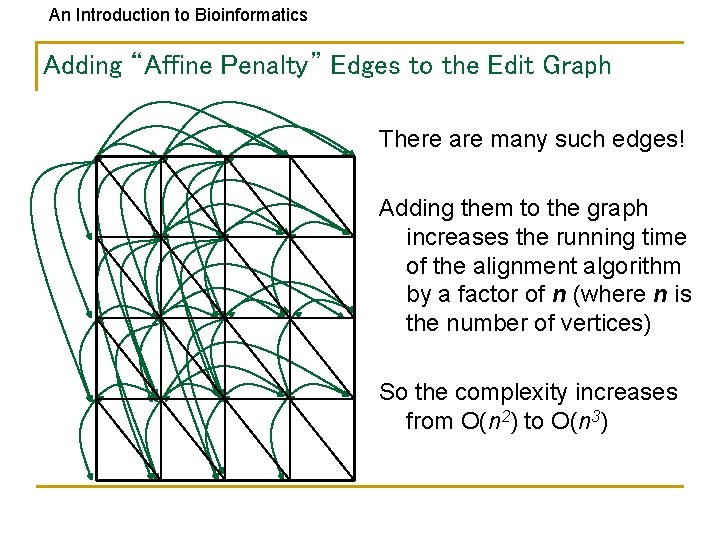

An Introduction to Bioinformatics Adding “Affine Penalty” Edges to the Edit Graph There are many such edges! Adding them to the graph increases the running time of the alignment algorithm by a factor of n (where n is the number of vertices) So the complexity increases from O(n 2) to O(n 3)

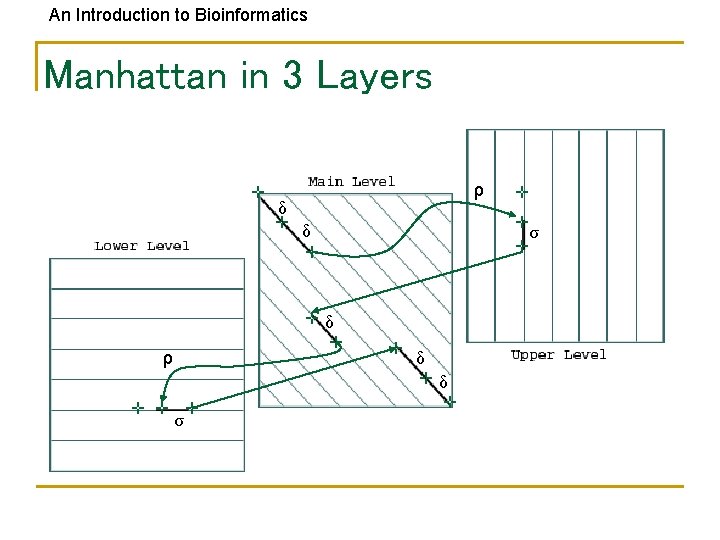

An Introduction to Bioinformatics Manhattan in 3 Layers ρ δ δ σ δ ρ δ δ σ

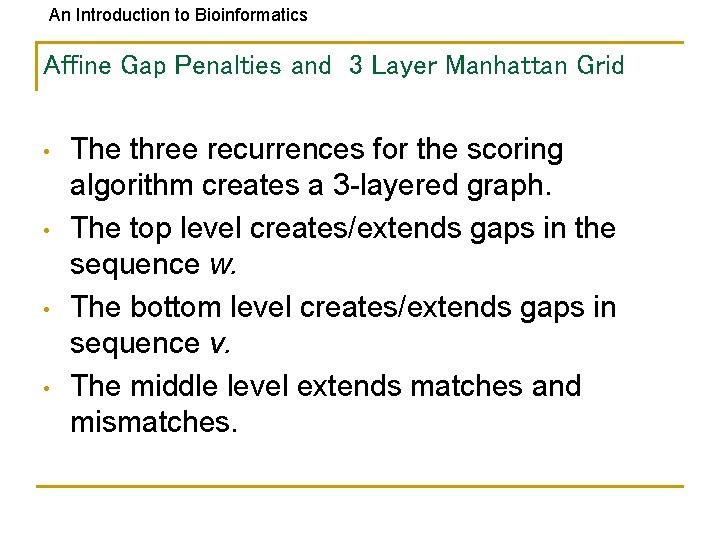

An Introduction to Bioinformatics Affine Gap Penalties and 3 Layer Manhattan Grid • • The three recurrences for the scoring algorithm creates a 3 -layered graph. The top level creates/extends gaps in the sequence w. The bottom level creates/extends gaps in sequence v. The middle level extends matches and mismatches.

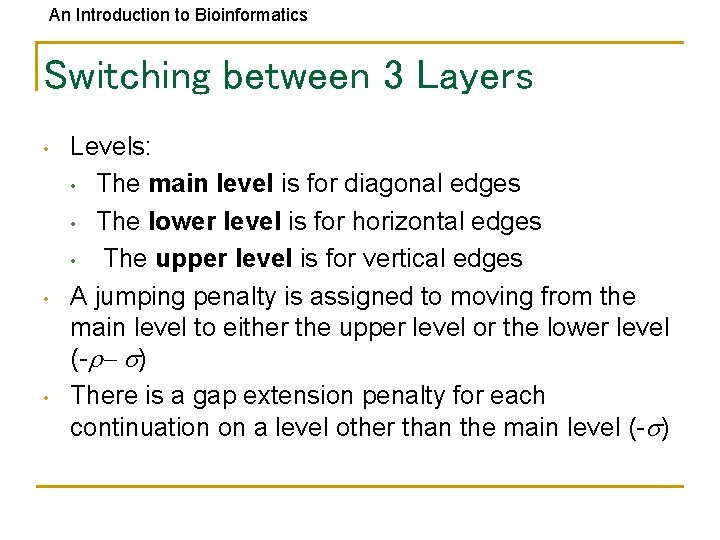

An Introduction to Bioinformatics Switching between 3 Layers • • • Levels: • The main level is for diagonal edges • The lower level is for horizontal edges • The upper level is for vertical edges A jumping penalty is assigned to moving from the main level to either the upper level or the lower level (- - ) There is a gap extension penalty for each continuation on a level other than the main level (- )

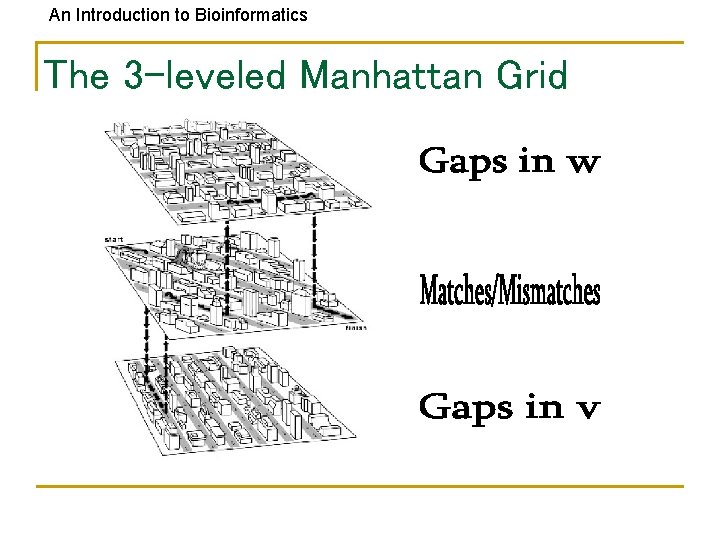

An Introduction to Bioinformatics The 3 -leveled Manhattan Grid

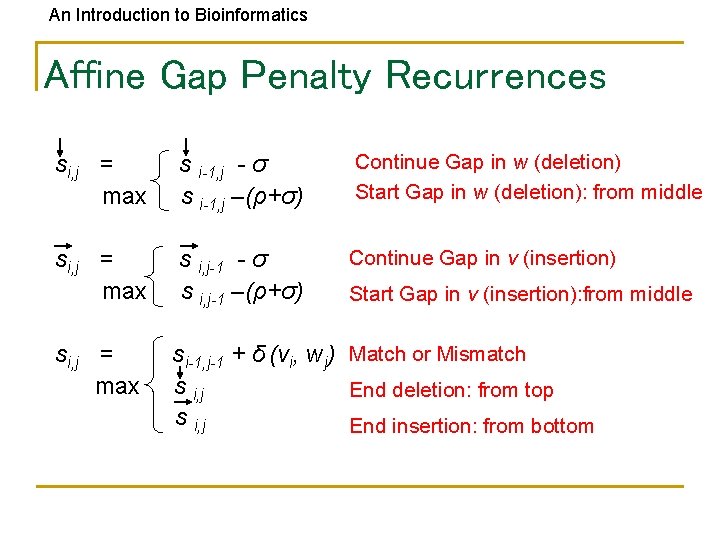

An Introduction to Bioinformatics Affine Gap Penalty Recurrences si, j = max s i-1, j - σ s i-1, j –(ρ+σ) Continue Gap in w (deletion) Start Gap in w (deletion): from middle si, j = max s i, j-1 - σ s i, j-1 –(ρ+σ) Continue Gap in v (insertion) si, j = max si-1, j-1 + δ (vi, wj) Match or Mismatch s i, j End deletion: from top s i, j End insertion: from bottom Start Gap in v (insertion): from middle

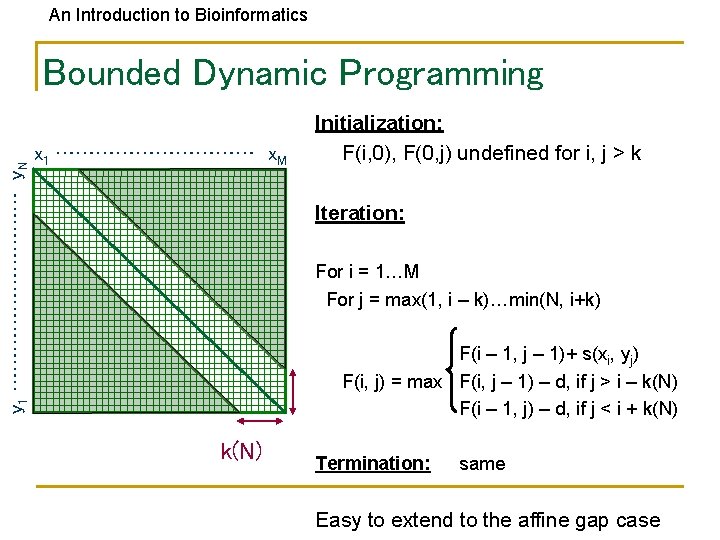

An Introduction to Bioinformatics y 1 …………… y. N Bounded Dynamic Programming x 1 …………… x. M Initialization: F(i, 0), F(0, j) undefined for i, j > k Iteration: For i = 1…M For j = max(1, i – k)…min(N, i+k) F(i – 1, j – 1)+ s(xi, yj) F(i, j) = max F(i, j – 1) – d, if j > i – k(N) F(i – 1, j) – d, if j < i + k(N) Termination: same Easy to extend to the affine gap case

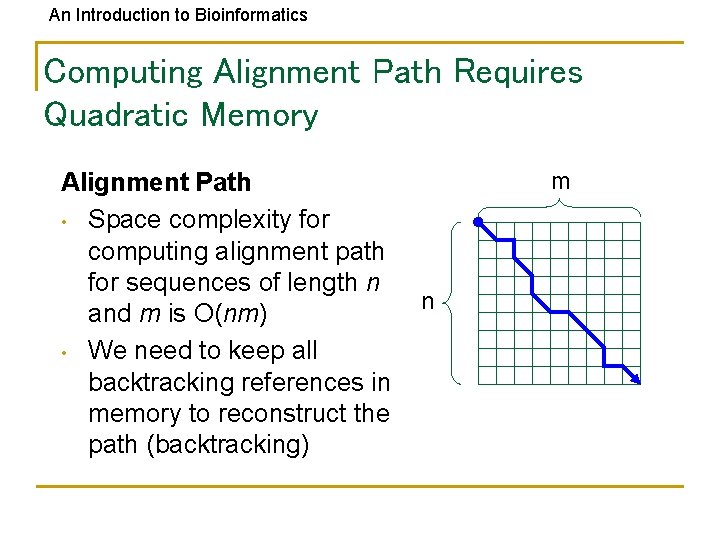

An Introduction to Bioinformatics Computing Alignment Path Requires Quadratic Memory Alignment Path • Space complexity for computing alignment path for sequences of length n and m is O(nm) • We need to keep all backtracking references in memory to reconstruct the path (backtracking) m n

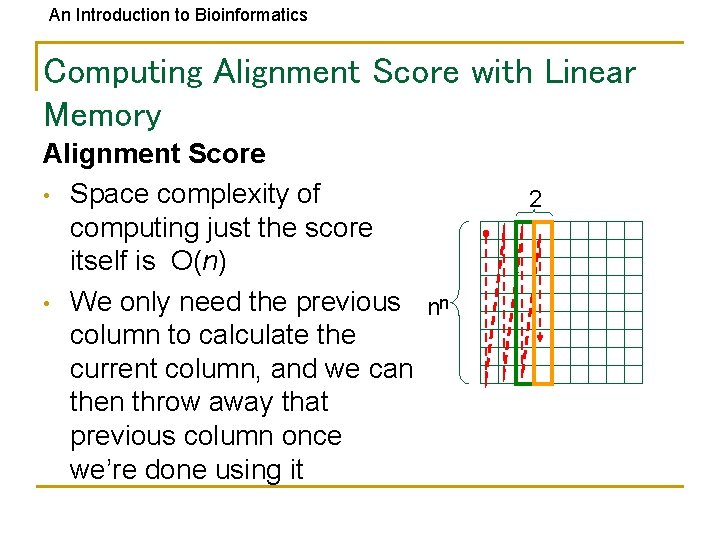

An Introduction to Bioinformatics Computing Alignment Score with Linear Memory Alignment Score • Space complexity of computing just the score itself is O(n) • We only need the previous nn column to calculate the current column, and we can then throw away that previous column once we’re done using it 2

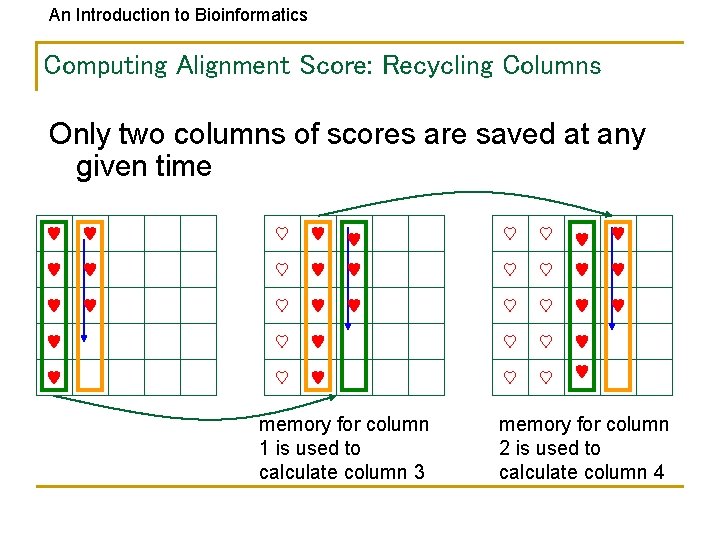

An Introduction to Bioinformatics Computing Alignment Score: Recycling Columns Only two columns of scores are saved at any given time memory for column 1 is used to calculate column 3 memory for column 2 is used to calculate column 4

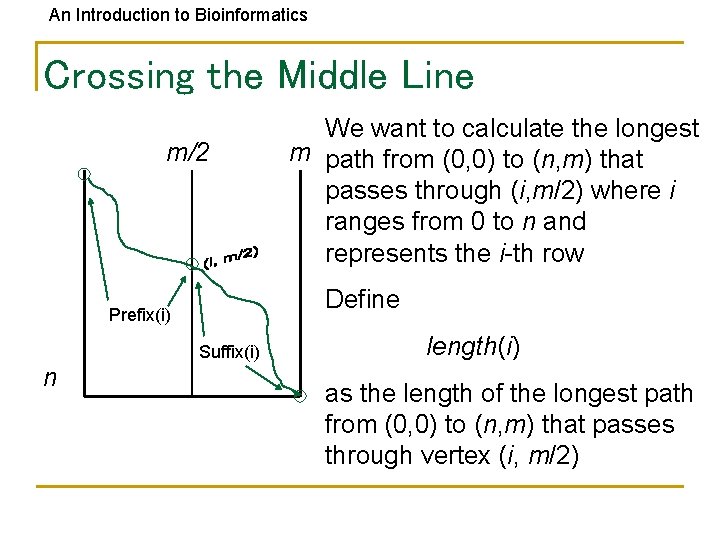

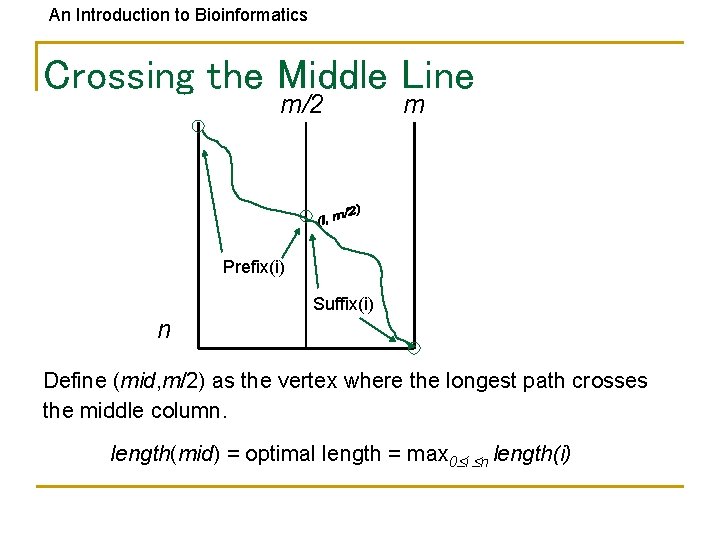

An Introduction to Bioinformatics Crossing the Middle Line m/2 Define Prefix(i) Suffix(i) n We want to calculate the longest m path from (0, 0) to (n, m) that passes through (i, m/2) where i ranges from 0 to n and represents the i-th row length(i) as the length of the longest path from (0, 0) to (n, m) that passes through vertex (i, m/2)

An Introduction to Bioinformatics Crossing the Middle Line m/2 m Prefix(i) Suffix(i) n Define (mid, m/2) as the vertex where the longest path crosses the middle column. length(mid) = optimal length = max 0 i n length(i)

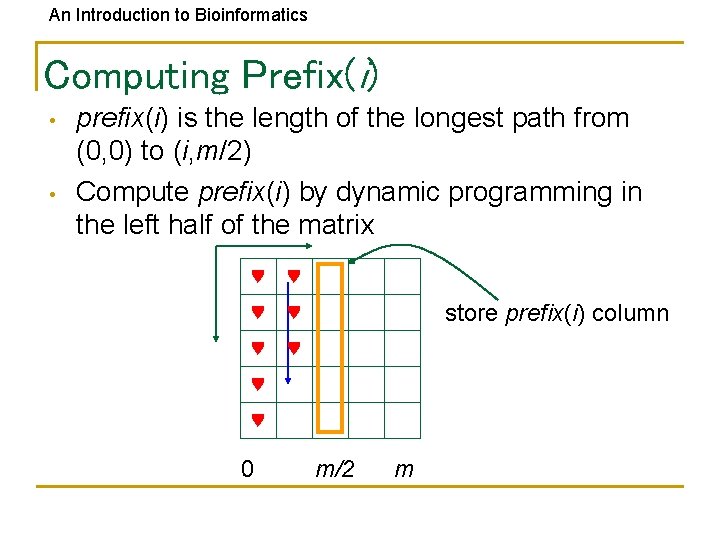

An Introduction to Bioinformatics Computing Prefix(i) • • prefix(i) is the length of the longest path from (0, 0) to (i, m/2) Compute prefix(i) by dynamic programming in the left half of the matrix store prefix(i) column 0 m/2 m

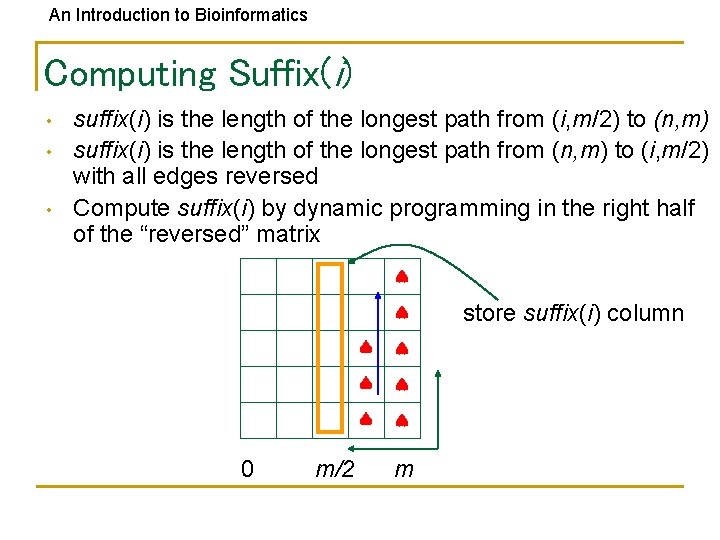

An Introduction to Bioinformatics Computing Suffix(i) • • • suffix(i) is the length of the longest path from (i, m/2) to (n, m) suffix(i) is the length of the longest path from (n, m) to (i, m/2) with all edges reversed Compute suffix(i) by dynamic programming in the right half of the “reversed” matrix store suffix(i) column 0 m/2 m

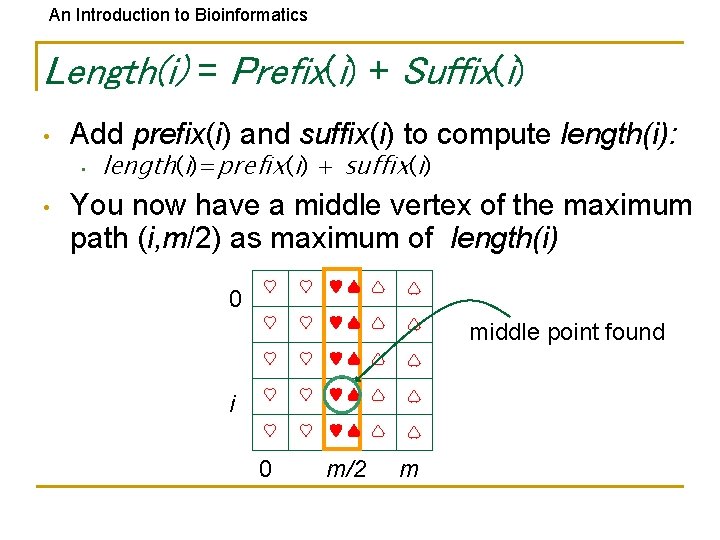

An Introduction to Bioinformatics Length(i) = Prefix(i) + Suffix(i) • Add prefix(i) and suffix(i) to compute length(i): • • length(i)=prefix(i) + suffix(i) You now have a middle vertex of the maximum path (i, m/2) as maximum of length(i) 0 middle point found i 0 m/2 m

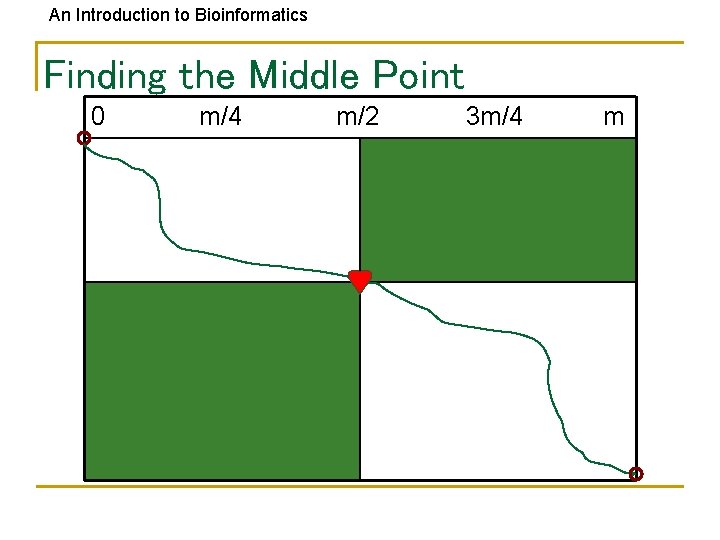

An Introduction to Bioinformatics Finding the Middle Point 0 m/4 m/2 3 m/4 m

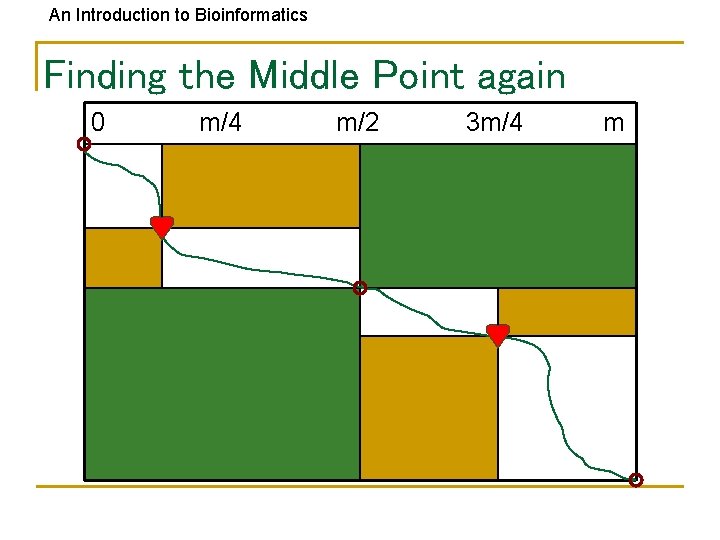

An Introduction to Bioinformatics Finding the Middle Point again 0 m/4 m/2 3 m/4 m

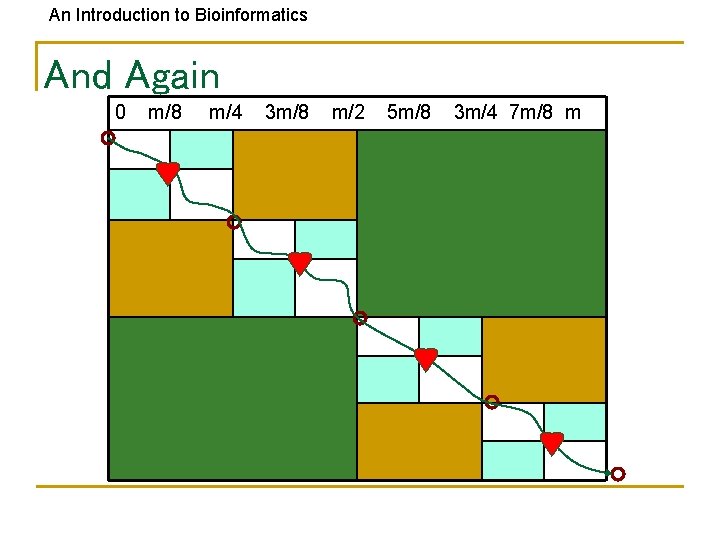

An Introduction to Bioinformatics And Again 0 m/8 m/4 3 m/8 m/2 5 m/8 3 m/4 7 m/8 m

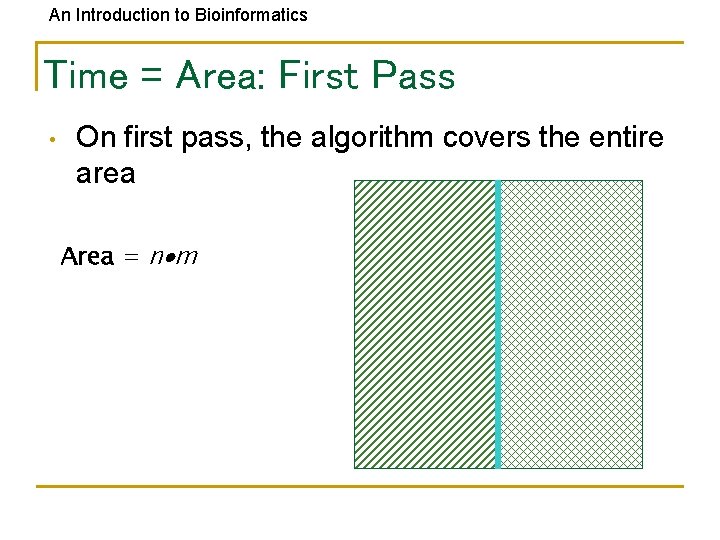

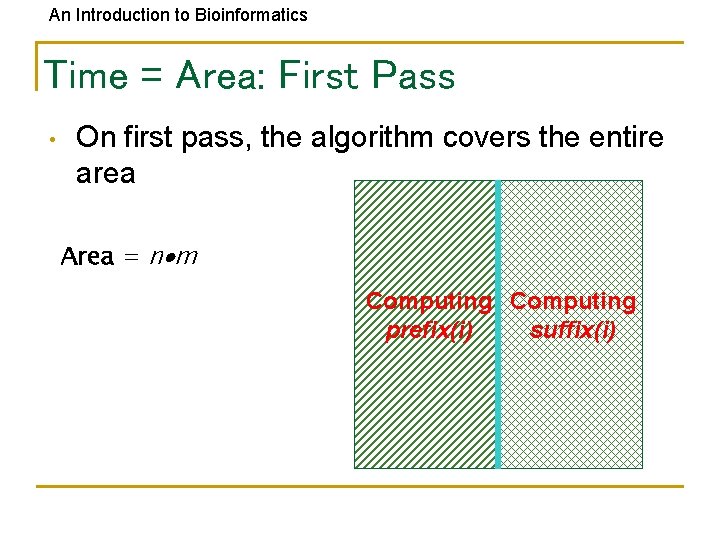

An Introduction to Bioinformatics Time = Area: First Pass • On first pass, the algorithm covers the entire area Area = n m

An Introduction to Bioinformatics Time = Area: First Pass • On first pass, the algorithm covers the entire area Area = n m Computing prefix(i) suffix(i)

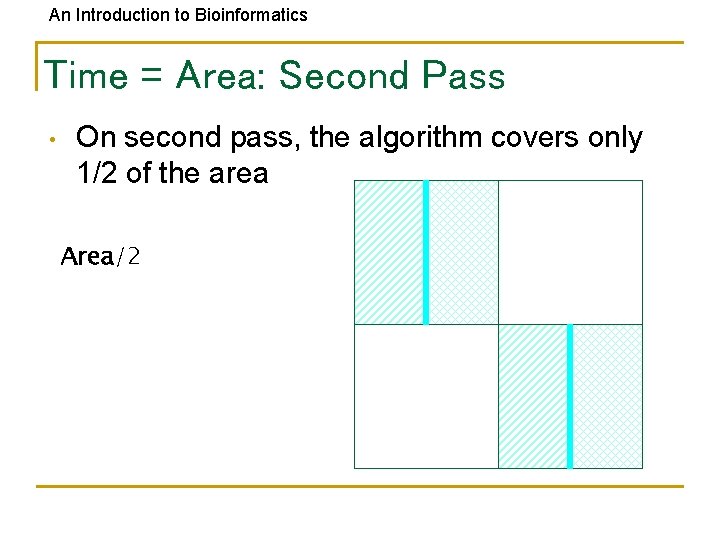

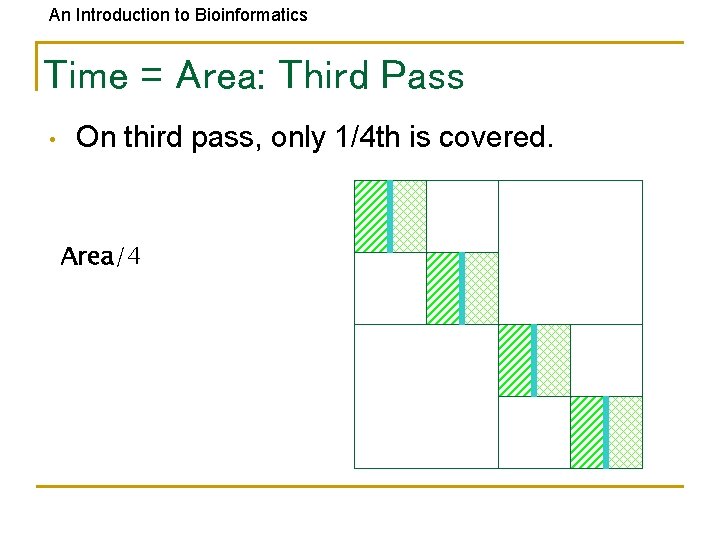

An Introduction to Bioinformatics Time = Area: Second Pass • On second pass, the algorithm covers only 1/2 of the area Area/2

An Introduction to Bioinformatics Time = Area: Third Pass • On third pass, only 1/4 th is covered. Area/4

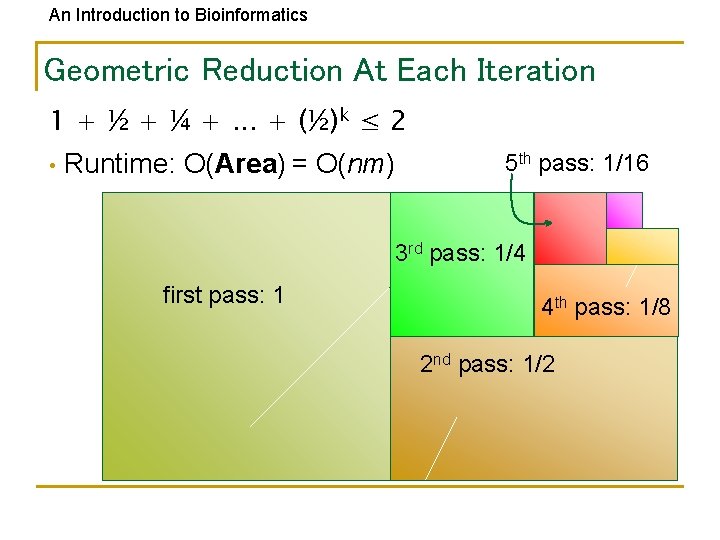

An Introduction to Bioinformatics Geometric Reduction At Each Iteration 1 + ½ + ¼ +. . . + (½)k ≤ 2 • Runtime: O(Area) = O(nm) 5 th pass: 1/16 3 rd pass: 1/4 first pass: 1 4 th pass: 1/8 2 nd pass: 1/2

An Introduction to Bioinformatics Indexing-based Local Aligners BLAST, WU-BLAST, Blast. Z, Mega. BLAST, BLAT, Pattern. Hunter, ……

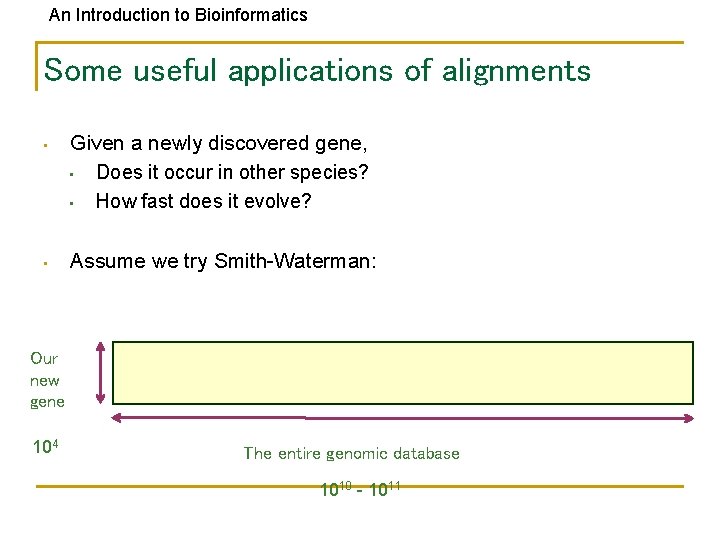

An Introduction to Bioinformatics Some useful applications of alignments • Given a newly discovered gene, • Does it occur in other species? • How fast does it evolve? • Assume we try Smith-Waterman: Our new gene 104 The entire genomic database 1010 - 1011

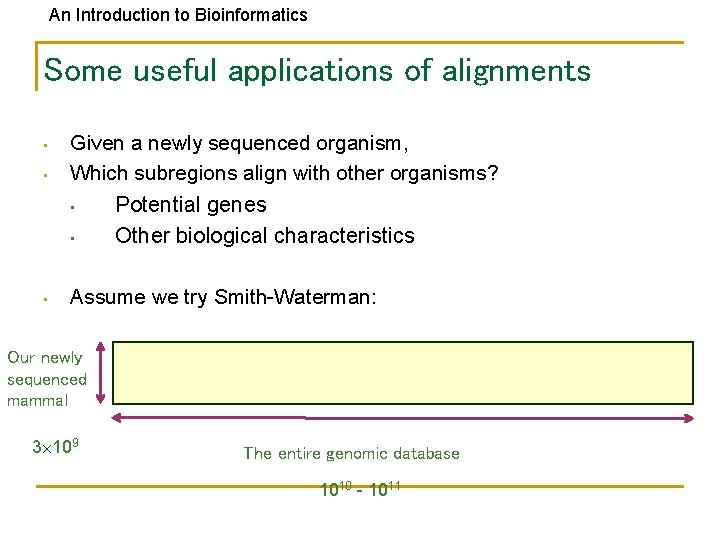

An Introduction to Bioinformatics Some useful applications of alignments • • Given a newly sequenced organism, Which subregions align with other organisms? • Potential genes • • Other biological characteristics Assume we try Smith-Waterman: Our newly sequenced mammal 3 109 The entire genomic database 1010 - 1011

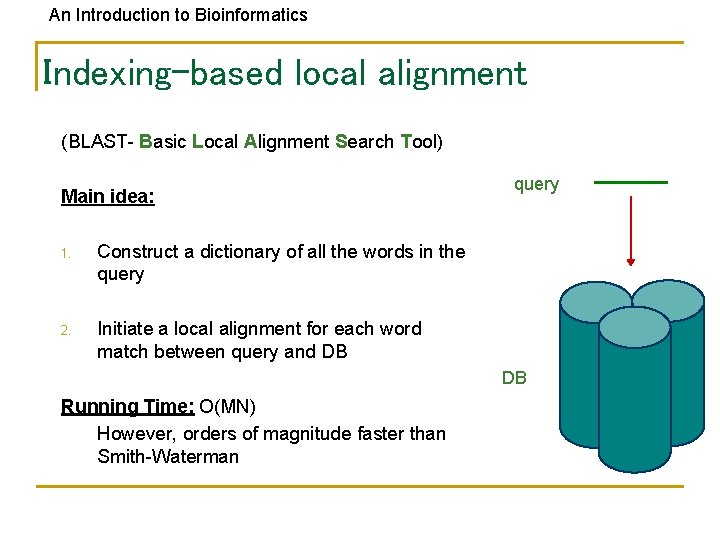

An Introduction to Bioinformatics Indexing-based local alignment (BLAST- Basic Local Alignment Search Tool) Main idea: 1. Construct a dictionary of all the words in the query 2. Initiate a local alignment for each word match between query and DB query DB Running Time: O(MN) However, orders of magnitude faster than Smith-Waterman

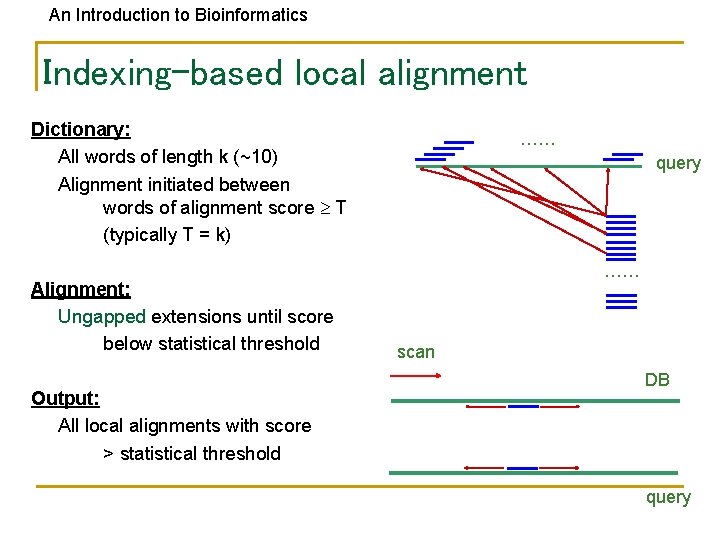

An Introduction to Bioinformatics Indexing-based local alignment Dictionary: All words of length k (~10) Alignment initiated between words of alignment score T (typically T = k) Alignment: Ungapped extensions until score below statistical threshold Output: All local alignments with score > statistical threshold …… query …… scan DB query

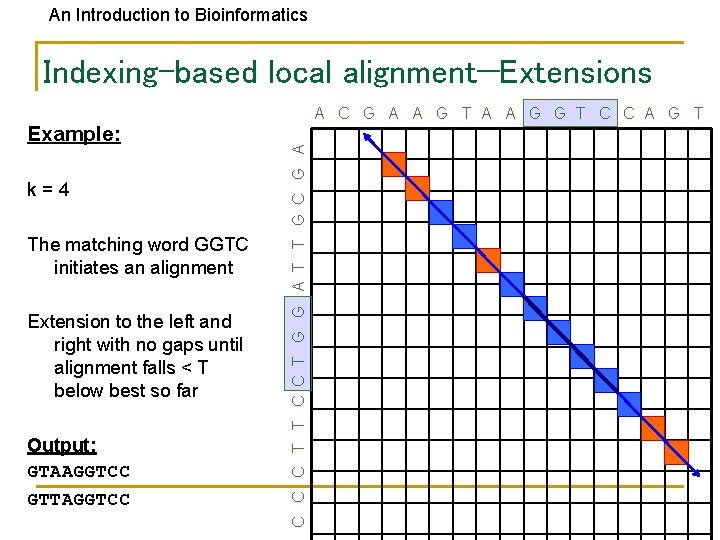

An Introduction to Bioinformatics Indexing-based local alignment—Extensions k=4 The matching word GGTC initiates an alignment Extension to the left and right with no gaps until alignment falls < T below best so far Output: GTAAGGTCC GTTAGGTCC C T T C C T G G A T T G C G A Example: A C G A A G T A A G G T C C A G T

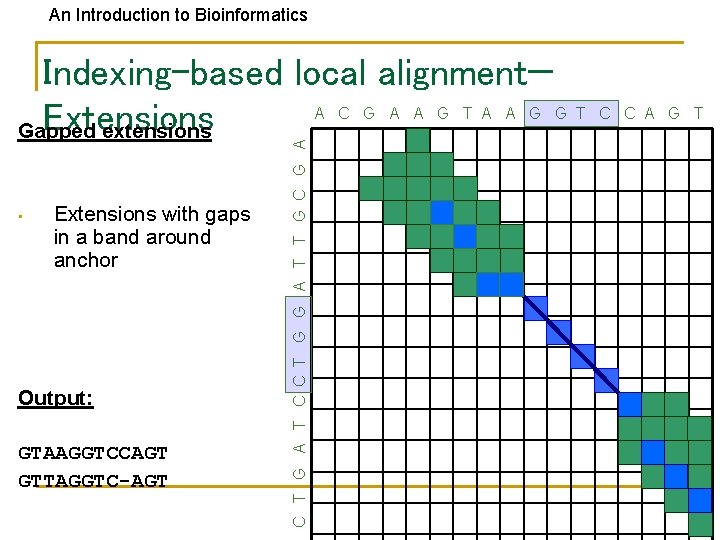

An Introduction to Bioinformatics • Extensions with gaps in a band around anchor Output: GTAAGGTCCAGT GTTAGGTC-AGT C T G A T C C T G G A T T G C G A Indexing-based local alignment— A C G A A G T A A G G T Extensions Gapped extensions C C A G T

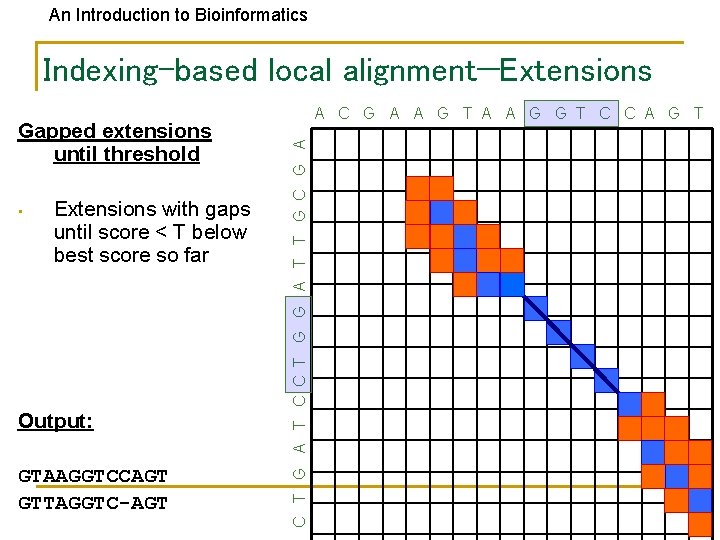

An Introduction to Bioinformatics Indexing-based local alignment—Extensions • Extensions with gaps until score < T below best score so far Output: GTAAGGTCCAGT GTTAGGTC-AGT C T G A T C C T G G A T T G C G A Gapped extensions until threshold A C G A A G T A A G G T C C A G T

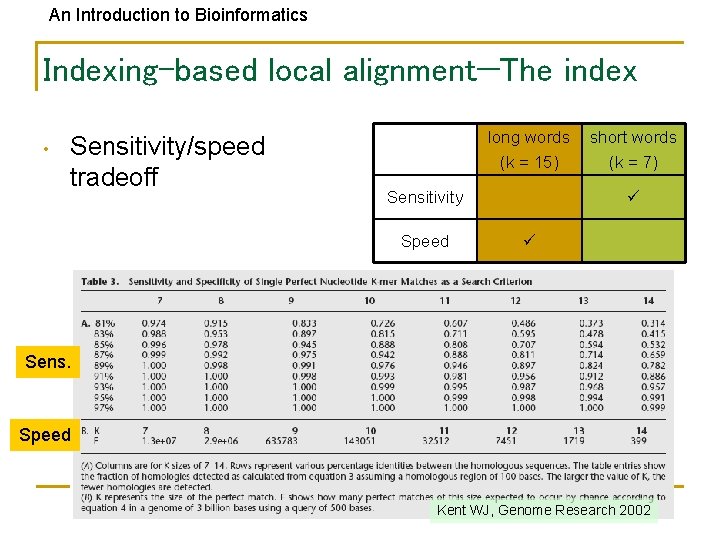

An Introduction to Bioinformatics Indexing-based local alignment—The index • Sensitivity/speed tradeoff long words (k = 15) Sensitivity Speed short words (k = 7) Sens. Speed Kent WJ, Genome Research 2002

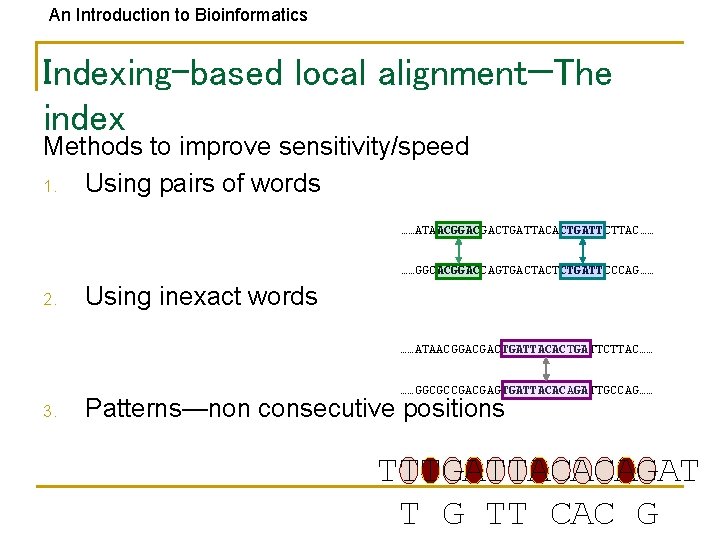

An Introduction to Bioinformatics Indexing-based local alignment—The index Methods to improve sensitivity/speed 1. Using pairs of words ……ATAACGGACGACTGATTACACTGATTCTTAC…… ……GGCACGGACCAGTGACTACTCTGATTCCCAG…… 2. Using inexact words ……ATAACGGACGACTGATTACACTGATTCTTAC…… ……GGCGCCGACGAGTGATTACACAGATTGCCAG…… 3. Patterns—non consecutive positions TTTGATTACACAGAT T G TT CAC G

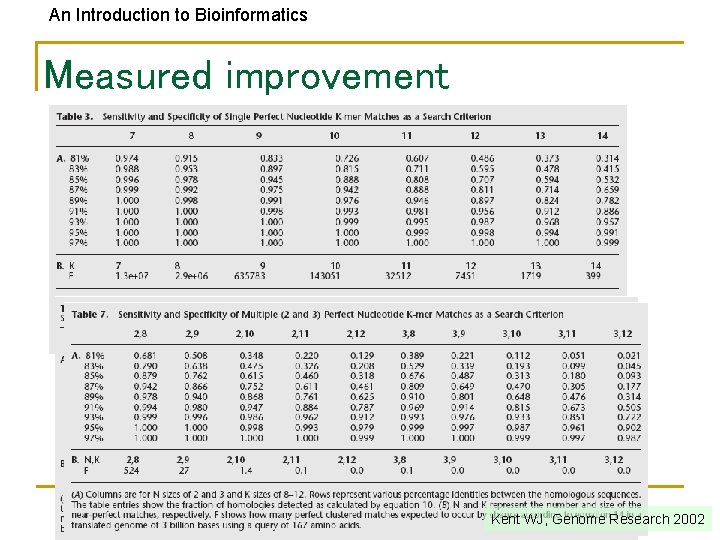

An Introduction to Bioinformatics Measured improvement Kent WJ, Genome Research 2002

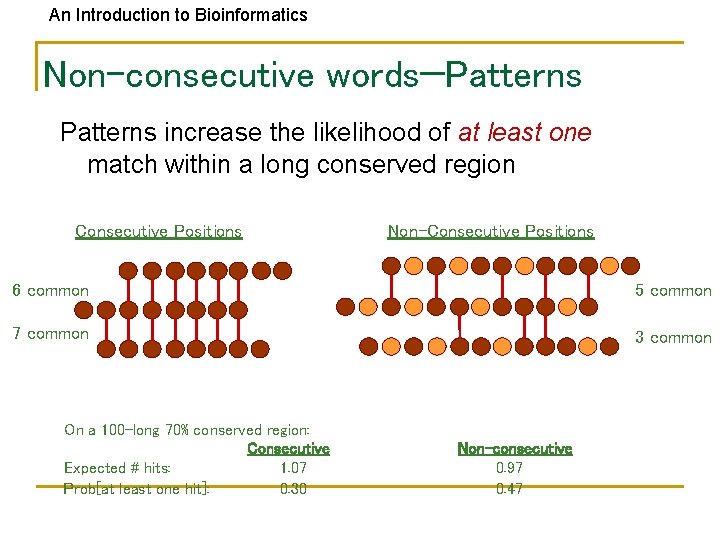

An Introduction to Bioinformatics Non-consecutive words—Patterns increase the likelihood of at least one match within a long conserved region Consecutive Positions Non-Consecutive Positions 6 common 5 common 7 common 3 common On a 100 -long 70% conserved region: Consecutive Expected # hits: 1. 07 Prob[at least one hit]: 0. 30 Non-consecutive 0. 97 0. 47

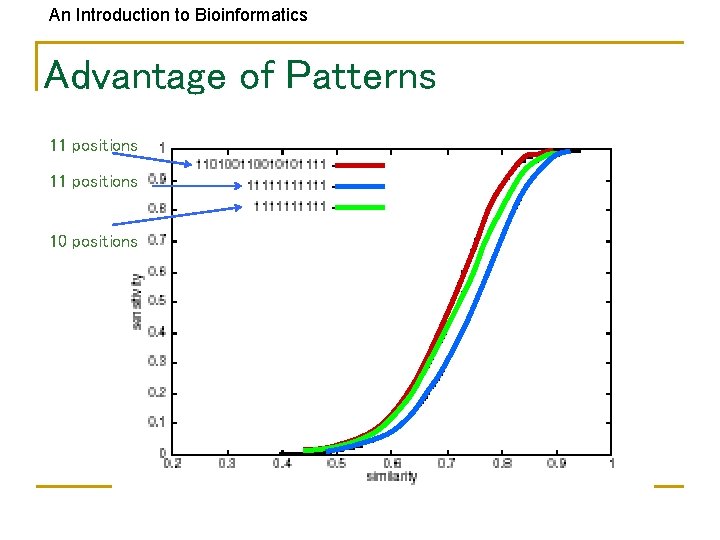

An Introduction to Bioinformatics Advantage of Patterns 11 positions 10 positions

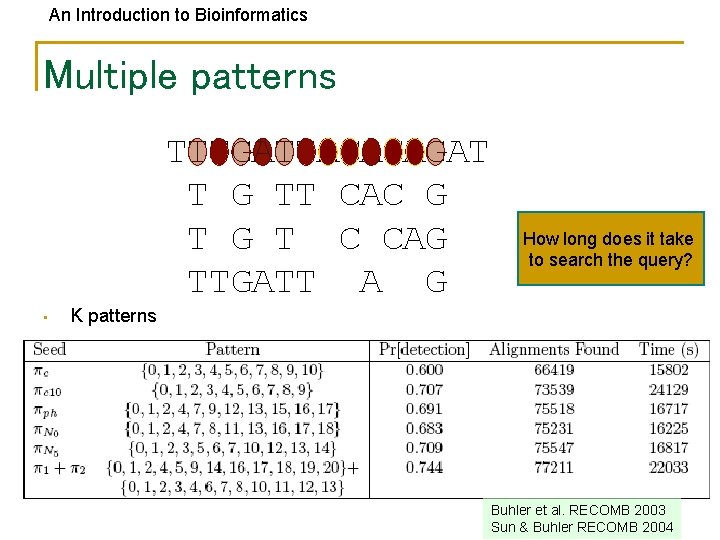

An Introduction to Bioinformatics Multiple patterns TTTGATTACACAGAT T G TT CAC G T C CAG TTGATT A G • K patterns • • • How long does it take to search the query? Takes K times longer to scan Patterns can complement one another Computational problem: • • Given: a model (prob distribution) for homology between two regions Find: best set of K patterns that maximizes Prob(at least one match) Buhler et al. RECOMB 2003 Sun & Buhler RECOMB 2004

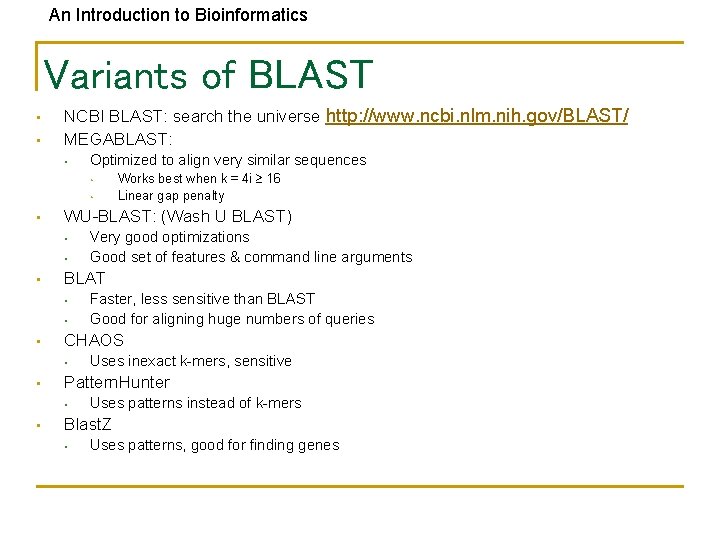

An Introduction to Bioinformatics Variants of BLAST • • NCBI BLAST: search the universe http: //www. ncbi. nlm. nih. gov/BLAST/ MEGABLAST: • Optimized to align very similar sequences • • • WU-BLAST: (Wash U BLAST) • • Uses inexact k-mers, sensitive Pattern. Hunter • • Faster, less sensitive than BLAST Good for aligning huge numbers of queries CHAOS • • Very good optimizations Good set of features & command line arguments BLAT • • Works best when k = 4 i 16 Linear gap penalty Uses patterns instead of k-mers Blast. Z • Uses patterns, good for finding genes

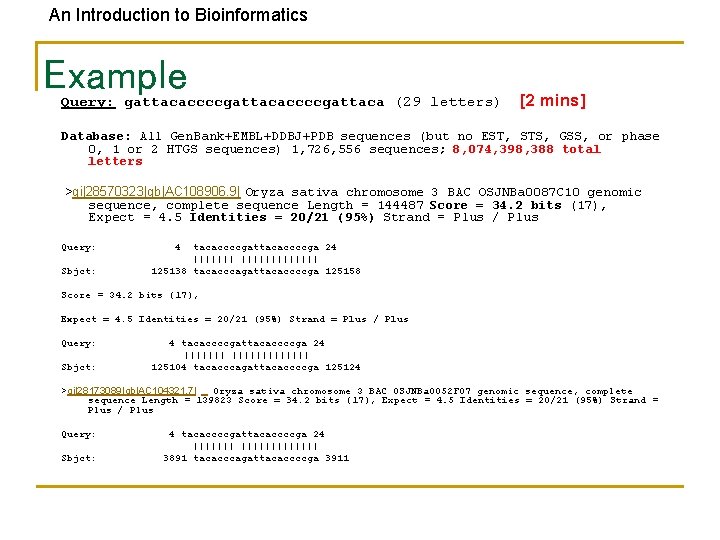

An Introduction to Bioinformatics Example Query: gattacaccccgattaca (29 letters) [2 mins] Database: All Gen. Bank+EMBL+DDBJ+PDB sequences (but no EST, STS, GSS, or phase 0, 1 or 2 HTGS sequences) 1, 726, 556 sequences; 8, 074, 398, 388 total letters >gi|28570323|gb|AC 108906. 9| Oryza sativa chromosome 3 BAC OSJNBa 0087 C 10 genomic sequence, complete sequence Length = 144487 Score = 34. 2 bits (17), Expect = 4. 5 Identities = 20/21 (95%) Strand = Plus / Plus Query: Sbjct: 4 tacaccccgattacaccccga 24 ||||||||||||| 125138 tacacccagattacaccccga 125158 Score = 34. 2 bits (17), Expect = 4. 5 Identities = 20/21 (95%) Strand = Plus / Plus Query: Sbjct: 4 tacaccccgattacaccccga 24 ||||||||||||| 125104 tacacccagattacaccccga 125124 >gi|28173089|gb|AC 104321. 7| Oryza sativa chromosome 3 BAC OSJNBa 0052 F 07 genomic sequence, complete sequence Length = 139823 Score = 34. 2 bits (17), Expect = 4. 5 Identities = 20/21 (95%) Strand = Plus / Plus Query: Sbjct: 4 tacaccccgattacaccccga 24 ||||||||||||| 3891 tacacccagattacaccccga 3911

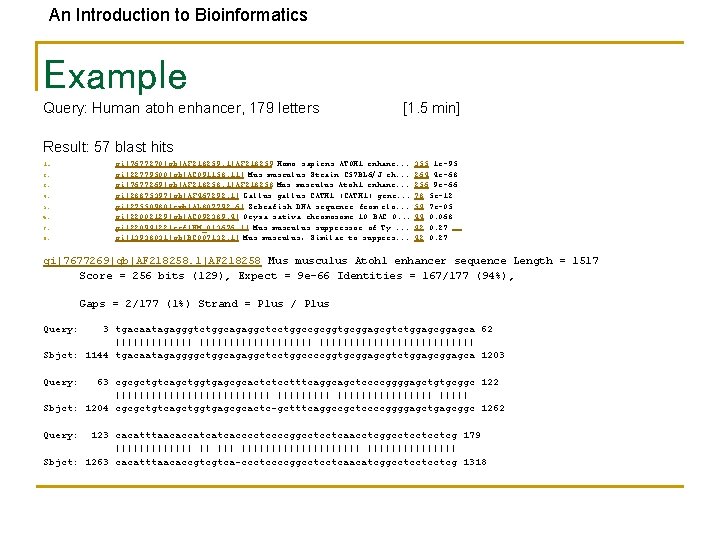

An Introduction to Bioinformatics Example Query: Human atoh enhancer, 179 letters [1. 5 min] Result: 57 blast hits gi|7677270|gb|AF 218259. 1|AF 218259 Homo sapiens ATOH 1 enhanc. . . gi|22779500|gb|AC 091158. 11| Mus musculus Strain C 57 BL 6/J ch. . . gi|7677269|gb|AF 218258. 1|AF 218258 Mus musculus Atoh 1 enhanc. . . gi|28875397|gb|AF 467292. 1| Gallus gallus CATH 1 (CATH 1) gene. . . gi|27550980|emb|AL 807792. 6| Zebrafish DNA sequence from clo. . . gi|22002129|gb|AC 092389. 4| Oryza sativa chromosome 10 BAC O. . . gi|22094122|ref|NM_013676. 1| Mus musculus suppressor of Ty. . . gi|13938031|gb|BC 007132. 1| Mus musculus, Similar to suppres. . . 1. 2. 3. 4. 5. 6. 7. 8. 355 1 e-95 264 4 e-68 256 9 e-66 78 5 e-12 54 7 e-05 44 0. 068 42 0. 27 gi|7677269|gb|AF 218258. 1|AF 218258 Mus musculus Atoh 1 enhancer sequence Length = 1517 Score = 256 bits (129), Expect = 9 e-66 Identities = 167/177 (94%), Gaps = 2/177 (1%) Strand = Plus / Plus Query: 3 tgacaatagagggtctggcagaggctcctggccgcggtgcggagcgtctggagca 62 ||||||||||||||||||| Sbjct: 1144 tgacaatagaggggctggcagaggctcctggccccggtgcggagcgtctggagca 1203 Query: 63 cgcgctgtcagctggtgagcgcactctcctttcaggcagctccccggggagctgtgcggc 122 |||||||||||||||| Sbjct: 1204 cgcgctgtcagctggtgagcgcactc-gctttcaggccgctccccggggagctgagcggc 1262 Query: 123 cacatttaacaccatcatcacccctccccggcctcctcaacctcggcctcctcctcg 179 ||||||| || ||||||||||| Sbjct: 1263 cacatttaacaccgtcgtca-ccctccccggcctcctcaacatcggcctcctcctcg 1318
