An Introduction to ADO Net V S ABBIRAMY

An Introduction to ADO. Net V S ABBIRAMY Asst. Professor Department of Computer Science

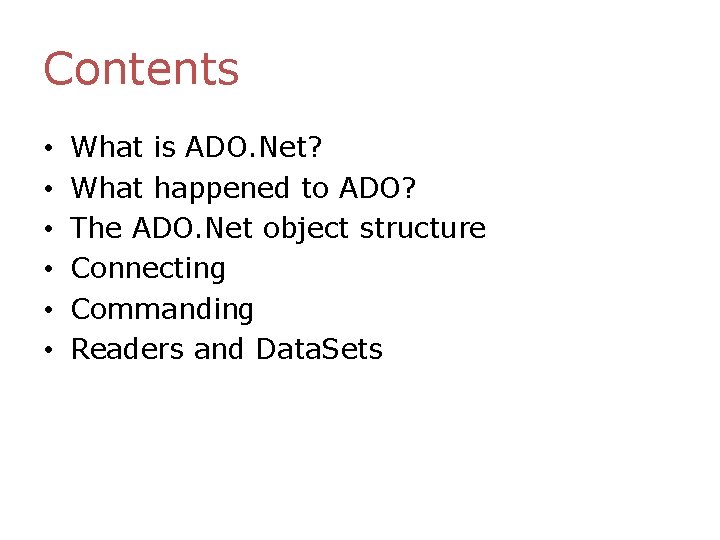

Contents • • • What is ADO. Net? What happened to ADO? The ADO. Net object structure Connecting Commanding Readers and Data. Sets

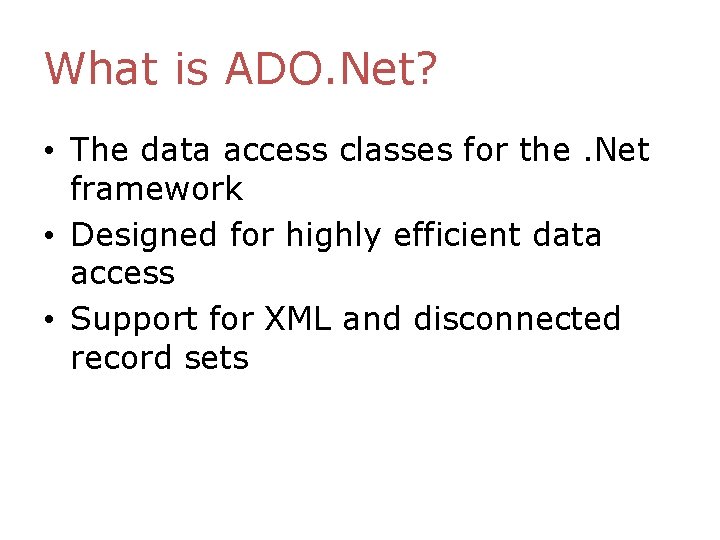

What is ADO. Net? • The data access classes for the. Net framework • Designed for highly efficient data access • Support for XML and disconnected record sets

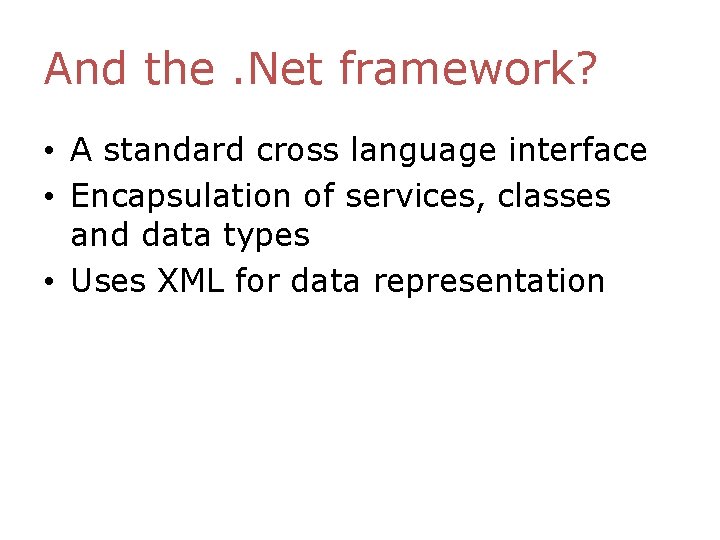

And the. Net framework? • A standard cross language interface • Encapsulation of services, classes and data types • Uses XML for data representation

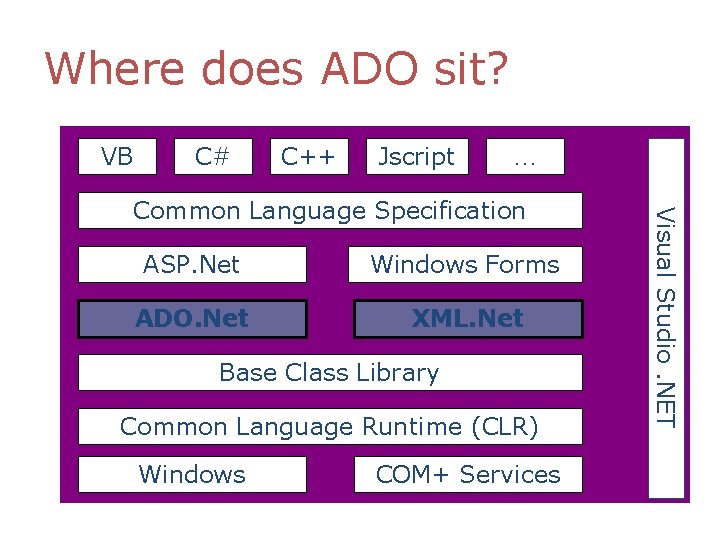

Where does ADO sit? VB C# C++ Jscript … ASP. Net Windows Forms ADO. Net XML. Net Base Class Library Common Language Runtime (CLR) Windows COM+ Services Visual Studio. NET Common Language Specification

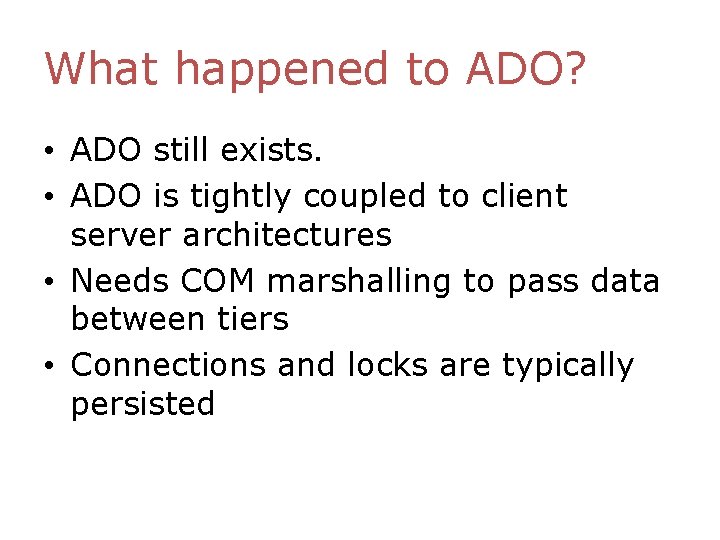

What happened to ADO? • ADO still exists. • ADO is tightly coupled to client server architectures • Needs COM marshalling to pass data between tiers • Connections and locks are typically persisted

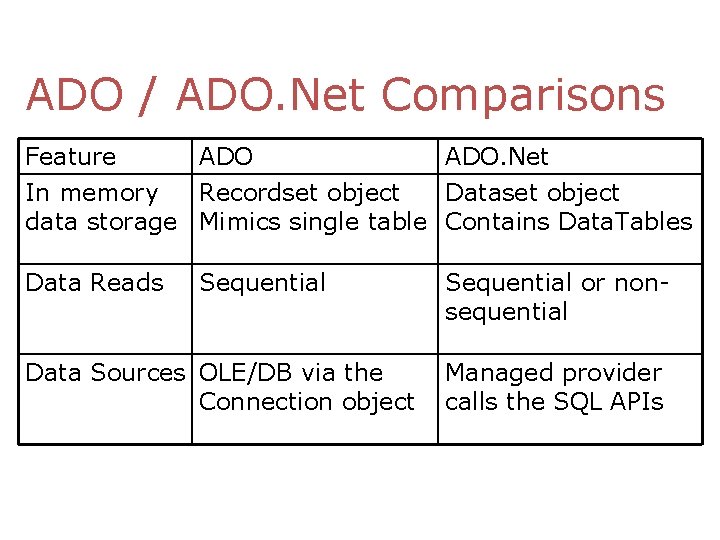

ADO / ADO. Net Comparisons Feature ADO. Net In memory Recordset object Dataset object data storage Mimics single table Contains Data. Tables Data Reads Sequential Data Sources OLE/DB via the Connection object Sequential or nonsequential Managed provider calls the SQL APIs

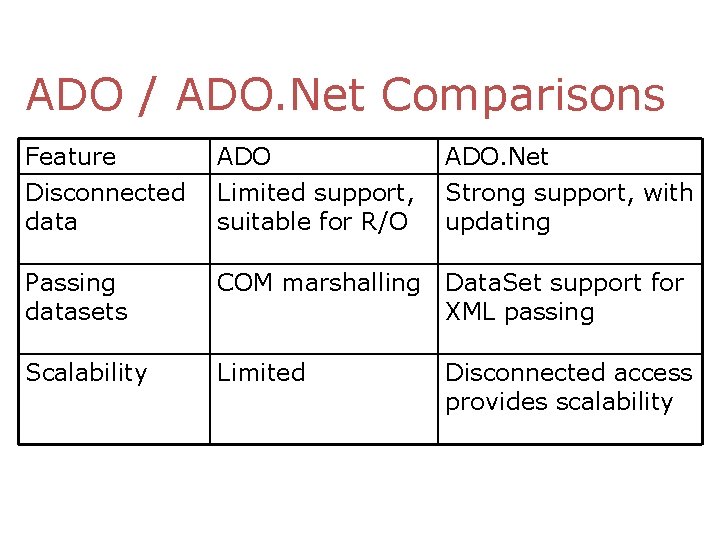

ADO / ADO. Net Comparisons Feature Disconnected data ADO Limited support, suitable for R/O ADO. Net Strong support, with updating Passing datasets COM marshalling Data. Set support for XML passing Scalability Limited Disconnected access provides scalability

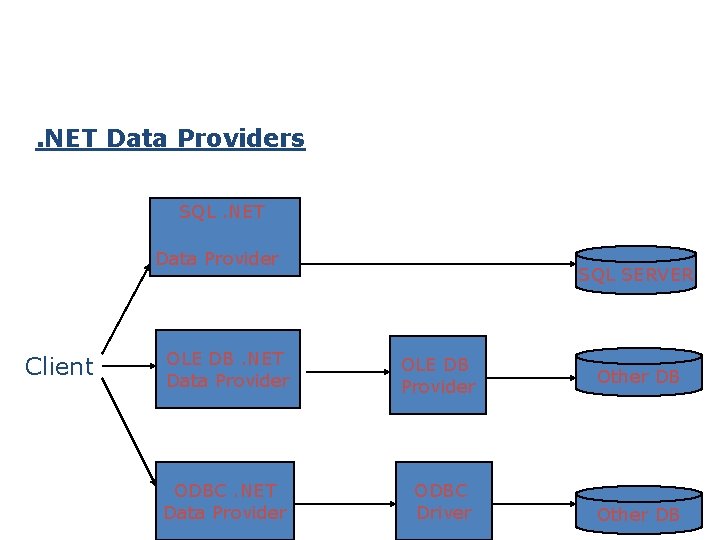

. NET Data Providers SQL. NET Data Provider Client SQL SERVER OLE DB. NET Data Provider OLE DB Provider ODBC. NET Data Provider ODBC Driver Other DB

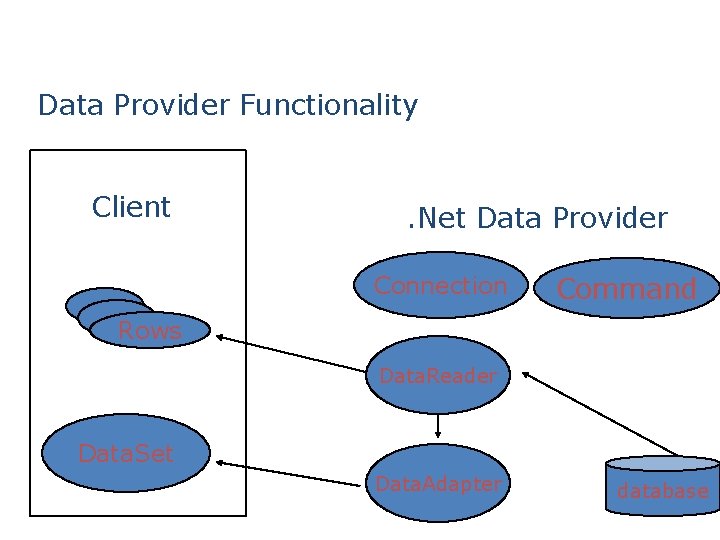

Data Provider Functionality Client . Net Data Provider Connection Command Rows Data. Reader Data. Set Data. Adapter database

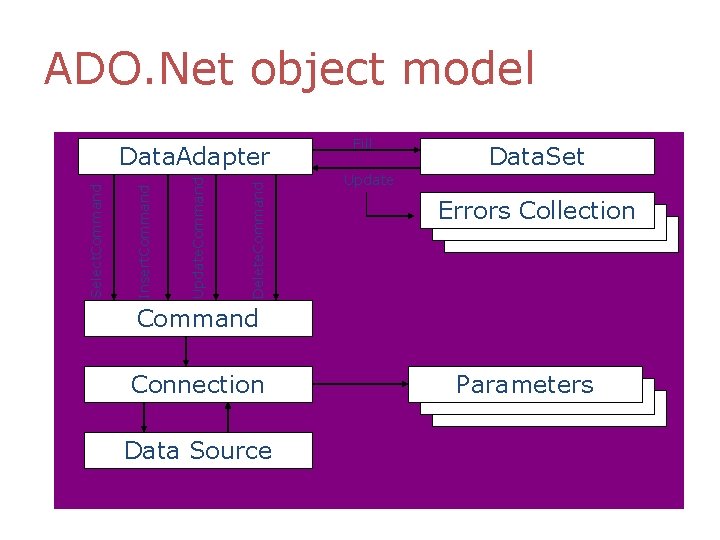

ADO. Net object model Delete. Command Update. Command Insert. Command Select. Command Data. Adapter Fill Data. Set Update Errors Collection Command Connection Data Source Parameters

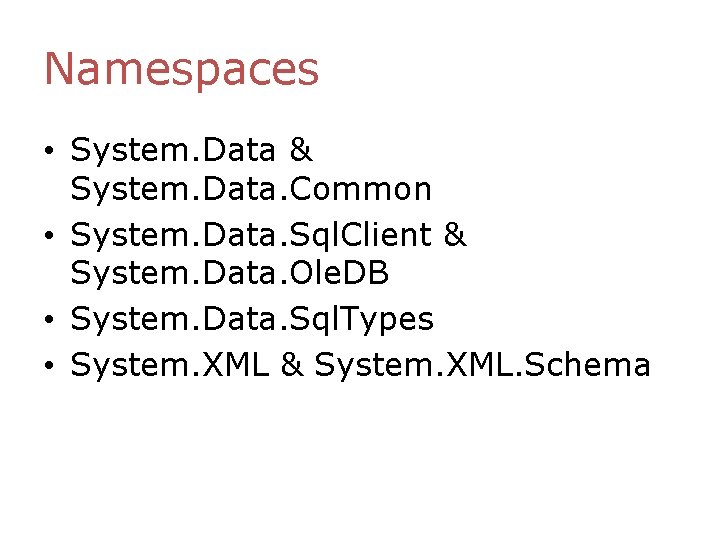

Namespaces • System. Data & System. Data. Common • System. Data. Sql. Client & System. Data. Ole. DB • System. Data. Sql. Types • System. XML & System. XML. Schema

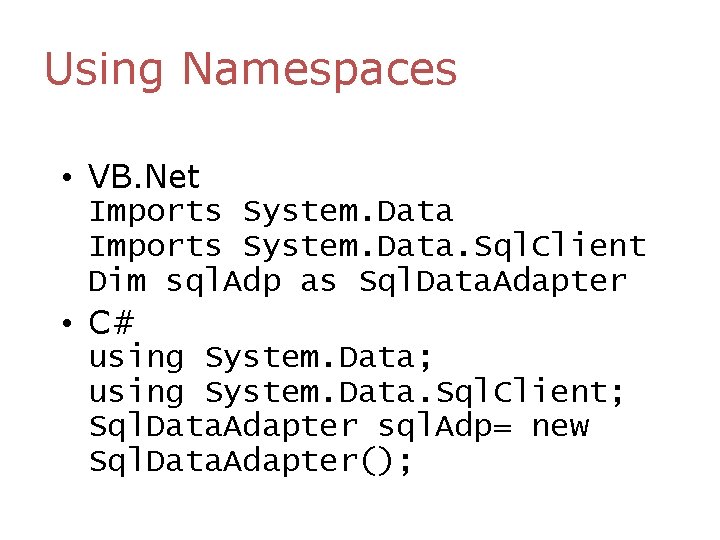

Using Namespaces • VB. Net Imports System. Data. Sql. Client Dim sql. Adp as Sql. Data. Adapter • C# using System. Data; using System. Data. Sql. Client; Sql. Data. Adapter sql. Adp= new Sql. Data. Adapter();

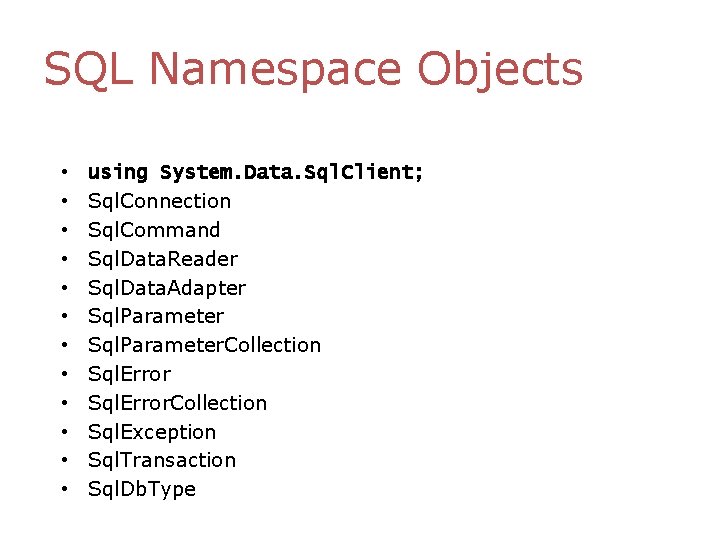

SQL Namespace Objects • • • using System. Data. Sql. Client; Sql. Connection Sql. Command Sql. Data. Reader Sql. Data. Adapter Sql. Parameter. Collection Sql. Error. Collection Sql. Exception Sql. Transaction Sql. Db. Type

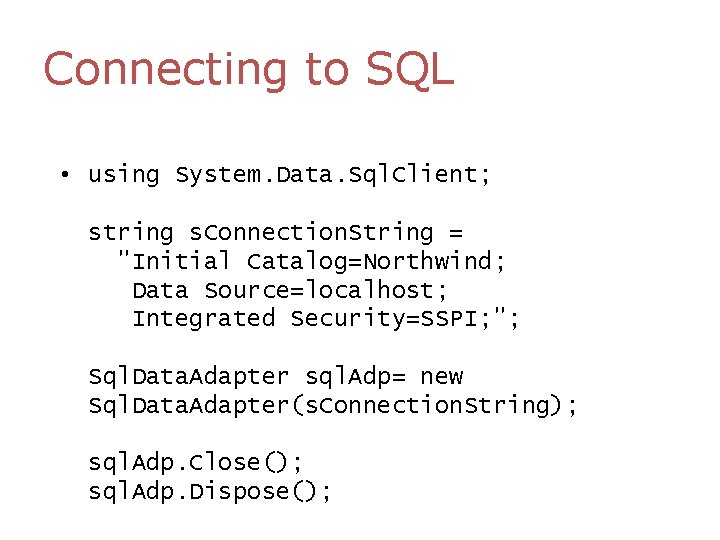

Connecting to SQL • using System. Data. Sql. Client; string s. Connection. String = "Initial Catalog=Northwind; Data Source=localhost; Integrated Security=SSPI; "; Sql. Data. Adapter sql. Adp= new Sql. Data. Adapter(s. Connection. String); sql. Adp. Close(); sql. Adp. Dispose();

Connection Pooling • ADO. Net pools connections. When you close a connection it is released back into a pool. • • • Sql. Connection conn = new Sql. Connection(); conn. Connection. String = "Integrated Security=SSPI; Initial Catalog=northwind"; conn. Open(); // Pool A is created. Sql. Connection conn = new Sql. Connection(); conn. Connection. String = "Integrated Security=SSPI; Initial Catalog=pubs"; conn. Open(); // Pool B is created because the connection strings differ. Sql. Connection conn = new Sql. Connection(); conn. Connection. String = "Integrated Security=SSPI; Initial Catalog=northwind"; conn. Open(); // The connection string matches pool A.

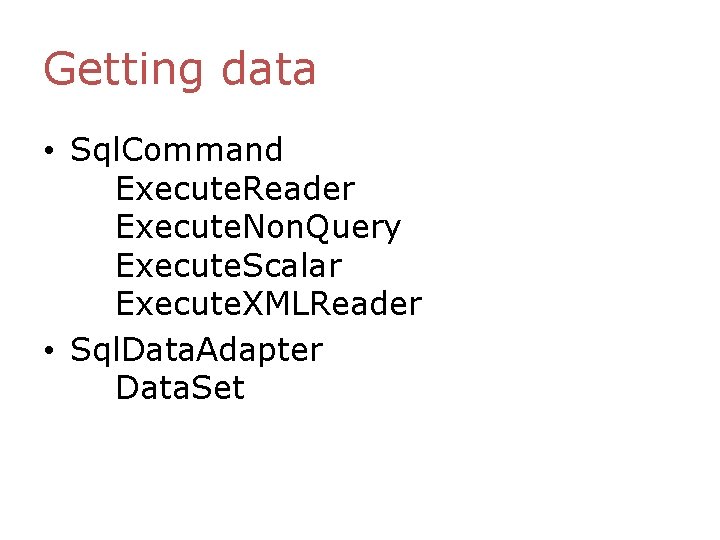

Getting data • Sql. Command Execute. Reader Execute. Non. Query Execute. Scalar Execute. XMLReader • Sql. Data. Adapter Data. Set

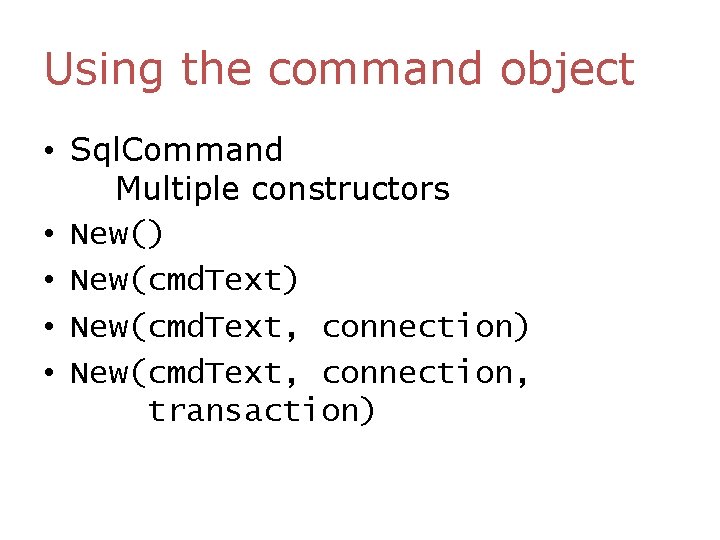

Using the command object • Sql. Command Multiple constructors • New() • New(cmd. Text, connection) • New(cmd. Text, connection, transaction)

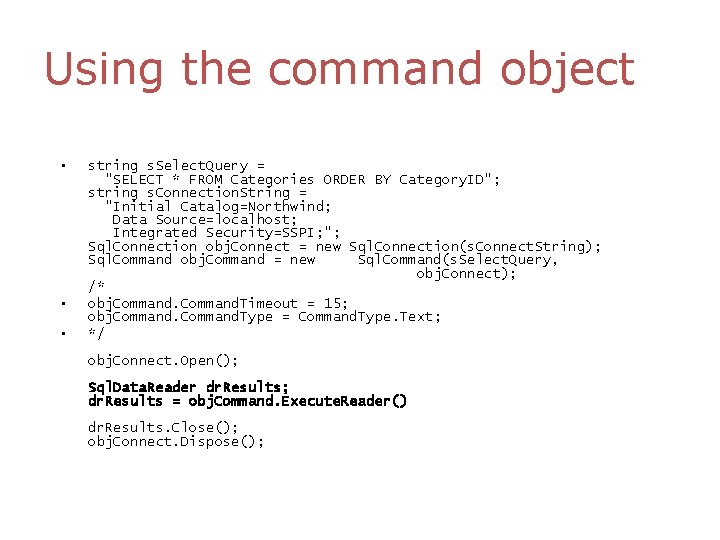

Using the command object • • • string s. Select. Query = "SELECT * FROM Categories ORDER BY Category. ID"; string s. Connection. String = "Initial Catalog=Northwind; Data Source=localhost; Integrated Security=SSPI; "; Sql. Connection obj. Connect = new Sql. Connection(s. Connect. String); Sql. Command obj. Command = new Sql. Command(s. Select. Query, obj. Connect); /* obj. Command. Timeout = 15; obj. Command. Type = Command. Type. Text; */ obj. Connect. Open(); Sql. Data. Reader dr. Results; dr. Results = obj. Command. Execute. Reader() dr. Results. Close(); obj. Connect. Dispose();

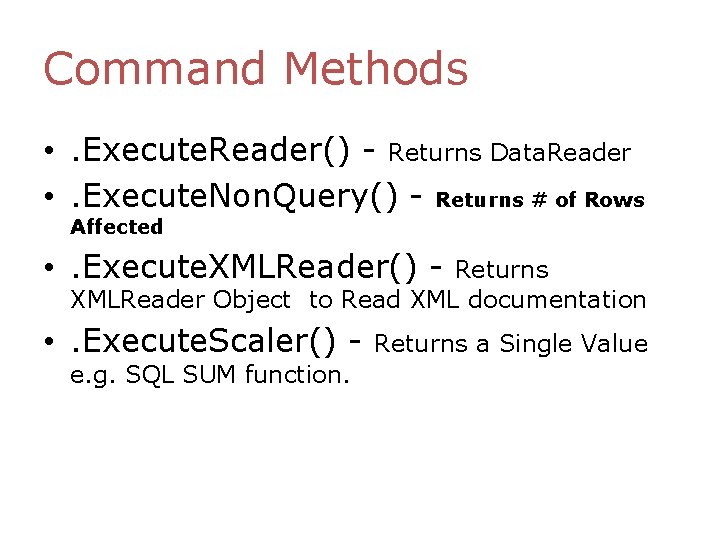

Command Methods • . Execute. Reader() - Returns Data. Reader • . Execute. Non. Query() - Returns # of Rows Affected • . Execute. XMLReader() - Returns XMLReader Object to Read XML documentation • . Execute. Scaler() e. g. SQL SUM function. Returns a Single Value

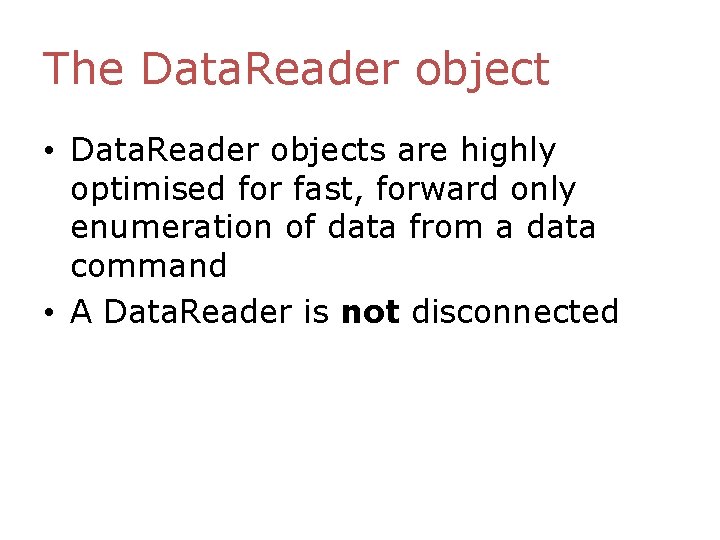

The Data. Reader object • Data. Reader objects are highly optimised for fast, forward only enumeration of data from a data command • A Data. Reader is not disconnected

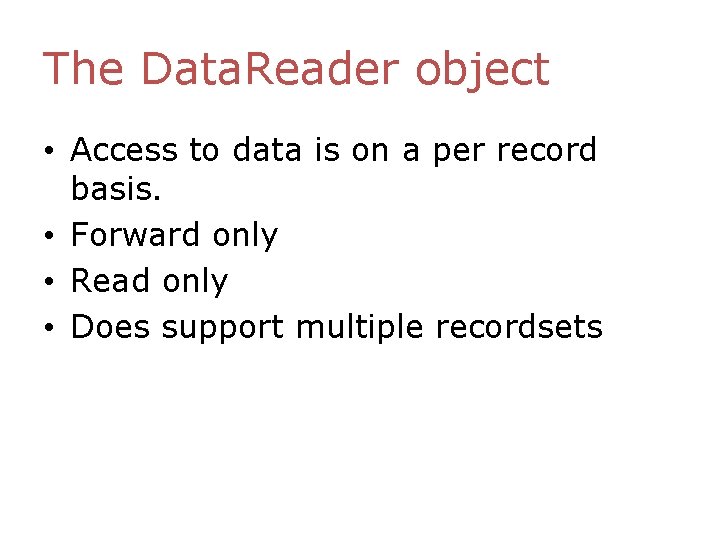

The Data. Reader object • Access to data is on a per record basis. • Forward only • Read only • Does support multiple recordsets

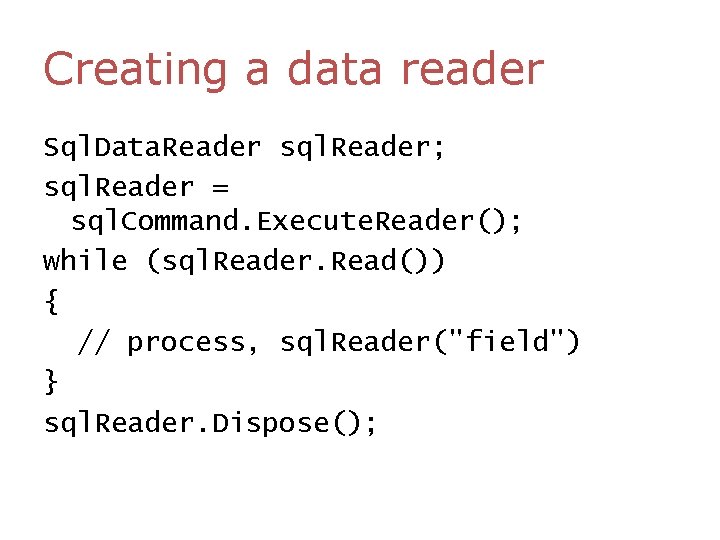

Creating a data reader Sql. Data. Reader sql. Reader; sql. Reader = sql. Command. Execute. Reader(); while (sql. Reader. Read()) { // process, sql. Reader("field") } sql. Reader. Dispose();

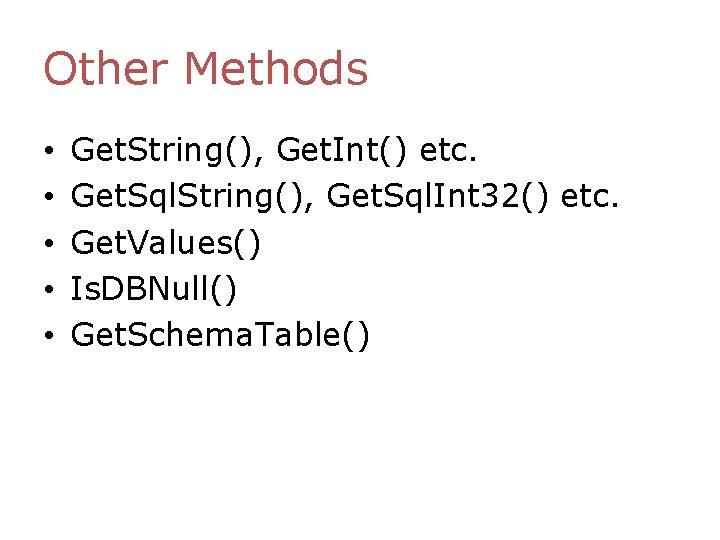

Other Methods • • • Get. String(), Get. Int() etc. Get. Sql. String(), Get. Sql. Int 32() etc. Get. Values() Is. DBNull() Get. Schema. Table()

Data. Sets • In-memory representation of data contained in a database/XML • Operations are performed on the Data. Set, not the data source • Can be created programmatically, using a Data. Adapter or XML schema and document (or any mixture)

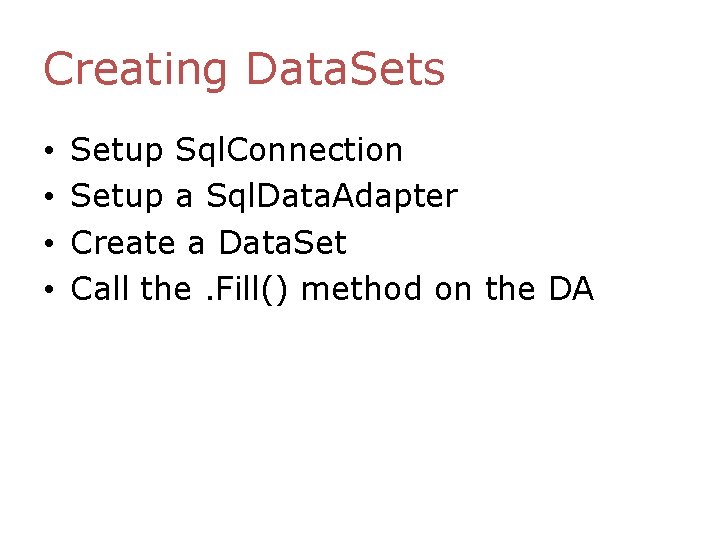

Creating Data. Sets • • Setup Sql. Connection Setup a Sql. Data. Adapter Create a Data. Set Call the. Fill() method on the DA

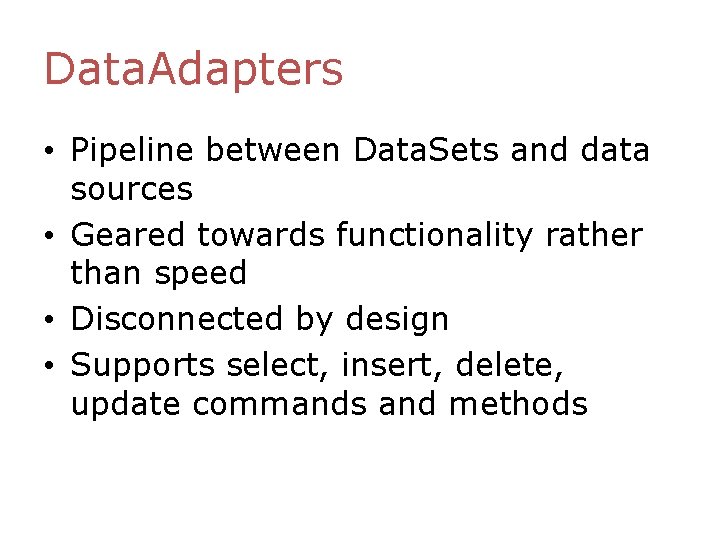

Data. Adapters • Pipeline between Data. Sets and data sources • Geared towards functionality rather than speed • Disconnected by design • Supports select, insert, delete, update commands and methods

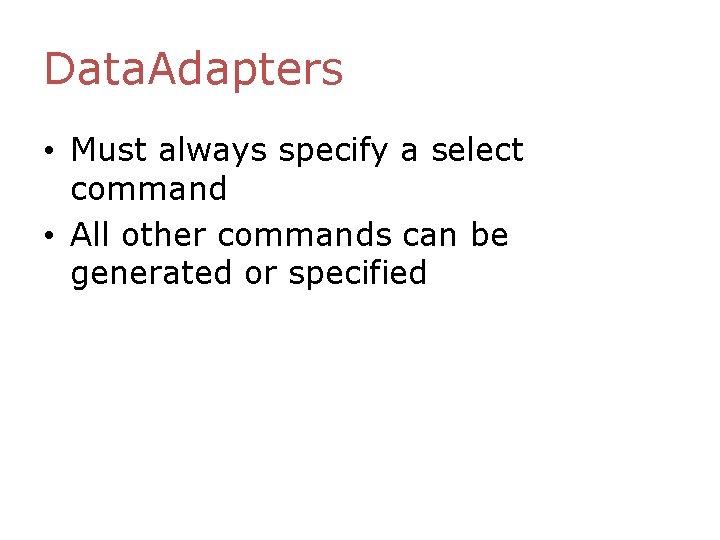

Data. Adapters • Must always specify a select command • All other commands can be generated or specified

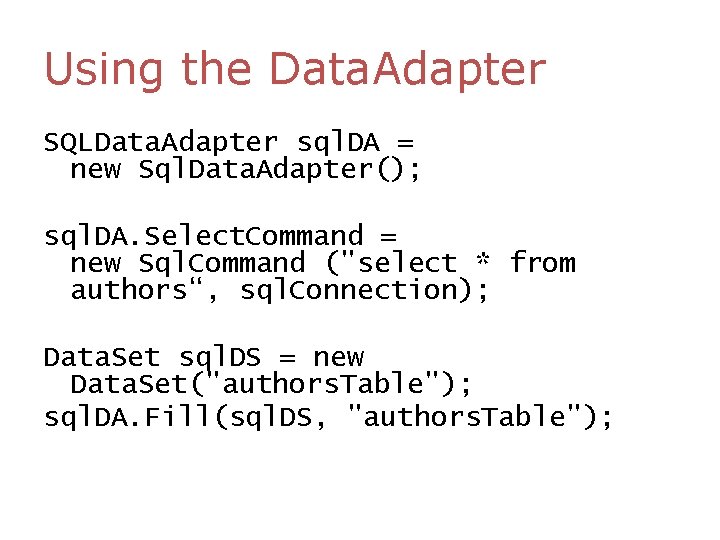

Using the Data. Adapter SQLData. Adapter sql. DA = new Sql. Data. Adapter(); sql. DA. Select. Command = new Sql. Command ("select * from authors“, sql. Connection); Data. Set sql. DS = new Data. Set("authors. Table"); sql. DA. Fill(sql. DS, "authors. Table");

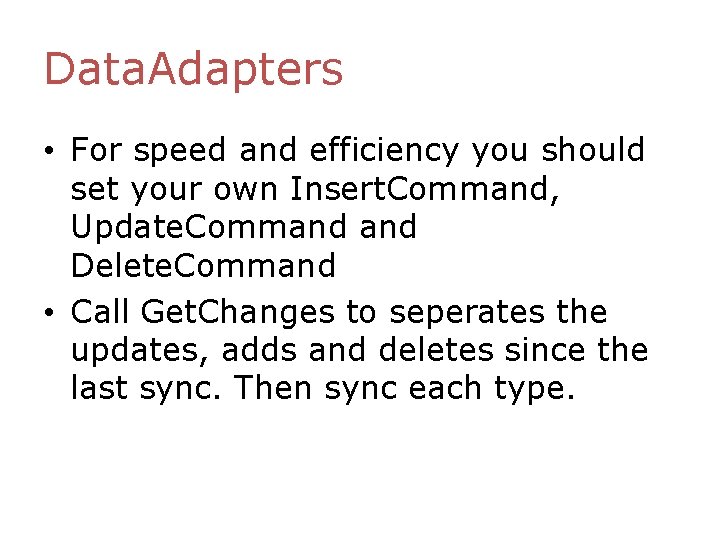

Data. Adapters • For speed and efficiency you should set your own Insert. Command, Update. Command Delete. Command • Call Get. Changes to seperates the updates, adds and deletes since the last sync. Then sync each type.

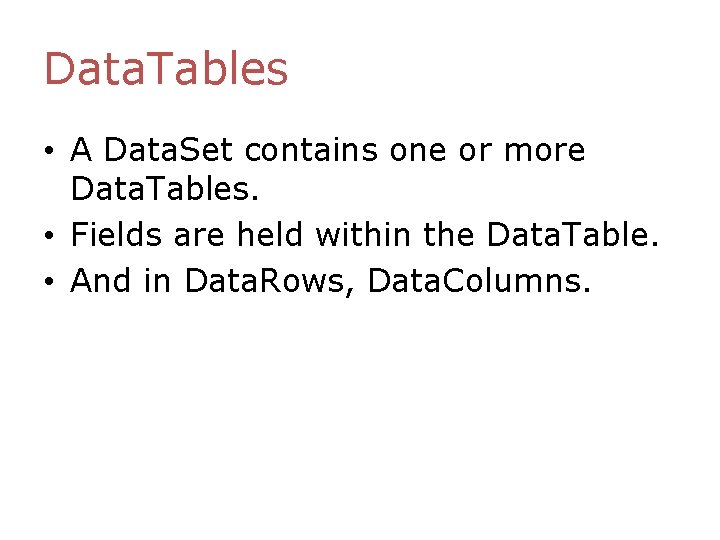

Data. Tables • A Data. Set contains one or more Data. Tables. • Fields are held within the Data. Table. • And in Data. Rows, Data. Columns.

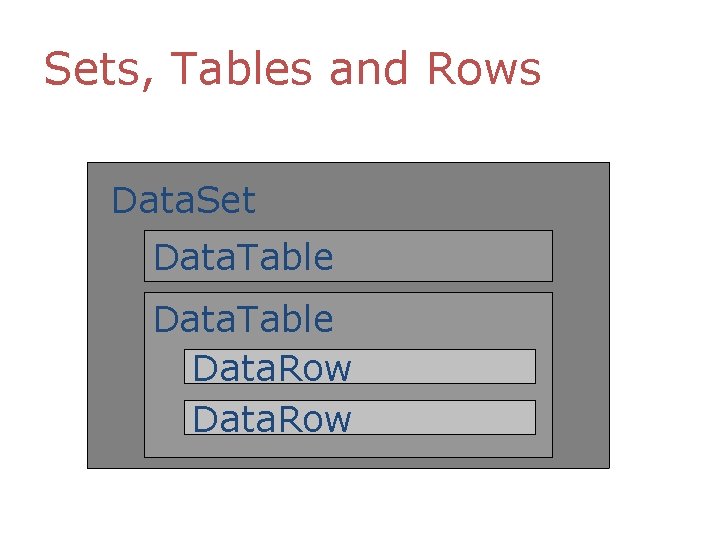

Sets, Tables and Rows Data. Set Data. Table Data. Row

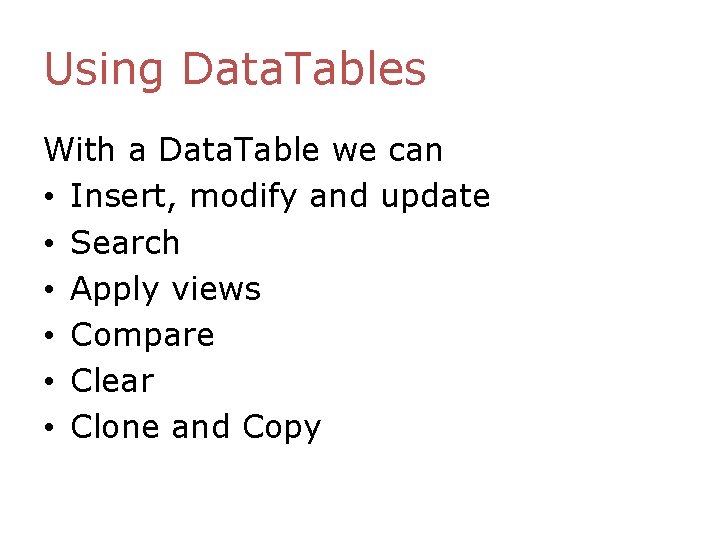

Using Data. Tables With a Data. Table we can • Insert, modify and update • Search • Apply views • Compare • Clear • Clone and Copy

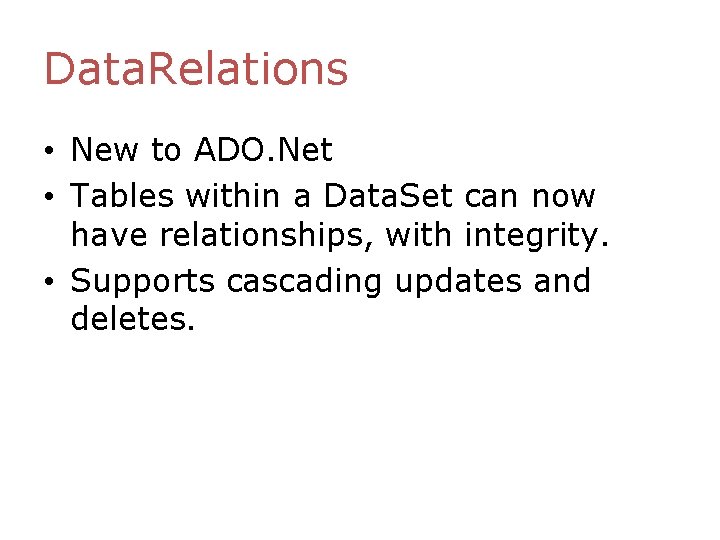

Data. Relations • New to ADO. Net • Tables within a Data. Set can now have relationships, with integrity. • Supports cascading updates and deletes.

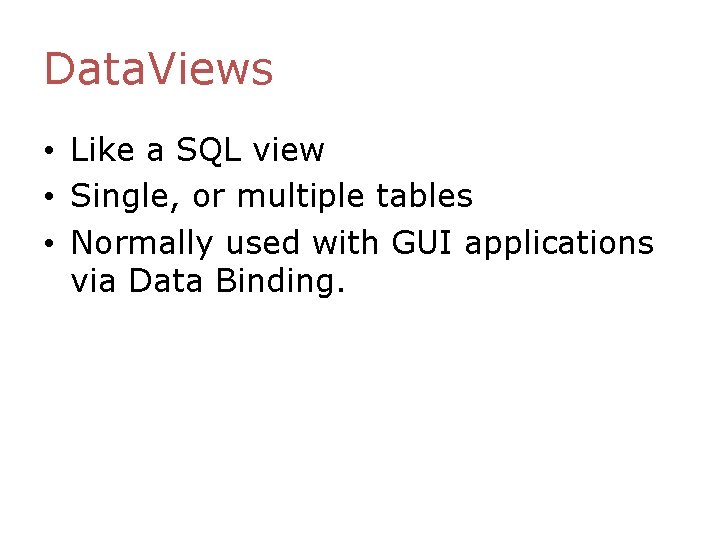

Data. Views • Like a SQL view • Single, or multiple tables • Normally used with GUI applications via Data Binding.

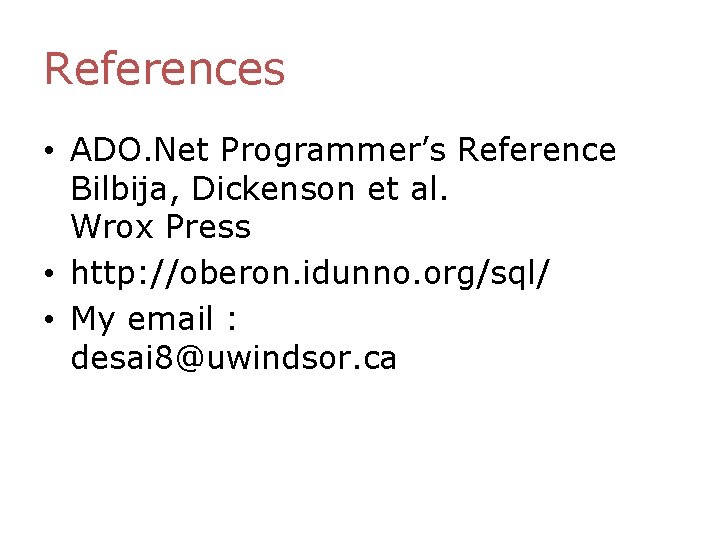

References • ADO. Net Programmer’s Reference Bilbija, Dickenson et al. Wrox Press • http: //oberon. idunno. org/sql/ • My email : desai 8@uwindsor. ca

Thank You!! -Marmagna Desai
