An electric field describes a region where an

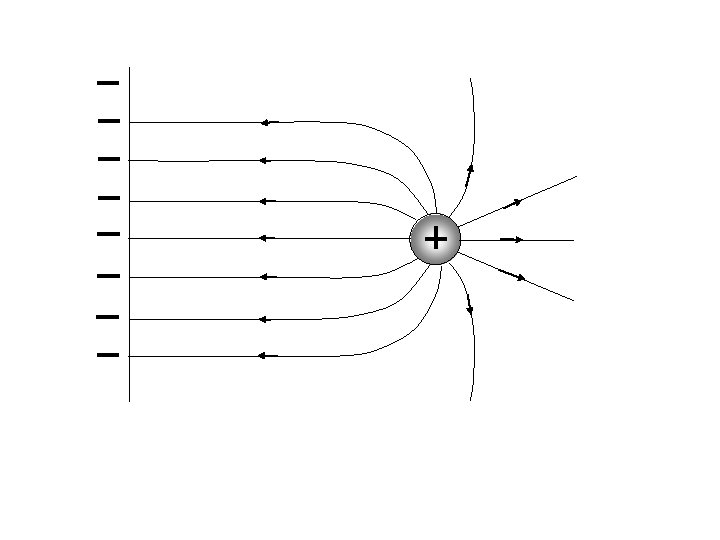

An electric field describes a region where an electric charge will experience a force if placed in that region. The electric field can be represented by field lines. These lines start on a positive charge and end on a negative charge. The direction of the field lines show the direction of the electrostatic force that would act on a positive charge, q, if you placed it there.
Electric field lines never cross and are drawn perpendicular to a surface. The electric field is stronger where the field lines are closer together.

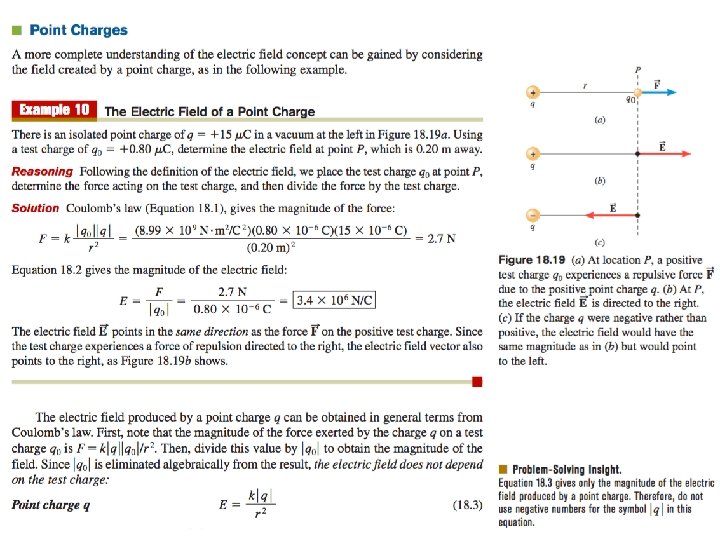

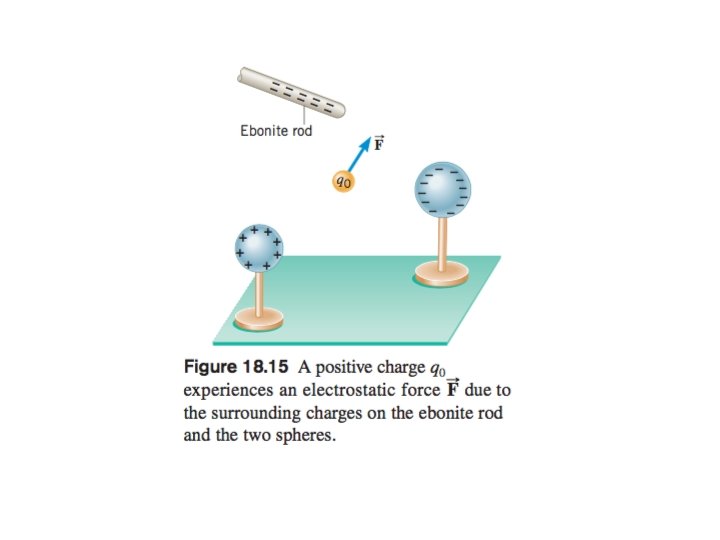

The Electric Field is defined as the force acting on a positive test charge (q), divided by the charge: E E F Electric field of a point charge +Q r F
A proton is released in a uniform electric field, and it experiences an electric force of 3. 75 × 10 -14 N toward the south. What are the magnitude and direction of the electric field? E + F south
An electric field is defined as being present in any region where a charged object experiences an electric force.

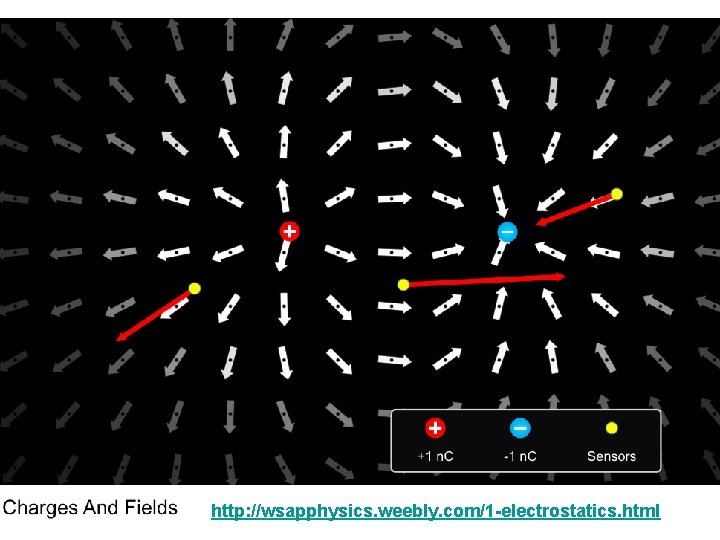

http: //wsapphysics. weebly. com/1 -electrostatics. html

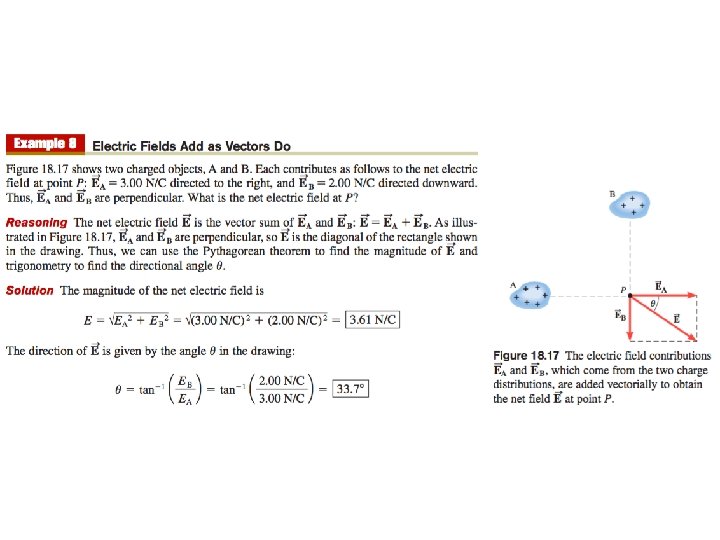

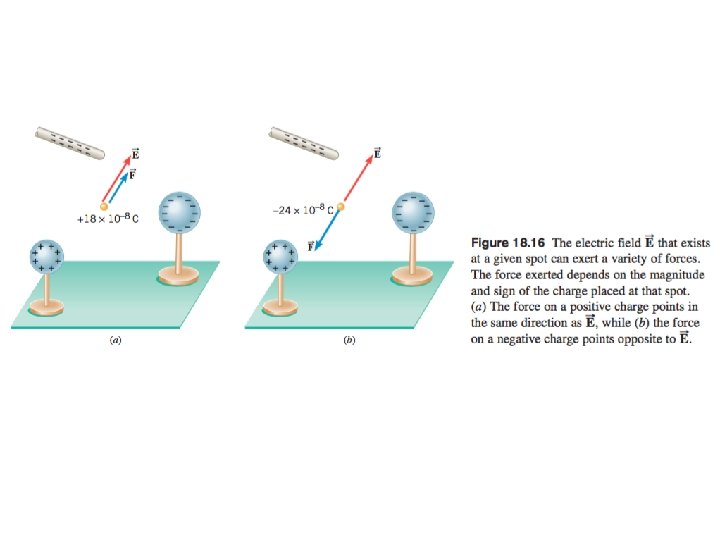

Notes on E-field 1) The E-field points in the direction of force on a positive test charge 2) If a negative charge were placed in the E-field, what do you suppose would happen? 3) The E-field is a property of the fixed charges only (it is independent of the test charge) 4) E-fields add as vectors 5) Given the E-field value at a certain point, we can calculate the force F on any charge q 0 placed there: F = q 0 E © Laura Fellman
What are the magnitude and direction of the electric field at a point midway between a +7. 0 m. C and a -8. 0 m. C charge 8. 0 cm apart? Assume no other charges are nearby. d E 1 q 1 - + E 2 q 2
Four charges are placed in a square. There is a - 20. 3 microcoulomb charge placed at the (0 cm, 0 cm) mark, a 81. 2 microcoulomb charge placed at the (0 cm, 40. 6 cm) mark, a - 20. 3 micro-coulomb charged placed at the ( 40. 6 cm, 40. 6 cm) mark, and a 10. 15 micro-coulomb charge placed at the ( 40. 6, 0 cm) mark. Determine the strength of the electric field in the center of the square.
