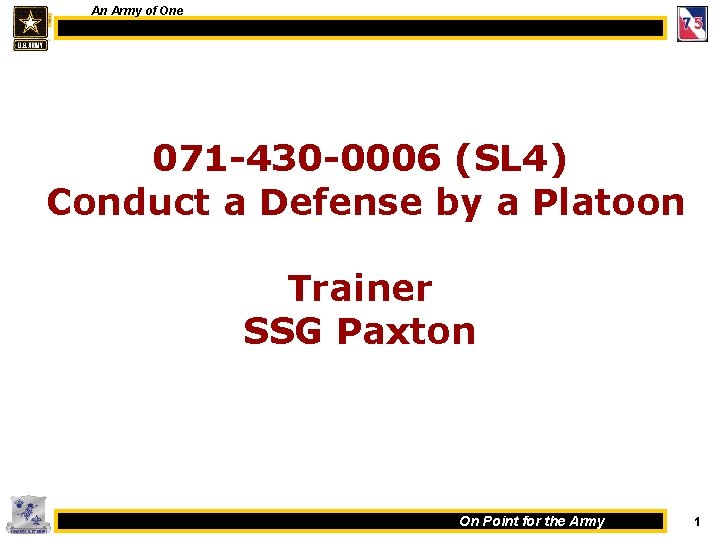

An Army of One 071 -430 -0006 (SL 4) Conduct a Defense by a Platoon Trainer SSG Paxton On Point for the Army 1

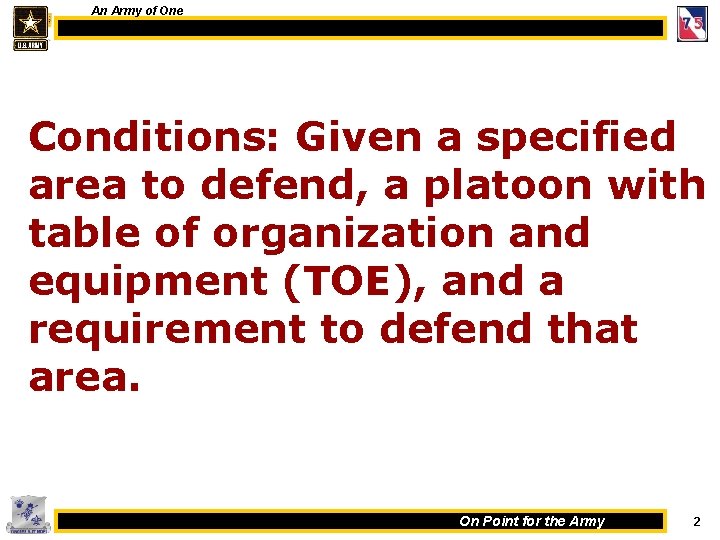

An Army of One Conditions: Given a specified area to defend, a platoon with table of organization and equipment (TOE), and a requirement to defend that area. On Point for the Army 2

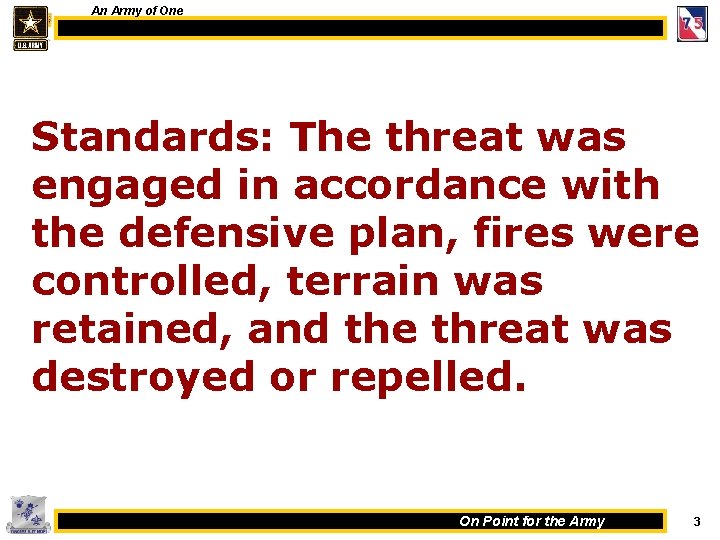

An Army of One Standards: The threat was engaged in accordance with the defensive plan, fires were controlled, terrain was retained, and the threat was destroyed or repelled. On Point for the Army 3

An Army of One Troop Leading Procedures/Performance Steps 1. Analyze the mission 2. Issue a warning order to the squad leaders 3. Make a tentative plan 4. Conduct a recon 5. Start necessary movement or preparations 6. Complete the plan 7. Occupy the position 8. Emplace early warning devices 9. Emplace hasty minefields and other obstacles 10. Establish communication system 11. Stockpile ammunition, water, food, and other supplies 12. Engage the enemy at maximum range On Point for the Army 4

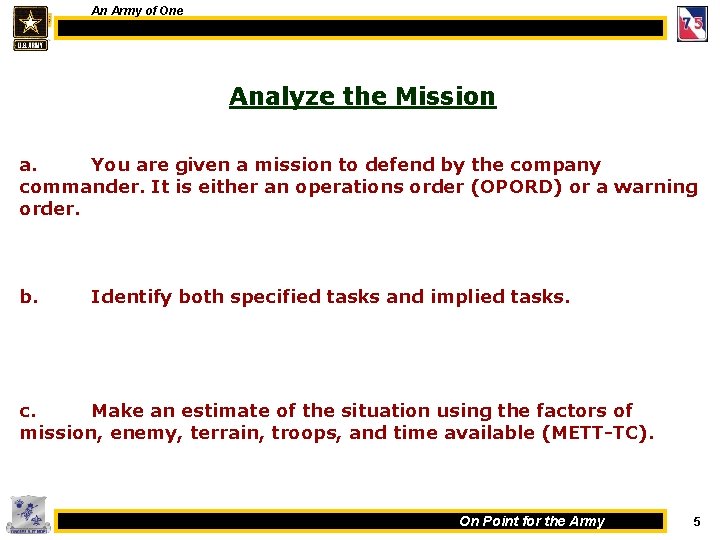

An Army of One Analyze the Mission a. You are given a mission to defend by the company commander. It is either an operations order (OPORD) or a warning order. b. Identify both specified tasks and implied tasks. c. Make an estimate of the situation using the factors of mission, enemy, terrain, troops, and time available (METT-TC). On Point for the Army 5

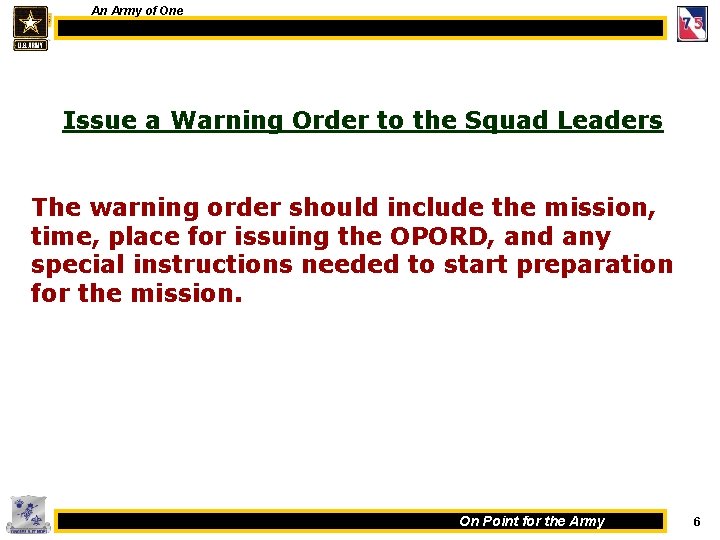

An Army of One Issue a Warning Order to the Squad Leaders The warning order should include the mission, time, place for issuing the OPORD, and any special instructions needed to start preparation for the mission. On Point for the Army 6

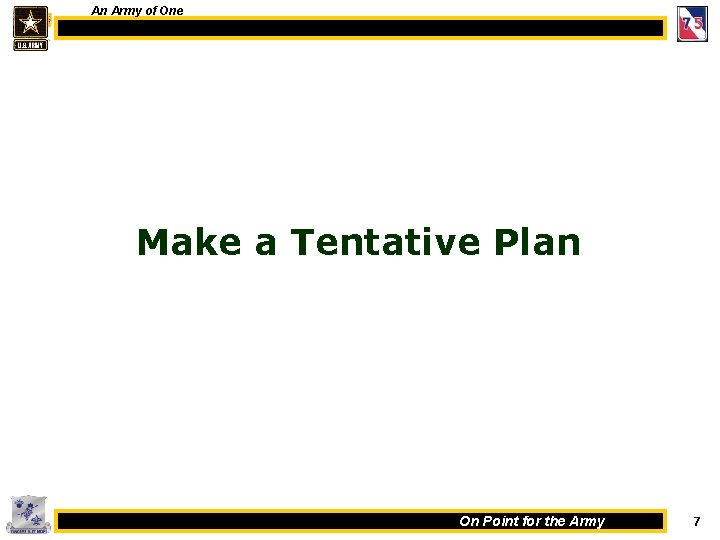

An Army of One Make a Tentative Plan On Point for the Army 7

An Army of One Conduct a Reconnaissance a. As a minimum, make a map reconnaissance. b. If at all possible, conduct a ground reconnaissance. c. Evaluate the terrain based on how the available observation, fields of fire, cover and concealment, obstacles, key terrain, and avenues of approach best support your mission and the commander’s intent. d. Request that the squad leaders, radiotelephone operator, and forward observers accompany the platoon leader on the reconnaissance. You may need to take along some additional security depending on the tactical situation. On Point for the Army 8

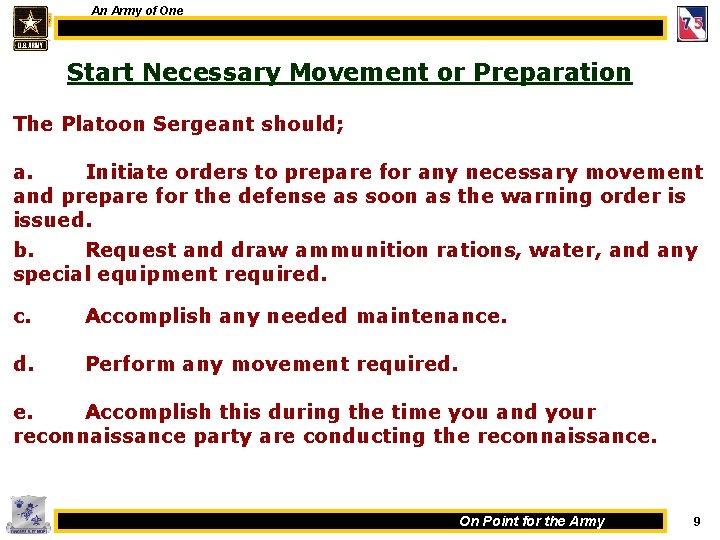

An Army of One Start Necessary Movement or Preparation The Platoon Sergeant should; a. Initiate orders to prepare for any necessary movement and prepare for the defense as soon as the warning order is issued. b. Request and draw ammunition rations, water, and any special equipment required. c. Accomplish any needed maintenance. d. Perform any movement required. e. Accomplish this during the time you and your reconnaissance party are conducting the reconnaissance. On Point for the Army 9

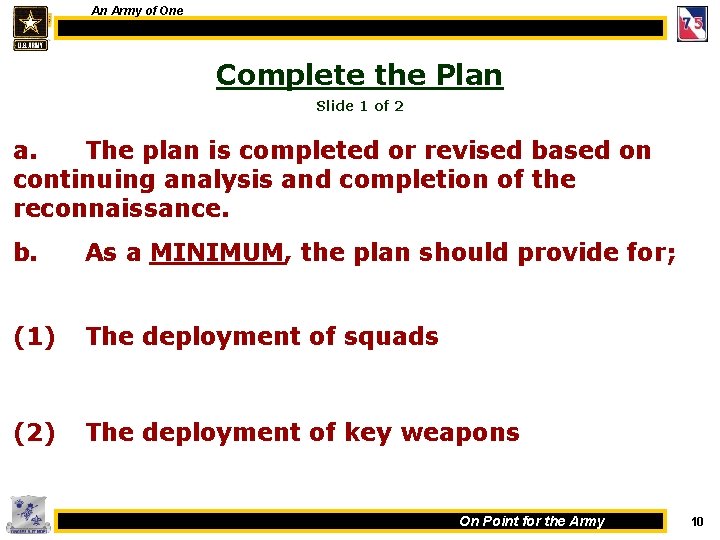

An Army of One Complete the Plan Slide 1 of 2 a. The plan is completed or revised based on continuing analysis and completion of the reconnaissance. b. As a MINIMUM, the plan should provide for; (1) The deployment of squads (2) The deployment of key weapons On Point for the Army 10

An Army of One Complete the Plan Slide 2 0 f 2 (3) The use of indirect fire (4) The use of mines and obstacles (5) The establishment of security measures (6) The selection and operation of command observation posts On Point for the Army 11

An Army of One Occupy the Position Slide 1 of 2 a. Establish local security. Locate observation posts to make maximum use of long-range observations. b. Position key weapons. Ensure machine guns cover infantry avenues of approach, have primary and secondary sectors of fire, and provide as much grazing fire as possible, and are assigned either a final protective line (FPL) or a principal direction of fire. Ensure Javelins or Dragons cover armor avenues of approach, have primary and secondary sectors of fire, are positioned to engage targets from the flank, and are mutually supporting. c. Clear fields of fire. Ensure each fighting position clears its field of fire to engage the advancing enemy without exposing friendly positions. Range cards are prepared for each machine gun and Dragon. On Point for the Army 12

An Army of One Occupy the Position Slide 2 of 2 d. Ensure positions have overlapping sectors of fire. e. Improve fighting positions, as time is available. Improving overhead cover, aiming and limiting stakes, and camouflage are ongoing activities. f. Select and improve alternate and supplementary positions. Improve them, as time is available. On Point for the Army 13

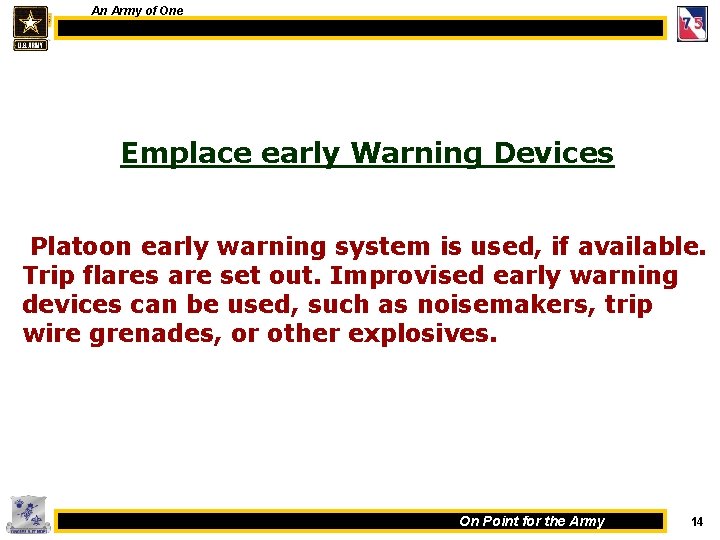

An Army of One Emplace early Warning Devices Platoon early warning system is used, if available. Trip flares are set out. Improvised early warning devices can be used, such as noisemakers, trip wire grenades, or other explosives. On Point for the Army 14

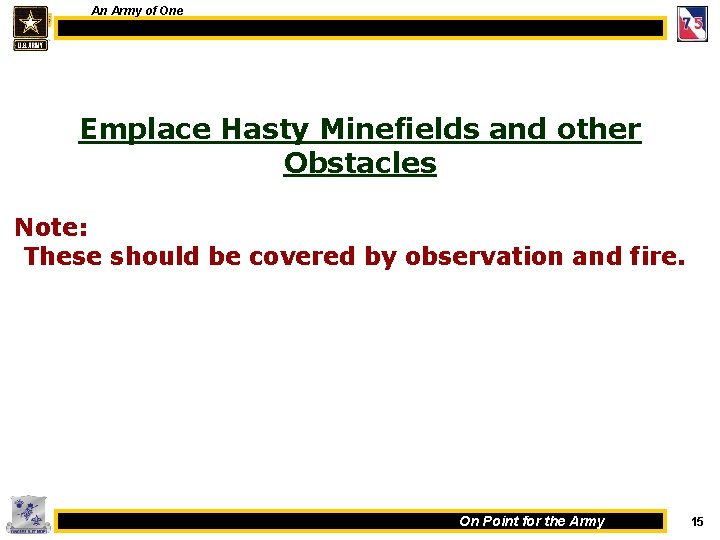

An Army of One Emplace Hasty Minefields and other Obstacles Note: These should be covered by observation and fire. On Point for the Army 15

An Army of One Establish Communication Systems Depend on radio as little as possible. Wire networks should be established down to each squad and up to the company command post (CP). On Point for the Army 16

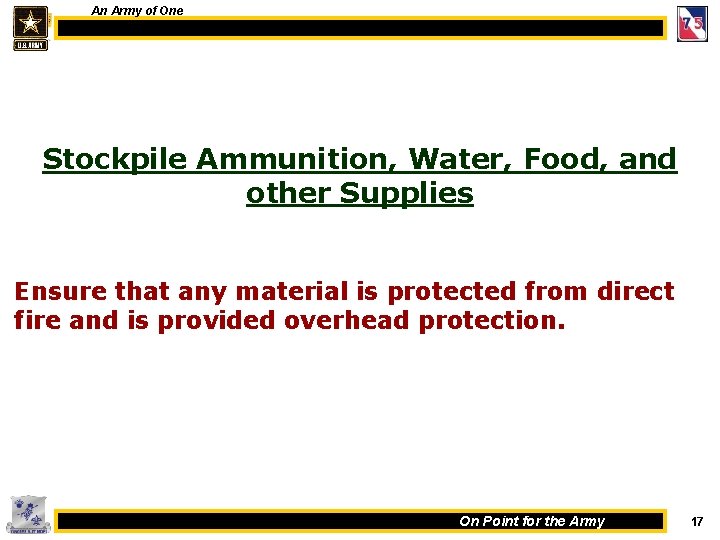

An Army of One Stockpile Ammunition, Water, Food, and other Supplies Ensure that any material is protected from direct fire and is provided overhead protection. On Point for the Army 17

An Army of One Engage the Enemy at Maximum Range When the enemy appears in the platoon sector, he is engaged with supporting direct and indirect fires. As he comes within the range of your organic weapons, you direct your gunners to start engaging the enemy. a. When the enemy encounters your minefields and obstacles, use all friendly fires to break up the enemy formations. b. If the enemy is able to start an assault, repel or destroy him by calling for final protective fires (FPF) of small arms and machine guns, and FPF from mortars and artillery. On Point for the Army 18

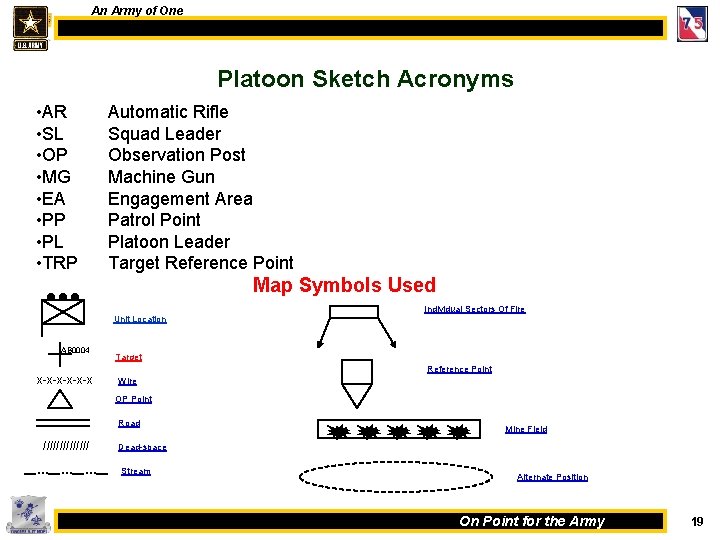

An Army of One Platoon Sketch Acronyms • AR • SL • OP • MG • EA • PP • PL • TRP Automatic Rifle Squad Leader Observation Post Machine Gun Engagement Area Patrol Point Platoon Leader Target Reference Point Map Symbols Used Unit Location AB 0004 x-x-x-x Individual Sectors Of Fire Target Reference Point Wire OP Point Road /////// … … … Mine Field Dead-space Stream Alternate Position On Point for the Army 19

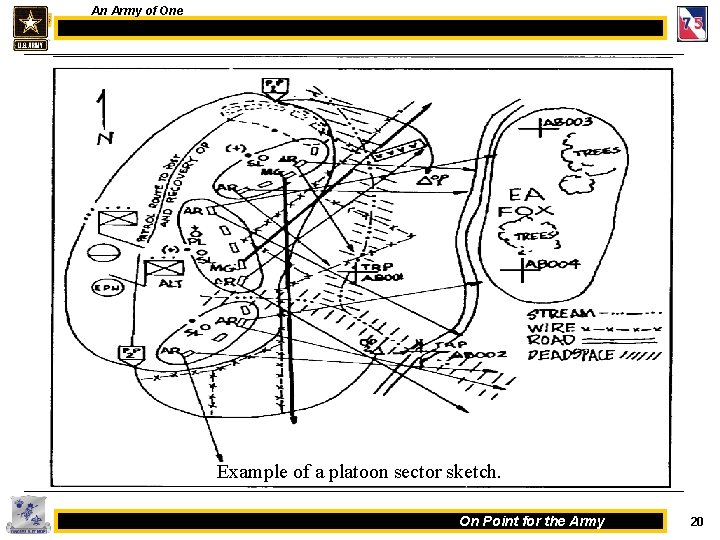

An Army of One Example of a platoon sector sketch. On Point for the Army 20

An Army of One DA 5517 -R On Point for the Army 21

An Army of One On Point for the Army 22

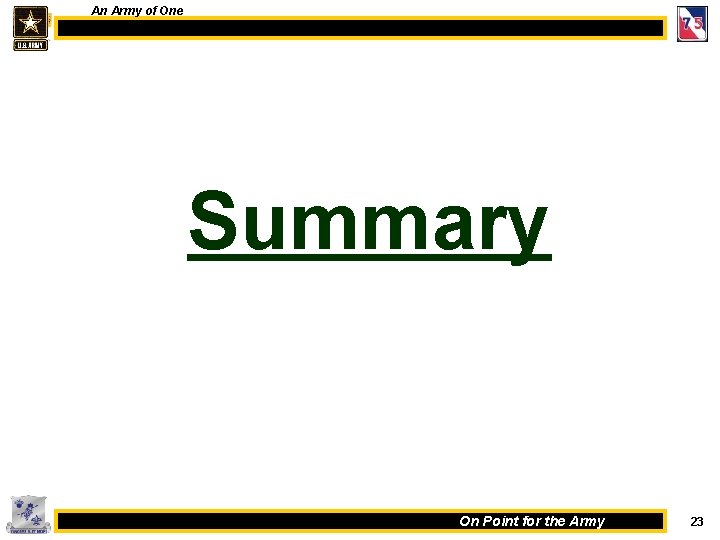

An Army of One Summary On Point for the Army 23

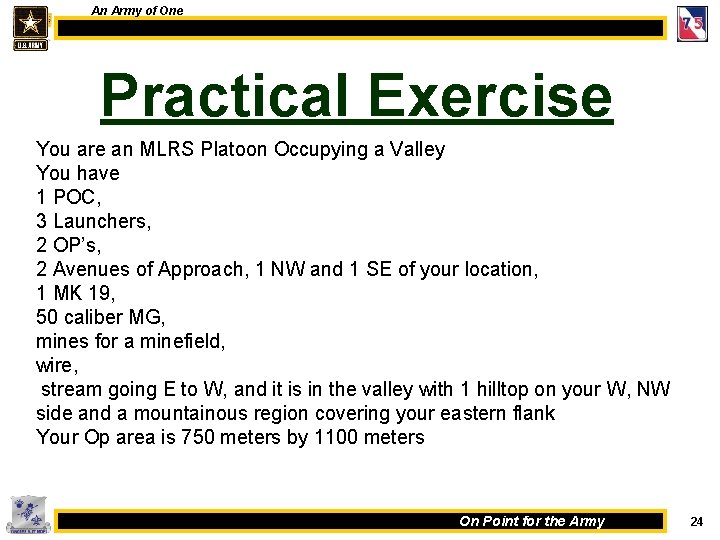

An Army of One Practical Exercise You are an MLRS Platoon Occupying a Valley You have 1 POC, 3 Launchers, 2 OP’s, 2 Avenues of Approach, 1 NW and 1 SE of your location, 1 MK 19, 50 caliber MG, mines for a minefield, wire, stream going E to W, and it is in the valley with 1 hilltop on your W, NW side and a mountainous region covering your eastern flank Your Op area is 750 meters by 1100 meters On Point for the Army 24

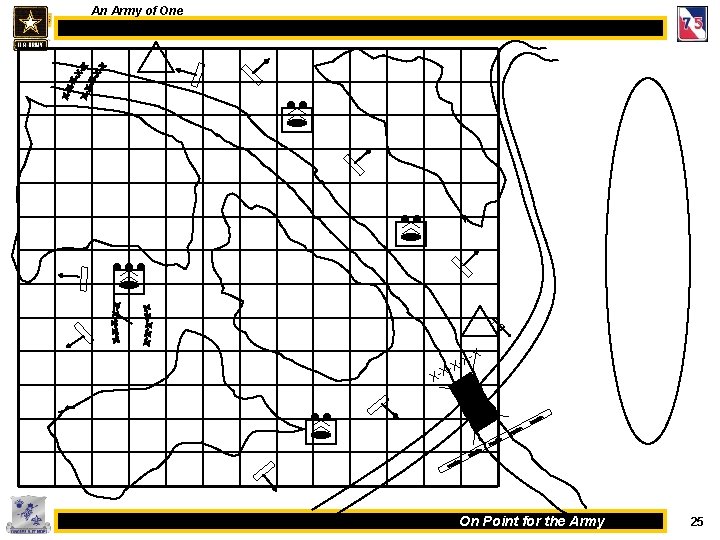

An Army of One -X X-X -X X- On Point for the Army 25

An Army of One Questions? On Point for the Army 26
