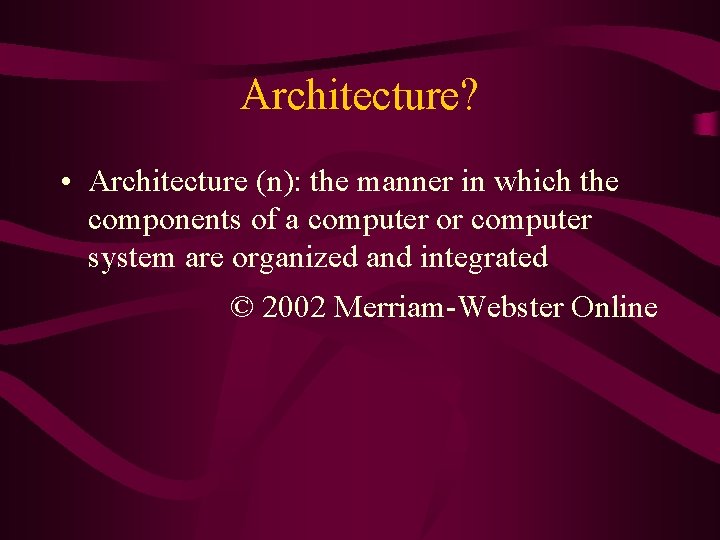

Architecture? • Architecture (n): the manner in which the components of a computer or

Paradigms Concern Network Traffic Game Scale Security Game Clock Business Model Peer to Peer

Layered Pattern The Layers pattern helps to structure applications that can be decomposed into

Layered Architecture Example Layer 1 Encapsulates similar tasks Layer 2 Layer 3 Layer 1?

Publisher-Subscriber Pattern The Publisher-Subscriber pattern helps keep the state of cooperating components synchronized. To

Publisher-Subscriber Pattern A knows about B. B knows about A. Neither know anything about

Model-View-Controller Pattern The Model-View-Controller pattern (MVC) divides an interactive application into three components. The

Blackboard Pattern The Blackboard pattern is useful for problems for which no deterministic solution

Broker Pattern The Broker pattern can be used to structure distributed software systems with

Client Architecture AI Input Graphics Library Network Component View Mayor Graphics Component Command Component

Server Architecture World Component Network De/Encrypt World DB World Messenger Groups Governor AI Controller

Layered Architecture Client Application Server Application Messenger En/Decrypt Network

The Six Problems • • • Client side performance Network traffic Scalability Load balancing

Server-side Performance World Component Network De/Encrypt World DB World Messenger Groups Governor AI Controller

Server-side Performance AI Input Graphics Library Network Component View Mayor Graphics Component Command Component

Client-side Performance AI Input Graphics Library Network Component View Mayor Graphics Component Command Component

Network Traffic AI Input Graphics Library Network Component View Mayor Graphics Component Command Component

Scalability and Load Balancing World Component Network De/Encrypt World DB World Messenger Groups Governor

Secure Gameplay World Component Network De/Encrypt World DB World Messenger Groups Governor AI Controller

6. Maintainability • Modularized • Layered • Well-known Architectural Patterns Used

Six Problems Addressed • • • Client Side Performance Minimizing Network Traffic Scalable Opportunities

Worlds of Warcraft © 2002 Blizzard Software

Example : Dark Age of Camelot © 2002 Mythic Entertainment

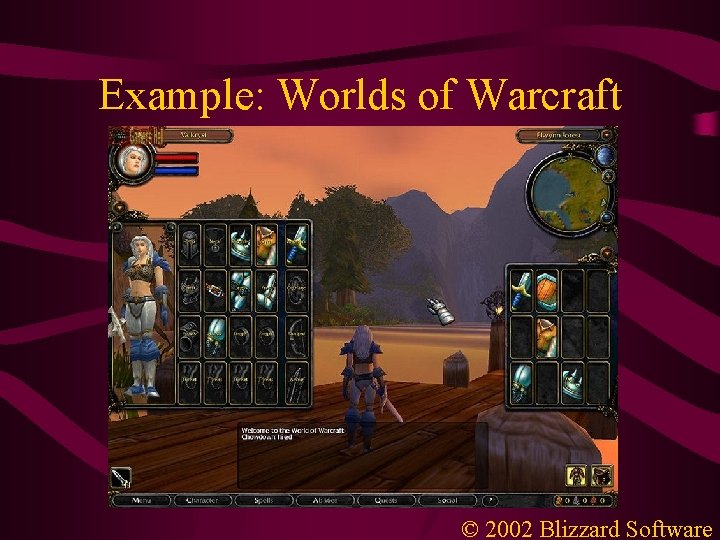

Example: Worlds of Warcraft © 2002 Blizzard Software

Slides: 61

Download presentation

An Architecture for a Massively Multiplayer Online Role Playing Game Engine

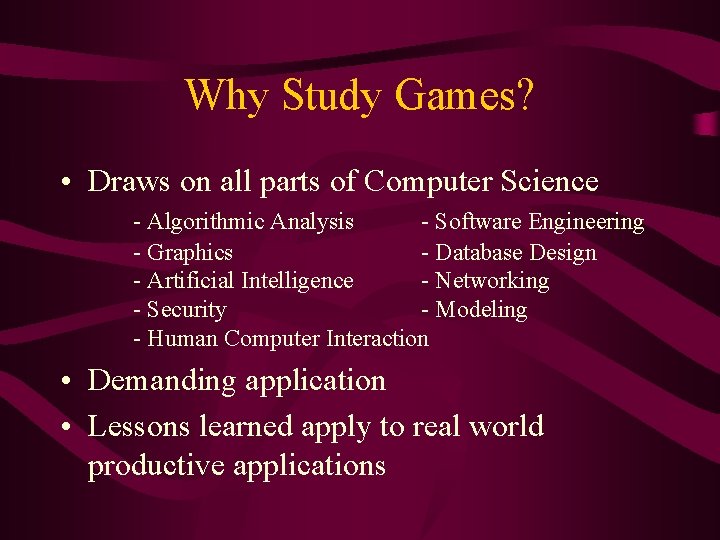

Why Study Games? • Draws on all parts of Computer Science - Algorithmic Analysis - Software Engineering - Graphics - Database Design - Artificial Intelligence - Networking - Security - Modeling - Human Computer Interaction • Demanding application • Lessons learned apply to real world productive applications

Architecture vs. Implementation • Starting at design level yields better implementation • Good software practice

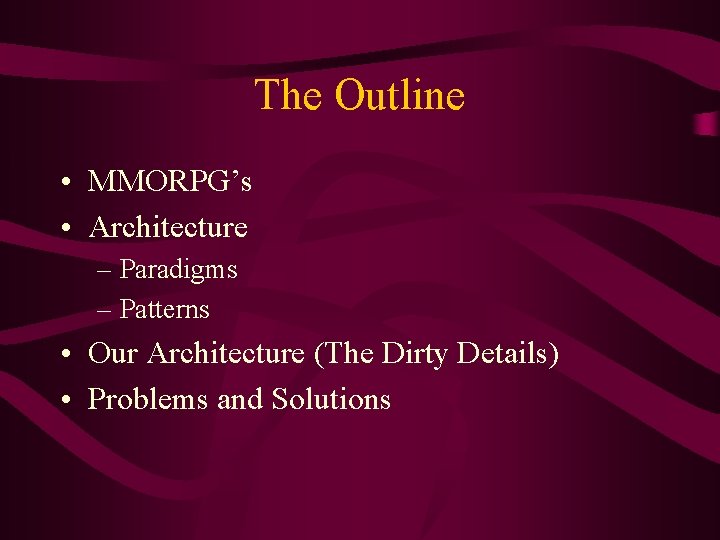

The Outline • MMORPG’s • Architecture – Paradigms – Patterns • Our Architecture (The Dirty Details) • Problems and Solutions

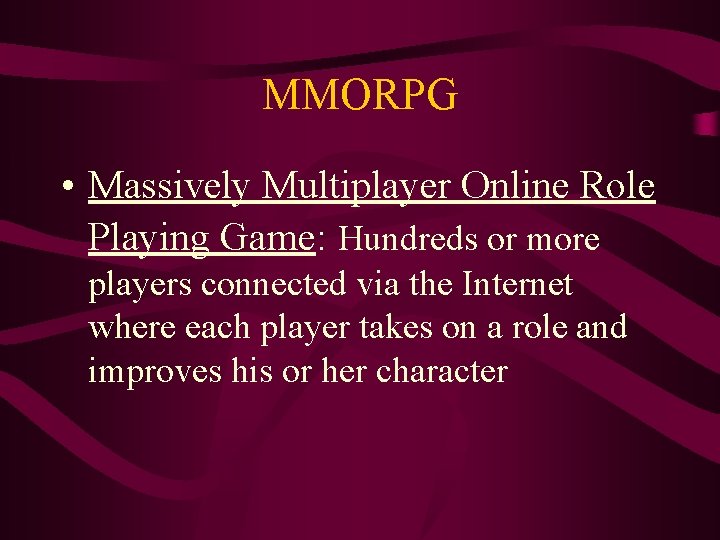

MMORPG • Massively Multiplayer Online Role Playing Game: Hundreds or more players connected via the Internet where each player takes on a role and improves his or her character

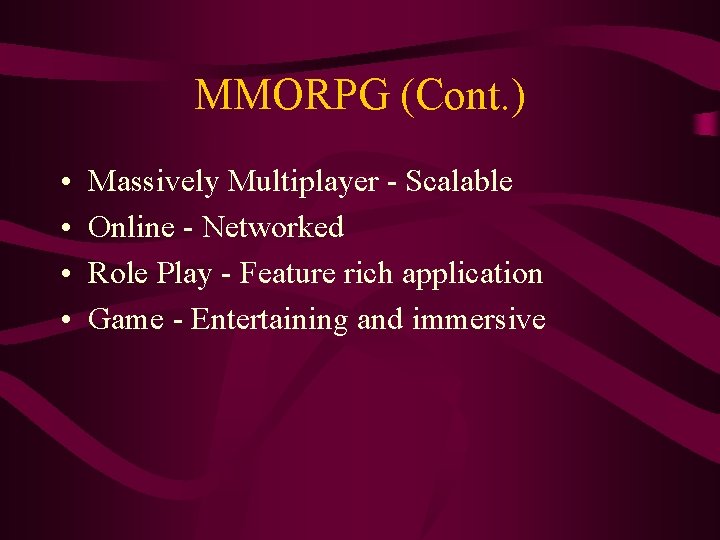

MMORPG (Cont. ) • • Massively Multiplayer - Scalable Online - Networked Role Play - Feature rich application Game - Entertaining and immersive

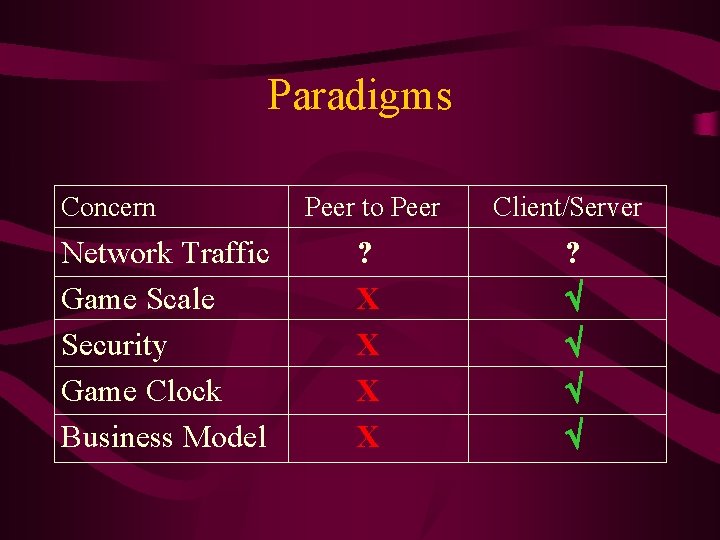

Paradigms Concern Network Traffic Game Scale Security Game Clock Business Model Peer to Peer Client/Server ? X X ? Ö Ö

Layered Pattern The Layers pattern helps to structure applications that can be decomposed into groups of subtasks in which each group of subtasks is at a particular level of abstraction. Pattern-Oriented Software Architecture - A System of Patterns Buschmann et all; John Wiley and Sons Ltd, Chichester, UK, 1996.

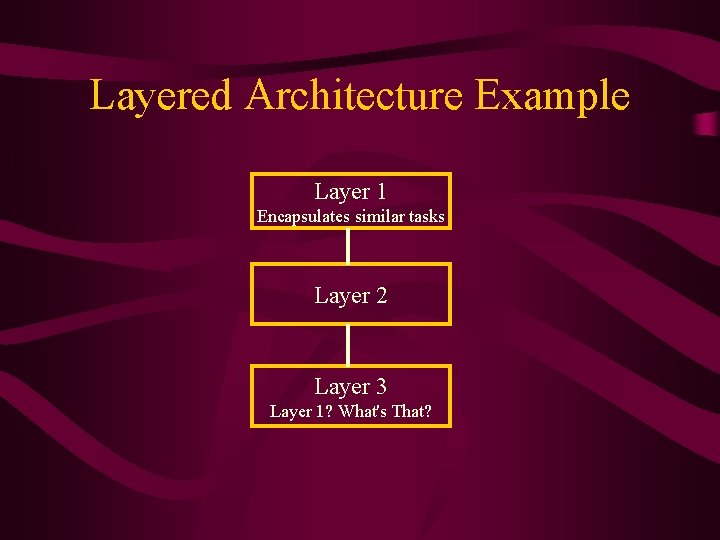

Layered Architecture Example Layer 1 Encapsulates similar tasks Layer 2 Layer 3 Layer 1? What's That?

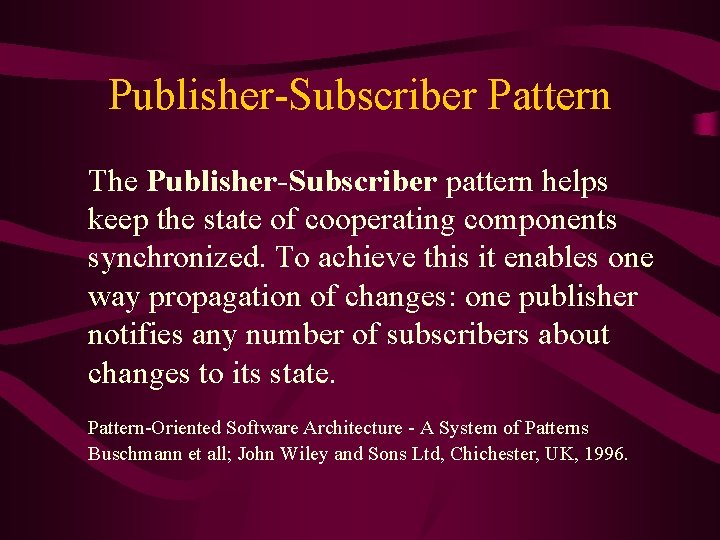

Publisher-Subscriber Pattern The Publisher-Subscriber pattern helps keep the state of cooperating components synchronized. To achieve this it enables one way propagation of changes: one publisher notifies any number of subscribers about changes to its state. Pattern-Oriented Software Architecture - A System of Patterns Buschmann et all; John Wiley and Sons Ltd, Chichester, UK, 1996.

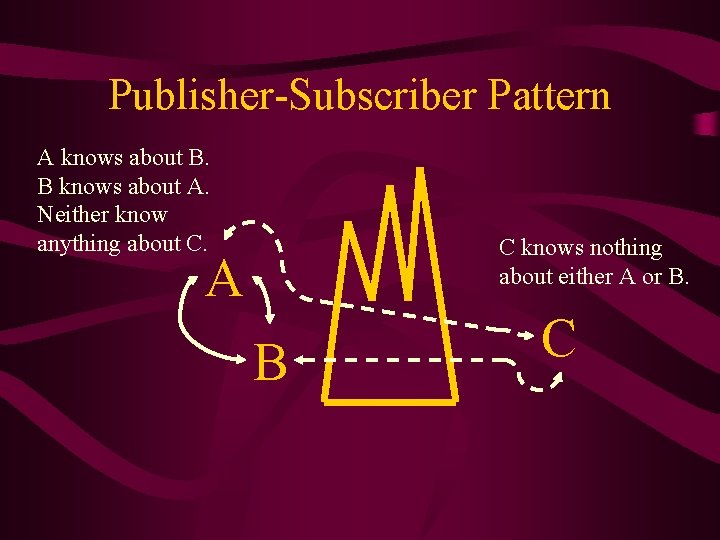

Publisher-Subscriber Pattern A knows about B. B knows about A. Neither know anything about C. C knows nothing about either A or B. A B C

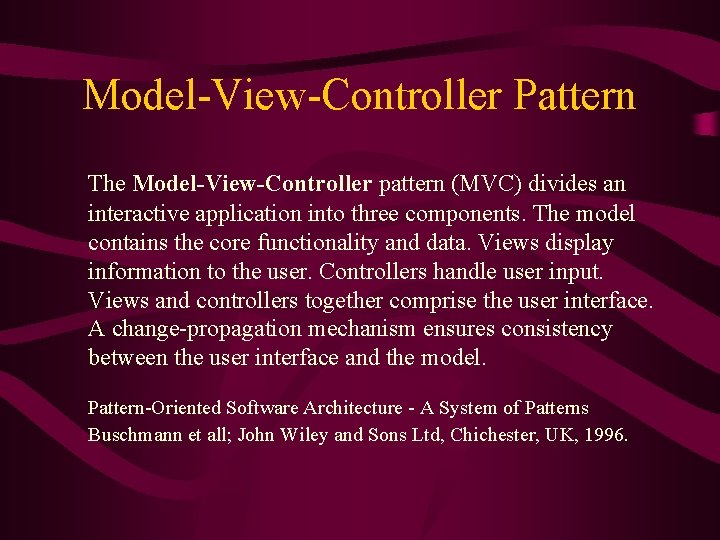

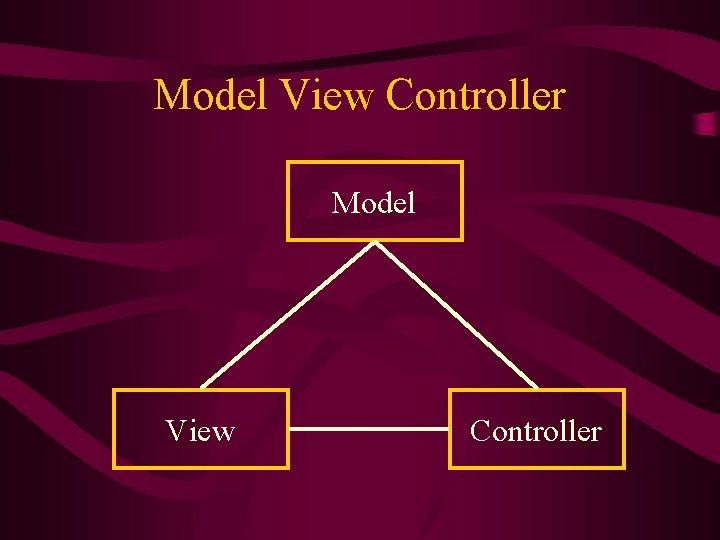

Model-View-Controller Pattern The Model-View-Controller pattern (MVC) divides an interactive application into three components. The model contains the core functionality and data. Views display information to the user. Controllers handle user input. Views and controllers together comprise the user interface. A change-propagation mechanism ensures consistency between the user interface and the model. Pattern-Oriented Software Architecture - A System of Patterns Buschmann et all; John Wiley and Sons Ltd, Chichester, UK, 1996.

Model View Controller

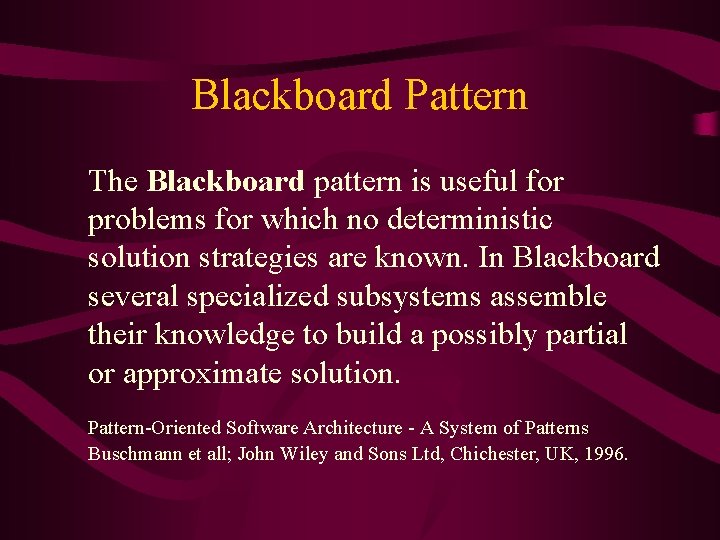

Blackboard Pattern The Blackboard pattern is useful for problems for which no deterministic solution strategies are known. In Blackboard several specialized subsystems assemble their knowledge to build a possibly partial or approximate solution. Pattern-Oriented Software Architecture - A System of Patterns Buschmann et all; John Wiley and Sons Ltd, Chichester, UK, 1996.

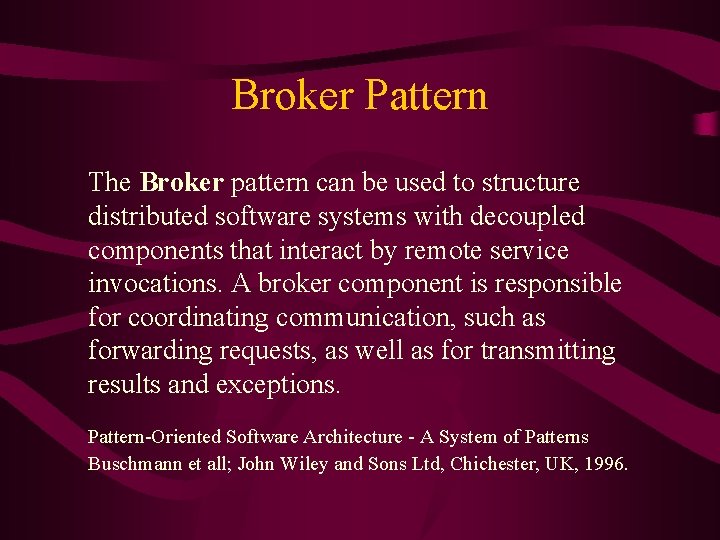

Broker Pattern The Broker pattern can be used to structure distributed software systems with decoupled components that interact by remote service invocations. A broker component is responsible for coordinating communication, such as forwarding requests, as well as for transmitting results and exceptions. Pattern-Oriented Software Architecture - A System of Patterns Buschmann et all; John Wiley and Sons Ltd, Chichester, UK, 1996.

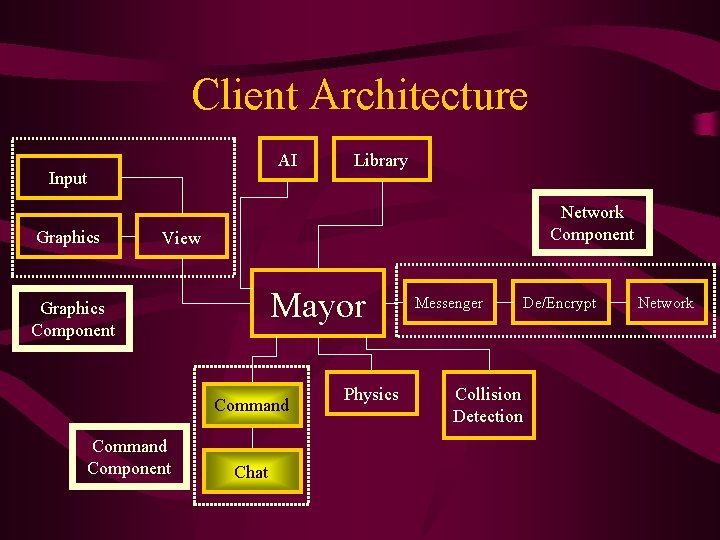

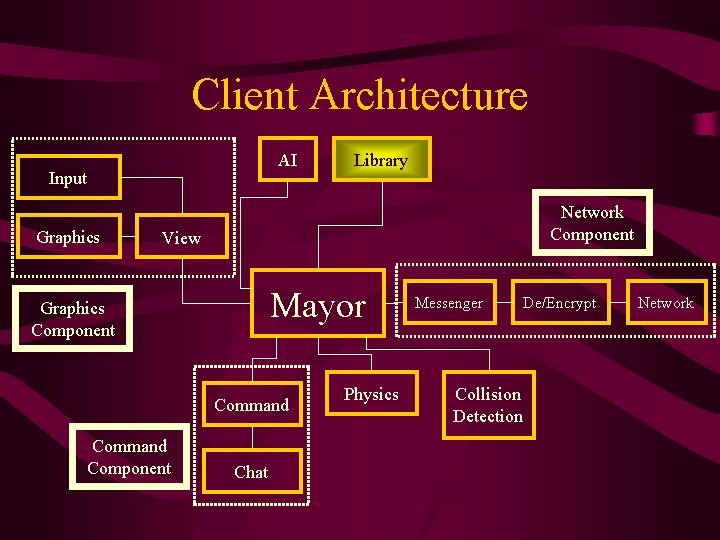

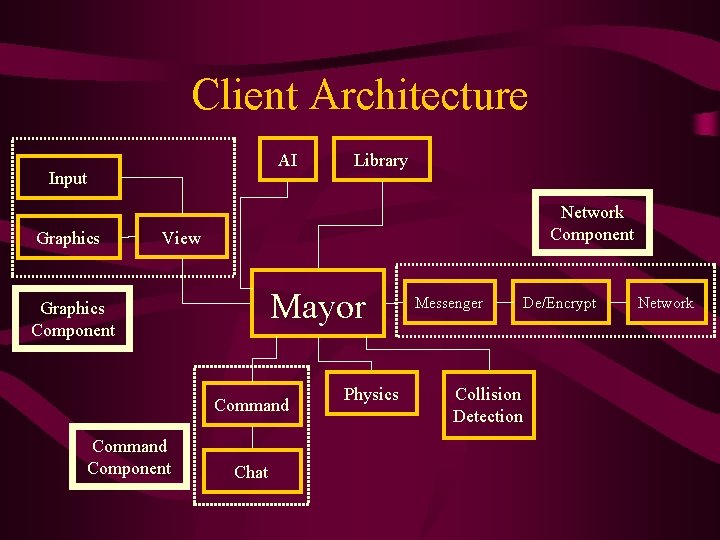

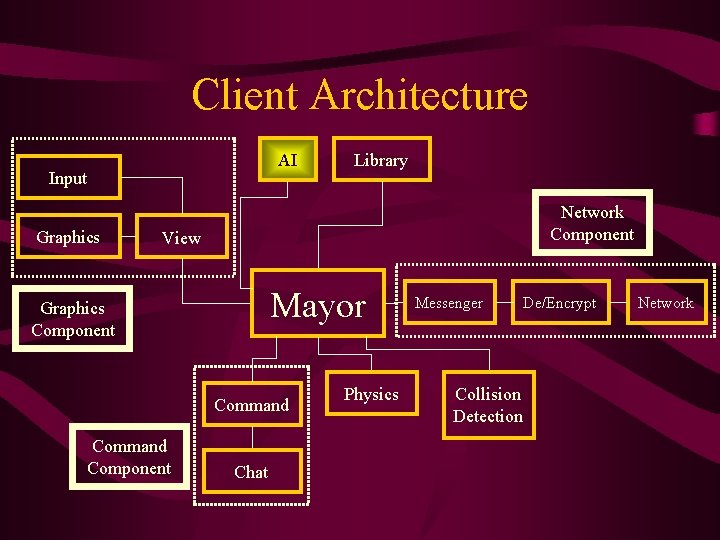

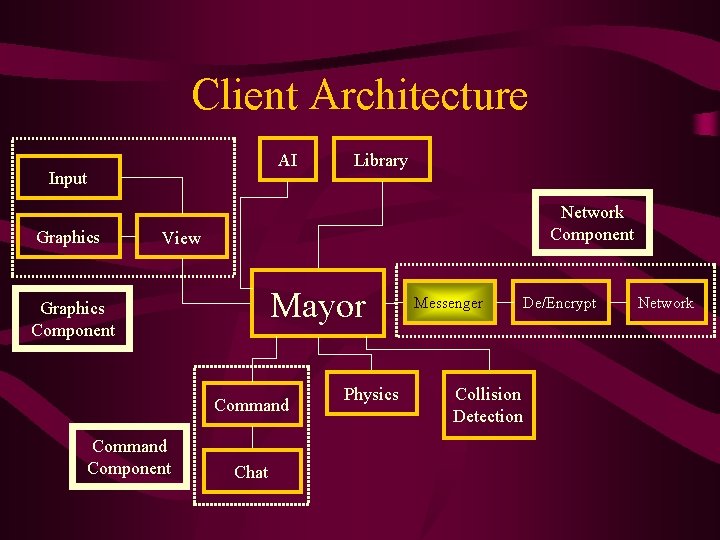

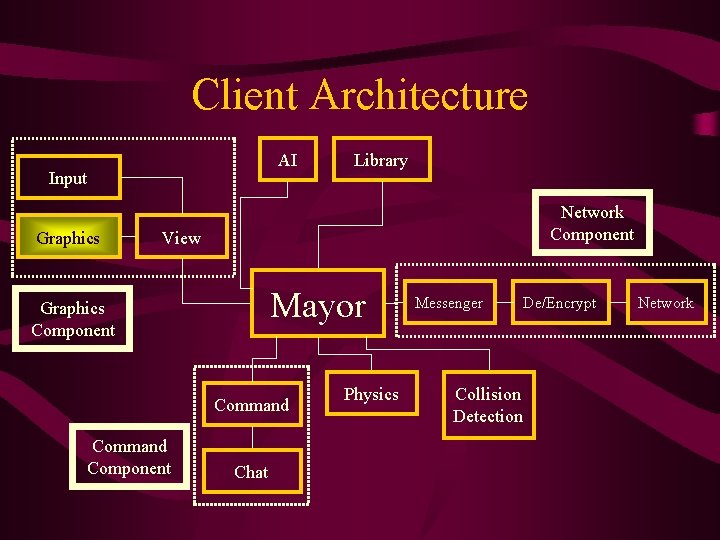

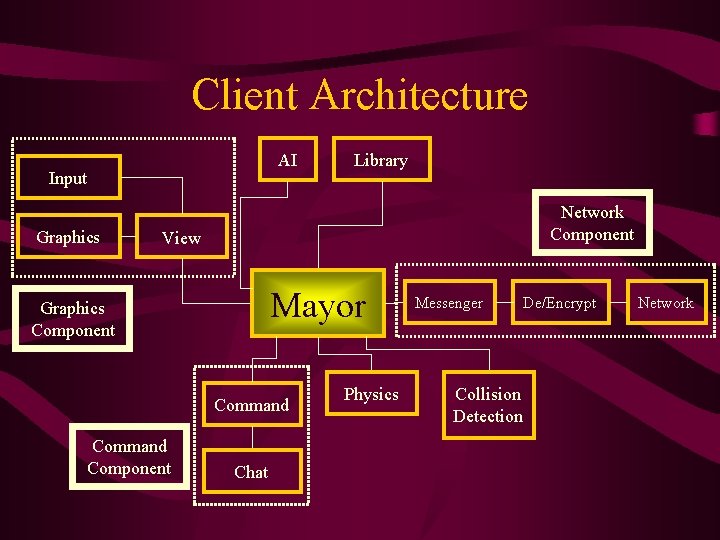

Client Architecture AI Input Graphics Library Network Component View Mayor Graphics Component Command Component Chat Physics Messenger Collision Detection De/Encrypt Network

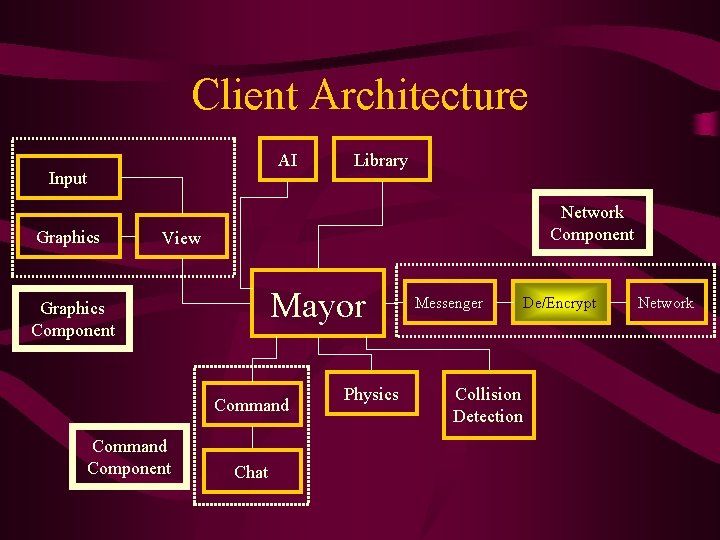

Client Architecture AI Input Graphics Library Network Component View Mayor Graphics Component Command Component Chat Physics Messenger De/Encrypt Collision Detection Network

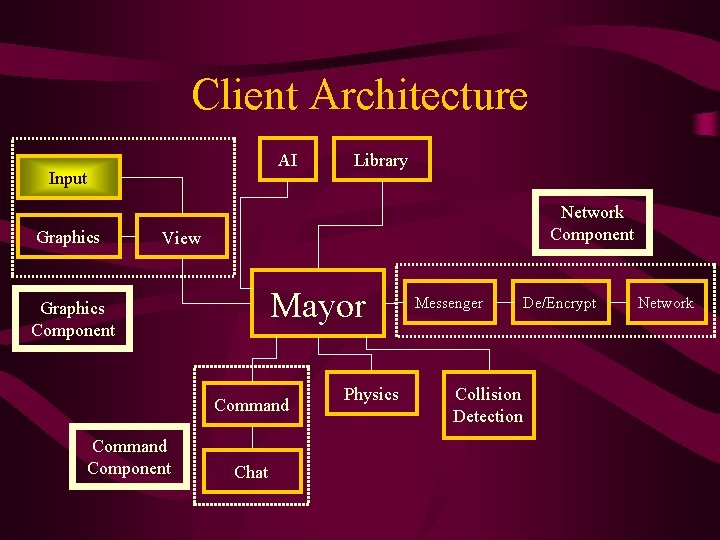

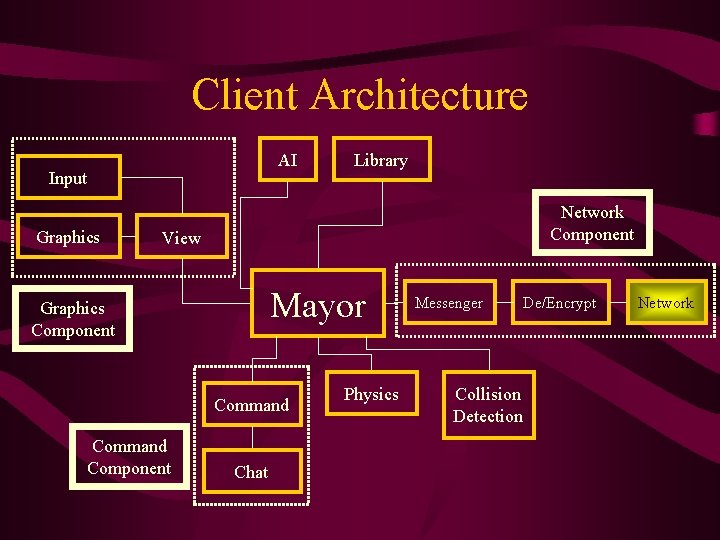

Client Architecture AI Input Graphics Library Network Component View Mayor Graphics Component Command Component Chat Physics Messenger Collision Detection De/Encrypt Network

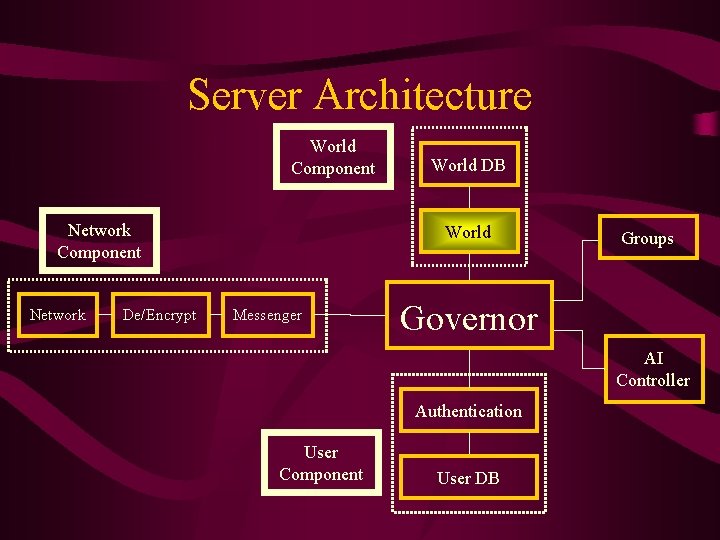

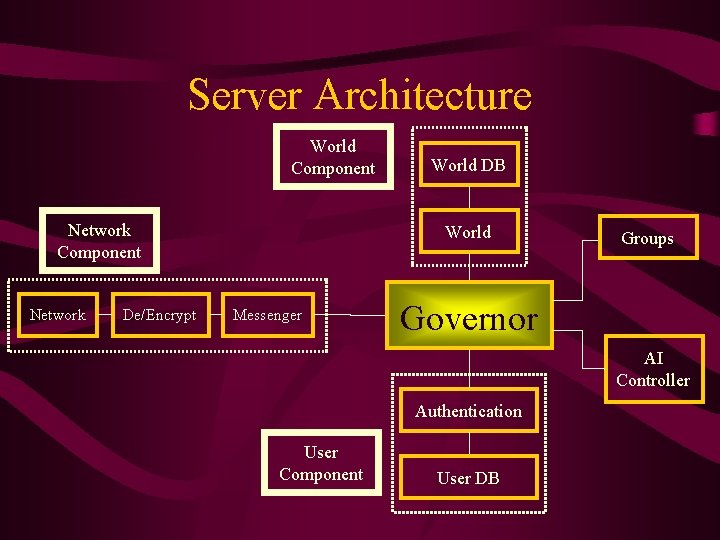

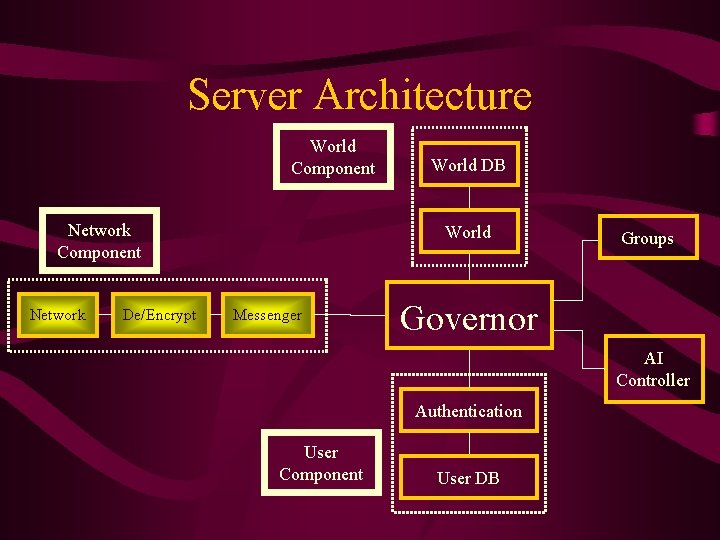

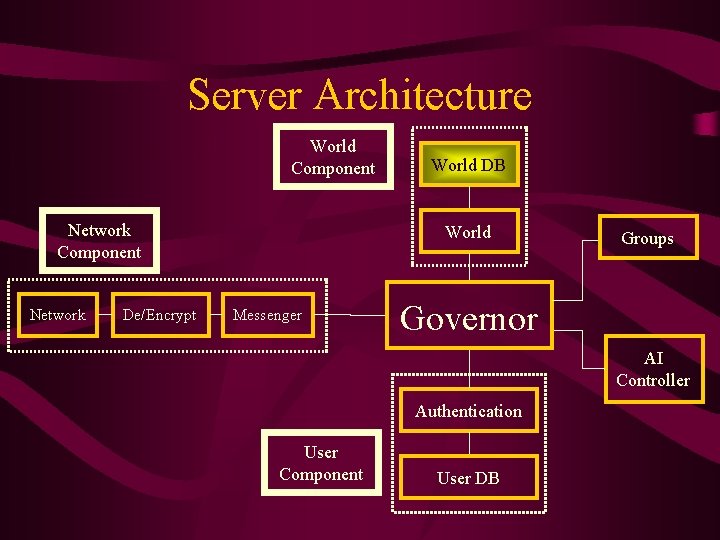

Server Architecture World Component Network De/Encrypt World DB World Messenger Groups Governor AI Controller Authentication User Component User DB

Publisher-Subscriber Pattern A knows about B. B knows about A. Neither know anything about C. C knows nothing about either A or B. A B C

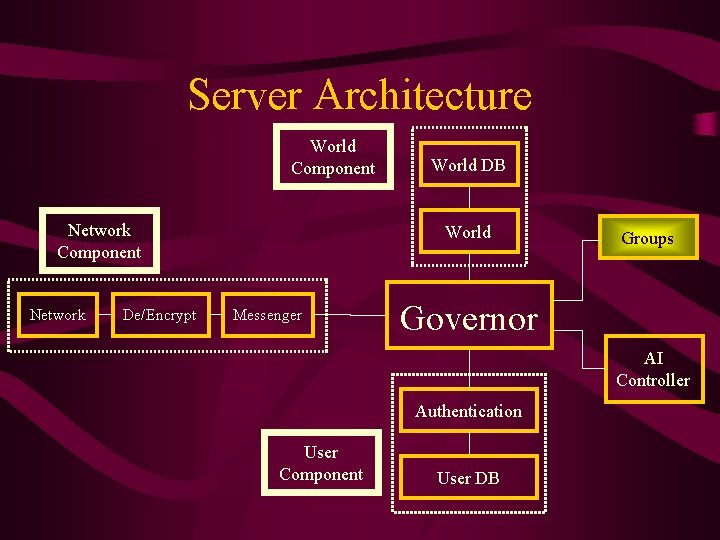

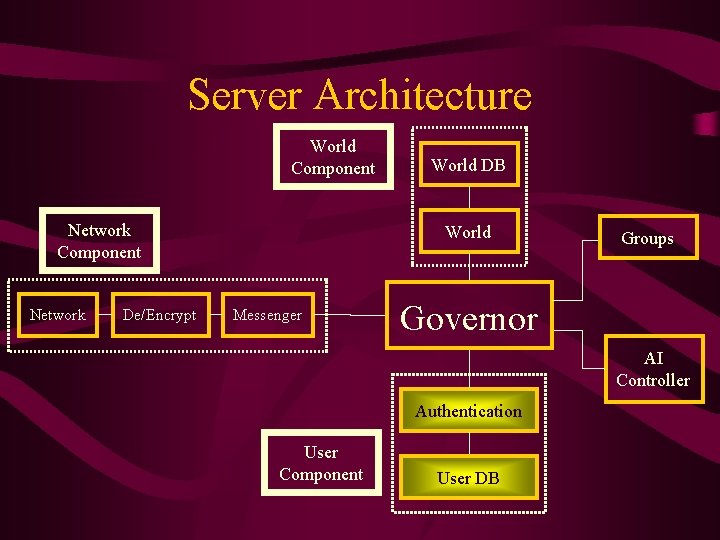

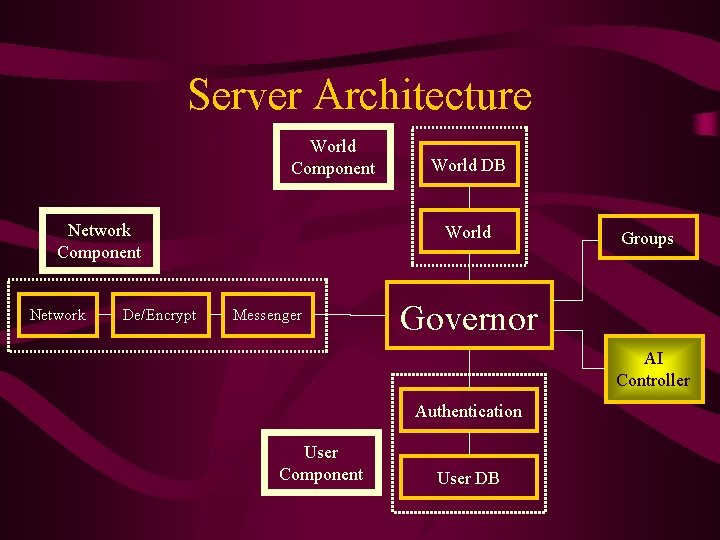

Server Architecture World Component Network De/Encrypt World DB World Messenger Groups Governor AI Controller Authentication User Component User DB

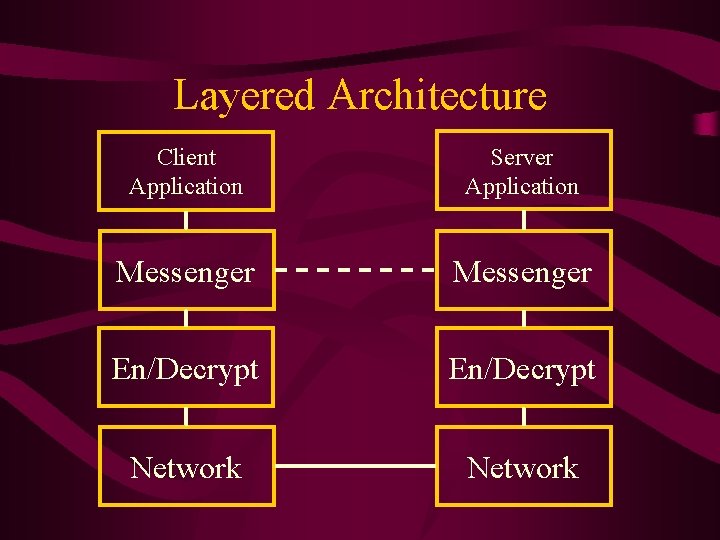

Layered Architecture Client Application Server Application Messenger En/Decrypt Network

The Six Problems • • • Client side performance Network traffic Scalability Load balancing Secure game play Maintainability

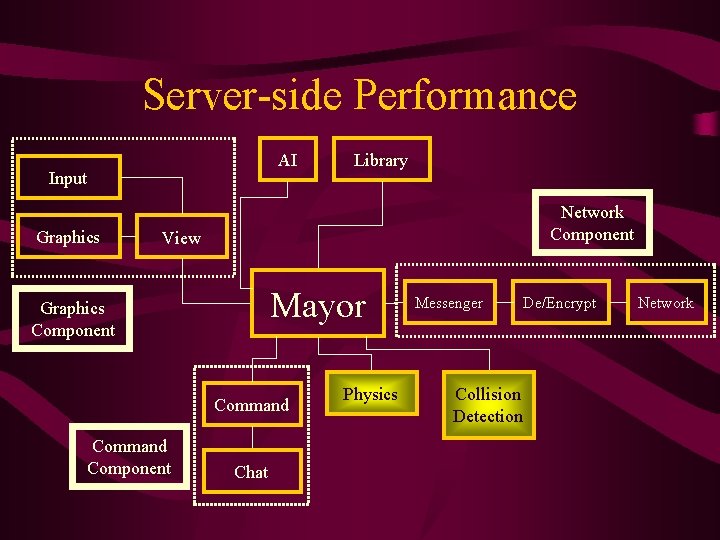

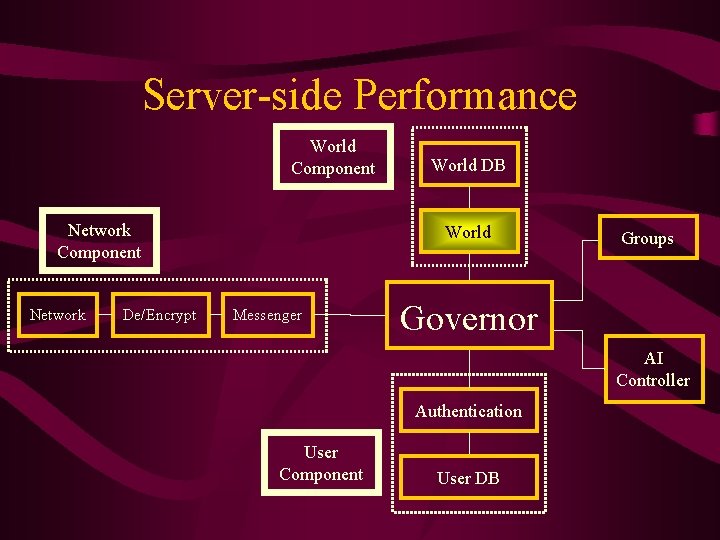

Server-side Performance World Component Network De/Encrypt World DB World Messenger Groups Governor AI Controller Authentication User Component User DB

Server-side Performance AI Input Graphics Library Network Component View Mayor Graphics Component Command Component Chat Physics Messenger Collision Detection De/Encrypt Network

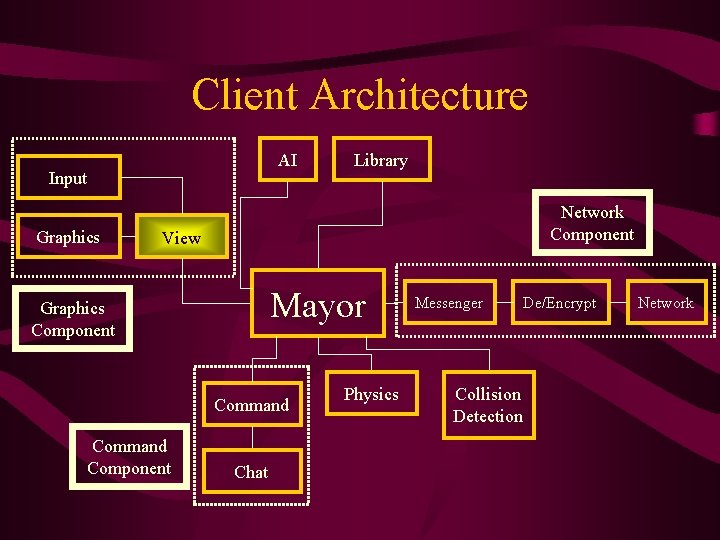

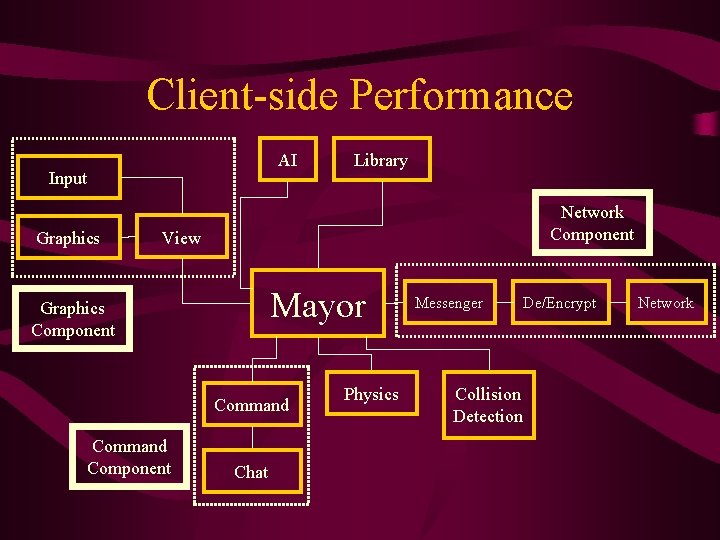

Client-side Performance AI Input Graphics Library Network Component View Mayor Graphics Component Command Component Chat Physics Messenger Collision Detection De/Encrypt Network

The Six Problems • • • Client side performance Network traffic Scalability Load balancing Secure game play Maintainability

Network Traffic AI Input Graphics Library Network Component View Mayor Graphics Component Command Component Chat Physics Messenger Collision Detection De/Encrypt Network

The Six Problems • • • Client side performance Network traffic Scalability Load balancing Secure game play Maintainability

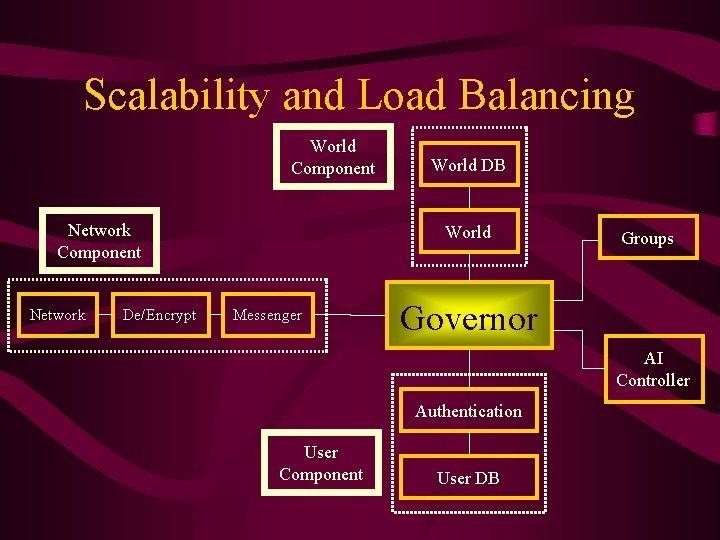

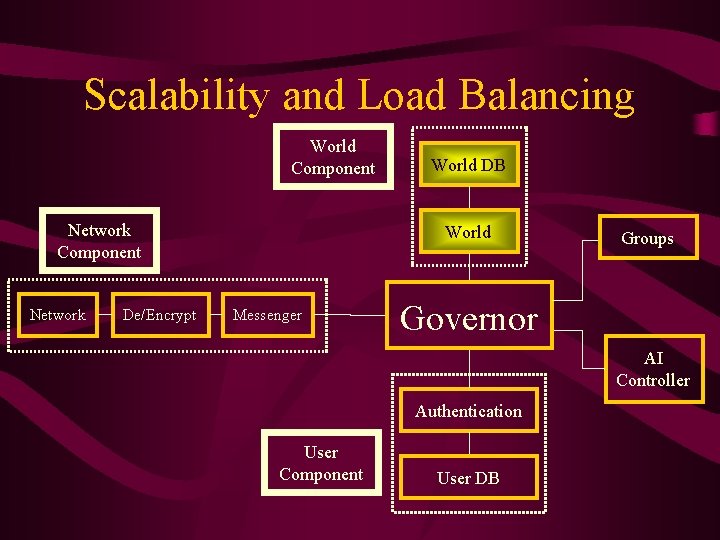

Scalability and Load Balancing World Component Network De/Encrypt World DB World Messenger Groups Governor AI Controller Authentication User Component User DB

The Six Problems • • • Client side performance Network traffic Scalability Load balancing Secure game play Maintainability

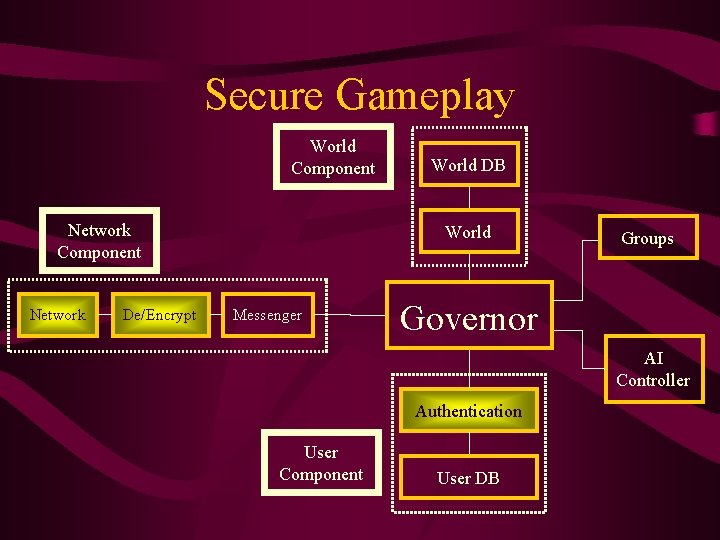

Secure Gameplay World Component Network De/Encrypt World DB World Messenger Groups Governor AI Controller Authentication User Component User DB

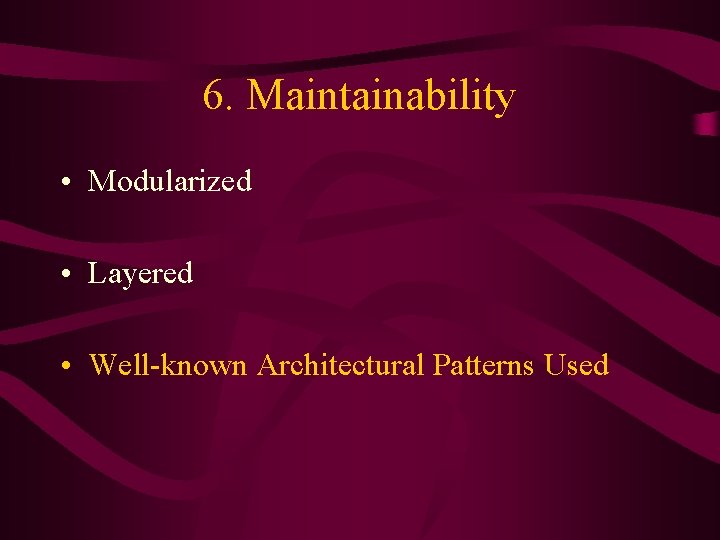

6. Maintainability • Modularized • Layered • Well-known Architectural Patterns Used

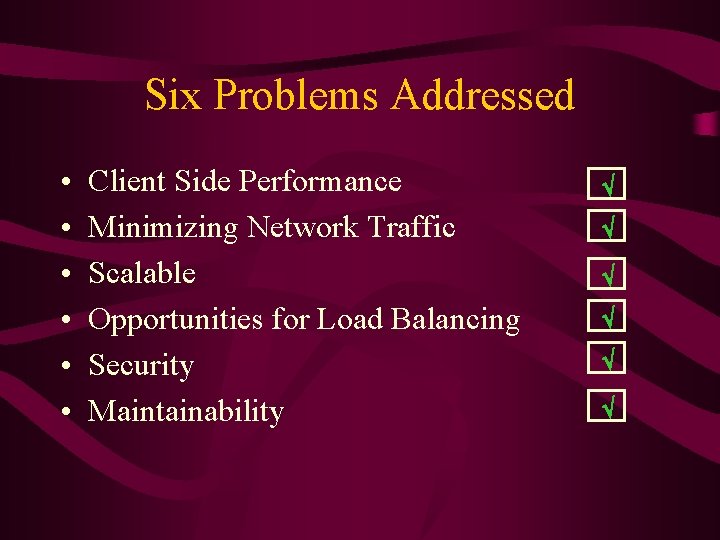

Six Problems Addressed • • • Client Side Performance Minimizing Network Traffic Scalable Opportunities for Load Balancing Security Maintainability Ö Ö Ö

Client Architecture AI Input Graphics Library Network Component View Mayor Graphics Component Command Component Chat Physics Messenger Collision Detection De/Encrypt Network

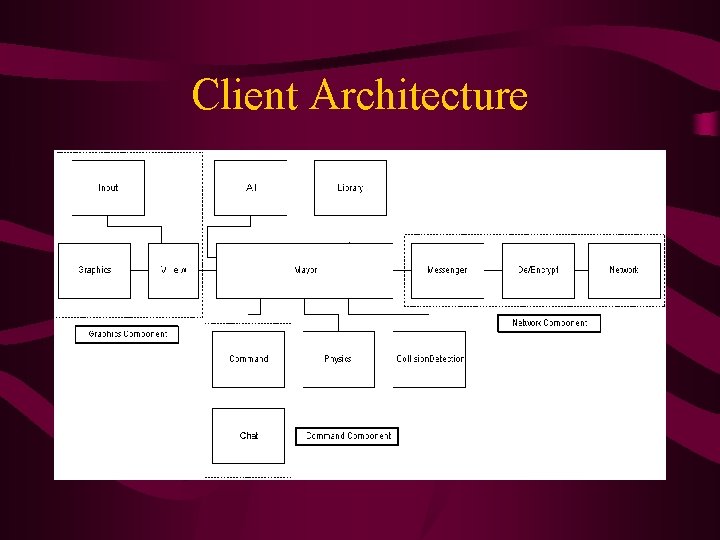

Client Architecture

Client Architecture AI Input Graphics Library Network Component View Mayor Graphics Component Command Component Chat Physics Messenger Collision Detection De/Encrypt Network

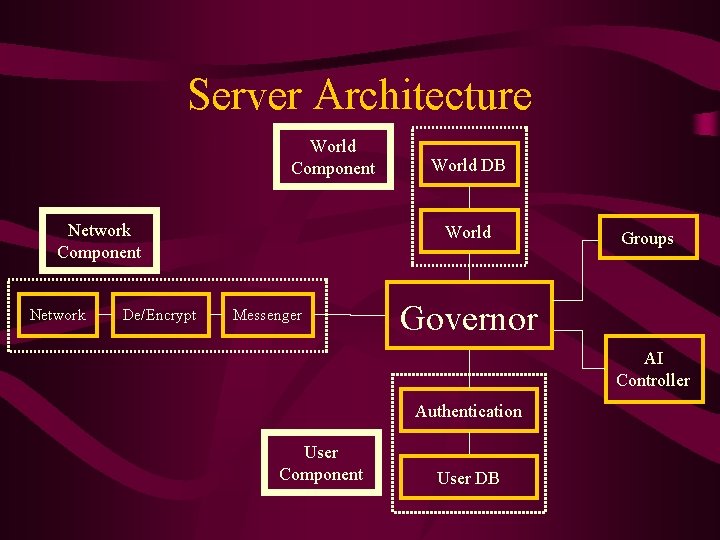

Server Architecture World Component Network De/Encrypt World DB World Messenger Groups Governor AI Controller Authentication User Component User DB
