AN ALTERNATIVE ANALYSIS OF THE PROBABILISTIC SEISMIC HAZARD FOR LAS VEGAS VALLEY, NEVADA Barbara Luke Wanda J. Taylor
ACTIVE FAULTS IN AND NEAR LAS VEGAS VALLEY • sources of M>6 earthquakes since 1. 6 Ma • distant sources • Sources within Las Vegas Valley • Las Vegas Valley fault system and Frenchman Mtn fault 100 km radius
LAS VEGAS VALLEY FAULT SYSTEM • EF splay MRE 2245 BCE • VVF splay – MRE 14, 500 14 C BP (de. Polo et al. , 2006)
LAS VEGAS VALLEY WELL DATA • 1400+ well logs • Sediment ranges from fine to coarse • Alluvial fans around basin • Interfingered grain sizes near LVVFS
LAS VEGAS VALLEY BASIN FILL AT DEPTH n n n Well data show that ~2/3 of the basin-fill is > ~5 Ma <5 Ma basin has less paleorelief along its base, is broader and more symmetric Shape difference and depocenter shift caused by Edipping LVFS < ~5 Ma >~5 Ma bedrock
SUPERIMPOSED BASINS • Non-planar faults • Upper basin controlled by LVVFS and FMF
OUR SEISMIC HAZARD ACCORDING TO USGS (2008) Probabilistic seismic hazard analysis (PSHA): Combined hazard due to multiple earthquake sources Hypothetical bedrock outcrop * 0. 2 -s spectral acceleration 2% PE in 50 years ~ 2500 year return period 0. 35 – 0. 65 g - 10%, 5%, 2% probability of exceedance (PE) in 50 years - Uses logic tree formalism - Fault parameters - Fault recurrence - Ground motion relations Acceleration, g - 3 ground shaking parameters - Peak Ground Acceleration (PGA) - 0. 2 -s spectral acceleration - 1. 0 -s spectral acceleration http: //earthquake. usgs. gov/hazards/products/conterminous/2008/maps/ * Does not address effects of basin-fill sediments Model does not explicitly consider most of Las Vegas Valley Fault System (LVVFS)
USGS FAULT CLASS “B” Not considered explicitly as fault source in PSHA

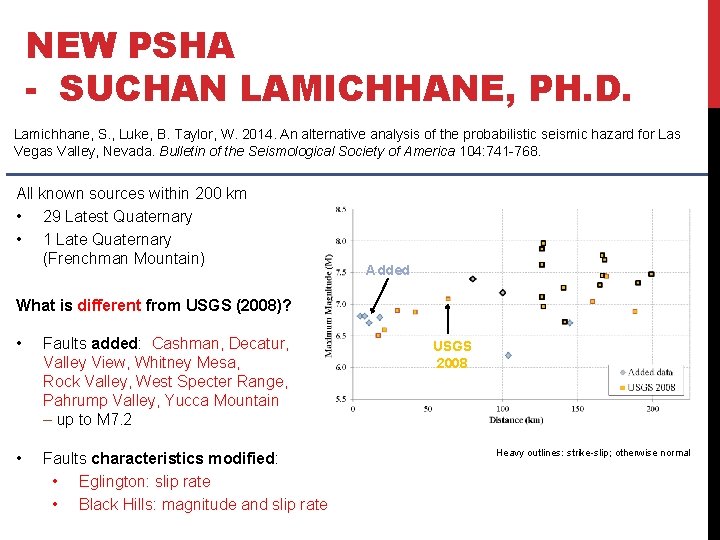

NEW PSHA - SUCHAN LAMICHHANE, PH. D. Lamichhane, S. , Luke, B. Taylor, W. 2014. An alternative analysis of the probabilistic seismic hazard for Las Vegas Valley, Nevada. Bulletin of the Seismological Society of America 104: 741 -768. All known sources within 200 km • 29 Latest Quaternary • 1 Late Quaternary (Frenchman Mountain) Added What is different from USGS (2008)? • Faults added: Cashman, Decatur, Valley View, Whitney Mesa, Rock Valley, West Specter Range, Pahrump Valley, Yucca Mountain – up to M 7. 2 • Faults characteristics modified: • Eglington: slip rate • Black Hills: magnitude and slip rate USGS 2008 Heavy outlines: strike-slip; otherwise normal

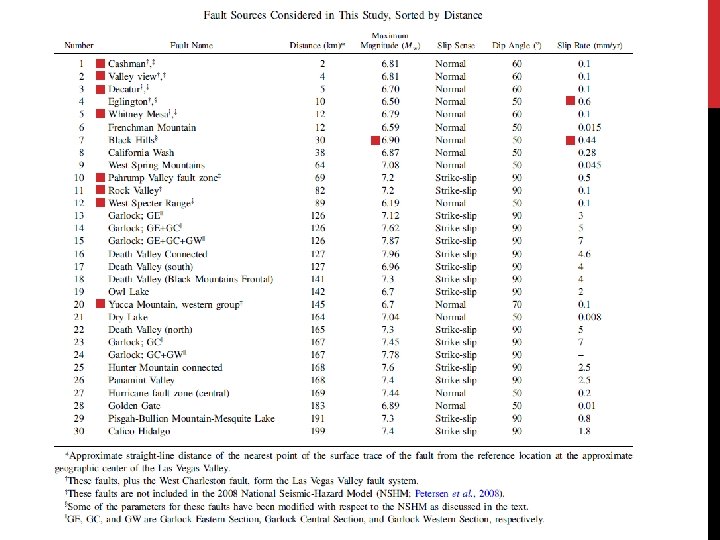

FAULTS 200 km Added USGS quaternary fault and fold database http: //earthquake. usgs. gov/hazards/qfaults/google. php October 2011 WMF: Whitney Mesa Fault CF: Cashman Fault VVF: Valley View Fault DF: Decatur Fault
PSHA USES LOGIC TREE Addresses uncertainties due to lack of knowledge and understanding (“epistemic”) Ground motion prediction equation Weight Different with this analysis
PSHA OUTCOME Reference location EZ-FRISK v. 7. 62 Total hazard curves 10% PE in 50 years 2% PE in 50 years Uniform hazard spectra 72 % 2% PE in 50 years: ~70% increase 5% damping 69 % 71 % Period (s)
PSHA OUTCOME 441 locations, ~ 3 km grid PGA 0. 15 – 0. 55 g Deaggregations LVVFS Background & gridded sources Peak ground acceleration Distant faults Reference location 4 seconds Long period (4 s) 2% PE in 50 years

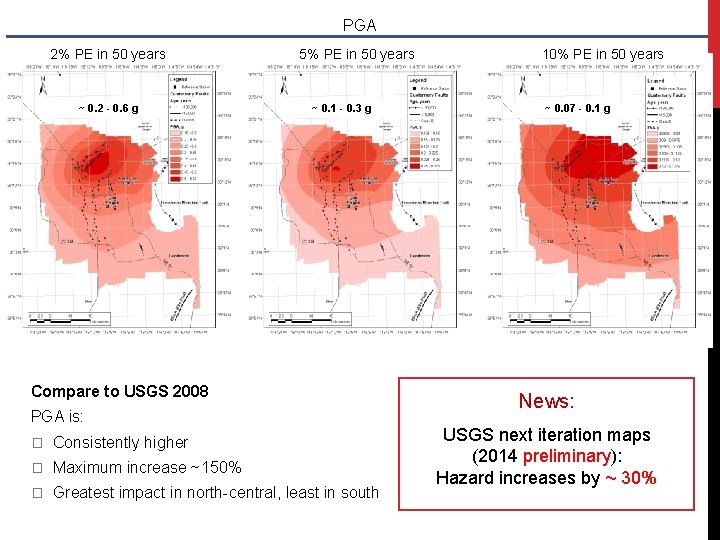

PGA 2% PE in 50 years ~ 0. 2 - 0. 6 g 5% PE in 50 years ~ 0. 1 - 0. 3 g Compare to USGS 2008 PGA is: � Consistently higher � Maximum increase ~150% � Greatest impact in north-central, least in south 10% PE in 50 years ~ 0. 07 - 0. 1 g News: USGS next iteration maps (2014 preliminary): Hazard increases by ~ 30%
http: //earthquake. usgs. gov/hazards/2014 prelim/ PRELIMINARY We acknowledge • Suchan Lamichhane • Technical contributions from Woody Savage, Jeff Wagoner, Alex Goya • Funding from DOE, UNLV
