AMUET Advanced Mobile Universal Electrical Tooling Warner Robins

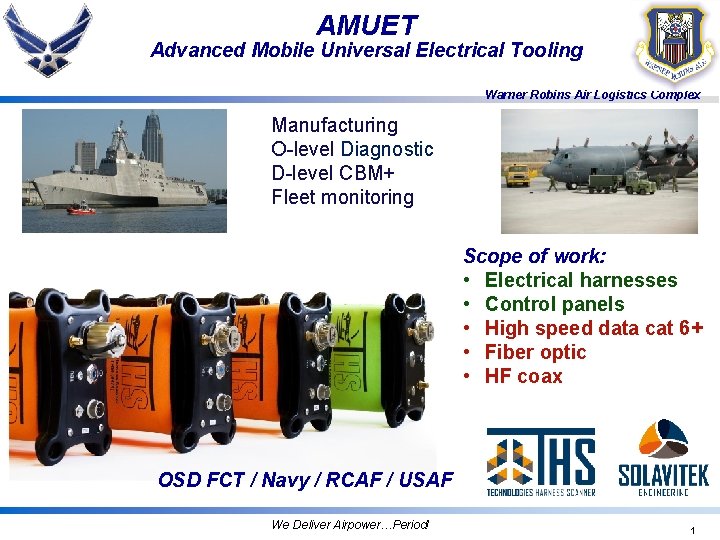

AMUET Advanced Mobile Universal Electrical Tooling Warner Robins Air Logistics Complex Manufacturing O-level Diagnostic D-level CBM+ Fleet monitoring Scope of work: • Electrical harnesses • Control panels • High speed data cat 6+ • Fiber optic • HF coax OSD FCT / Navy / RCAF / USAF We Deliver Airpower…Period! 1

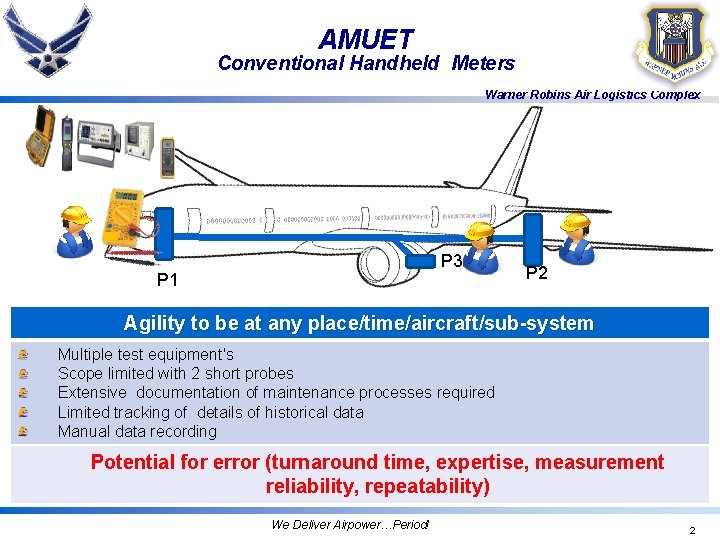

AMUET Conventional Handheld Meters Warner Robins Air Logistics Complex P 3 P 1 P 2 Agility to be at any place/time/aircraft/sub-system Multiple test equipment's Scope limited with 2 short probes Extensive documentation of maintenance processes required Limited tracking of details of historical data Manual data recording Potential for error (turnaround time, expertise, measurement reliability, repeatability) We Deliver Airpower…Period! 2

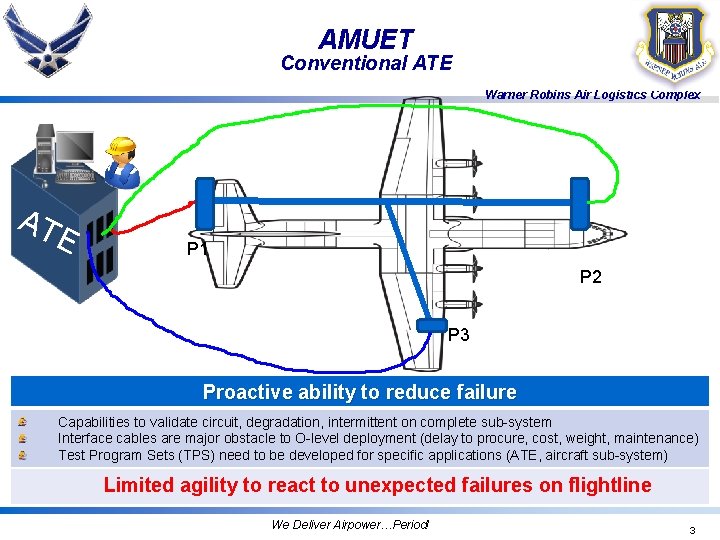

AMUET Conventional ATE Warner Robins Air Logistics Complex AT E P 1 P 2 P 3 Proactive ability to reduce failure Capabilities to validate circuit, degradation, intermittent on complete sub-system Interface cables are major obstacle to O-level deployment (delay to procure, cost, weight, maintenance) Test Program Sets (TPS) need to be developed for specific applications (ATE, aircraft sub-system) Limited agility to react to unexpected failures on flightline We Deliver Airpower…Period! 3

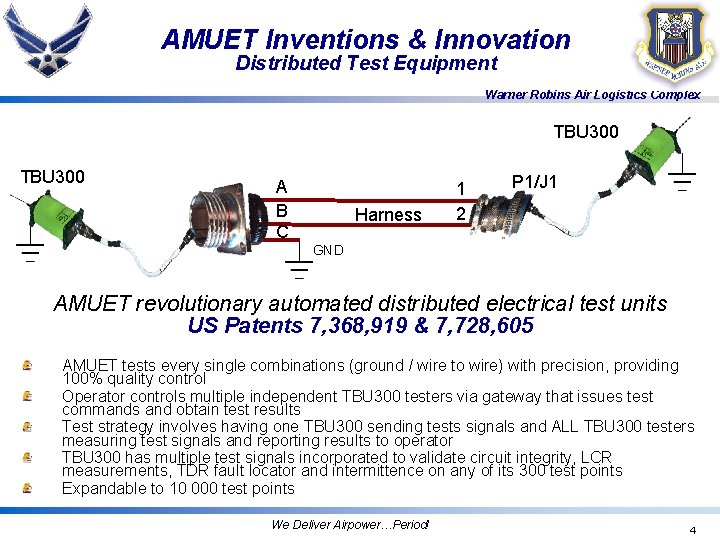

AMUET Inventions & Innovation Distributed Test Equipment Warner Robins Air Logistics Complex TBU 300 TE A B C Harness 1 2 P 1/J 1 GND AMUET revolutionary automated distributed electrical test units US Patents 7, 368, 919 & 7, 728, 605 AMUET tests every single combinations (ground / wire to wire) with precision, providing 100% quality control Operator controls multiple independent TBU 300 testers via gateway that issues test commands and obtain test results Test strategy involves having one TBU 300 sending tests signals and ALL TBU 300 testers measuring test signals and reporting results to operator TBU 300 has multiple test signals incorporated to validate circuit integrity, LCR measurements, TDR fault locator and intermittence on any of its 300 test points Expandable to 10 000 test points We Deliver Airpower…Period! 4

AMUET UN-ATE = Universal-Automated Electrical Tooling Warner Robins Air Logistics Complex We Deliver Airpower…Period! 5

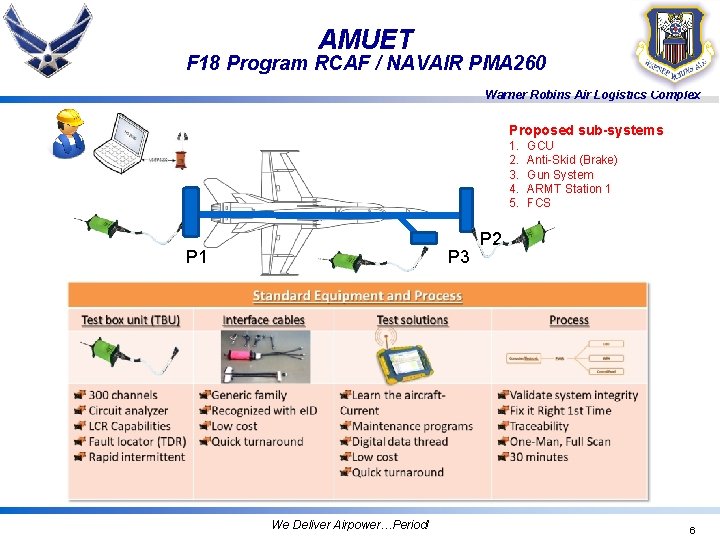

AMUET F 18 Program RCAF / NAVAIR PMA 260 Warner Robins Air Logistics Complex Proposed sub-systems 1. 2. 3. 4. 5. P 1 P 3 We Deliver Airpower…Period! GCU Anti-Skid (Brake) Gun System ARMT Station 1 FCS P 2 6

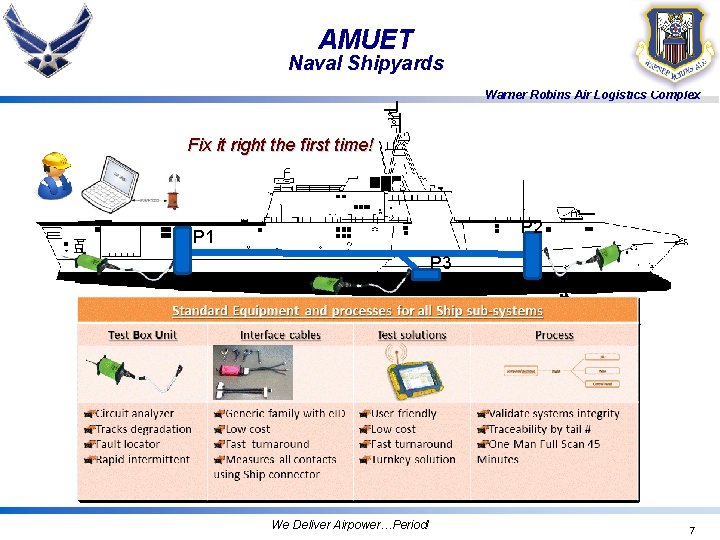

AMUET Naval Shipyards Warner Robins Air Logistics Complex Fix it right the first time! P 2 P 1 P 3 We Deliver Airpower…Period! 7

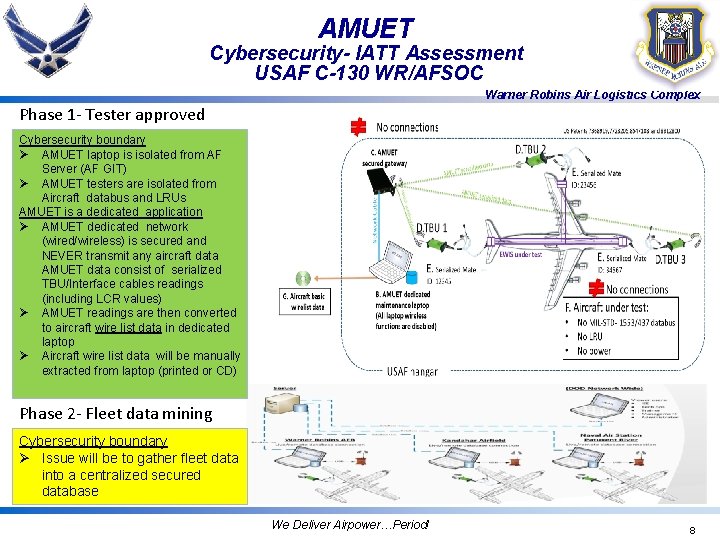

AMUET Cybersecurity- IATT Assessment USAF C-130 WR/AFSOC Warner Robins Air Logistics Complex Phase 1 - Tester approved Cybersecurity boundary Ø AMUET laptop is isolated from AF Server (AF GIT) Ø AMUET testers are isolated from Aircraft databus and LRUs AMUET is a dedicated application Ø AMUET dedicated network (wired/wireless) is secured and NEVER transmit any aircraft data AMUET data consist of serialized TBU/Interface cables readings (including LCR values) Ø AMUET readings are then converted to aircraft wire list data in dedicated laptop Ø Aircraft wire list data will be manually extracted from laptop (printed or CD) Phase 2 - Fleet data mining Cybersecurity boundary Ø Issue will be to gather fleet data into a centralized secured database We Deliver Airpower…Period! 8

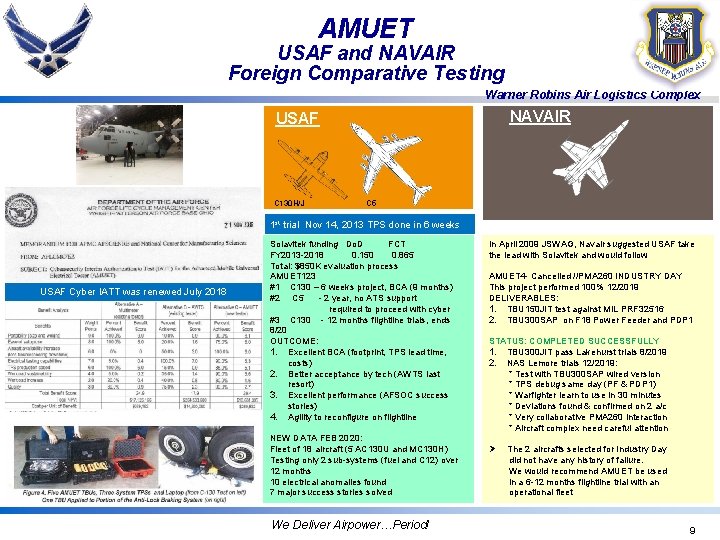

AMUET USAF and NAVAIR Foreign Comparative Testing Warner Robins Air Logistics Complex NAVAIR USAF C 130 H/J C 5 1 st trial Nov 14, 2013 TPS done in 6 weeks USAF Cyber IATT was renewed July 2018 Solavitek funding Do. D FCT FY 2013 -2018 0. 150 0. 865 Total: $850 K evaluation process AMUET 123 #1 C 130 – 6 weeks project, BCA (9 months) #2 C 5 - 2 year, no ATS support required to proceed with cyber #3 C 130 - 12 months flightline trials, ends 8/20 OUTCOME: 1. Excellent BCA (footprint, TPS lead time, costs) 2. Better acceptance by tech (AWTS last resort) 3. Excellent performance (AFSOC success stories) 4. Agility to reconfigure on flightline NEW DATA FEB 2020: Fleet of 18 aircraft (5 AC 130 U and MC 130 H) Testing only 2 sub-systems (fuel and C 12) over 12 months 10 electrical anomalies found 7 major success stories solved We Deliver Airpower…Period! In April 2009 JSWAG, Navair suggested USAF take the lead with Solavitek and would follow AMUET 4 - Cancelled //PMA 260 INDUSTRY DAY This project performed 100% 12/2019 DELIVERABLES: 1. TBU 150 JIT test against MIL PRF 32516 2. TBU 300 SAP on F 18 Power Feeder and PDP 1 STATUS: COMPLETED SUCCESSFULLY 1. TBU 300 JIT pass Lakehurst trials 8/2019 2. NAS Lemore trials 12/2019: * Test with TBU 300 SAP wired version * TPS debug same day (PF & PDP 1) * Warfighter learn to use in 30 minutes * Deviations found & confirmed on 2 a/c * Very collaborative PMA 260 interaction * Aircraft complex need careful attention Ø The 2 aircrafts selected for Industry Day did not have any history of failure. We would recommend AMUET be used in a 6 -12 months flightline trial with an operational fleet 9

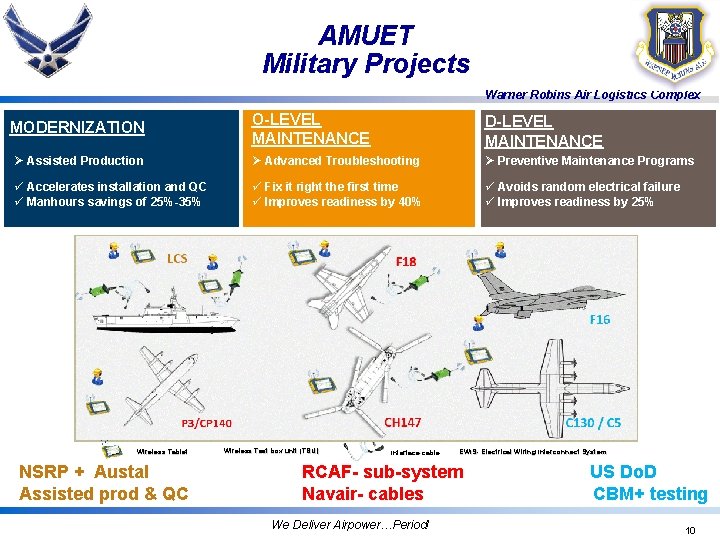

AMUET Military Projects Warner Robins Air Logistics Complex O-LEVEL MAINTENANCE D-LEVEL MAINTENANCE Ø Assisted Production Ø Advanced Troubleshooting Ø Preventive Maintenance Programs ü Accelerates installation and QC ü Manhours savings of 25%-35% ü Fix it right the first time ü Improves readiness by 40% ü Avoids random electrical failure ü Improves readiness by 25% MODERNIZATION Wireless Tablet NSRP + Austal Assisted prod & QC Wireless Test box unit (TBU) Interface cable EWIS- Electrical Wiring Interconnect System RCAF- sub-system Navair- cables We Deliver Airpower…Period! US Do. D CBM+ testing 10
