AMQP - Advanced Message Queuing Protocol Subramanian Dhandapani 06. 03. 2018 1

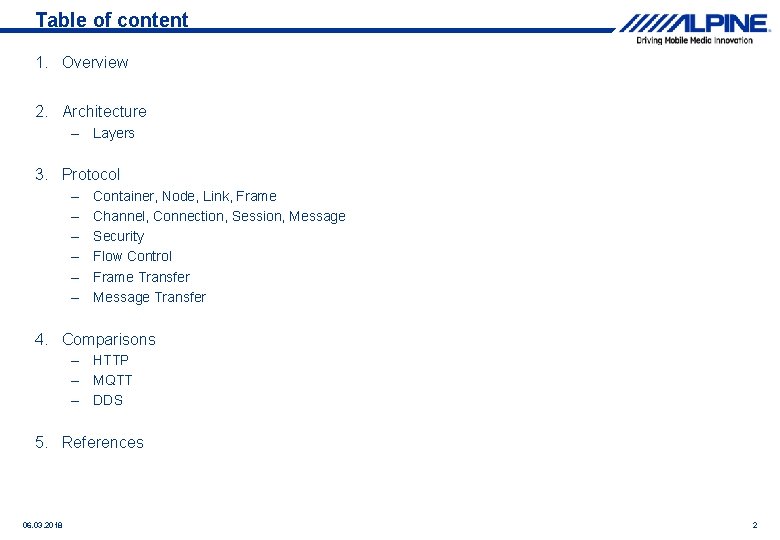

Table of content 1. Overview 2. Architecture – Layers 3. Protocol – – – Container, Node, Link, Frame Channel, Connection, Session, Message Security Flow Control Frame Transfer Message Transfer 4. Comparisons – HTTP – MQTT – DDS 5. References 06. 03. 2018 2
What is … • The Advanced Message Queuing Protocol (AMQP) is an open standard for passing business messages between applications or organizations. • Designed for multiprocessor messaging with a generic, extensible protocol. • Standardized by the AMQP Standard Working Group. • Binary Wire level protocol (Just like HTTP is for Internet, AMQP is for Messaging) • Public and royalty-free license 06. 03. 2018 3
History • Idea was defined by Mr. John O'Hara of JPMorgan Chase in 2003. • Part of OASIS (Organization for the Advancement of Structured Information Standards) standards ( from 2012 ) • Converged onto ISO standards (ISO 19464) • Used by JPMorgan Chase Bank, Bank of America and Deutsche Börse on the Financial Services. Microsoft, Red Hat, Software AG and US Department of Homeland Security on the Technology. 06. 03. 2018 4

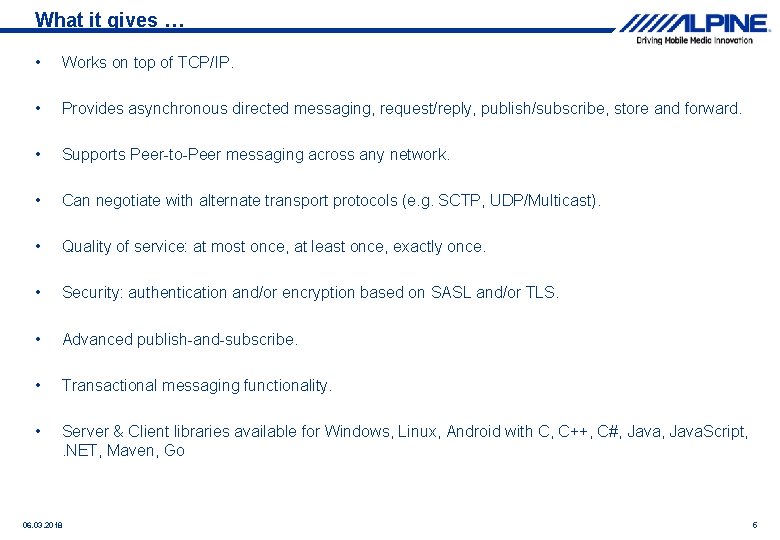

What it gives … • Works on top of TCP/IP. • Provides asynchronous directed messaging, request/reply, publish/subscribe, store and forward. • Supports Peer-to-Peer messaging across any network. • Can negotiate with alternate transport protocols (e. g. SCTP, UDP/Multicast). • Quality of service: at most once, at least once, exactly once. • Security: authentication and/or encryption based on SASL and/or TLS. • Advanced publish-and-subscribe. • Transactional messaging functionality. • Server & Client libraries available for Windows, Linux, Android with C, C++, C#, Java. Script, . NET, Maven, Go 06. 03. 2018 5
Who are … ❖JPMorgan Chase ❖ HCL Technologies ❖ Bank of America ❖ Progress Software ❖ Barclays ❖ Software AG ❖ Credit Suisse ❖ Red. Hat ❖ Goldman Sachs ❖ VMWare ❖ Cisco Systems ❖ IIT Software ❖ TWIST ❖ Microsoft Corporation ❖ Deutsche Börse Systems ❖ Zenika ❖ Informatica Corporation ❖ Solace Systems ❖ WSO 2 ❖ Tervala, Inc. ❖ IONA Technologies ❖ THALES ❖ INETCO Systems Ltd. ❖ KAAZING 06. 03. 2018 6
Which benefits … • Supports real time feed of constantly updating information • Enables the encrypted assured transaction. • Provides options to deliver the messages when the destination comes online • Equipped with sending of enormous message while still receiving status updates over the same network connection. • Works on different operating systems and languages. 06. 03. 2018 7

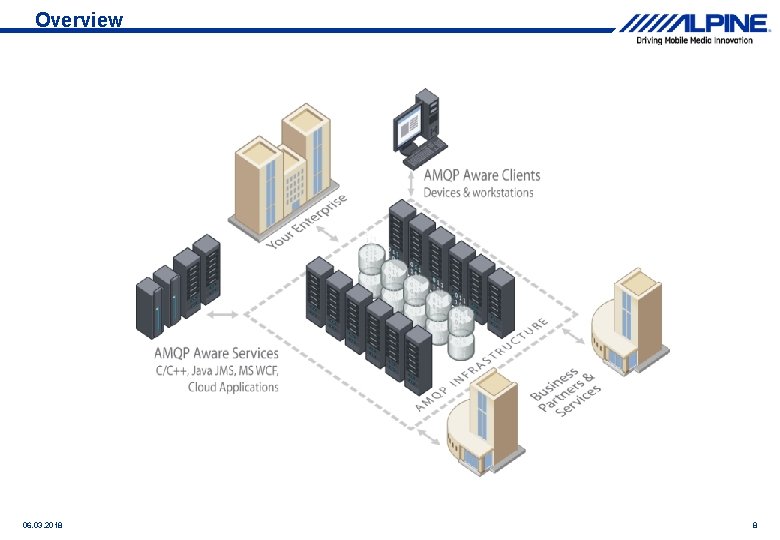

Overview 06. 03. 2018 8
Protocol - Layers Flexible routing/queuing Inter-operable Network optimized Model Network-friendly Wiring Framming Transport 06. 03. 2018 9

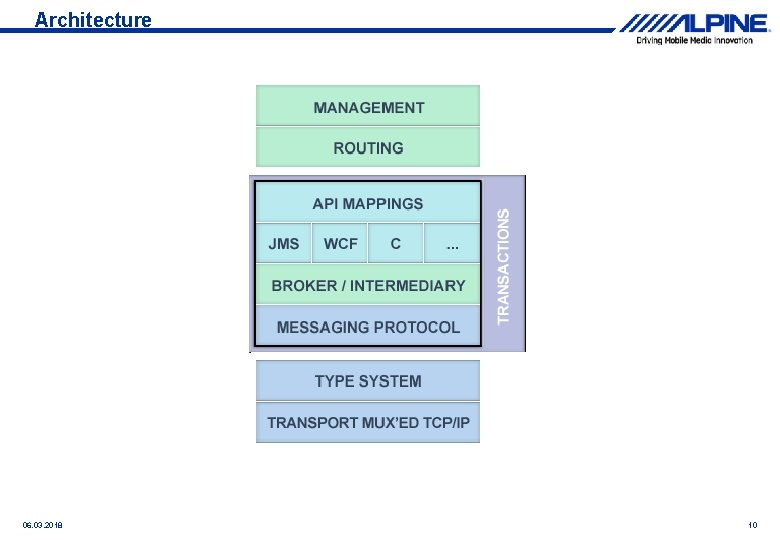

Architecture 06. 03. 2018 10
Network protocol 06. 03. 2018 11
Protocol - elements ❖Container § Communicating application ❖ Node § addressable entity within the app § responsible for safe storage and/or delivery § can be organized in any hierarchical graph § can be a queue or topic or relay or event store Container X Y 2 Y 1 Y / ❖ Link § Links connect via paths to nodes ❖ Frame § A frame is the unit of work carried on the wire 06. 03. 2018 Y 3 Z 12
Protocol - elements ❖ Channel § Negotiated number of independent unidirectional frames transfer ❖ Session § Session contains two unidirectional channels to form a bidirectional, sequential conversation between two containers. § Provides flow control schemes 06. 03. 2018 Container CH 3 Session CH 1 CH 2 Container ❖ Connection § a full-duplex, reliably ordered sequence of frames manages the defined transfer capacity realizes the transfer reliability § negotiated number of independent unidirectional channels CH 2 Connection 13
Protocol - Security ❖ Transport-Level Security (TLS/“SSL”) § Single-port model - Sender indicates a desire use of TLS sessions § Pure-TLS - Sender opens a TLS Session to server on a dedicated port 5671 § Websocket based TLS - Sender creates a websoket tunnel on port 443 ❖ SASL Authentification § Supports any SASL models § SASL External permits binding TLS client authentication context to the AMQP connection 06. 03. 2018 14
Protocol - Overview ❖ Secure, compact, symmetric, multiplexed, more reliable, binary transfer protocol to move messages between applications ❖ Transferring messages not connected to any source or target model or topology. ❖ Supporting various message brokers like the classic, peer-to-peer, hyper-scale or even the combinations of all ❖ Defines the following layered models üTransfer flow control protocol üFrame transfer protocol üMessage transfer protocol 06. 03. 2018 15
Flow control Session flow control Platform resource management Link flow control Application message flow managment Each session endpoint has an incoming and outgoing transfer window defining an upper bound for messages in transit Each link has an associated link-credit, which is the number of messages the receiver is currently willing to accept Window size is expressed in frame count; maximum frame size and window size gate the memory capacity required for a session Messages can flow when the remaining link -credit is greater than zero. Only the receiver can manipulate the link credit value. Transfers decrement the remaining window sizes. An outgoing window size of <=0 suspends transfers. Window sizes are updated/reset with FLOW Transfers decrement the remaining link credit. A link credit of <=0 suspends transfers. Link credit is updated with FLOW 06. 03. 2018 16

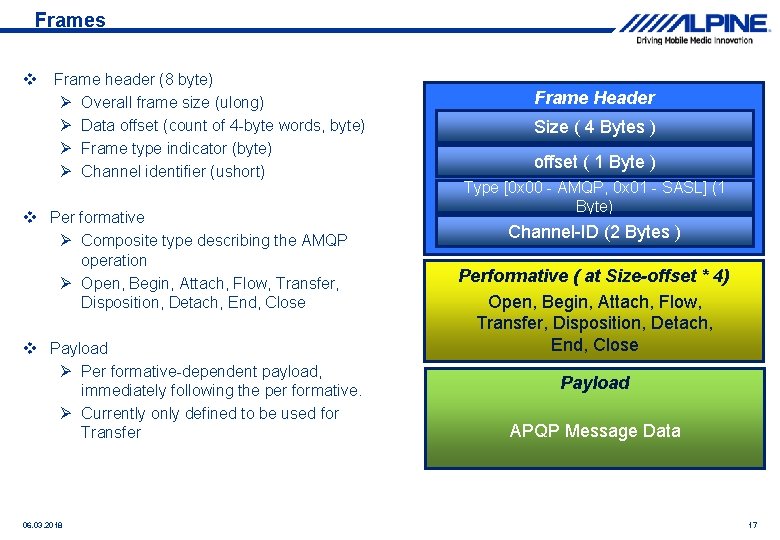

Frames Frame header (8 byte) Overall frame size (ulong) Data offset (count of 4 -byte words, byte) Frame type indicator (byte) Channel identifier (ushort) Per formative Composite type describing the AMQP operation Open, Begin, Attach, Flow, Transfer, Disposition, Detach, End, Close Payload Per formative-dependent payload, immediately following the per formative. Currently only defined to be used for Transfer 06. 03. 2018 Frame Header Size ( 4 Bytes ) offset ( 1 Byte ) Type [0 x 00 - AMQP, 0 x 01 - SASL] (1 Byte) Channel-ID (2 Bytes ) Performative ( at Size-offset * 4) Open, Begin, Attach, Flow, Transfer, Disposition, Detach, End, Close Payload APQP Message Data 17
Frame Transfer Types 06. 03. 2018 18

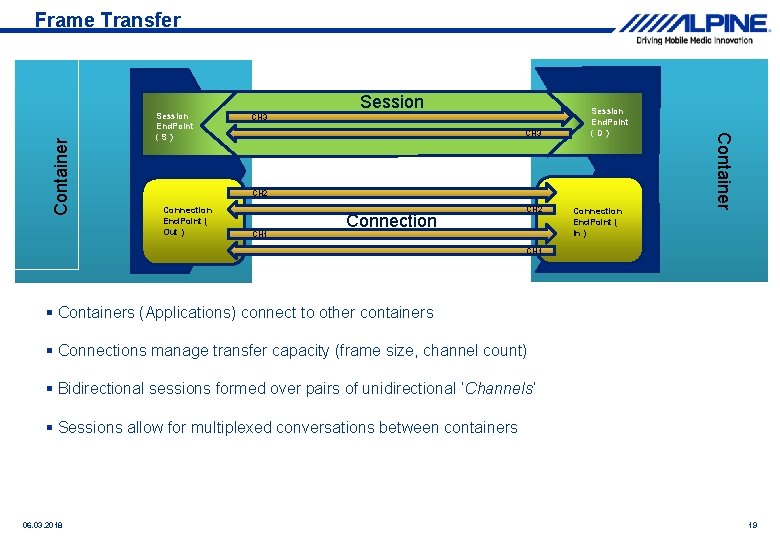

Session End. Point (S) Session CH 3 Session End. Point (D) CH 2 Connection End. Point ( Out ) CH 1 Connection CH 2 Connection End. Point ( In ) Container Frame Transfer CH 1 § Containers (Applications) connect to other containers § Connections manage transfer capacity (frame size, channel count) § Bidirectional sessions formed over pairs of unidirectional ‘Channels’ § Sessions allow for multiplexed conversations between containers 06. 03. 2018 19

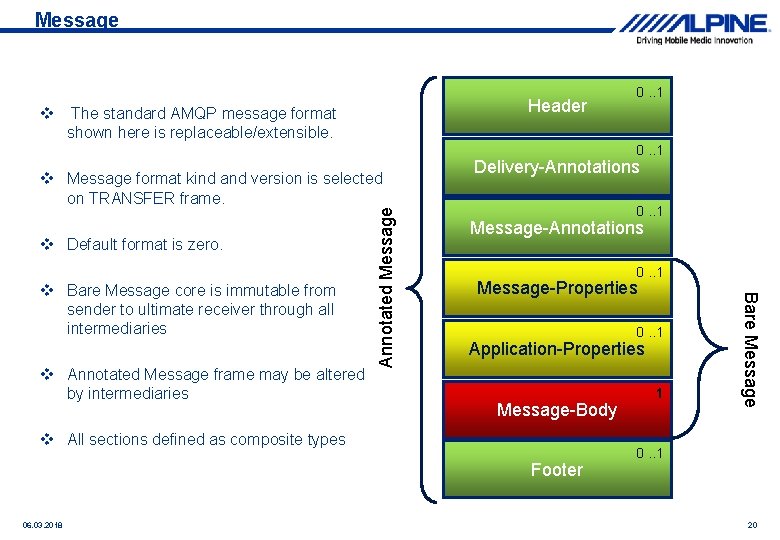

Message Header The standard AMQP message format shown here is replaceable/extensible. 0. . 1 Default format is zero. Annotated Message frame may be altered by intermediaries Delivery-Annotations 0. . 1 Message-Properties 0. . 1 Application-Properties Message-Body All sections defined as composite types Footer 06. 03. 2018 1 Bare Message core is immutable from sender to ultimate receiver through all intermediaries Annotated Message format kind and version is selected on TRANSFER frame. 0. . 1 20

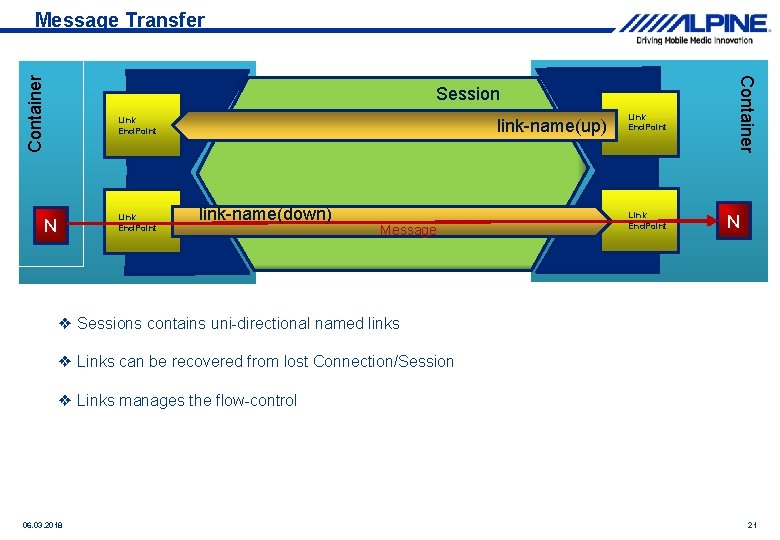

Session Link End. Point N Link End. Point link-name(up) link-name(down) Message Link End. Point Container Message Transfer N ❖ Sessions contains uni-directional named links ❖ Links can be recovered from lost Connection/Session ❖ Links manages the flow-control 06. 03. 2018 21

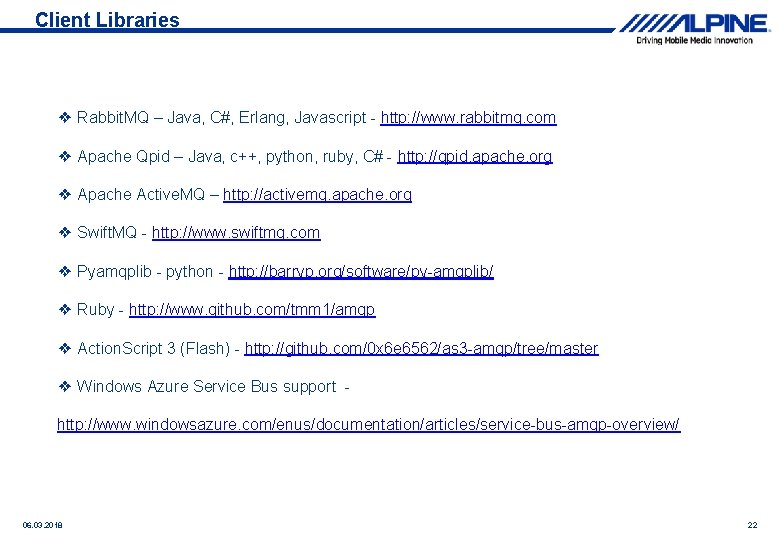

Client Libraries ❖ Rabbit. MQ – Java, C#, Erlang, Javascript - http: //www. rabbitmq. com ❖ Apache Qpid – Java, c++, python, ruby, C# - http: //qpid. apache. org ❖ Apache Active. MQ – http: //activemq. apache. org ❖ Swift. MQ - http: //www. swiftmq. com ❖ Pyamqplib - python - http: //barryp. org/software/py-amqplib/ ❖ Ruby - http: //www. github. com/tmm 1/amqp ❖ Action. Script 3 (Flash) - http: //github. com/0 x 6 e 6562/as 3 -amqp/tree/master ❖ Windows Azure Service Bus support http: //www. windowsazure. com/enus/documentation/articles/service-bus-amqp-overview/ 06. 03. 2018 22
Comparison - HTTP 06. 03. 2018 23
Comparison - MQTT 06. 03. 2018 24
Comparison - DDS 06. 03. 2018 25

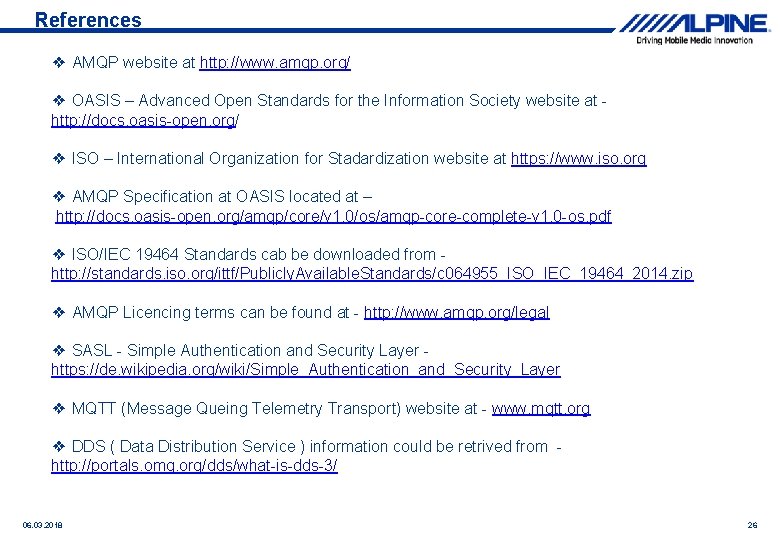

References ❖ AMQP website at http: //www. amqp. org/ ❖ OASIS – Advanced Open Standards for the Information Society website at http: //docs. oasis-open. org/ ❖ ISO – International Organization for Stadardization website at https: //www. iso. org ❖ AMQP Specification at OASIS located at – http: //docs. oasis-open. org/amqp/core/v 1. 0/os/amqp-core-complete-v 1. 0 -os. pdf ❖ ISO/IEC 19464 Standards cab be downloaded from http: //standards. iso. org/ittf/Publicly. Available. Standards/c 064955_ISO_IEC_19464_2014. zip ❖ AMQP Licencing terms can be found at - http: //www. amqp. org/legal ❖ SASL - Simple Authentication and Security Layer https: //de. wikipedia. org/wiki/Simple_Authentication_and_Security_Layer ❖ MQTT (Message Queing Telemetry Transport) website at - www. mqtt. org ❖ DDS ( Data Distribution Service ) information could be retrived from http: //portals. omg. org/dds/what-is-dds-3/ 06. 03. 2018 26
Thank you for your attention! 06. 03. 2018 27
