Amphenol PCI Express 1. 1/2. 0 Solution

Amphenol PCI Express 1. 1/2. 0 Solution

PCI Architecture Roadmap During the Intel® Developer Forum in September 2007, Intel Fellow Ajay

PCI Architecture Roadmap During the Intel® Developer Forum in September 2007, Intel Fellow Ajay Bhatt provided a chronology of PCI Express, as shown in the figure. This year PCIe 2. 0 and two virtualization specifications were approved. Page 2

Main Board Connectors Introduction Main Board Connector Overview: PCI Express (AMTA Product) DDR 2

Main Board Connectors Introduction Main Board Connector Overview: PCI Express (AMTA Product) DDR 2 & 3 (AMTA Product) Page 3

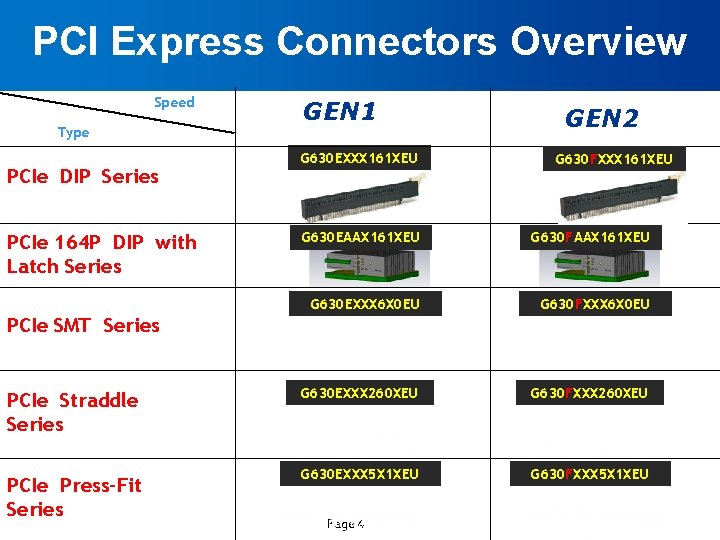

PCI Express Connectors Overview Speed Type PCIe DIP Series PCIe 164 P DIP with

PCI Express Connectors Overview Speed Type PCIe DIP Series PCIe 164 P DIP with Latch Series GEN 1 G 630 EXXX 161 XEU GEN 2 G 630 FXXX 161 XEU G 630 EAAX 161 XEU G 630 FAAX 161 XEU G 630 EXXX 6 X 0 EU G 630 FXXX 6 X 0 EU G 630 EXXX 260 XEU G 630 FXXX 260 XEU G 630 EXXX 5 X 1 XEU G 630 FXXX 5 X 1 XEU PCIe SMT Series PCIe Straddle Series PCIe Press-Fit Series Page 4

PCI Express 1. 1/2. 0 Card Edge Connector, DIP Type Product Features: 1. Complies

PCI Express 1. 1/2. 0 Card Edge Connector, DIP Type Product Features: 1. Complies with the PCI SIG standard for PCI Express implementation. 2. Scalable modular design maximizes card interoperability for user flexibility--1 x, 4 x, and 8 x add-in card can plug into 16 x connector. 3. Solder tail options for 2. 08 and 2. 36 mm PCB thickness. 4. Contact area plating: Gold Flash, 15 u” or 30 u” gold plating. 5. Ro. HS compliant, Lead free version available. PN: G 630 EXXX 161 XEU Dip Type Page 5

PCI Express 1. 1/2. 0 Card Edge Connector, Straddle Type Product Features: 1. Complies

PCI Express 1. 1/2. 0 Card Edge Connector, Straddle Type Product Features: 1. Complies with the PCI SIG standard for PCI Express implementation. 2. Scalable modular design maximizes card interoperability for user flexibility--1 x, 2 x, 4 X, 16 X 3. Solder tail options for 2. 08 and 2. 36 mm PCB thickness. 4. Contact area plating: Gold Flash, 15 u” or 30 u” gold plating. 5. Ro. HS compliant, Lead free version available. PN: G 630 EXXX 260 XEU Straddle Type with XXX Page 6

PCI 1. 1/2. 0 Express Card Edge Connector, SMT Type Product Features: 1. Complies

PCI 1. 1/2. 0 Express Card Edge Connector, SMT Type Product Features: 1. Complies with the PCI SIG standard for PCI Express implementation. 2. Scalable modular design maximizes card interoperability for user flexibility--1 x, 2 x, 4 X, 16 X 3. Solder tail options for 2. 08 and 2. 36 mm PCB thickness. 4. Contact area plating: Gold Flash, 15 u” or 30 u” gold plating. 5. Ro. HS compliant, Lead free version available. PN: G 630 EXXX 6 X 0 EU SMT Type with retention tabs Page 7

PCI 2. 0 Express Card Edge Connector, Press Fit Type Product Features: 1. Complies

PCI 2. 0 Express Card Edge Connector, Press Fit Type Product Features: 1. Complies with the PCI SIG 2. 0 standard for PCI Express implementation. 2 Scalable modular design maximizes card interoperability for user flexibility--1 x, 4 x, 3 Solder tail options for PCB thickness from 2. 36 mm to 4. 19 mm. 4. Contact area plating: Gold Flash, 15 u” or 30 u” gold plating. 5. HF compliant, Lead free version available. PN: G 630 EXXX 5 X 13 EU Press Fit Type with plastic post Product Benefits: Avoid the soldering problems (reliable solder joint) due to TH aspect ratio. Page 8

Amphenol PCIe Product develop flow chart Request Time & Cost Simulation (Mechanical, Electrical) 3

Amphenol PCIe Product develop flow chart Request Time & Cost Simulation (Mechanical, Electrical) 3 D Model create Molding Sample Run Modify Fail Verification Page 9 Pass Mass production

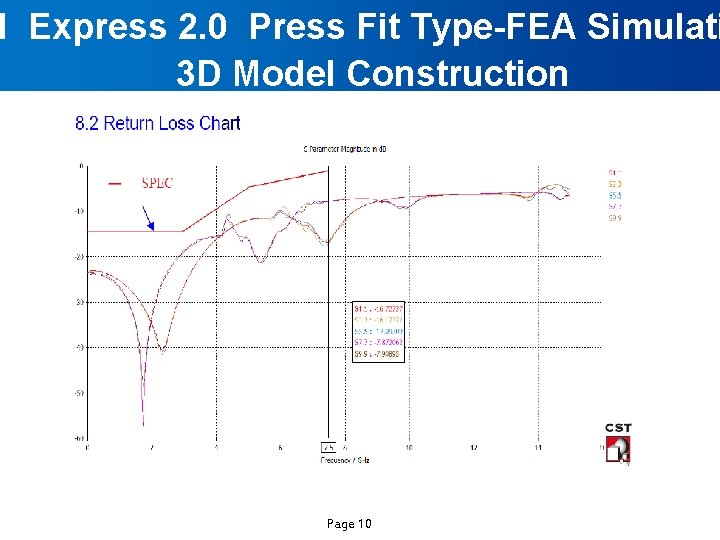

I Express 2. 0 Press Fit Type-FEA Simulati 3 D Model Construction Page 10

I Express 2. 0 Press Fit Type-FEA Simulati 3 D Model Construction Page 10

I Express 2. 0 Press Fit Type-FEA Simulati SI Simulation Page 11

I Express 2. 0 Press Fit Type-FEA Simulati SI Simulation Page 11

I Express 2. 0 Press Fit Type-FEA Simulati Mechanical Page 12

I Express 2. 0 Press Fit Type-FEA Simulati Mechanical Page 12

PCI Express 2. 0 Fit Type SI Testing Result NEXT-Rx 1 aggression Rx

PCI Express 2. 0 Fit Type SI Testing Result NEXT-Rx 1 aggression Rx 2 NEXT-Tx 2 aggression Rx 2 NEXT-Rx 3 aggression Rx 2 Page 13 NEXT-Tx 3 aggression Rx 2

PCIe 2. 0 Press Fit Type SI Testing Result Differential Insertion Loss Differential

PCIe 2. 0 Press Fit Type SI Testing Result Differential Insertion Loss Differential Return Loss All signal integrity parameters meet requirements of the PCI Express 2. 0 specification. Page 14

PCIe 2. 0 Press Fit Type Mechanical Testing Result Page 15

PCIe 2. 0 Press Fit Type Mechanical Testing Result Page 15

PCI Express R/A 2. 0 Press-Fit Product Features: Complies with the PCI SIG standard

PCI Express R/A 2. 0 Press-Fit Product Features: Complies with the PCI SIG standard for PCI Express implementation. Scalable modular design maximizes card interoperability for user flexibility--1 x, 4 x, and 8 x add-in card can plug into 16 x connector. The retention tabs at two ends to protect the solder tails. Contact area plating: Gold Flash, 15 u” or 30 u” gold plating. Ro. HS compliant, Lead free version available. Page 16

AMTA Contact Window § § § Wesely Huang , Product Manager (Server&Storage Connector) E-mail:

AMTA Contact Window § § § Wesely Huang , Product Manager (Server&Storage Connector) E-mail: wesely. huang@amphenol. com. tw TEL: +886 -3 -2647251 FAX: +886 -3 -3275296 Mobile: +886 -919946062 5 F. , NO 361, Fusing 1 st Rd. , Gueishan Township, Taoyuan County 33375, Taiwan (R. O. C) Page 17
