AMP NETCONNECT Cabling Systems Econo Link System Cat

AMP NETCONNECT Cabling Systems Econo. Link System Cat. 5 E ( screened ) 110 Connect System ( screened & un-screened ) Cat. 5 E

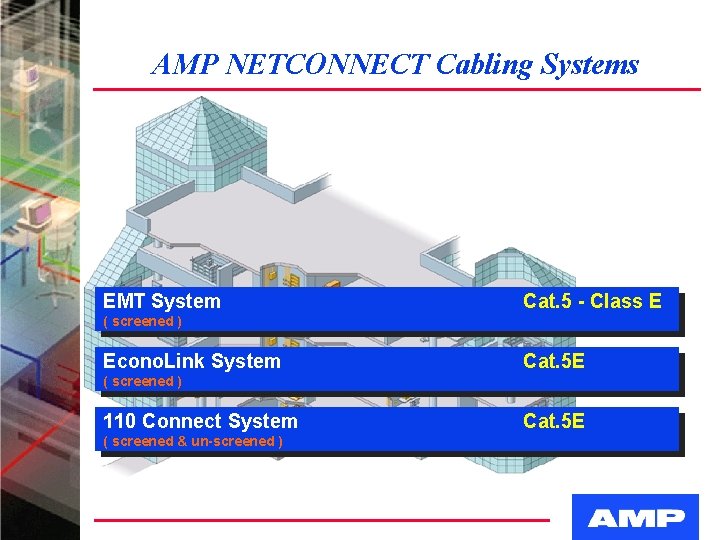

AMP NETCONNECT Cabling Systems EMT System Cat. 5 - Class E ( screened ) Econo. Link System Cat. 5 E ( screened ) 110 Connect System ( screened & un-screened ) Cat. 5 E

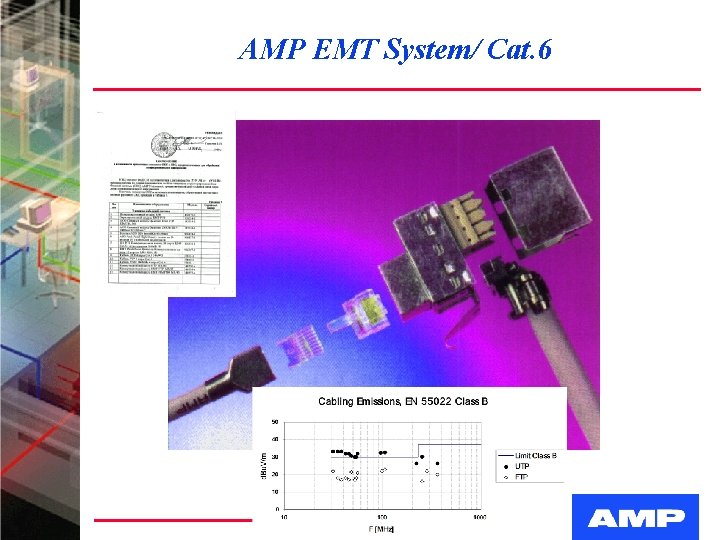

AMP EMT System/ Cat. 6

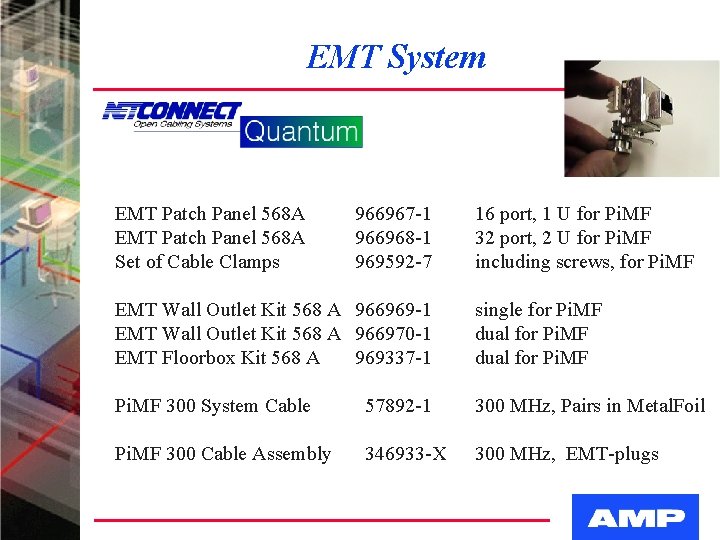

EMT System EMT Patch Panel 568 A Set of Cable Clamps 966967 -1 966968 -1 969592 -7 16 port, 1 U for Pi. MF 32 port, 2 U for Pi. MF including screws, for Pi. MF EMT Wall Outlet Kit 568 A 966969 -1 EMT Wall Outlet Kit 568 A 966970 -1 EMT Floorbox Kit 568 A 969337 -1 single for Pi. MF dual for Pi. MF 300 System Cable 57892 -1 300 MHz, Pairs in Metal. Foil Pi. MF 300 Cable Assembly 346933 -X 300 MHz, EMT-plugs

AMP NETCONNECT Cabling Systems New Category 6 - Systems EMT System Cat. 5 - Class E ( screened ) Econo. Link System Cat. 5 E ( screened ) 110 Connect System ( screened & un-screened ) Cat. 5 E

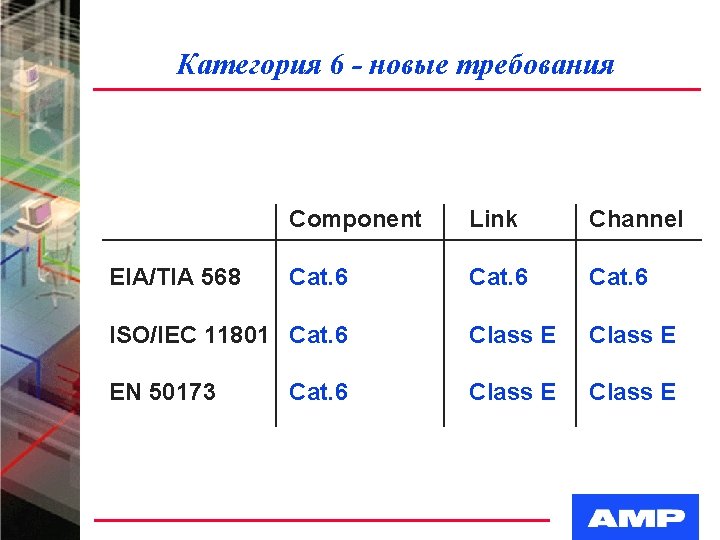

Категория 6 - новые требования Component Link Channel Cat. 6 ISO/IEC 11801 Cat. 6 Class E EN 50173 Class E EIA/TIA 568 Cat. 6

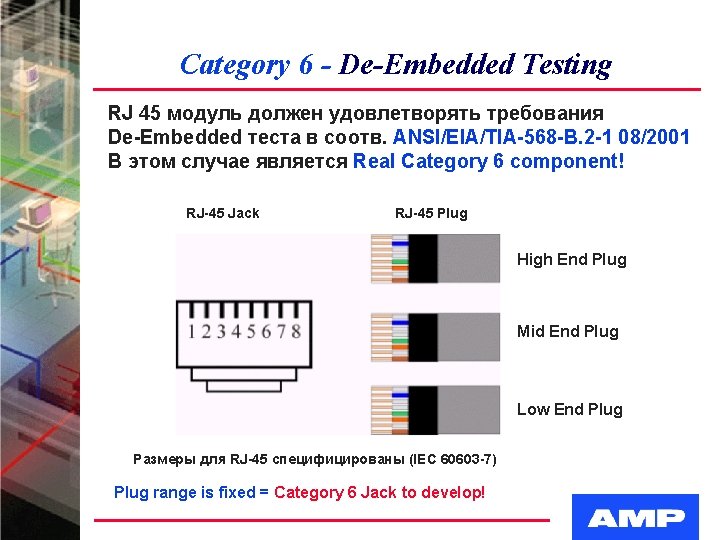

Category 6 - De-Embedded Testing RJ 45 модуль должен удовлетворять требования De-Embedded теста в соотв. ANSI/EIA/TIA-568 -B. 2 -1 08/2001 В этом случае является Real Category 6 component! RJ-45 Jack RJ-45 Plug High End Plug Mid End Plug Low End Plug Размеры для RJ-45 специфицированы (IEC 60603 -7) Plug range is fixed = Category 6 Jack to develop!

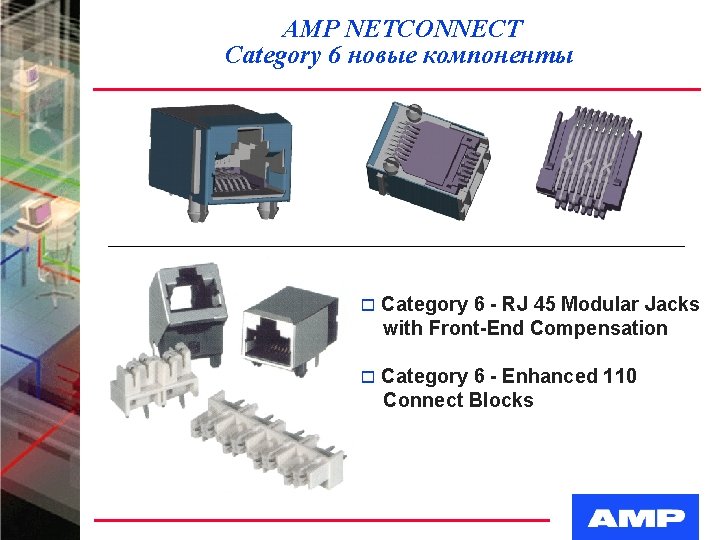

AMP NETCONNECT Category 6 новые компоненты o Category 6 - RJ 45 Modular Jacks with Front-End Compensation o Category 6 - Enhanced 110 Connect Blocks

AMP NETCONNECT Cabling Systems UTP Category 6 System Cat. 5 - Cat. 6 ( un-screened ) EMT System Cat. 5 - Class E ( screened ) Econo. Link System Cat. 5 E ( screened ) 110 Connect System ( screened & un-screened ) Cat. 5 E

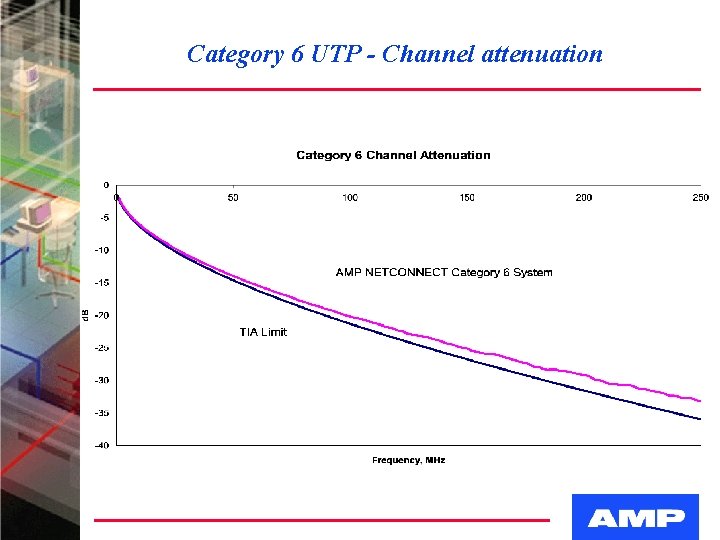

Category 6 UTP - Channel attenuation

Category 6 UTP - Channel return loss

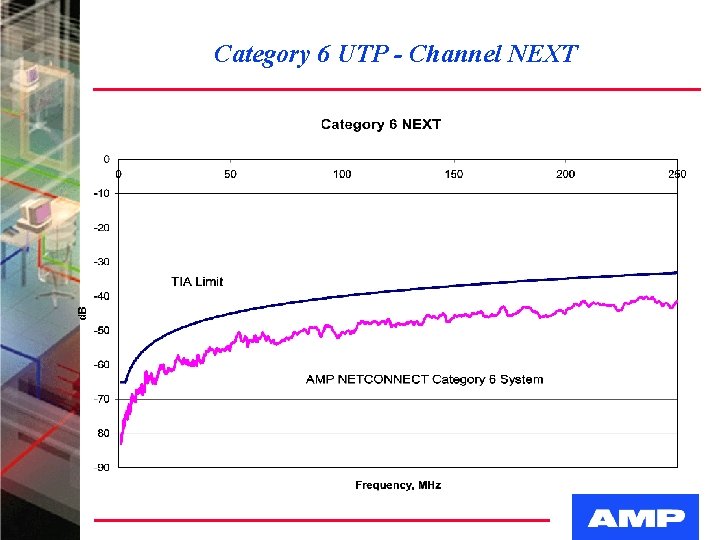

Category 6 UTP - Channel NEXT
