AMICSA 2008: Radiation Tests on SOI A 1553 Transceiver ASIC for Space Embedded Applications

AMICSA 2008: Radiation Tests on SOI A 1553 Transceiver ASIC for Space Embedded Applications using a SOI Technology Cascais, Portugal 1 st September 2008 A. Wagner EADS Astrium S. Chicca - Aurelia Microelettronica A. Colonna- Aurelia Microelettronica This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 1

AMICSA 2008: Radiation Tests on SOI Presentation Contents • MIL 1553 Transceiver status •

AMICSA 2008: Radiation Tests on SOI Presentation Contents • MIL 1553 Transceiver status • Transceiver General Block Diagram and Features • Technology selection for a latch up free design • Architectural design choices to improve the transceiver robustness against TID • TID degraded models extraction and degraded-transceiver simulation campaign • Layout countermeasures to reduce effects of TID-induced leakage currents This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 2

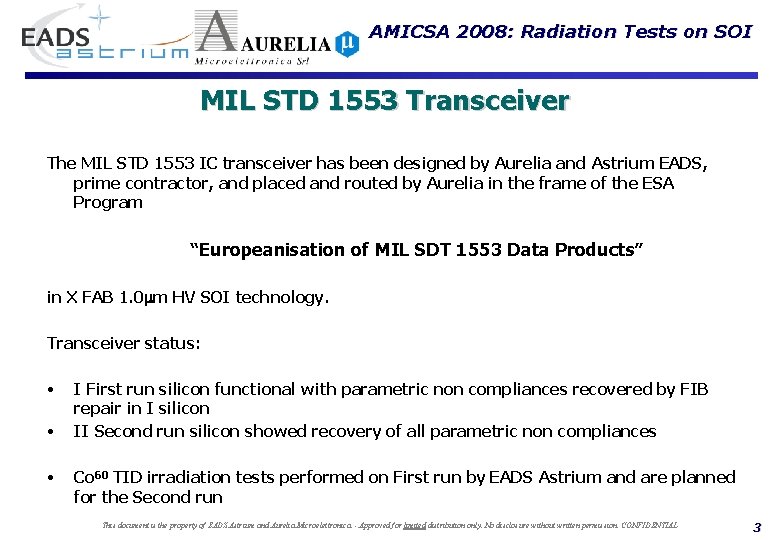

AMICSA 2008: Radiation Tests on SOI MIL STD 1553 Transceiver The MIL STD 1553

AMICSA 2008: Radiation Tests on SOI MIL STD 1553 Transceiver The MIL STD 1553 IC transceiver has been designed by Aurelia and Astrium EADS, prime contractor, and placed and routed by Aurelia in the frame of the ESA Program “Europeanisation of MIL SDT 1553 Data Products” in X FAB 1. 0 mm HV SOI technology. Transceiver status: • • • I First run silicon functional with parametric non compliances recovered by FIB repair in I silicon II Second run silicon showed recovery of all parametric non compliances Co 60 TID irradiation tests performed on First run by EADS Astrium and are planned for the Second run This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 3

AMICSA 2008: Radiation Tests on SOI Transceiver Design The transceiver design at architectural level

AMICSA 2008: Radiation Tests on SOI Transceiver Design The transceiver design at architectural level has been conducted by taking into account the following requirements: – – The transceiver has to be compliant with the STD 1553 physical layer specifications The transceiver has to be latch-up free and it is used in space environment (TID tests performed up to 100 Krad (Si) TID showed no deviation of the Electrical Characteristics up to 50 Krad The rad-hardness of the design has been achieved by: – – Technology selection: X-FAB SOI HV 1. 0 um CMOS process is latch up free Architectural Design choices Detailed Design and Layout choices Extensive Simulation Campaign and Design Refining with TID-degraded models (in house built) based on TID tests performed on basic components We will present the transceiver design with special attention to the countermeasures undertaken to improve design rad-hardness and the results of the first run TID test campaign This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 4

AMICSA 2008: Radiation Tests on SOI Transceiver Block Diagram & Interface This document is

AMICSA 2008: Radiation Tests on SOI Transceiver Block Diagram & Interface This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 5

AMICSA 2008: Radiation Tests on SOI Transceiver Key-Features • • Transmitter section designed to

AMICSA 2008: Radiation Tests on SOI Transceiver Key-Features • • Transmitter section designed to couple with center tapped (GND) transformers according to MIL 1553 STD High Impedance capability on transmitter (disable control pin TXINH) Internal consistency check on digital control signals Shaping network • • • Receiver section compliant with MIL 1553 STD, with internally generated threshold Outputs RX and RXB generation programmable through RXINHB and RXSENS input pins Internal filtering on receiver input waveforms to improve S/N ratio • 5 V/3. 3 V compatible in/out digital interface thanks to dedicated power supply for digital outputs TTL and LVTTL digital inputs CMOS or LVCMOS digital outputs (depending on digital power supply level) Less than 10 m. A current consumption when not transmitting Latch Up Immune (SOI X-FAB 1. 0 um technology) Radiation Goal compliant with space missions (50 Krad achieved) • • • This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 6

AMICSA 2008: Radiation Tests on SOI Architectural Design: transmitter Input Logic comparator with threshold

AMICSA 2008: Radiation Tests on SOI Architectural Design: transmitter Input Logic comparator with threshold derived from power supply to avoid logic input threshold shift due to TID effects Internal divers to provide the current capability to charge and discharge the power output transistor gate within the specified rise/fall times HV p-type Power output transistors Single blocking diode to block the current path towards the power supply related with high voltages induced from the bus Proposal for discussion: discuss current limitation feature against cross conduction transients This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 7

AMICSA 2008: Radiation Tests on SOI Power Transistors Selection To comply with the grounded

AMICSA 2008: Radiation Tests on SOI Power Transistors Selection To comply with the grounded center tap of the transformer (and avoiding internal charge pump) a p-mos structure is selected for the transmitter driver section. To comply with underground voltages at transmitter output pins, an HV structure (p-mos) is mandatory. However, HV structures are intrinsically weaker than 5 V structures with respect to TID effects (trapped charges) due to field oxide on drift regions. Hence, design countermeasures to mitigate these effects have to be under taken. Positive trapped charges in the field oxide (300 nm) may induce inversion on pdrift region causing a channel stop This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 8

AMICSA 2008: Radiation Tests on SOI First Countermeasure: design architectural Trade-off between open-loop and

AMICSA 2008: Radiation Tests on SOI First Countermeasure: design architectural Trade-off between open-loop and closed loop configurations show that closed loop driving concept allows to keep electrical parameters more stable against a wide range of environmental conditions (temperature, process spread, characteristics degradation as an effect of TID) This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 9

AMICSA 2008: Radiation Tests on SOI Second Countermeasure: simulation methodology TID-degraded models have been

AMICSA 2008: Radiation Tests on SOI Second Countermeasure: simulation methodology TID-degraded models have been extracted for the most critical component in the design (p-mos HV driving transistor): for this purpose, TID irradiation test has been performed on basic structures provided by the foundry. Different TID-levels models have been built to fit the measured electrical characteristics. The main parameters inside the BSIM 3 V 3 models which govern the characteristics degradation as an effect of TID are : m 0 (cm 2/Vsec): mobility factor n. Factor : sub threshold drain current factor to take in to account for interface states We acted on both parameters to fit degraded models to the measured degraded characteristics. This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 10

AMICSA 2008: Radiation Tests on SOI Third Countermeasure: H-type layout Extensive use of H-type

AMICSA 2008: Radiation Tests on SOI Third Countermeasure: H-type layout Extensive use of H-type structures available in 1. 0 um HV SOI CMOS process reduces TID induced leakage. In H-type structures, the bird’s beak regions are not located on the low-doped well, but just over an high doped region of the well. Rectangular structure This increases the potential needed to invert locally the well, as well the trapped charge amount needed to invert the channel and create the local leaking channel. H-type structure The H-type structure builds a channel-stop for the leaking channel. This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 11

AMICSA 2008: Radiation Tests on SOI Receiver Architecture (Low Voltage Section) The receiver discriminates

AMICSA 2008: Radiation Tests on SOI Receiver Architecture (Low Voltage Section) The receiver discriminates if the input filtered differential waveforms are inside thresholds, above both thresholds, less than both thresholds. It acts as a window comparator. On the base of comparator outputs, and depending on input signals RXINHB and RXSENS logic status, the decodify to RX and RXB logic outputs is generated. This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 12

AMICSA 2008: Radiation Tests on SOI Receiver Block Diagram The input section of the

AMICSA 2008: Radiation Tests on SOI Receiver Block Diagram The input section of the receiver block needs to translate the input common mode from 0 V (imposed by the transformer center tap to GND) to a 0 V/5 V input common mode, to allow that comparator operates correctly. This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 13

AMICSA 2008: Radiation Tests on SOI Radiation TID tests on the first RUN •

AMICSA 2008: Radiation Tests on SOI Radiation TID tests on the first RUN • Test performed up to 100 Krads using a Co 60 source in 2 steps: – – 0 to 28 Krads 28 to 100 Krads : 39 rads/h : 94 rads/h • Use of a test structure in order to characterize the TID influence: • • • One sample (N° 11: no irradiation) 3 samples : (N° 2, 3, 4 : power supplied) 6 samples : not power supplied. This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 14

AMICSA 2008: Radiation Tests on SOI Radiation TID test Results • Test structure This

AMICSA 2008: Radiation Tests on SOI Radiation TID test Results • Test structure This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 15

AMICSA 2008: Radiation Tests on SOI Radiation TID test Results • Output Amplitude This

AMICSA 2008: Radiation Tests on SOI Radiation TID test Results • Output Amplitude This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 16

AMICSA 2008: Radiation Tests on SOI Radiation TID test Results • Rise Time This

AMICSA 2008: Radiation Tests on SOI Radiation TID test Results • Rise Time This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 17

AMICSA 2008: Radiation Tests on SOI Conclusion • XFAB SOI 1µ technology compliant with

AMICSA 2008: Radiation Tests on SOI Conclusion • XFAB SOI 1µ technology compliant with space mission environment. • It is possible to take into account the radiation effects during the design and the simulations. • It is possible to use a radiation structure to measure the TID in order to compensate the radiation effects by design. This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 18

AMICSA 2008: Radiation Tests on SOI Wafer Photo This document is the property of

AMICSA 2008: Radiation Tests on SOI Wafer Photo This document is the property of EADS Astrium and Aurelia Microelettronica. - Approved for limited distribution only. No disclosure without written permission. CONFIDENTIAL 19
