Ames test Strains inactive for BER and prone
Ames test Strains inactive for BER and prone for entry if molecules TA 100 - sensitive for reversion by base pair substitution TA 1535/8 frameshift
מוטגנים Mutagens חומרים כימיים Chemical Agents קרינה Radiation ניידים DNA אלמנטים Mobile Genetic Elements
Barbara Mc. Clintock

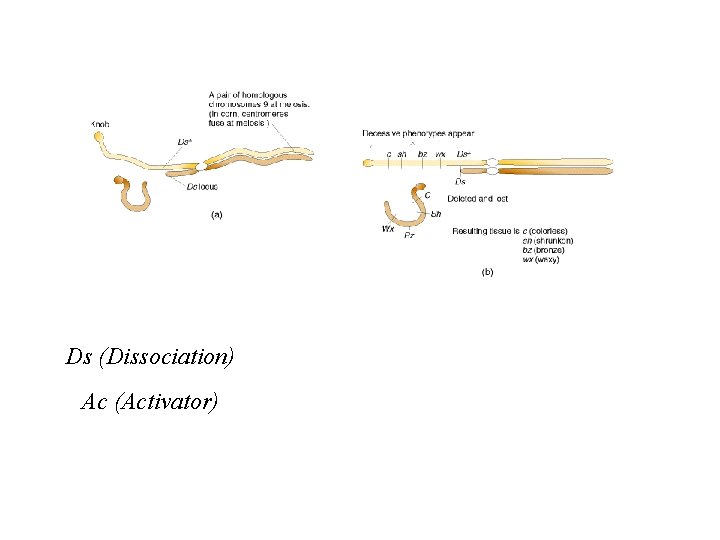

Ds (Dissociation) Ac (Activator)

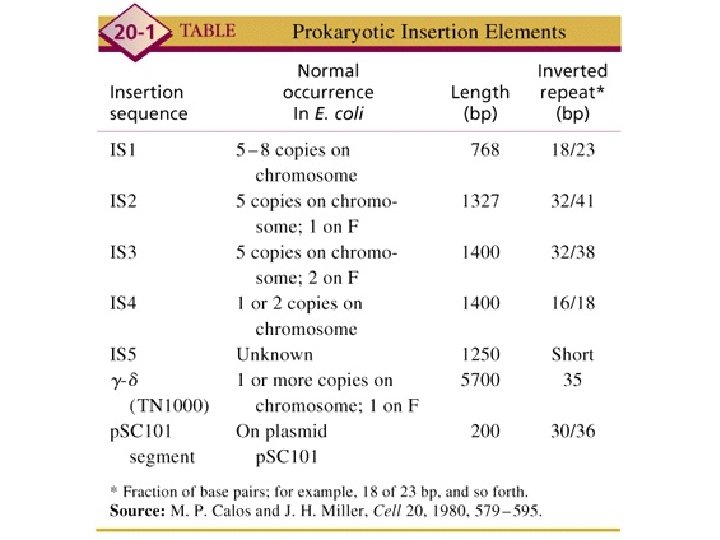

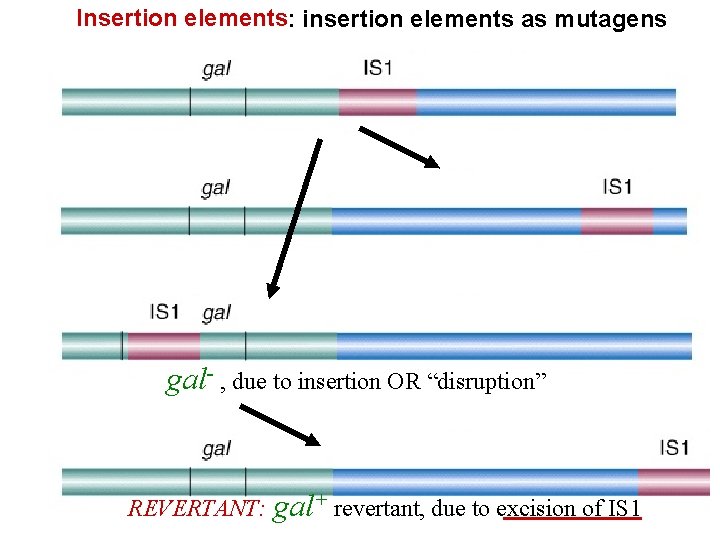

Insertion elements: insertion elements as mutagens gal- , due to insertion OR “disruption” REVERTANT: gal+ revertant, due to excision of IS 1

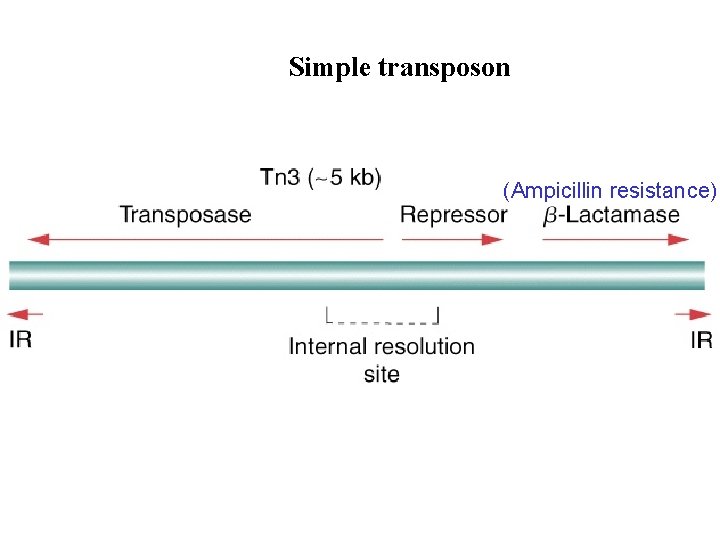

Simple transposon (Ampicillin resistance)
Composite transposon IS 10 (tetracycline resistance) IS 10

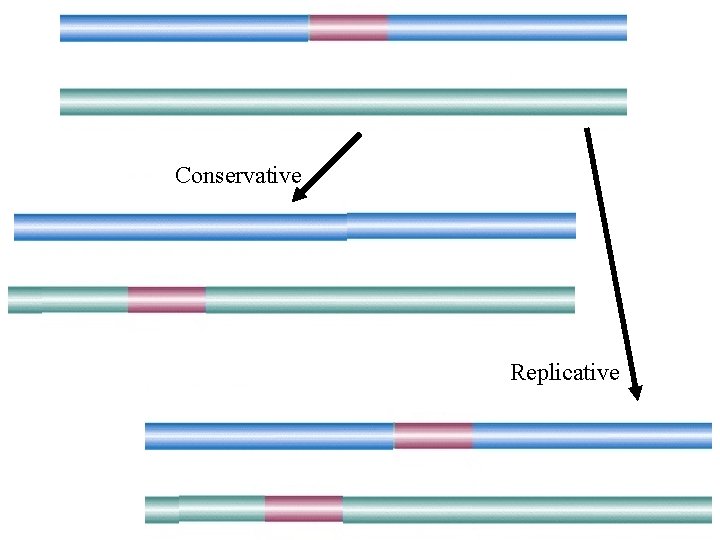

Conservative Replicative
Animation 13_Replicative transposition

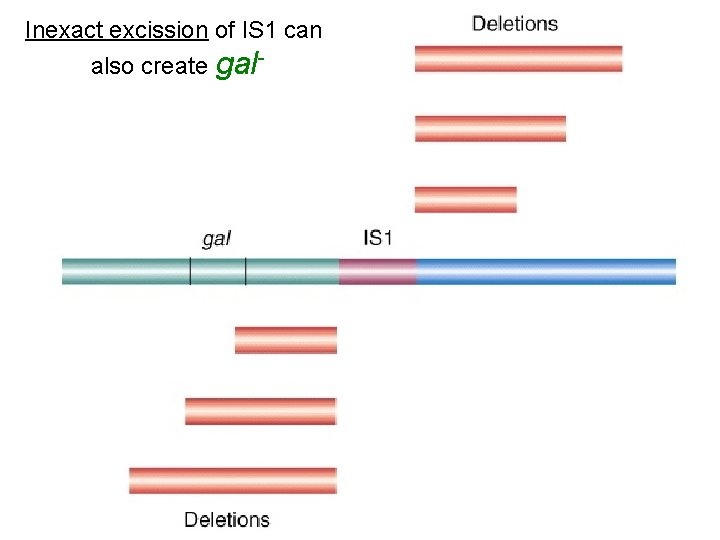

Inexact excission of IS 1 can also create gal-

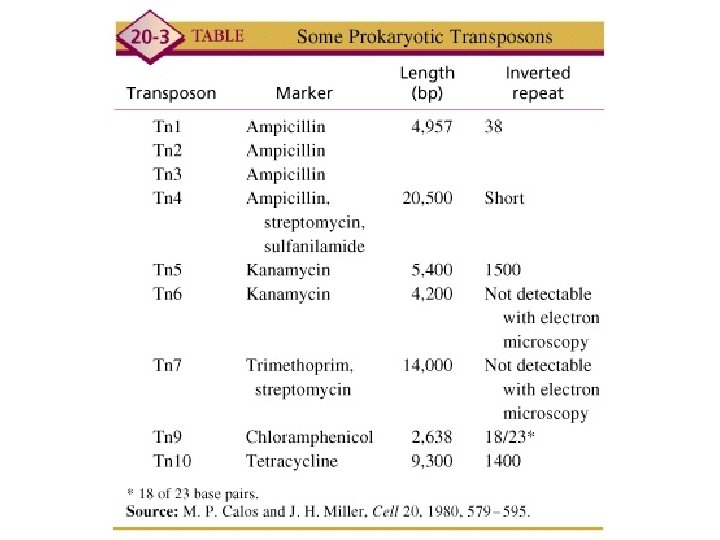

(Ampicillin resistance) -There are several different types of transposable elements including insertion elements (S 1, IS 2. . ) and transposons (Tn 1 Tn 2…) -Many transposable elements transfer a resistance for antibiotic -Most of the transposable elements have inverted repeats (IR) at the end which can be observed under the microscope -Transposable elements are found on chromosome and plasmids -After insertion into new site the elements generates a short repeats- Replecative vs. conservative -

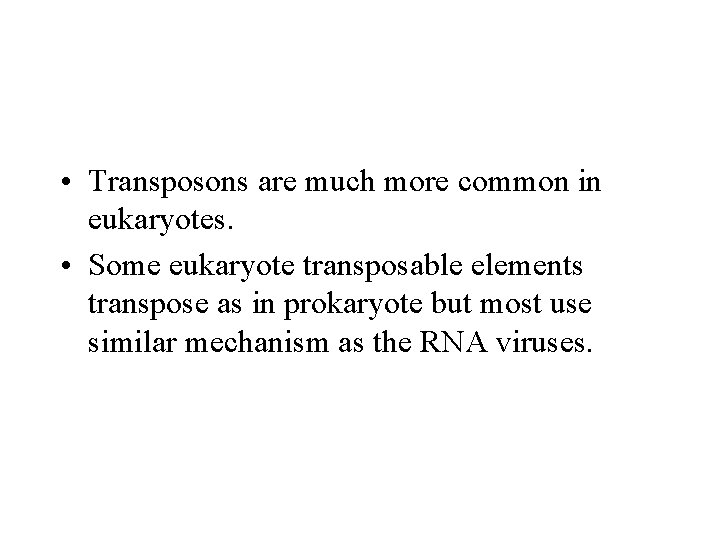

• Transposons are much more common in eukaryotes. • Some eukaryote transposable elements transpose as in prokaryote but most use similar mechanism as the RNA viruses.
LTR- long terminal repeat

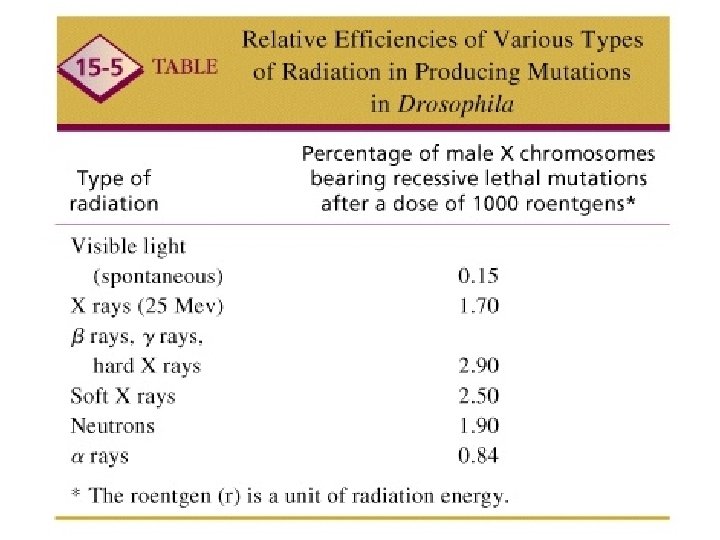

מוטגנים Mutagens חומרים כימיים Chemical Agents קרינה Radiation אולטראסגול Ultraviolet (UV) מייננת Ionizing ניידים DNA אלמנטים Mobile Genetic Elements

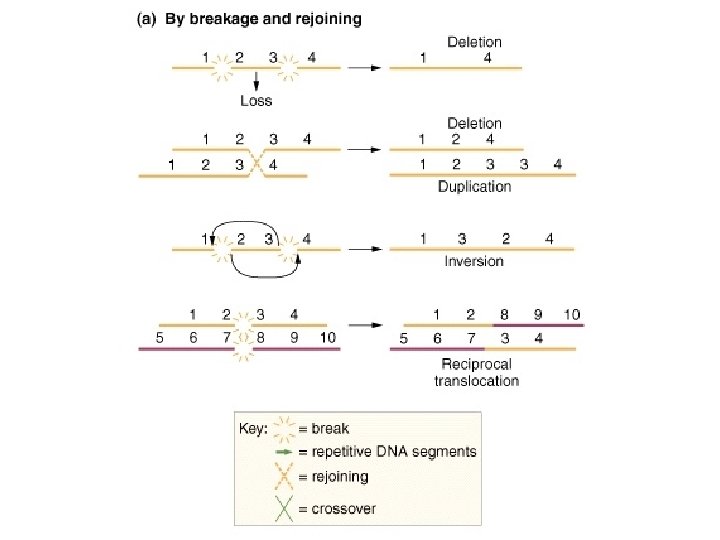

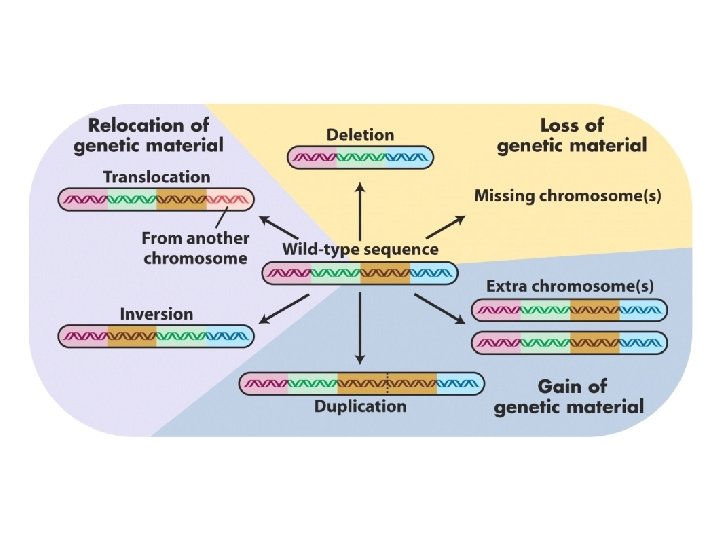

Rearrangements
Rearrangements

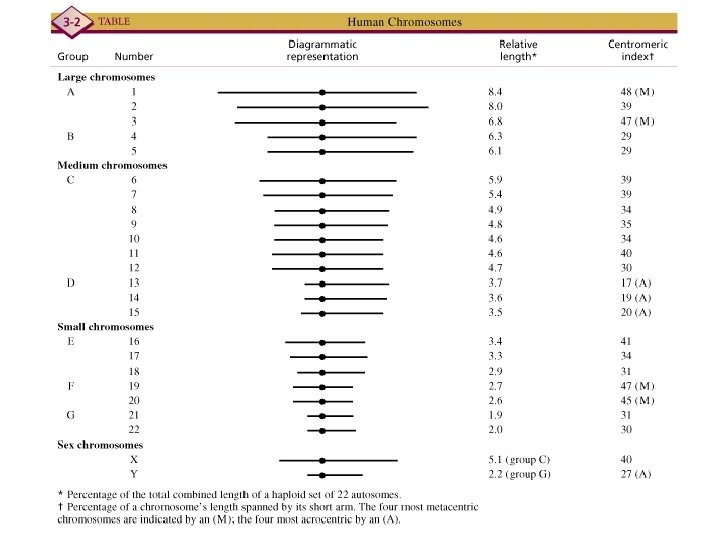

Human Karyotype Lyse Cell and its Nucleus Karyotype- The entire chromosomes complement of an individual Organism or cell, as seen during mitotic metaphase

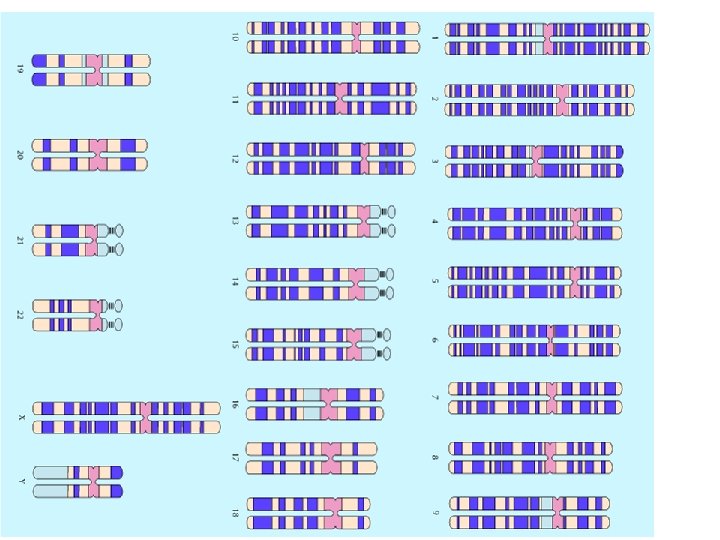

Banding
SKY-Spectral karyotype

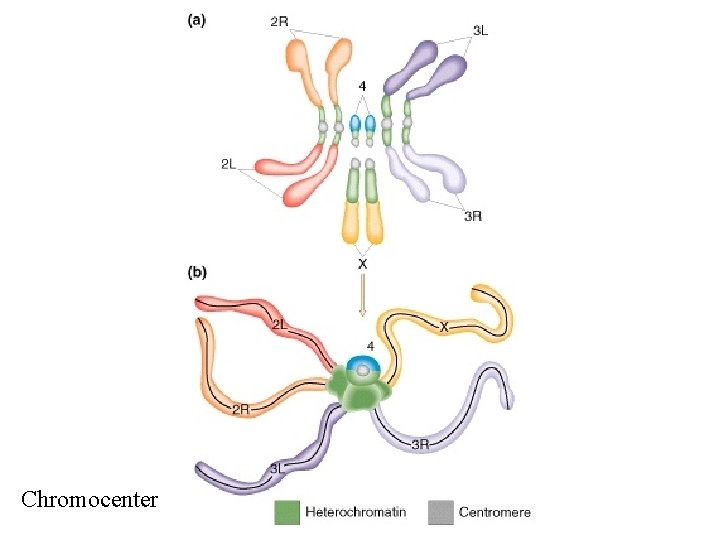

Chromocenter

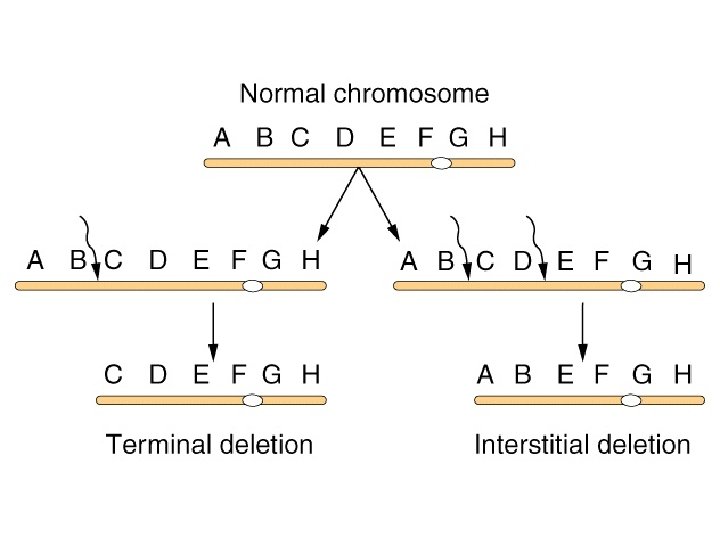

D C E F B A F E A B

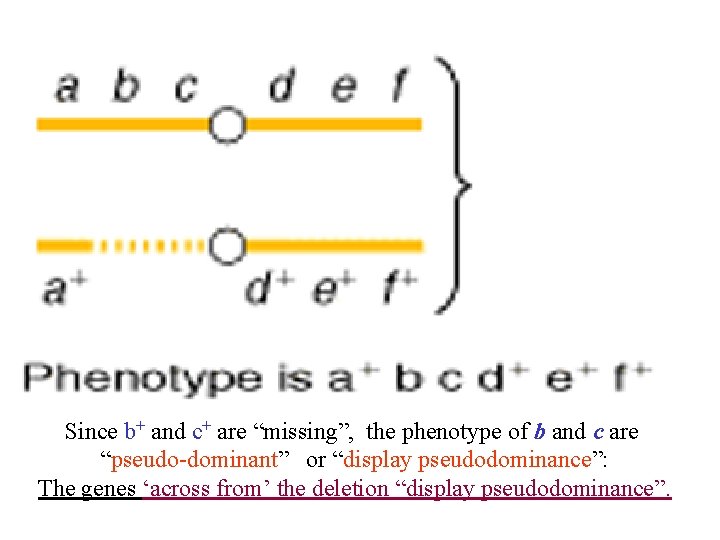

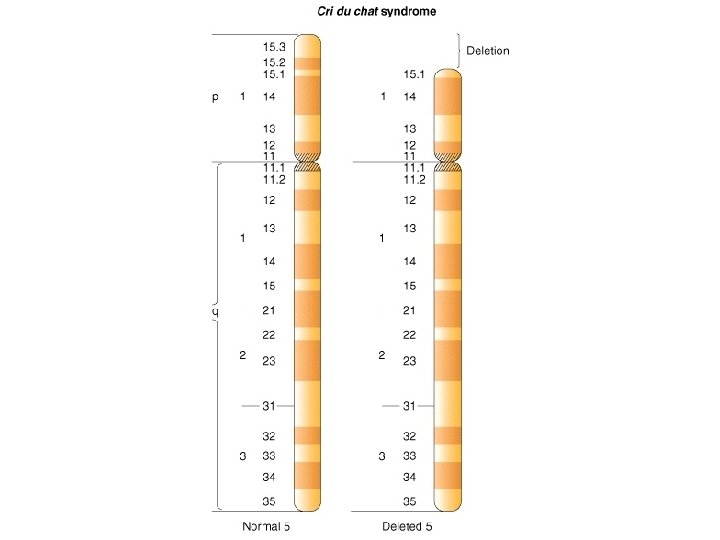

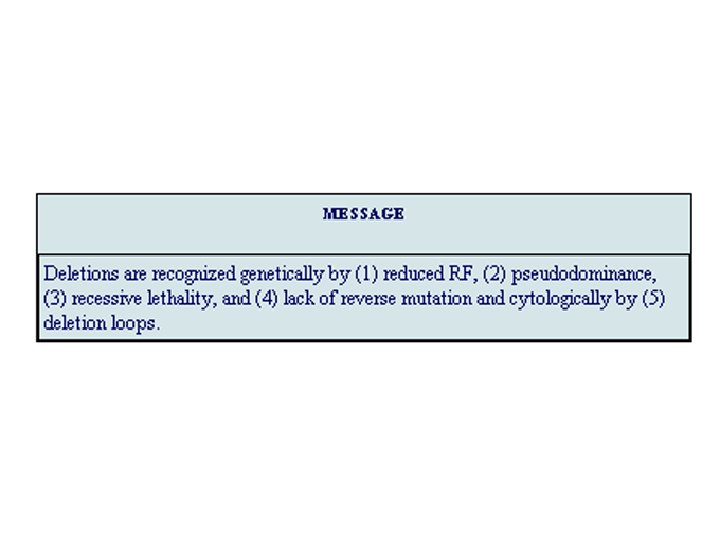

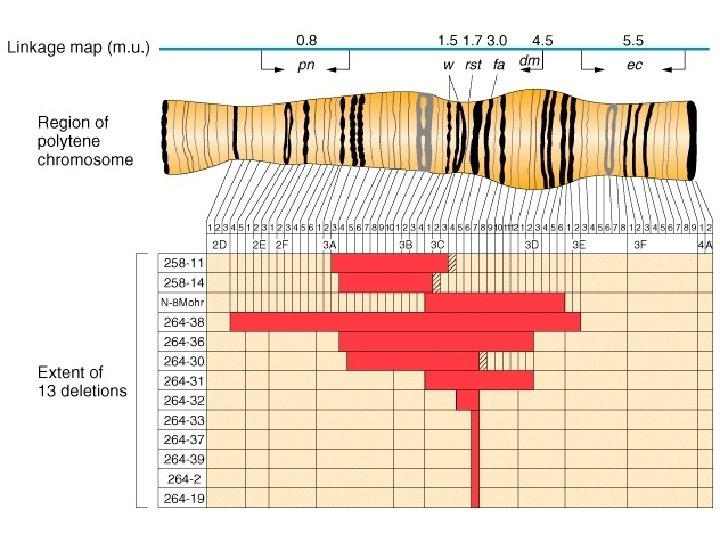

Since b+ and c+ are “missing”, the phenotype of b and c are “pseudo-dominant” or “display pseudodominance”: The genes ‘across from’ the deletion “display pseudodominance”.
Inversions: Animation 17. 1 a

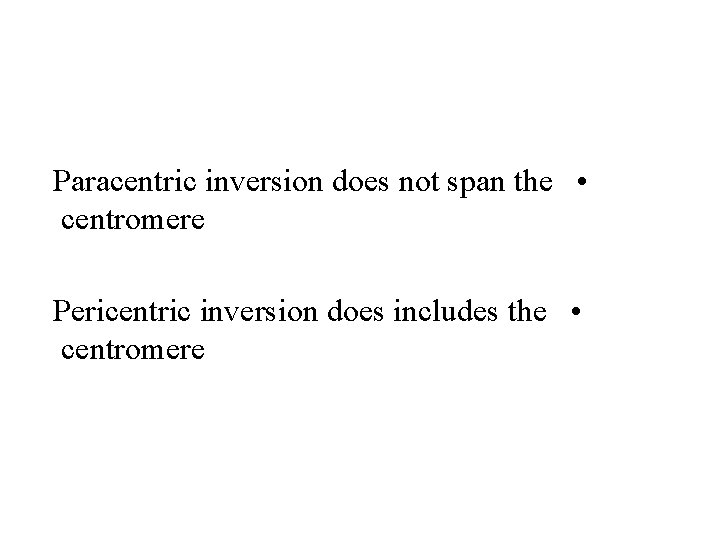

Paracentric inversion does not span the • centromere Pericentric inversion does includes the • centromere

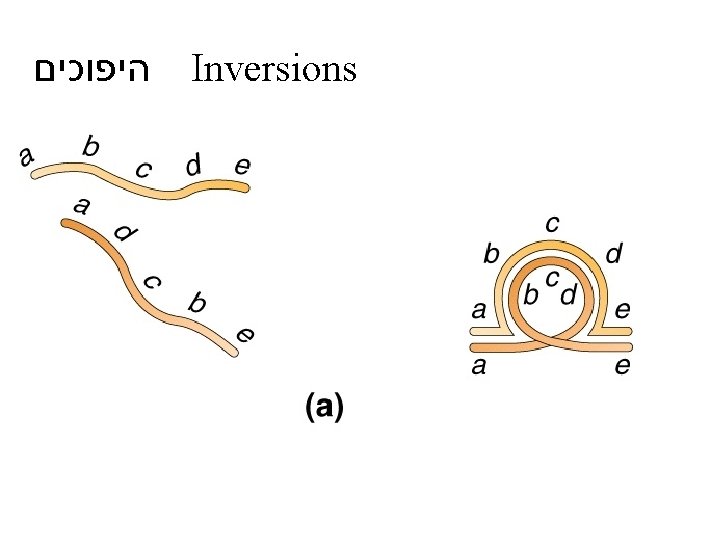

היפוכים Inversions
paracentric inversion
The trouble with paracentric inversion: Animation 17. 1 b
pericentric inversion

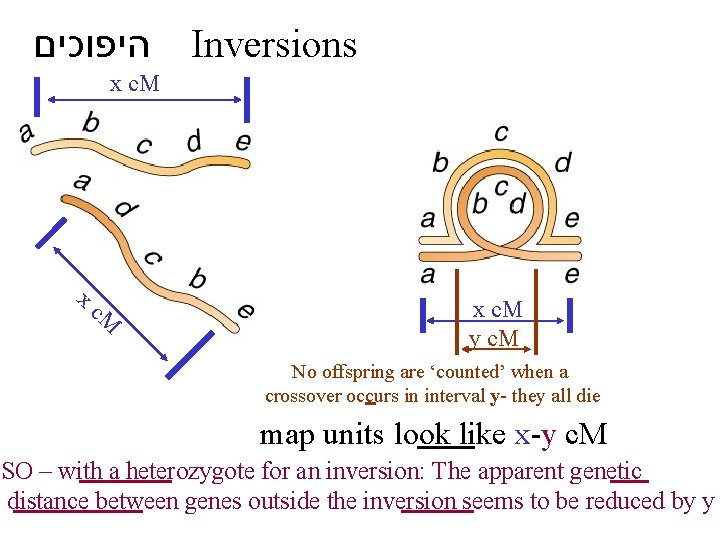

היפוכים Inversions x c. M y c. M No offspring are ‘counted’ when a crossover occurs in interval y- they all die map units look like x-y c. M SO – with a heterozygote for an inversion: The apparent genetic distance between genes outside the inversion seems to be reduced by y

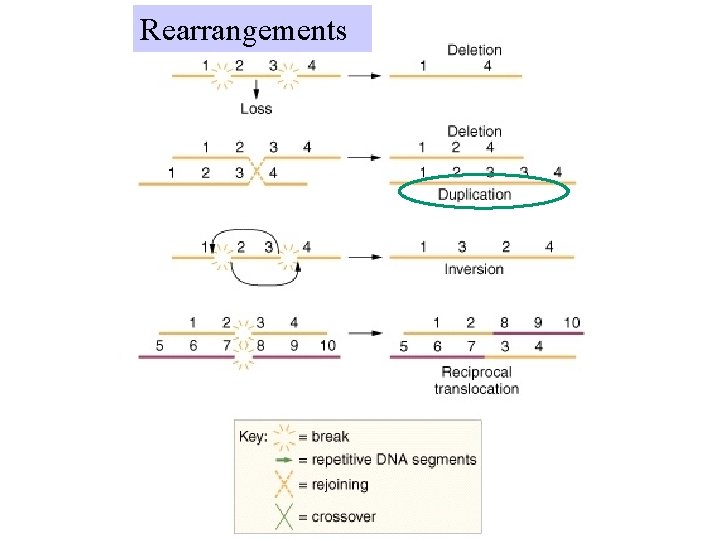

Rearrangements

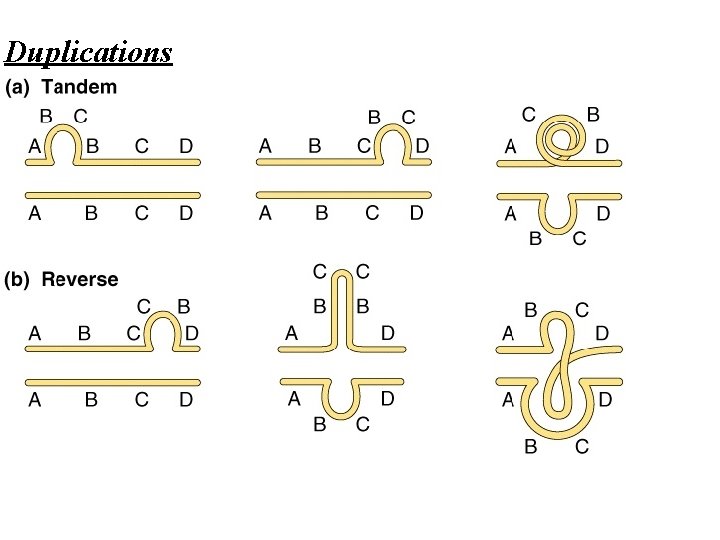

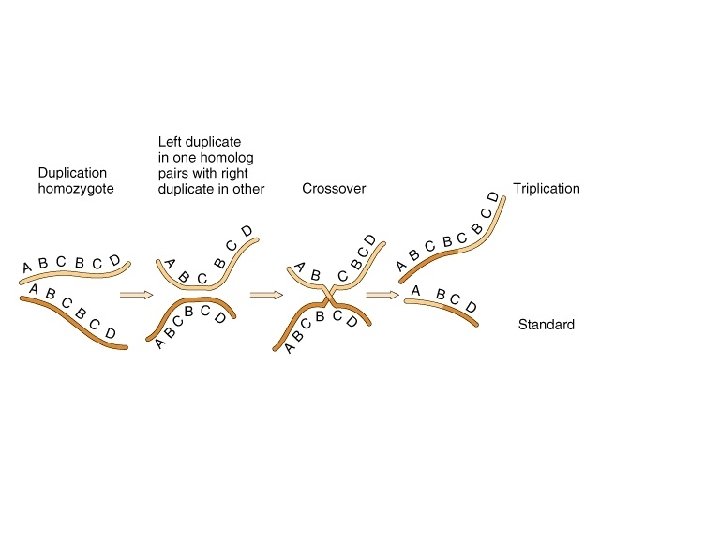

Duplications
Rearrangements

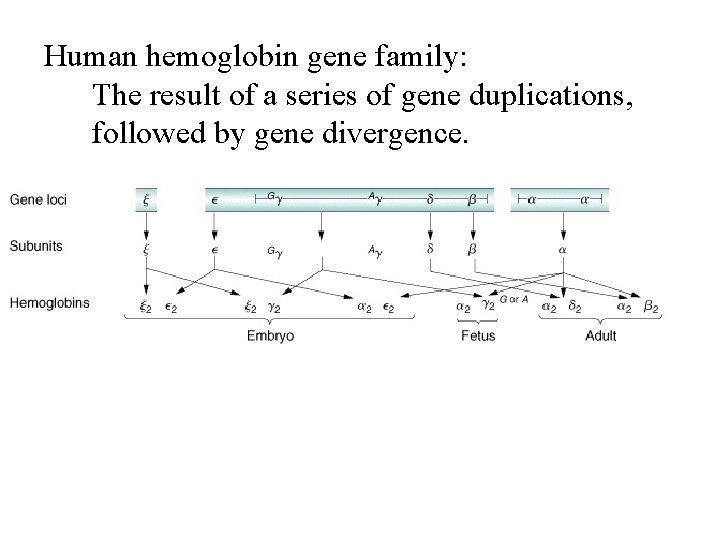

Human hemoglobin gene family: The result of a series of gene duplications, followed by gene divergence.
Thalassemias Thalassemia

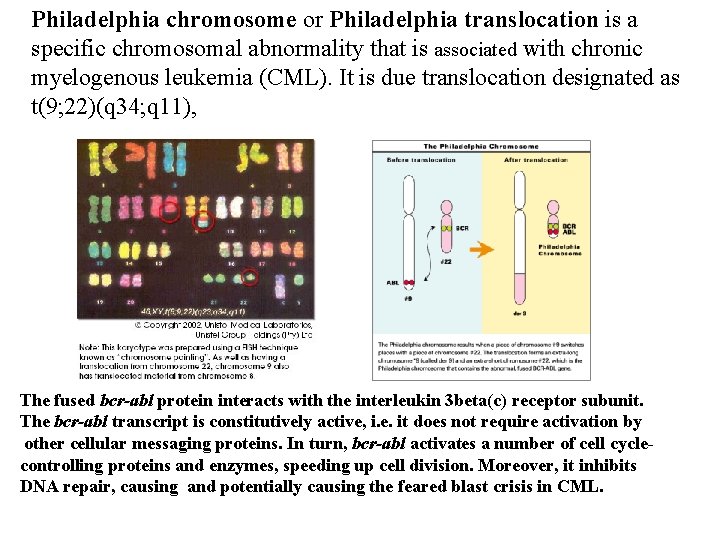

Philadelphia chromosome or Philadelphia translocation is a specific chromosomal abnormality that is associated with chronic myelogenous leukemia (CML). It is due translocation designated as t(9; 22)(q 34; q 11), The fused bcr-abl protein interacts with the interleukin 3 beta(c) receptor subunit. The bcr-abl transcript is constitutively active, i. e. it does not require activation by other cellular messaging proteins. In turn, bcr-abl activates a number of cell cyclecontrolling proteins and enzymes, speeding up cell division. Moreover, it inhibits DNA repair, causing and potentially causing the feared blast crisis in CML.

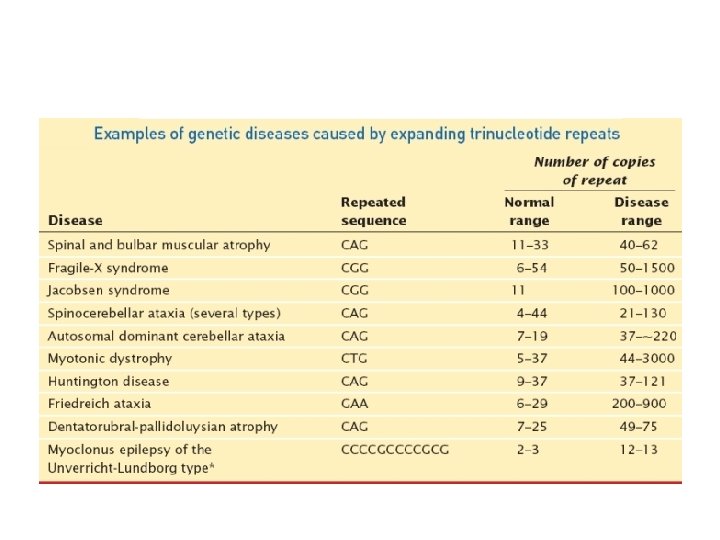

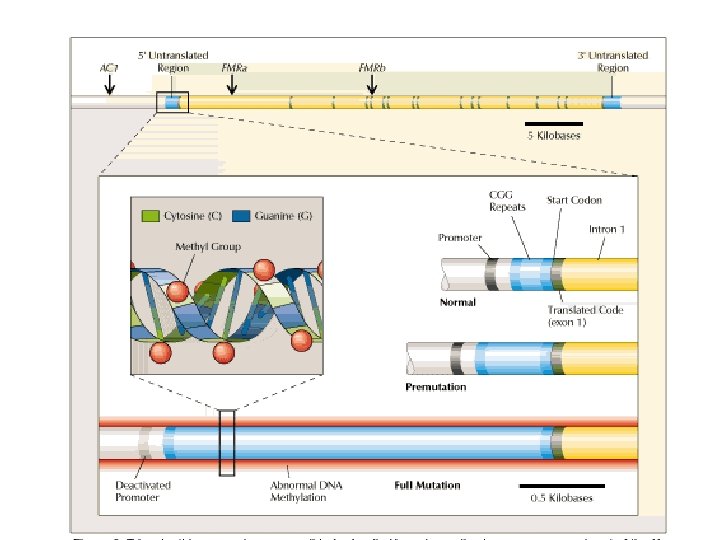

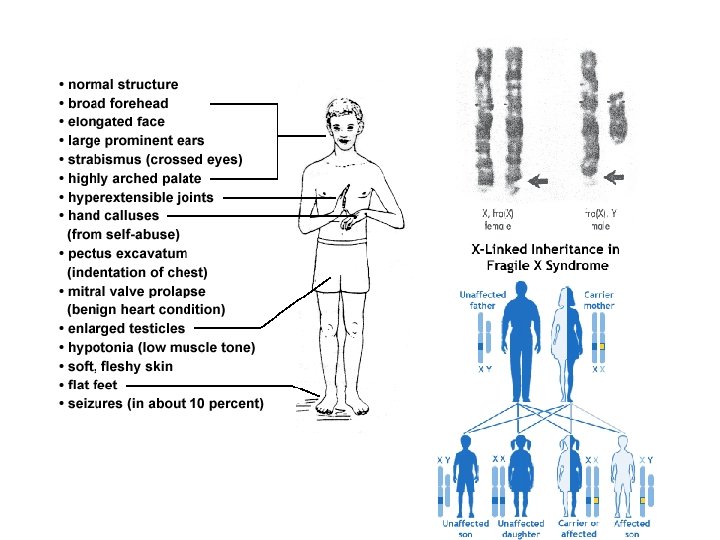

Trinucleotide repeats
Slippage during replication
Rearrangements

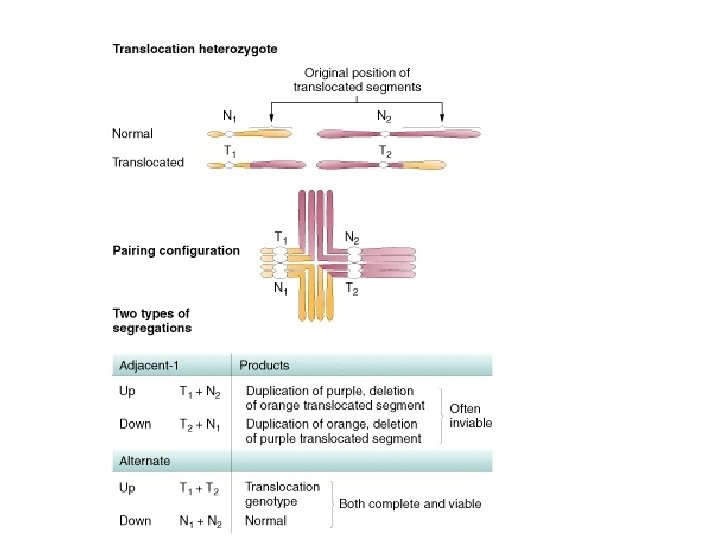

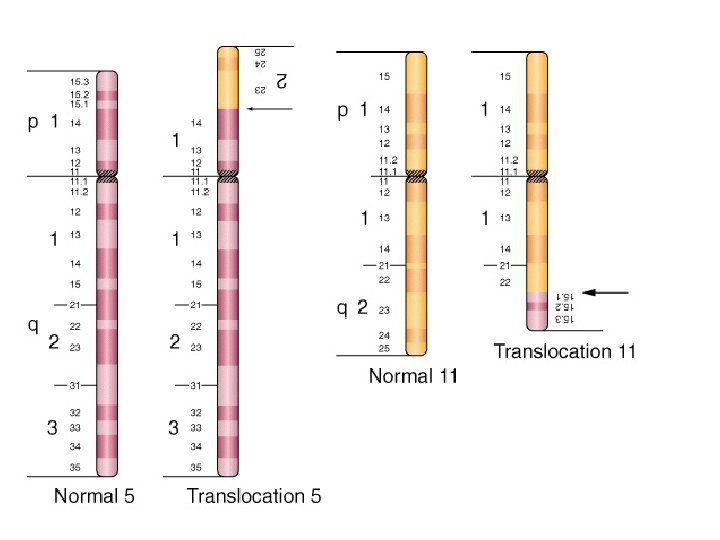

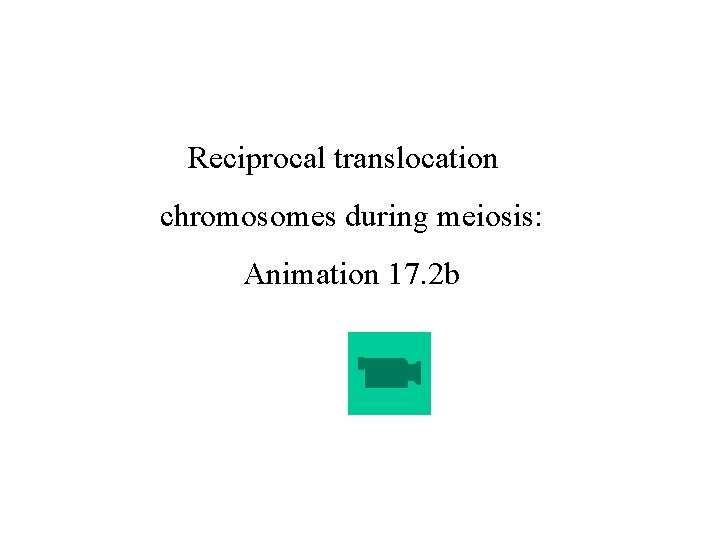

Reciprocal translocation chromosomes during meiosis: Animation 17. 2 b
Animation 17. 2 c Second genetic consequence of translocations: Pseudo-linkage

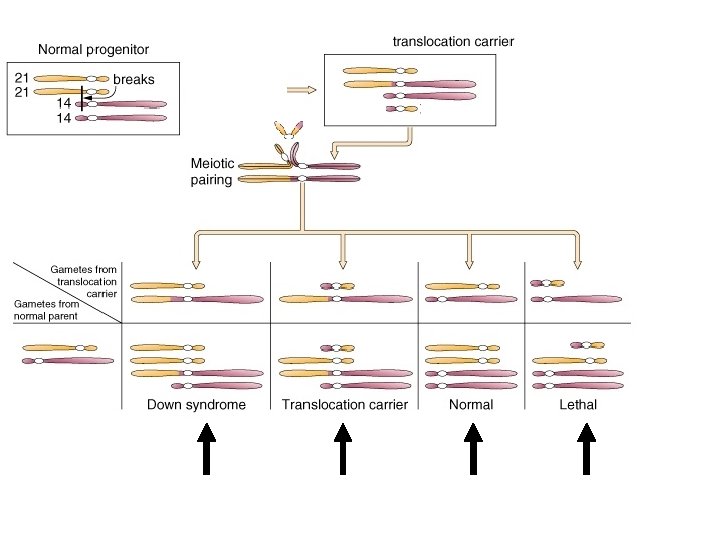

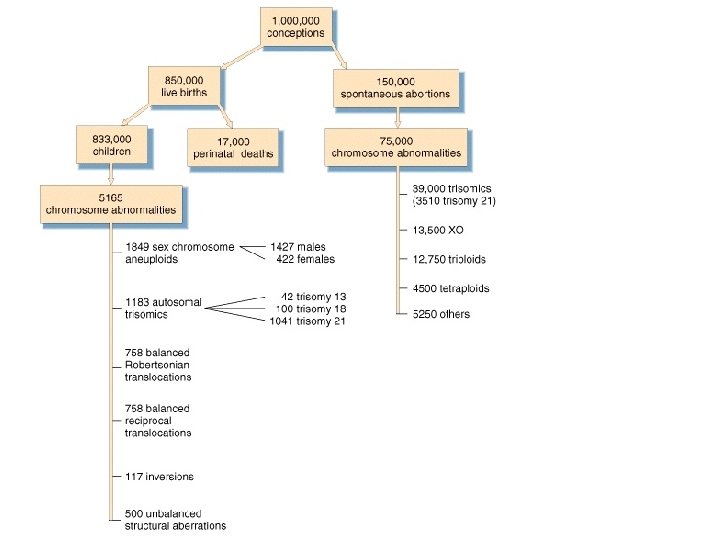

Human Karyotype – Trisomy 21 Lyse Cell and its Nucleus

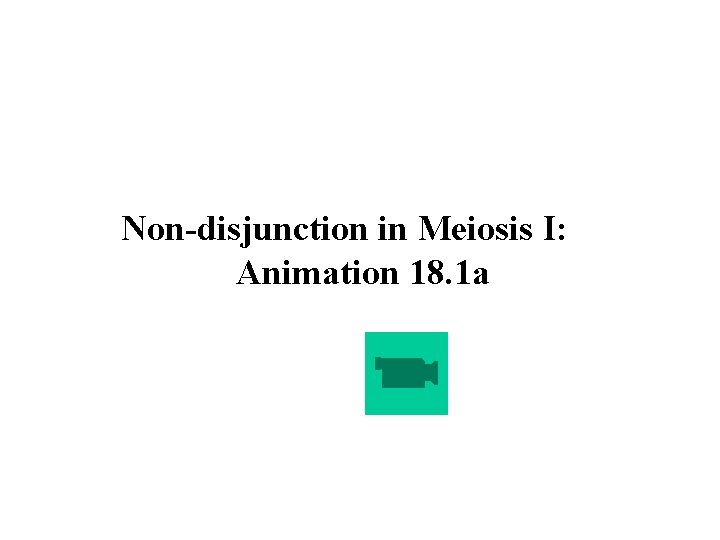

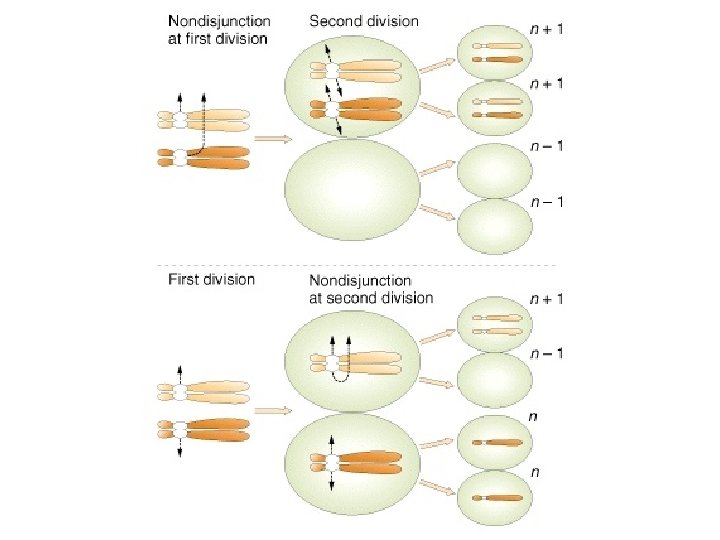

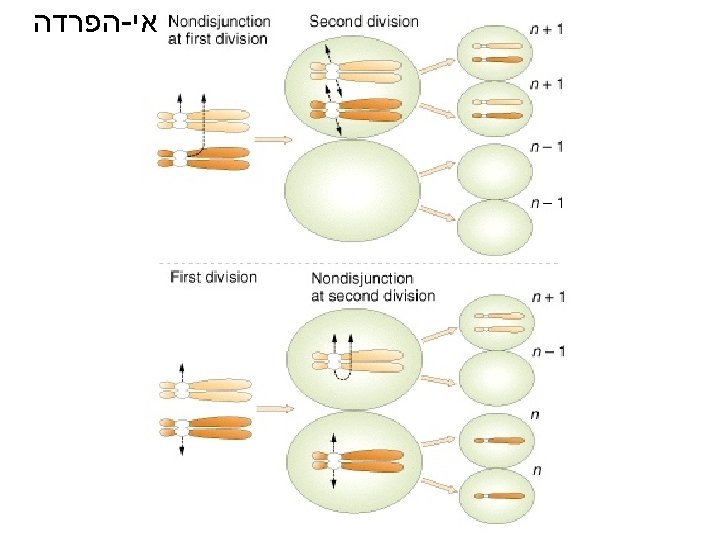

Non-disjunction in Meiosis I: Animation 18. 1 a
Non-disjunction in Meiosis II: Animation 18. 1 b

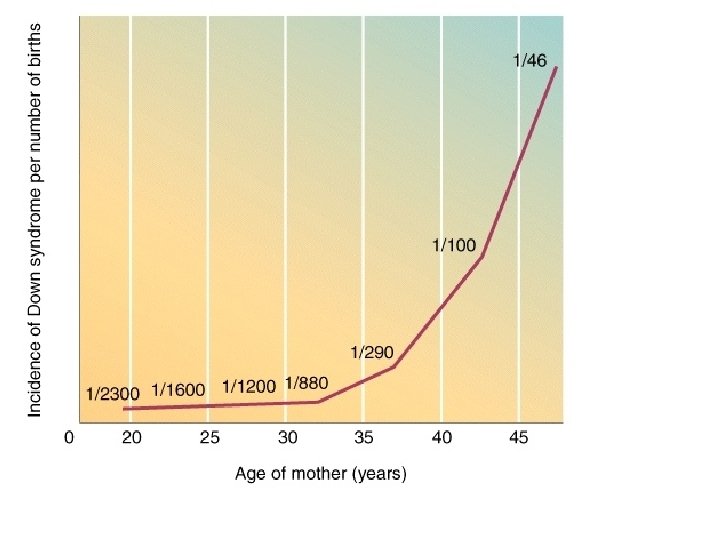

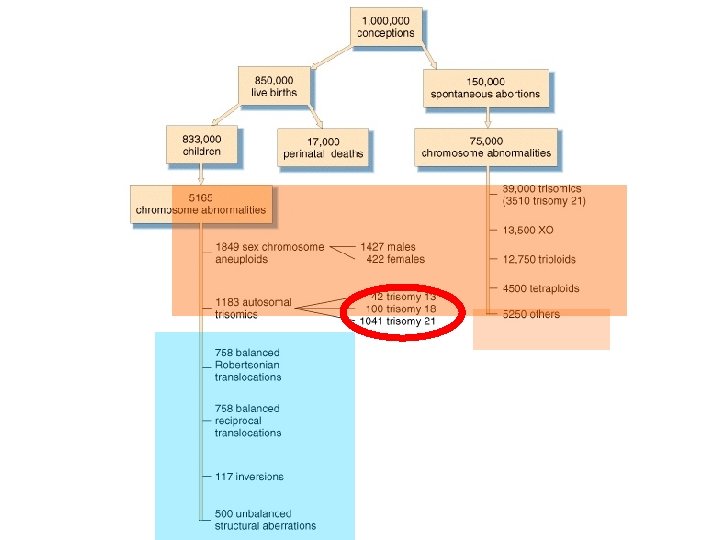

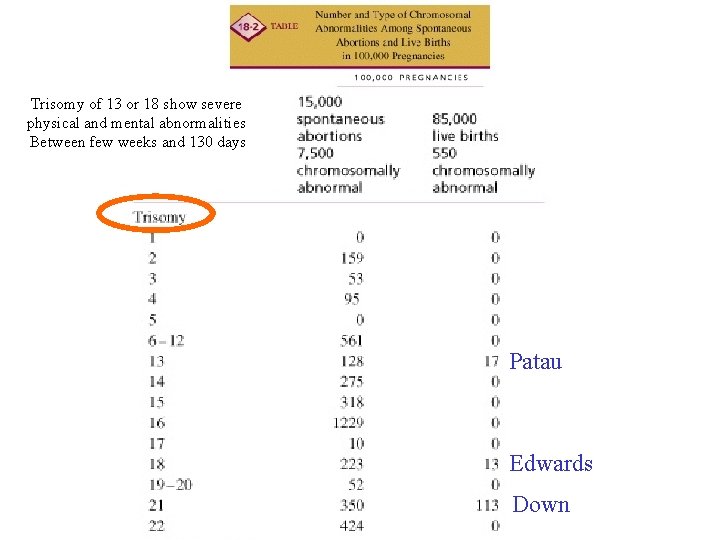

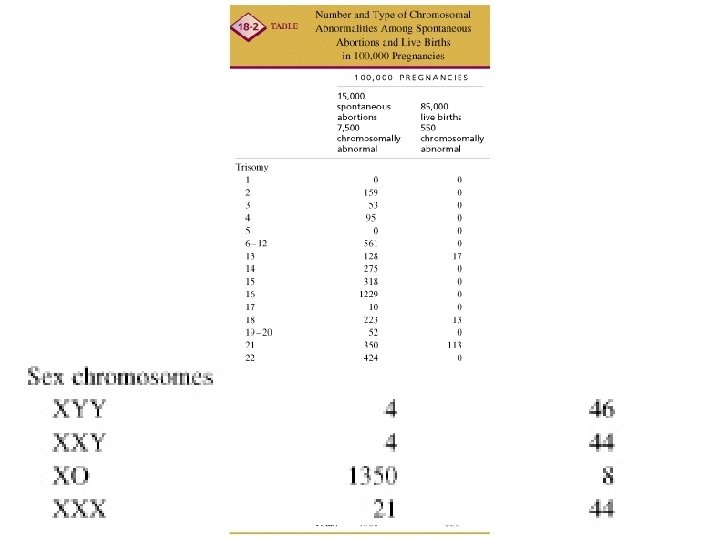

Trisomy of 13 or 18 show severe physical and mental abnormalities Between few weeks and 130 days Patau Edwards Down

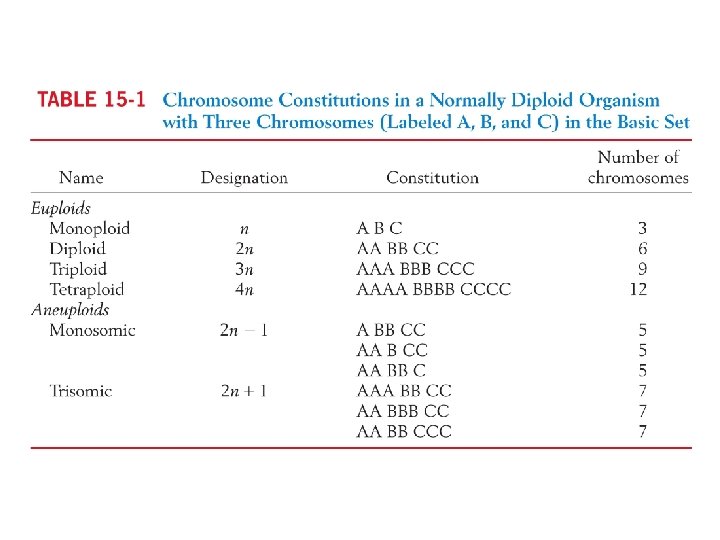

מונחים *Polyploids-individual with more than two • chromosomes sets. i. e. Triploids-3 n, tetraploid 4 n, pentaploid-5 n, hexa…. *Monoploid- one chromosome set (not a haploid) • *Autopolyploid (chromosomes within species) vs. • allopolyploids (chromosomes from closely related species) *Aneuploidy- chromosomes number is abnormal, i. e. • trisomic; 2 n+1, monososmic; 2 n-1 and nullsomic; 2 n-2. In haploid n+1 is disomic

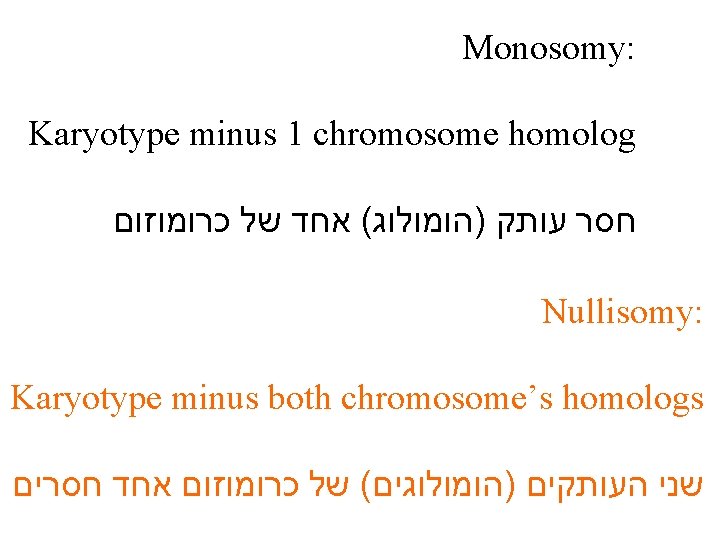

Monosomy: Karyotype minus 1 chromosome homolog חסר עותק )הומולוג( אחד של כרומוזום Nullisomy: Karyotype minus both chromosome’s homologs שני העותקים )הומולוגים( של כרומוזום אחד חסרים

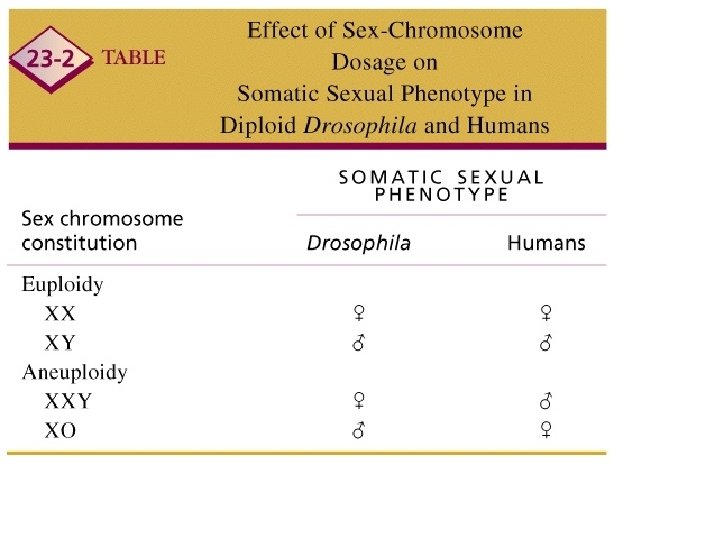

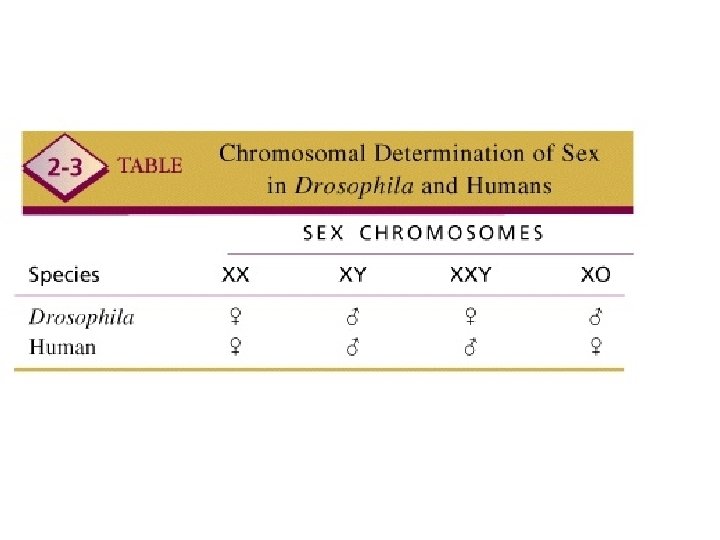

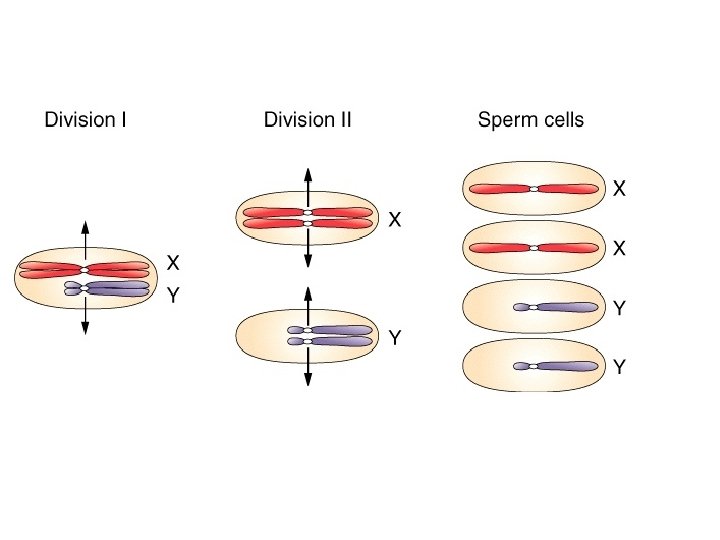

An example: In males X+Y X Y X+X X Y Y Y

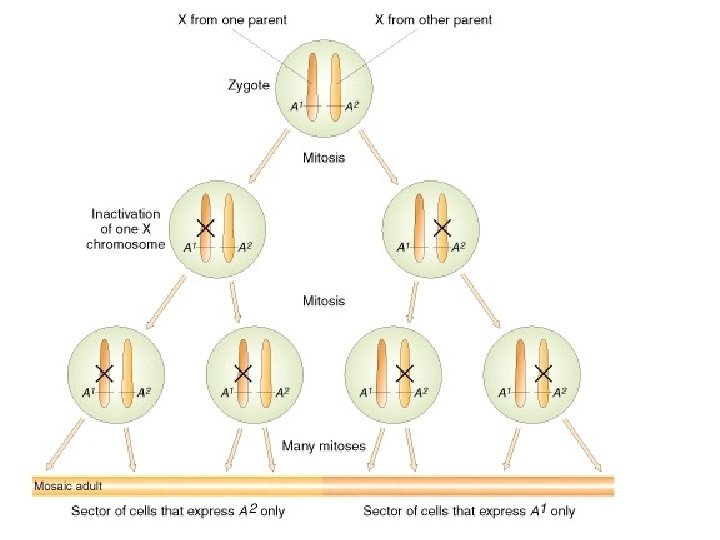

An example: In females X 1+X 2 X 1+ X 2 X 1 + X 1 X 2 X 2
XXY - Kleinfeldter

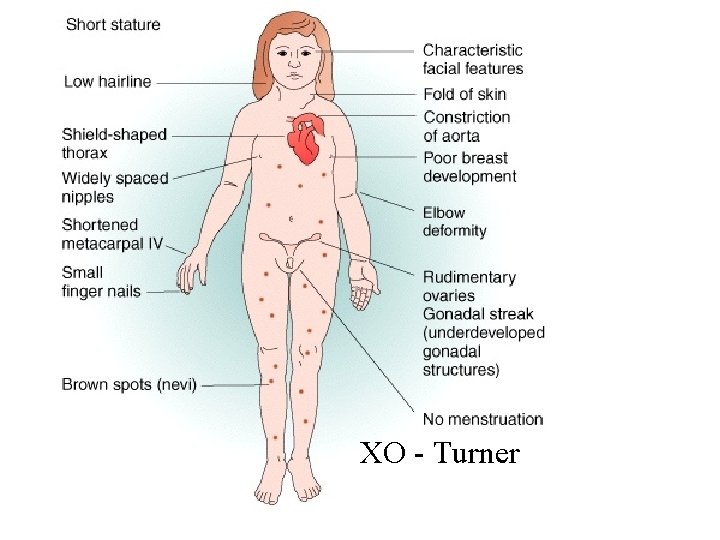

XO - Turner
Animation 17. 2 c Second genetic consequence of translocations: Pseudo-linkage
X: A=1 X: A=0. 5 Sxlisis. On off Sxl Splicing of dsx Male specific genes

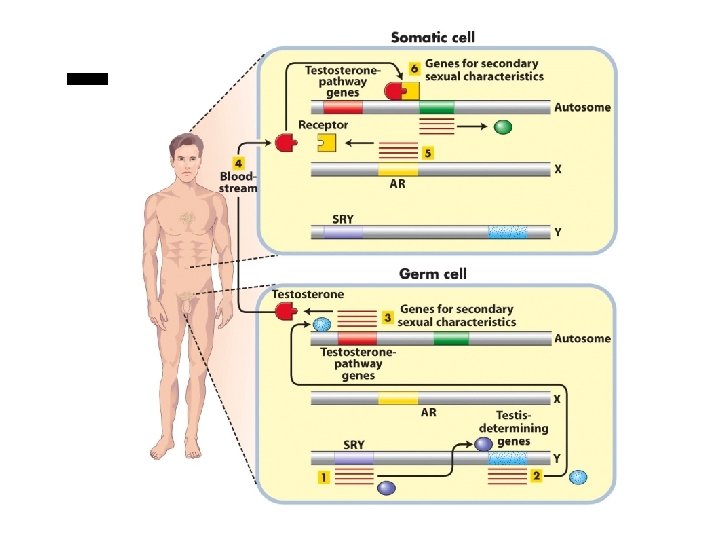

Y?
O/o O-Orange o-Black. The white phenotype is due to other gene
Sex-linked anhidrotic ectodermal dysplasia (absence of sweat glands in blue areas)
XXX, XXYY
מונחים *Polyploids-individual with more than two • chromosomes sets. i. e. Triploids-3 n, tetraploid 4 n, pentaploid-5 n, hexa…. *Monoploid- one chromosome set (not a haploid) • *Autopolyploid (chromosomes within species) vs. • allopolyploids (chromosomes from closely related species) *Homeologous- Partially homologous (common • ancestor) *Aneuploidy- chromosomes number is abnormal, i. e. • trisomic; 2 n+1, monososmic; 2 n-1 and nullsomic; 2 n-2. In haploid n+1 is disomic

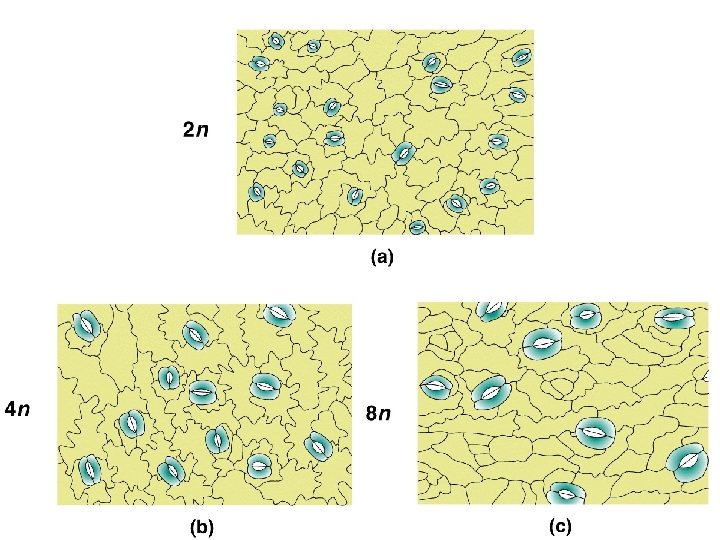

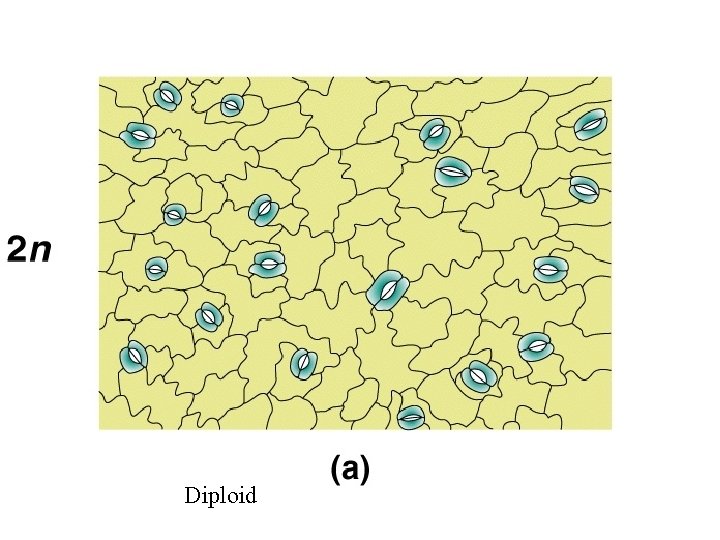

Diploid
Polyploid Tetraploid
Octoploid

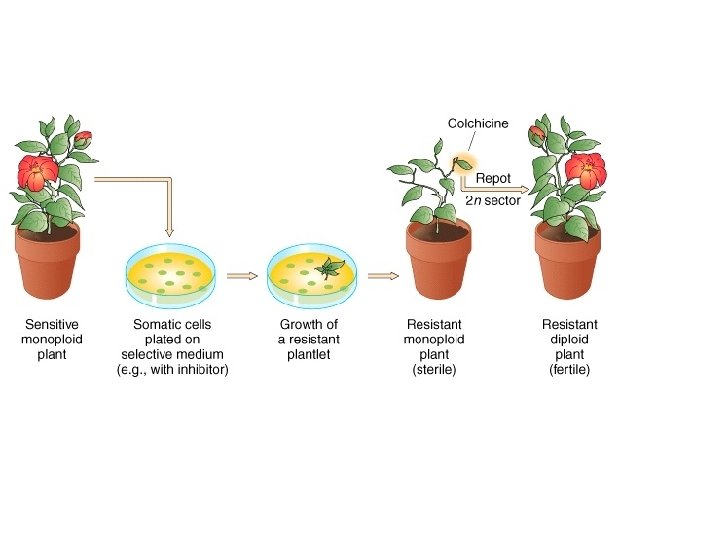

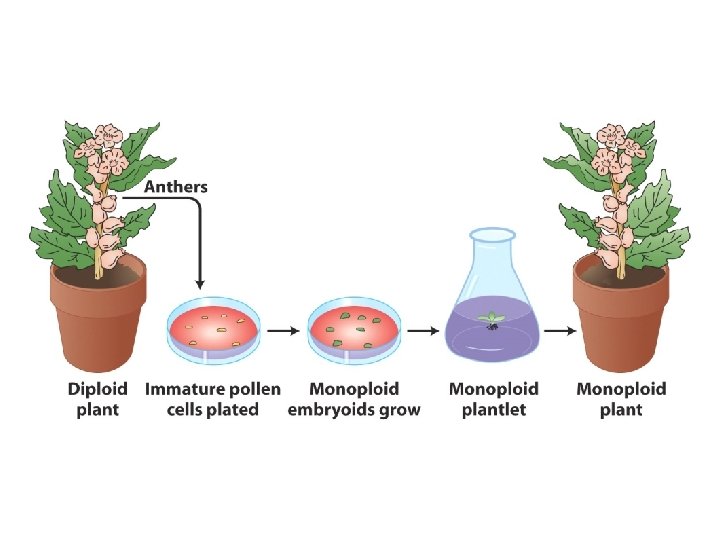

Generation of monoploid Cold treatment Embrioyoid-a small dividing mass of monoploid cells

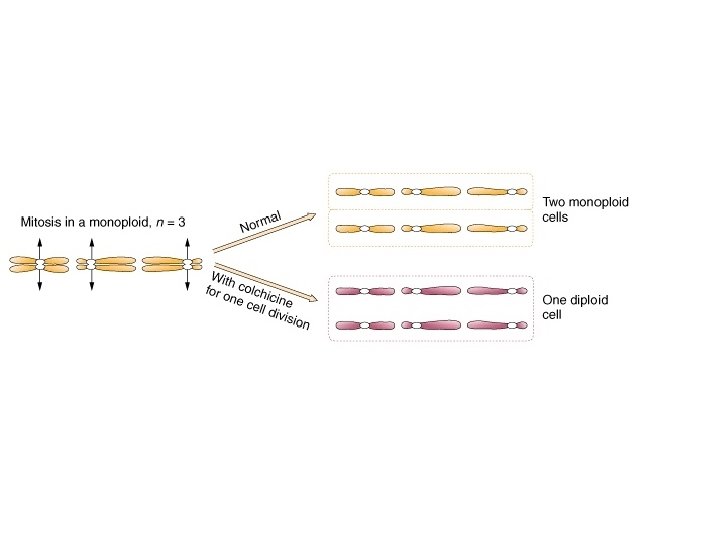

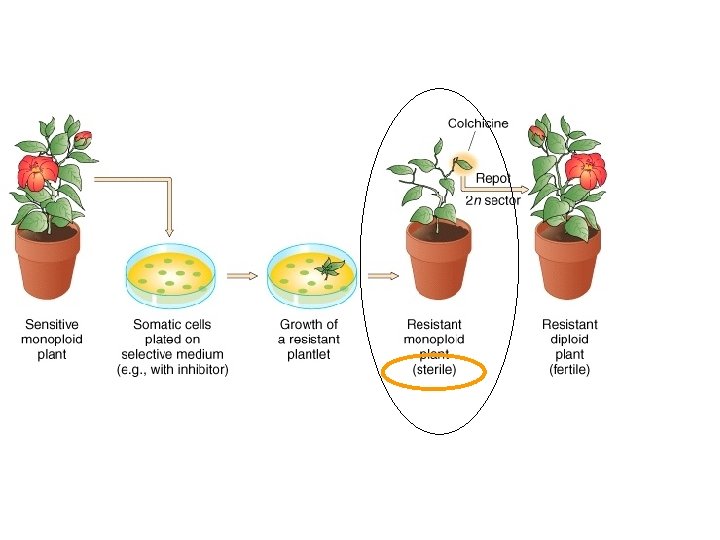

Breeder – search for special phenotype of a/a b/b A/a B/b recombination ab Cold treatment monoploid colchicine Diploid

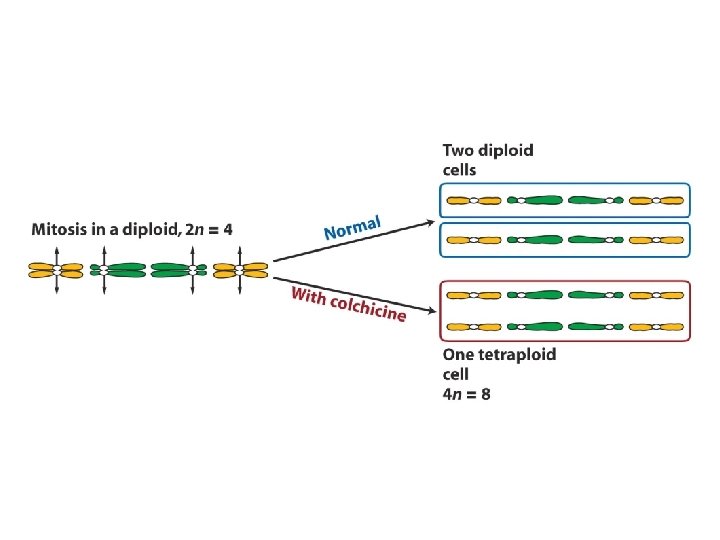

2 n 4 n

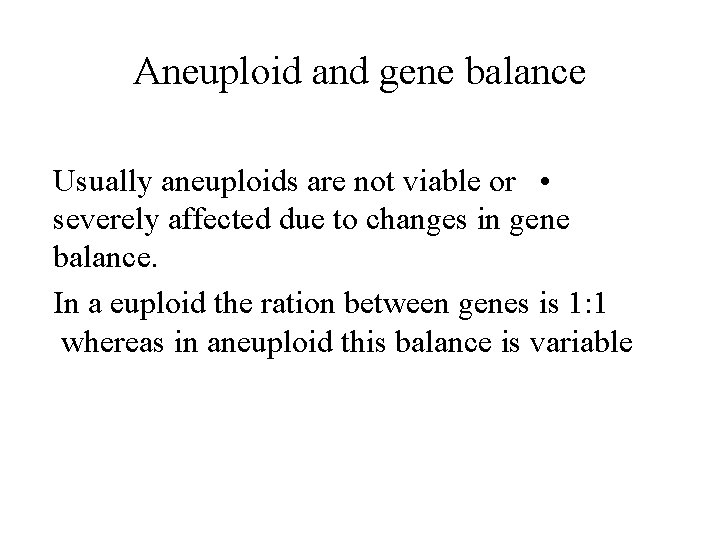

Aneuploid and gene balance Usually aneuploids are not viable or • severely affected due to changes in gene balance. In a euploid the ration between genes is 1: 1 whereas in aneuploid this balance is variable

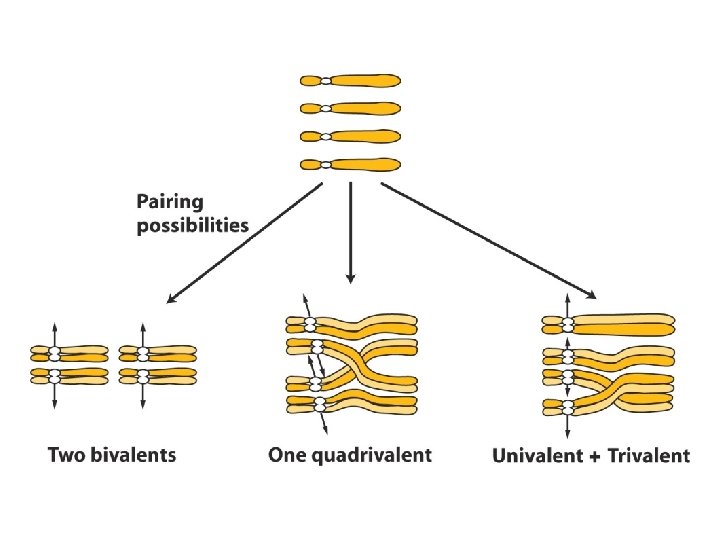

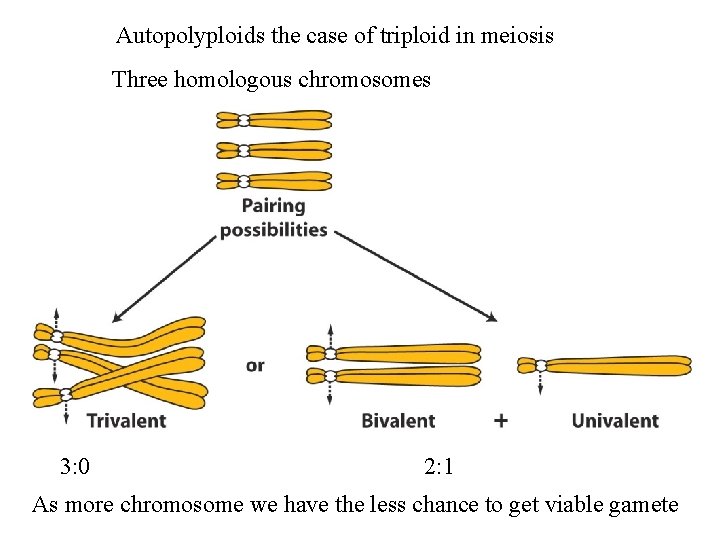

Autopolyploids the case of triploid in meiosis Three homologous chromosomes 3: 0 2: 1 As more chromosome we have the less chance to get viable gamete
Polyploid with odd number of chromosome set are sterile or infertile Since their gametes and offspring are aneuploid

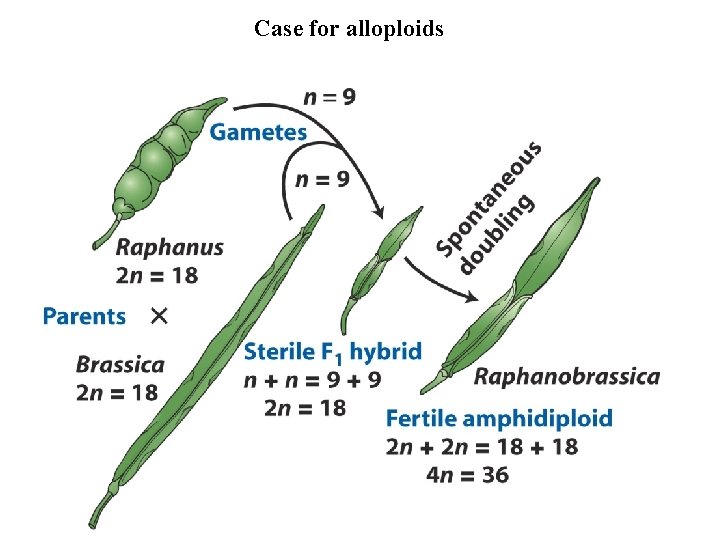

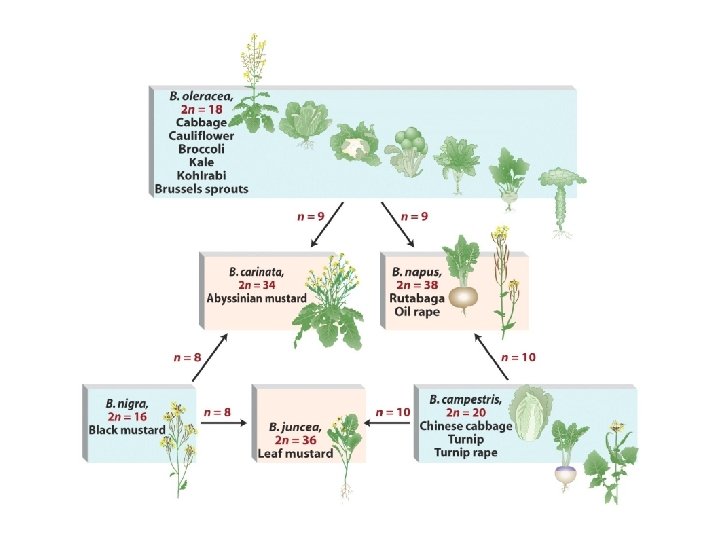

Case for alloploids
צנון כרוב Karpechenko’s experiment
Non functional gamete
Distribution of haploid chrmosome number in dicotyledonous The distribution above 12 show mainly even number suggesting doubling of chromosome sets.
6 n=42
Nullisomics of modern (hexaploid) wheat

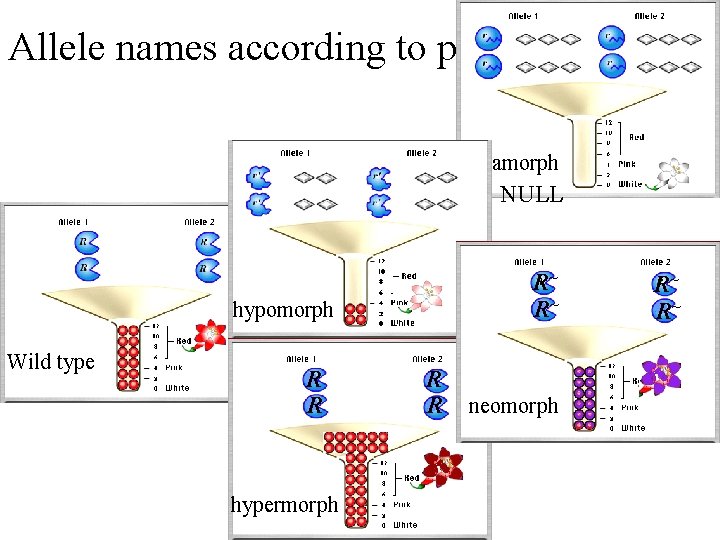

Allele names according to phenotype amorph NULL R~ R~ hypomorph Wild type R R hypermorph R R neomorph R~ R~

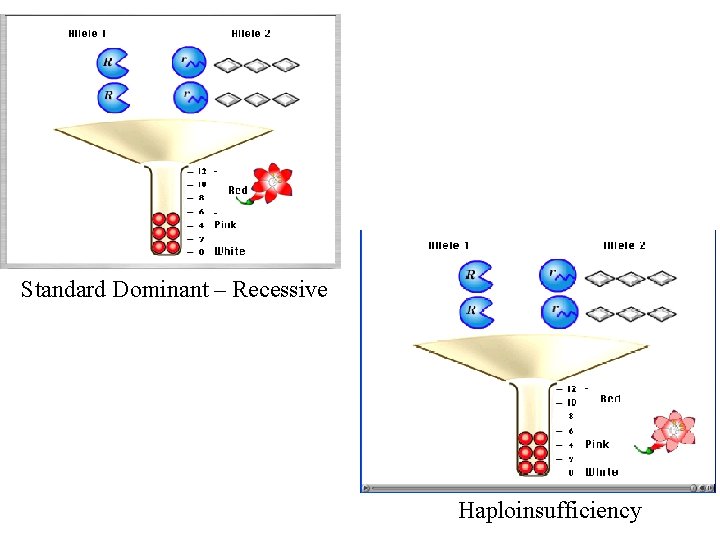

Standard Dominant – Recessive Haploinsufficiency
DS-dissociation at the site of the break Ac-Activator
