“America’s Most Deployed Weapon System” PM Crew Served Weapons Arming the Current and Future Soldiers PEO SOLDIER BG James Moran Program Executive Officer www. peosoldier. army. mil PM Soldier Weapons COL Michael J. Smith Project Manager Soldier Weapons (973) 724 -6560 DSN 880 msmith@pica. army. mil

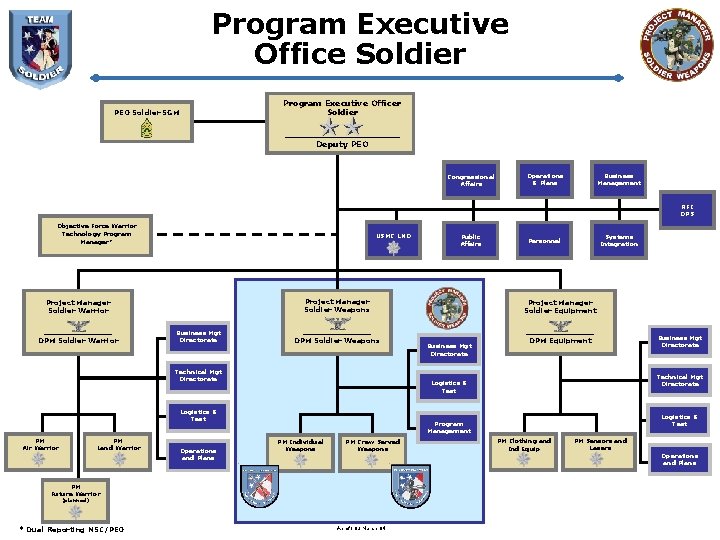

Program Executive Office Soldier Program Executive Officer Soldier PEO Soldier SGM Deputy PEO Congressional Affairs Operations & Plans Business Management RFI OPS Objective Force Warrior Technology Program Manager* USMC LNO Project Manager Soldier Weapons Project Manager Soldier Warrior DPM Soldier Warrior Business Mgt Directorate DPM Soldier Weapons Technical Mgt Directorate PM Land Warrior Operations and Plans Project Manager Soldier Equipment Business Mgt Directorate DPM Equipment PM Individual Weapons PM Crew Served Weapons (planned) As of: 02 March 04 Business Mgt Directorate Technical Mgt Directorate Logistics & Test Program Management PM Future Warrior * Dual Reporting NSC/PEO Systems Integration Personnel Logistics & Test PM Air Warrior Public Affairs PM Clothing and Ind Equip PM Sensors and Lasers Operations and Plans

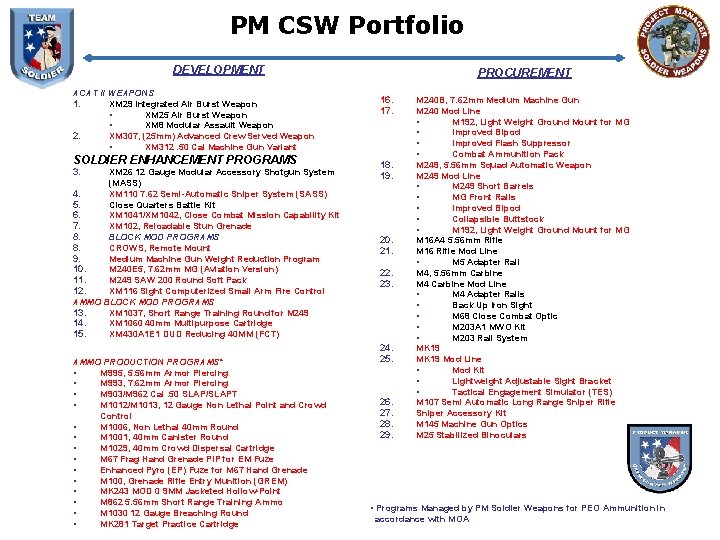

PM CSW Portfolio DEVELOPMENT ACAT II WEAPONS 1. XM 29 Integrated Air Burst Weapon • XM 25 Air Burst Weapon • XM 8 Modular Assault Weapon 2. XM 307, (25 mm) Advanced Crew Served Weapon • XM 312. 50 Cal Machine Gun Variant SOLDIER ENHANCEMENT PROGRAMS 3. XM 26 12 Gauge Modular Accessory Shotgun System (MASS) 4. XM 110 7. 62 Semi-Automatic Sniper System (SASS) 5. Close Quarters Battle Kit 6. XM 1041/XM 1042, Close Combat Mission Capability Kit 7. XM 102, Reloadable Stun Grenade 8. BLOCK MOD PROGRAMS 8. CROWS, Remote Mount 9. Medium Machine Gun Weight Reduction Program 10. M 240 E 5, 7. 62 mm MG (Aviation Version) 11. M 249 SAW 200 Round Soft Pack 12. XM 116 Sight Computerized Small Arm Fire Control AMMO BLOCK MOD PROGRAMS 13. XM 1037, Short Range Training Round for M 249 14. XM 1060 40 mm Multipurpose Cartridge 15. XM 430 A 1 E 1 DUD Reducing 40 MM (FCT) AMMO PRODUCTION PROGRAMS* • M 995, 5. 56 mm Armor Piercing • M 993, 7. 62 mm Armor Piercing • M 903/M 962 Cal. 50 SLAP/SLAPT • M 1012/M 1013, 12 Gauge Non Lethal Point and Crowd Control • M 1006, Non Lethal 40 mm Round • M 1001, 40 mm Canister Round • M 1029, 40 mm Crowd Dispersal Cartridge • M 67 Frag Hand Grenade PIP for EM Fuze • Enhanced Pyro (EP) Fuze for M 67 Hand Grenade • M 100, Grenade Rifle Entry Munition (GREM) • MK 243 MOD 0 9 MM Jacketed Hollow-Point • M 862 5. 56 mm Short Range Training Ammo • M 1030 12 Gauge Breaching Round • MK 281 Target Practice Cartridge PROCUREMENT 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. M 240 B, 7. 62 mm Medium Machine Gun M 240 Mod Line • M 192, Light Weight Ground Mount for MG • Improved Bipod • Improved Flash Suppressor • Combat Ammunition Pack M 249, 5. 56 mm Squad Automatic Weapon M 249 Mod Line • M 249 Short Barrels • MG Front Rails • Improved Bipod • Collapsible Buttstock • M 192, Light Weight Ground Mount for MG M 16 A 4 5. 56 mm Rifle M 16 Rifle Mod Line • M 5 Adapter Rail M 4, 5. 56 mm Carbine M 4 Carbine Mod Line • M 4 Adapter Rails • Back Up Iron Sight • M 68 Close Combat Optic • M 203 A 1 MWO Kit • M 203 Rail System MK 19 Mod Line • Mod Kit • Lightweight Adjustable Sight Bracket • Tactical Engagement Simulator (TES) M 107 Semi Automatic Long Range Sniper Rifle Sniper Accessory Kit M 145 Machine Gun Optics M 25 Stabilized Binoculars • Programs Managed by PM Soldier Weapons for PEO Ammunition in accordance with MOA

Advanced Crew Served Weapon

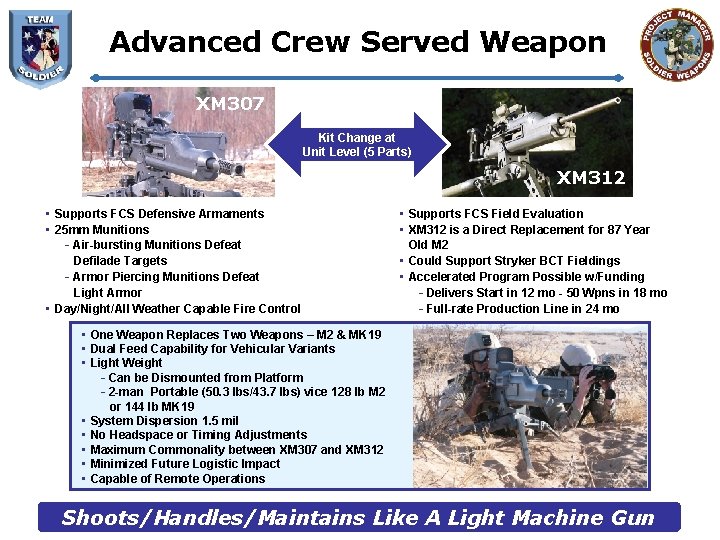

Advanced Crew Served Weapon XM 307 Kit Change at Unit Level (5 Parts) XM 312 • Supports FCS Defensive Armaments • 25 mm Munitions - Air-bursting Munitions Defeat Defilade Targets - Armor Piercing Munitions Defeat Light Armor • Day/Night/All Weather Capable Fire Control • Supports FCS Field Evaluation • XM 312 is a Direct Replacement for 87 Year Old M 2 • Could Support Stryker BCT Fieldings • Accelerated Program Possible w/Funding - Delivers Start in 12 mo - 50 Wpns in 18 mo - Full-rate Production Line in 24 mo • One Weapon Replaces Two Weapons – M 2 & MK 19 • Dual Feed Capability for Vehicular Variants • Light Weight - Can be Dismounted from Platform - 2 -man Portable (50. 3 lbs/43. 7 lbs) vice 128 lb M 2 or 144 lb MK 19 • System Dispersion 1. 5 mil • No Headspace or Timing Adjustments • Maximum Commonality between XM 307 and XM 312 • Minimized Future Logistic Impact • Capable of Remote Operations Shoots/Handles/Maintains Like A Light Machine Gun

Advanced Crew Served Weapon Firings

Advanced Crew Served Weapon Firings (25 mm Airburst Over Target)

CARTRIDGE, 25 MILLIMETER (Armor Piercing, XM 1049) Off the Shelf Nose Fuze with Spitback Advanced Molybdenum Shaped Charge Liner Over 2 Inches of Armor Penetration (Lab) Flight Tested to 963 Meters Dispersion ~ 0. 75 mils First Generation

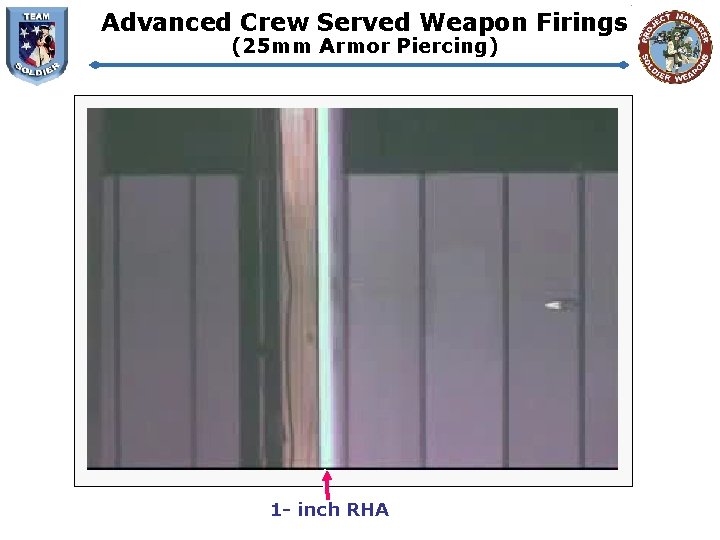

Advanced Crew Served Weapon Firings (25 mm Armor Piercing) 1 - inch RHA

XM 101 Common Remotely Operated Weapon Station (CROWS) • Provides Soldier with Capability to • • Acquire and Engage a Target While Protected by an Armored Vehicle Supported Weapons • MK 19, M 249, M 240 b • Potential Growth to M 230 lf, M 260 and XM 307 • Weapons are Quickly Interchangeable by the User Sensor Suite Permits Target Engagement Under Day and Night Conditions Two Axis Stabilized Mount, Laser Rangefinder and Fire Control Software Allow on the Move Target Acquisition and First Burst Target Engagement Can Track Target Independently of Gun Motion

XM 101 Operations

XUV Demonstration

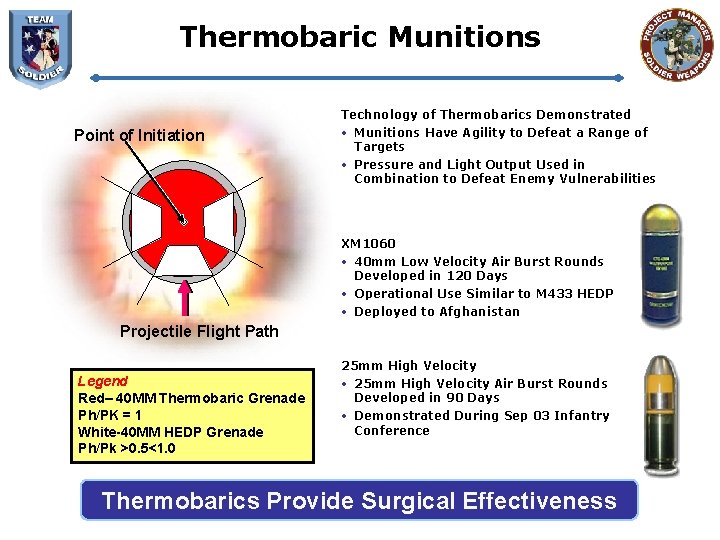

Thermobaric Munitions Technology of Thermobarics Demonstrated Point of Initiation • Munitions Have Agility to Defeat a Range of Targets • Pressure and Light Output Used in Combination to Defeat Enemy Vulnerabilities XM 1060 • 40 mm Low Velocity Air Burst Rounds Developed in 120 Days • Operational Use Similar to M 433 HEDP • Deployed to Afghanistan Projectile Flight Path Legend Red– 40 MM Thermobaric Grenade Ph/PK = 1 White-40 MM HEDP Grenade Ph/Pk >0. 5<1. 0 25 mm High Velocity • 25 mm High Velocity Air Burst Rounds Developed in 90 Days • Demonstrated During Sep 03 Infantry Conference Thermobarics Provide Surgical Effectiveness

Thermobaric Munitions Firings (40 mm Static)

Thermobaric Munitions Firings (40 mm Dynamic)

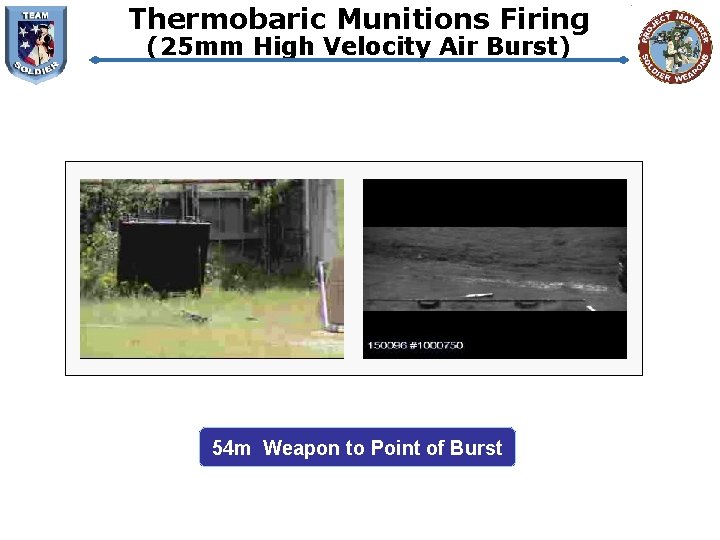

Thermobaric Munitions Firing (25 mm High Velocity Air Burst) 54 m Weapon to Point of Burst

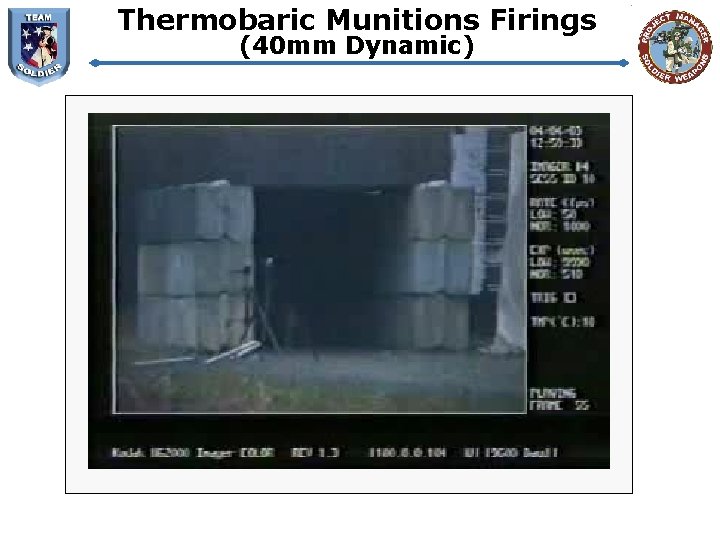

Thermobaric Munitions Firings (40 mm Dynamic)

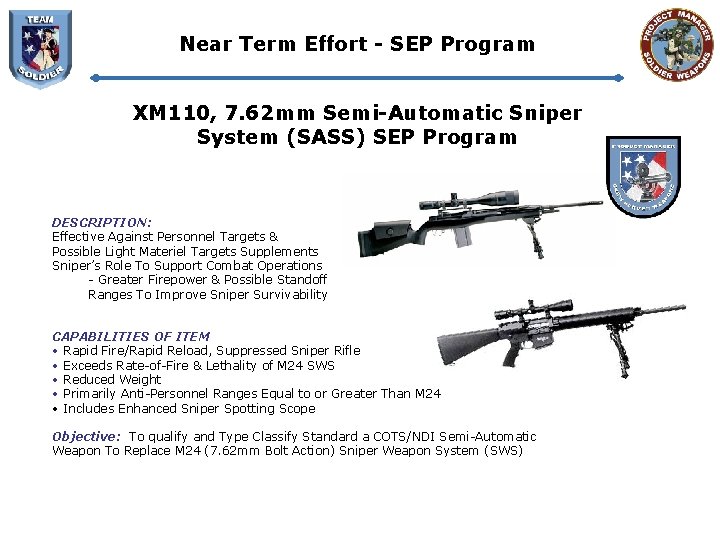

Near Term Effort - SEP Program XM 110, 7. 62 mm Semi-Automatic Sniper System (SASS) SEP Program DESCRIPTION: Effective Against Personnel Targets & Possible Light Materiel Targets Supplements Sniper’s Role To Support Combat Operations - Greater Firepower & Possible Standoff Ranges To Improve Sniper Survivability CAPABILITIES OF ITEM • Rapid Fire/Rapid Reload, Suppressed Sniper Rifle • Exceeds Rate-of-Fire & Lethality of M 24 SWS • Reduced Weight • Primarily Anti-Personnel Ranges Equal to or Greater Than M 24 • Includes Enhanced Sniper Spotting Scope Objective: To qualify and Type Classify Standard a COTS/NDI Semi-Automatic Weapon To Replace M 24 (7. 62 mm Bolt Action) Sniper Weapon System (SWS)
