AMCA International Technical Seminar 2009 Energy Efficiency Classification
- Slides: 93

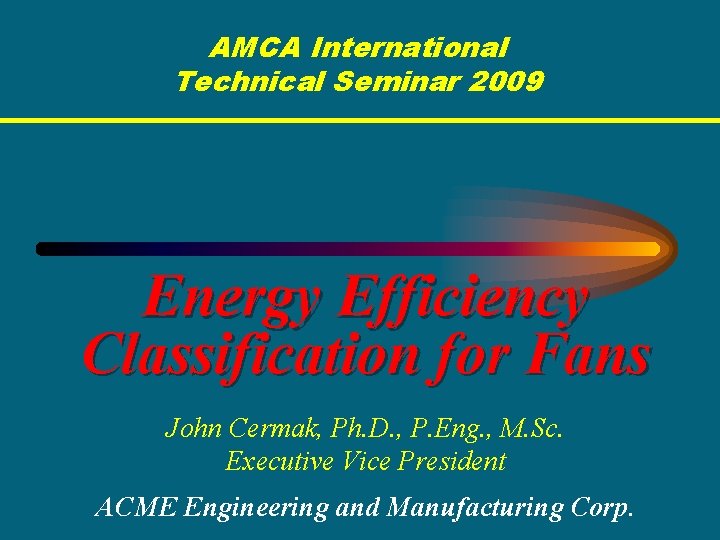

AMCA International Technical Seminar 2009 Energy Efficiency Classification for Fans John Cermak, Ph. D. , P. Eng. , M. Sc. Executive Vice President ACME Engineering and Manufacturing Corp.
The Air Movement and Control Association International (AMCA), has met the standards and requirements of the Registered Continuing Education Providers Program. Credit earned on completion of this program will be reported to the RCEPP. A certificate of completion will be issued to each participant. As such, it does not include content that may be deemed or construed to be an approval or endorsement by NCEES or RCEPP.
Learning Objectives • • • Learn about the current actions in fan industry leading to immediate and long term improvement in energy consumption by fans Understand the choices of the corner stones for building the AMCA Int’l initiative in ASHRAE and ISO Learn about importance of fan total pressure for finding energy savings Understand how fan selection impacts energy consumption of fans Understand how knowledge of the fan discharge energy contributes to successful fan selection from energy consumption point Learn about standardization of fan energy efficiency for better usage of energy by fans
Fan Industry Energy Consumption Challenge
What is Happening? 5
What is happening ASHRAE – 90. 1 Standard (revision 2010) – TC 5. 1 Fans - ad hoc WG 90. 1 6
What is happening AMCA International – Mid-year and annual meetings 08 – Fan Committee – SC for AMCA 205 – AMCA Standard 205 “Energy Efficiency Classification for Fans” 7
What is happening ISO/TC 117 Fans – WG 11 Fan Efficiency – DIS 12759 Energy Classification for fans 8

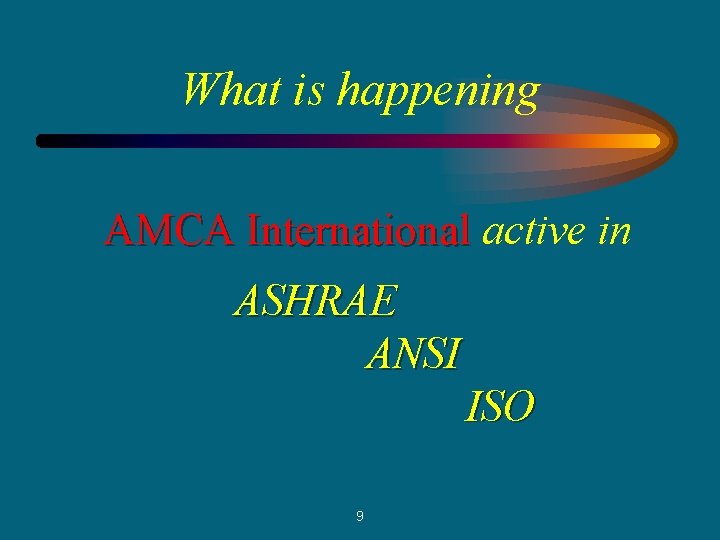

What is happening AMCA International active in ASHRAE ANSI ISO 9
Purpose
Purpose AMCA International supporting Legislative bodies Regulatory bodies in U. S. A. as well as in other countries 11
Purpose Establishing ways and goals to achieve significant energy savings in usage of fans 12
Purpose Making the application of fans fitting the energy consumption goals without making it difficult 13
Corner Stones
Corner Stones Fan energy efficiency based on fan total pressure 15
Corner Stones Tool for regulative bodies 16

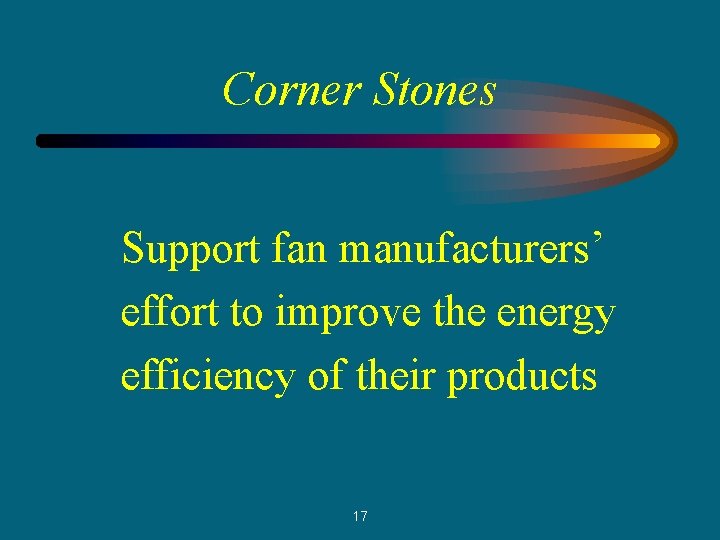

Corner Stones Support fan manufacturers’ effort to improve the energy efficiency of their products 17
Corner Stones As much as possible keep one series in one efficiency grade 18
Corner Stones Fan peak total efficiency of a fan series is dependent on fan size 19
Corner Stones Defining areas of responsibility for: Fan manufacturer Motor manufacturer HVAC system designer 20
Fan Total Pressure Why?
Total or Static? Fan creates pressures: dynamic (velocity) and static 22
Total or Static Both pressures are also specific energies a unit of flow exerted into the air by a fan 23
Total or Static? • Fan is a device to create air flow as its primary function • The motion of the air carries dynamic (velocity) energy 24
Total or Static? Fan total pressure is sum of dynamic (velocity) pressure and static pressure 25
Answer For fan selection are needed at least two from the three fan pressures: total and velocity static and velocity total and static 26
Fan Selection 27
Fan Selection 28

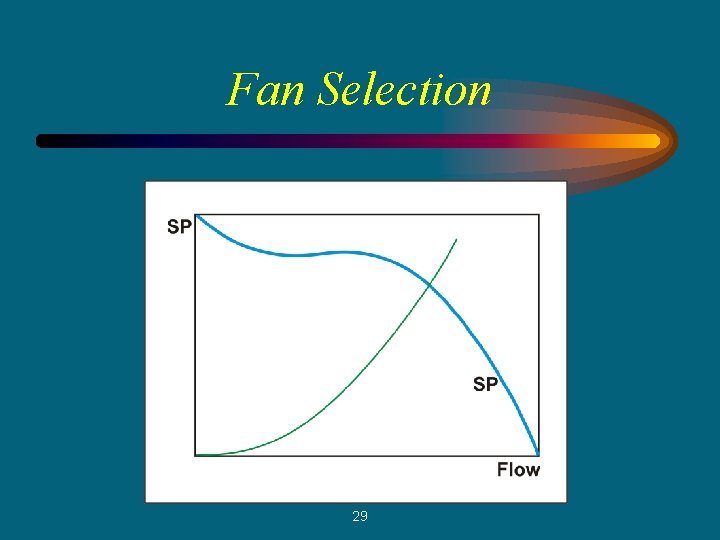

Fan Selection 29
Fan Selection 30

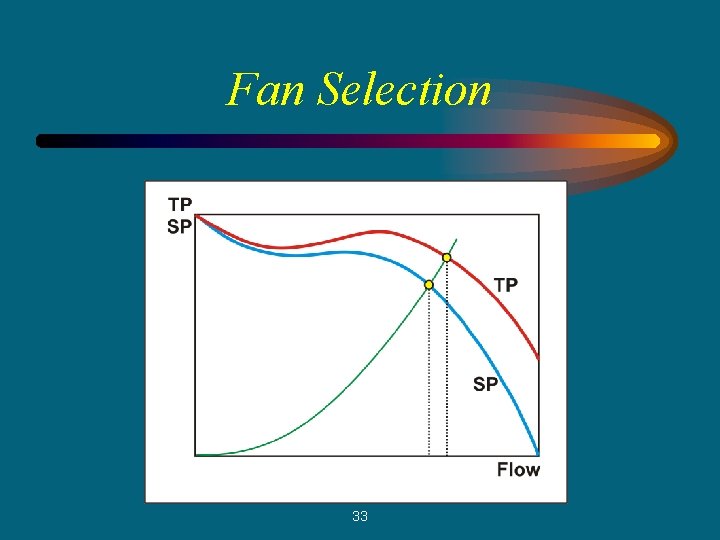

Fan Selection • Matching the pressure drop across the system against fan static pressure does not give the correct flow, fan size and power 31

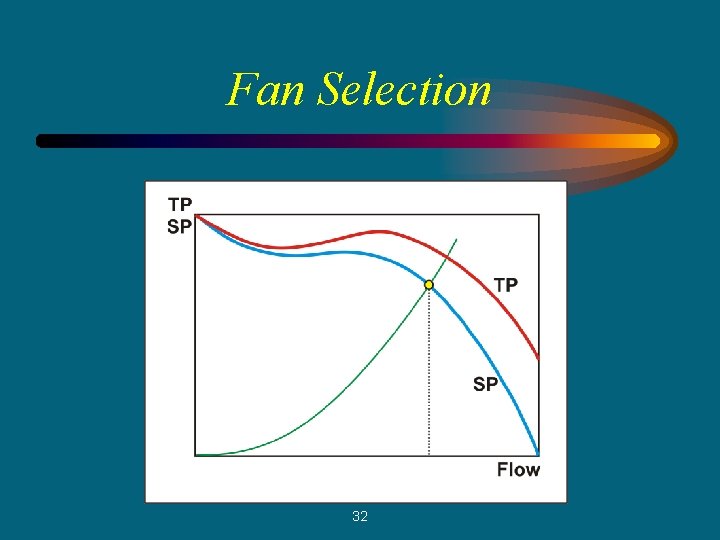

Fan Selection 32
Fan Selection 33
Using Fan Discharge Energy 34
Using Discharge Energy 35
Using Discharge Energy 36
Using Discharge Energy 37
Fan Characteristics 38
Fan Energy Efficiency • Fan is a device creating air flow and transferring energy from the motor into the air • Fan Total Pressure is the total energy exerted into air by fan 39
Fan Energy Efficiency 40

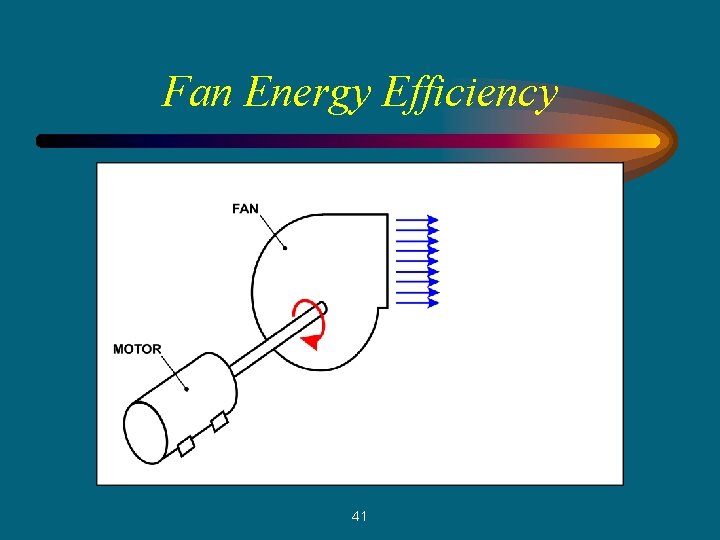

Fan Energy Efficiency 41
Fan Energy Efficiency 42
Fan Energy Efficiency 43
Fan Energy Efficiency 44
Fan Energy Efficiency Fan energy (total) efficiency Fan total energy Energy from motor 45
p. TE 46
p. TE 47
p. TE The characteristic of the fan energy transformation quality is fan peak total efficiency 48
p. TE Fan total efficiency changes along the fan pressure curve significantly 49
Fan size and p. TE 50
p. TE At constant tip speed the fan p. TE of a fan Series changes with the fan size 51

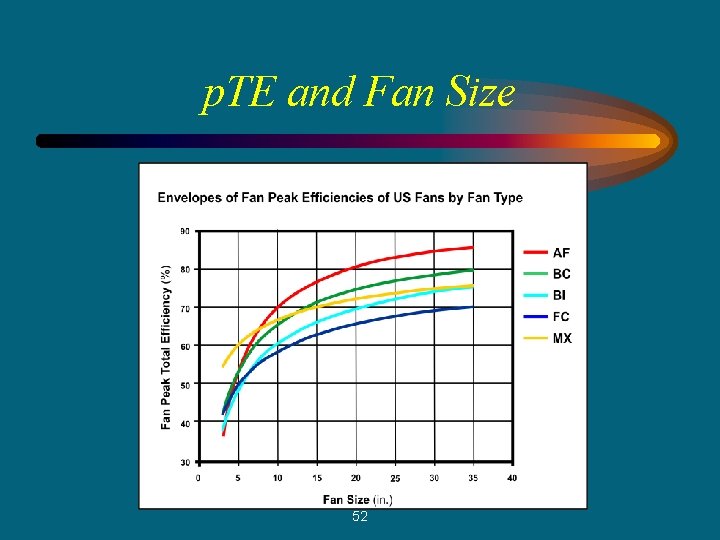

p. TE and Fan Size 52
p. TE and Fan Size As a base fan size was chosen impeller size of 1000 mm (40”) 53
Fan Size Effect The Size Effect includes effects – Reynolds number – changes in flow pattern – impact of volumetric and mechanical losses 54
Fan Size Effect The Size Effect includes effects – deviations from geometrical similarity from size to size 55
Fan Size Effect The character of the Size Effect changes from one fan Series to another 56
Design of FEG System FEG = Fan Efficiency Grade
FEG System 58
FEG System • Grade labels in preferred numbers e. g. FEG 80, 80 71, 63 etc. • Layer thickness is 6% 59
Grade Label 60
Grade Label 61
Grade Label 62

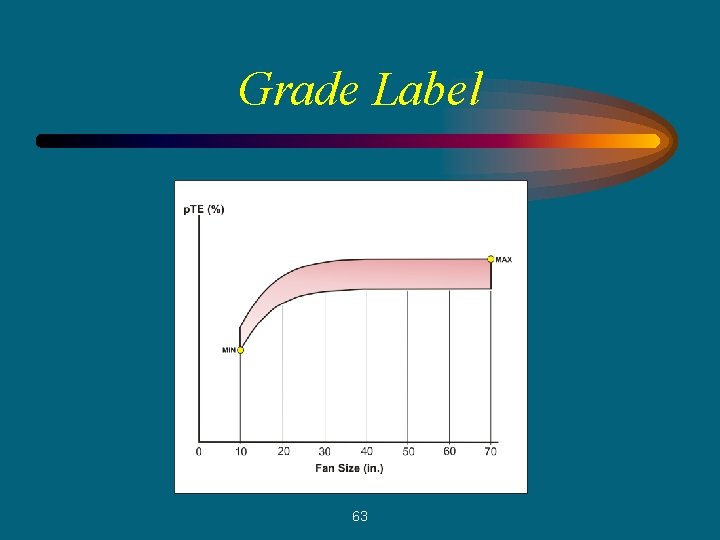

Grade Label 63
Grade Label 64
Grade Label 65
Attached Conditions Using these conditions would yield the fastest energy savings
Off Peak Load 67

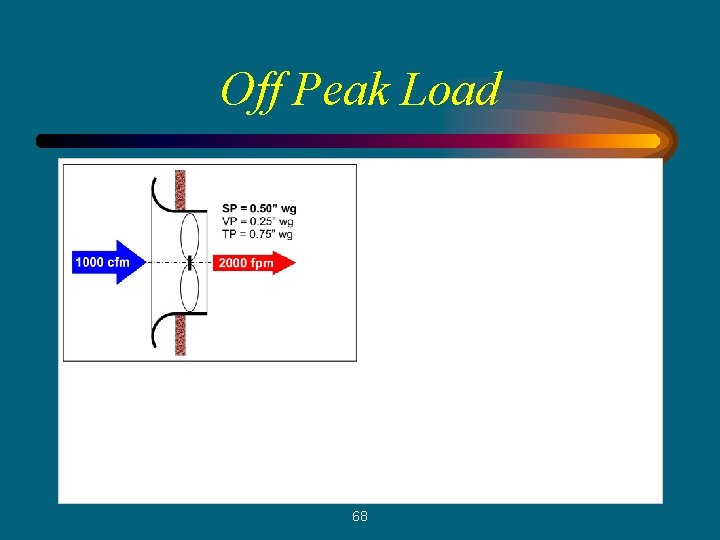

Off Peak Load 68
Off Peak Load 69
Off Peak Load 70
Off Peak Load 71
Off Peak Load 72
Off Peak Load 73
Off Peak Load 74

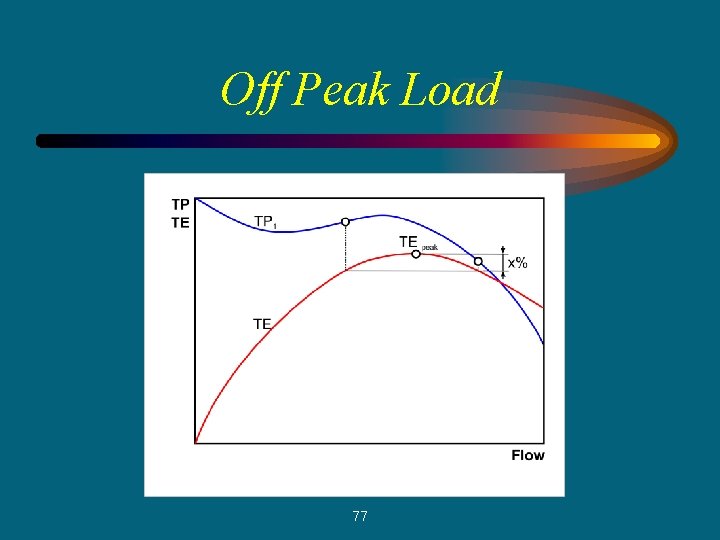

Off Peak Load 75
Off Peak Load 76
Off Peak Load 77
Off Peak Load 78

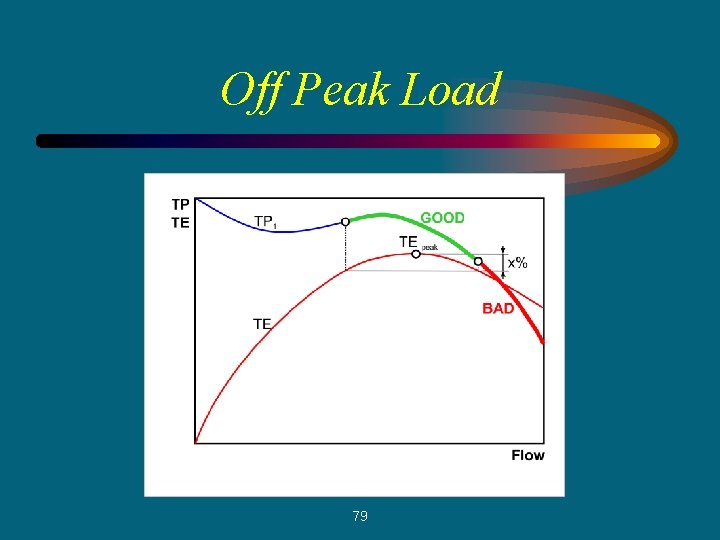

Off Peak Load 79

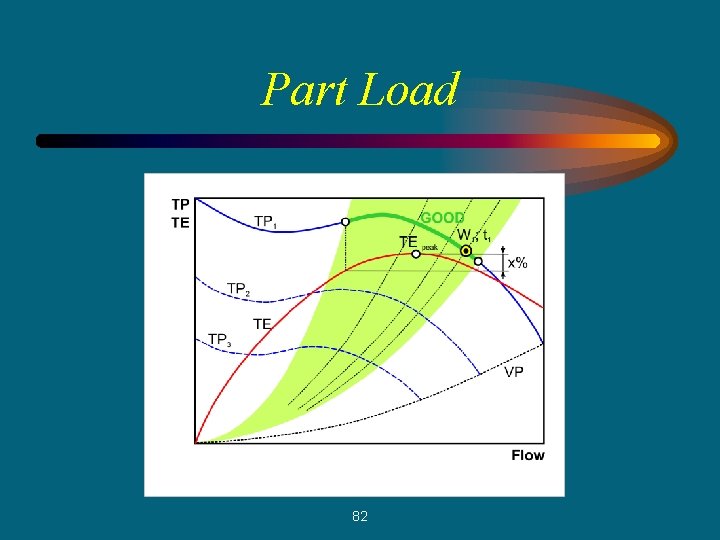

Part Load 80

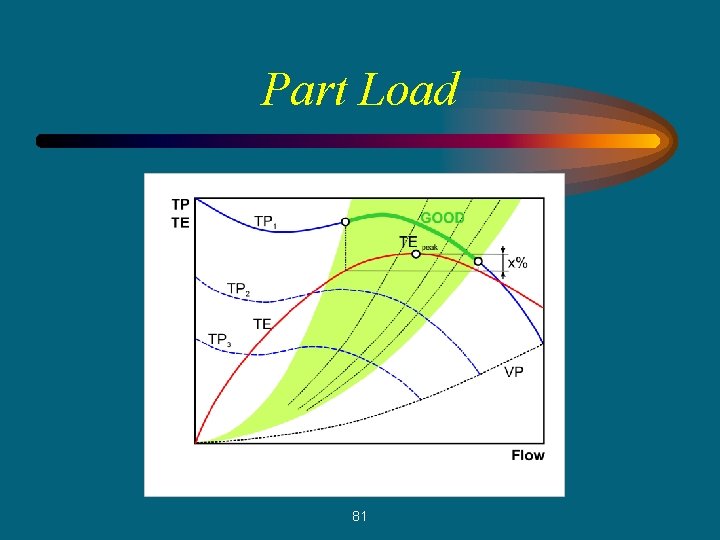

Part Load 81
Part Load 82
Part Load 83
Part Load 84
System Effects Restrictions on usage of “system effects” 85
Result Defined Areas of Responsibility

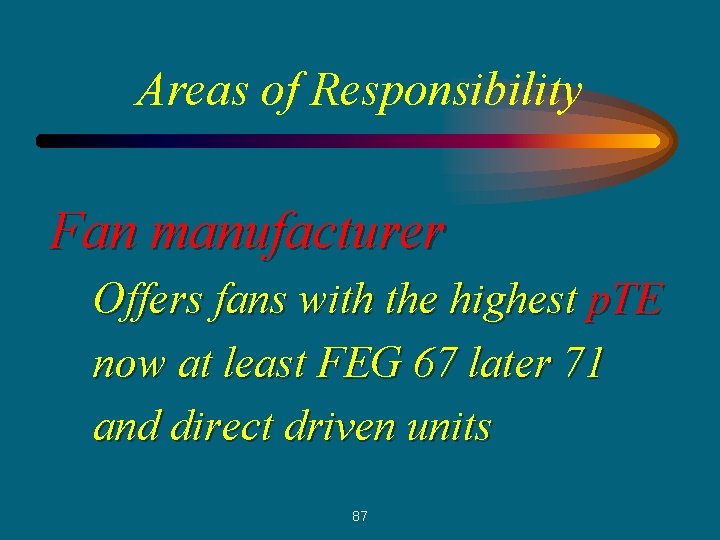

Areas of Responsibility Fan manufacturer Offers fans with the highest p. TE now at least FEG 67 later 71 and direct driven units 87
Areas of Responsibility Motor manufacturer Offer motors with highest p. Eff and smart units 88
Areas of Responsibility HVAC system designer desi Optimizes use of the selection of the fan and the motor incl. drive package) 89
Areas of Responsibility What is missing? User of HVAC 90
Questions?
Thank You
93
