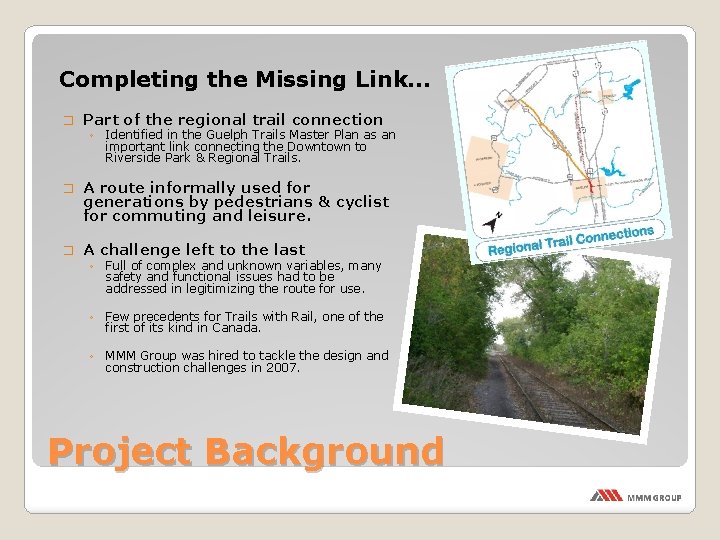

Completing the Missing Link… � Part of the regional trail connection ◦ Identified in the Guelph Trails Master Plan as an important link connecting the Downtown to Riverside Park & Regional Trails. � A route informally used for generations by pedestrians & cyclist for commuting and leisure. � A challenge left to the last ◦ Full of complex and unknown variables, many safety and functional issues had to be addressed in legitimizing the route for use. ◦ Few precedents for Trails with Rail, one of the first of its kind in Canada. ◦ MMM Group was hired to tackle the design and construction challenges in 2007. Project Background

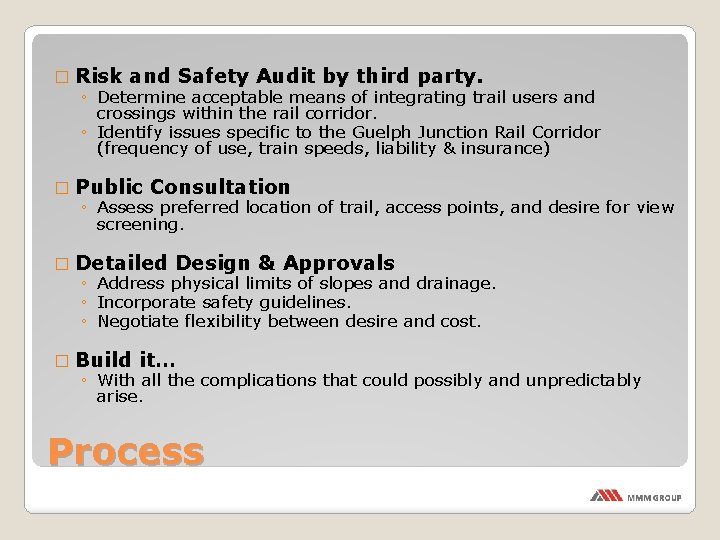

� Risk and Safety Audit by third party. ◦ Determine acceptable means of integrating trail users and crossings within the rail corridor. ◦ Identify issues specific to the Guelph Junction Rail Corridor (frequency of use, train speeds, liability & insurance) � Public Consultation ◦ Assess preferred location of trail, access points, and desire for view screening. � Detailed Design & Approvals ◦ Address physical limits of slopes and drainage. ◦ Incorporate safety guidelines. ◦ Negotiate flexibility between desire and cost. � Build it… ◦ With all the complications that could possibly and unpredictably arise. Process

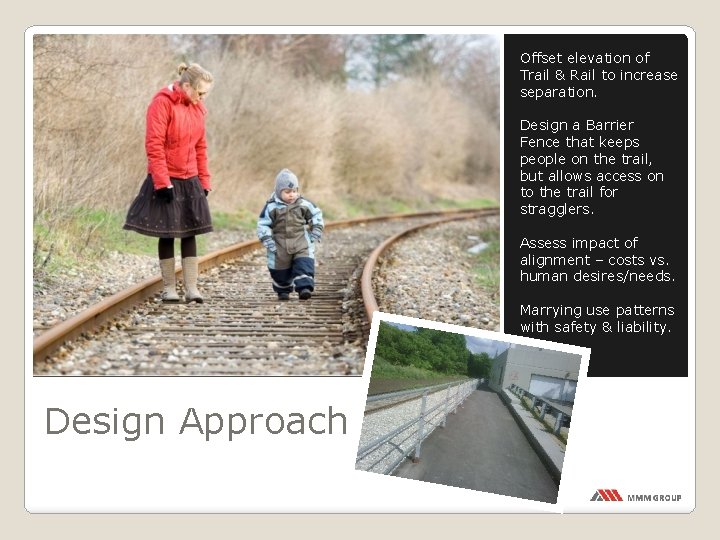

Offset elevation of Trail & Rail to increase separation. Design a Barrier Fence that keeps people on the trail, but allows access on to the trail for stragglers. Assess impact of alignment – costs vs. human desires/needs. Marrying use patterns with safety & liability. Design Approach

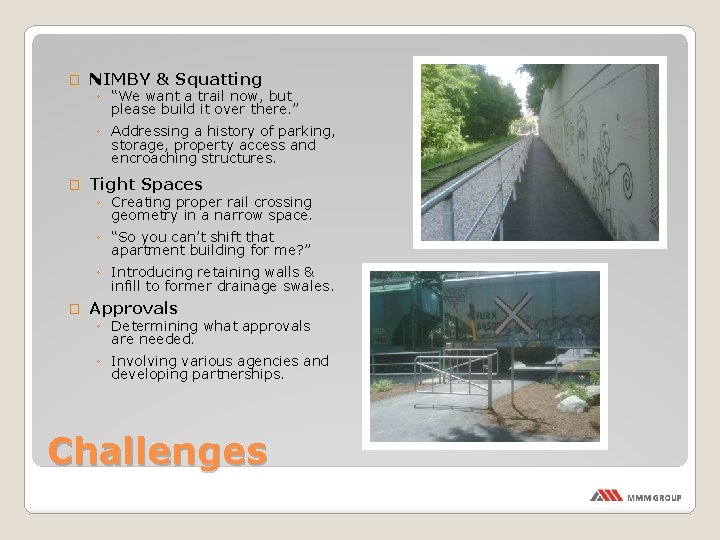

� NIMBY & Squatting ◦ “We want a trail now, but please build it over there. ” ◦ Addressing a history of parking, storage, property access and encroaching structures. � Tight Spaces ◦ Creating proper rail crossing geometry in a narrow space. ◦ “So you can’t shift that apartment building for me? ” ◦ Introducing retaining walls & infill to former drainage swales. � Approvals ◦ Determining what approvals are needed. ◦ Involving various agencies and developing partnerships. Challenges

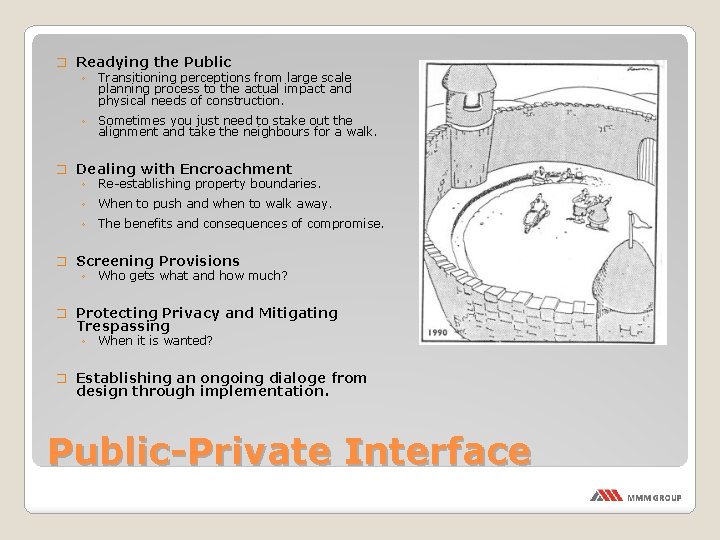

� Readying the Public ◦ Transitioning perceptions from large scale planning process to the actual impact and physical needs of construction. ◦ Sometimes you just need to stake out the alignment and take the neighbours for a walk. � Dealing with Encroachment ◦ Re-establishing property boundaries. ◦ When to push and when to walk away. ◦ The benefits and consequences of compromise. � Screening Provisions ◦ Who gets what and how much? � Protecting Privacy and Mitigating Trespassing ◦ When it is wanted? � Establishing an ongoing dialoge from design through implementation. Public-Private Interface

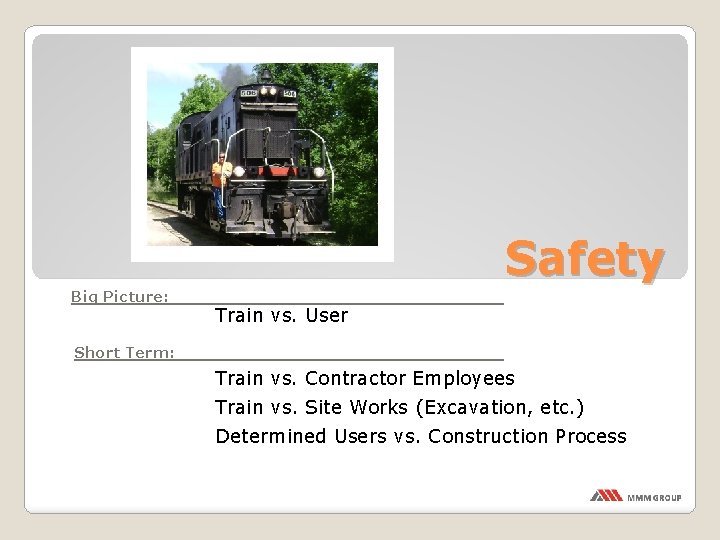

Safety Big Picture: Train vs. User Short Term: Train vs. Contractor Employees Train vs. Site Works (Excavation, etc. ) Determined Users vs. Construction Process

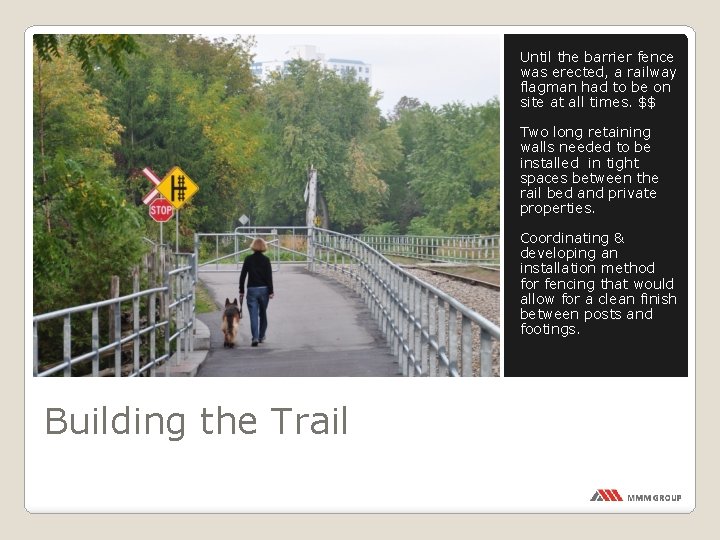

Until the barrier fence was erected, a railway flagman had to be on site at all times. $$ Two long retaining walls needed to be installed in tight spaces between the rail bed and private properties. Coordinating & developing an installation method for fencing that would allow for a clean finish between posts and footings. Building the Trail

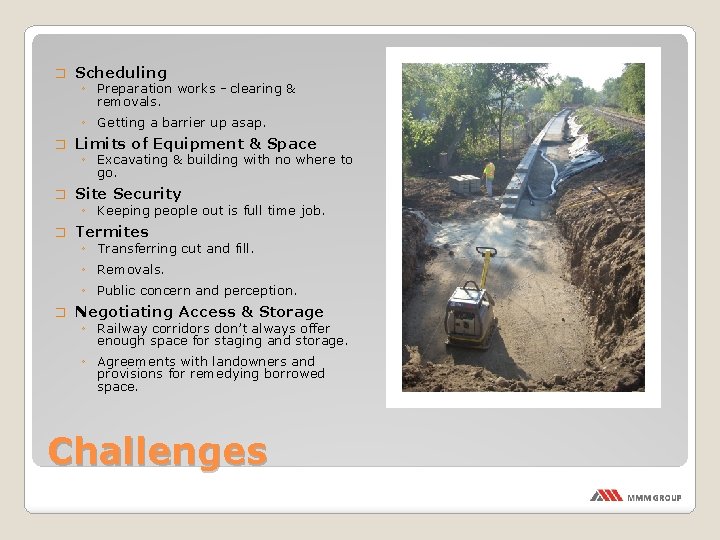

� Scheduling ◦ Preparation works - clearing & removals. ◦ Getting a barrier up asap. � Limits of Equipment & Space � Site Security � Termites ◦ Excavating & building with no where to go. ◦ Keeping people out is full time job. ◦ Transferring cut and fill. ◦ Removals. ◦ Public concern and perception. � Negotiating Access & Storage ◦ Railway corridors don’t always offer enough space for staging and storage. ◦ Agreements with landowners and provisions for remedying borrowed space. Challenges

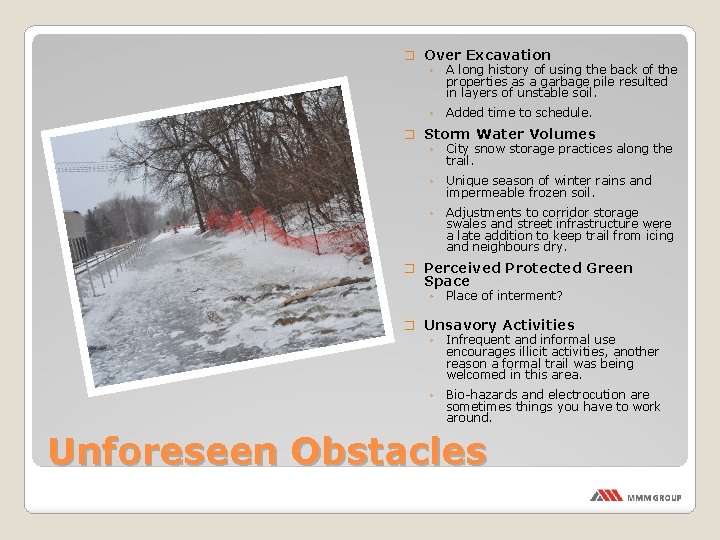

� Over Excavation ◦ A long history of using the back of the properties as a garbage pile resulted in layers of unstable soil. ◦ Added time to schedule. � Storm Water Volumes ◦ City snow storage practices along the trail. ◦ Unique season of winter rains and impermeable frozen soil. ◦ Adjustments to corridor storage swales and street infrastructure were a late addition to keep trail from icing and neighbours dry. � Perceived Protected Green Space ◦ Place of interment? � Unsavory Activities ◦ Infrequent and informal use encourages illicit activities, another reason a formal trail was being welcomed in this area. ◦ Bio-hazards and electrocution are sometimes things you have to work around. Unforeseen Obstacles

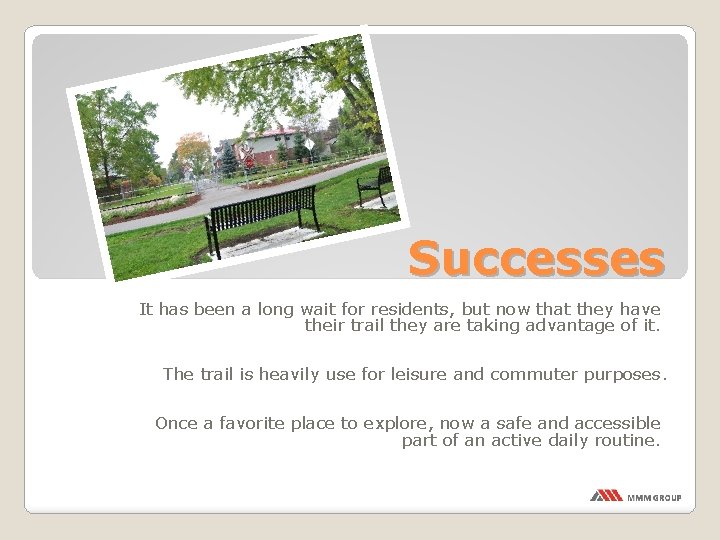

Successes It has been a long wait for residents, but now that they have their trail they are taking advantage of it. The trail is heavily use for leisure and commuter purposes. Once a favorite place to explore, now a safe and accessible part of an active daily routine.

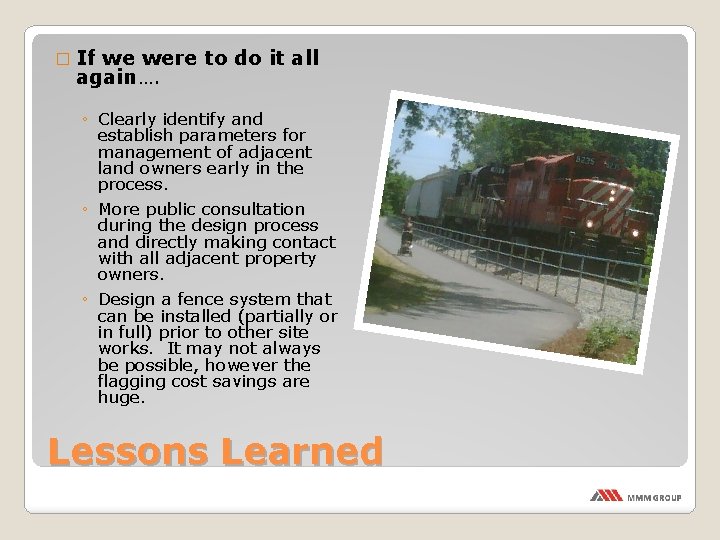

� If we were to do it all again…. ◦ Clearly identify and establish parameters for management of adjacent land owners early in the process. ◦ More public consultation during the design process and directly making contact with all adjacent property owners. ◦ Design a fence system that can be installed (partially or in full) prior to other site works. It may not always be possible, however the flagging cost savings are huge. Lessons Learned
