Altred Project manager Prof Bo Bjrkman Presenters Tommy
Altred Project manager Prof. Bo Björkman Presenters Tommy Vikström – Boliden Rönnskär Caisa Samuelsson – Mi. Me. R www. gruvochmetallutvinning. se www. siostrim. se
Project organisation • Project manager: LTU through Bo Björkman • Participating parts: • • Boliden Rönnskär Stena Kuusakoski LTU

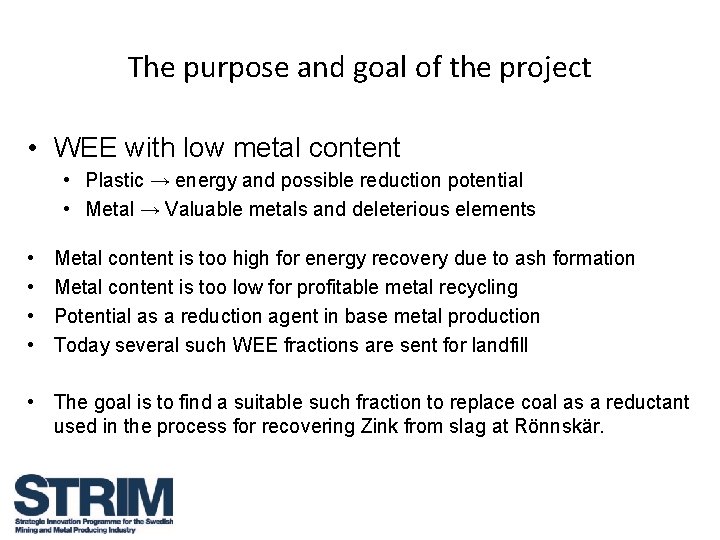

The purpose and goal of the project • WEE with low metal content • Plastic → energy and possible reduction potential • Metal → Valuable metals and deleterious elements • • Metal content is too high for energy recovery due to ash formation Metal content is too low for profitable metal recycling Potential as a reduction agent in base metal production Today several such WEE fractions are sent for landfill • The goal is to find a suitable such fraction to replace coal as a reductant used in the process for recovering Zink from slag at Rönnskär.
Results • Characterization • Mixed material • Pure plastics • Devolatilization properties • Decision on materials for plant trials

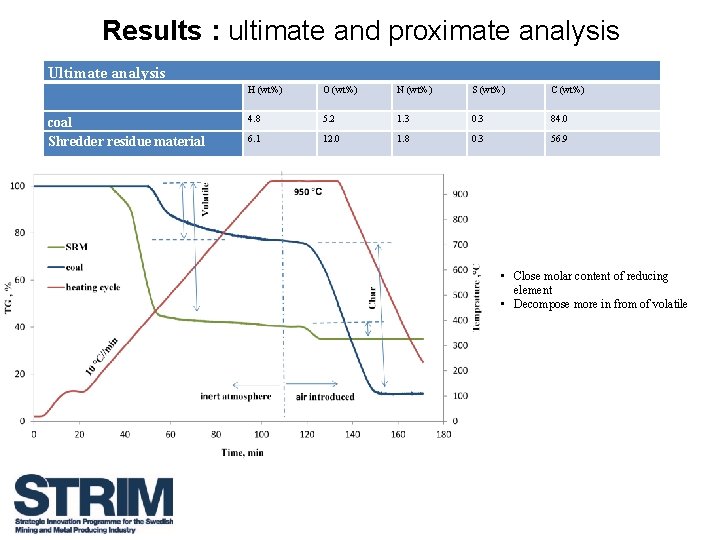

Results : ultimate and proximate analysis Ultimate analysis H (wt%) O (wt%) N (wt%) S (wt%) C (wt%) coal Shredder residue material 4. 8 5. 2 1. 3 0. 3 84. 0 6. 1 12. 0 1. 8 0. 3 56. 9 • Close molar content of reducing element • Decompose more in from of volatile
Results : ultimate and proximate analysis Ultimate analysis Proximate analysis H (wt%) O (wt%) N (wt%) S (wt%) C (wt%) Volatile % Fixed carbon % Glass fiber reinforced polyester 2. 6 13. 4 0. 02 0. 0036 35. 5 39 4. 9 High ash PVC* 4. 8 13. 1 Les than 0. 1 0. 0277 38. 5 64 14. 7 polyurethane 6. 5 16. 9 5. 75 0. 0338 62. 9 73. 8 14. 1 PE 13. 8 Less than 1 Less than 0. 1 0. 0124 85. 5 89. 4 2. 7 Carbon fiber Less than 0. 1 Less than 1 4. 21 0. 0078 94. 4 1. 5 79. 3 * Cl content of PVC = 13. 24 wt%
Timeplan, milestones and deliverables • 2014 • Characterisation of materials – LTU • Lab tests on devolatilization– LTU • 2015 • • Acquisition of materials – Stena and Kuusakoski Theoretic evaluation of reduction potential – LTU Lab tests on reduction potential – LTU Full scale tests – Rönnskär • 2016 • • • Lab tests on reduction potential – LTU Evaluation and conclusions from lab and full scale tests – LTU and Rönnskär Possibly complementary full scale trials
Next steps • Preparation of materials for plant trials (Stena and Kuuskoski) • Fullscale trials Rönnskär • Labscale tests-reduction (LTU)
