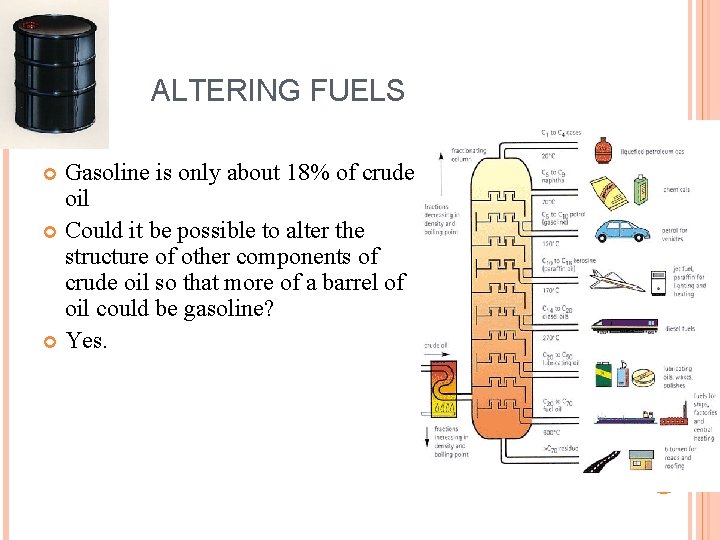

ALTERING FUELS Gasoline is only about 18% of crude oil Could it be possible to alter the structure of other components of crude oil so that more of a barrel of oil could be gasoline? Yes.

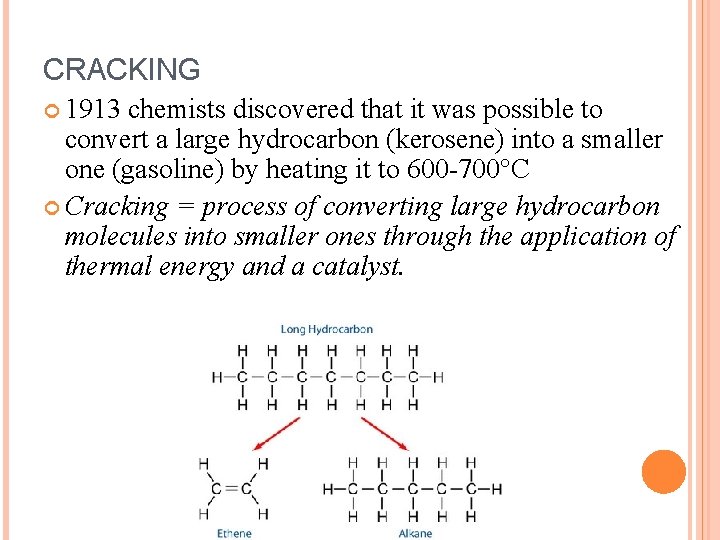

CRACKING 1913 chemists discovered that it was possible to convert a large hydrocarbon (kerosene) into a smaller one (gasoline) by heating it to 600 -700°C Cracking = process of converting large hydrocarbon molecules into smaller ones through the application of thermal energy and a catalyst.

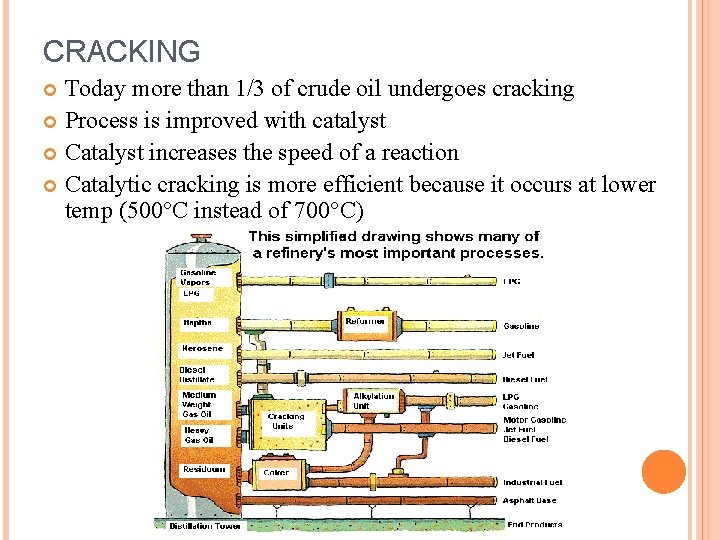

CRACKING Today more than 1/3 of crude oil undergoes cracking Process is improved with catalyst Catalyst increases the speed of a reaction Catalytic cracking is more efficient because it occurs at lower temp (500°C instead of 700°C)

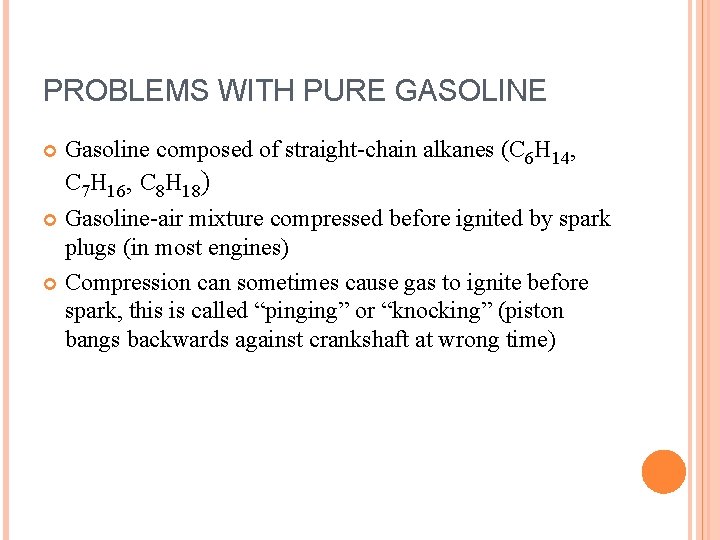

PROBLEMS WITH PURE GASOLINE Gasoline composed of straight-chain alkanes (C 6 H 14, C 7 H 16, C 8 H 18) Gasoline-air mixture compressed before ignited by spark plugs (in most engines) Compression can sometimes cause gas to ignite before spark, this is called “pinging” or “knocking” (piston bangs backwards against crankshaft at wrong time)

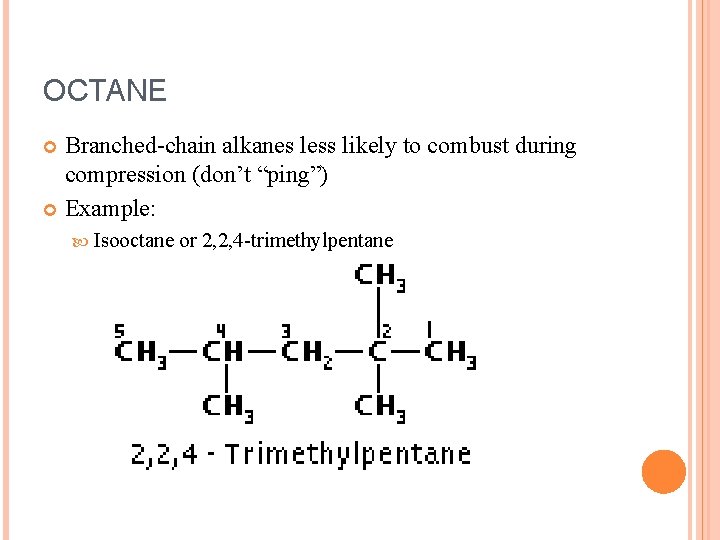

OCTANE Branched-chain alkanes less likely to combust during compression (don’t “ping”) Example: Isooctane or 2, 2, 4 -trimethylpentane Can you see how the name relates to the structure?

OCTANE RATING Determined by testing the fuel’s burning efficiency under two conditions: A free running engine, and Engine under load (towing or passing) Results of these two tests are averaged to obtain octane rating The higher the octane rating, the better its antiknock characteristics (examples: 87, 89, 92)

LEADED GASOLINE 1920 s to 1970 s, tetraethyl lead (C 2 H 4)4 Pb was added to increase octane rating It increased efficiency and added 3 points to octane rating However, lead particulates entered atmosphere and were found to be very harmful to the environment and human health Outlawed in 1970 s

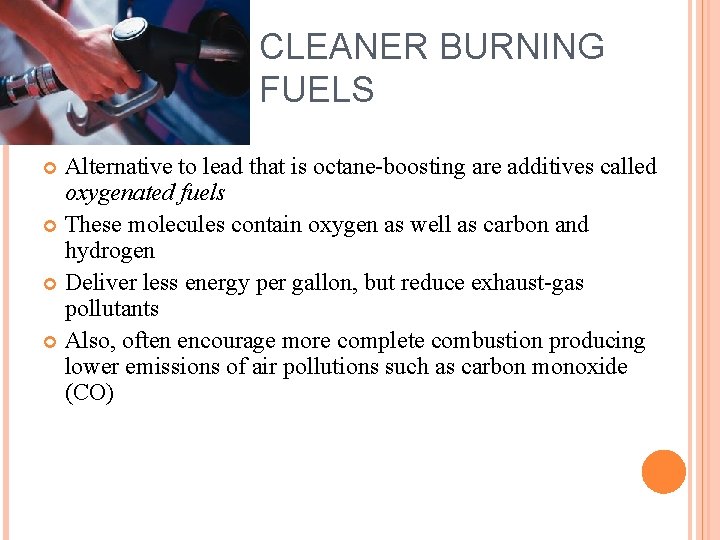

CLEANER BURNING FUELS Alternative to lead that is octane-boosting are additives called oxygenated fuels These molecules contain oxygen as well as carbon and hydrogen Deliver less energy per gallon, but reduce exhaust-gas pollutants Also, often encourage more complete combustion producing lower emissions of air pollutions such as carbon monoxide (CO)

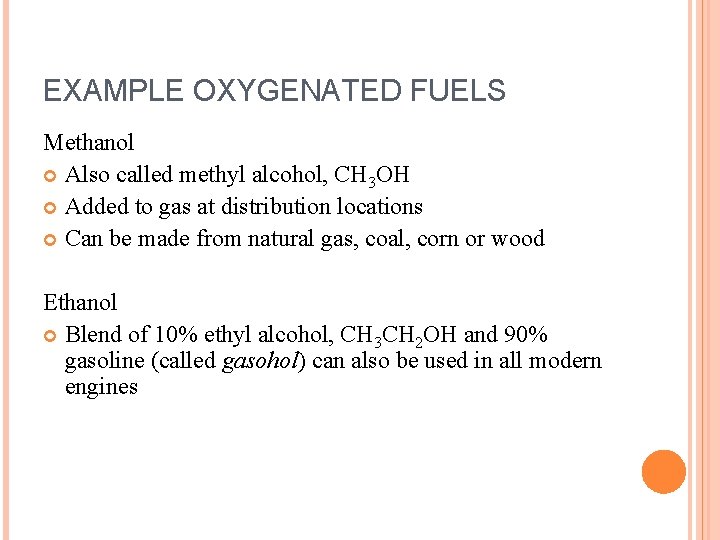

EXAMPLE OXYGENATED FUELS Methanol Also called methyl alcohol, CH 3 OH Added to gas at distribution locations Can be made from natural gas, coal, corn or wood Ethanol Blend of 10% ethyl alcohol, CH 3 CH 2 OH and 90% gasoline (called gasohol) can also be used in all modern engines

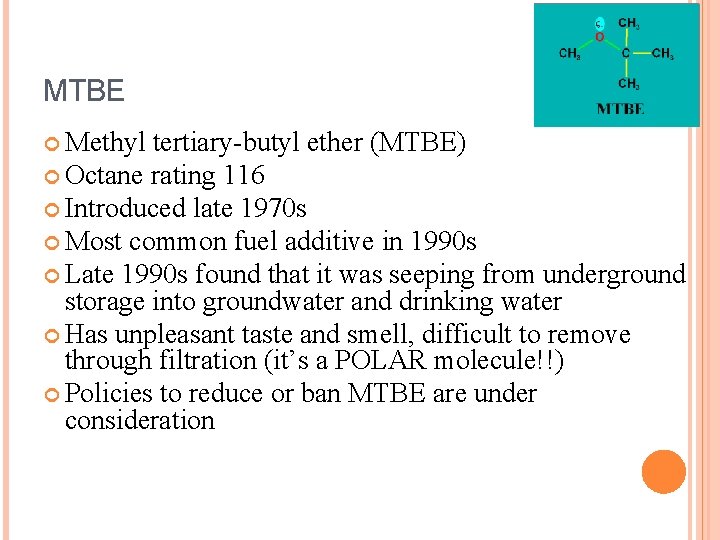

MTBE Methyl tertiary-butyl ether (MTBE) Octane rating 116 Introduced late 1970 s Most common fuel additive in 1990 s Late 1990 s found that it was seeping from underground storage into groundwater and drinking water Has unpleasant taste and smell, difficult to remove through filtration (it’s a POLAR molecule!!) Policies to reduce or ban MTBE are under consideration

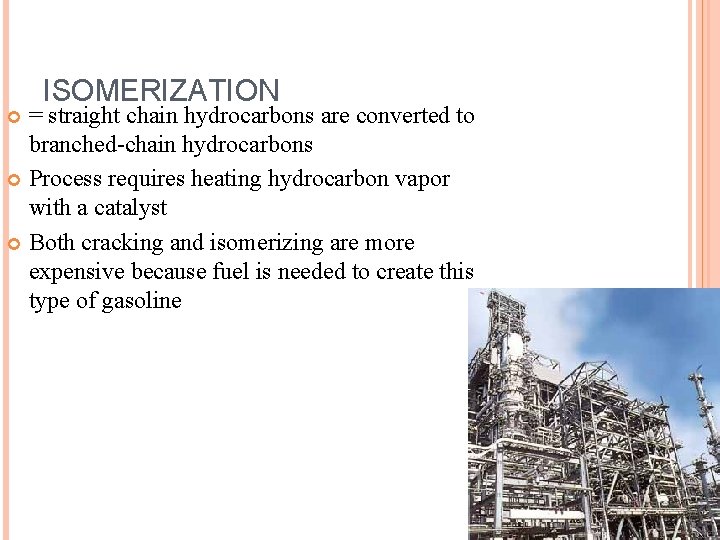

ISOMERIZATION = straight chain hydrocarbons are converted to branched-chain hydrocarbons Process requires heating hydrocarbon vapor with a catalyst Both cracking and isomerizing are more expensive because fuel is needed to create this type of gasoline Isomerization refinery run by Shell in Martinez, CA
