Alpha beta and gamma radiation Lesson objectives You

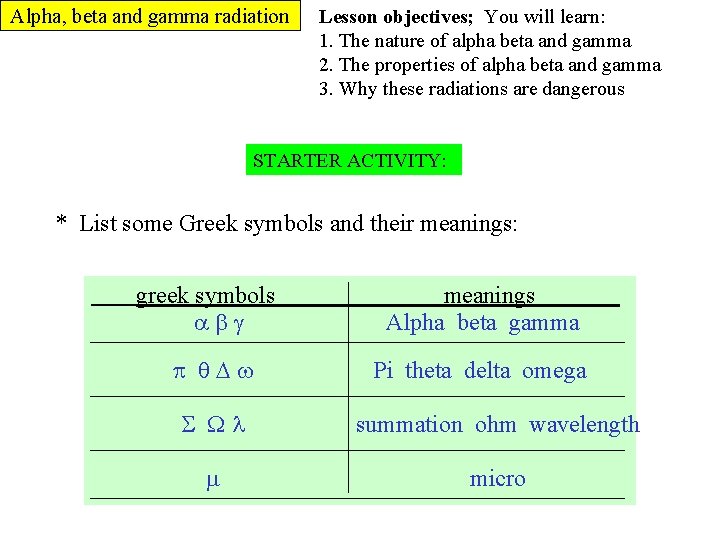

Alpha, beta and gamma radiation Lesson objectives; You will learn: 1. The nature of alpha beta and gamma 2. The properties of alpha beta and gamma 3. Why these radiations are dangerous STARTER ACTIVITY: * List some Greek symbols and their meanings: greek symbols meanings Alpha beta gamma Pi theta delta omega summation ohm wavelength micro

Alpha, beta and gamma radiation

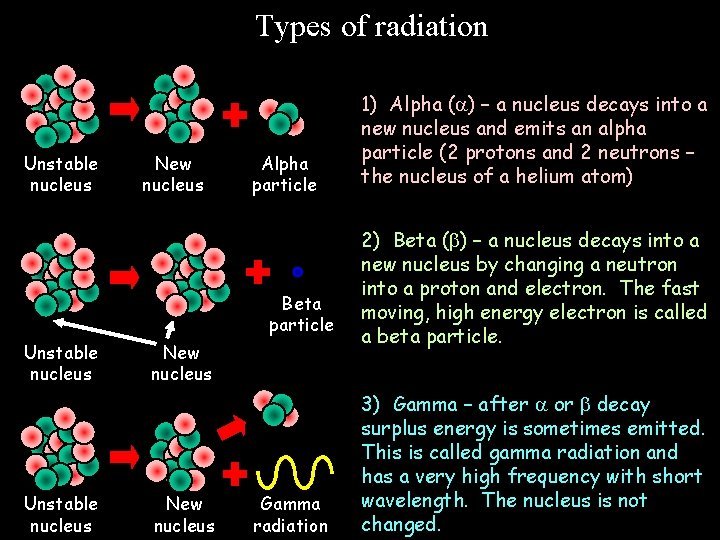

Types of radiation Unstable nucleus New nucleus Alpha particle Beta particle Unstable nucleus New nucleus Gamma radiation 1) Alpha ( ) – a nucleus decays into a new nucleus and emits an alpha particle (2 protons and 2 neutrons – the nucleus of a helium atom) 2) Beta ( ) – a nucleus decays into a new nucleus by changing a neutron into a proton and electron. The fast moving, high energy electron is called a beta particle. 3) Gamma – after or decay surplus energy is sometimes emitted. This is called gamma radiation and has a very high frequency with short wavelength. The nucleus is not changed.

Alpha, beta and gamma radiation

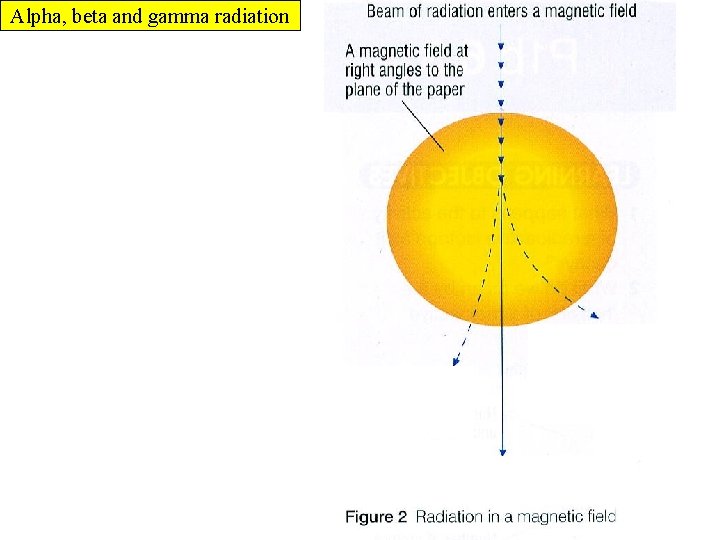

Alpha, beta and gamma radiation

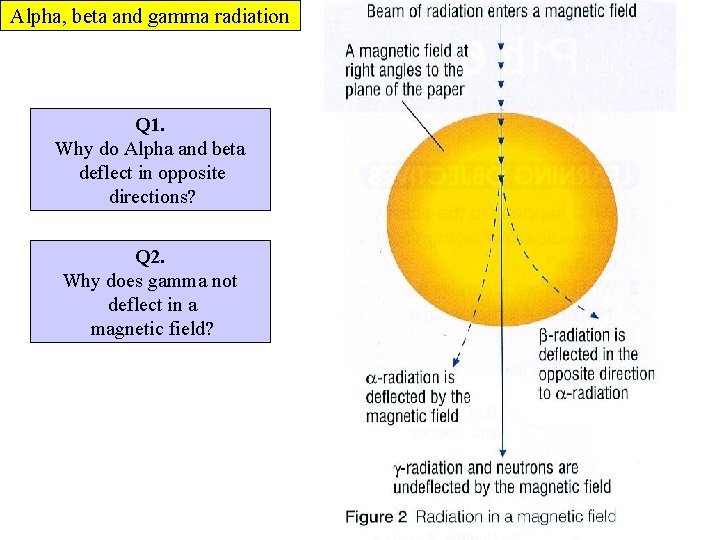

Alpha, beta and gamma radiation Q 1. Why do Alpha and beta deflect in opposite directions? Q 2. Why does gamma not deflect in a magnetic field?

Alpha, beta and gamma radiation

Ionization An ion is a charged particle. Alpha , beta and gamma radiations have the ability to ionize atoms when they collide with them. The charged particles that are created are potentially very dangerous - particularly if they belong to your body! This is the symbol for radioactive materials

How does ionization happen? Nucleus (positively charged) An Atom + An electron (negatively charged) - Atoms are neutral as they have equal numbers of positive and negative charges

How does ionization happen? An Atom + -

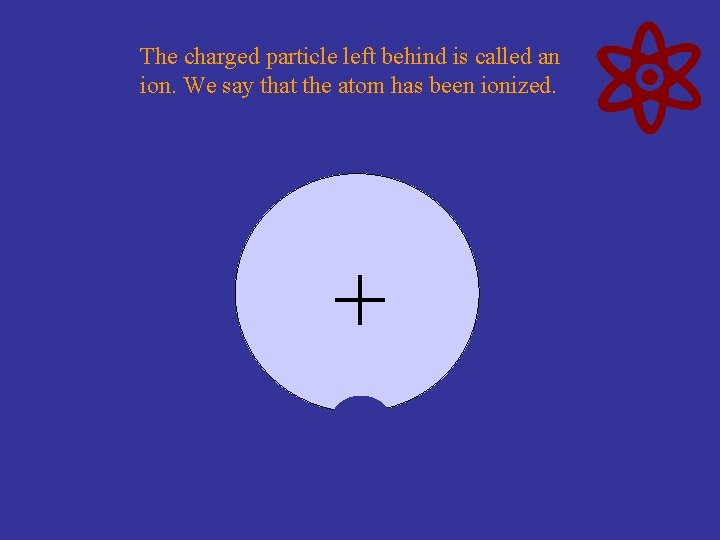

The charged particle left behind is called an ion. We say that the atom has been ionized. +

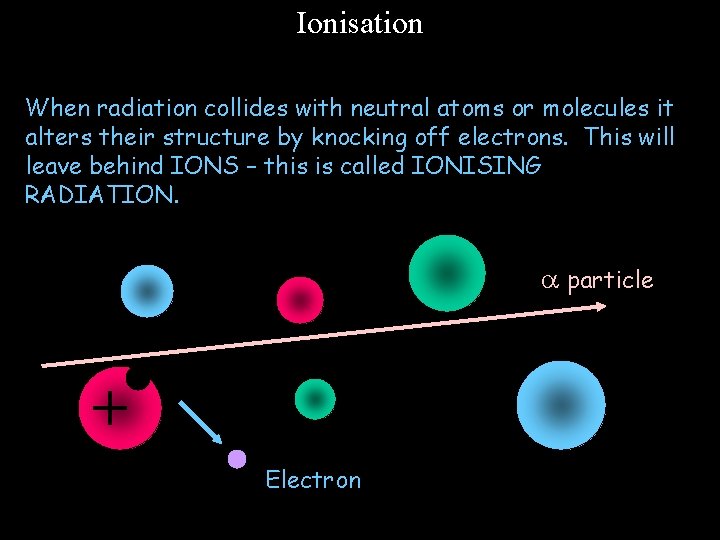

Ionisation When radiation collides with neutral atoms or molecules it alters their structure by knocking off electrons. This will leave behind IONS – this is called IONISING RADIATION. particle + Electron

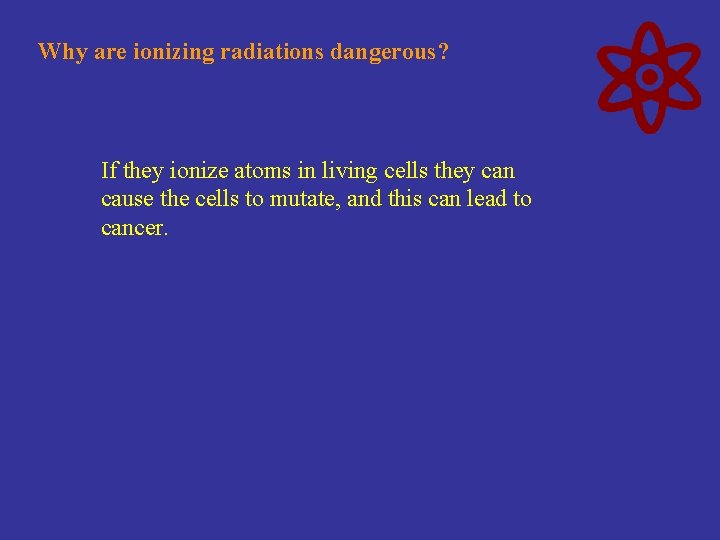

Why are ionizing radiations dangerous? If they ionize atoms in living cells they can cause the cells to mutate, and this can lead to cancer.

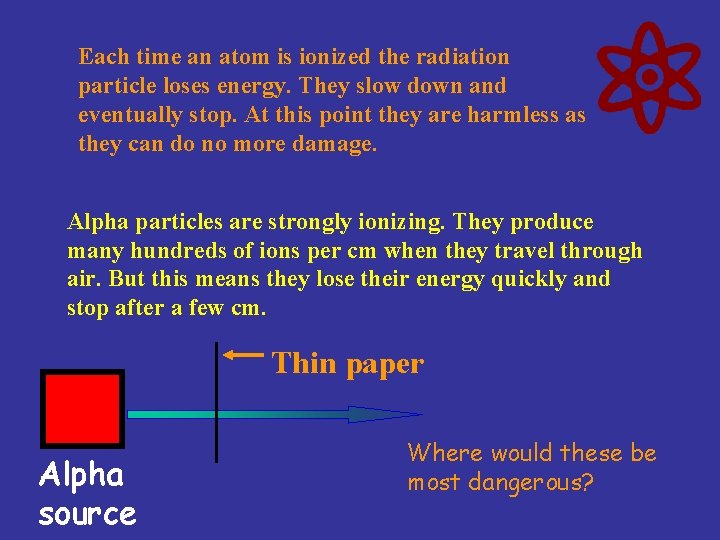

Each time an atom is ionized the radiation particle loses energy. They slow down and eventually stop. At this point they are harmless as they can do no more damage. Alpha particles are strongly ionizing. They produce many hundreds of ions per cm when they travel through air. But this means they lose their energy quickly and stop after a few cm. Thin paper Alpha source Where would these be most dangerous?

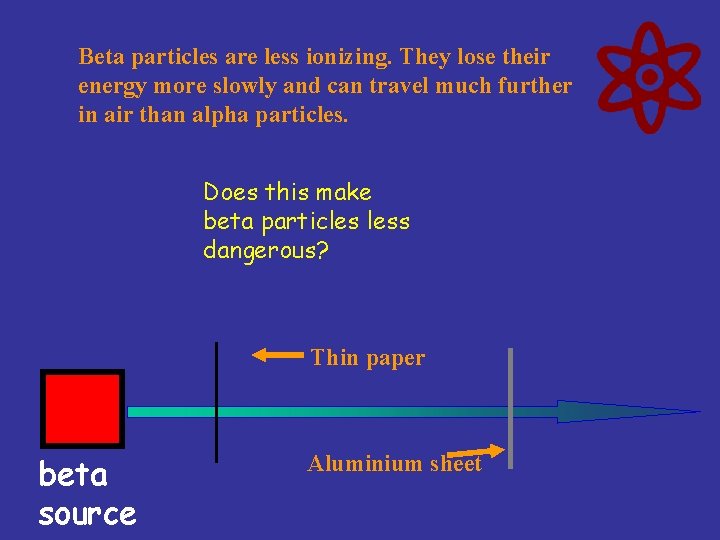

Beta particles are less ionizing. They lose their energy more slowly and can travel much further in air than alpha particles. Does this make beta particles less dangerous? Thin paper beta source Aluminium sheet

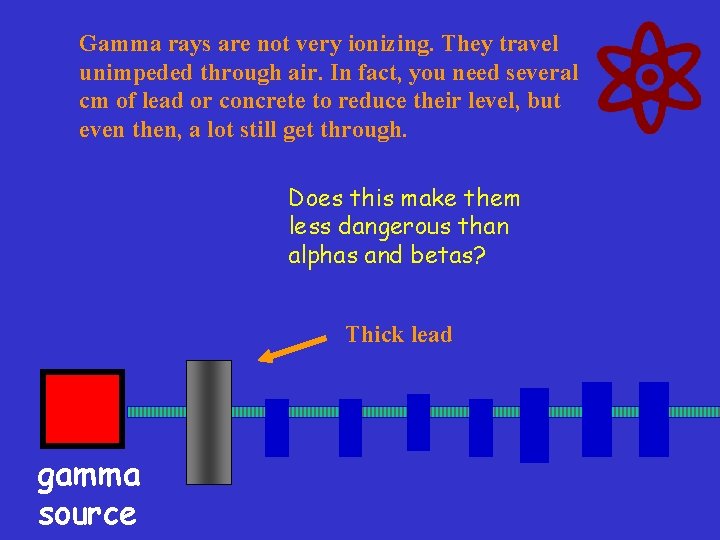

Gamma rays are not very ionizing. They travel unimpeded through air. In fact, you need several cm of lead or concrete to reduce their level, but even then, a lot still get through. Does this make them less dangerous than alphas and betas? Thick lead gamma source

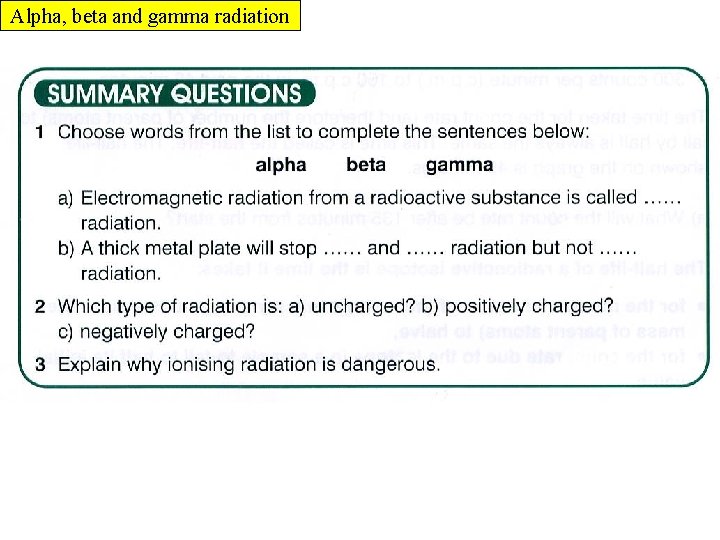

Alpha, beta and gamma radiation
