Alpha and Beta Decay Nuclear Reactions 1 2

Alpha and Beta Decay

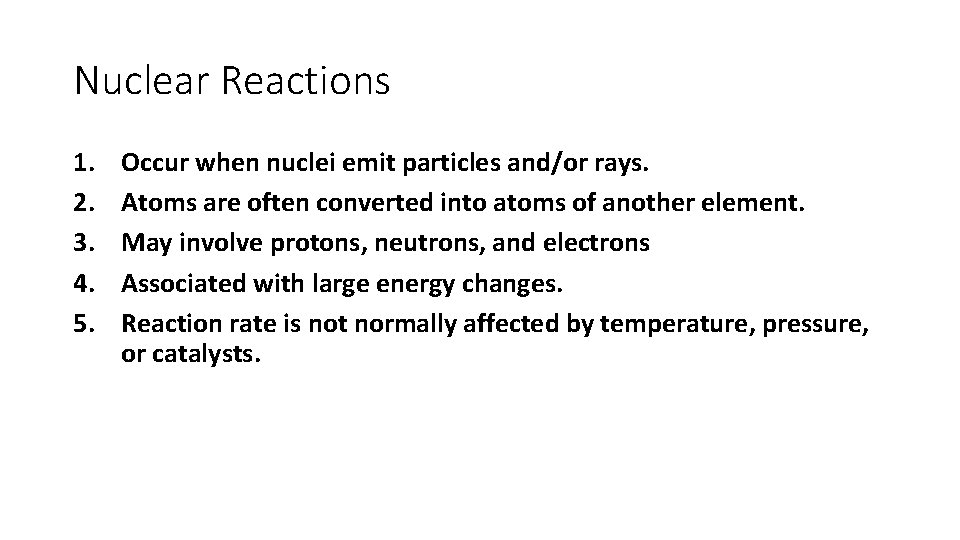

Nuclear Reactions 1. 2. 3. 4. 5. Occur when nuclei emit particles and/or rays. Atoms are often converted into atoms of another element. May involve protons, neutrons, and electrons Associated with large energy changes. Reaction rate is not normally affected by temperature, pressure, or catalysts.

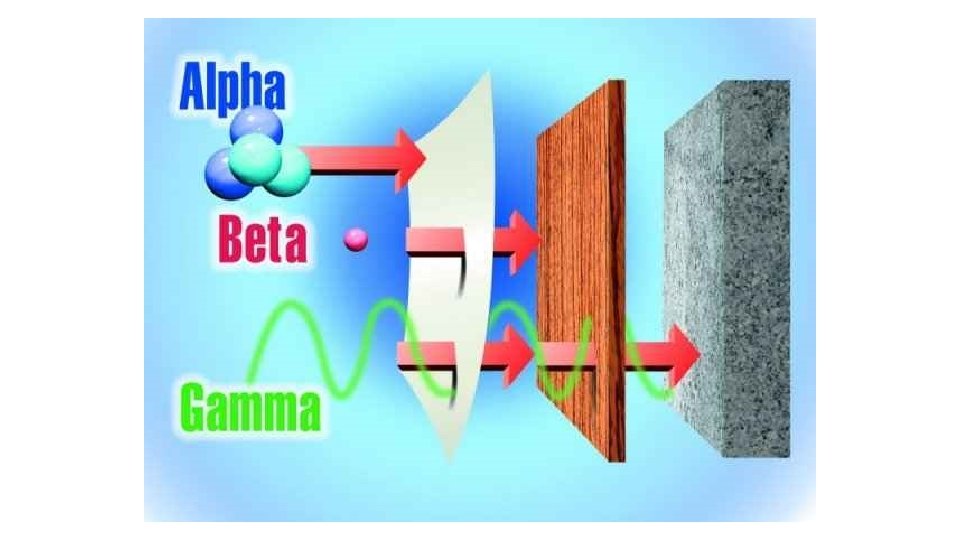

PROPERTIES OF RADIATION 1. 2. 3. Alpha ( ) § 4 He, helium nuclei 2 § Blocked by paper; 6. 64 x 10 -24 kg § Slow moving due to mass and charge! Beta ( ) § 0 or 0 e, electrons -1 -1 § Blocked by metal foil; 9. 11 x 10 -28 kg § Fast moving § Emitted from a neutron of an unstable nucleus § Insignificant mass compared with mass of nucleus § Greater penetrating power than alpha particles Gamma ( ) § 0 , photons 0 § Not completely blocked by lead or concrete; 0 kg § High energy electromagnetic radiation § Almost always accompanies alpha and beta radiation

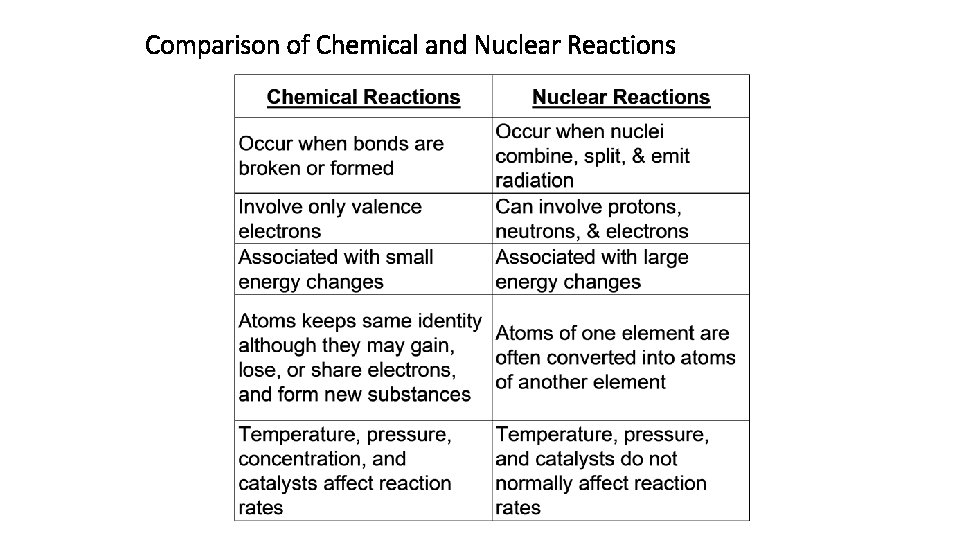

Comparison of Chemical and Nuclear Reactions

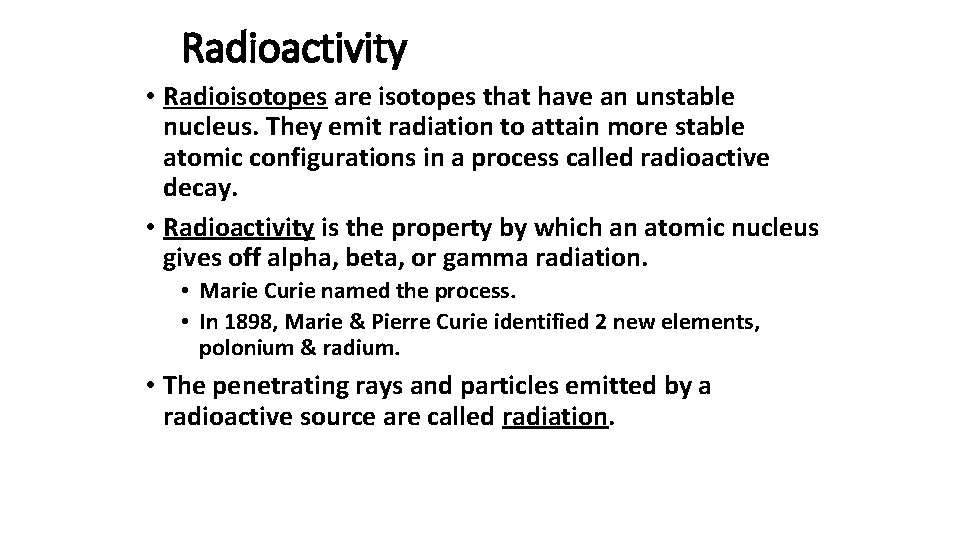

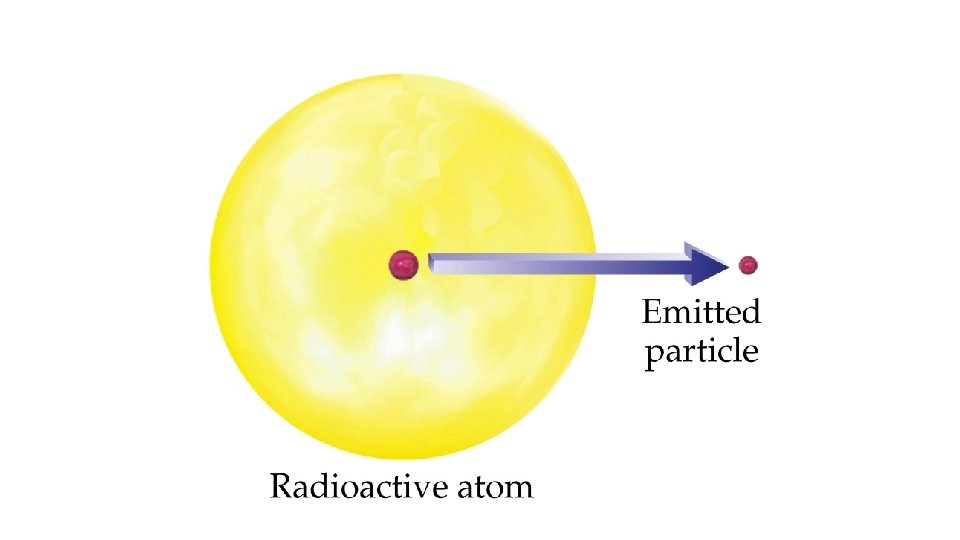

Radioactivity • Radioisotopes are isotopes that have an unstable nucleus. They emit radiation to attain more stable atomic configurations in a process called radioactive decay. • Radioactivity is the property by which an atomic nucleus gives off alpha, beta, or gamma radiation. • Marie Curie named the process. • In 1898, Marie & Pierre Curie identified 2 new elements, polonium & radium. • The penetrating rays and particles emitted by a radioactive source are called radiation.

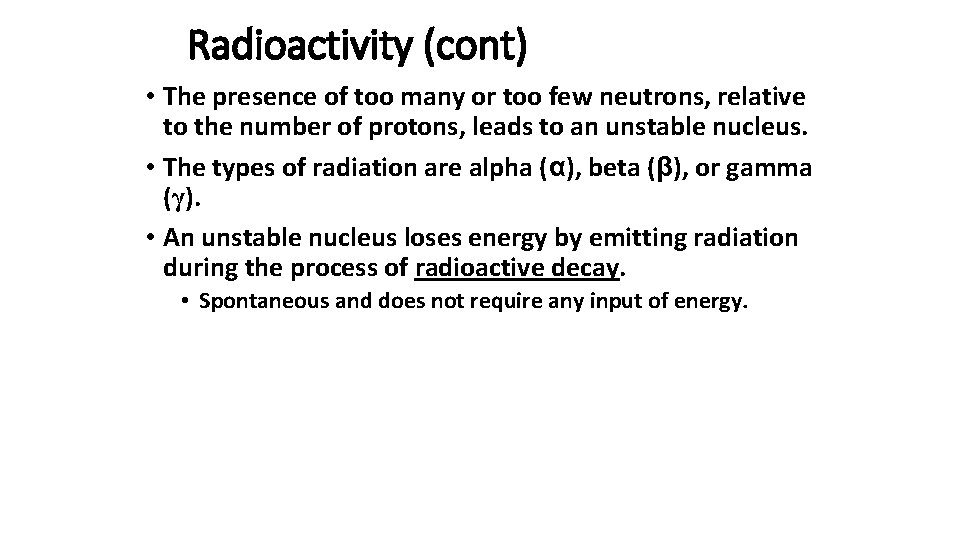

Radioactivity (cont) • The presence of too many or too few neutrons, relative to the number of protons, leads to an unstable nucleus. • The types of radiation are alpha (α), beta (β), or gamma (γ). • An unstable nucleus loses energy by emitting radiation during the process of radioactive decay. • Spontaneous and does not require any input of energy.

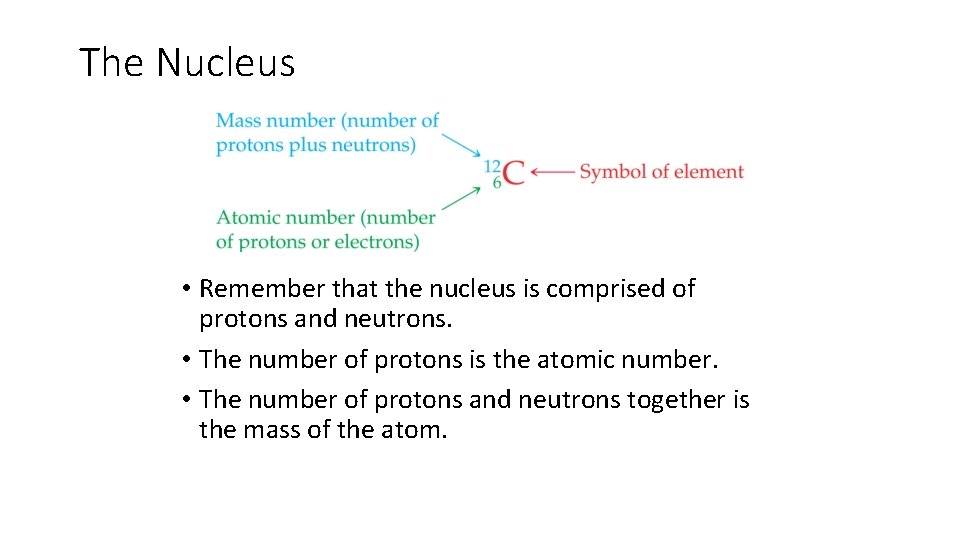

The Nucleus • Remember that the nucleus is comprised of protons and neutrons. • The number of protons is the atomic number. • The number of protons and neutrons together is the mass of the atom.

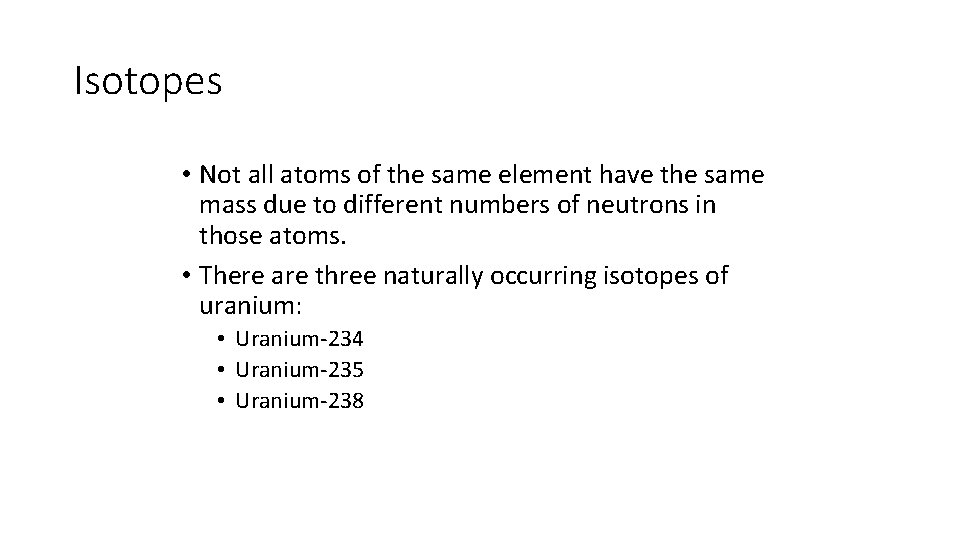

Isotopes • Not all atoms of the same element have the same mass due to different numbers of neutrons in those atoms. • There are three naturally occurring isotopes of uranium: • Uranium-234 • Uranium-235 • Uranium-238

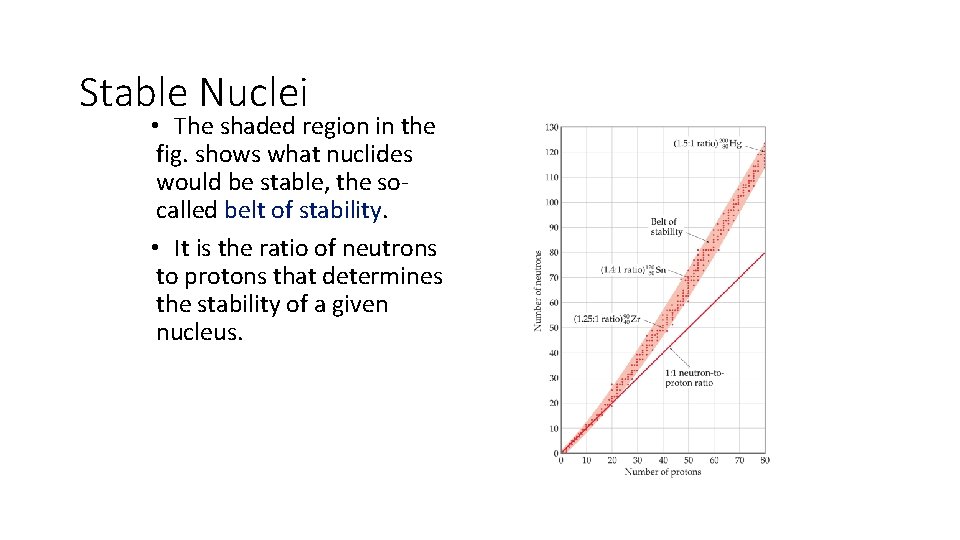

Stable Nuclei • The shaded region in the fig. shows what nuclides would be stable, the socalled belt of stability. • It is the ratio of neutrons to protons that determines the stability of a given nucleus.

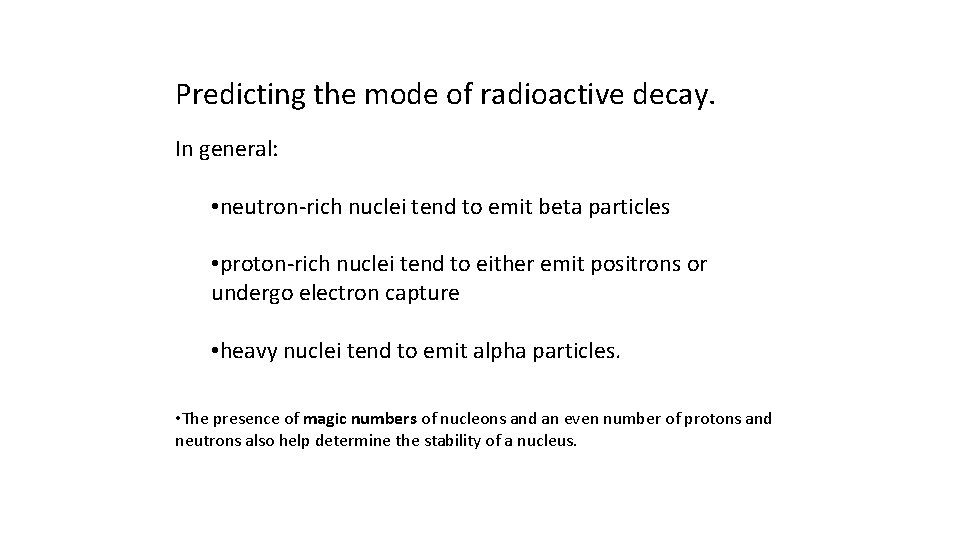

Predicting the mode of radioactive decay. In general: • neutron-rich nuclei tend to emit beta particles • proton-rich nuclei tend to either emit positrons or undergo electron capture • heavy nuclei tend to emit alpha particles. • The presence of magic numbers of nucleons and an even number of protons and neutrons also help determine the stability of a nucleus.

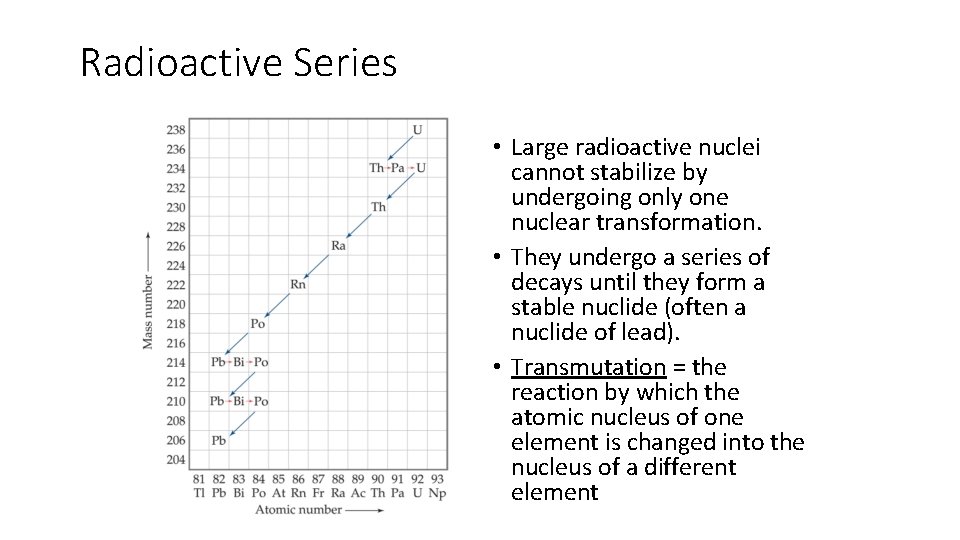

Radioactive Series • Large radioactive nuclei cannot stabilize by undergoing only one nuclear transformation. • They undergo a series of decays until they form a stable nuclide (often a nuclide of lead). • Transmutation = the reaction by which the atomic nucleus of one element is changed into the nucleus of a different element

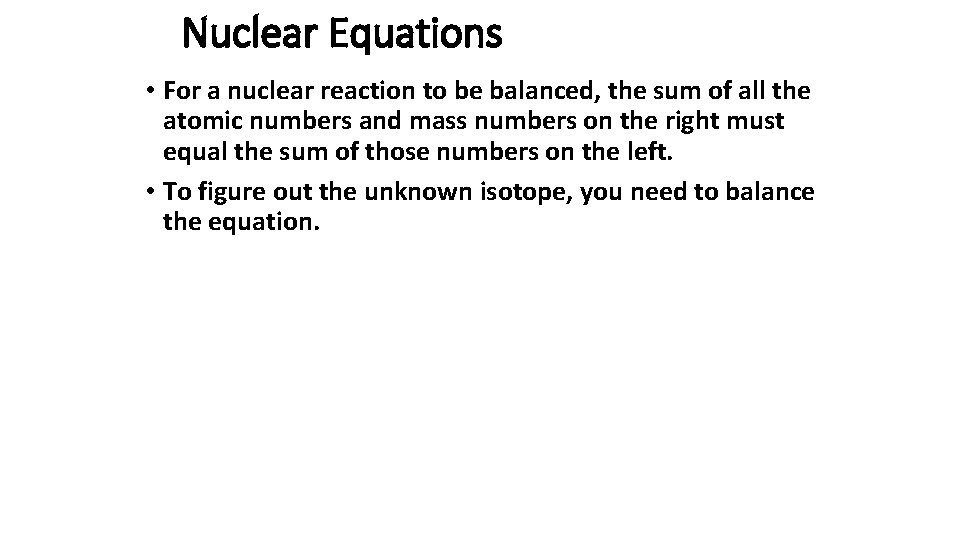

Nuclear Equations • For a nuclear reaction to be balanced, the sum of all the atomic numbers and mass numbers on the right must equal the sum of those numbers on the left. • To figure out the unknown isotope, you need to balance the equation.

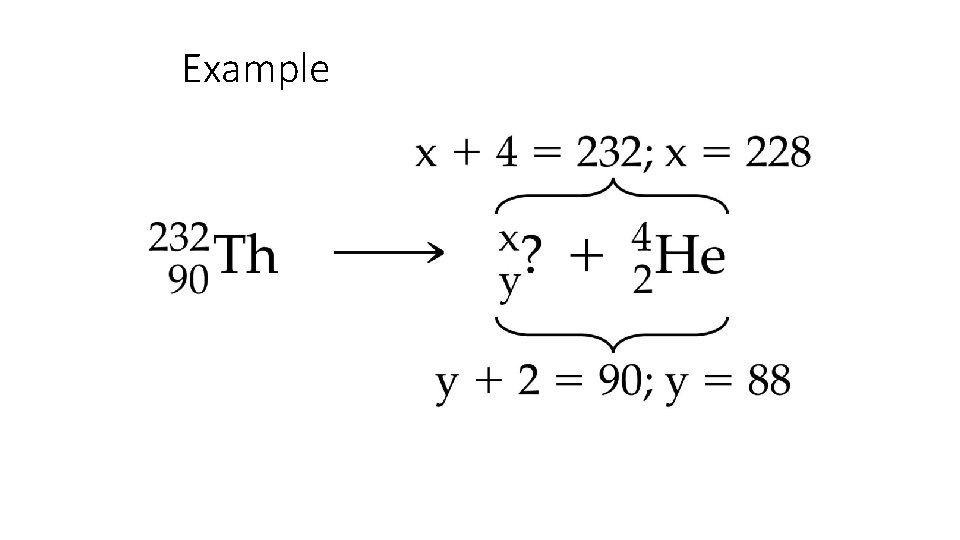

Example

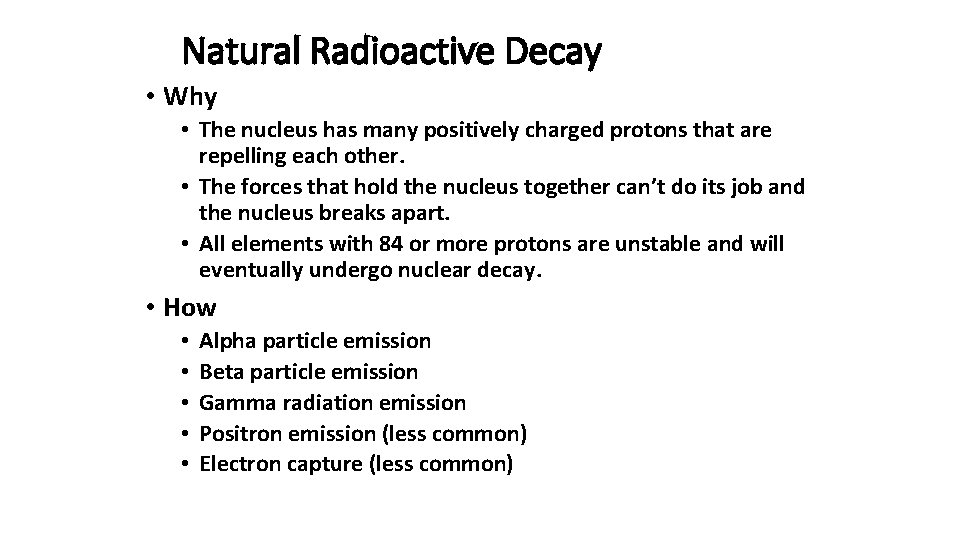

Natural Radioactive Decay • Why • The nucleus has many positively charged protons that are repelling each other. • The forces that hold the nucleus together can’t do its job and the nucleus breaks apart. • All elements with 84 or more protons are unstable and will eventually undergo nuclear decay. • How • • • Alpha particle emission Beta particle emission Gamma radiation emission Positron emission (less common) Electron capture (less common)

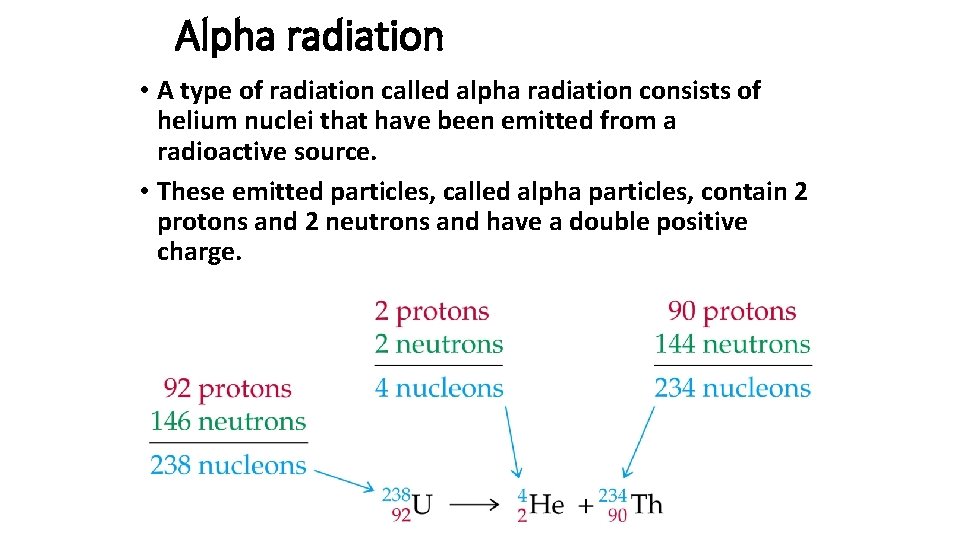

Alpha radiation • A type of radiation called alpha radiation consists of helium nuclei that have been emitted from a radioactive source. • These emitted particles, called alpha particles, contain 2 protons and 2 neutrons and have a double positive charge.

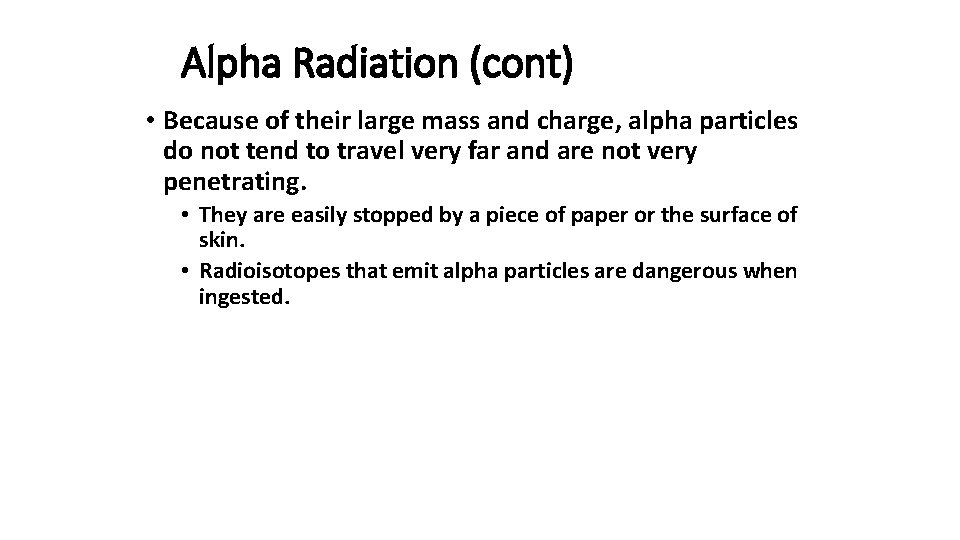

Alpha Radiation (cont) • Because of their large mass and charge, alpha particles do not tend to travel very far and are not very penetrating. • They are easily stopped by a piece of paper or the surface of skin. • Radioisotopes that emit alpha particles are dangerous when ingested.

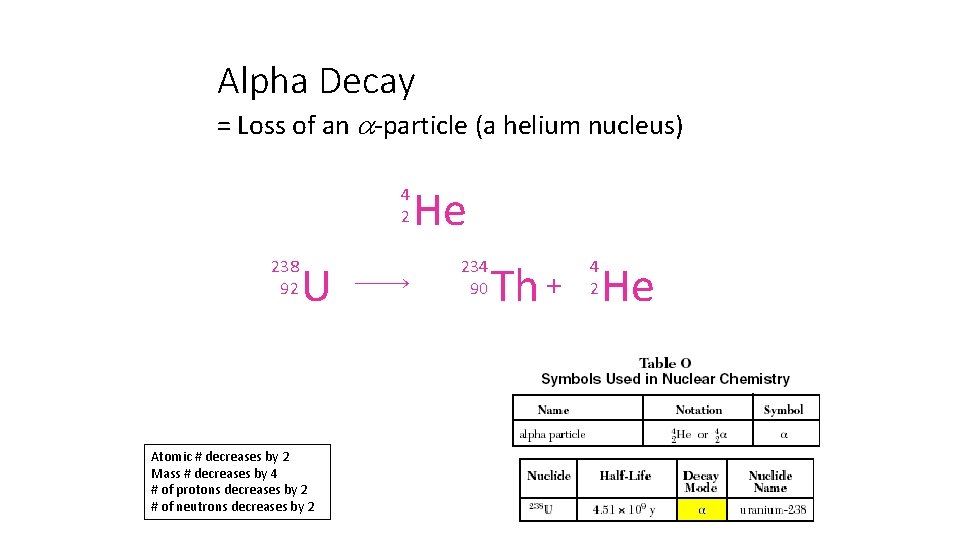

Alpha Decay = Loss of an -particle (a helium nucleus) 4 2 238 92 U Atomic # decreases by 2 Mass # decreases by 4 # of protons decreases by 2 # of neutrons decreases by 2 He 234 90 Th + He 4 2

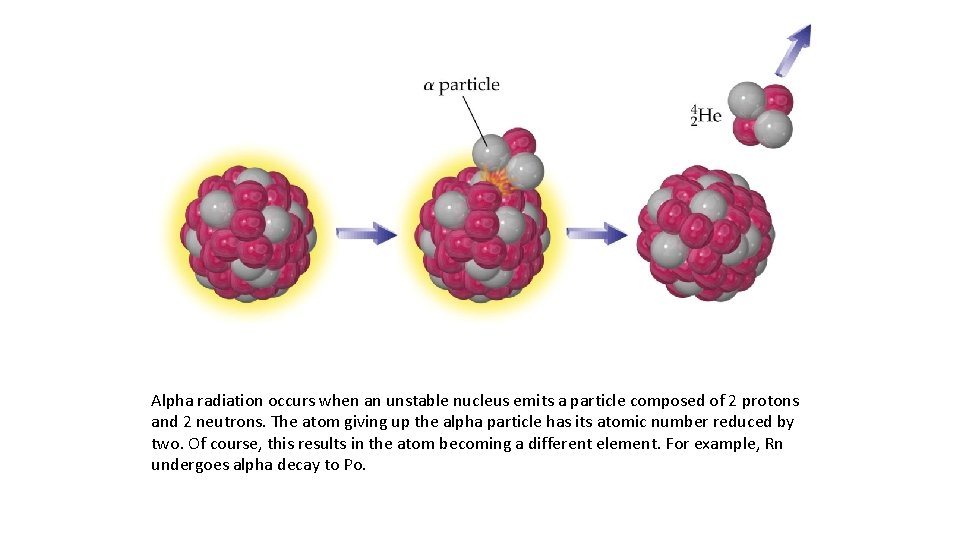

Alpha radiation occurs when an unstable nucleus emits a particle composed of 2 protons and 2 neutrons. The atom giving up the alpha particle has its atomic number reduced by two. Of course, this results in the atom becoming a different element. For example, Rn undergoes alpha decay to Po.

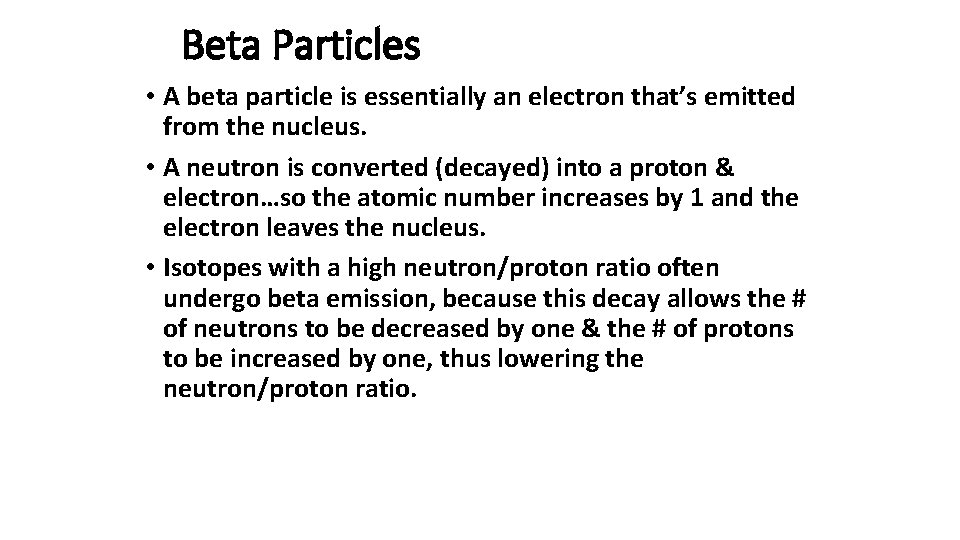

Beta Particles • A beta particle is essentially an electron that’s emitted from the nucleus. • A neutron is converted (decayed) into a proton & electron…so the atomic number increases by 1 and the electron leaves the nucleus. • Isotopes with a high neutron/proton ratio often undergo beta emission, because this decay allows the # of neutrons to be decreased by one & the # of protons to be increased by one, thus lowering the neutron/proton ratio.

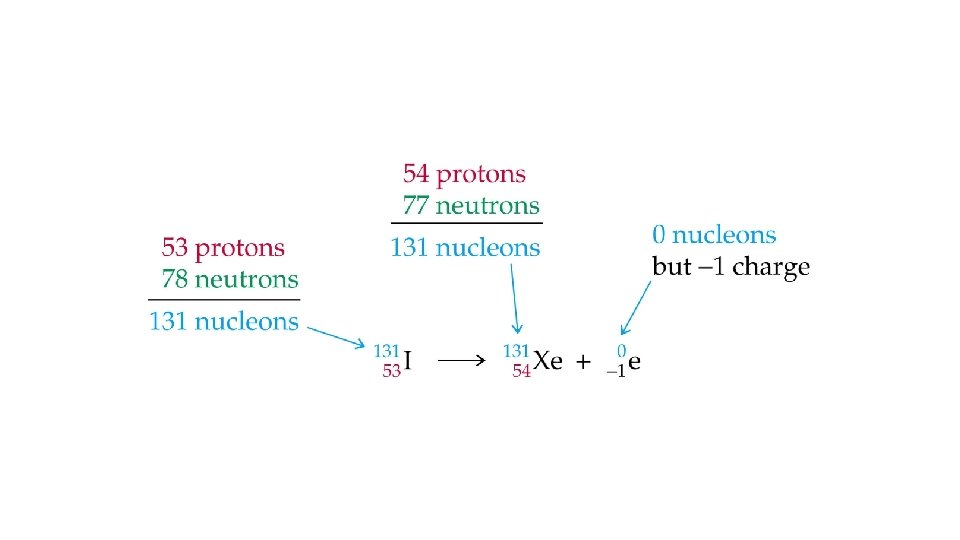

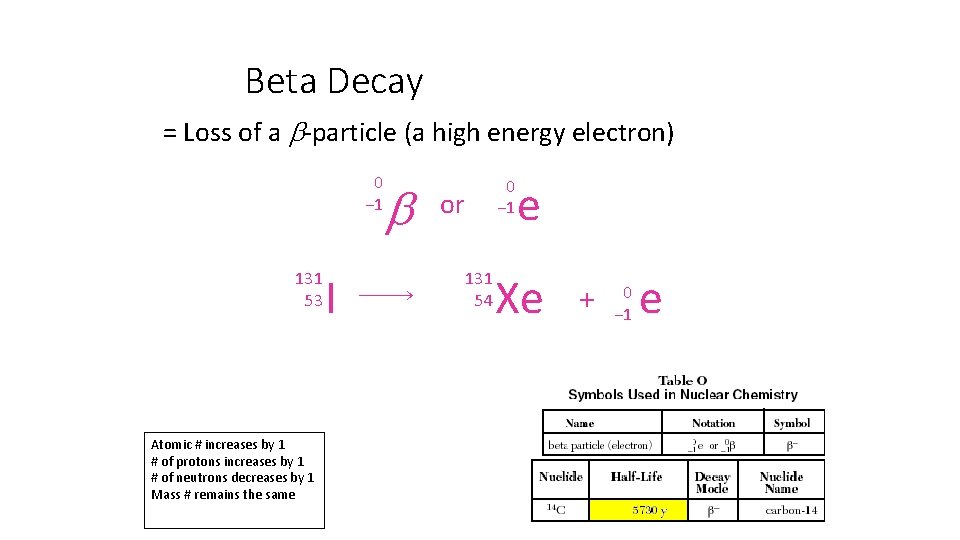

Beta Decay = Loss of a -particle (a high energy electron) 0 − 1 131 53 Atomic # increases by 1 # of protons increases by 1 # of neutrons decreases by 1 Mass # remains the same I 0 − 1 or 131 54 e Xe + 0 − 1 e

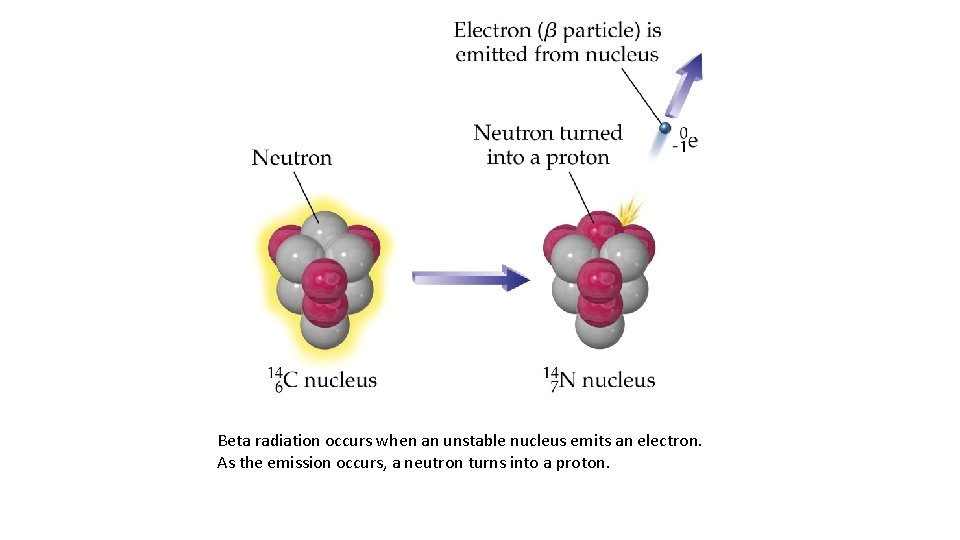

Beta radiation occurs when an unstable nucleus emits an electron. As the emission occurs, a neutron turns into a proton.
