Allocating Space for Variables x 0000 Global data

Allocating Space for Variables x 0000 • Global data section – All global variables stored here (actually all static variables) – R 4 points to beginning x 0200 • Op Sys x 3000 run-time stack • Run-time stack – – Vectors Used for local variables R 6 points to top of stack R 5 points to top frame on stack New frame for each block (goes away when block exited) instructions global data Offset = distance from beginning of storage area – Global: LDR R 1, R 4, #x x. FE 00 – Local: LDR R 2, R 5, #-y x. FFFF Device Registers R 6 R 5 PC R 4

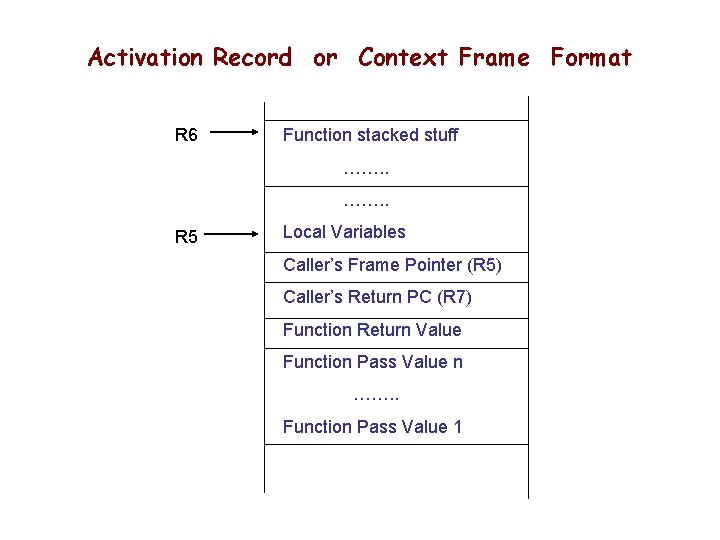

Activation Record or Context Frame Format R 6 Function stacked stuff ……. . R 5 Local Variables Caller’s Frame Pointer (R 5) Caller’s Return PC (R 7) Function Return Value Function Pass Value n ……. . Function Pass Value 1

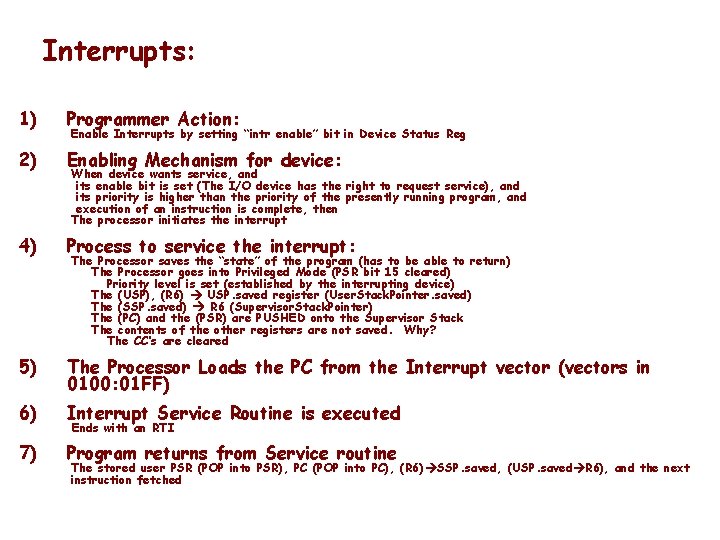

Interrupts: 1) Programmer Action: 2) Enabling Mechanism for device: 4) Process to service the interrupt: 5) The Processor Loads the PC from the Interrupt vector (vectors in 0100: 01 FF) 6) Interrupt Service Routine is executed 7) Program returns from Service routine Enable Interrupts by setting “intr enable” bit in Device Status Reg When device wants service, and its enable bit is set (The I/O device has the right to request service), and its priority is higher than the priority of the presently running program, and execution of an instruction is complete, then The processor initiates the interrupt The Processor saves the “state” of the program (has to be able to return) The Processor goes into Privileged Mode (PSR bit 15 cleared) Priority level is set (established by the interrupting device) The (USP), (R 6) USP. saved register (User. Stack. Pointer. saved) The (SSP. saved) R 6 (Supervisor. Stack. Pointer) The (PC) and the (PSR) are PUSHED onto the Supervisor Stack The contents of the other registers are not saved. Why? The CC’s are cleared Ends with an RTI The stored user PSR (POP into PSR), PC (POP into PC), (R 6) SSP. saved, (USP. saved R 6), and the next instruction fetched

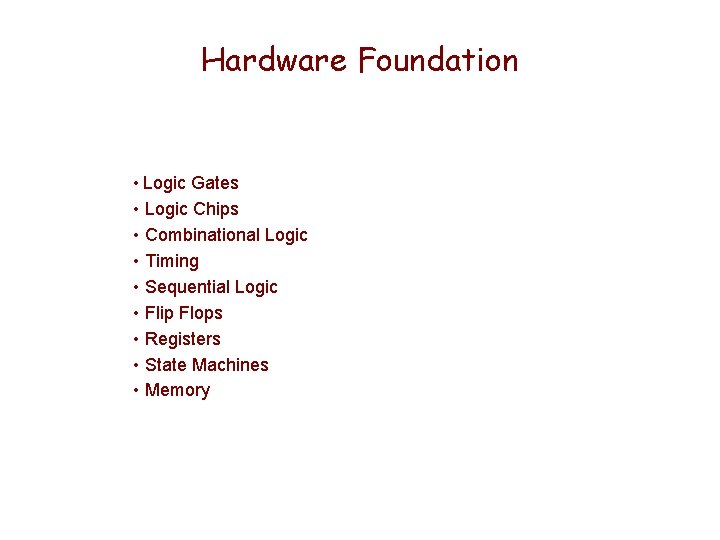

Hardware Foundation • Logic Gates • Logic Chips • Combinational Logic • Timing • Sequential Logic • Flip Flops • Registers • State Machines • Memory

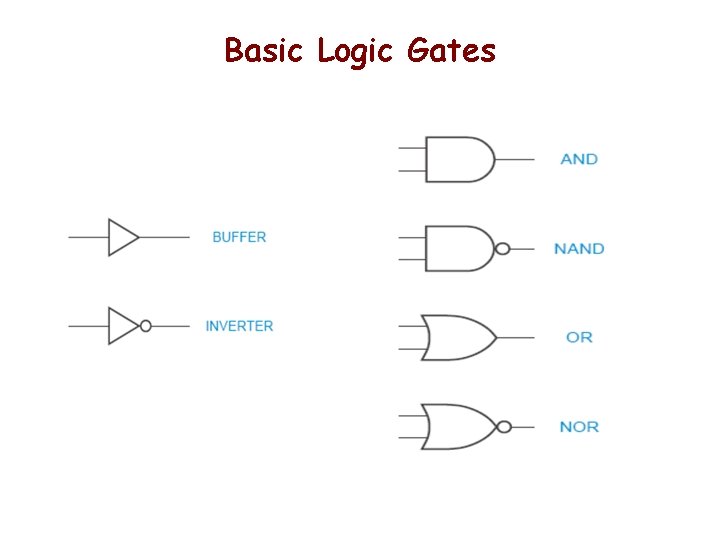

Basic Logic Gates

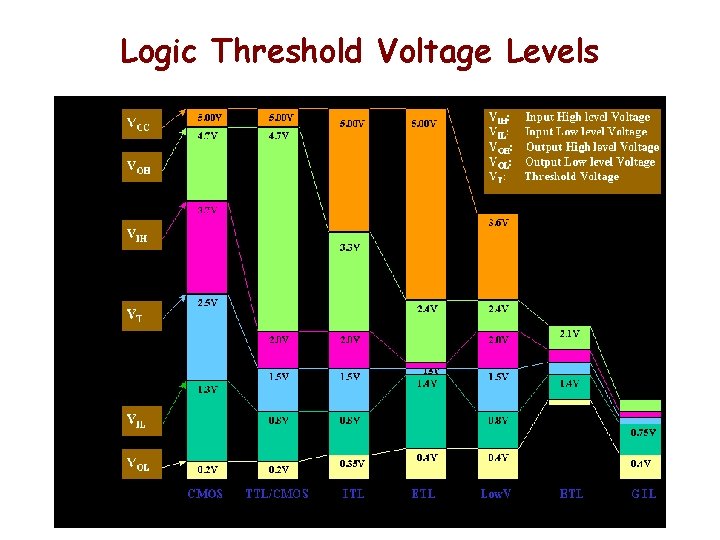

Logic Threshold Voltage Levels

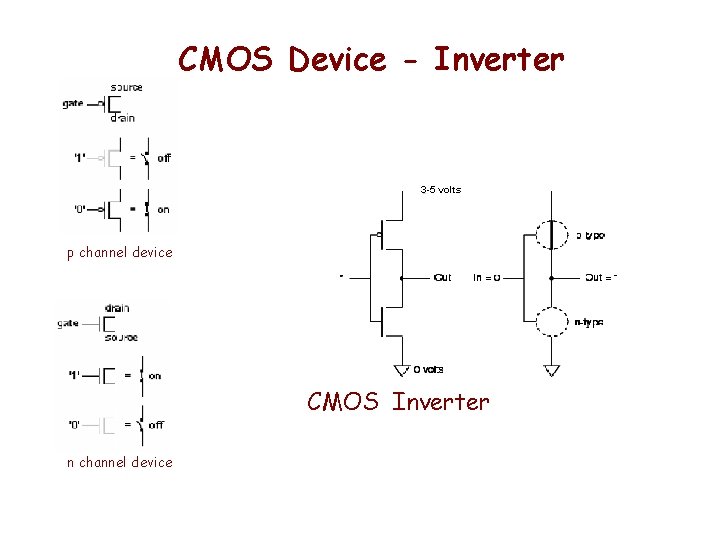

CMOS Device - Inverter 3 -5 volts p channel device CMOS Inverter n channel device

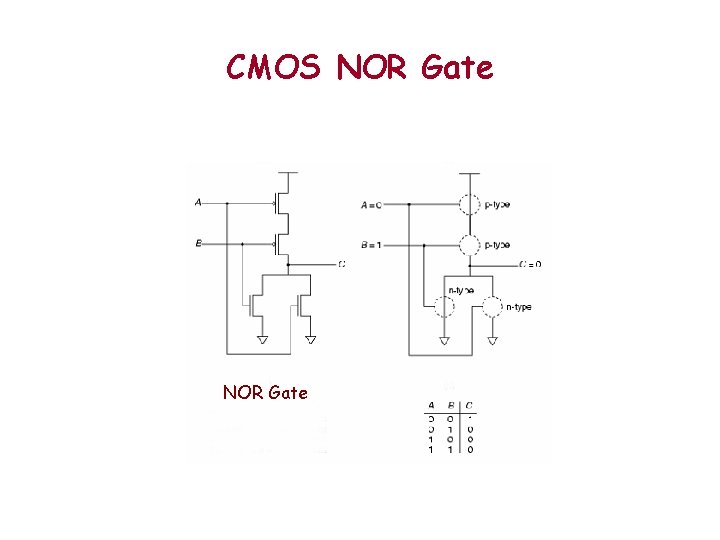

CMOS NOR Gate

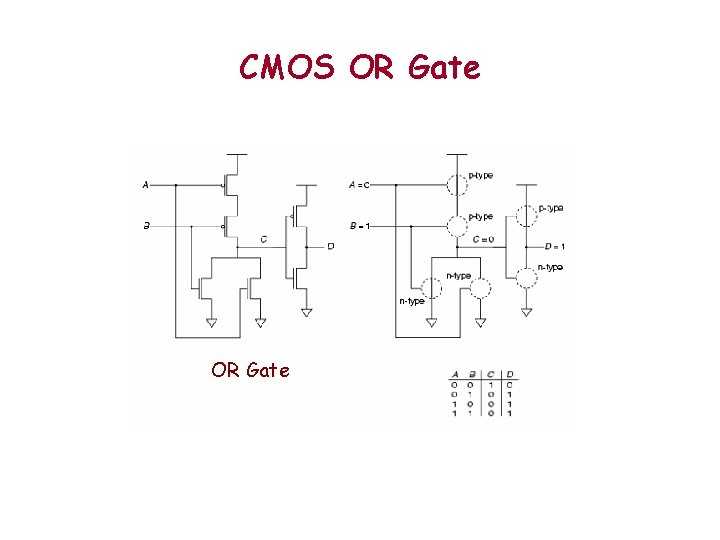

CMOS OR Gate

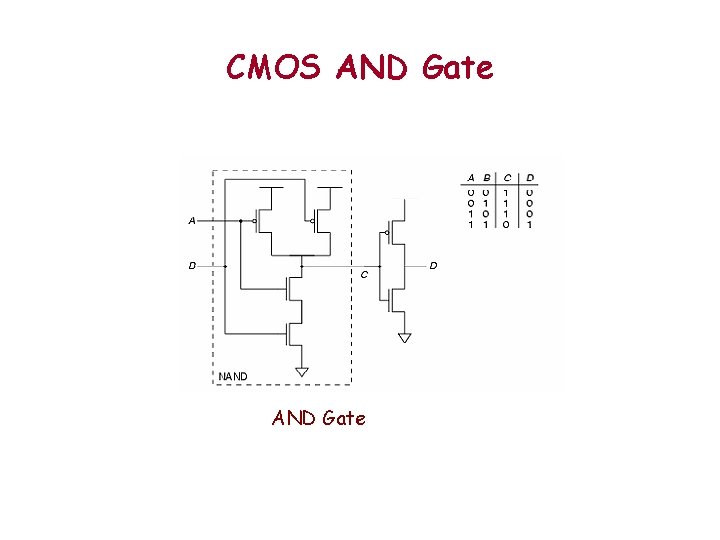

CMOS AND Gate

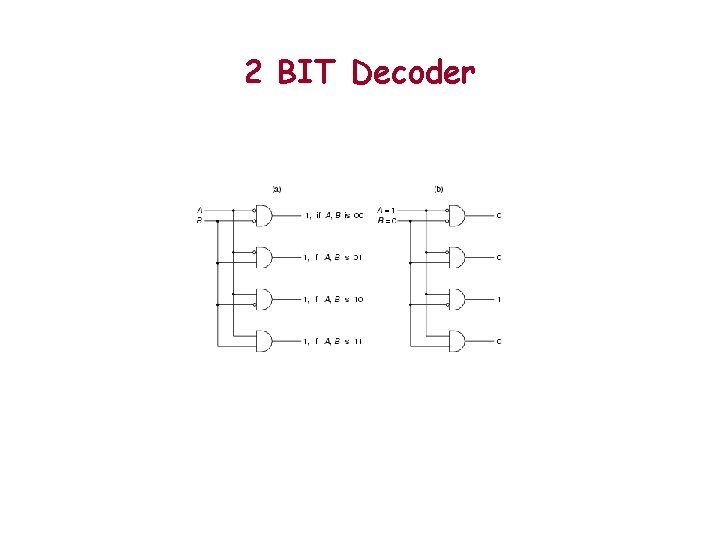

2 BIT Decoder

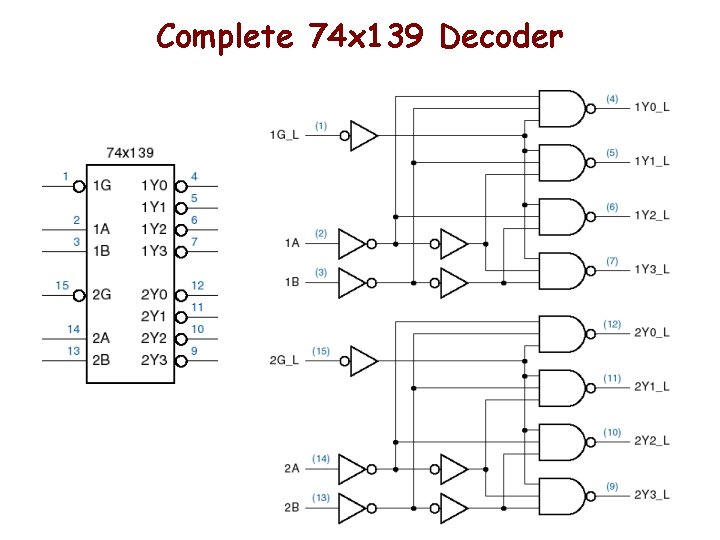

Complete 74 x 139 Decoder

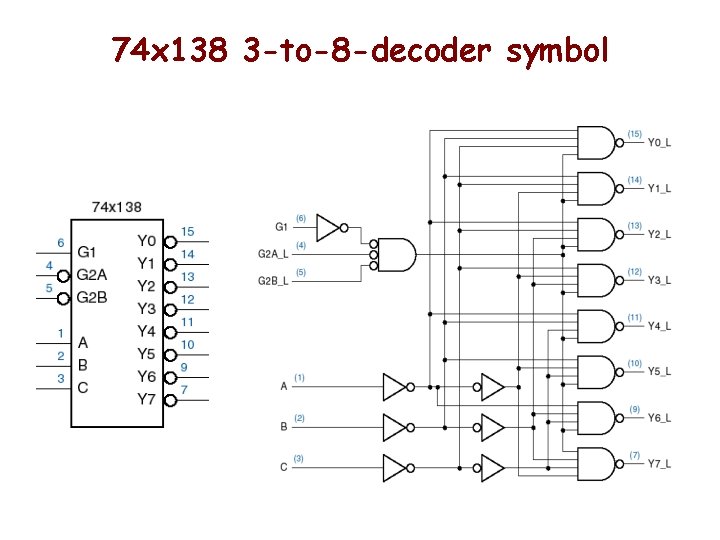

74 x 138 3 -to-8 -decoder symbol

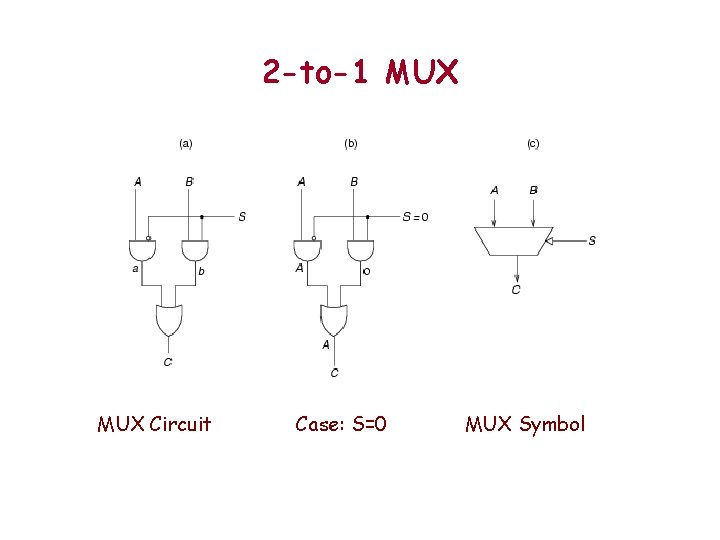

2 -to-1 MUX Circuit Case: S=0 MUX Symbol

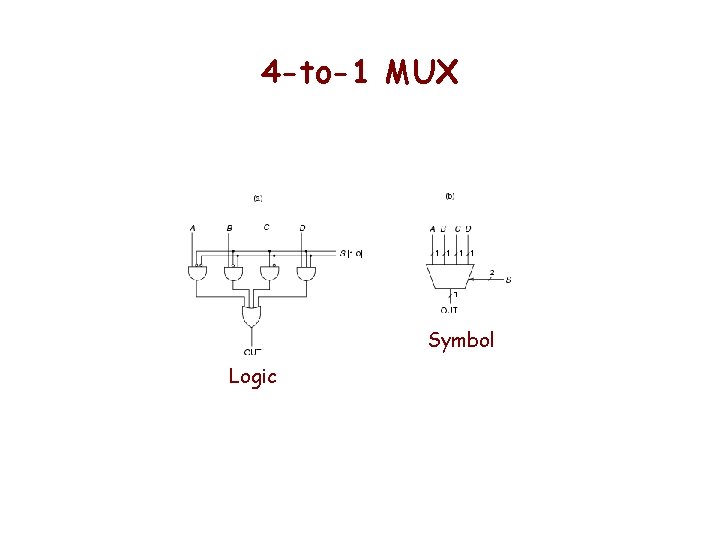

4 -to-1 MUX Symbol Logic

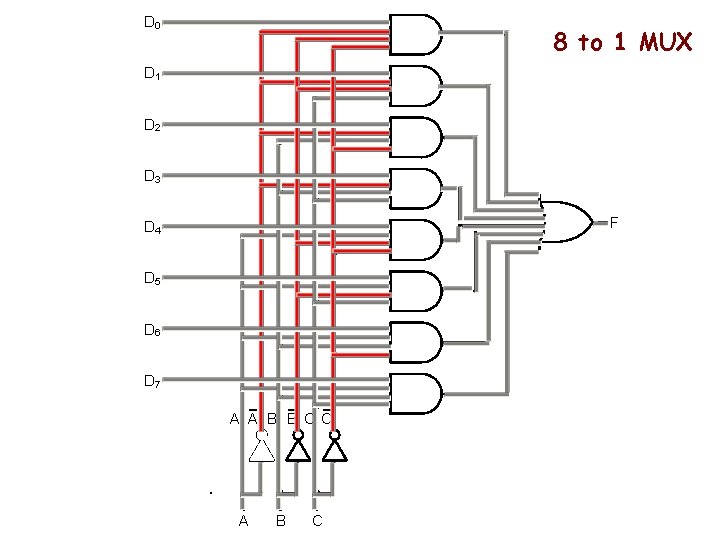

D 0 8 to 1 MUX D 1 D 2 D 3 F D 4 D 5 D 6 D 7 A A B B C C A B C

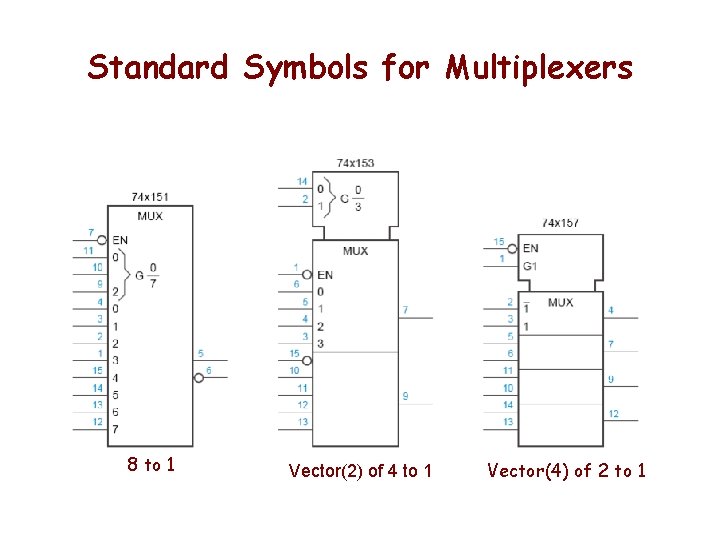

Standard Symbols for Multiplexers 8 to 1 Vector(2) of 4 to 1 Vector(4) of 2 to 1

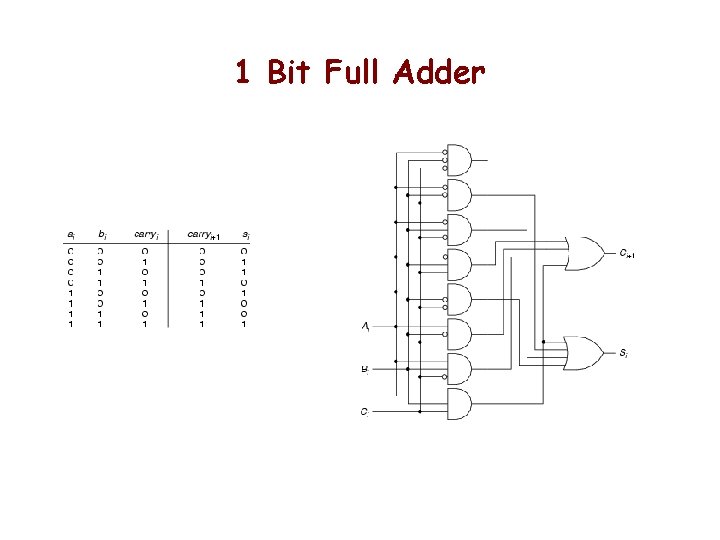

1 Bit Full Adder

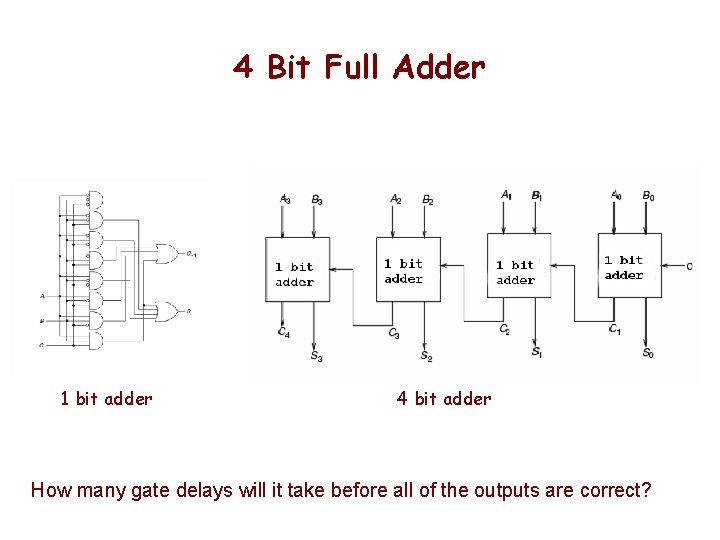

4 Bit Full Adder 1 bit adder 4 bit adder How many gate delays will it take before all of the outputs are correct?

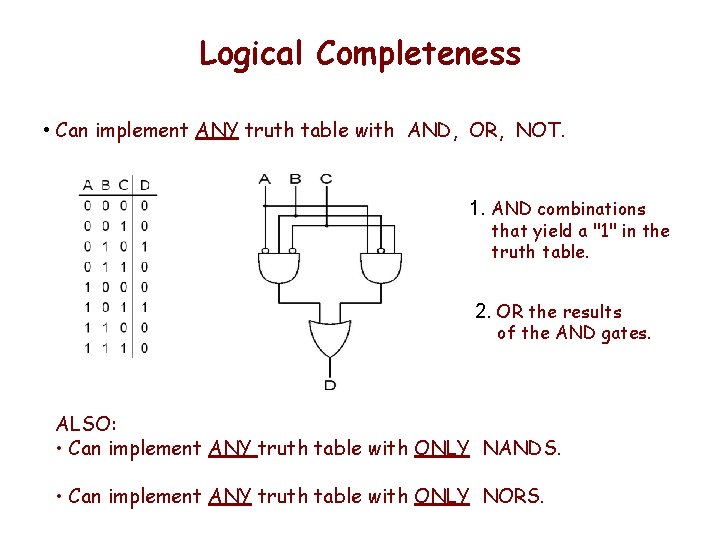

Logical Completeness • Can implement ANY truth table with AND, OR, NOT. 1. AND combinations that yield a "1" in the truth table. 2. OR the results of the AND gates. ALSO: • Can implement ANY truth table with ONLY NANDS. • Can implement ANY truth table with ONLY NORS.

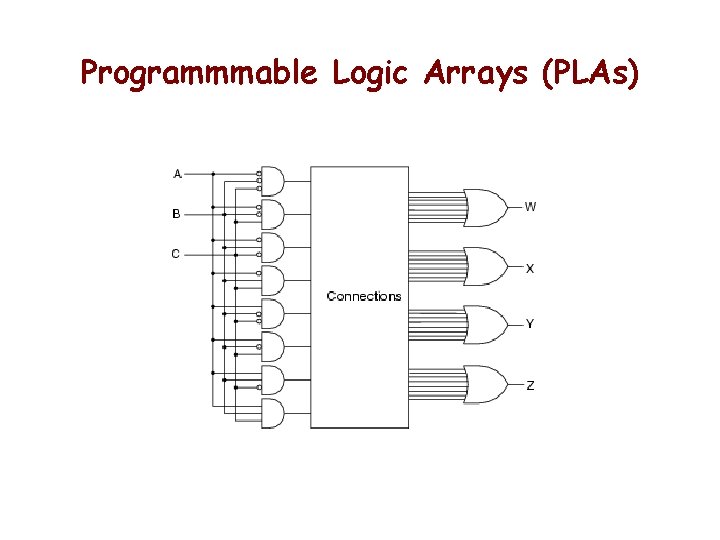

Programmmable Logic Arrays (PLAs)

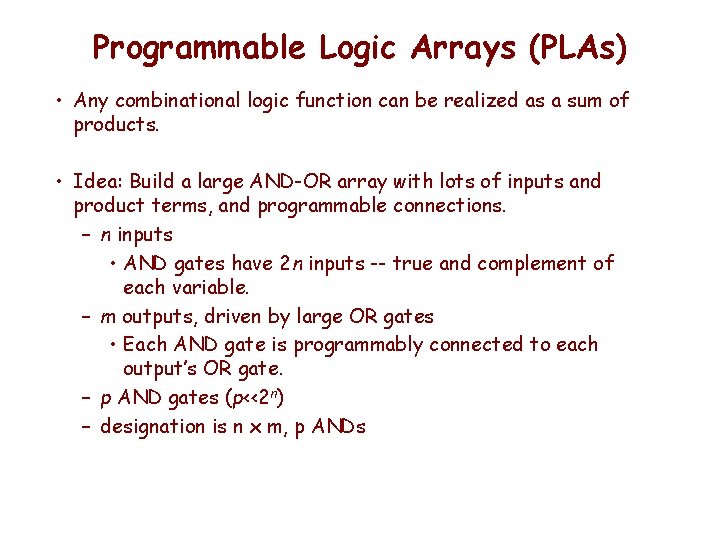

Programmable Logic Arrays (PLAs) • Any combinational logic function can be realized as a sum of products. • Idea: Build a large AND-OR array with lots of inputs and product terms, and programmable connections. – n inputs • AND gates have 2 n inputs -- true and complement of each variable. – m outputs, driven by large OR gates • Each AND gate is programmably connected to each output’s OR gate. – p AND gates (p<<2 n) – designation is n x m, p ANDs

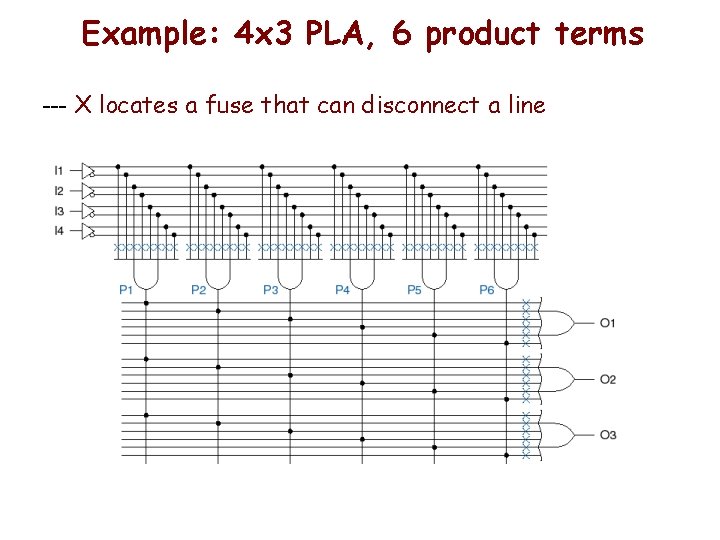

Example: 4 x 3 PLA, 6 product terms --- X locates a fuse that can disconnect a line

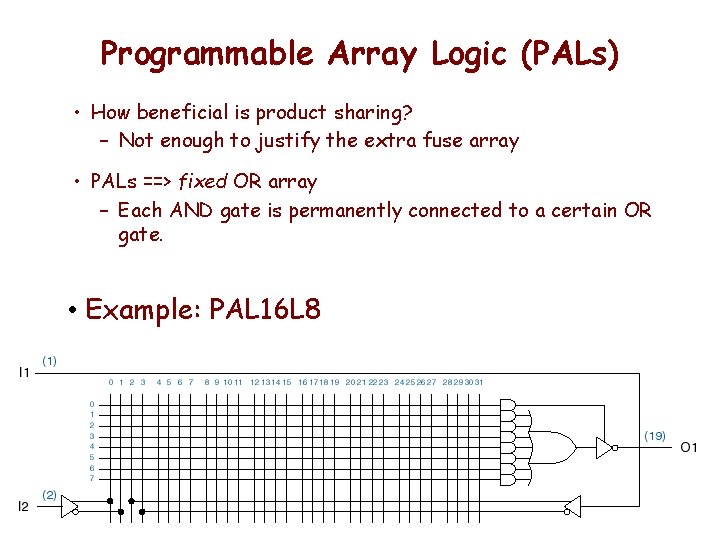

Programmable Array Logic (PALs) • How beneficial is product sharing? – Not enough to justify the extra fuse array • PALs ==> fixed OR array – Each AND gate is permanently connected to a certain OR gate. • Example: PAL 16 L 8

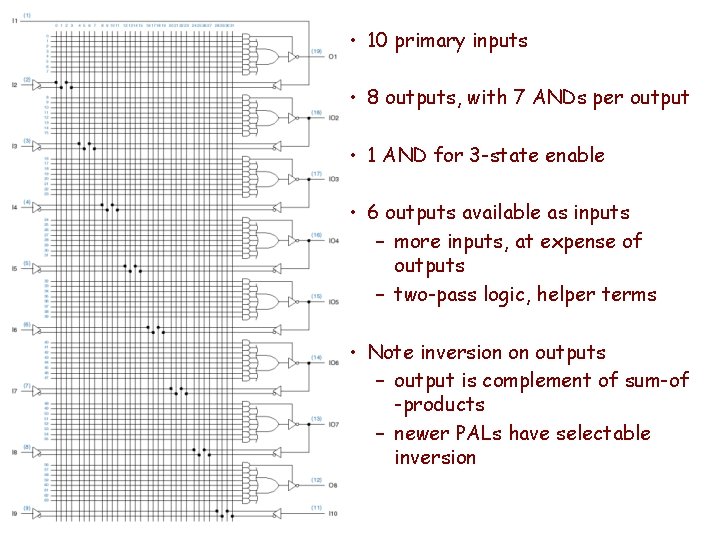

• 10 primary inputs • 8 outputs, with 7 ANDs per output • 1 AND for 3 -state enable • 6 outputs available as inputs – more inputs, at expense of outputs – two-pass logic, helper terms • Note inversion on outputs – output is complement of sum-of -products – newer PALs have selectable inversion

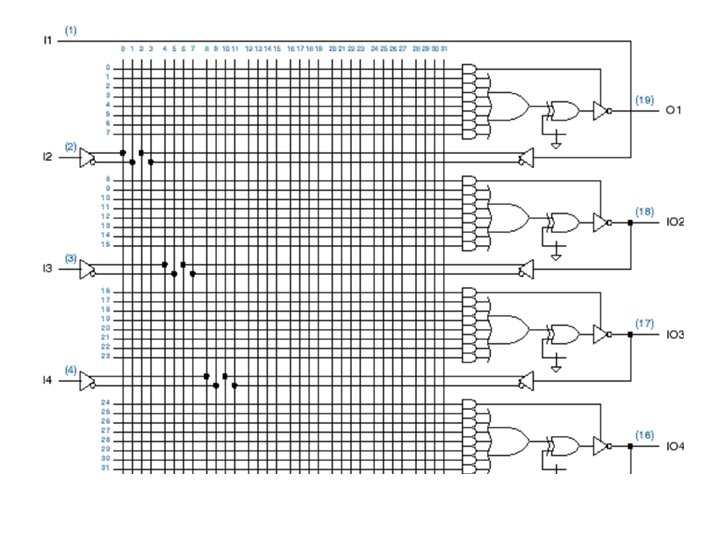

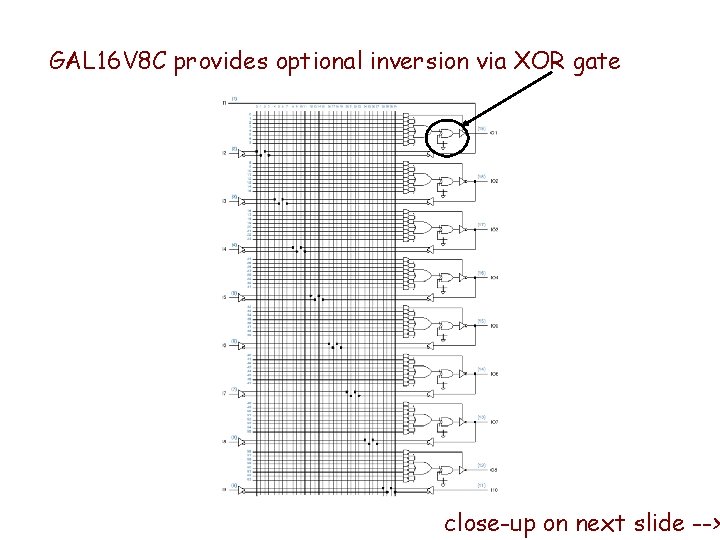

GAL 16 V 8 C provides optional inversion via XOR gate close-up on next slide -->

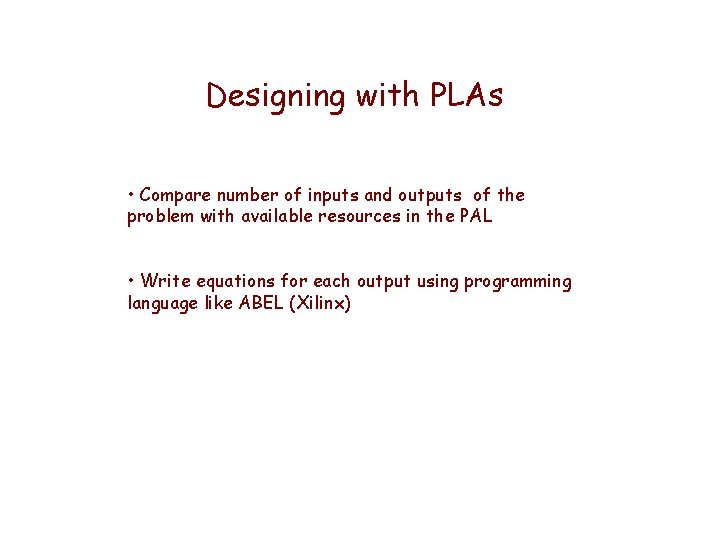

Designing with PLAs • Compare number of inputs and outputs of the problem with available resources in the PAL • Write equations for each output using programming language like ABEL (Xilinx)

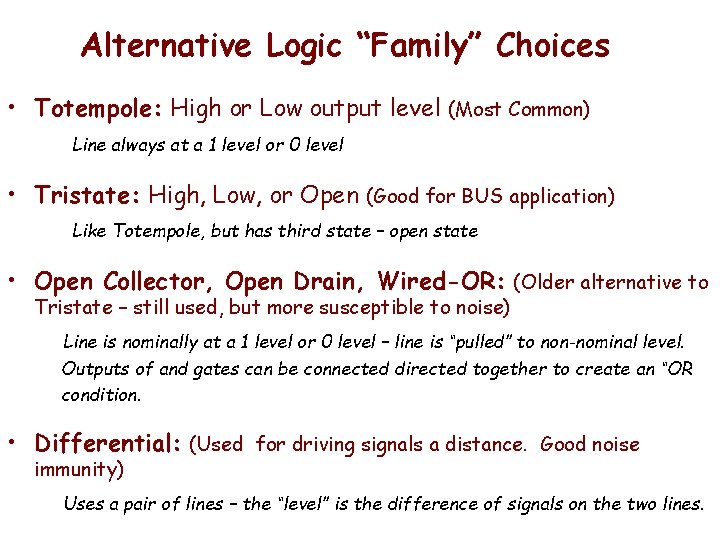

Alternative Logic “Family” Choices • Totempole: High or Low output level (Most Common) Line always at a 1 level or 0 level • Tristate: High, Low, or Open (Good for BUS application) Like Totempole, but has third state – open state • Open Collector, Open Drain, Wired-OR: (Older alternative to Tristate – still used, but more susceptible to noise) Line is nominally at a 1 level or 0 level – line is “pulled” to non-nominal level. Outputs of and gates can be connected directed together to create an “OR condition. • Differential: (Used for driving signals a distance. Good noise immunity) Uses a pair of lines – the “level” is the difference of signals on the two lines.

Timing Diagram Conventions

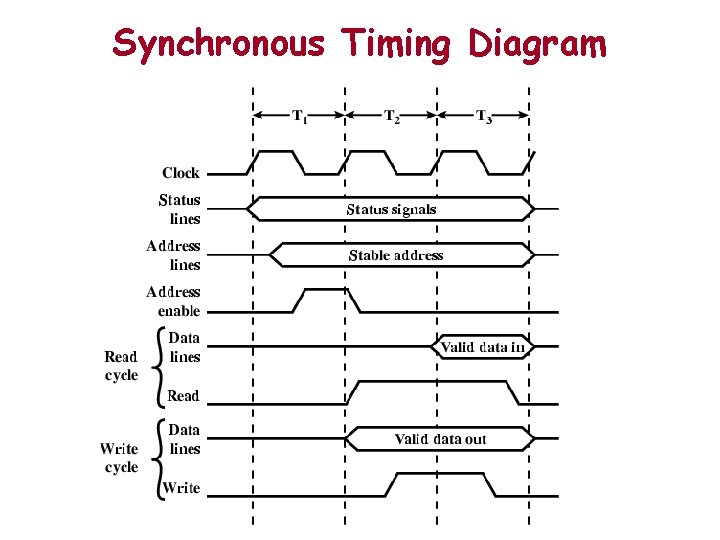

Synchronous Timing Diagram

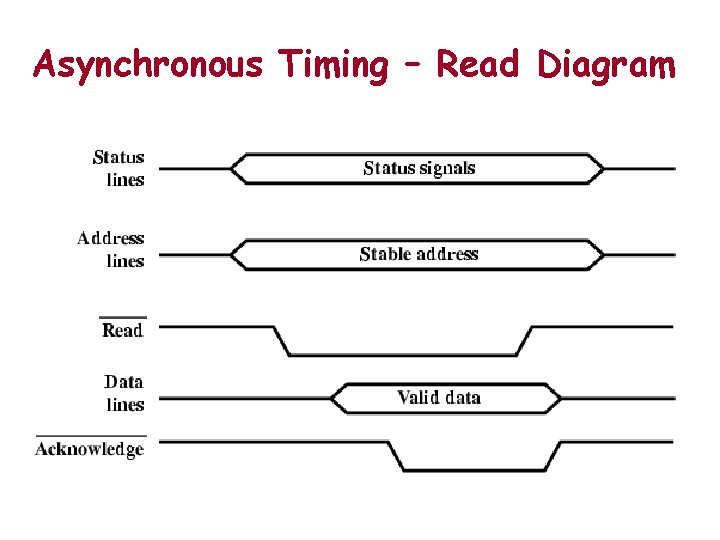

Asynchronous Timing – Read Diagram

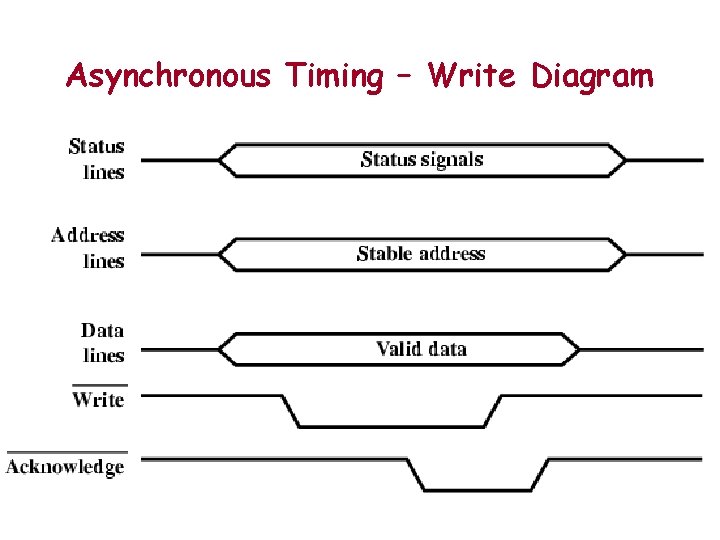

Asynchronous Timing – Write Diagram

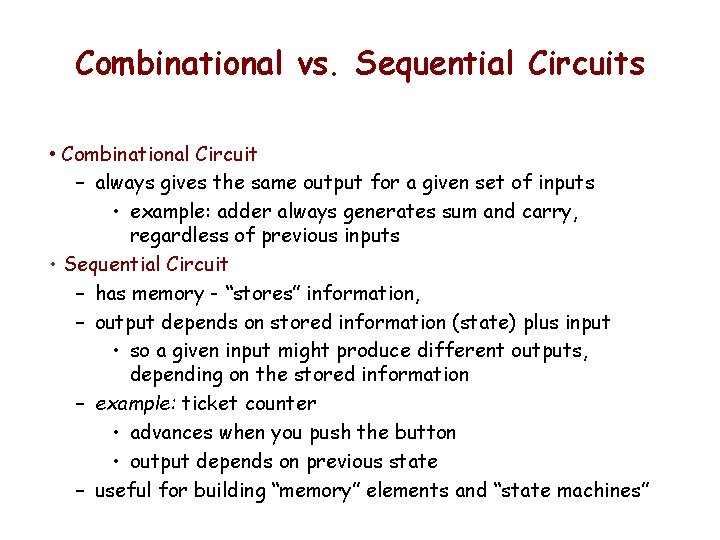

Combinational vs. Sequential Circuits • Combinational Circuit – always gives the same output for a given set of inputs • example: adder always generates sum and carry, regardless of previous inputs • Sequential Circuit – has memory - “stores” information, – output depends on stored information (state) plus input • so a given input might produce different outputs, depending on the stored information – example: ticket counter • advances when you push the button • output depends on previous state – useful for building “memory” elements and “state machines”

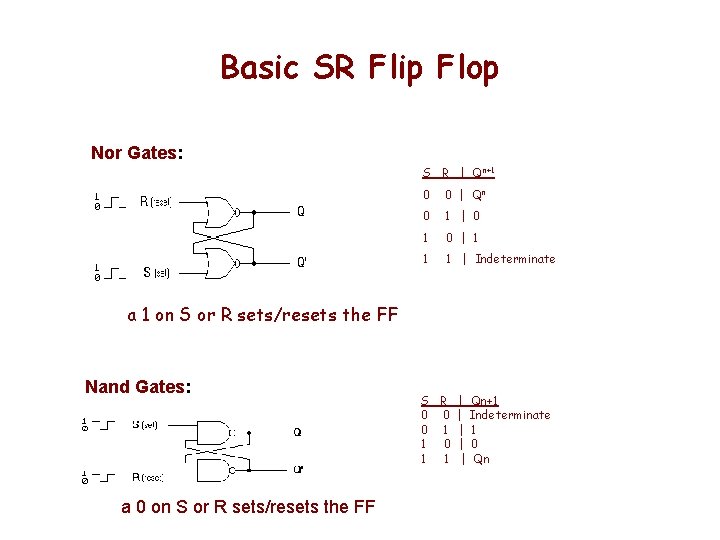

Basic SR Flip Flop Nor Gates: S R | Qn+1 0 0 | Qn 0 1 | 0 1 0 | 1 1 1 | Indeterminate a 1 on S or R sets/resets the FF Nand Gates: a 0 on S or R sets/resets the FF S R | Qn+1 0 0 | Indeterminate 0 1 | 1 1 0 | 0 1 1 | Qn

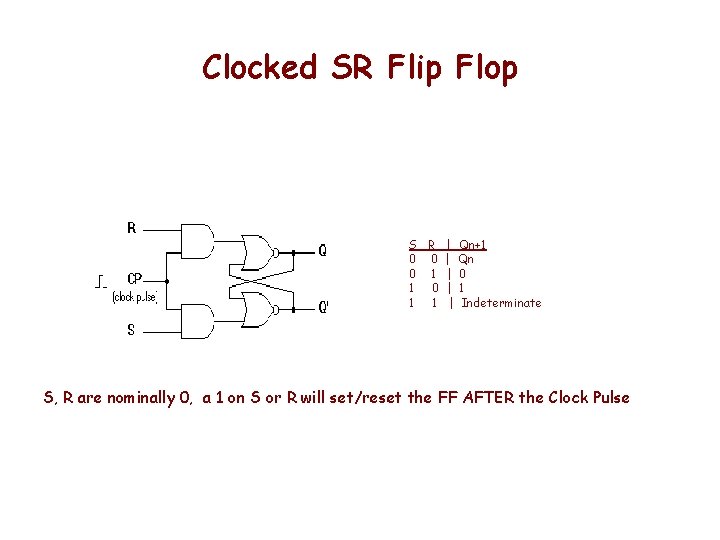

Clocked SR Flip Flop S R | Qn+1 0 0 | Qn 0 1 | 0 1 0 | 1 1 1 | Indeterminate S, R are nominally 0, a 1 on S or R will set/reset the FF AFTER the Clock Pulse

D Flip Flop (D Latch) D | Qn+1 0 | 0 1 | 1

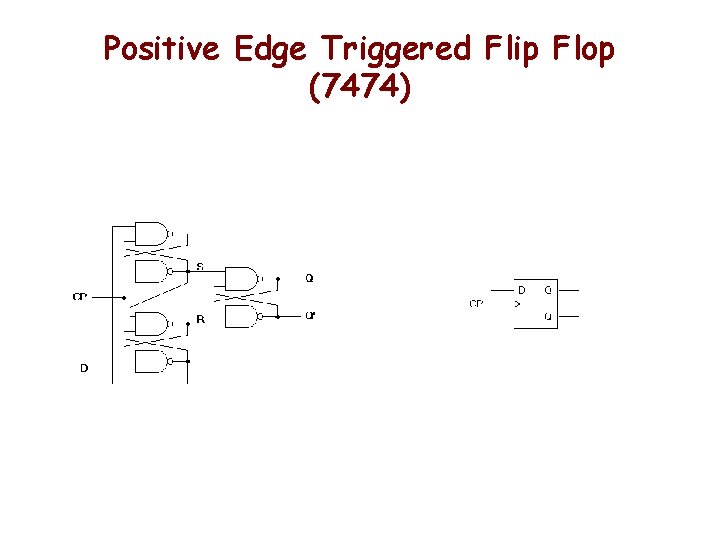

Positive Edge Triggered Flip Flop (7474)

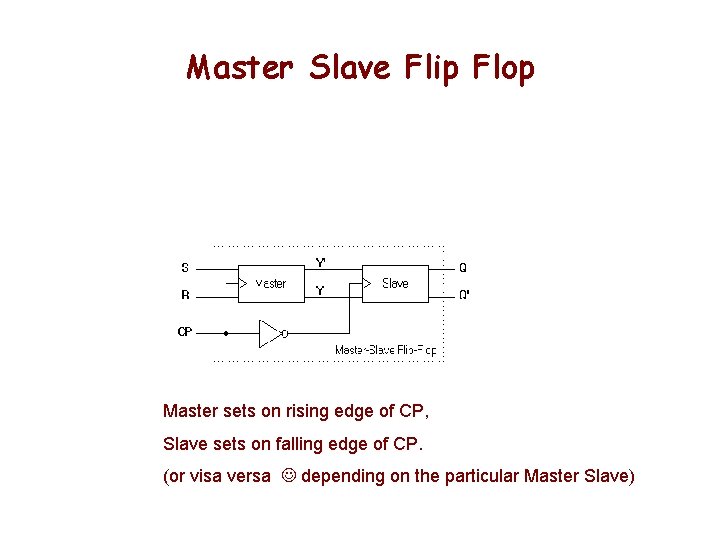

Master Slave Flip Flop Master sets on rising edge of CP, Slave sets on falling edge of CP. (or visa versa depending on the particular Master Slave)

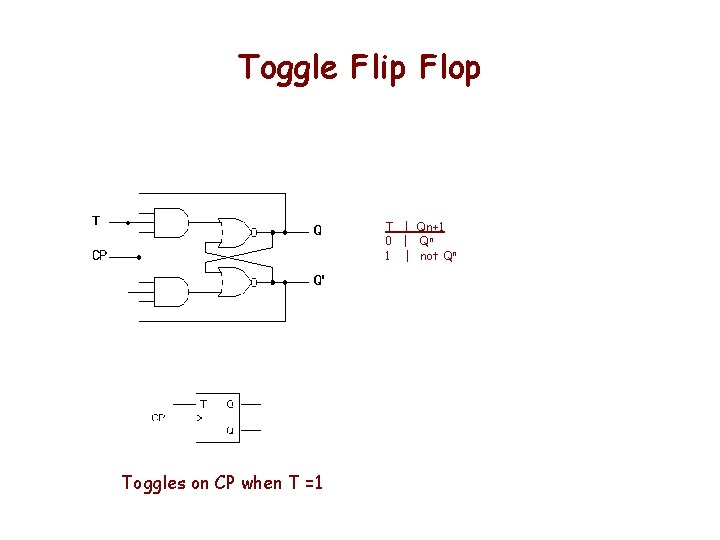

Toggle Flip Flop T | Qn+1 0 | Qn 1 | not Qn Toggles on CP when T =1

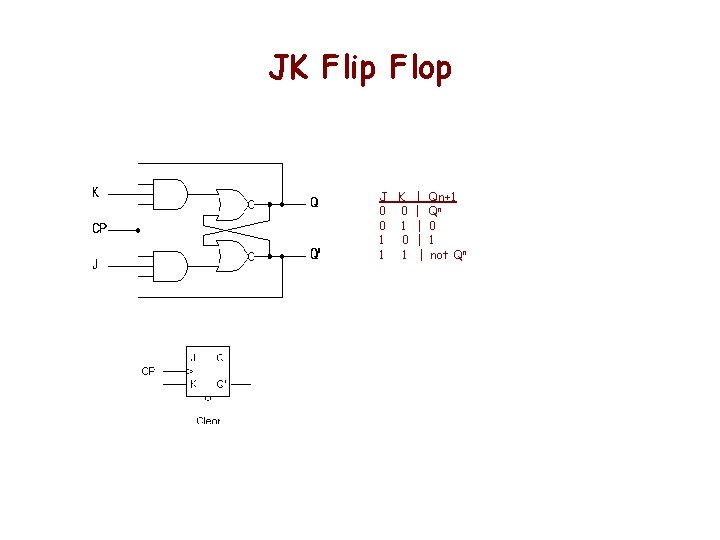

JK Flip Flop J K | Qn+1 0 0 | Qn 0 1 | 0 1 0 | 1 1 1 | not Qn

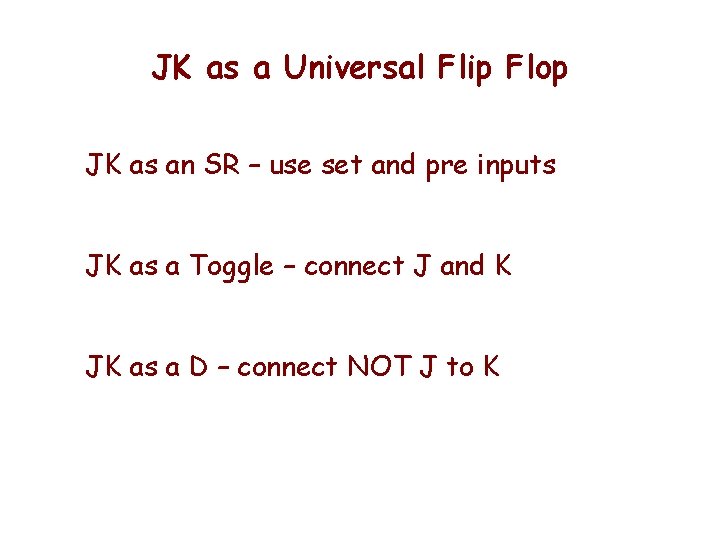

JK as a Universal Flip Flop JK as an SR – use set and pre inputs JK as a Toggle – connect J and K JK as a D – connect NOT J to K

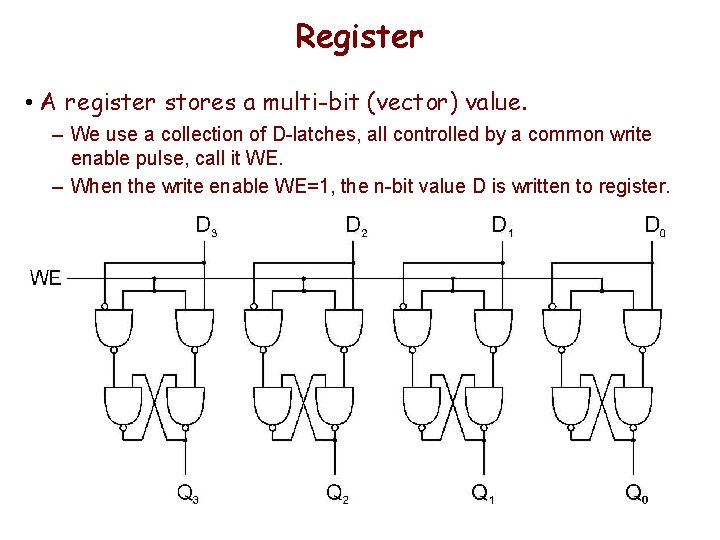

Register • A register stores a multi-bit (vector) value. – We use a collection of D-latches, all controlled by a common write enable pulse, call it WE. – When the write enable WE=1, the n-bit value D is written to register.

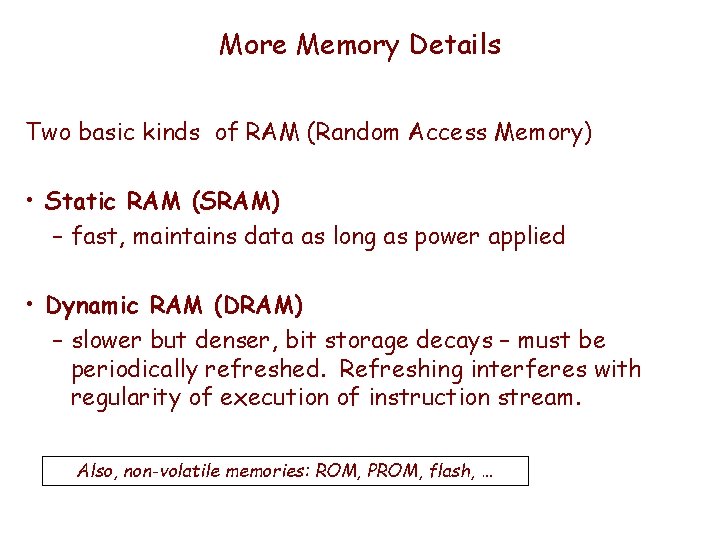

More Memory Details Two basic kinds of RAM (Random Access Memory) • Static RAM (SRAM) – fast, maintains data as long as power applied • Dynamic RAM (DRAM) – slower but denser, bit storage decays – must be periodically refreshed. Refreshing interferes with regularity of execution of instruction stream. Also, non-volatile memories: ROM, PROM, flash, …

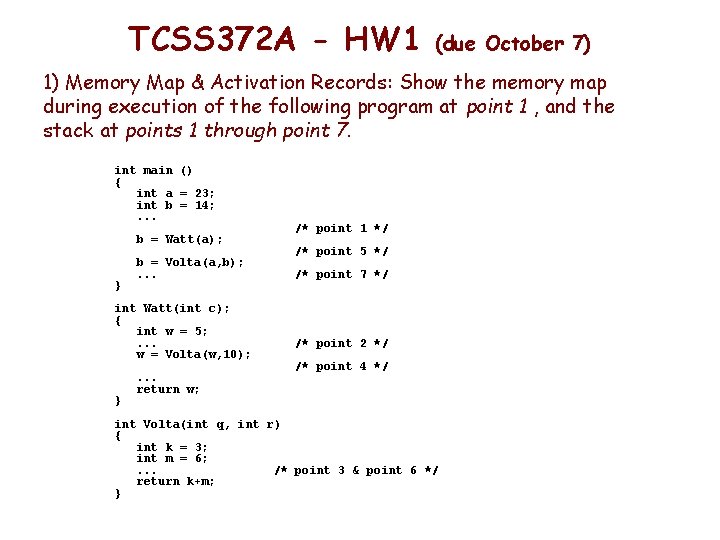

TCSS 372 A - HW 1 (due October 7) 1) Memory Map & Activation Records: Show the memory map during execution of the following program at point 1 , and the stack at points 1 through point 7. int main () { int a = 23; int b = 14; . . . b = Watt(a); } b = Volta(a, b); . . . int Watt(int c); { int w = 5; . . . w = Volta(w, 10); } . . . return w; /* point 1 */ /* point 5 */ /* point 7 */ /* point 2 */ /* point 4 */ int Volta(int q, int r) { int k = 3; int m = 6; . . . /* point 3 & point 6 */ return k+m; }

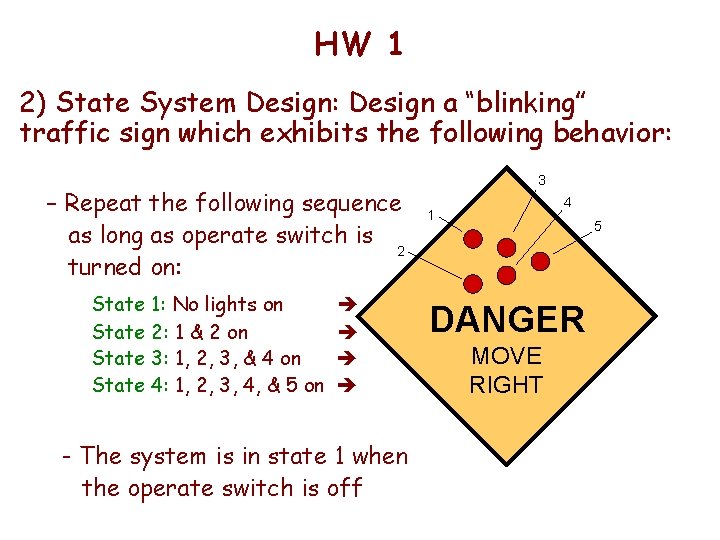

HW 1 2) State System Design: Design a “blinking” traffic sign which exhibits the following behavior: – Repeat the following sequence as long as operate switch is 2 turned on: State 1: No lights on State 2: 1 & 2 on State 3: 1, 2, 3, & 4 on State 4: 1, 2, 3, 4, & 5 on - The system is in state 1 when the operate switch is off 3 4 1 5 DANGER MOVE RIGHT
