Labeling A Microscope Ocular Lens Body Tube Revolving Nosepiece Arm Objective Stage Clips Diaphragm Course Adjustment Knob Light Source Fine Adjustment Knob Base

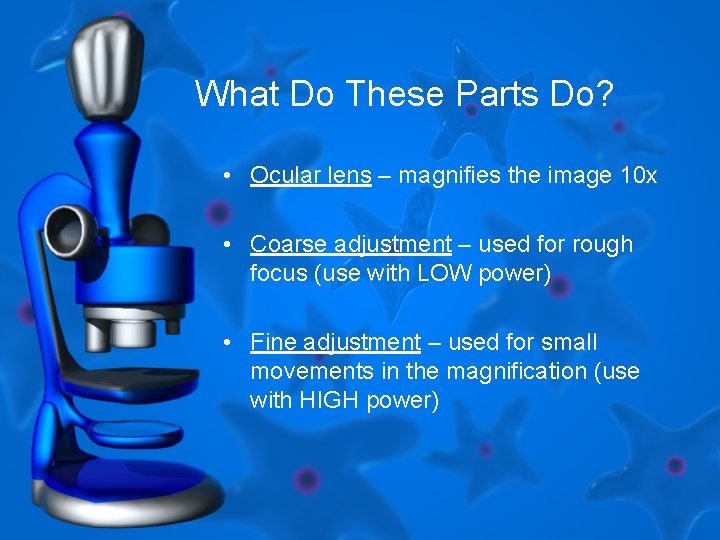

What Do These Parts Do? • Ocular lens – magnifies the image 10 x • Coarse adjustment – used for rough focus (use with LOW power) • Fine adjustment – used for small movements in the magnification (use with HIGH power)

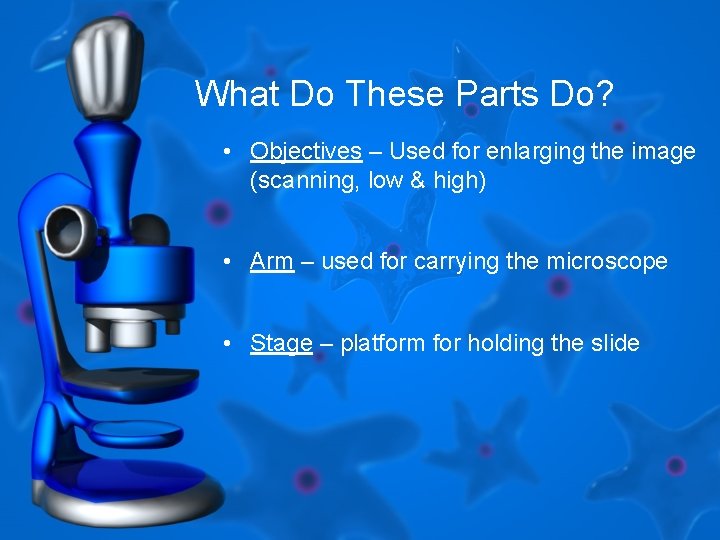

What Do These Parts Do? • Objectives – Used for enlarging the image (scanning, low & high) • Arm – used for carrying the microscope • Stage – platform for holding the slide

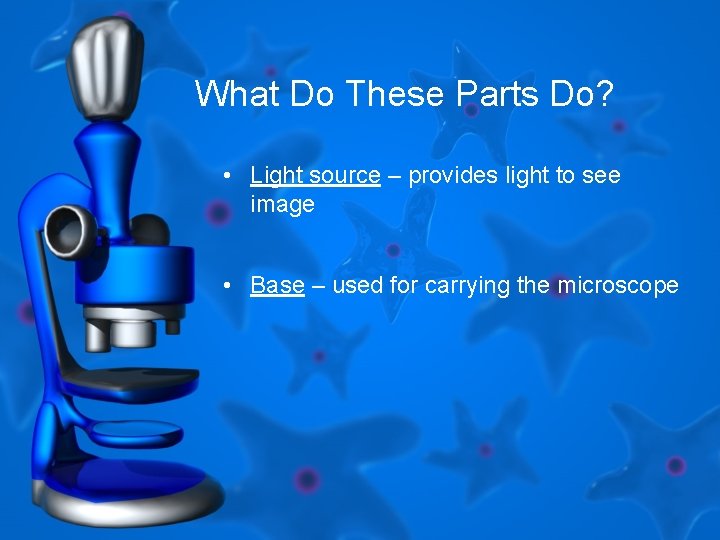

What Do These Parts Do? • Light source – provides light to see image • Base – used for carrying the microscope

Total Magnification • To find the total magnification: – Ocular lens x objective = total magnification – 10 x (4) = 40 Ocular Objective Total Lens Magnification a. 15 x 225 b. 10 x 100 c. 20 x 40 x 600

Microscope Image • What you see on the stage is different from what you view when you look in a microscope – The image is reversed and inverted – This means it’s upside down and flipped F F On the Stage Through The Scope

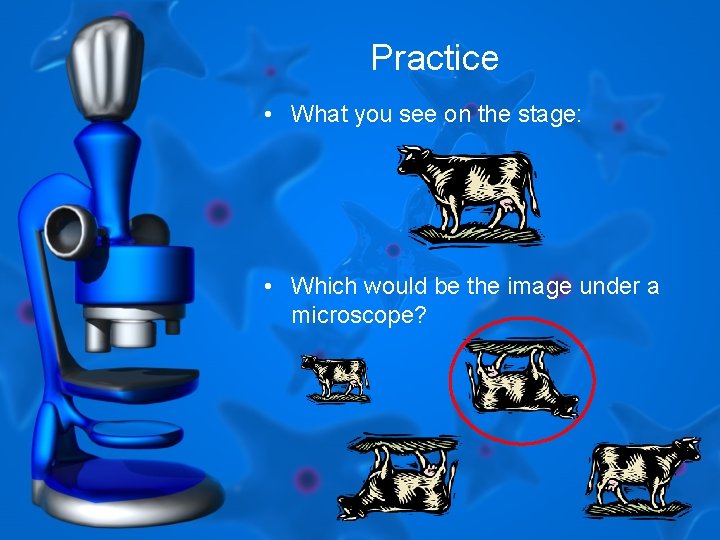

Practice • What you see on the stage: • Which would be the image under a microscope?

What is The Length of One Onion Cell? ? ?

Finding FOV • How far across is your field of view? • PROCEDURE – Take clear ruler, put it under your microscope and measure the FOV in mm across 1. 3 cm

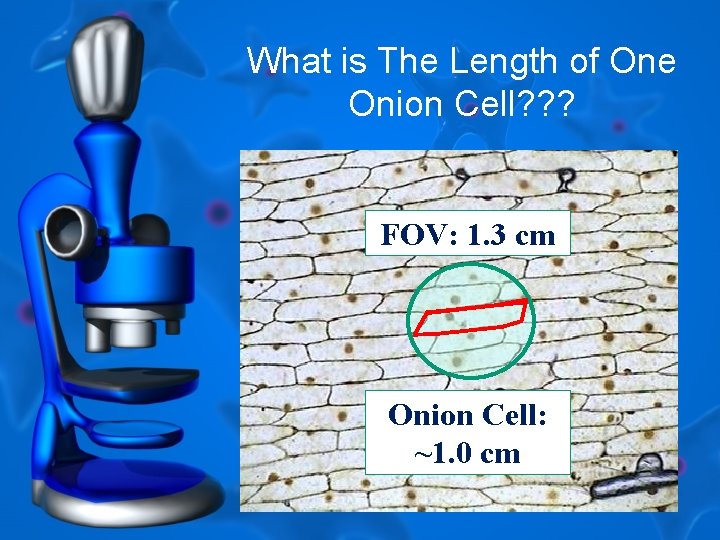

What is The Length of One Onion Cell? ? ? FOV: 1. 3 cm Onion Cell: ~1. 0 cm

Types of Scopes • Compound Light Microscope • Dissecting Microscope • Electron Microscope

Staining Specimens • Very frequently it is helpful to dye certain cell structures so that they can be seen more clearly. • Chemicals that dye parts of cells for this purpose are called stains.

Staining Specimens 1. A specimen is obtained and placed on the slide. 2. The student then places a drop or two of water on the specimen.

Staining Specimens 3. A cover slip is then lowered on to the specimen from an approximately 45 degree angle gently. • *This reduces the number of air bubbles the specimen will have.

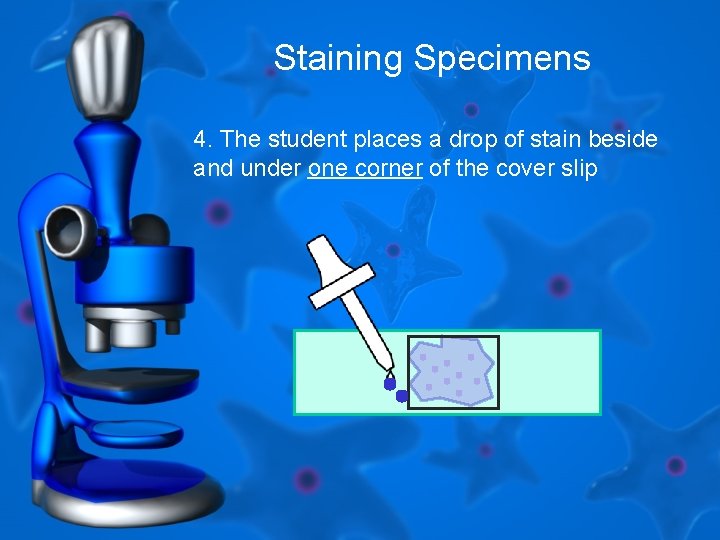

Staining Specimens 4. The student places a drop of stain beside and under one corner of the cover slip

Staining Specimens 5. The student places a towel on the opposite side of the cover slip in the water beside the cover slip. * This will draw the stain through the entire specimen in a few seconds without removing the cover slip. • This technique will also remove any air bubbles which have formed. 6. The stained specimen may now be observed.

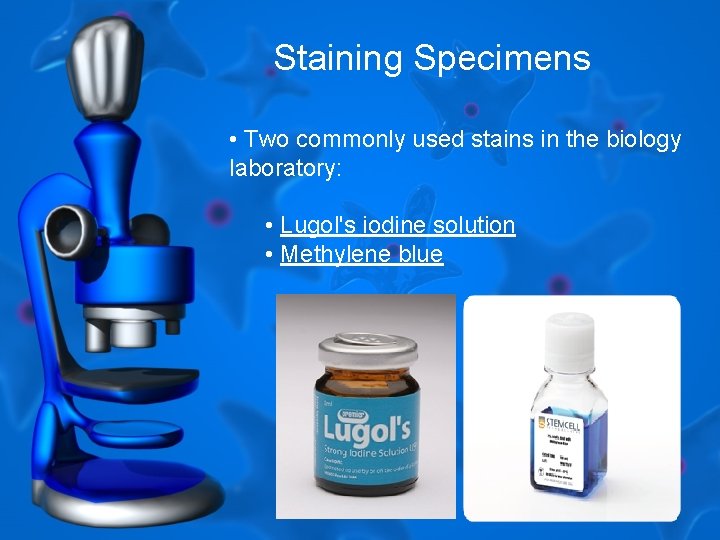

Staining Specimens • Two commonly used stains in the biology laboratory: • Lugol's iodine solution • Methylene blue

Staining Specimens • Lugol's solution is a good stain to make the nuclei of plant cells stand out more prominently. It has the unfortunate drawback of killing the cells it used on however.

Staining Specimens • Methylene blue is often used to stain animal cells, such as human cheek cells, to make their nuclei more observable. It is vital dye which does not immediately kill the specimen
