All About Encryption

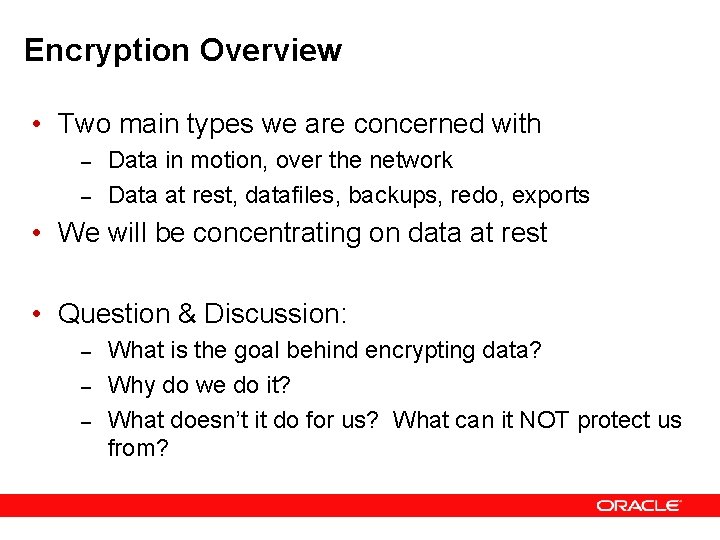

Encryption Overview • Two main types we are concerned with – – Data in motion, over the network Data at rest, datafiles, backups, redo, exports • We will be concentrating on data at rest • Question & Discussion: – – – What is the goal behind encrypting data? Why do we do it? What doesn’t it do for us? What can it NOT protect us from?

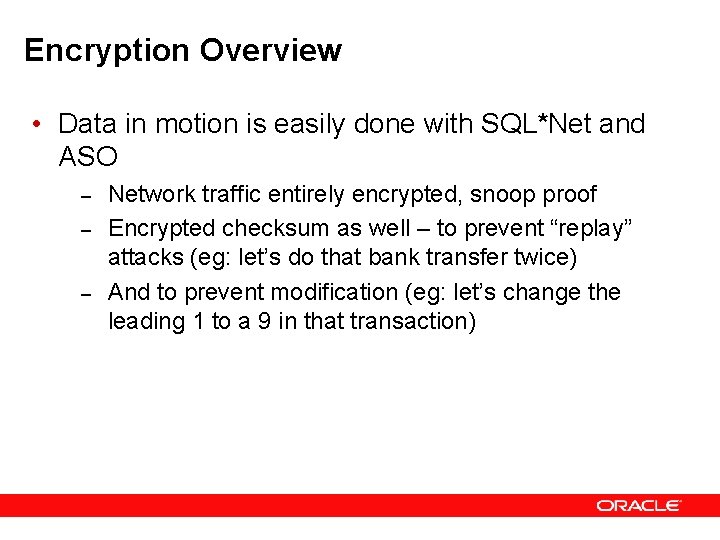

Encryption Overview • Data in motion is easily done with SQL*Net and ASO – – – Network traffic entirely encrypted, snoop proof Encrypted checksum as well – to prevent “replay” attacks (eg: let’s do that bank transfer twice) And to prevent modification (eg: let’s change the leading 1 to a 9 in that transaction)

Encryption Overview • Data at rest options… – – DBMS_OBFUSCATION_TOOLKIT • 8 i-9 i. R 2 • Would not use this anymore • Will not talk about it beyond this slide • Let’s have a quick talk about wrapper packages… DBMS_CRYPTO • 10 g. R 1 and above • Would not use this unless I had to (because of the next two bullets) Column Level Encryption • 10 g. R 2 and above (ASO) Tablespace Encryption • 11 g. R 1 and above (ASO)

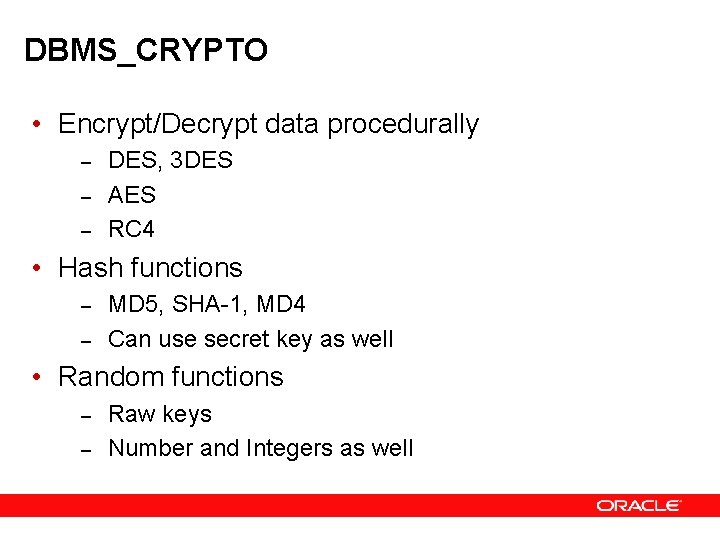

DBMS_CRYPTO • Encrypt/Decrypt data procedurally – – – DES, 3 DES AES RC 4 • Hash functions – – MD 5, SHA-1, MD 4 Can use secret key as well • Random functions – – Raw keys Number and Integers as well

DBMS_CRYPTO • The major problem – KEY MANAGEMENT – – – Do you store the key in the application? • How do you secure it there? • You need to retrieve it and transmit it Do you store the key in the database? • If I steal your database, I have your keys • You will have code that retrieves the key, I will find out how There are no good answers to this problem.

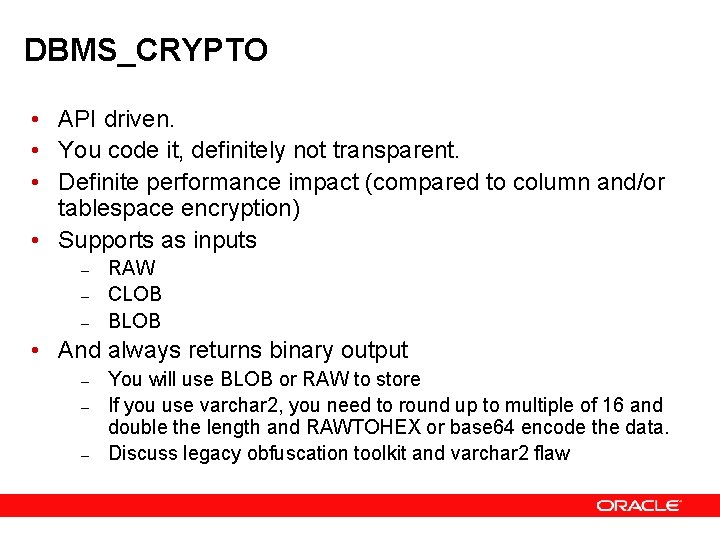

DBMS_CRYPTO • API driven. • You code it, definitely not transparent. • Definite performance impact (compared to column and/or tablespace encryption) • Supports as inputs – – – RAW CLOB BLOB • And always returns binary output – – – You will use BLOB or RAW to store If you use varchar 2, you need to round up to multiple of 16 and double the length and RAWTOHEX or base 64 encode the data. Discuss legacy obfuscation toolkit and varchar 2 flaw

DBMS_CRYPTO • Simple Examples – – Input raw after converting Specify typ – the stream or block cipher type. Block cipher is what we use for storing data persistently Key – the encryption key Use varchar 2 interface and the CLOB • Performance – – What impact will this have? (it will be different for everyone) Encrypt 1. sql How to measure it? Encrypt 2. sql Encrypt 3. sql

DBMS_CRYPTO • In review – – Labor intensive Key management is hard • Keys are likely very easy to compromise Definitely not transparent Adds a lot to the runtime

Column and Tablespace Encryption • Designed to be transparent • Uses a wallet – – Must steal database and Steal wallet and Kidnap the DBA in order to make use of the data As opposed to dbms-crypto, where I likely just need your database and some intelligence • Or Hardware Security Modules (HSM) – – – Physical device that stores keys Provides protected memory space to encrypt/decrypt so keys are never visible 11 g

Column Level Encryption • • • Data is cached encrypted in the SGA Decrypted only when you dereference it Encrypted every time you modify it Undo generated is encrypted Redo generated is encrypted You can index it, but the index is indexing encrypted data (not sorted!)

Column Level Encryption • Example – – – Setup Functionality Performance impact on modification & retrieval Sizing (20 byte checksum, padded out and salted) Indexing Issues, check out cardinality column 1. sql

Column Level Encryption • Restrictions – – Must not ‘salt’ if you index Cannot be used with foreign keys Issues with exp/imp (clear text issues) In 11 g, datapump can handle encryption, preserving the protection.

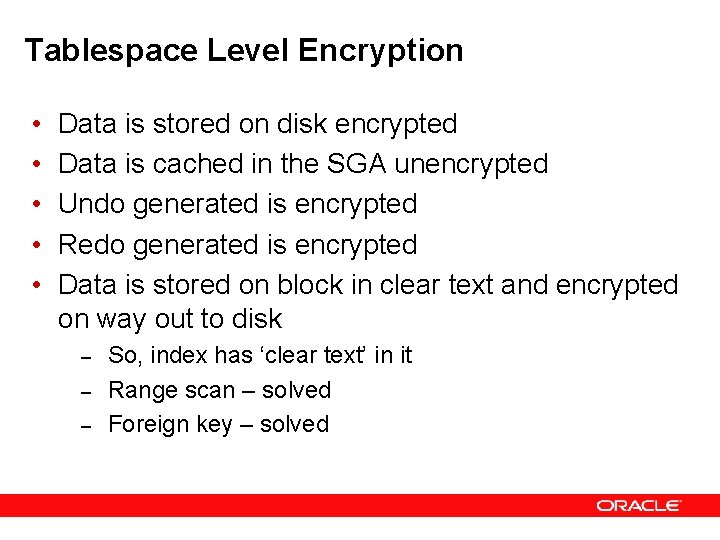

Tablespace Level Encryption • • • Data is stored on disk encrypted Data is cached in the SGA unencrypted Undo generated is encrypted Redo generated is encrypted Data is stored on block in clear text and encrypted on way out to disk – – – So, index has ‘clear text’ in it Range scan – solved Foreign key – solved

Tablespace Level Encryption • Example – – – Setup Functionality Performance impact on modification & retrieval tablespace 1. sql

Tablespace Level Encryption • Restrictions – You cannot alter an existing tablespace to be encrypted • You create a new encrypted tablespace and move segments into it • You can alter a column to be encrypted o But you probably don’t want too! o It’ll leave old copies of itself

Questions
