All About Density! Homework: Density Worksheet due tomorrow!

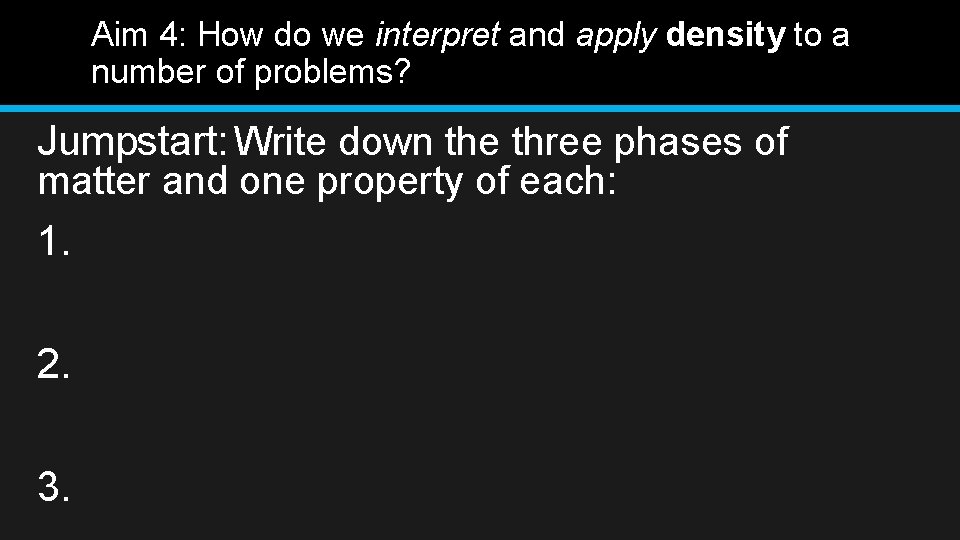

Aim 4: How do we interpret and apply density to a number of problems? Jumpstart: Write down the three phases of matter and one property of each: 1. 2. 3.

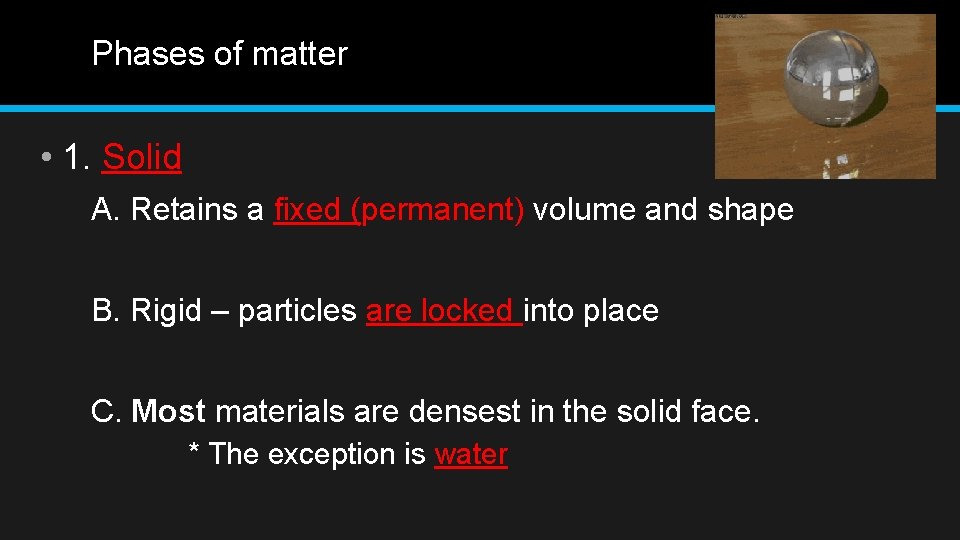

Phases of matter • 1. Solid A. Retains a fixed (permanent) volume and shape B. Rigid – particles are locked into place C. Most materials are densest in the solid face. * The exception is water

Phases of matter continued…. 2. Liquids A. Capable of flowing B. Both liquids and gases are fluids

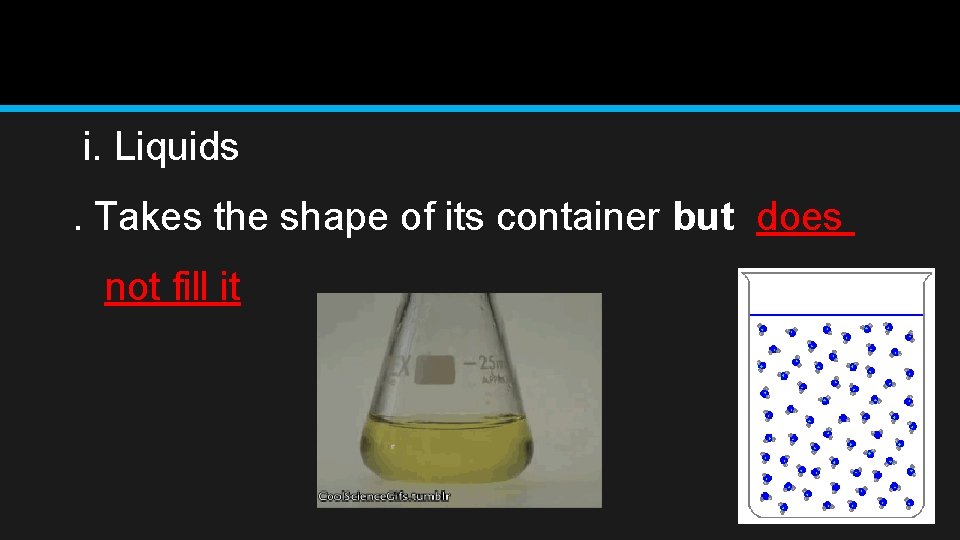

i. Liquids. Takes the shape of its container but does not fill it

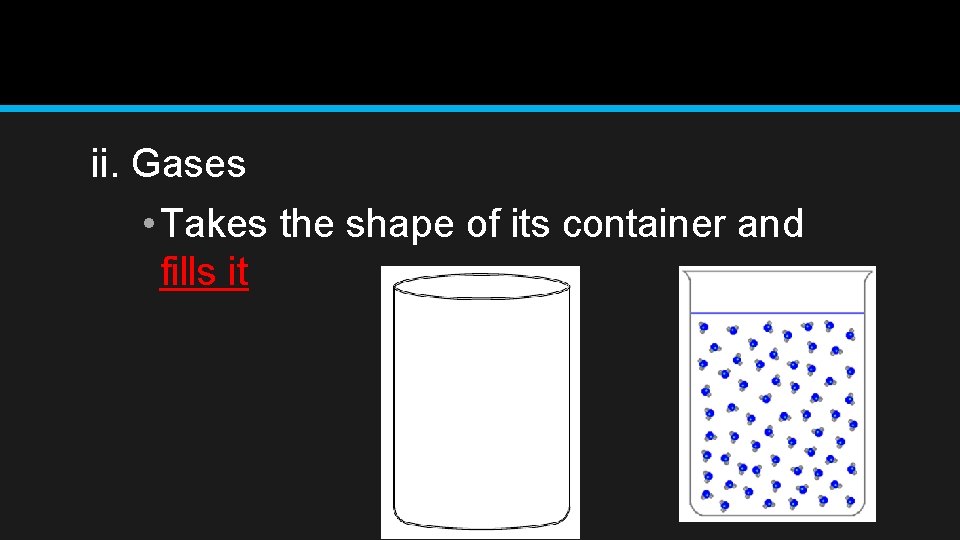

ii. Gases • Takes the shape of its container and fills it

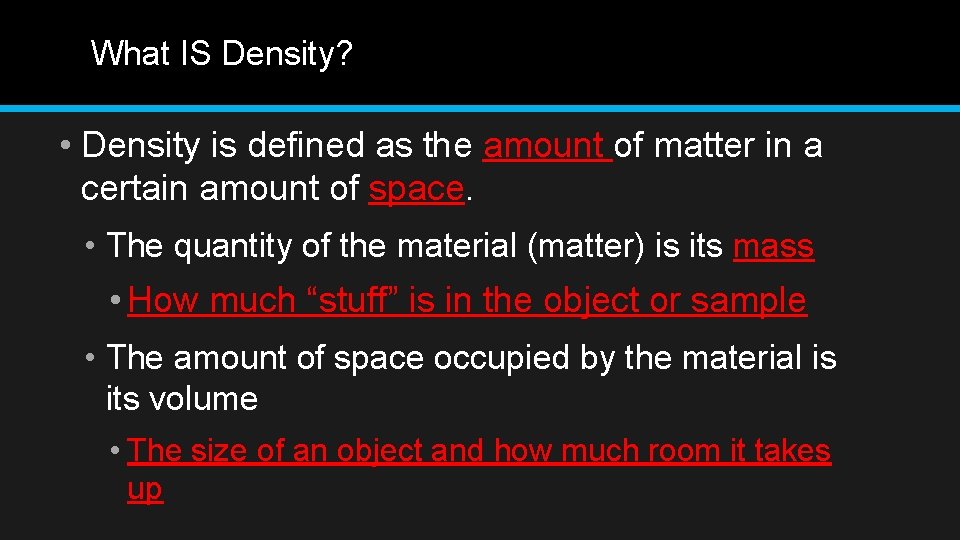

What IS Density? • Density is defined as the amount of matter in a certain amount of space. • The quantity of the material (matter) is its mass • How much “stuff” is in the object or sample • The amount of space occupied by the material is its volume • The size of an object and how much room it takes up

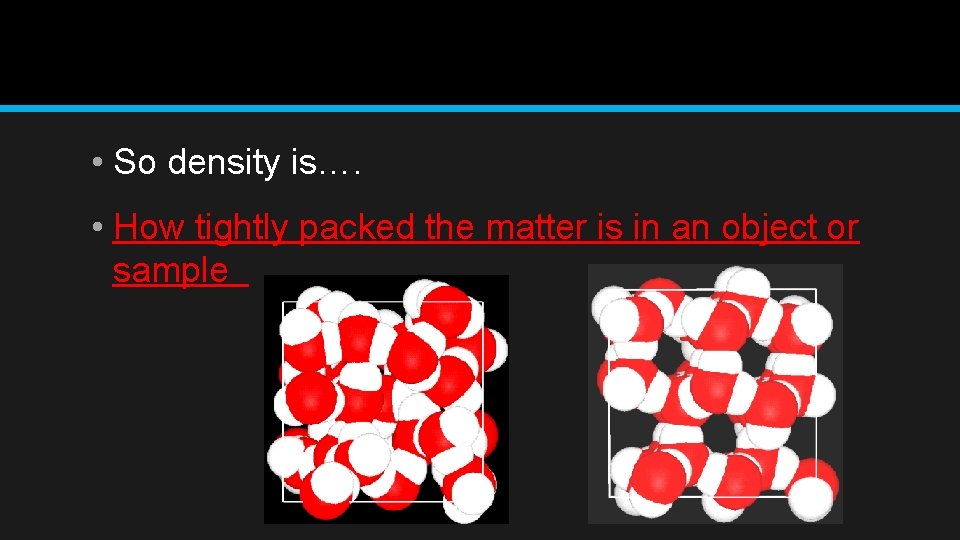

• So density is…. • How tightly packed the matter is in an object or sample

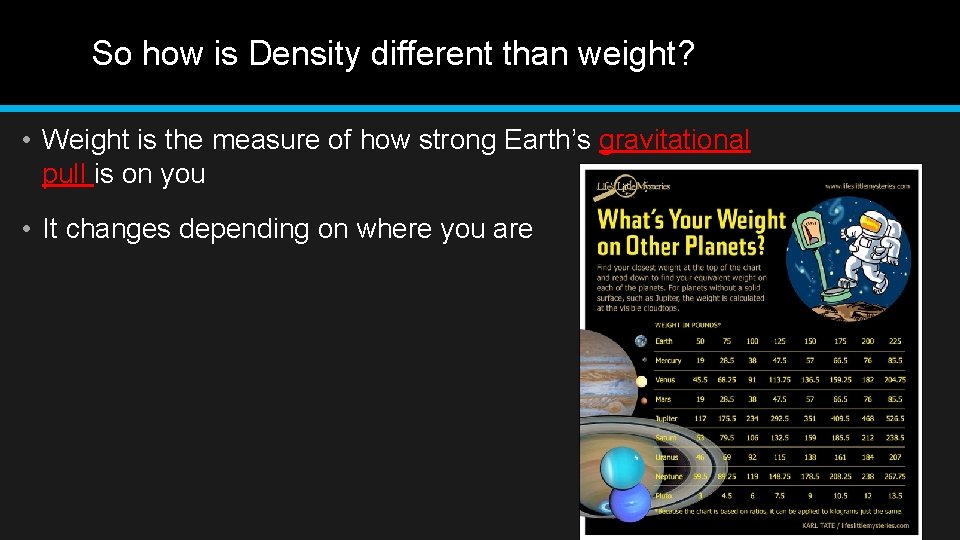

So how is Density different than weight? • Weight is the measure of how strong Earth’s gravitational pull is on you • It changes depending on where you are

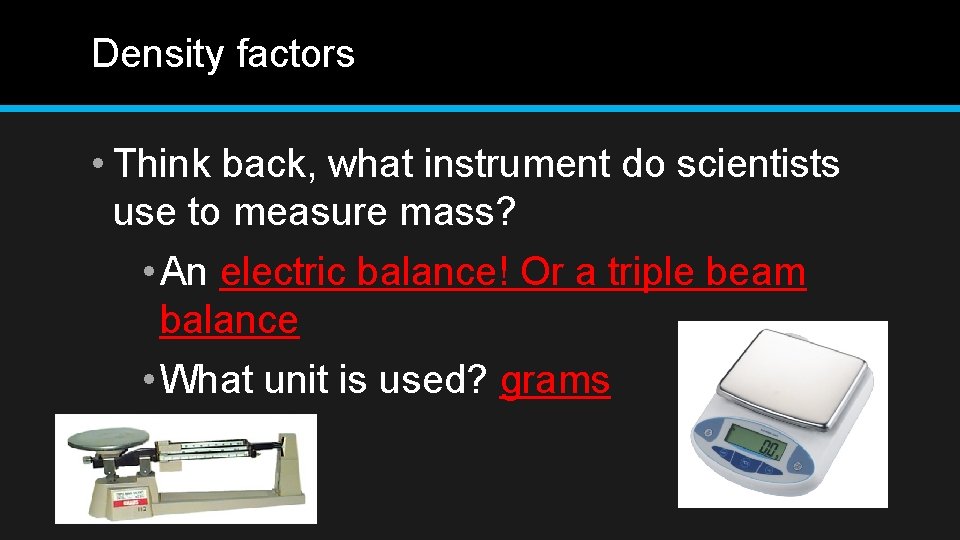

Density factors • Think back, what instrument do scientists use to measure mass? • An electric balance! Or a triple beam balance • What unit is used? grams

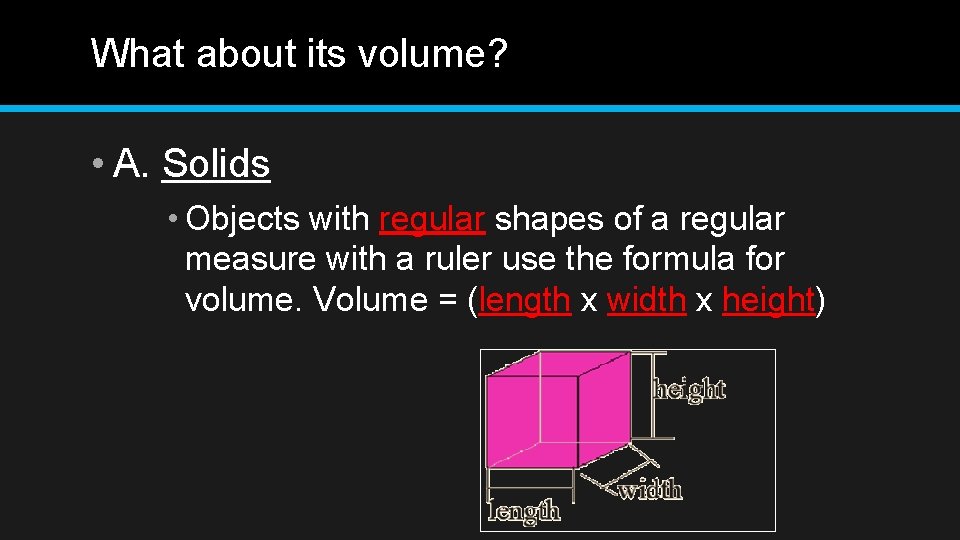

What about its volume? • A. Solids • Objects with regular shapes of a regular measure with a ruler use the formula for volume. Volume = (length x width x height)

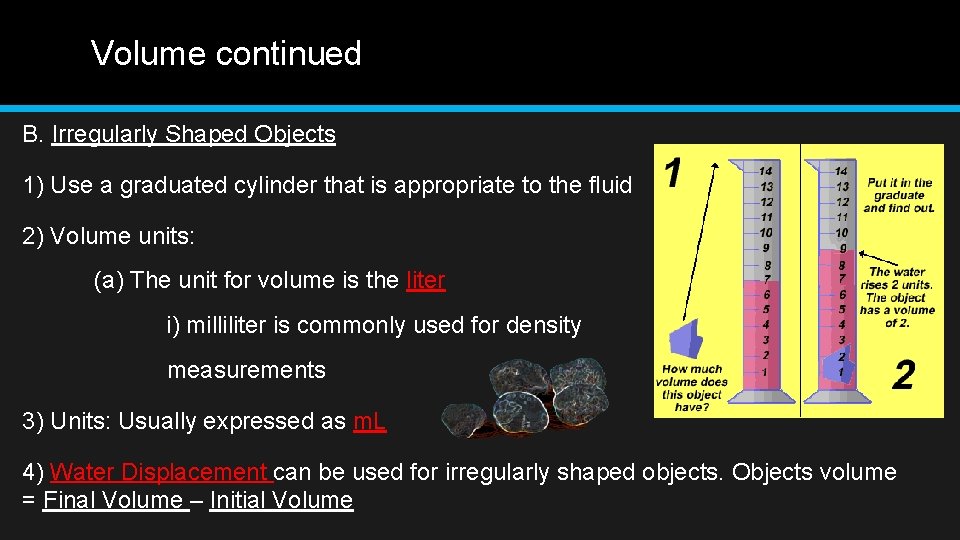

Volume continued B. Irregularly Shaped Objects 1) Use a graduated cylinder that is appropriate to the fluid 2) Volume units: (a) The unit for volume is the liter i) milliliter is commonly used for density measurements 3) Units: Usually expressed as m. L 4) Water Displacement can be used for irregularly shaped objects. Objects volume = Final Volume – Initial Volume

Important reminder! • Remember to read the bottom of the liquid’s meniscus to find the volume! Meniscus!

Finding Density • Remember, Density is the ratio of an object/substance’s mass to its volume • Density = mass/volume

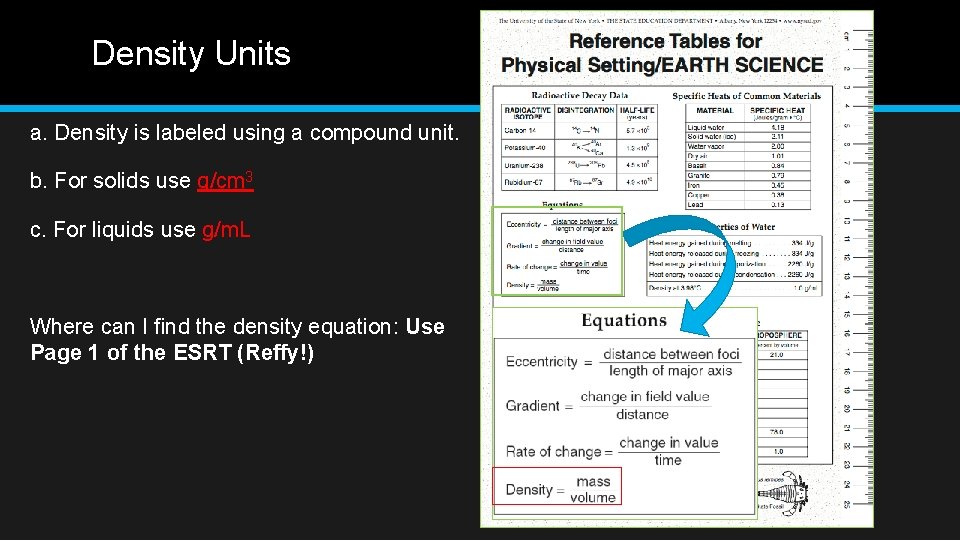

Density Units a. Density is labeled using a compound unit. b. For solids use g/cm 3 c. For liquids use g/m. L Where can I find the density equation: Use Page 1 of the ESRT (Reffy!)

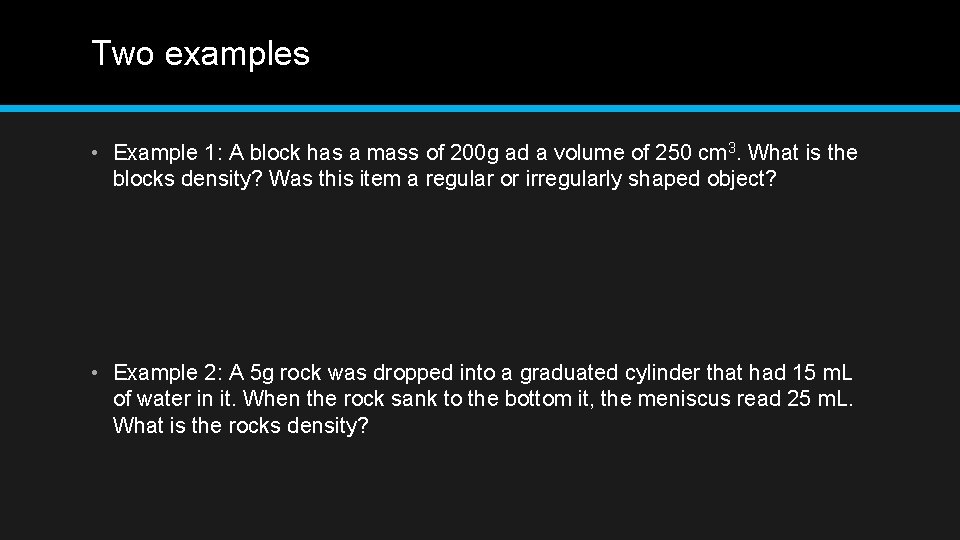

Two examples • Example 1: A block has a mass of 200 g ad a volume of 250 cm 3. What is the blocks density? Was this item a regular or irregularly shaped object? • Example 2: A 5 g rock was dropped into a graduated cylinder that had 15 m. L of water in it. When the rock sank to the bottom it, the meniscus read 25 m. L. What is the rocks density?

Comparing Densities by Floatation in Water • You can compare the density of objects when they are placed in water. Substances that are less dense than water float Substances that are equal to water in density remain suspended in the water The less dense an object is, more it floats! Substances that are more dense than water sink

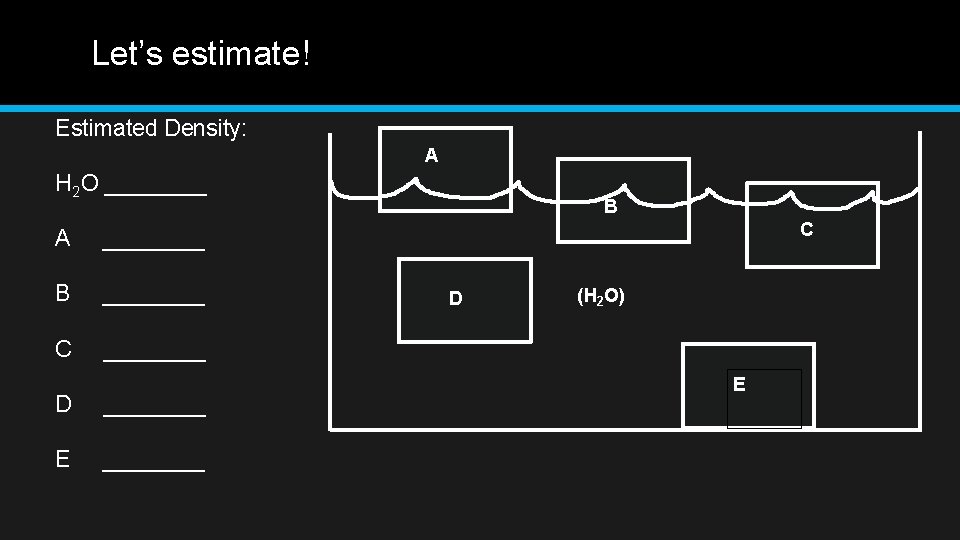

Let’s estimate! Estimated Density: A H 2 O ____ A ____ B ____ C ____ D ____ E ____ B C D (H 2 O) E

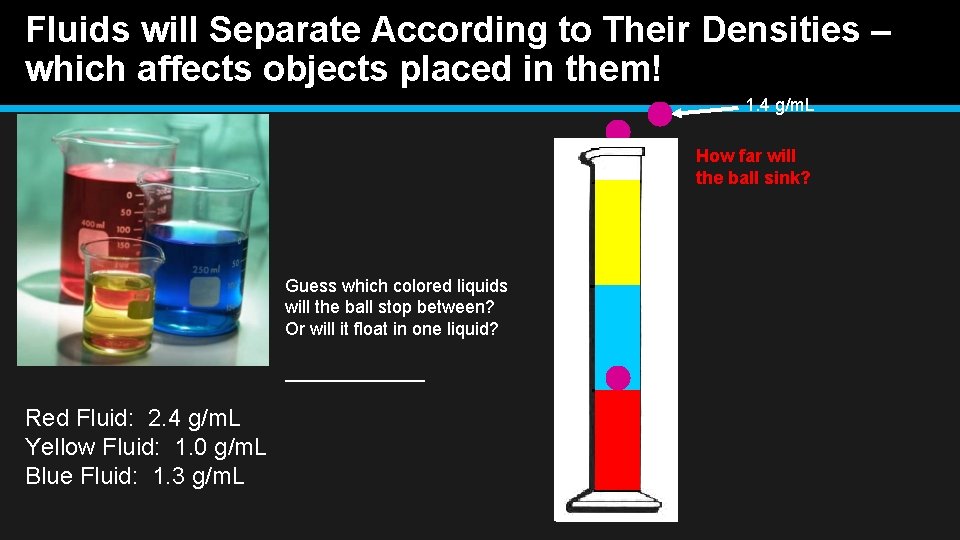

Fluids will Separate According to Their Densities – which affects objects placed in them! 1. 4 g/m. L How far will the ball sink? Guess which colored liquids will the ball stop between? Or will it float in one liquid? _______ Red Fluid: 2. 4 g/m. L Yellow Fluid: 1. 0 g/m. L Blue Fluid: 1. 3 g/m. L

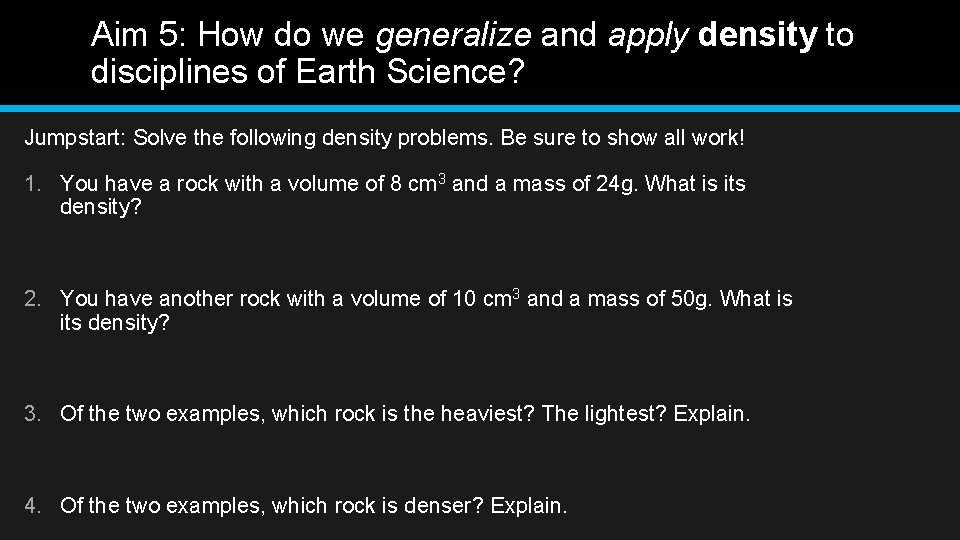

Aim 5: How do we generalize and apply density to disciplines of Earth Science? Jumpstart: Solve the following density problems. Be sure to show all work! 1. You have a rock with a volume of 8 cm 3 and a mass of 24 g. What is its density? 2. You have another rock with a volume of 10 cm 3 and a mass of 50 g. What is its density? 3. Of the two examples, which rock is the heaviest? The lightest? Explain. 4. Of the two examples, which rock is denser? Explain.

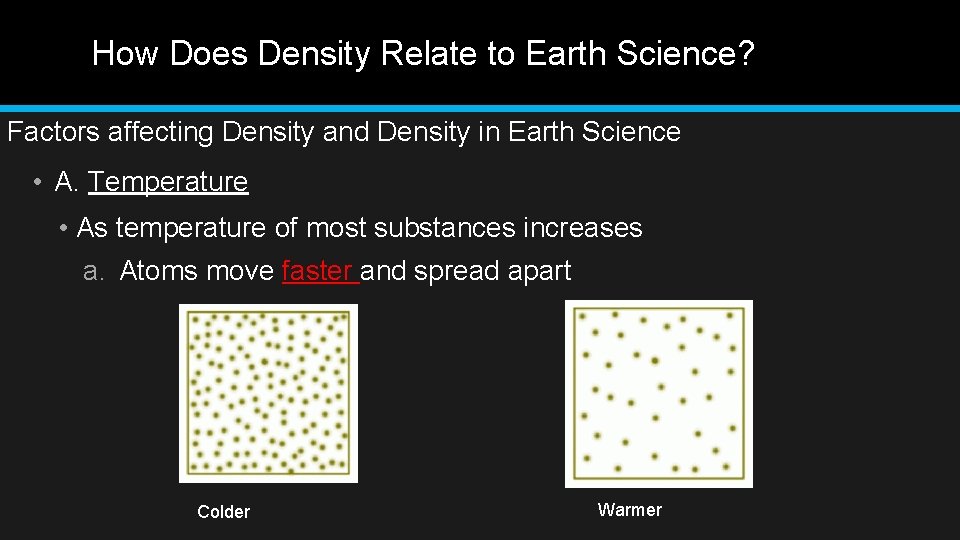

How Does Density Relate to Earth Science? Factors affecting Density and Density in Earth Science • A. Temperature • As temperature of most substances increases a. Atoms move faster and spread apart Colder Warmer

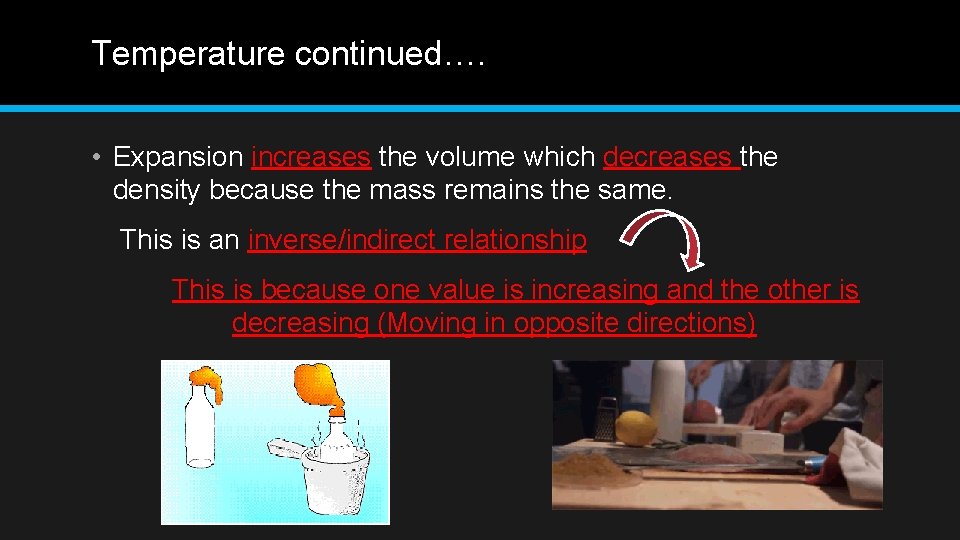

Temperature continued…. • Expansion increases the volume which decreases the density because the mass remains the same. This is an inverse/indirect relationship This is because one value is increasing and the other is decreasing (Moving in opposite directions)

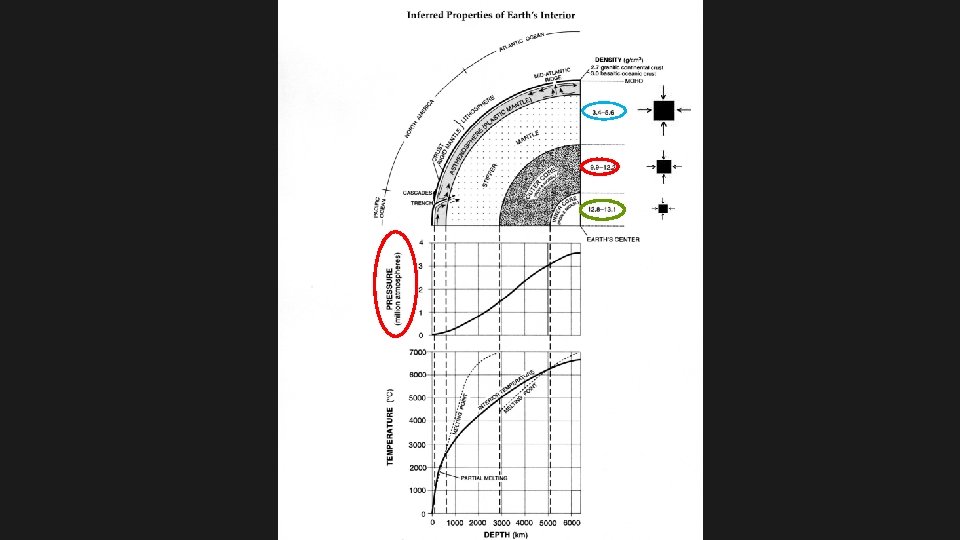

Pressure a. Solids i. At great depths below the Earth’s surface, there is extremely high pressure from the overlying rocks. ii. Materials are compressed 1) Volume decreases 2) Density Increases iii. This is an Indirect relationship – because both values are moving in the Opposite direction

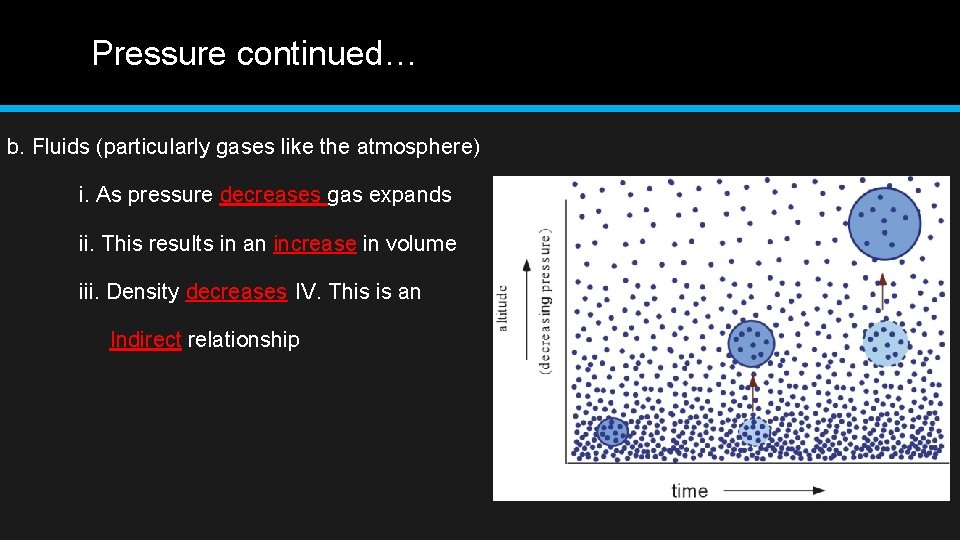

Pressure continued… b. Fluids (particularly gases like the atmosphere) i. As pressure decreases gas expands ii. This results in an increase in volume iii. Density decreases IV. This is an Indirect relationship

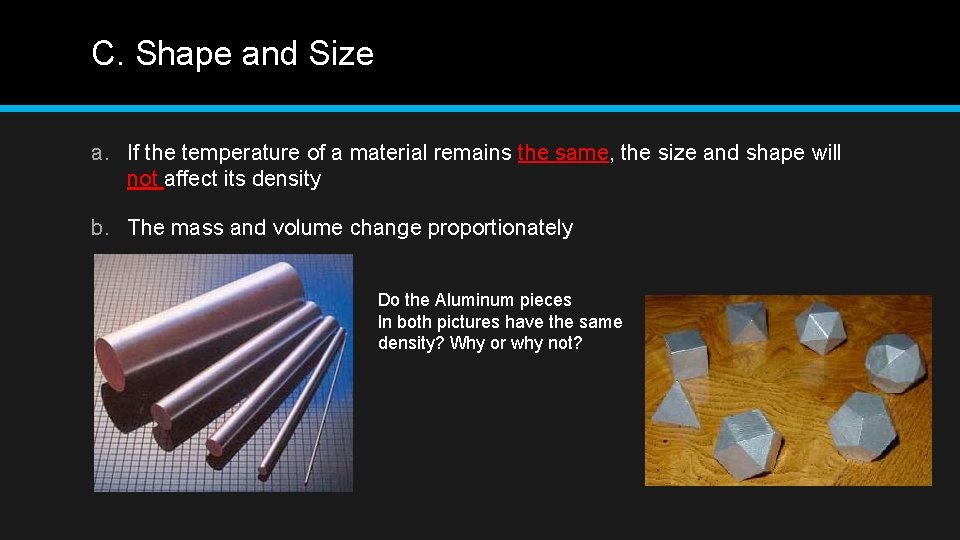

C. Shape and Size a. If the temperature of a material remains the same, the size and shape will not affect its density b. The mass and volume change proportionately Do the Aluminum pieces In both pictures have the same density? Why or why not?

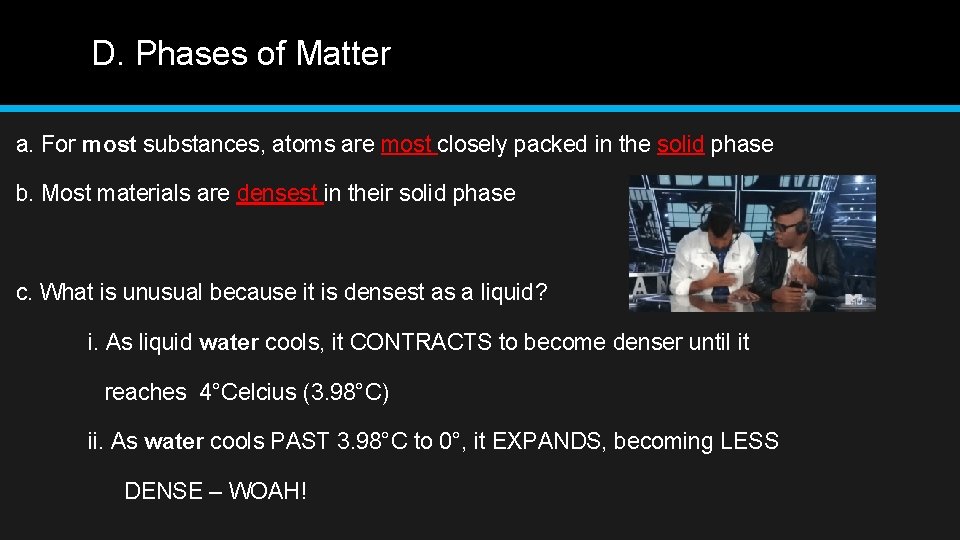

D. Phases of Matter a. For most substances, atoms are most closely packed in the solid phase b. Most materials are densest in their solid phase c. What is unusual because it is densest as a liquid? i. As liquid water cools, it CONTRACTS to become denser until it reaches 4°Celcius (3. 98°C) ii. As water cools PAST 3. 98°C to 0°, it EXPANDS, becoming LESS DENSE – WOAH!

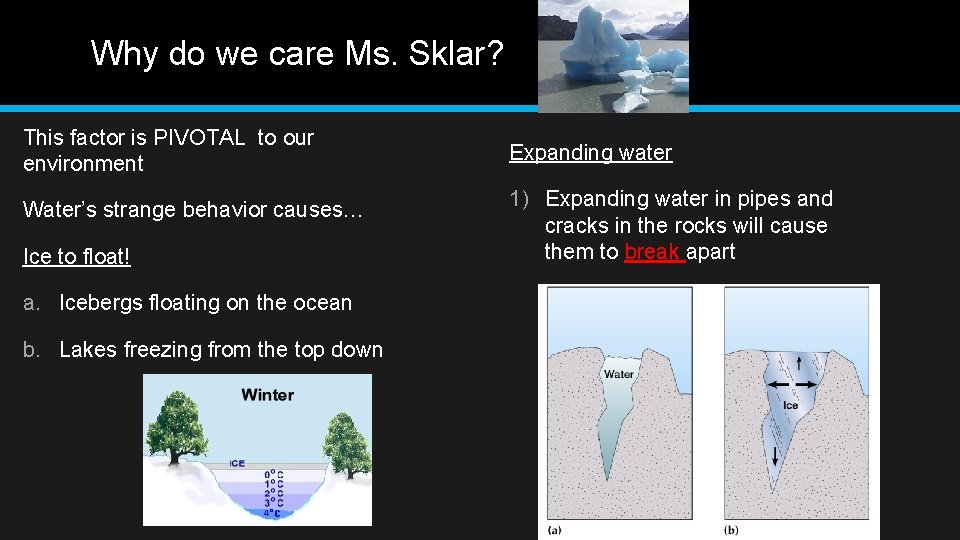

Why do we care Ms. Sklar? This factor is PIVOTAL to our environment Water’s strange behavior causes… Ice to float! a. Icebergs floating on the ocean b. Lakes freezing from the top down Expanding water 1) Expanding water in pipes and cracks in the rocks will cause them to break apart

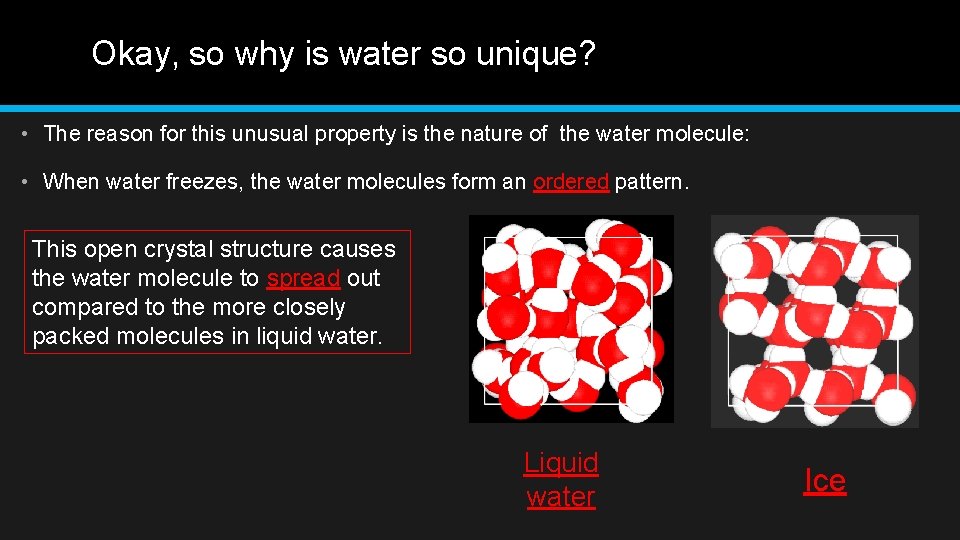

Okay, so why is water so unique? • The reason for this unusual property is the nature of the water molecule: • When water freezes, the water molecules form an ordered pattern. This open crystal structure causes the water molecule to spread out compared to the more closely packed molecules in liquid water. Liquid water Ice

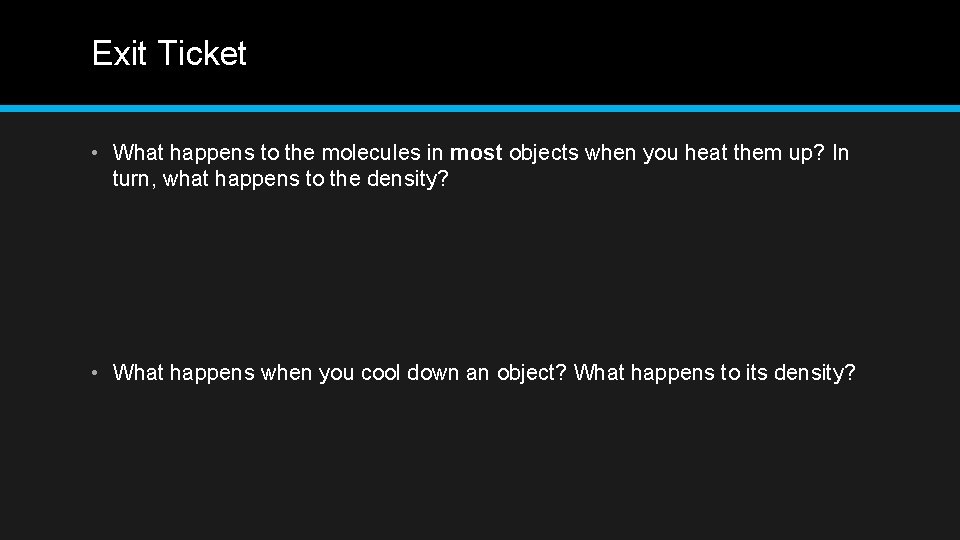

Exit Ticket • What happens to the molecules in most objects when you heat them up? In turn, what happens to the density? • What happens when you cool down an object? What happens to its density?
