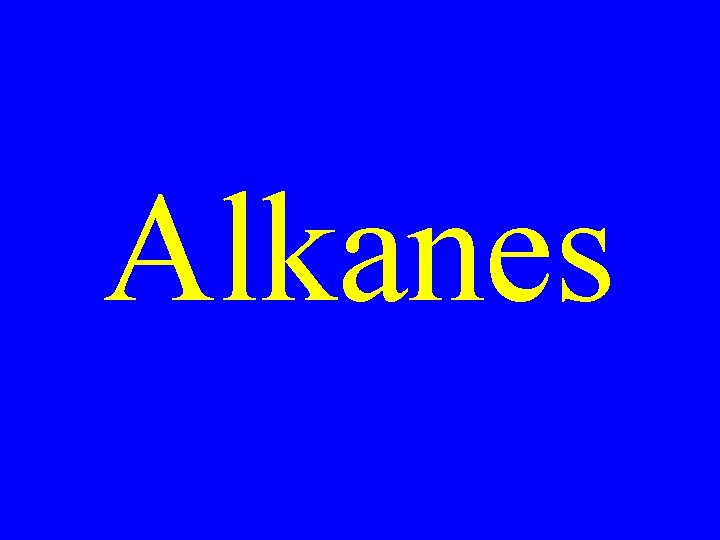

Alkanes Alkanes Hydrocarbons containing only single covalent bonds
Alkanes
Alkanes • Hydrocarbons containing only single covalent bonds

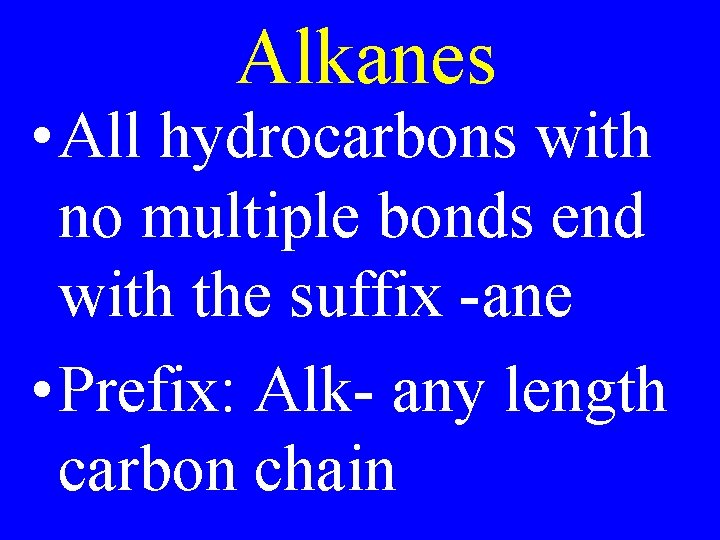

Alkanes • All hydrocarbons with no multiple bonds end with the suffix -ane • Prefix: Alk- any length carbon chain

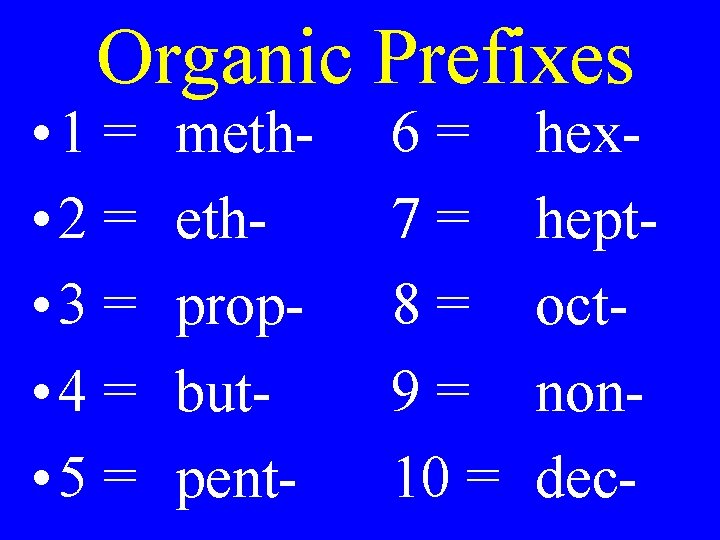

Organic Prefixes • 1 = • 2 = • 3 = • 4 = • 5 = methethpropbutpent- 6= 7= 8= 9= 10 = hexheptoctnondec-
1 -Carbon Alkane • Methane • CH 4
2 -Carbon Alkane • Ethane • C 2 H 6 • H 3 C-CH 3
3 -Carbon Alkane • Propane • C 3 H 8 • H 3 C-CH 2 -CH 3
4 -Carbon Alkane • Butane • C 4 H 10 • H 3 C-CH 2 -CH 3 • H 3 C-(CH 2)2 -CH 3
5 -Carbon Alkane • Pentane • C 5 H 12 • H 3 C-(CH 2)3 -CH 3
6 -Carbon Alkane • Hexane • C 6 H 14 • H 3 C-(CH 2)4 -CH 3
7 -Carbon Alkane • Heptane • C 7 H 16 • H 3 C-(CH 2)5 -CH 3
8 -Carbon Alkane • Octane • C 8 H 18 • H 3 C-(CH 2)6 -CH 3
9 -Carbon Alkane • Nonane • C 9 H 20 • H 3 C-(CH 2)7 -CH 3
10 -Carbon Alkane • Decane • C 10 H 22 • H 3 C-(CH 2)8 -CH 3

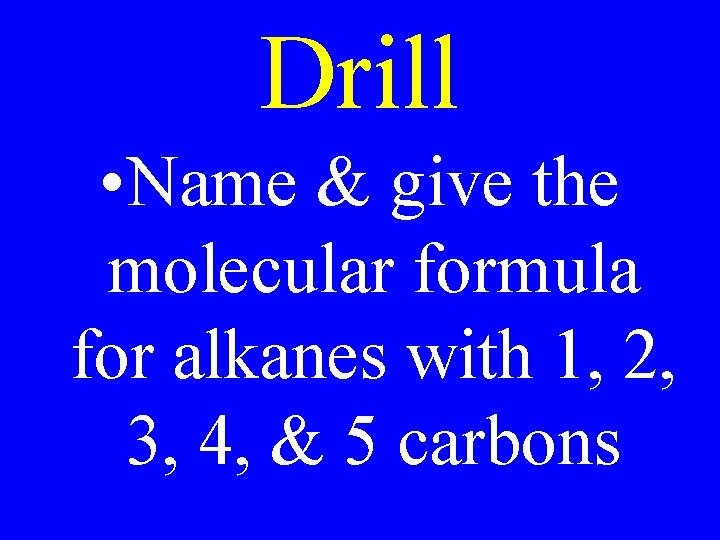

Drill • Name & give the molecular formula for alkanes with 1, 2, 3, 4, & 5 carbons
Alkane Chemical Formula Cn. H 2 n+2
Name each of the following: C 5 H 12 C 3 H 8 C 8 H 18

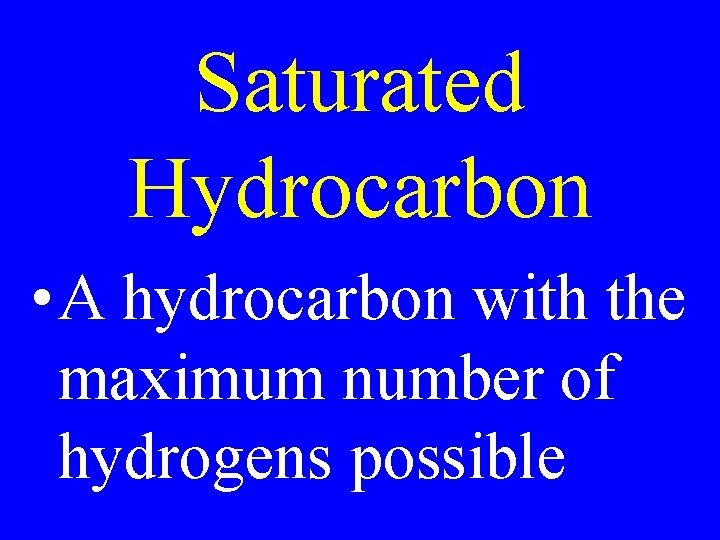

Saturated Hydrocarbon • A hydrocarbon with the maximum number of hydrogens possible
All Pure Noncyclic Alkanes • Are saturated hydrocarbons

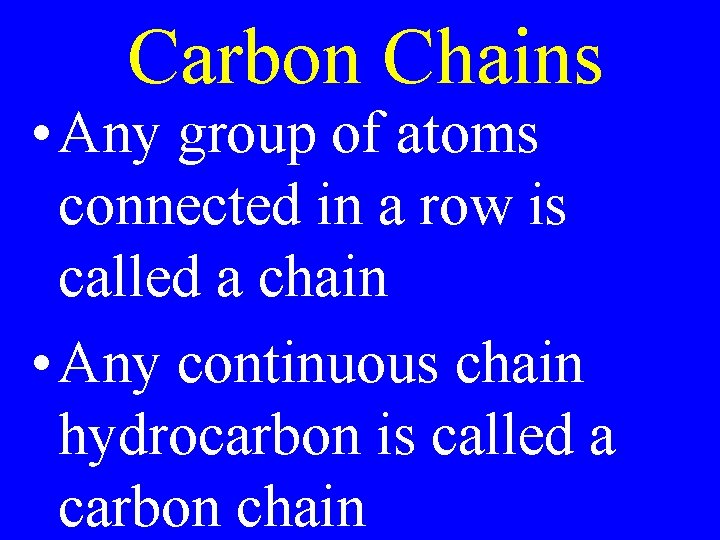

Carbon Chains • Any group of atoms connected in a row is called a chain • Any continuous chain hydrocarbon is called a carbon chain
Draw & name a 4 carbon chain
Formula Writing • Molecular Formula C 4 H 10
Formula Writing • Condensed structural formula, C-C & C-H bonds understood CH 3 CH 2 CH 3
Formula Writing • Condensed structural formula, only C-H bonds understood CH 3 -CH 2 -CH 3
Formula Writing • Condensed structural formula, bonds understood & repeats in () CH 3(CH 2)2 CH 3
Formula Writing • Carbon skeleton, C-H bonds omitted C-C-C-C
Formula Writing • Complete structural formula HHHH H C C H HHHH
Stick or minimal Structures

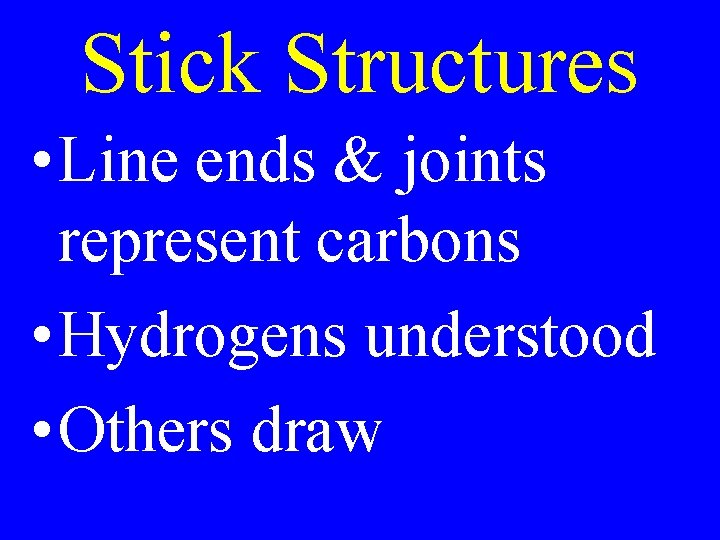

Stick Structures • Line ends & joints represent carbons • Hydrogens understood • Others draw

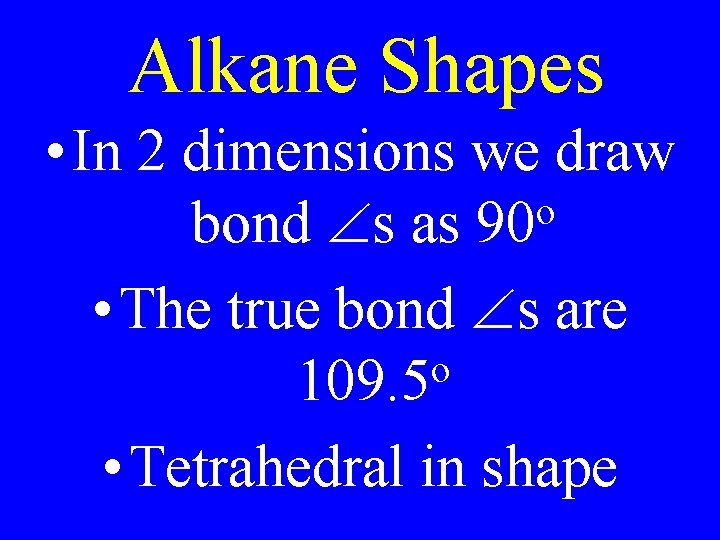

Alkane Shapes • In 2 dimensions we draw o bond s as 90 • The true bond s are o 109. 5 • Tetrahedral in shape
Draw the following • Propane • hexane • butane • heptane octane pentane methane
Name the compound on the board
Draw the following 5 -butyl-3 -ethyl-4 cyclohexyl-, 2, 2 dimethyl-6 propylnonane
Name the following
