Algorithms Contd How do we describe algorithms Pseudocode

Algorithms (Contd. )

How do we describe algorithms? • Pseudocode – Combines English, simple code constructs – Works with various types of primitives • Could be + - / * • Could be more complex operations – Describes how data is organized – Describes operations on the data – Is meant to be higher level than programming

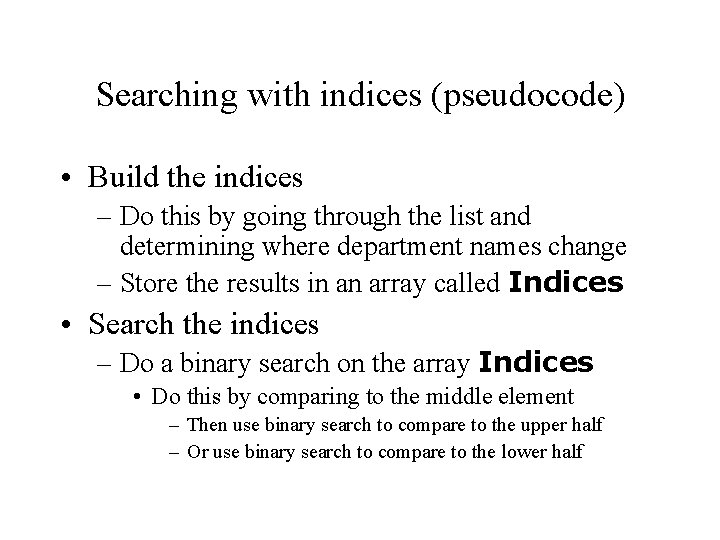

Searching with indices (pseudocode) • Build the indices – Do this by going through the list and determining where department names change – Store the results in an array called Indices • Search the indices – Do a binary search on the array Indices • Do this by comparing to the middle element – Then use binary search to compare to the upper half – Or use binary search to compare to the lower half

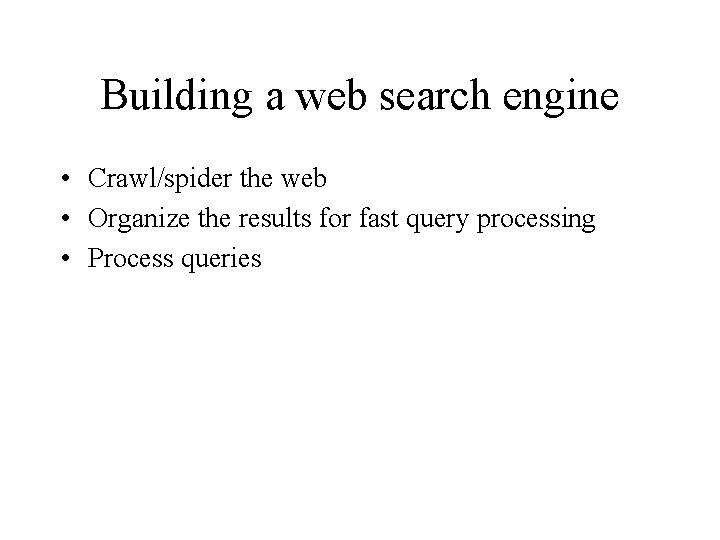

Building a web search engine • Crawl/spider the web • Organize the results for fast query processing • Process queries

Crawl the web • Every month use networking to go to as many reachable web pages as you can – 10 B pages, 10 Kbytes/page, so 100 terabytes • Can compress an average page to 3 Kbytes • Numeracy – To crawl 10 B pages in 100 days: • Crawl 100 M pages per day • Crawl 4 M pages per hour • Crawl 1, 000 pages per second

Organize the results • Put into alphabetical order • Build indices for faster lookup • Make multiple copies so that searching can proceed in parallel. • When you update, you rebuild the indices

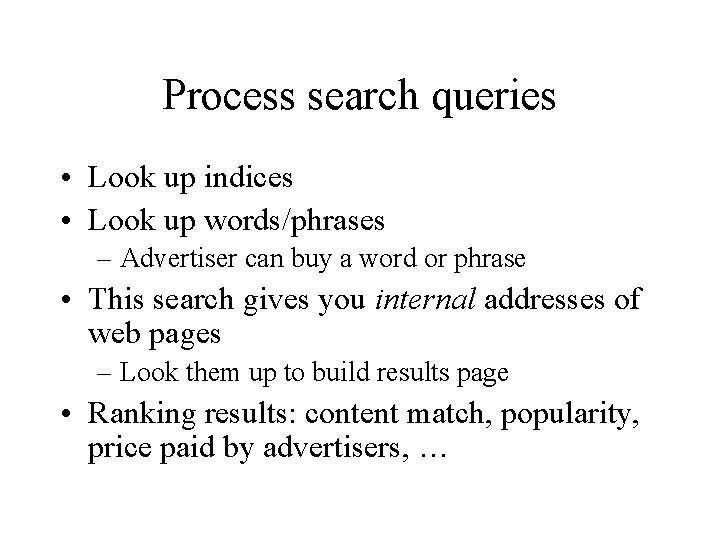

Process search queries • Look up indices • Look up words/phrases – Advertiser can buy a word or phrase • This search gives you internal addresses of web pages – Look them up to build results page • Ranking results: content match, popularity, price paid by advertisers, …

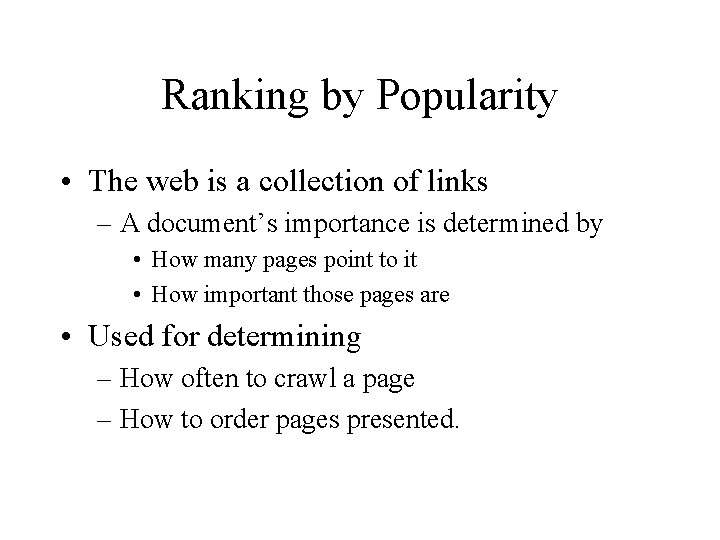

Ranking by Popularity • The web is a collection of links – A document’s importance is determined by • How many pages point to it • How important those pages are • Used for determining – How often to crawl a page – How to order pages presented.

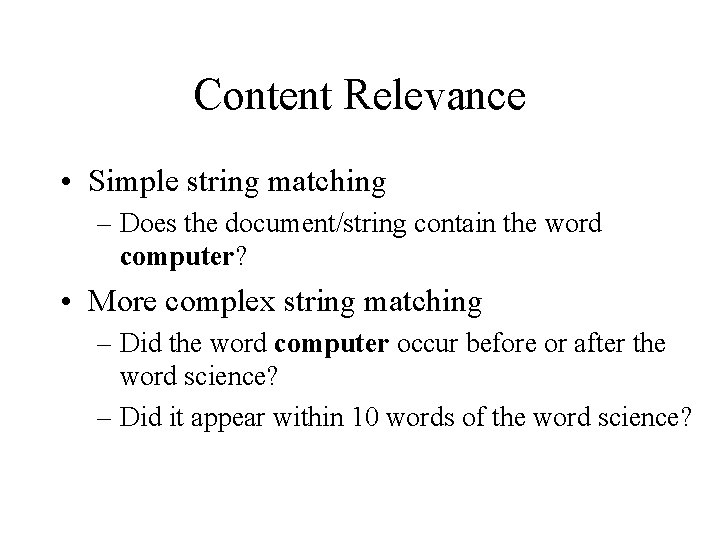

Content Relevance • Simple string matching – Does the document/string contain the word computer? • More complex string matching – Did the word computer occur before or after the word science? – Did it appear within 10 words of the word science?

How does string matching work? • State machines – Move along states as long as you keep matching – Back off when you miss a match

State machine – looking for abcd Read a Sa Other Read b Sb Read c Sc Sd Other Read d OK What happens if input is abccadbacabcd? Sa Sb Sc Sd Sa Sb Sc Sd OK

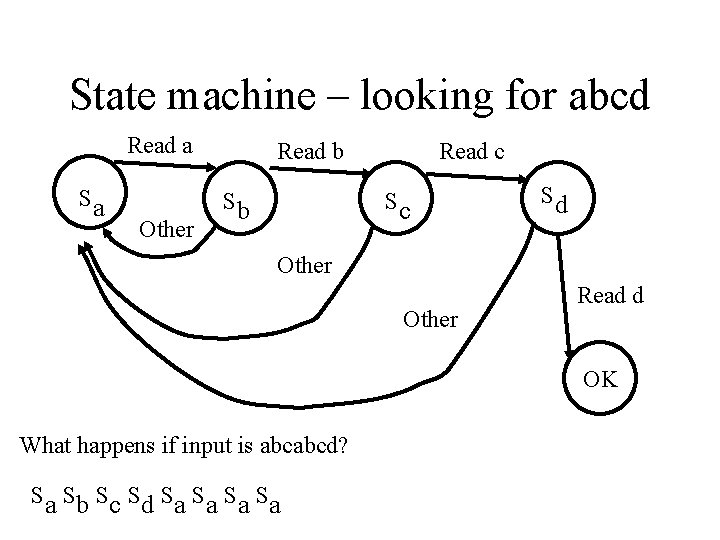

State machine – looking for abcd Read a Sa Other Read b Sb Read c Sc Sd Other Read d OK What happens if input is abcabcd? Sa Sb Sc Sd Sa Sa

State machine – looking for abcd Read a Sa Other Read b Sb Read a Read c Sc Sd Read a Read d Other OK

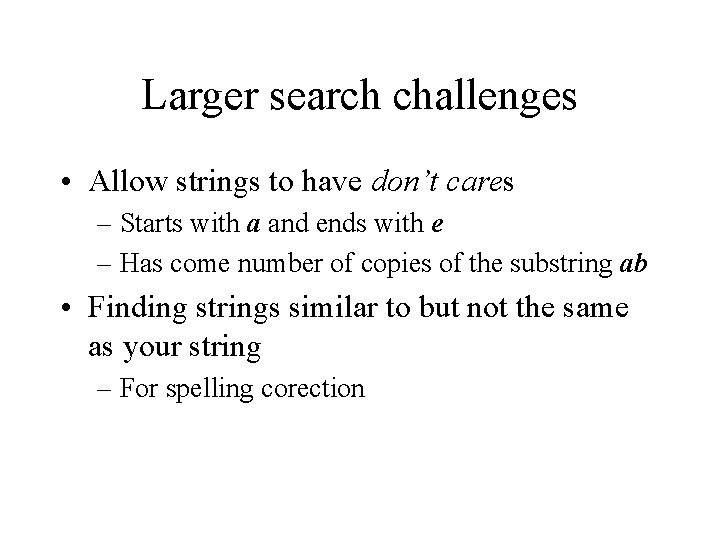

Larger search challenges • Allow strings to have don’t cares – Starts with a and ends with e – Has come number of copies of the substring ab • Finding strings similar to but not the same as your string – For spelling corection

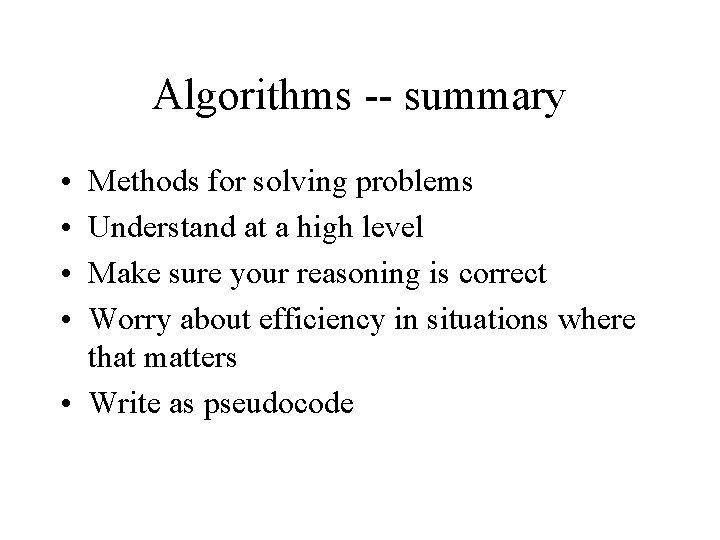

Algorithms -- summary • • Methods for solving problems Understand at a high level Make sure your reasoning is correct Worry about efficiency in situations where that matters • Write as pseudocode

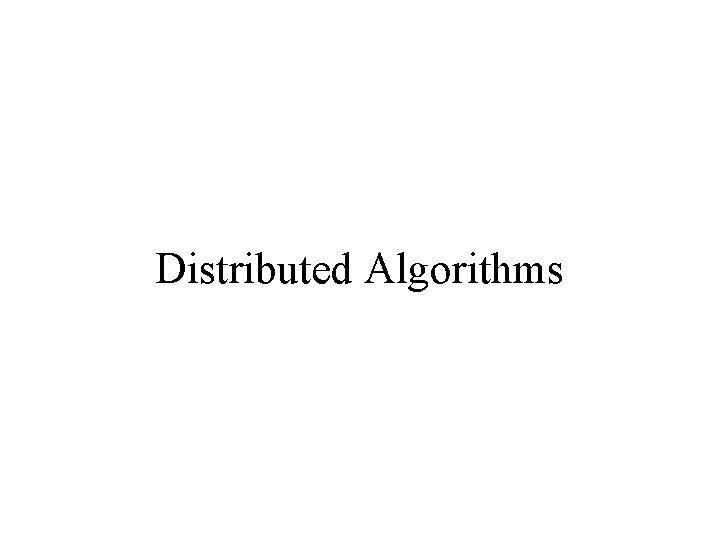

Distributed Algorithms

Distributed computing • Key idea – Buying 1000 machines of speed x is significantly cheaper than buying one machine of speed 1000 x – No one person has to buy all 1000 machines: A lot of computational, communication and storage resources already in place and can be harvested for bigger things • Key challenge – Making the machines work together for effective speedup. Communication between machines is a key challenge. • Approaches – Find problems that can be distributed easily

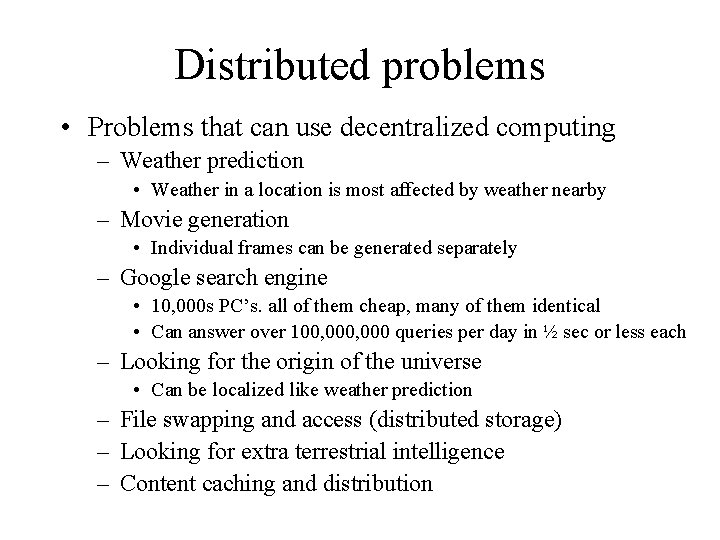

Distributed problems • Problems that can use decentralized computing – Weather prediction • Weather in a location is most affected by weather nearby – Movie generation • Individual frames can be generated separately – Google search engine • 10, 000 s PC’s. all of them cheap, many of them identical • Can answer over 100, 000 queries per day in ½ sec or less each – Looking for the origin of the universe • Can be localized like weather prediction – File swapping and access (distributed storage) – Looking for extra terrestrial intelligence – Content caching and distribution

Distributed computers • Scales of distributed computing – Cluster-in-a-room hundreds of machines • All dedicated to the task – PCs on a campus thousands of machines • Using spare cycles – SETI cluster • Screen saver situation millions of machines

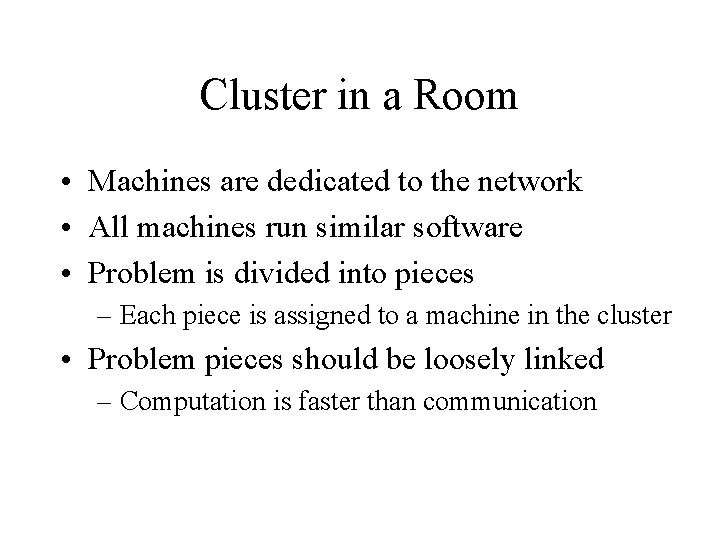

Cluster in a Room • Machines are dedicated to the network • All machines run similar software • Problem is divided into pieces – Each piece is assigned to a machine in the cluster • Problem pieces should be loosely linked – Computation is faster than communication

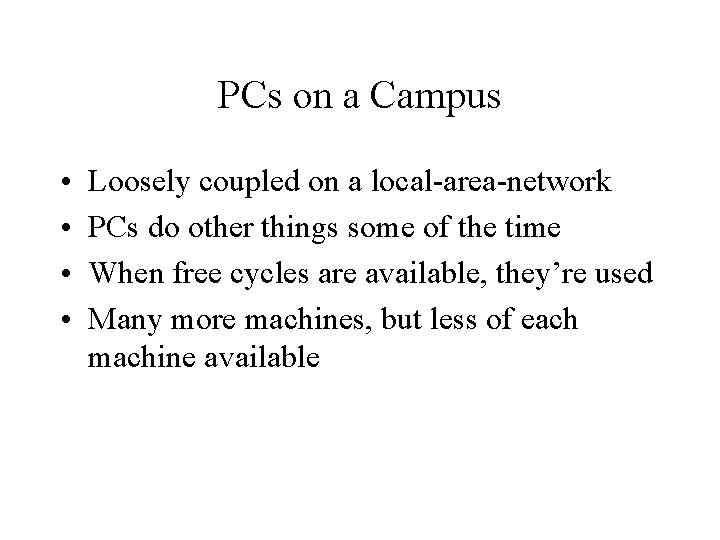

PCs on a Campus • • Loosely coupled on a local-area-network PCs do other things some of the time When free cycles are available, they’re used Many more machines, but less of each machine available

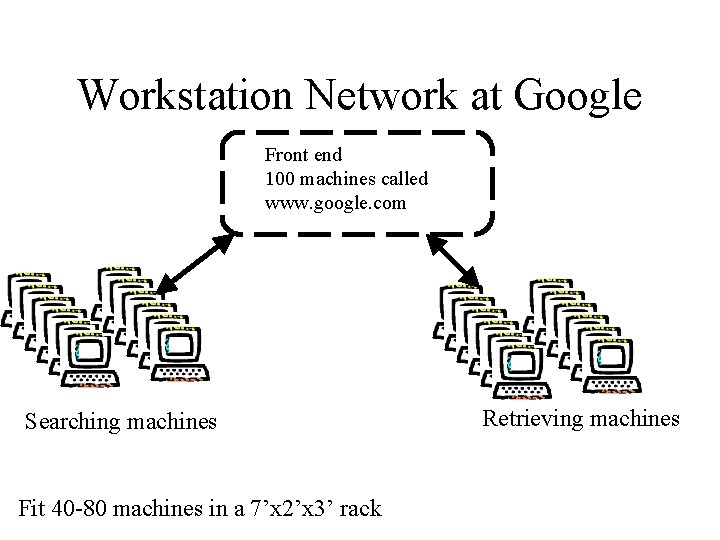

Workstation Network at Google Front end 100 machines called www. google. com Searching machines Fit 40 -80 machines in a 7’x 2’x 3’ rack Retrieving machines

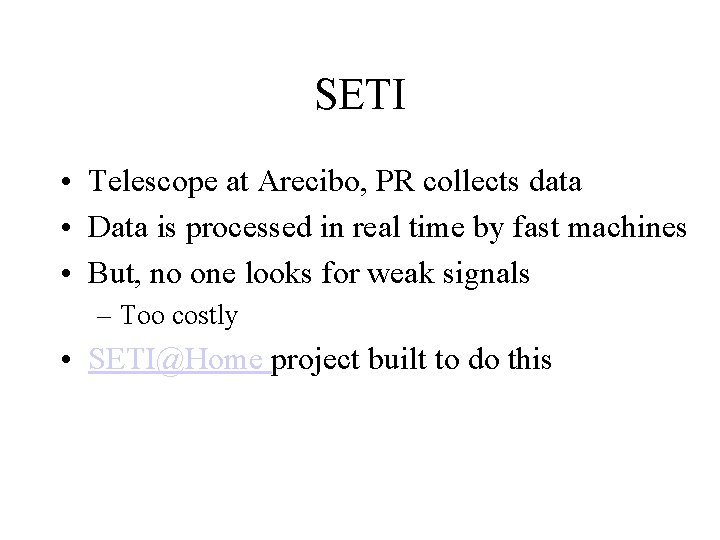

SETI • Telescope at Arecibo, PR collects data • Data is processed in real time by fast machines • But, no one looks for weak signals – Too costly • SETI@Home project built to do this

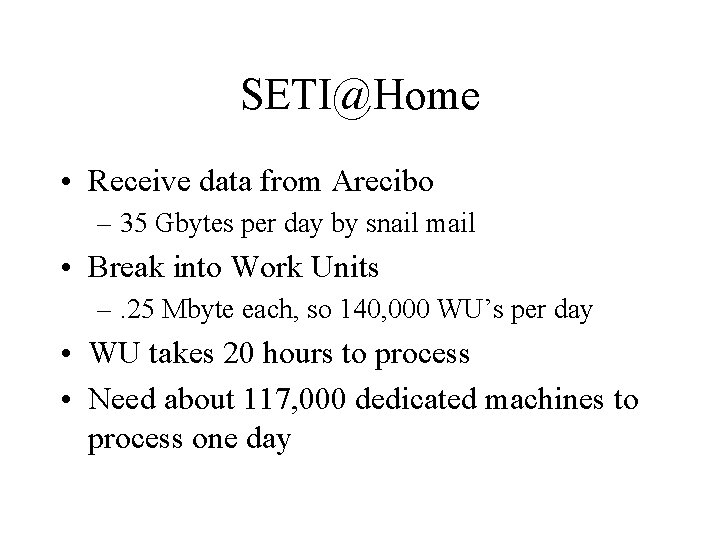

SETI@Home • Receive data from Arecibo – 35 Gbytes per day by snail mail • Break into Work Units –. 25 Mbyte each, so 140, 000 WU’s per day • WU takes 20 hours to process • Need about 117, 000 dedicated machines to process one day

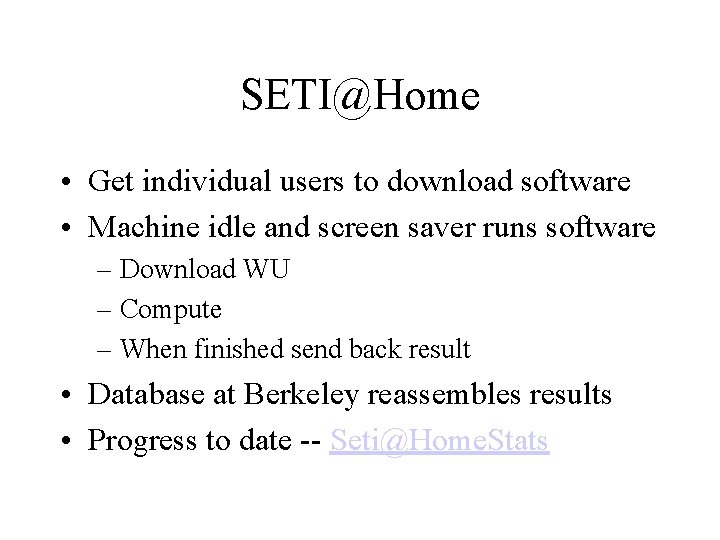

SETI@Home • Get individual users to download software • Machine idle and screen saver runs software – Download WU – Compute – When finished send back result • Database at Berkeley reassembles results • Progress to date -- Seti@Home. Stats

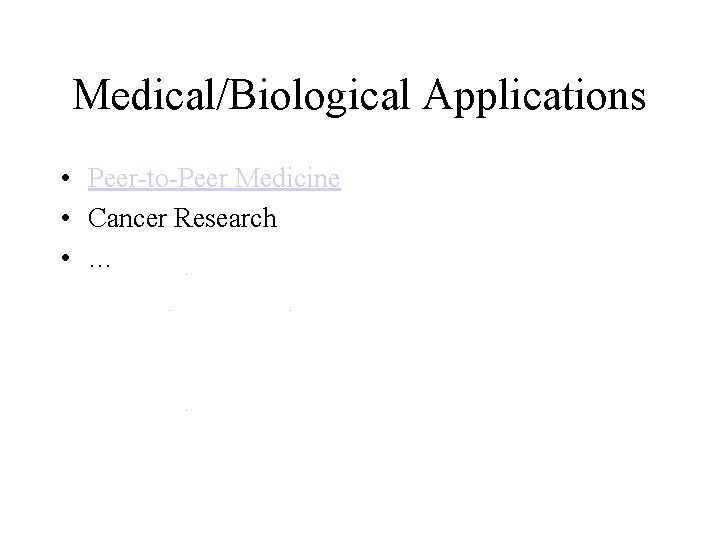

Medical/Biological Applications • Peer-to-Peer Medicine • Cancer Research • …
