Algorithm Analysis 2 P 03 Dave Bockus Acknowledgments

Algorithm Analysis 2 P 03 © Dave Bockus Acknowledgments to Mark Allen Weiss 2014 Data Structures & Algorithm Analysis in Java

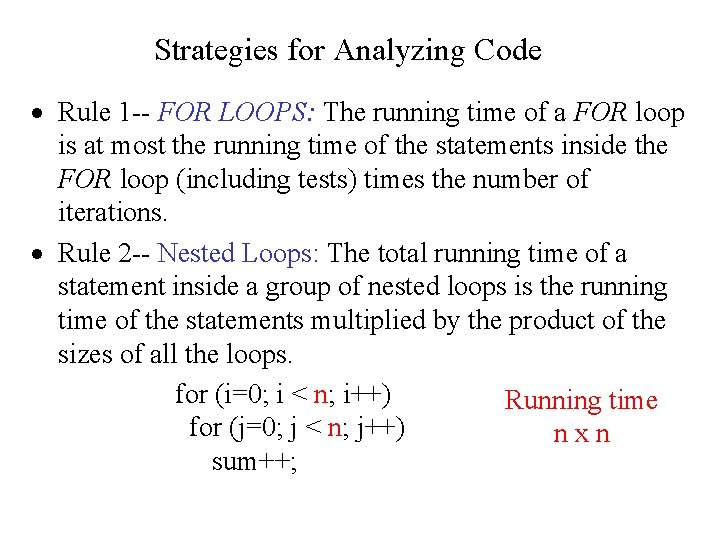

Strategies for Analyzing Code · Rule 1 -- FOR LOOPS: The running time of a FOR loop is at most the running time of the statements inside the FOR loop (including tests) times the number of iterations. · Rule 2 -- Nested Loops: The total running time of a statement inside a group of nested loops is the running time of the statements multiplied by the product of the sizes of all the loops. for (i=0; i < n; i++) Running time for (j=0; j < n; j++) nxn sum++;

Strategies for Analyzing Code Cont. . . · Rule 3 -- Consecutive Statements: Statements simply add up, where the largest statement takes precedence. for (int i = 0; i < n; i++) Statements A sum++; for (int i = 0; i < n; i++) for (int j = 0; j < n; j++) Statements B sum++; • Total running time is determined by statement set B

Strategies for Analyzing Code Cont. . . · Rule 4 -- If/Else: Running time of an IF/ELSE is never more than the running time of the test plus the larger of the running times of S 1 and S 2. If (condition) S 1 Else S 2 If (condition) for (int i = 0; i < n; i++) sum++; Else for (int i = 0; i < n; i++) for (int j = 0; j < n; j++) sum++; · Worst case is condition + S 2 = O(n 2)

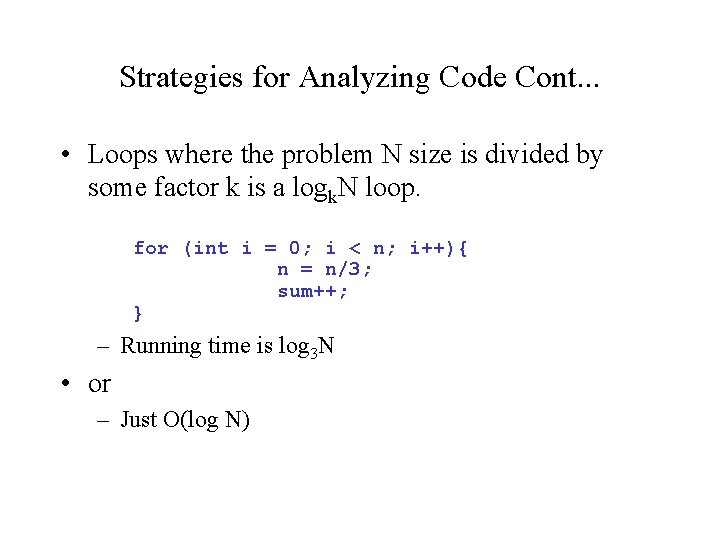

Strategies for Analyzing Code Cont. . . • Loops where the problem N size is divided by some factor k is a logk. N loop. for (int i = 0; i < n; i++){ n = n/3; sum++; } – Running time is log 3 N • or – Just O(log N)

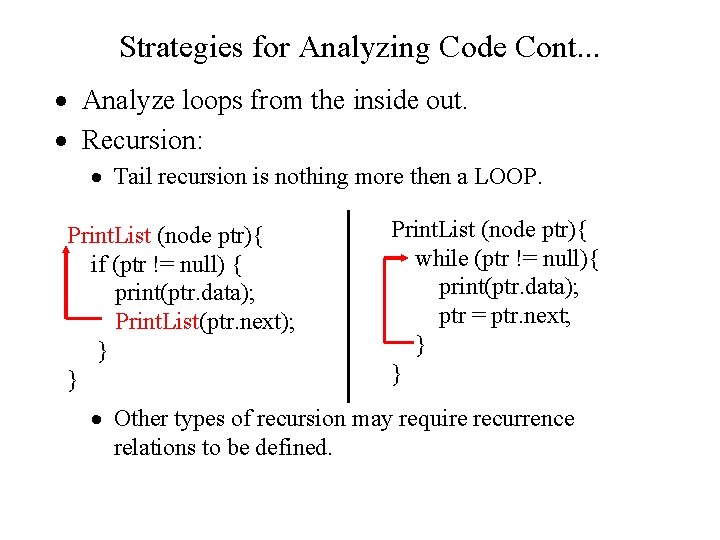

Strategies for Analyzing Code Cont. . . · Analyze loops from the inside out. · Recursion: · Tail recursion is nothing more then a LOOP. Print. List (node ptr){ if (ptr != null) { print(ptr. data); Print. List(ptr. next); } } Print. List (node ptr){ while (ptr != null){ print(ptr. data); ptr = ptr. next; } } · Other types of recursion may require recurrence relations to be defined.

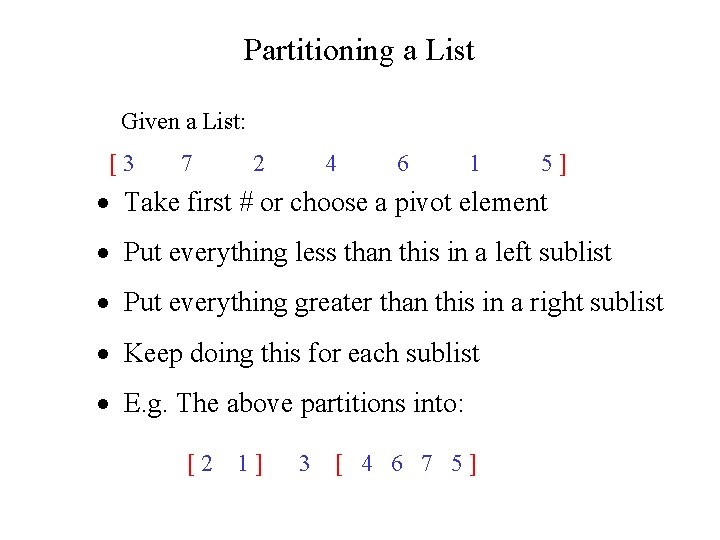

Partitioning a List Given a List: [3 7 2 4 6 1 5] · Take first # or choose a pivot element · Put everything less than this in a left sublist · Put everything greater than this in a right sublist · Keep doing this for each sublist · E. g. The above partitions into: [2 1] 3 [ 4 6 7 5]

Partitioning a List Cont… [3 7 2 4 6 1 5] i j 1). While jth element > ith element, reduce j [3 7 2 4 6 1 5] i j 2). Swap the ith and jth elements [1 7 2 4 6 3 5] i j 3). While ith element <= jth element, increase i [1 7 2 4 6 3 5] i j 4). Swap the ith and jth elements [1 3 2 4 6 7 5] i j 5). Repeat 1 to 4 until j=i

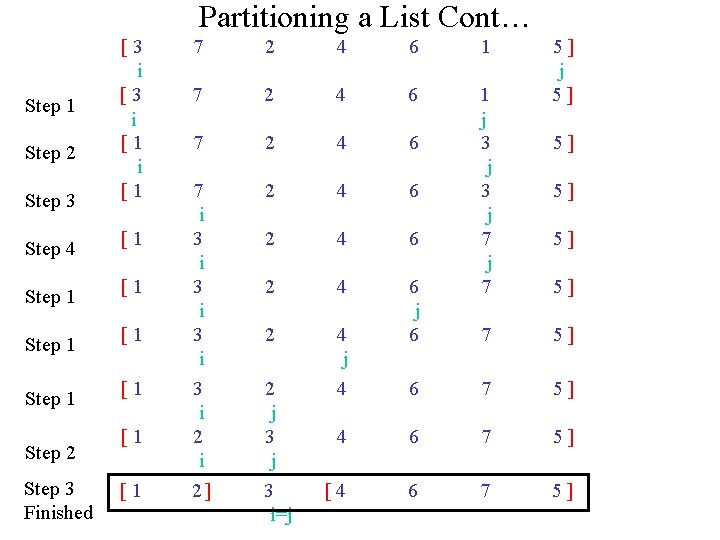

Partitioning a List Cont… Step 3 [3 i [1 Step 4 [1 Step 1 Step 2 Step 3 Finished [1 [1 7 2 4 6 7 i 3 i 3 i 2 4 6 2 4 2 4 j 4 6 j 6 1 j 3 j 7 2] 3 i=j 2 j 3 j 5] 5] 5] 7 5] 6 7 5] 4 6 7 5] [4 6 7 5]

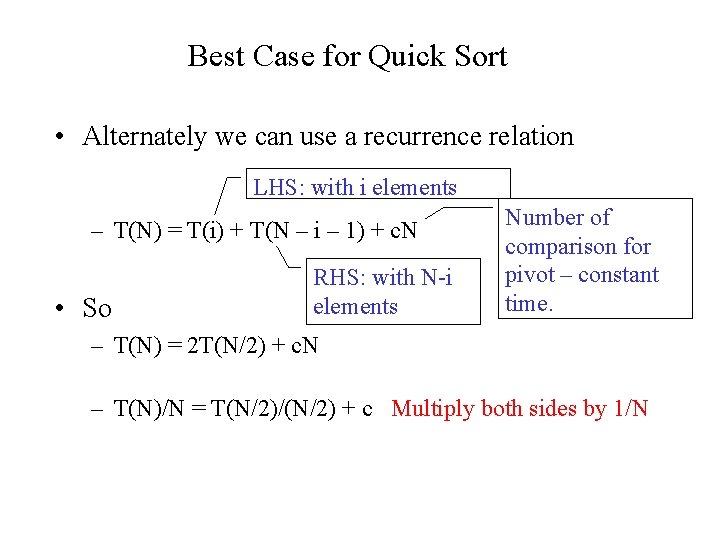

Best Case for Quick Sort • Alternately we can use a recurrence relation LHS: with i elements – T(N) = T(i) + T(N – i – 1) + c. N • So RHS: with N-i elements Number of comparison for pivot – constant time. – T(N) = 2 T(N/2) + c. N – T(N)/N = T(N/2)/(N/2) + c Multiply both sides by 1/N

Best Case QS Continued. . . • Cut list in ½ for each iteration until 1 element in partition – – T(N)/N = T(N/2)/(N/2) + c T(N/2)/(N/2)= T(N/4)/(N/4) + c T(N/4)/(N/4)= T(N/8)/(N/8) + c T(N/8)/(N/8)= T(N/16)/(N/16) + c • at some point – T(2)/(2)= T(1)/(1) + c

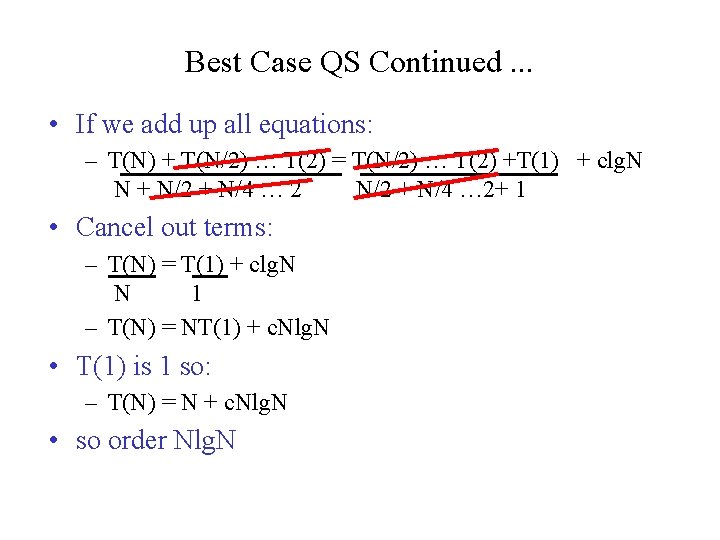

Best Case QS Continued. . . • If we add up all equations: – T(N) + T(N/2) … T(2) = T(N/2) … T(2) +T(1) + clg. N N + N/2 + N/4 … 2+ 1 • Cancel out terms: – T(N) = T(1) + clg. N N 1 – T(N) = NT(1) + c. Nlg. N • T(1) is 1 so: – T(N) = N + c. Nlg. N • so order Nlg. N

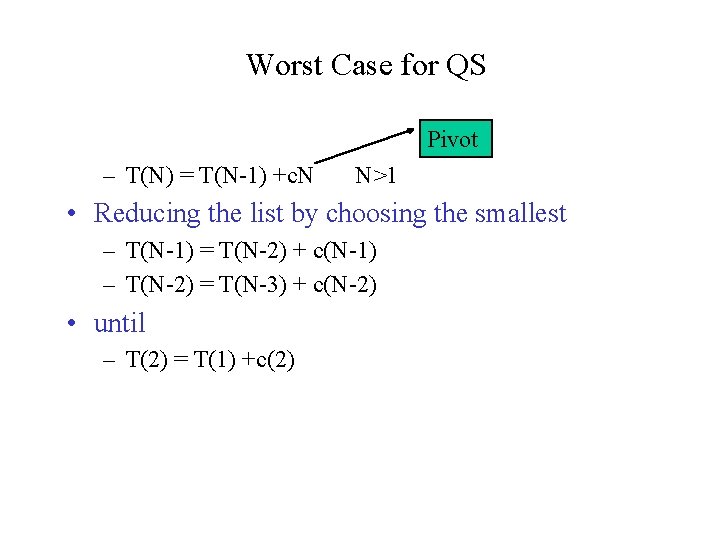

Worst Case for QS Pivot – T(N) = T(N-1) +c. N N>1 • Reducing the list by choosing the smallest – T(N-1) = T(N-2) + c(N-1) – T(N-2) = T(N-3) + c(N-2) • until – T(2) = T(1) +c(2)

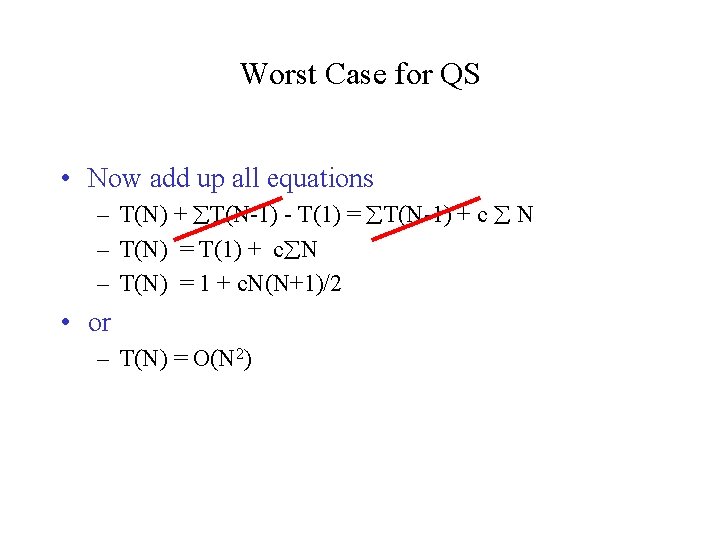

Worst Case for QS • Now add up all equations – T(N) + T(N-1) - T(1) = T(N-1) + c N – T(N) = T(1) + c N – T(N) = 1 + c. N(N+1)/2 • or – T(N) = O(N 2)

Exercise: Bubble Sort • Determine the run time equation and complexity of bubble sort? for (i=1; i<=n; i++) for (j=1; j<n; j++) { {compare & swap} if (x[j] > x[j+1]) swap } · The basic BS compares every element with every other element. · Each time through the loop n elements are compared. · Since we do this n times there are n x n or n 2 comparisons. · Runtime equation is f(n) = n 2 with On 2 complexity

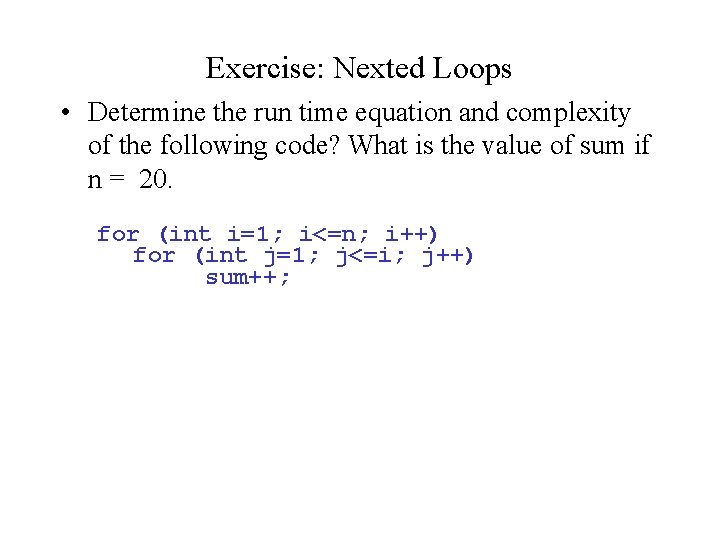

Exercise: Nexted Loops • Determine the run time equation and complexity of the following code? What is the value of sum if n = 20. for (int i=1; i<=n; i++) for (int j=1; j<=i; j++) sum++;

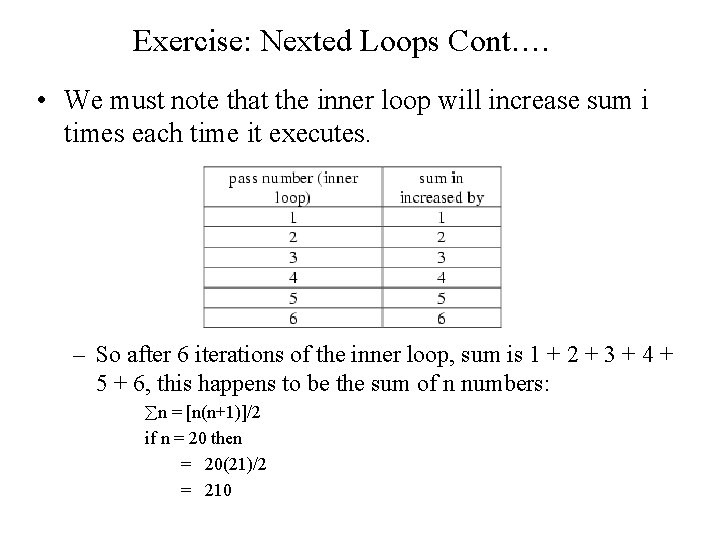

Exercise: Nexted Loops Cont…. • We must note that the inner loop will increase sum i times each time it executes. – So after 6 iterations of the inner loop, sum is 1 + 2 + 3 + 4 + 5 + 6, this happens to be the sum of n numbers: n = [n(n+1)]/2 if n = 20 then = 20(21)/2 = 210

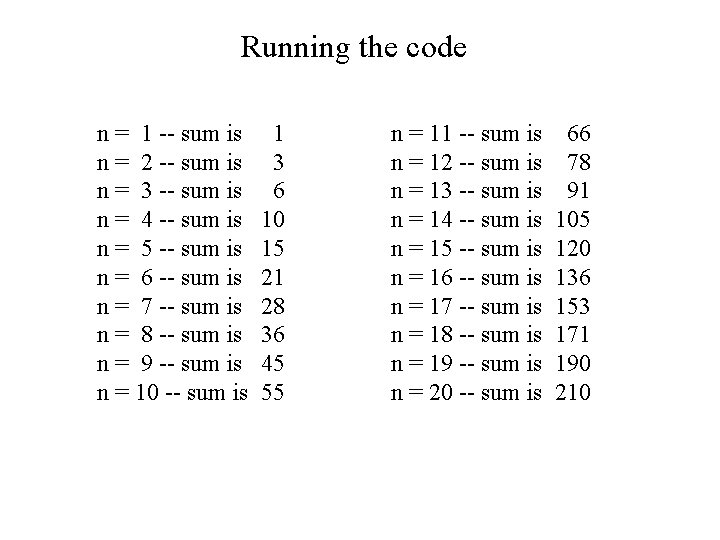

Running the code n = 1 -- sum is n = 2 -- sum is n = 3 -- sum is n = 4 -- sum is n = 5 -- sum is n = 6 -- sum is n = 7 -- sum is n = 8 -- sum is n = 9 -- sum is n = 10 -- sum is 1 3 6 10 15 21 28 36 45 55 n = 11 -- sum is n = 12 -- sum is n = 13 -- sum is n = 14 -- sum is n = 15 -- sum is n = 16 -- sum is n = 17 -- sum is n = 18 -- sum is n = 19 -- sum is n = 20 -- sum is 66 78 91 105 120 136 153 171 190 210
