Alberta Agriculture and Food AF Surface Meteorological Stations

Alberta Agriculture and Food (AF) Surface Meteorological Stations and Data Quality Control Procedures 1

Presentation Overview • Existing and proposed (AF) network • Data QA/QC • • • Parameter list Quality states QA/QC checks Data filling Conclusions 2

Meteorological Station Expansion • 67 N-R-T scalable station platforms • ►all season ppt (GEONOR) ►temperature ►humidity • ► GOES platform ► 2 M wind speed • ► Campbell Cr 10 x-2 m loggers • Additional sensors can be added later • Data will be freely accessible and sensors can be added by any one with dollars, with the caveat that all data would be public domain. • Currently 44 are installed and operational • 23 more will be operational by May 1, 2008 3

AF Stations: (N = 113) • Common Elements • ►All season ppt (GEONOR) ►Temperature ►Humidity • ►Wind speed 2 m ►GOES platform ► Campbell Cr 10 x-2 m loggers • 36 Drought Net Stations (AGDM) • • Incoming short-wave solar radiation (26) Net solar radiation (3) Wind speed and direction at 10 m (36) Soil moisture and temperature at 5, 20, 50, 100 cm (30) • 10 IMCIN Stations • Incoming short-wave solar radiation (10) • Wind speed and direction at 10 m (10) • 67 Agriculture Climate Monitoring Stations (AGCM) • Wind direction at 2 m (15) • Incoming Short-wave solar radiation(15) 4

5

Existing and proposed stations in Alberta’s Near-Real-Time Network AGDM (AF) ACGM (AF) IMCIN (AF) Other (AENV AES SRD) 20 km buffer 6

A QA/QC and Data-Filling Decision Support System for Near Real-Time Climate Data Providing computer-assisted quality assurance, quality control and data filling 7

Parameter List (Hourly) • • Temperature Humidity Solar Radiation Wind Speed Wind Direction Precipitation (hourly and 6 hourly) Soil Moisture Soil Temperature 8

Quality States • Valid • Not needed to be checked by a human • Suspect • Needs to be checked by a human and validated or filled • Invalid • Needs to be checked by a human and filled • Missing • Needs to be checked by a human and filled 9

QA/QC Checks • Range • • • within a reasonable range Step • maximum allowable change Persistence • minimum allowable change Like Sensor • similar value to similar sensors Spatial • similar value to neighboring stations (parameter dependent) 10

Methodology for Defining QA/QC checks • We used the hourly period of record supplied by Environment Canada that contains >25 million records from 250 stations in and around Alberta • An adjustable trigger point for the “suspect” occurrences was set at 0. 01% (1: 10, 000) for each test • Arbitrary and adjustable (default or station specific) • For 200 stations examine @ 50 hourly values per day 11

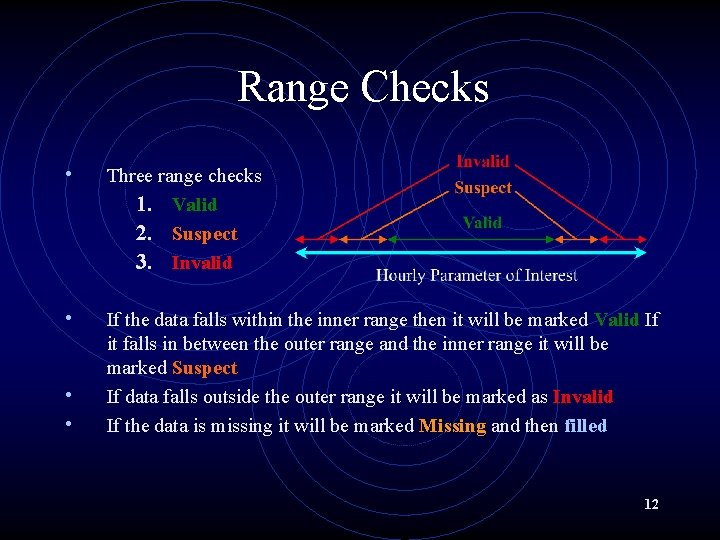

Range Checks • Three range checks 1. Valid 2. Suspect 3. Invalid • If the data falls within the inner range then it will be marked Valid If it falls in between the outer range and the inner range it will be marked Suspect If data falls outside the outer range it will be marked as Invalid If the data is missing it will be marked Missing and then filled • • 12

Range Checks: Solar Radiation Invalid Suspect Valid -0 Hourly Solar Radiation (W m-2) 950 13

Range Checks: Temperature: 14

Data Filling • • Temporal filling Spatial filling (IDW) Spatial-temporal filling (IDW+) Manual filling In every parameter’s daily rollup you know how many records were filled so you can judge the validity of the daily value 15

Conclusions • Relatively dense high quality and scalable network in the Agricultural area of Alberta • We have a state of the art QA/QC process that is both flexible and data driven • Reduces man power • Capable of generating error logs for maintenance checks 16

17

Persistence Check Difference of Maximum and Minimum over n steps must be greater than y valid susp. valid Persistance Checks 18

Step Difference of maximum and minimum over n steps must be at most y susp. valid valid Step Checks 19

Other Tests • Like Sensors • Relating wind speed 2 M to wind speed 10 M • Relating occurrence of precipitation to humidity • Nearest Neighbors 20

Temporal Filling: for most parameters One value missing either side Simply average of two values adjacent values M Up to X values missing linearly interpolate missing values from valid end points M Missing or Invalid If more than X consecutive values are missing use spatial interpolation • 3 for most parameters • 6 for Soil Temperature • 12 for Soil Moisture Data Filling 21

Spatial filling: Inverse Distance Weighting • Adjustable parameter • • • dependent radius Max 8 neighbors Rainfall = 70 km radius Other = 120 km radius Else use nearest station if within X radius Else use nearest station and mark as suspect Data Filling 22
