AL- Furat AL - Awsat Technical University Karbala Technical Institute Department - Computer Systems Techniques Data Structures To the second year students Prepared by the lecturer: Mohammed Thajeel 2016 -2017

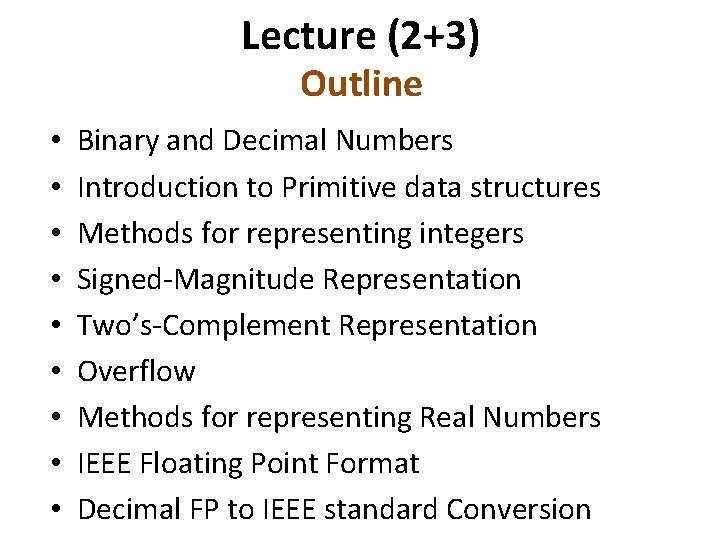

Lecture (2+3) Outline • • • Binary and Decimal Numbers Introduction to Primitive data structures Methods for representing integers Signed-Magnitude Representation Two’s-Complement Representation Overflow Methods for representing Real Numbers IEEE Floating Point Format Decimal FP to IEEE standard Conversion

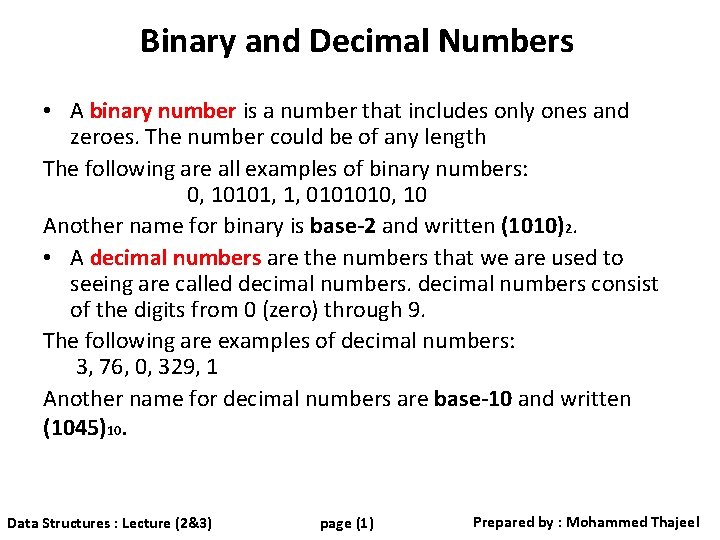

Binary and Decimal Numbers • A binary number is a number that includes only ones and zeroes. The number could be of any length The following are all examples of binary numbers: 0, 10101, 1, 0101010, 10 Another name for binary is base-2 and written (1010)2. • A decimal numbers are the numbers that we are used to seeing are called decimal numbers consist of the digits from 0 (zero) through 9. The following are examples of decimal numbers: 3, 76, 0, 329, 1 Another name for decimal numbers are base-10 and written (1045)10. Data Structures : Lecture (2&3) page (1) Prepared by : Mohammed Thajeel

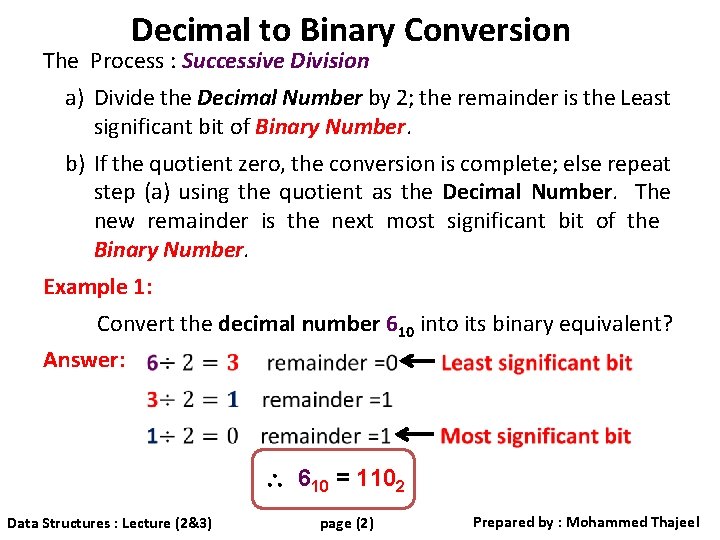

Decimal to Binary Conversion The Process : Successive Division a) Divide the Decimal Number by 2; the remainder is the Least significant bit of Binary Number. b) If the quotient zero, the conversion is complete; else repeat step (a) using the quotient as the Decimal Number. The new remainder is the next most significant bit of the Binary Number. Example 1: Convert the decimal number 610 into its binary equivalent? Answer: 610 = 1102 Data Structures : Lecture (2&3) page (2) Prepared by : Mohammed Thajeel

Binary Addition and Subtraction Rules • Addition Rules (1 -bit) 1) 2) 0 3) 1 0 + 0 + 1 0 1 1 • Subtraction Rules (1 -bit) 1) 0 2) 1 4) 1 + 1 10 Carry-out 3) 1 4) 0 - 1 - 0 - 1 0 0 1 1 Note: What we see in subtraction rule ( 4 ) is the end result of a borrow process Data Structures : Lecture (2&3) page (3) Prepared by : Mohammed Thajeel

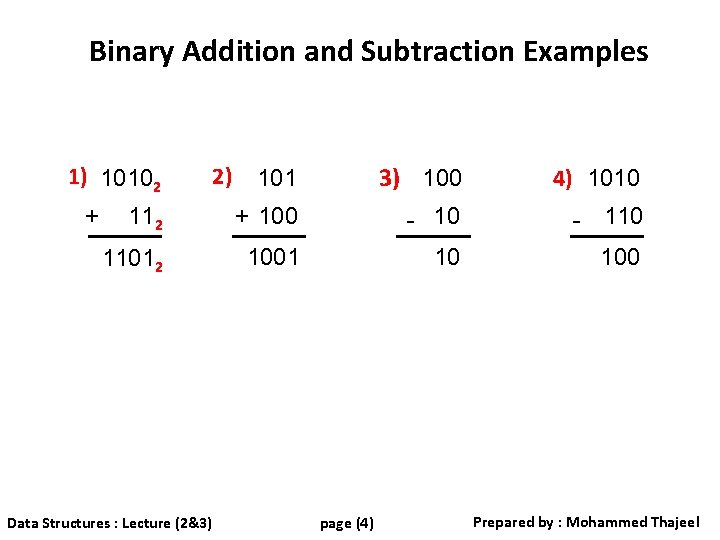

Binary Addition and Subtraction Examples 101 3) 100 4) 1010 112 + 100 - 110 11012 1001 10 100 1) 10102 + Data Structures : Lecture (2&3) 2) page (4) Prepared by : Mohammed Thajeel

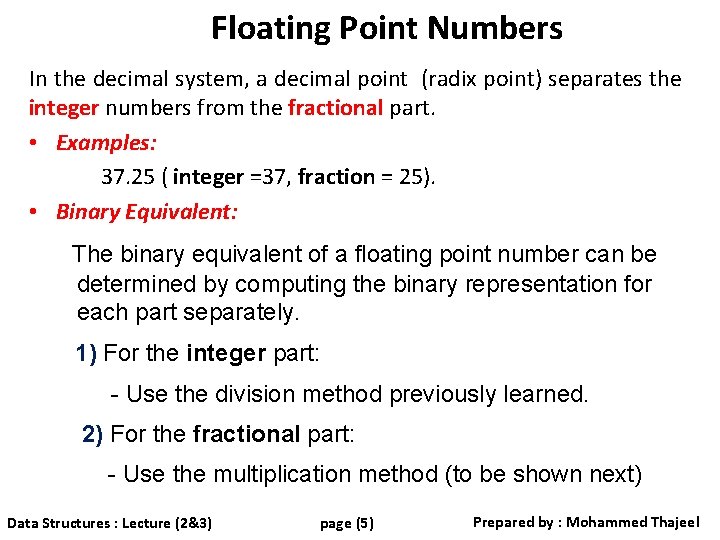

Floating Point Numbers In the decimal system, a decimal point (radix point) separates the integer numbers from the fractional part. • Examples: 37. 25 ( integer =37, fraction = 25). • Binary Equivalent: The binary equivalent of a floating point number can be determined by computing the binary representation for each part separately. 1) For the integer part: - Use the division method previously learned. 2) For the fractional part: - Use the multiplication method (to be shown next) Data Structures : Lecture (2&3) page (5) Prepared by : Mohammed Thajeel

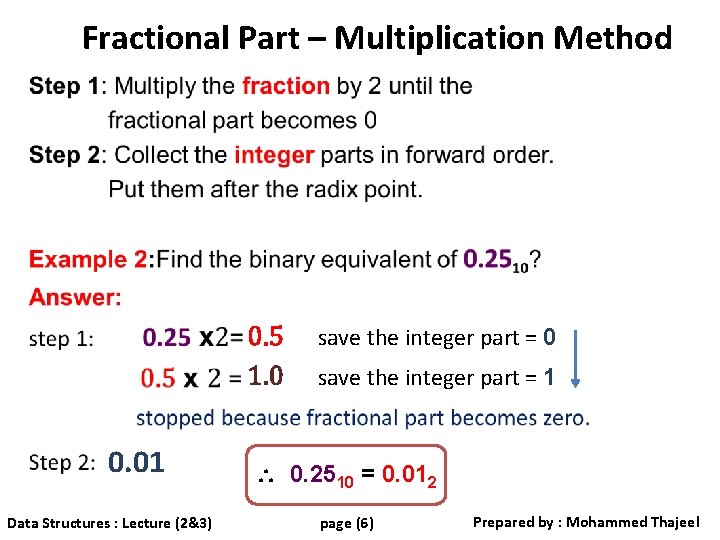

Fractional Part – Multiplication Method 0. 5 1. 0 0. 01 Data Structures : Lecture (2&3) save the integer part = 0 save the integer part = 1 0. 2510 = 0. 012 page (6) Prepared by : Mohammed Thajeel

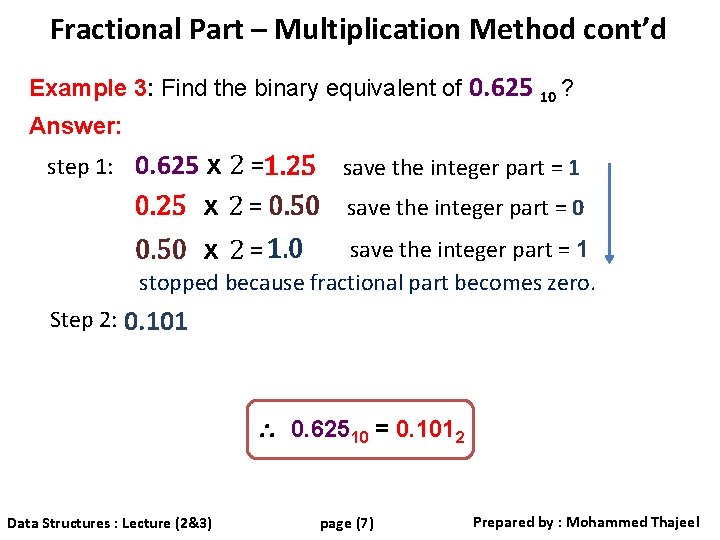

Fractional Part – Multiplication Method cont’d Example 3: Find the binary equivalent of 0. 625 10 ? Answer: step 1: 0. 625 x 2 =1. 25 save the integer part = 1 0. 25 x 2 = 0. 50 save the integer part = 0 0. 50 x 2 = 1. 0 save the integer part = 1 stopped because fractional part becomes zero. Step 2: 0. 101 0. 62510 = 0. 1012 Data Structures : Lecture (2&3) page (7) Prepared by : Mohammed Thajeel

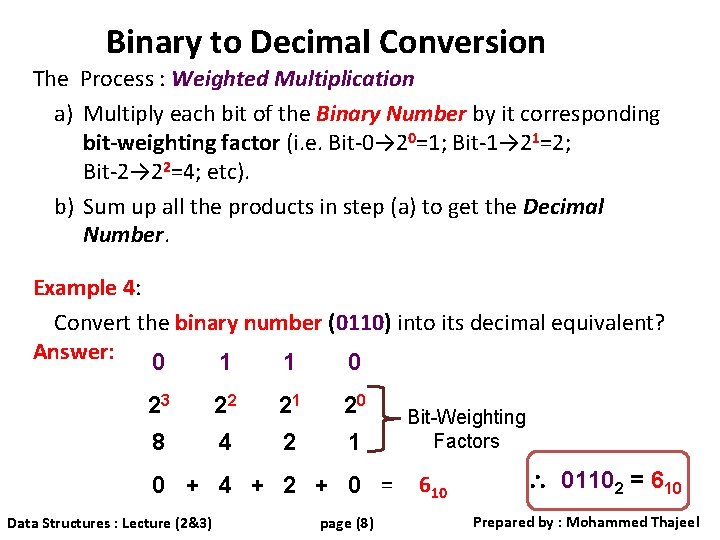

Binary to Decimal Conversion The Process : Weighted Multiplication a) Multiply each bit of the Binary Number by it corresponding bit-weighting factor (i. e. Bit-0→ 20=1; Bit-1→ 21=2; Bit-2→ 22=4; etc). b) Sum up all the products in step (a) to get the Decimal Number. Example 4: Convert the binary number (0110) into its decimal equivalent? Answer: 0 1 1 0 23 22 21 20 8 4 2 1 0 + 4 + 2 + 0 = Data Structures : Lecture (2&3) page (8) Bit-Weighting Factors 610 01102 = 610 Prepared by : Mohammed Thajeel

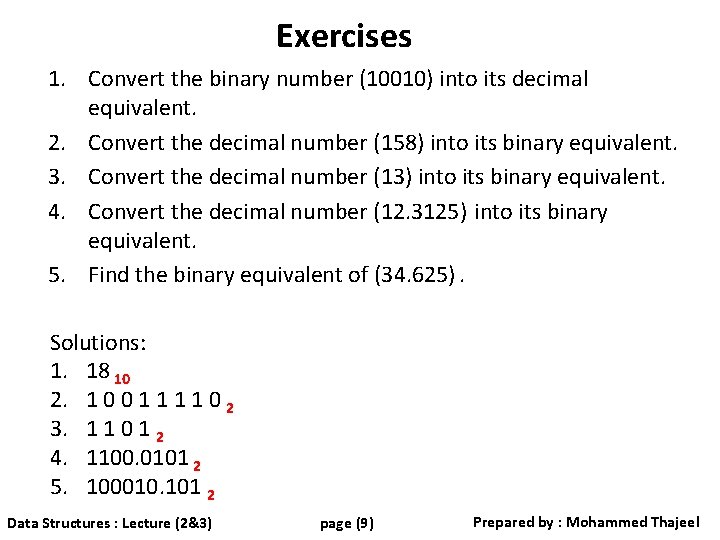

Exercises 1. Convert the binary number (10010) into its decimal equivalent. 2. Convert the decimal number (158) into its binary equivalent. 3. Convert the decimal number (13) into its binary equivalent. 4. Convert the decimal number (12. 3125) into its binary equivalent. 5. Find the binary equivalent of (34. 625). Solutions: 1. 18 10 2. 1 0 0 1 1 0 2 3. 1 1 0 1 2 4. 1100. 0101 2 5. 100010. 101 2 Data Structures : Lecture (2&3) page (9) Prepared by : Mohammed Thajeel

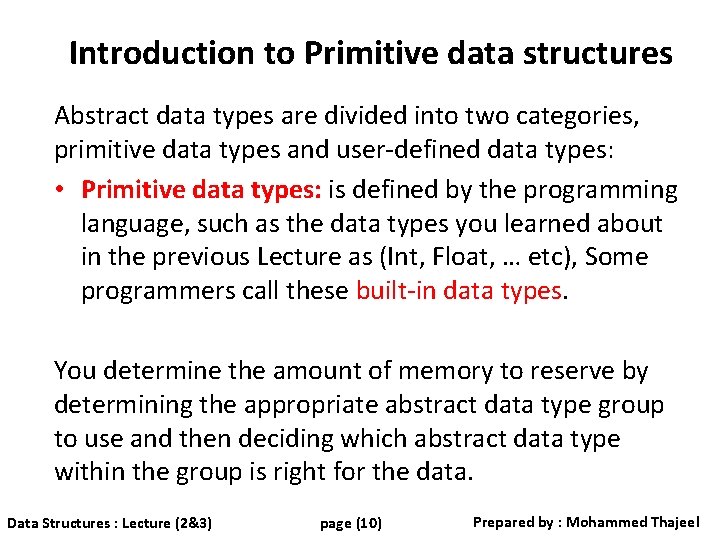

Introduction to Primitive data structures Abstract data types are divided into two categories, primitive data types and user-defined data types: • Primitive data types: is defined by the programming language, such as the data types you learned about in the previous Lecture as (Int, Float, … etc), Some programmers call these built-in data types. You determine the amount of memory to reserve by determining the appropriate abstract data type group to use and then deciding which abstract data type within the group is right for the data. Data Structures : Lecture (2&3) page (10) Prepared by : Mohammed Thajeel

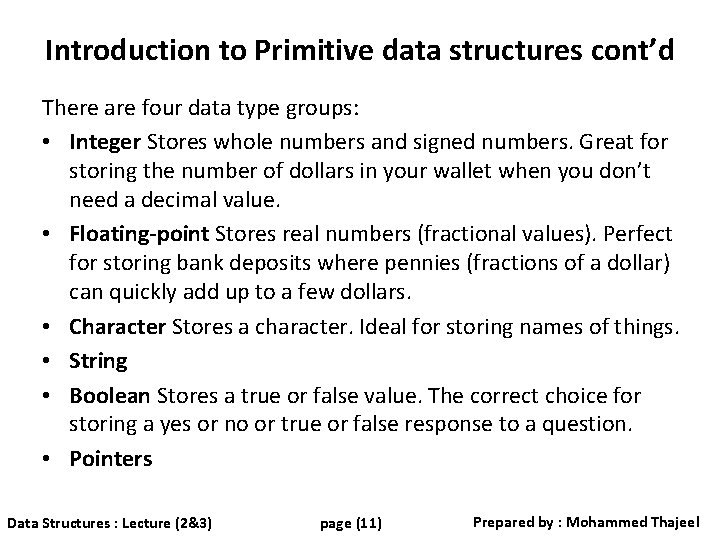

Introduction to Primitive data structures cont’d There are four data type groups: • Integer Stores whole numbers and signed numbers. Great for storing the number of dollars in your wallet when you don’t need a decimal value. • Floating-point Stores real numbers (fractional values). Perfect for storing bank deposits where pennies (fractions of a dollar) can quickly add up to a few dollars. • Character Stores a character. Ideal for storing names of things. • String • Boolean Stores a true or false value. The correct choice for storing a yes or no or true or false response to a question. • Pointers Data Structures : Lecture (2&3) page (11) Prepared by : Mohammed Thajeel

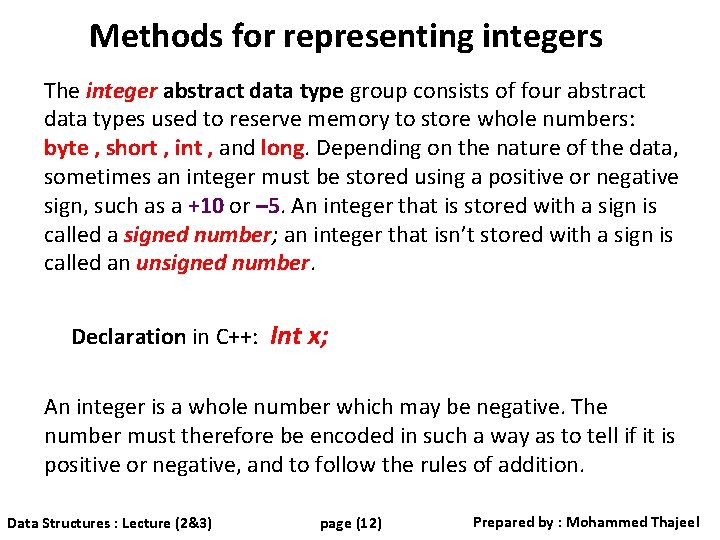

Methods for representing integers The integer abstract data type group consists of four abstract data types used to reserve memory to store whole numbers: byte , short , int , and long. Depending on the nature of the data, sometimes an integer must be stored using a positive or negative sign, such as a +10 or – 5. An integer that is stored with a sign is called a signed number; an integer that isn’t stored with a sign is called an unsigned number. Declaration in C++: Int x; An integer is a whole number which may be negative. The number must therefore be encoded in such a way as to tell if it is positive or negative, and to follow the rules of addition. Data Structures : Lecture (2&3) page (12) Prepared by : Mohammed Thajeel

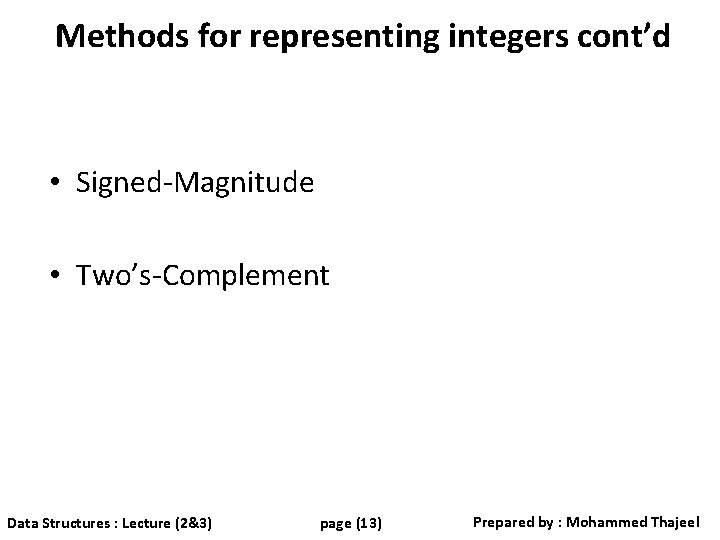

Methods for representing integers cont’d • Signed-Magnitude • Two’s-Complement Data Structures : Lecture (2&3) page (13) Prepared by : Mohammed Thajeel

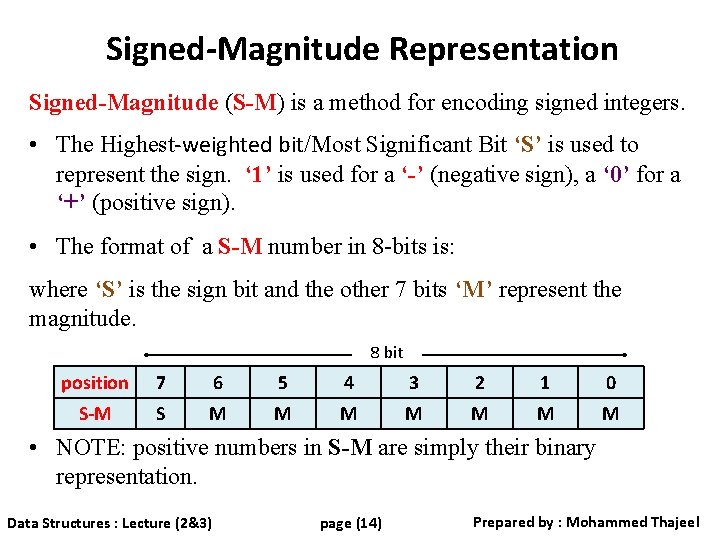

Signed-Magnitude Representation Signed-Magnitude (S-M) is a method for encoding signed integers. • The Highest-weighted bit/Most Significant Bit ‘S’ is used to represent the sign. ‘ 1’ is used for a ‘-’ (negative sign), a ‘ 0’ for a ‘+’ (positive sign). • The format of a S-M number in 8 -bits is: where ‘S’ is the sign bit and the other 7 bits ‘M’ represent the magnitude. 8 bit position 7 6 5 4 3 2 1 0 S-M S M M M M • NOTE: positive numbers in S-M are simply their binary representation. Data Structures : Lecture (2&3) page (14) Prepared by : Mohammed Thajeel

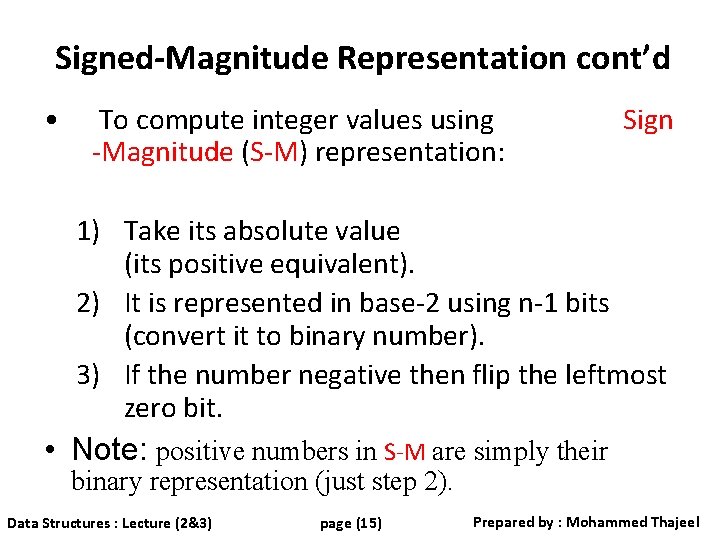

Signed-Magnitude Representation cont’d • To compute integer values using Sign -Magnitude (S-M) representation: 1) Take its absolute value (its positive equivalent). 2) It is represented in base-2 using n-1 bits (convert it to binary number). 3) If the number negative then flip the leftmost zero bit. • Note: positive numbers in S-M are simply their binary representation (just step 2). Data Structures : Lecture (2&3) page (15) Prepared by : Mohammed Thajeel

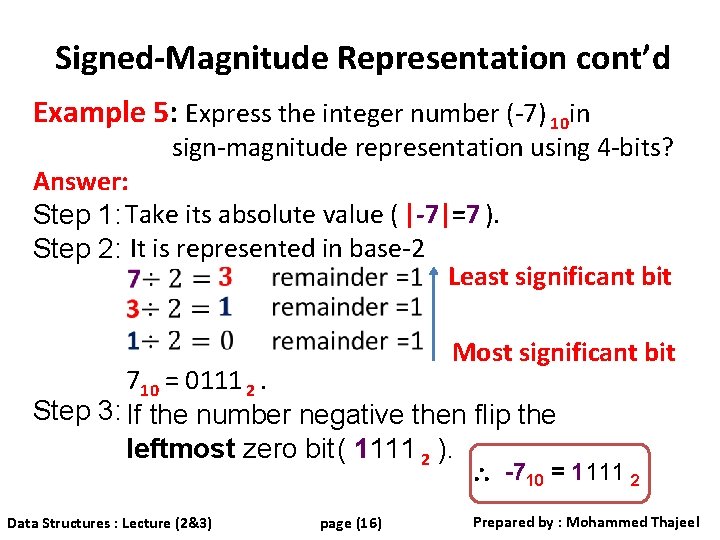

Signed-Magnitude Representation cont’d Example 5: Express the integer number (-7) 10 in sign-magnitude representation using 4 -bits? Answer: Step 1: Take its absolute value ( |-7|=7 ). Step 2: It is represented in base-2 Least significant bit 710 = 0111 2. Most significant bit Step 3: If the number negative then flip the leftmost zero bit ( 1111 2 ). -710 = 1111 2 Data Structures : Lecture (2&3) page (16) Prepared by : Mohammed Thajeel

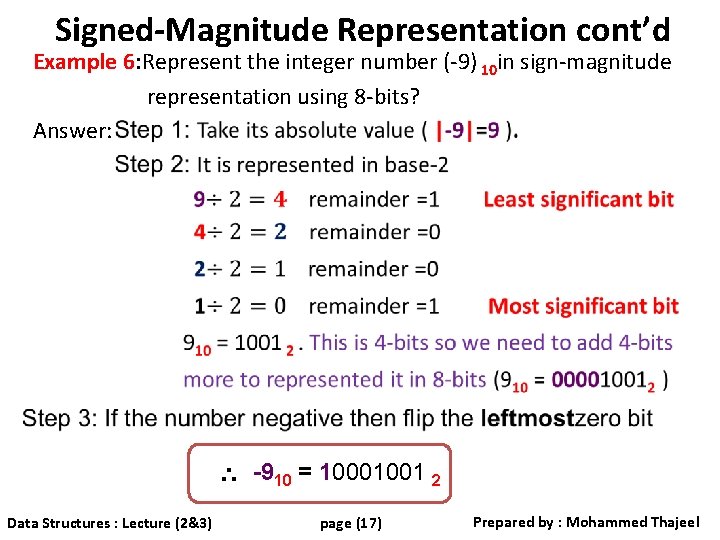

Signed-Magnitude Representation cont’d Example 6: Represent the integer number (-9) 10 in sign-magnitude representation using 8 -bits? Answer: -910 = 10001001 2 Data Structures : Lecture (2&3) page (17) Prepared by : Mohammed Thajeel

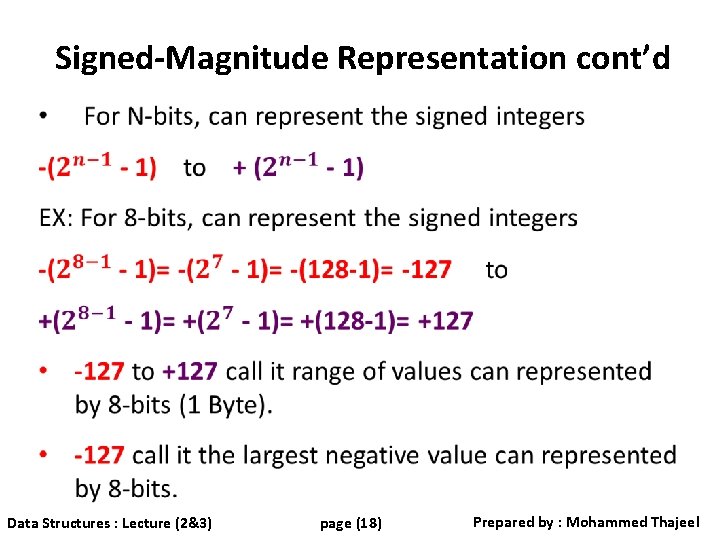

Signed-Magnitude Representation cont’d Data Structures : Lecture (2&3) page (18) Prepared by : Mohammed Thajeel

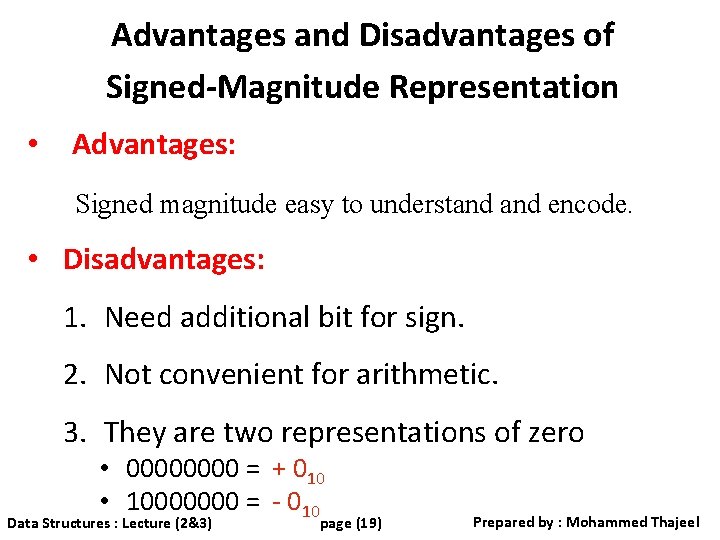

Advantages and Disadvantages of Signed-Magnitude Representation • Advantages: Signed magnitude easy to understand encode. • Disadvantages: 1. Need additional bit for sign. 2. Not convenient for arithmetic. 3. They are two representations of zero • 0000 = + 010 • 10000000 = - 010 Data Structures : Lecture (2&3) page (19) Prepared by : Mohammed Thajeel

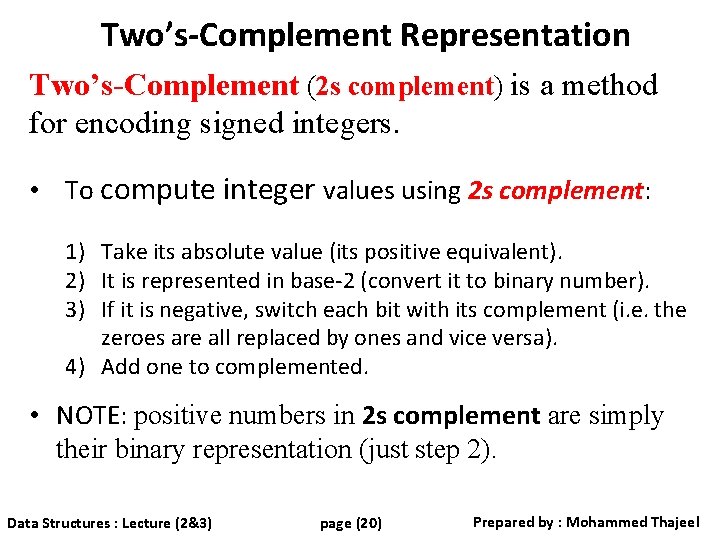

Two’s-Complement Representation Two’s-Complement (2 s complement) is a method for encoding signed integers. • To compute integer values using 2 s complement: 1) Take its absolute value (its positive equivalent). 2) It is represented in base-2 (convert it to binary number). 3) If it is negative, switch each bit with its complement (i. e. the zeroes are all replaced by ones and vice versa). 4) Add one to complemented. • NOTE: positive numbers in 2 s complement are simply their binary representation (just step 2). Data Structures : Lecture (2&3) page (20) Prepared by : Mohammed Thajeel

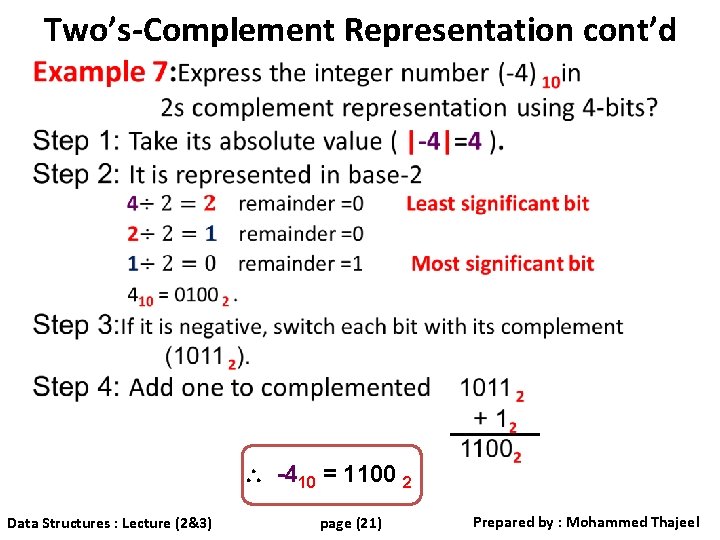

Two’s-Complement Representation cont’d -410 = 1100 2 Data Structures : Lecture (2&3) page (21) Prepared by : Mohammed Thajeel

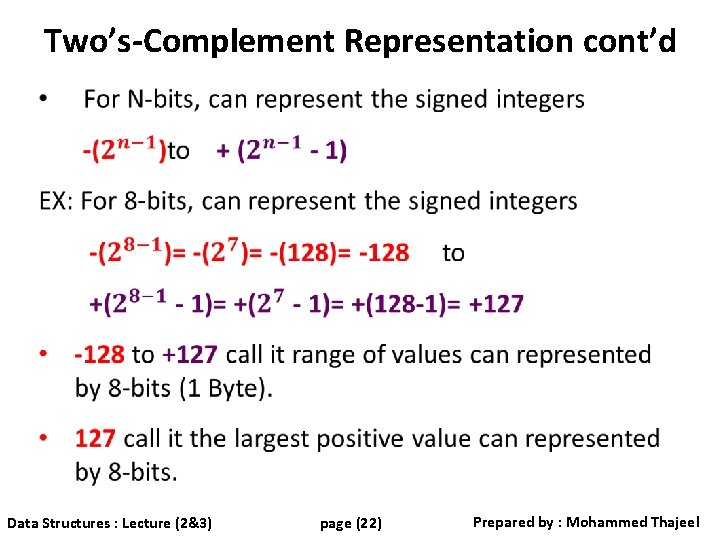

Two’s-Complement Representation cont’d Data Structures : Lecture (2&3) page (22) Prepared by : Mohammed Thajeel

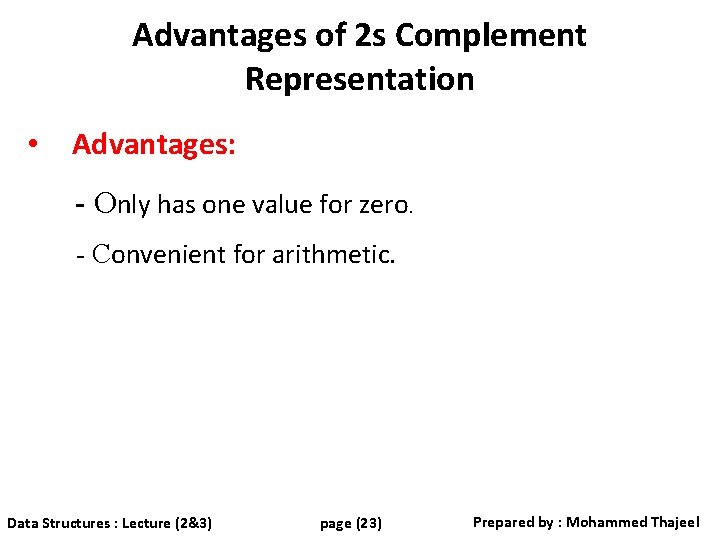

Advantages of 2 s Complement Representation • Advantages: - Only has one value for zero. - Convenient for arithmetic. Data Structures : Lecture (2&3) page (23) Prepared by : Mohammed Thajeel

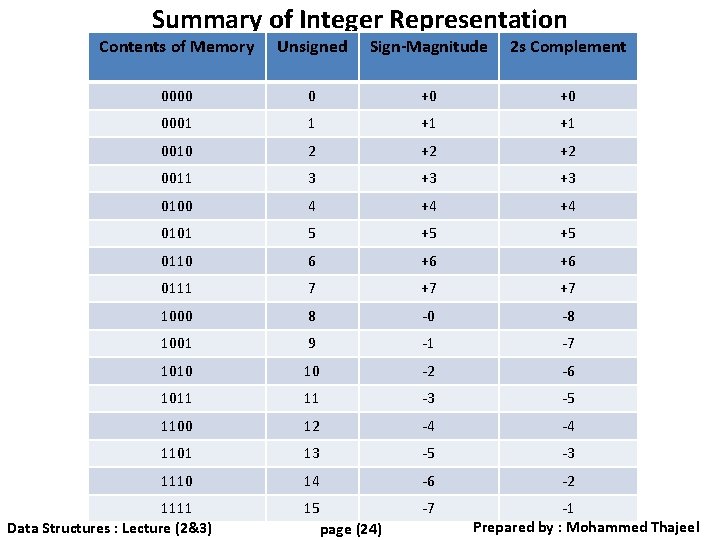

Summary of Integer Representation Contents of Memory Unsigned Sign-Magnitude 2 s Complement 0000 0 +0 +0 0001 1 +1 +1 0010 2 +2 +2 0011 3 +3 +3 0100 4 +4 +4 0101 5 +5 +5 0110 6 +6 +6 0111 7 +7 +7 1000 8 -0 -8 1001 9 -1 -7 1010 10 -2 -6 1011 11 -3 -5 1100 12 -4 -4 1101 13 -5 -3 1110 14 -6 -2 15 page (24) -7 1111 Data Structures : Lecture (2&3) -1 Prepared by : Mohammed Thajeel

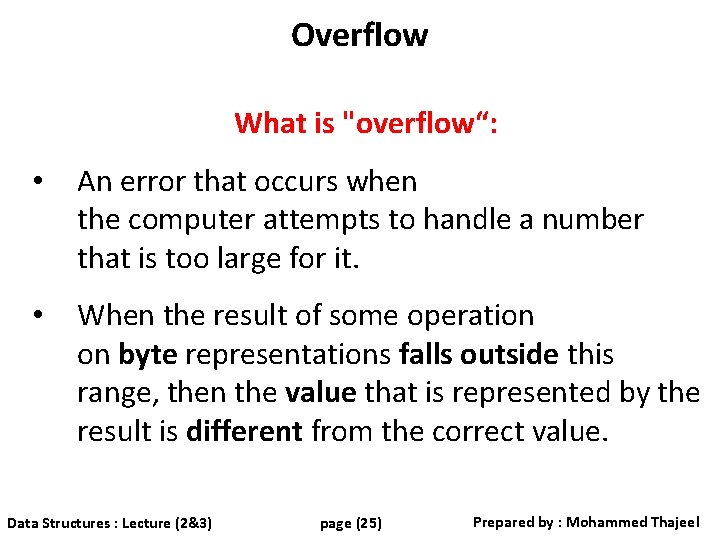

Overflow What is "overflow“: • An error that occurs when the computer attempts to handle a number that is too large for it. • When the result of some operation on byte representations falls outside this range, then the value that is represented by the result is different from the correct value. Data Structures : Lecture (2&3) page (25) Prepared by : Mohammed Thajeel

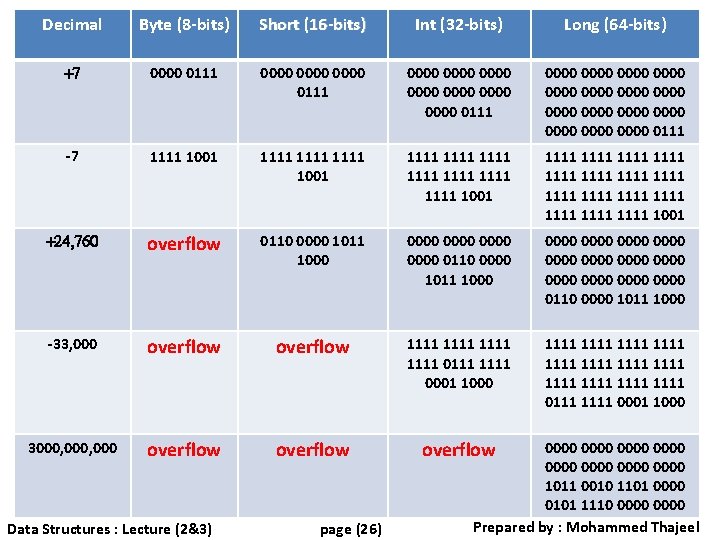

Decimal Byte (8 -bits) Short (16 -bits) Int (32 -bits) Long (64 -bits) +7 0000 0111 0000 0000 0000 0000 0000 0000 0111 -7 1111 1001 1111 1111 1111 1111 1111 1111 1001 +24, 760 overflow 0110 0000 1011 1000 0000 0000 0000 0000 0110 0000 1011 1000 -33, 000 overflow 1111 0111 1111 0001 1000 1111 1111 1111 0111 1111 0001 1000 3000, 000 overflow Data Structures : Lecture (2&3) page (26) 0000 0000 1011 0010 1101 0000 0101 1110 0000 Prepared by : Mohammed Thajeel

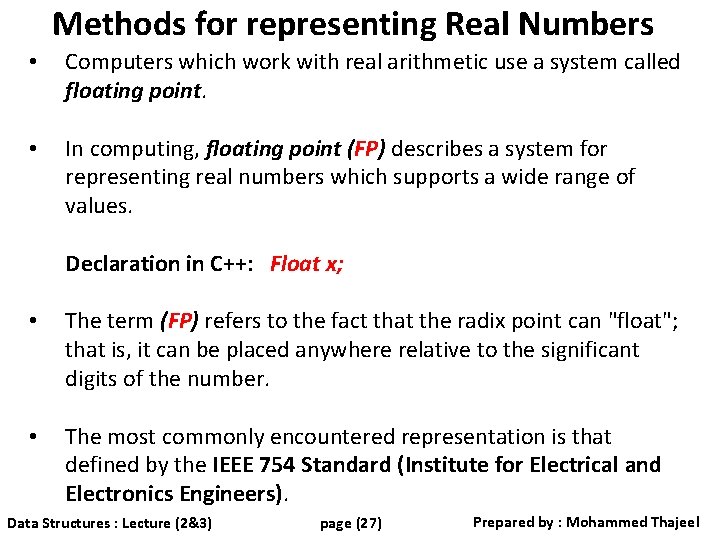

Methods for representing Real Numbers • Computers which work with real arithmetic use a system called floating point. • In computing, floating point (FP) describes a system for representing real numbers which supports a wide range of values. Declaration in C++: Float x; • The term (FP) refers to the fact that the radix point can "float"; that is, it can be placed anywhere relative to the significant digits of the number. • The most commonly encountered representation is that defined by the IEEE 754 Standard (Institute for Electrical and Electronics Engineers). Data Structures : Lecture (2&3) page (27) Prepared by : Mohammed Thajeel

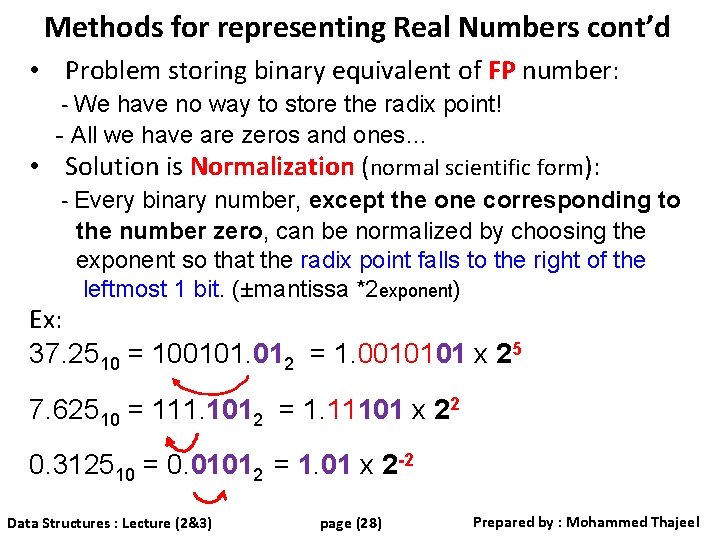

Methods for representing Real Numbers cont’d • Problem storing binary equivalent of FP number: - We have no way to store the radix point! - All we have are zeros and ones… • Solution is Normalization (normal scientific form): - Every binary number, except the one corresponding to the number zero, can be normalized by choosing the exponent so that the radix point falls to the right of the leftmost 1 bit. (±mantissa *2 exponent) Ex: 37. 2510 = 100101. 012 = 1. 0010101 x 25 7. 62510 = 111. 1012 = 1. 11101 x 22 0. 312510 = 0. 01012 = 1. 01 x 2 -2 Data Structures : Lecture (2&3) page (28) Prepared by : Mohammed Thajeel

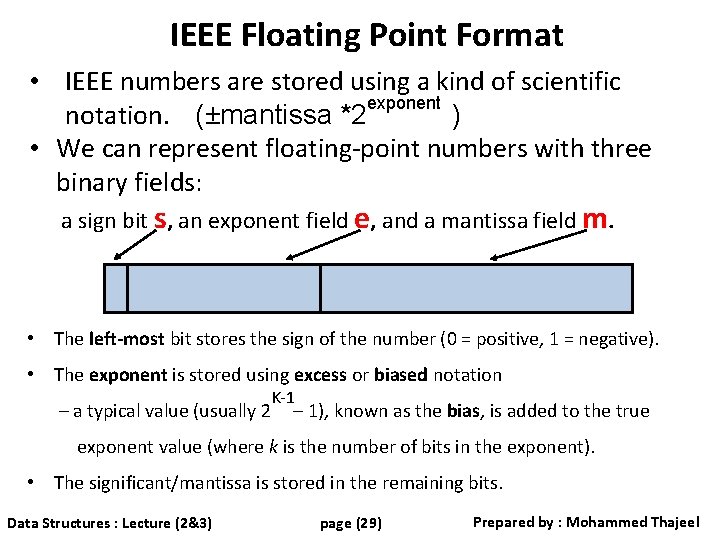

IEEE Floating Point Format • IEEE numbers are stored using a kind of scientific exponent notation. (±mantissa *2 ) • We can represent floating-point numbers with three binary fields: a sign bit s, an exponent field e, and a mantissa field m. • The left-most bit stores the sign of the number (0 = positive, 1 = negative). • The exponent is stored using excess or biased notation K-1 – a typical value (usually 2 – 1), known as the bias, is added to the true exponent value (where k is the number of bits in the exponent). • The significant/mantissa is stored in the remaining bits. Data Structures : Lecture (2&3) page (29) Prepared by : Mohammed Thajeel

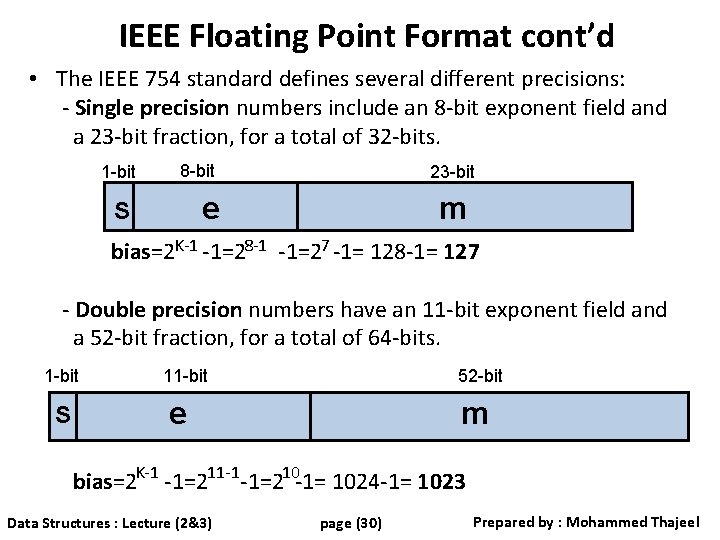

IEEE Floating Point Format cont’d • The IEEE 754 standard defines several different precisions: - Single precision numbers include an 8 -bit exponent field and a 23 -bit fraction, for a total of 32 -bits. 1 -bit 8 -bit 23 -bit e S m K-1 8 -1 7 bias=2 -1=2 -1= 128 -1= 127 - Double precision numbers have an 11 -bit exponent field and a 52 -bit fraction, for a total of 64 -bits. 1 -bit S 11 -bit 52 -bit e m K-1 11 -1 10 bias=2 -1=2 -1= 1024 -1= 1023 Data Structures : Lecture (2&3) page (30) Prepared by : Mohammed Thajeel

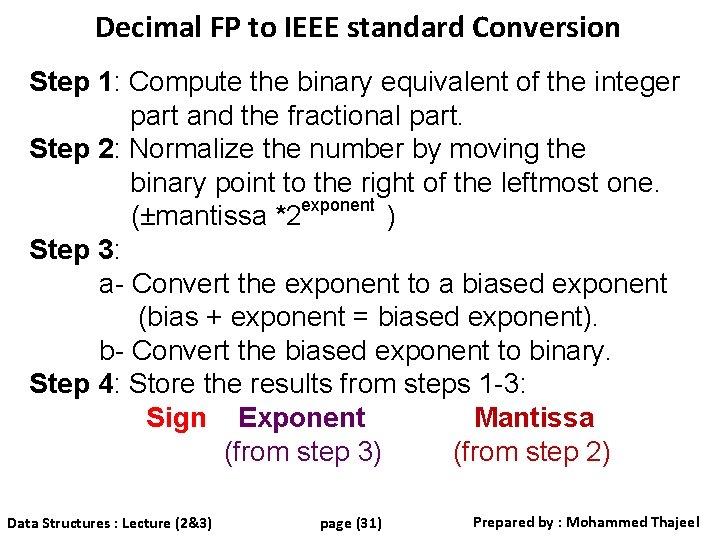

Decimal FP to IEEE standard Conversion Step 1: Compute the binary equivalent of the integer part and the fractional part. Step 2: Normalize the number by moving the binary point to the right of the leftmost one. exponent (±mantissa *2 ) Step 3: a- Convert the exponent to a biased exponent (bias + exponent = biased exponent). b- Convert the biased exponent to binary. Step 4: Store the results from steps 1 -3: Sign Exponent Mantissa (from step 3) (from step 2) Data Structures : Lecture (2&3) page (31) Prepared by : Mohammed Thajeel

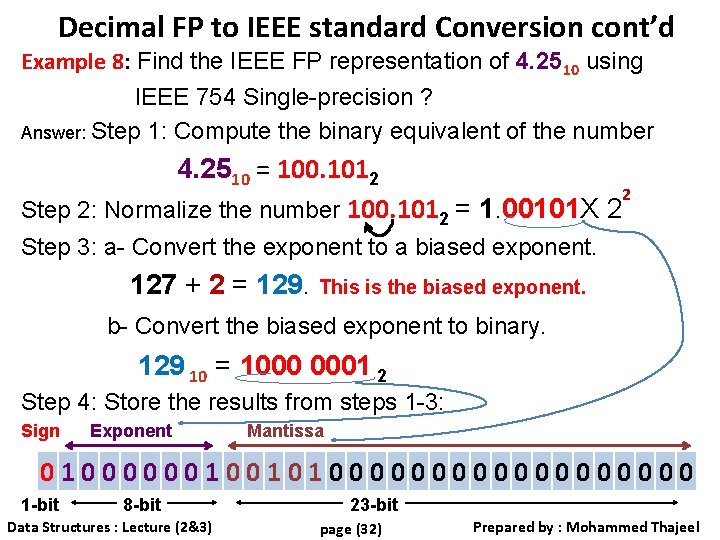

Decimal FP to IEEE standard Conversion cont’d Example 8: Find the IEEE FP representation of 4. 2510 using IEEE 754 Single-precision ? Answer: Step 1: Compute the binary equivalent of the number 4. 2510 = 100. 1012 2 Step 2: Normalize the number 100. 1012 = 1. 00101 X 2 Step 3: a- Convert the exponent to a biased exponent. 127 + 2 = 129. This is the biased exponent. b- Convert the biased exponent to binary. 129 10 = 1000 0001 2 Step 4: Store the results from steps 1 -3: Sign Exponent Mantissa 01000000100101000000000 1 -bit 8 -bit Data Structures : Lecture (2&3) 23 -bit page (32) Prepared by : Mohammed Thajeel

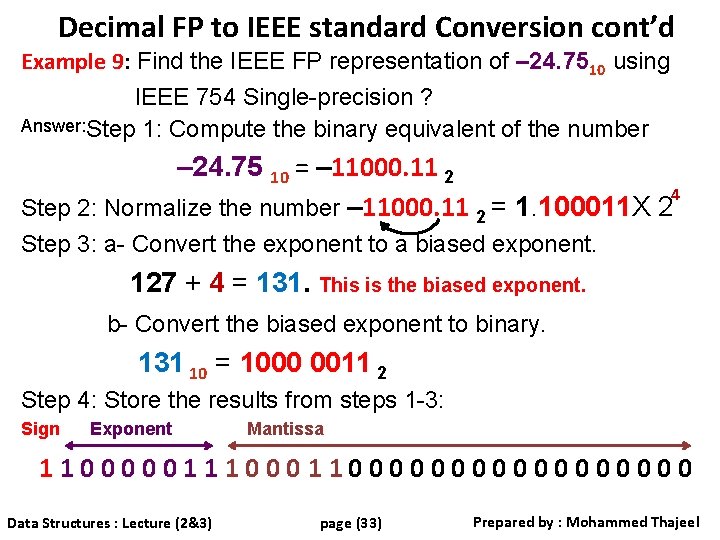

Decimal FP to IEEE standard Conversion cont’d Example 9: Find the IEEE FP representation of – 24. 7510 using IEEE 754 Single-precision ? Answer: Step 1: Compute the binary equivalent of the number – 24. 75 10 = – 11000. 11 2 4 Step 2: Normalize the number – 11000. 11 2 = 1. 100011 X 2 Step 3: a- Convert the exponent to a biased exponent. 127 + 4 = 131. This is the biased exponent. b- Convert the biased exponent to binary. 131 10 = 1000 0011 2 Step 4: Store the results from steps 1 -3: Sign Exponent Mantissa 1100000111000000000 Data Structures : Lecture (2&3) page (33) Prepared by : Mohammed Thajeel
