Aksh Two Stage Scrubbing System TWO STAGE SCRUBBING
Aksh Two Stage Scrubbing System TWO STAGE SCRUBBING SYSTEM Presentation By Aksh Engineering Systems Pvt Ltd Contact- Vijay Rajput Mob- 09825293670 Ahmedabad
Why Scrubbers are used in Dyes Spray Dryers 1. Product fines are generated during the Spray Drying Process 2. The quantum of Fines depends on several Factors like Type of Atomization, Feed Properties like Feed Slurry solid concentration, Configuration of dryer etc 3. Product Fines are carried out with the Drying Air Leaving the Spray Chamber 4. Normally Cyclones are provided for removal of the Product fines. 5. The Separation of the Fines depends upon the Efficiency of the cyclone which itself depends on the Cyclone Design and Dust Properties. 6. Due to Low effeciency of Existing Cyclones , a portion of the dust is carried over with the exhaust air to a Scrubbing System. 7. The Scrubbing System is supposed to remove these Particles and exit clean air to the atmosphere.
Advantages of Aksh Two Stage Scrubbing System Vs Existing Single Stage Scrubbing System 1. Aksh Two Stage Scrubbing System provides Low Velocity Profiles, so as to ensure no carryover of Color Droplets 2. Velocities maintained in Existing Scrubber Droplet Separators are quite high resulting in Color Droplet Carryover through the Exhaust Duct. 3. Aksh Two Stage Scrubbing System has 2 Stages of Droplet Separation which ensure 85 -90% of Colour Droplet Separation while Existing Scrubbers have only One Stage. 4. Tests Reports have confirmed a Maximum SPM Concentration of 45 mg/Nm 3 in Spray dryers with Aksh Two Stage Scrubbing System whereas in Existing Scrubbers the SPM concentrations are much higher.
Working of Aksh Two Stage Scrubbing System
Existing Single Stage Scrubbing System

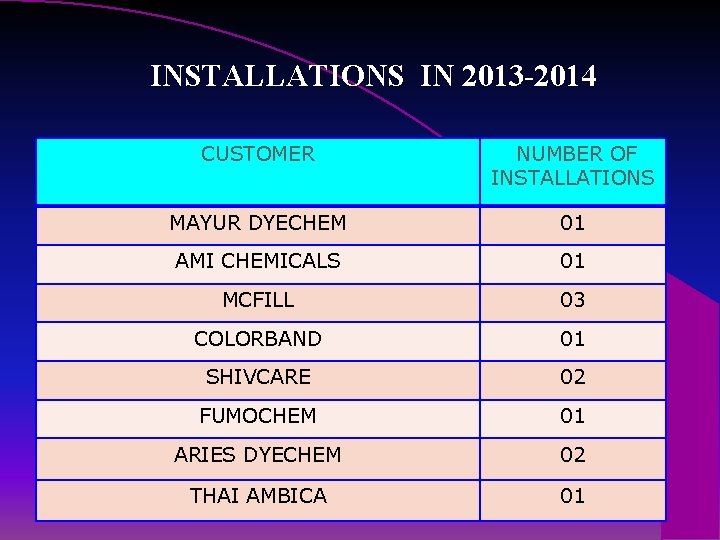

INSTALLATIONS IN 2013 -2014 CUSTOMER NUMBER OF INSTALLATIONS MAYUR DYECHEM 01 AMI CHEMICALS 01 MCFILL 03 COLORBAND 01 SHIVCARE 02 FUMOCHEM 01 ARIES DYECHEM 02 THAI AMBICA 01
Utility Consumptions for Aksh Two Stage Scrubber Utility Consumptions Power Consumptions For 500 Kgs Spray Drying Plant – 3. 7 KW For 1000 Kgs Spray Drying Plant– 3. 7 KW Water Consumptions For 500 Kgs Spray Drying Plant – 0. 5 lpm For 1000 Kgs Spray Dryer Plant – 1 lpm
Aksh Two Stage Scrubbing System Actual Installation
Aksh Two Stage Scrubbing System Actual Installation
Aksh Two Stage Scrubbing System Actual Installation
Aksh Two Stage Scrubbing System Actual Installation
Aksh Two Stage Scrubbing System Actual Installation
Aksh Two Stage Scrubbing System Actual Plant Photo
Aksh Two Stage Scrubbing System Thank You for your patience Aksh Engineering Systems Pvt Ltd Ahmedabad
