Akcier Fizik Muayenesinde Yeni Bir Yntem AKCER ULTRASONOGRAFS

Akciğer Fizik Muayenesinde Yeni Bir Yöntem: AKCİĞER ULTRASONOGRAFİSİ Yrd. Doç. Dr. Togay EVRİN Ufuk Üniversitesi Acil Tıp Ana. Bilim Dalı

USG • Günümüzde acil servislerde kullanımı hızla artan bir tanı aracı olarak karşımıza çıkmaktadır. • Girişimsel (periferik blok , santral damar yolu , LP ) • FAST , BLUE , Yabancı Cisim , CVP, Acil Kardiyak USG , Havayolu USG , Akciğer USG……. • Lüks ------- ihtiyaç ------- olmazsa olmaz

Akciğer USG Nefes Darlığı (ASY) (acil servis) Fizik Muayene , X ray , Biyokimya USG (non-invaziv , taşınabilir , kolay kullanılabilir) BLUE , RUSH , SESAME , FALL…. . Critical care ultrasound in cardiac arrest. Technological requirements for performing the SESAME-protocol - a holistic approach. Lichtenstein D, Malbrain ML. Anaesthesiol Intensive Ther. 2015; 47(5): 471 -81. . Lung ultrasound in acute respiratory failure an introduction to the BLUE-protocol. Lichtenstein. 2009 May; 75(5): 313 -7. . BLUE-protocol and FALLS-protocol: two applications of lung ultrasound in the critically ill. Lichtenstein. Chest 2015 Jun; 147(6): 1659 -70. . Relevance of lung ultrasound in the diagnosis of acute respiratory failure: the BLUE protocol Lichtenstein. Chest 2008 Jul; 134(1): 11725

USG • • • Hızlı , pratik Süregelen Hasta Transport – yatak başı Çocuklar ve hamileler (radyasyon) Yoğun bakım , intraoperatif

USG

USG • • Fizik Muayene ile eş zamanlı Öksürük , travma , nefes darlığı , hemoptizi … Akciğer muayenesinin bir parçası plevra, akciğerler, göğüs duvarı , mediasten ve diyafram görsel olarak değerlendirme imkanı sunduğu için öne çıkmaktadır.

Akciğer USG • Akciğer iç organlarımız arasında en çok hacime sahip organdır; yüzey alanı 1500 cm² olan bu organı incelerken probu nereye koyalım? • “Steteskopu nereye koyuyorsak probu da oraya koyabiliriz”(sarı alan ve yeşil alan) • Kritik hasta bakısında bize zaman çok daha değerli olduğu için BLUE , PLAPS protokolleri önerilse de.

USG Cihazları ve Probları • Her türlü usg cihazı ile akciğer usg’si yapılabilir. • Taşınabilir , hafif ve küçük • M mode • Power Doppler • Lineer Prob • Konveks Probda

USG Teknik • Steteskopu nereye koyuyorsak probu da oraya koyabiliriz

USG Teknik bat-sign (the wings of the bat) Üst ve alt kot

USG Teknik Eight-zone scanning scheme of the antero-lateral chest(PS: parasternal, AA: Anterior axillary, PA: Posterior axillary ASY ‘ de , 2 bölgenin hızlı usg bakısı intersisyel akciğer hastalığı ve kardiyojenik akut pulmoner ödemi dışlamada yeterlidir.

USG Teknik • • her iki costaphrenic sinus Konveks prob Subdiyafragmatik organlar (kc ve dalak) en ideali oturur pozisyonda , axiller hattan

Artefakt ve Normal Bulgular Plevra 0. 2 to 0. 4 mm , hiper ekoik çizgi 0, 5 cm kot altında • lung sliding ( amplitude of the lung sliding is minimal at the apices and maximal at the bases) • The sea-shore sign (M mode) • Horizontal lines • B lines

Artefakt ve Normal Bulgular

Plevral Efüzyon • USG hem akciğer oskültasyonu hem de x raye göre plevral effüzyonu tanısal doğrulamada daha etkin. Lichtenstein D, Goldstein I, Mourgeon E, Cluzel P, Grenier P, Rouby JJ: Comparative diagnostic performances of auscultation, chest radiography and lung ultrasonography in acute respiratorydistress syndrome. Anesthesiology 100, 9– 15 (2004) Xray Ortastatik pozisyonda effüzyon en az 200 m. L supin pozisyonda duyarlılık daha da azalır. USG 20 ml sıvıyı değerlendirebilir Blackmore CC, Black WC, Dallas RV, Crow HC. Pleural fluid volume estimation: a chest radiograph prediction rule. Acad Radiol. 1996; 3(2): 103 -9. Lichtenstein D, Goldstein I, Mourgeon E, Cluzel P, Grenier P, Rouby JJ: Comparative diagnostic performances of auscultation, chest radiography and lung ultrasonography in acute respiratorydistress syndrome. Anesthesiology 100, 9– 15 (2004)

Plevral Efüzyon • Efüzyonun karakteristiğine göre transuda ve eksüda ayrımı yapılabilir. • Anekoik (siyah) • Kompleks septasız (siyah içinde beyaz ekoik fibrin) • kompleks septalı (siyah içinde beya septalar),

Plevral Efüzyon

Plevral Efüzyon Ampiyem bal peteği görünümü

Pnömotoraks stratosphere sign Lung point Lung sliding azalması

Pnömotoraks • Lung point pnömotoraks için %100 tanı koydurucu • lung sliding jet or high-frequency ventilation, masif atelektazi , plevral fibrosis, frenik sinir paralizisi, cardiopulmonary arrest, apne

Pnömotoraks

Pnömoni • USG sensitivite (94%) and spesifisite(96%) Miguel A Chavez, Navid Shams, Laura E Ellington 1, et al, Lung ultrasound for the diagnosis of pneumonia in adults: a systematic review and meta-analysis Respiratory Research 2014, 15: 50

Pnömoni • • • Hipoekoik alanlar(fluid bronkogram) Düzensiz , çıkıntılı akciğer sınırları Hava bronkogram Pleural effusion Vascular akım konsolide akciğer alanında ( color or power Doppler imaging) • Akciğeride hepatizasyon bulgusu Michael Blaivas Lung Ultrasound in Evaluation of Pneumonia J Ultrasound Med 2012; 31: 823– 826

Pnömoni White arrow shows air bronchograms in tissuelike sonographic pattern of lung a the presence of consolidation with evidence of air bronchograms, b Air bronchograms are seen in the infected area as branching echogenic structures

Pnömoni a Fluid bronchograms, which are frequently observed in post obstructive pneumonia, appear as anechoic tubular structures with hyperechoic walls without any color Doppler signal, b LUS reveals air and fluid bronchograms within the affected area

Pnömoni Fluid bronchograms, which are frequently observed in post obstructive pneumonia, appear as anechoic tubular structures with hyperechoic walls

Intersisyel Sendrom ve Akut Pulmoner Ödem LUNG ROCKETS • sensitivite pulmonary ödem 100% and spesificite 92% • sensitivite ve spesifite 93% Intersisyel Sendrom LUNG ROCKETS Angelika Reissig , Roberto Copetti Lung Ultrasound in Community-Acquired Pneumonia and in Interstitial Lung Diseases Respiration 2014; 87: 179– 189

Lung Rockets Lung rockets , horizontal A lines yok

Göğüs Duvarı • Kot ve sternum fraktürleri (hematom ya da deplase) • Pnömotoraks ve hemotoraks (komplike) • Diyafram (travmaya bağlı rüptür , paralizi KOAH sınıflandırması)

Göğüs Duvarı

Göğüs Duvarı ( Rib fracture) Diagnostic US in the longitudinal plane of a rib consistent with a fracture and surrounding hematoma (asterisk) displacing the overlying pectoralis minor muscle (pm) and a portion of the pectoralis major muscle (PM

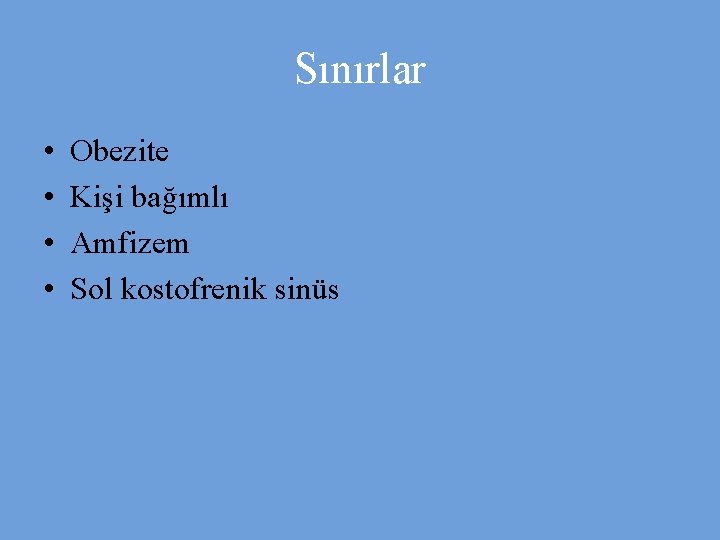

Sınırlar • • Obezite Kişi bağımlı Amfizem Sol kostofrenik sinüs

Sonuç • • Güvenilir , kolay , ucuz tanısal bir araç Radyasyon Transport Yeni USG cihazları akciğer muayenesi

• • • • • • • • • • Referanslar 1. Lichtenstein D, Goldstein I, Mourgeon E, Cluzel P, Grenier P, Rouby JJ: Comparative diagnostic performances of auscultation, chest radiography and lung ultrasonography in acute respiratorydistress syndrome. Anesthesiology 100, 9– 15 (2004) 2. Koenig SJ, Narasimhan M, Mayo PH. Thoracicultrasonography for the pulmonary specialist. Chest. 2011; 140(5): 1332 -41. http: //dx. doi. org/10. 1378/chest. 11 -0348 3. Nazarian LN. The top 10 reasons musculoskeletal sonography is an important complementary or alternative technique to MRI. AJR Am J Roentgenol. 2008; 190: 1621 -6. 4. Volpicelli G, Elbarbary M, Blaivas M, Lichtenstein DA, Mathis G, Kirkpatrick AW, et al. International evidencebasedrecommendations for point-of-care lung ultrasound. Intensive Care Med. 2012; 38(4): 577 -91. 5. Lichtenstein DA, Mezière GA. Relevance of lung ultrasound in the diagnosis of acute respiratory failure: the BLUE protocol. Chest. 2008; 134: 117 -25. 6. Lichtenstein DA. Point-of-care ultrasound: infection control in the intensive care unit. Crit Care Med. 2007; 35: S 262 -S 7. 7. Mathis G. Thoraxsonography – Part I: chest wall and pleura. Ultrasound. Med Biol. 1997; 23: 1131 -9. 8. Lapostolle F, Petrovic T, Lenoir G, Catineau J, Galinski M, Metzger J, et al. Usefulness of hand-held ultrasound devices in out-of-hospital diagnosis performed by emergency physicians. J Emerg Med. 2006; 24: 237 -42. 9. Knudsen CW et al (2004) Diagnostic value of B-type natriureticpeptide and chest radiographic findings in patients with acutedyspnea. Am J Med 15: 363– 368 10. Onwuanyi A et al (2007) Acute decompensated heart failure: pathophysiology and treatment. Am J Cardiol 99(6 B): 25 D– 30 D 11. Studler U et al (2008) Accuracy of chest radiographs in theemergency diagnosis of heart failure. Eur Radiol 18: 1644– 1652 12. Jambrick Z et al (2004) Usefulness of ultrasound lung comets as nonradiologic sign of extravascular lung water. Am J Cardiol 93: 1265– 1270 13. Volpicelli G, Frascisco M: Lung ultrasound in the evaluation of patients with pleuritic pain in the emergency department. J Emerg Med 2008, 34: 179– 186 14. Luna Gargani , Giovanni Volpicelli How I do it: Lung ultrasound Cardiovascular Ultrasound 2014, 12: 25 15. Delle Sedie A, Doveri M, Frassi F, Gargani L, D’Errico G, Pepe P, Bazzichi L, Riente L, Caramella D, Bombardieri S: Letter to the editors: Ultrasound lung comets in systemic sclerosis: a useful tool to detect lung interstitial fibrosis. Clin Exp Rheumatol 2010, 28 16. Alfredo Barillari , Massimo Fioretti Lung ultrasound: a new tool for the emergency physician Intern Emerg Med (2010) 5: 335– 340 17. Lichtenstein D, Meziere G: A lung ultrasound sign allowing bedside distinction between pulmonary edema and COPD: The comet-tail artifact. Intensive Care Med 1998; 24: 1331– 4 18. Daniel Lichtenstein, Simon van Hooland, Paul Elbers, Manu L. N. G. Malbrain Ten good reasons to practice ultrasound in critical care Anaesthesiology Intensive Therapy 2014, vol. 46, no 5, 323– 335 19. Iván Vollmer and Ángel Gayete Chest Ultrasonography Arch Bronconeumol. 2010; 46(1): 27 -34 20. Yu CJ, Yang PC, Wu HD, Chang DB, Kuo SH, Luh KT. Ultrasound study in unilateral hemithorax opacification. Image comparison with computed tomography. Am Rev Respir Dis. 1993; 147(2): 430 -4. http: //dx. doi. org/10. 1164/ ajrccm/147. 2. 430 21. Blackmore CC, Black WC, Dallas RV, Crow HC. Pleural fluid volume estimation: a chest radiograph prediction rule. Acad Radiol. 1996; 3(2): 103 -9. 22. Rahman NM, Singanayagam A, Davies HE, Wrightson JM, Mishra EK, Lee YC, et al. Diagnostic accuracy, safety and utilisation of respiratory physician-delivered thoracic ultrasound. Thorax. 2010; 65(5): 449 -53. 23. Lorenz J, Börner N, Nikolaus HP. Sonographic volumetry of pleural effusions. Ultraschall Med. 1988; 9: 212 -5. 24. Remérand F, Dellamonica J, Mao Z, Ferrari F, Bouhemad B, Jianxin Y, et al. Multiplane ultrasound approach to quantify pleural effusion at the bedside. Intensive Care Med. 2010; 36(4): 656 -64. http: //dx. doi. org/10. 1007/ s 00134 -010 -1769 -9 25. Eibenberger KL, Dock WI, Ammann ME, Dorffner R, Hörmann MF, Grabenwöger F. Quantification of pleural effusions: sonography versus radiography. Radiology. 1994; 191: 681 -4. 26. Elena Prina, Antoni Torres, Carlos Roberto Ribeiro Carvalho Lung ultrasound in the evaluation of pleural effusion J Bras Pneumol. 2014; 40(1): 1 -5 27. Lichtenstein DA, Mezière G, Lascols N, Biderman P, Courret JP, Gepner A, et al. Ultrasound diagnosis of occult pneumothorax. Crit Care Med. 2005; 33: 1231 -8. 28. Miguel A Chavez, Navid Shams, Laura E Ellington 1, et al, Lung ultrasound for the diagnosis of pneumonia in adults: a systematic review and meta-analysis Respiratory Research 2014, 15: 50 29. Erden Erol Unluer. Arif Karagöz A dynamic sign of alveolar consolidation in bedside ultrasonography: Air bronchogram Interventional Medicine & Applied Science, Vol. 6 (1), pp. 40– 42 (2014) 30. Angelika Reissig , Roberto Copetti Lung Ultrasound in Community-Acquired Pneumonia and in Interstitial Lung Diseases Respiration 2014; 87: 179– 189 31. Miller LD, Joyner CR Jr, Dudrick SJ, Eskin DJ (1967) Clinical use of ultrasound in the early diagnosis of pulmonary embolism. Ann Surg 166: 381– 393 32. Mathis G, Blank W, Reissig A, Lechleitner P, Reuss J, Schuler A, Beckh S (2005) Thoracic ultrasound for diagnosing pulmonary embolism: a prospective multicenter study of 352 patients. Chest 128: 1531– 1538 33. Squizzato A, Galli L, Gerdes V. Gerdes Point-of-care ultrasound in the diagnosis of pulmonary embolism Critical Ultrasound Journal (2015) 7: 7 34. Griffith JF, Rainer TH, Ching AS, Law KL, Cocks RA, Metreweli C. Sonography compared with radiography in revealing acute rib fracture. AJR Am J Roentgenol. 1999; 173: 1603 -9. 35. Paik SH, Chung MJ, Park JS, Goo JM, Im JG. High-resolution sonography of the rib: can fracture and metastasis be differentiated? AJR Am J Roentgenol. 2005; 184: 969 -74. 36. Baron R, Lee J, Melson G. Sonographic evaluation of right juxtadiaphragmatic masses in children using transhepatic approach. J Clin Ultrasound. 1980; 8: 156 -9. 37. Riccabona M. Ultrasound of the chest in children (mediastinum excluded). Eur Radiol 2008; 18: 390 -9. 38. Gerscovich E, Cronan M, Mc. Gahan J, Jain K, Jones CD, Mc. Donald C. Ultrasonographic evaluation of diaphragmatic motion. J Ultrasound Med. 2001; 20: 597 -604.
