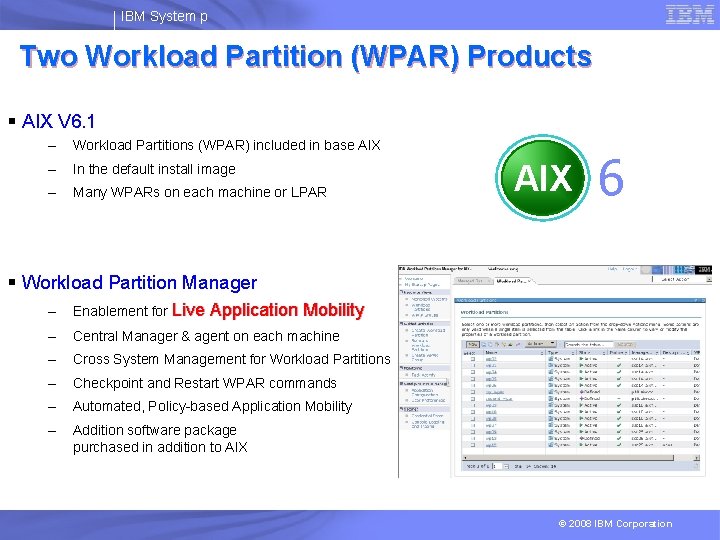

IBM System p Two Workload Partition (WPAR) Products § AIX V 6. 1 – Workload Partitions (WPAR) included in base AIX – In the default install image – Many WPARs on each machine or LPAR AIX 6 § Workload Partition Manager – Enablement for Live Application Mobility – Central Manager & agent on each machine – Cross System Management for Workload Partitions – Checkpoint and Restart WPAR commands – Automated, Policy-based Application Mobility – Addition software package purchased in addition to AIX © 2008 IBM Corporation
IBM System p Workload Partition Manager Web Browser Web Server Workload Partition Manager § § § Management across multiple systems Lifecycle operations Infrastructure Optimization Load Balancing Single Console for – – – – – Graphical Interface Create & Remove Start & stop Checkpoint & Restart Hibernation & Cloning Monitoring & Reporting Manual Relocation Automated Relocation Policy driven change Network AIX 6 - Global Level WPAR Agent System/Application WPARs AIX 6 Systems - Stand alone - LPARs © 2008 IBM Corporation
IBM System p WPAR Manager setup for mobility AIX 6 WPAR Manager AIX 6 Source AIX 6 Workload Manager + repository DB 2 AIX 6 Target AIX 5 NFS Server AIX 6 Workload Partitions WPAR Manager Agent Hosting for the NFS Filesystems for WPARs © 2008 IBM Corporation
WPAR & Application Mobility Demo Configuration POWER 6 p 570 lpar: - ec 08 vios - ec 09 AIX 6 with WPAR Mgr - ec 10 AIX 6 managed lpar - ec 11 AIX 6 managed lpar - ec 12 AIX 6 NFS Server wp 01 POWER 6 p 570 - ec 07 AIX 6 managed lpar - ec 01 vios wp 01 5
IBM System p Live Application Mobility Moving a running Workload Partition to another machine or LPAR 1. Installing new machine • Moving a WPAR very fast way to take on work 2. Multi-system workload balancing • IT optimization to maximize CPU, memory, I/O effectiveness 3. Empty a machine for application outage avoidance • Green computing, Upgrade machine (AIX or firmware) or for Repair AIX # 2 AIX # 1 Workload Partition EMail Workload Partition Web Workload Partition App Srv 1. Workload Partition Billing Workload Partition Data Mining 2. AIX # 3 Workload Partition Test Workload Partition Training Workload Partition Dev Workload Partitions Manager Policy © 2008 IBM Corporation
IBM System p Two Workload Partitions Types Create and run Create Remove Run Defined Stop Active Stop and remove Application Workloads System Workloads – Isolate an individual application – Complete virtualized OS environment – Light-weight, one process – • Can start further processes Created & started in seconds • Runs multiple services & applications – Needs to be created as it builds its filesystems – Starts when created – Like another AIX system – Automatically removed when application stops – Shares global file system – Good for HPC • Own root user, users, and groups • Own services like inetd, cron, syslog • Can be stopped and restarted – Does not share writable file systems with other workload partitions or the global system • Long running applications – Removed only when requested – Integrated with RBAC - granular security controls © 2008 IBM Corporation
IBM System p Workload Application Mobility = Relocate § For Application Mobility – On WPAR Manager select WPAR, click Relocate, select target AIX = Done § Underlying commands are – Checkpoint WPAR : chkptwpar –k • Freeze WPAR, save the WPAR processes & state to a statefile on NFS • Kill the WPAR processes once they are no longer needed – Restart WPAR : restartwpar • Take the statefile, rebuild the WPAR processes & state and start the WPAR Defined Stop Active in t po ck he C rt Remove Run Re sta Create NFS for WPAR private filesystems & the statefile © 2008 IBM Corporation
IBM Systems Group WPAR Manager ØLive migration of WPARs and application WPARs Relies upon comprehensive checkpoint/restart capabilities for migration ü Preserves service states, including TCP connections, during relocation ü ØFederated cross system management of WPARs and applications ü ü ü 9 Graphical interface Migration orchestration Monitoring Management of WPARs (create, stop, start, notify. . ) Policy-driven migration-based load balancing Web services for higher level workload managers and monitors © 2008 IBM Corporation
