Airspace Understanding Airspace Airspace Personal Safety Standards You

Airspace Understanding Airspace

Airspace Personal Safety Standards You Never Ever Want To See This:

Airspace

Airspace 61. 105 Aeronautical knowledge. (4) Use of aeronautical charts for VFR navigation using pilotage, dead reckoning, and navigation systems

Airspace 61. 109 Aeronautical experience (3) 3 hours of flight training in a single-engine airplane on the control and maneuvering of an airplane solely by reference to instruments, including straight and level flight, constant airspeed climbs and descents, turns to a heading, recovery from unusual flight attitudes, radio communications, and the use of navigation systems/facilities and radar services appropriate to instrument flight.

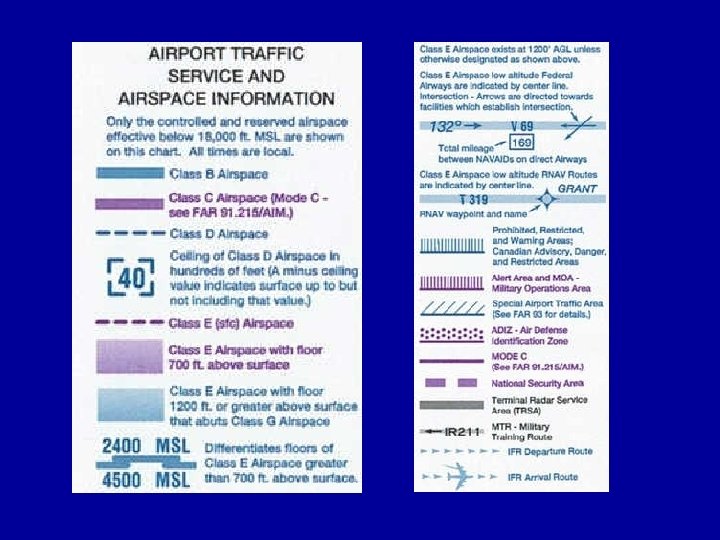

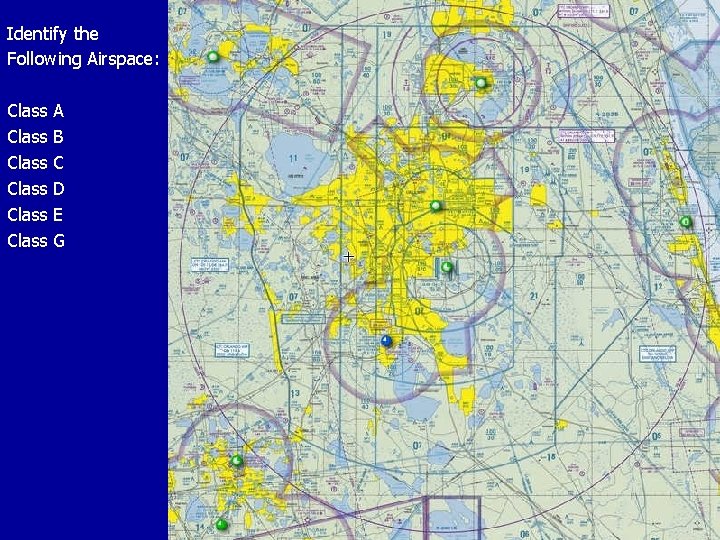

Identify the Following Airspace: Class A Class B Class C Class D Class E Class G

Identify the Following Airspace: Class A-------Class B Class C Class D Class E Class G

Identify the Following Airspace: Class A Class B-------Class C Class D Class E Class G

Identify the Following Airspace: Class A Class B Class C-------Class D Class E Class G

Identify the Following Airspace: Class A Class B Class C Class D-------Class E Class G

Identify the Following Airspace: Class A Class B Class C Class D Class E-------Class G

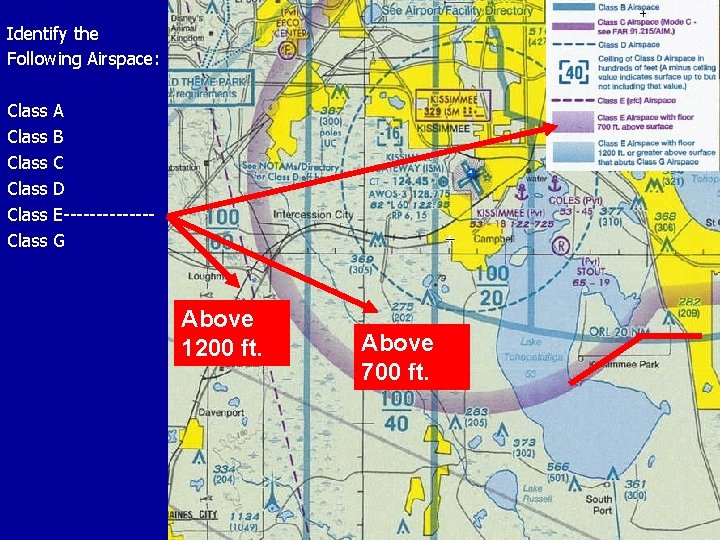

Identify the Following Airspace: Class A Class B Class C Class D Class E-------Class G Above 1200 ft. Above 700 ft.

Identify the Following Airspace: Class A Class B Class C Class D Class E Class G------- Below 1200 ft. Below 700 ft.

Airspace Test Time: 1. What is the Visibility / Cloud requirements for Class D Airspace ? a. 1 mile - clear of clouds b. 5 miles - 1000 ft ceiling c. 3 miles, 500 below, 1000 above, 2000 ft horizontally

Airspace Test Time: 1. What is the Visibility / Cloud requirements for Class D Airspace ? a. 1 mile - clear of clouds b. 5 miles - 1000 ft ceiling c. 3 miles, 500 below, 1000 above, 2000 ft horizontally

Airspace Test Time: 2. What is the airspace floor inside / outside the magenta ring surrounding an airport? a. 700 ft – 1200 ft AGL b. 3000 ft. - 1000 ft AGL c. Clear of clouds

Airspace Test Time: 2. What is the airspace floor inside / outside the magenta ring surrounding an airport? a. 700 ft – 1200 ft AGL b. 3000 ft. - 1000 ft AGL c. Clear of clouds

Airspace Test Time: 3. “WHY” is the airspace floor inside / outside the magenta ring surrounding an airport? a. 700 ft – 1200 ft AGL

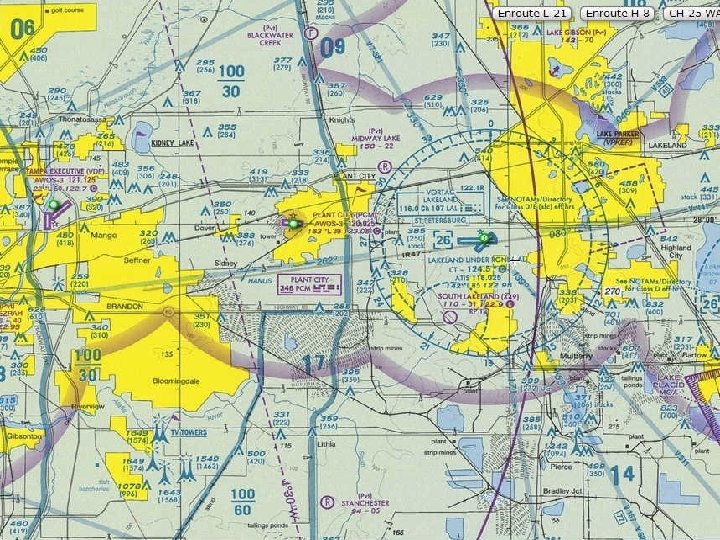

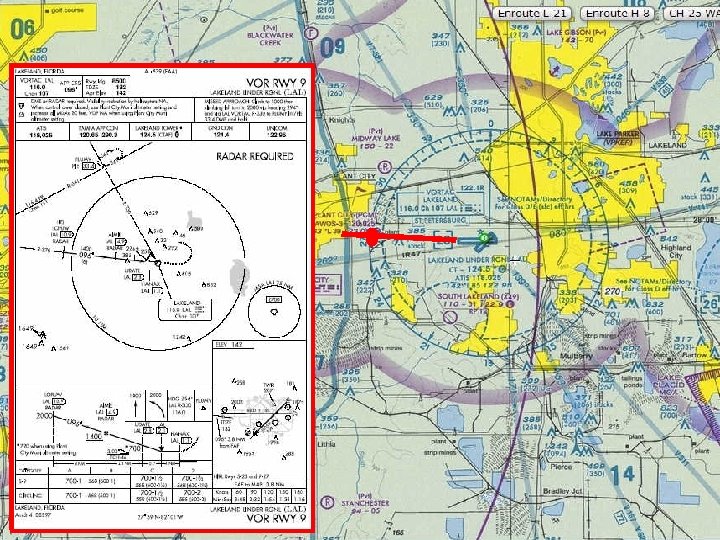

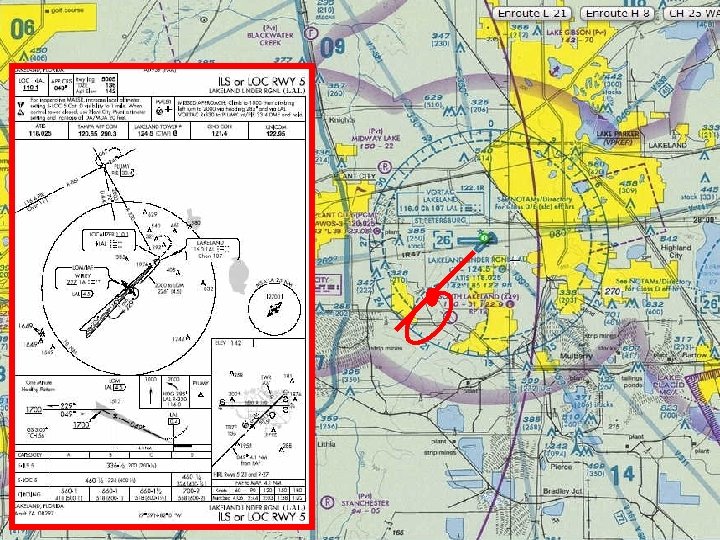

KZPH Sky Dive Zone LAL-Missed App-Climb to 1000 then climbing left turn to 2000 via LAL R 330 to Plumy (PIE 33. 4 DME and hold

KZPH Sky Dive Zone ZPH-Climbing right turn to 2000 in RHZ NDB Holding Pattern LAL RW 5 Holding

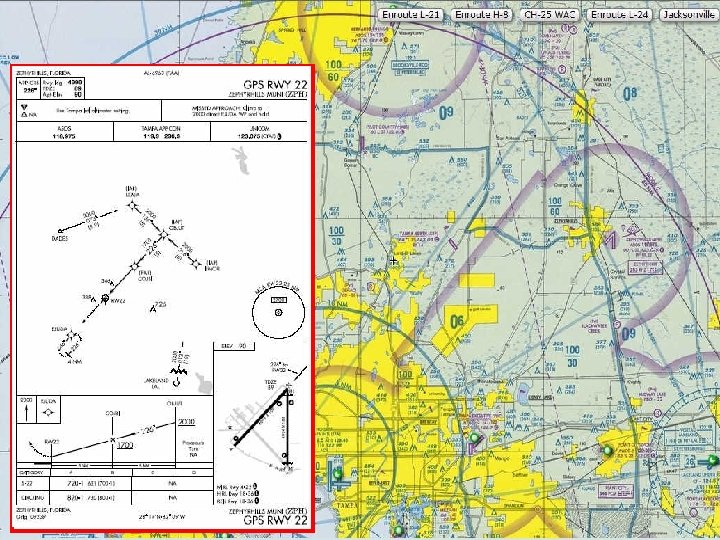

Airspace • Position Announcements: – Dakota 2167 K – Inbound Procedure Turn – NDB 4 Approach – Zephyr Hills

Airspace • Position Announcements: – Dakota 2167 K – Inbound Procedure Turn – NDB 4 Approach – Zephyr Hills

Airspace • Position Announcements: – Dakota 2167 K – 5 miles southwest ZPH 2000 ft. – NDB Runway 4 Approach (Straight In) – Zephyr Hills

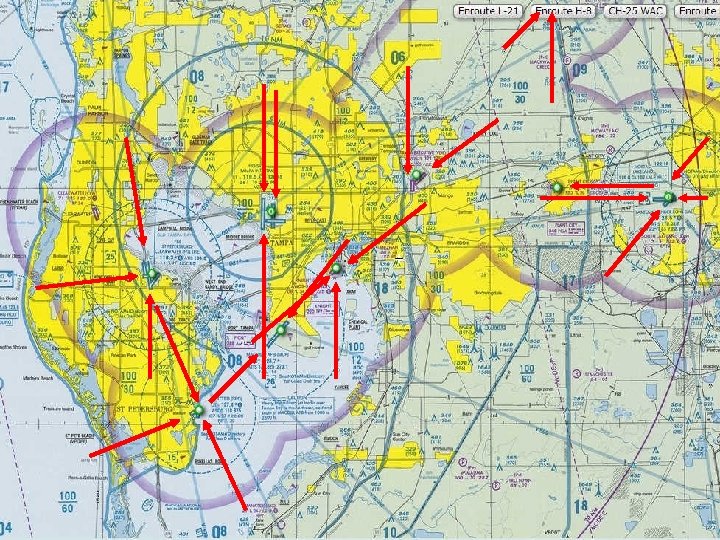

Intersections Towers

3 Digits 4 Digits Below 1500 ft. Above 1500 ft.

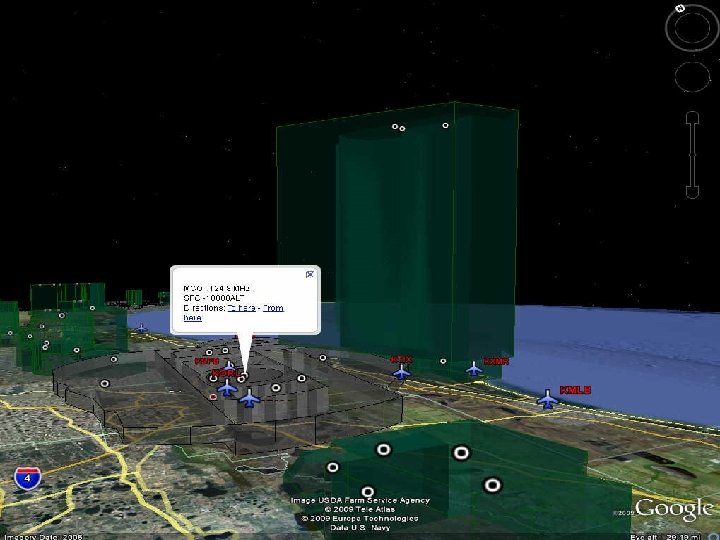

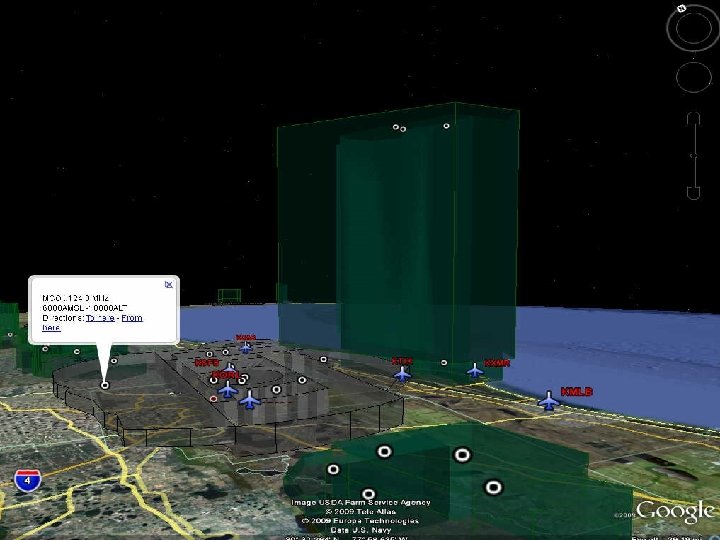

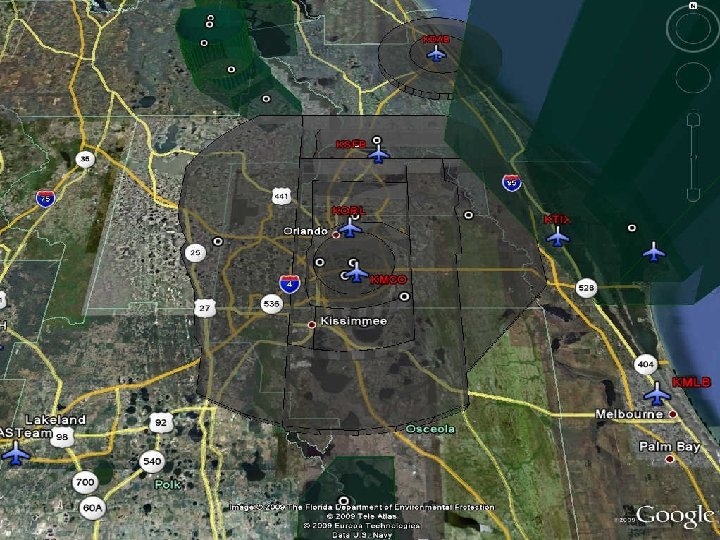

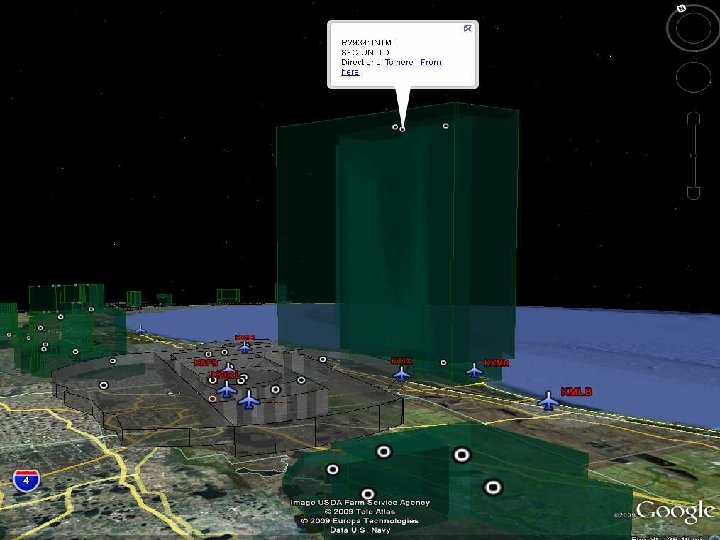

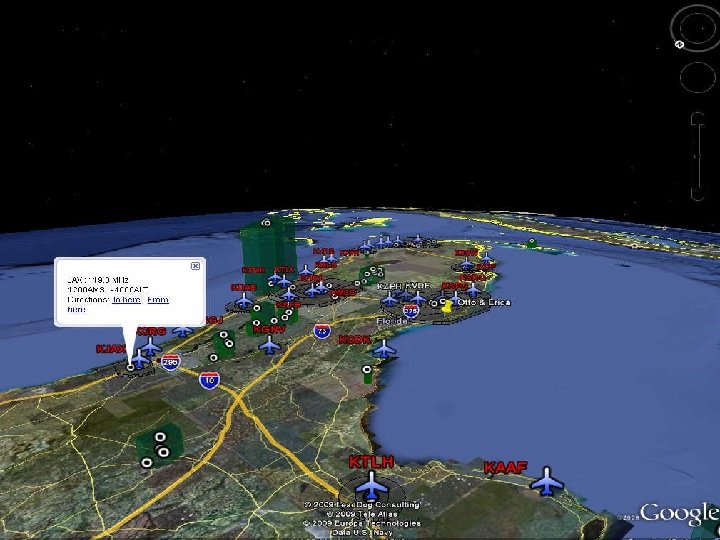

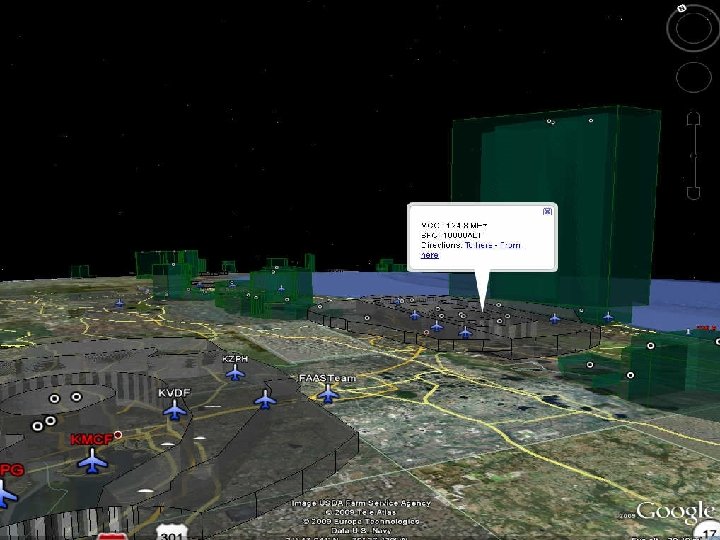

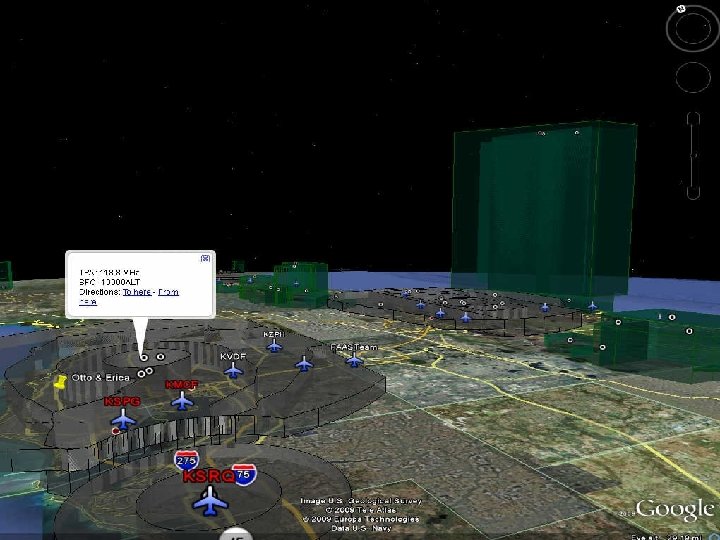

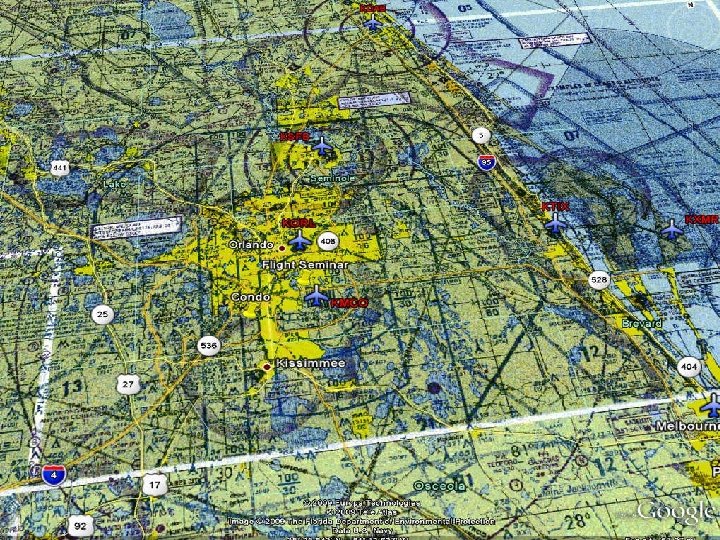

Tampa FAASTeam Google Earth Aviation Overlay Google: Google Earth Aviation Overlay

Tampa FAASTeam Bottom Line

Tampa FAASTeam Bottom Line • Airspace

Tampa FAASTeam Bottom Line • Airspace Know The Airspace

Airspace Bottom Line • Airspace • ATC Know The Airspace

Airspace Bottom Line • Airspace • ATC Know The Airspace Talk To ATC - Participate

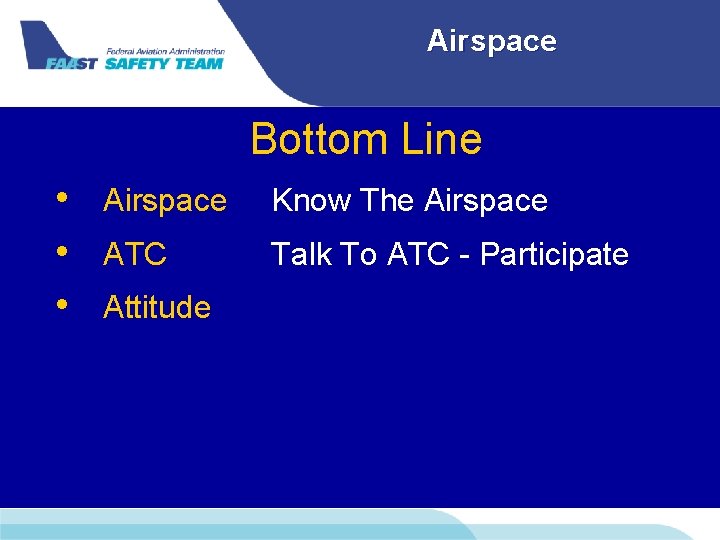

Airspace Bottom Line • Airspace • ATC • Attitude Know The Airspace Talk To ATC - Participate

Airspace Bottom Line • Airspace • ATC • Attitude Know The Airspace Talk To ATC - Participate Fly Professionally

Thank You Thank you for coming. Thank you for your participation FLY SAFELY !!!
