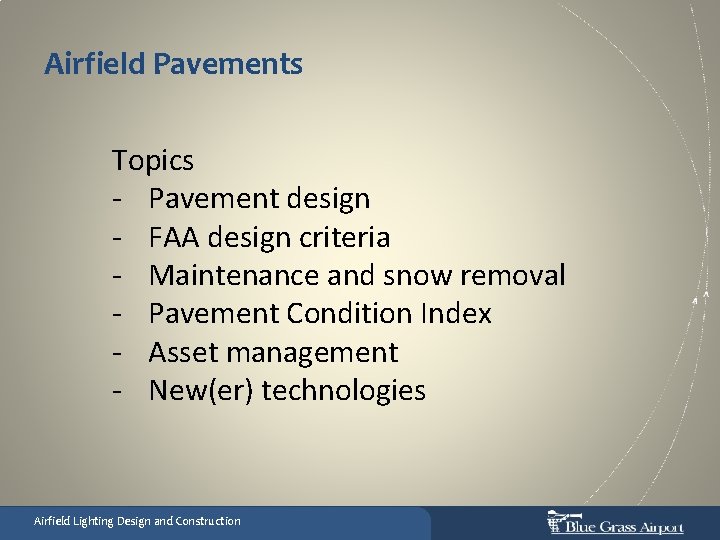

Airfield Pavements Topics - Pavement design - FAA design criteria - Maintenance and snow removal - Pavement Condition Index - Asset management - New(er) technologies Airfield Lighting Design and Construction

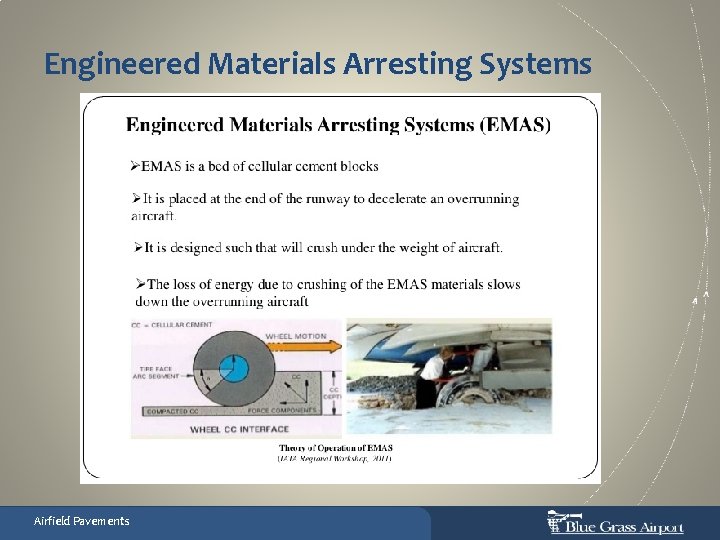

FAA Design Criteria • AC 150/5300 -13 A AIRPORT DESIGN • AC 150/5320 -5 D AIRPORT DRAINAGE DESIGN • AC 150/5320 -6 E AIRPORT PAVEMENT DESIGN AND EVALUATION • AC 150/5345 -7 F SPECIFICATIONS FOR L-824 UNDERGROUND ELECTRICAL CABLE FOR AIRPORT LIGHTING CIRCUITS • AC 150/5370 -2 F OPERATIONAL SAFETY ON AIRPORTS DURING CONSTRUCTION • AC 150/5370 -10 G STANDARDS FOR SPECIFYING CONSTRUCTION OF AIRPORTS • AC 150/5370 -11 B USE OF NONDESTRUCTIVE TESTING DEVICES IN THE EVALUATION OF AIRPORT PAVEMENT • AC 150/5380 -6 C GUIDELINES AND PROCEDURES FOR MAINTENANCE OF AIRPORT PAVEMENTS • ASTM D 5340 -12 STANDARD TEST METHOD FOR AIRPORT PAVEMENT CONDITION INDEX SURVEYS • ORDER 5200. 8 RUNWAY SAFETY AREA PROGRAM • ORDER 5200. 9 FINANCIAL FEASIBILITY AND EQUIVALENCY OF RUNWAY SAFETY AREA IMPROVEMENTS AND ENGINEERED MATERIAL ARRESTING SYSTEMS Airfield Pavements

Pavement Design • RIGID VS FLEXIBLE • NEW CONSTRUCTION OR REHABILITATION • AIRCRAFT FLEET MIX • EQUIVALENT SINGLE WHEEL LOAD • CONSTRUCTABILITY Airfield Pavements

www. aviationsafety. org FAA William J. Hughes Technical Center Airfield Pavements

Pavement and Construction Phasing • GROOVING FOR FRICTION / DRAINAGE • IN-PAVEMENT LIGHTING Airfield Pavements

SLC Runway 34 R-16 L Problem: Base cans in the way Existing Grade Elevation New Grade Challenge: • Can’t raise runway too much • Fix runway humps • Overlay as close to 4” as possible • Minimize disruption to operation or number of base cans removed Airfield Lighting Design and Construction R/W CTL #13 R/W CTL #12 R/W CTL #11 R/W CTL #10 R/W CTL #9 R/W CTL #8 R/W CTL #7 R/W CTL #6 R/W CTL #5 R/W CTL #4 R/W CTL #3 R/W CTL #2 Milled Surface R/W CTL #1 Base Can Height

SLC Runway 34 R-16 L Solution: Revise Profile Existing Grade Runway slightly raised in certain spots by no more than 1” New Grade Result: • Schedule impact significantly reduced • 350 fewer cans were removed, approximately $400 k savings • Efficient milling operation Airfield Lighting Design and Construction R/W CTL #13 R/W CTL #12 R/W CTL #11 R/W CTL #9 R/W CTL #8 R/W CTL #7 R/W CTL #6 R/W CTL #5 R/W CTL #4 R/W CTL #3 R/W CTL #2 R/W CTL #1 Base Can Height R/W CTL #10 Elevation Milled Surface

Pavement Testing WHAT CAN’T YOU SEE? Airfield Pavements

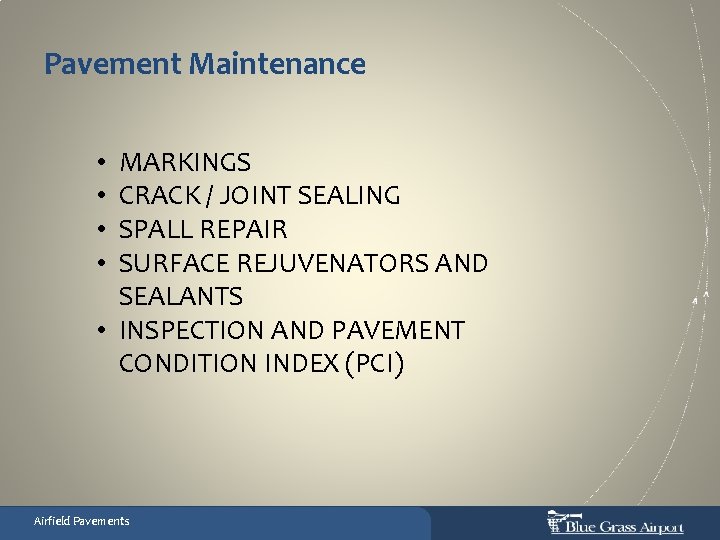

Pavement Maintenance MARKINGS CRACK / JOINT SEALING SPALL REPAIR SURFACE REJUVENATORS AND SEALANTS • INSPECTION AND PAVEMENT CONDITION INDEX (PCI) • • Airfield Pavements
