Airport Markings & Signs By Newton Talley AST 323 April 22, 1999 Introducing Surface Movement Guidance & Control System

AIRPORT SIGNS AND MARKING PROVIDE INFORMATION THAT IS USEFUL TO GROUND VEHICLE OPERATORS WHEN OPERATING ON THE AIRPORT AND TO PILOTS DURING TAKEOFF, LANDING, OR TAXIING. TYPES FOUND ON AIRPORTS INCLUDE: I MANDATORY SIGNS I LOCATION SIGNS I DIRECTION SIGNS I DESTINATION SIGNS I SPECIAL INFORMATION SIGNS

MANDATORY SIGNS I WHITE INSCRIPTIONS ON A RED BACKGROUND I REQUIRES CLEARANCE BEFORE ENTERING (DUE CAUTION AT UNCONTROLLED AIRPORTS)

LOCATED ON TAXIWAYS AT INTERSECTION WITH RUNWAY AND AT RUNWAY/RUNWAY INTERSECTION I DO NOT CROSS UNLESS CLEARANCE HAS BEEN RECEIVED (TOWERED AIRPORT) OR UNTIL CLEAR (UNTOWERED AIRPORT) I AT RUNWAY / RUNWAY INTERSECTIONS, HOLD SHORT IF LAND HOLD-SHORT CLEARANCE HAS BEEN ACCEPTED

LOCATED AT THE HOLD POSITION ON A TAXIWAY LOCATED IN RUNWAY APPROACH OR DEPARTURE AREA HOLD I CONTROLLED AIRPORT -- HOLD WHEN INSTRUCTED I NONCONTROLLED AIRPORT -- PROCEED WHEN NO TRAFFIC CONFLICT EXISTS

INDICATES AN ILS CRITICAL AREA I HOLD WHEN INSTRUCTED BY ATC WHEN APPROACHES ARE BEING MADE WITH VISIBILITY LESS THAN 2 MILES OR CEILING LESS THAN 800 FEET

INDICATES AREAS WHERE AIRCRAFT ARE FORBIDDEN TO ENTER I I DO NOT ENTER IDENTIFIES PAVED AREAS WHERE AIRCRAFT ENTRY IS PROHIBITED

INDICATES HS-1 I LAND HOLD SHORT POINT FOR OTHER THAN INTERSECTING RUNWAYS AS INSTRUCTED BY ATC

LOCATION SIGNS I YELLOW INSCRIPTIONS ON A BLACK BACKGROUND -- IDENTIFIES RUNWAYS AND TAXIWAYS I BLACK INSCRIPTION ON A YELLOW BACKGROUND -- IDENTIFIES RUNWAY OR CRITICAL AREA BOUNDARIES OF: II RUNWAY SAFETY AREA (RSA) II OBSTACLE FREE ZONE (OFZ) II INSTRUMENT LANDING SYSTEM AREAS (ILS)

LOCATED ON THE TAXIWAY I IDENTIFIES TAXIWAY ON WHICH AIRCRAFT IS LOCATED

LOCATED ON THE RUNWAY I IDENTIFIES RUNWAY ON WHICH AIRCRAFT IS LOCATED

LOCATED AT THE EDGE OF PROTECTED AREA FOR RUNWAY I IDENTIFIES THE BOUNDARY OF THE RUNWAY PROTECTED AREA ON CONTROLLED AIRPORTS I IT IS INTENDED THAT PILOTS EXITING THIS AREA WOULD USE THIS SIGN AS A GUIDE TO JUDGE WHEN THE AIRCRAFT IS CLEAR OF THE PROTECTED AREA

LOCATED AT THE EDGE OF THE ILS CRITICAL AREA I IDENTIFIES THE BOUNDARY OF THE ILS CRITICAL AREA ON CONTROLLED AIRPORTS I IT IS INTENDED THAT PILOTS EXITING THIS AREA WOULD USE THIS SIGN AS A GUIDE TO JUDGE WHEN THE AIRCRAFT IS CLEAR OF THE ILS CRITICAL AREA

TAXIWAY ENDING MARKER I INDICATES TAXIWAY DOES NOT CONTINUE

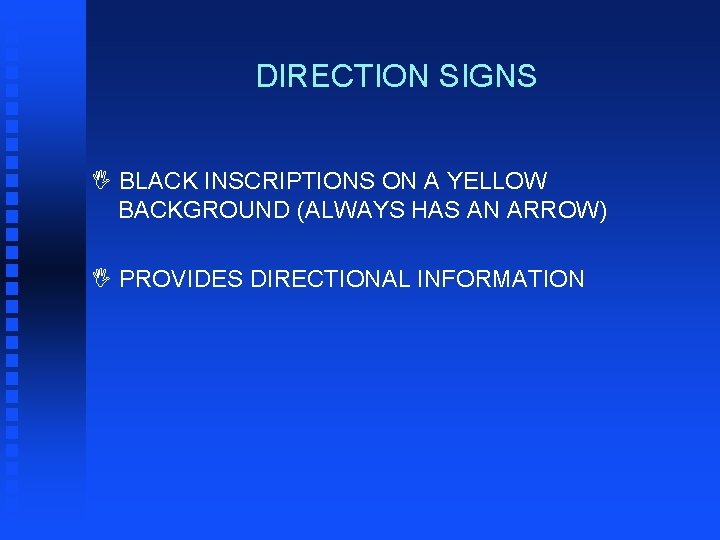

DIRECTION SIGNS I BLACK INSCRIPTIONS ON A YELLOW BACKGROUND (ALWAYS HAS AN ARROW) I PROVIDES DIRECTIONAL INFORMATION

LOCATED ON TAXIWAYS AND RUNWAYS I ON TAXIWAYS -- PROVIDES DIRECTION TO TURN TO NEXT INTERSECTION TO MANEUVER AIRCRAFT ONTO NAMED TAXIWAY I ON RUNWAYS -- PROVIDES DIRECTION TO TURN TO EXIT RUNWAY ONTO NAMED TAXIWAY

LOCATED ON THE TAXIWAY I PROVIDES GENERAL TAXIING DIRECTION TO NAMED RUNWAY

DESTINATION SIGNS I SIMILAR TO DIRECTION SIGNS EXCEPT THAT THEY POINT TOWARD A GENERAL LOCATION SUCH AS: II APRON II CIVIL II CARGO I II FUEL II MIL II INT II TERM II PAX II FBO A DOT ( ) IS READ AS “AND”

LOCATED ON TAXIWAYS AND RUNWAYS I PROVIDES GENERAL TAXIING DIRECTION TO IDENTIFIED DESTINATION

SPECIAL INFORMATION SIGNS I SUCH AS NOISE ABATEMENT PROCEDURES -HAVE BLACK INSCRIPTIONS ON A YELLOW BACKGROUND I DISTANCE REMAINING SIGNS HAVE A SINGLE WHITE NUMBER ON A BLACK BACKGROUND 20 TO 75 FEET FROM THE PAVEMENT EDGE, DEPENDING UPON THE SIZE OF THE SIGN

LOCATED ON THE RUNWAY I PROVIDES REMAINING RUNWAY LENGTH IN 1, 000 FOOT INCREMENTS

SURFACE MOVEMENT GUIDANCE AND CONTROL SYSTEM (SMGCS) I PRONOUNCED “SMIGS, ” THIS SYSTEM IS COVERED BY ADVISORY CIRCULAR (AC) 120 -57 I REQUIRES A LOW VISIBILITY TAXI PLAN FOR ANY AIRPORT WHICH HAS TAKEOFF OR LANDING OPERATIONS WITH LESS THAN 1, 200 FEET RUNWAY VISUAL RANGE (RVR) VISIBILITY CONDITIONS

SMGCS (cont. ) I APPLIES TO BOTH AIR CREW AND VEHICLE OPERATORS I TAXI ROUTES TO AND FROM THE SMGCS RUNWAY MUST BE DESIGNATED AND DISPLAYED ON A SMGCS LOW VISIBILITY TAXI ROUTE CHART

SMGCS FEATURES INCLUDE: I STOP BAR LIGHTS I RUNWAY GUARD LIGHTS I TAXIWAY CENTERLINE LIGHTING I GEOGRAPHIC POSITION MARKINGS I CLEARANCE BAR LIGHTS

STOP BAR LIGHTS I REQUIRED AT INTERSECTIONS OF AN ILLUMINATED (CENTERLINE LIGHTED) TAXIWAY AND AN ACTIVE RUNWAY FOR OPERATIONS LESS THAN 600 FEET RVR I CONSIST OF A ROW OF RED UNIDIRECTIONAL, INPAVEMENT LIGHTS INSTALLED ALONG THE HOLDING POSITION MARKING

STOP BAR LIGHTS (cont. ) I WHEN TURNED OFF BY THE CONTROLLER, THEY CONFIRM CLEARANCE FOR THE PILOT OR VEHICLE TO ENTER THE RUNWAY I OPERATE IN CONJUNCTION WITH GREEN CENTERLINE LEADON LIGHTS

WARNING NEVER CROSS AN ILLUMINATED RED STOP BAR

RUNWAY GUARD LIGHTS I WILL BE INSTALLED AT ALL TAXIWAYS WHICH PROVIDE ACCESS TO AN ACTIVE RUNWAY I ALTERNATELY FLASHING YELLOW LIGHTS I USED TO DENOTE BOTH THE PRESENCE OF AN ACTIVE RUNWAY AND IDENTIFY THE LOCATION OF A RUNWAY HOLDING POSITION MARKING

TAXIWAY CENTERLINE LIGHTING I I GUIDE GROUND TRAFFIC UNDER LOW VISIBILITY CONDITIONS AND DURING DARKNESS CONSIST OF GREEN INPAVEMENT LIGHTS

GEOGRAPHIC POSITION MARKINGS I A “PINK SPOT” OUTLINED WITH A BLACK AND WHITE CIRCLE AND DESIGNATED WITH A NUMBER AND/OR LETTER I ATC WILL VERIFY THE POSITION OF AIRCRAFT AND VEHICLES USING GEOGRAPHIC POSITION MARKINGS I CAN BE USED EITHER AS HOLD POINTS OR FOR POSITION REPORTING

CLEARANCE BAR LIGHTS I THREE YELLOW IN-PAVEMENT CLEARANCE BAR LIGHTS I USED TO DENOTE HOLDING POSITIONS FOR AIRCRAFT AND VEHICLES I CO-LOCATED WITH GEOGRAPHIC POSITION MARKINGS WHEN USED FOR HOLD POINTS

SMGCS AIRPORTS MAY NOT HAVE ALL OF THESE FEATURES FOR ADDITIONAL SMGCS INFORMATION REFER TO THE AERONAUTICAL INFORMATION MANUAL OR THE PARTICULAR AIRPORT’S SMGCS LOW VISIBILITY TAXI ROUTE CHART
