Airmux5000 Version 3 3 General Availability July 2012
Airmux-5000 Version 3. 3 General Availability July 2012 Airmux-500 3. 3 GA 2012 Slide 1

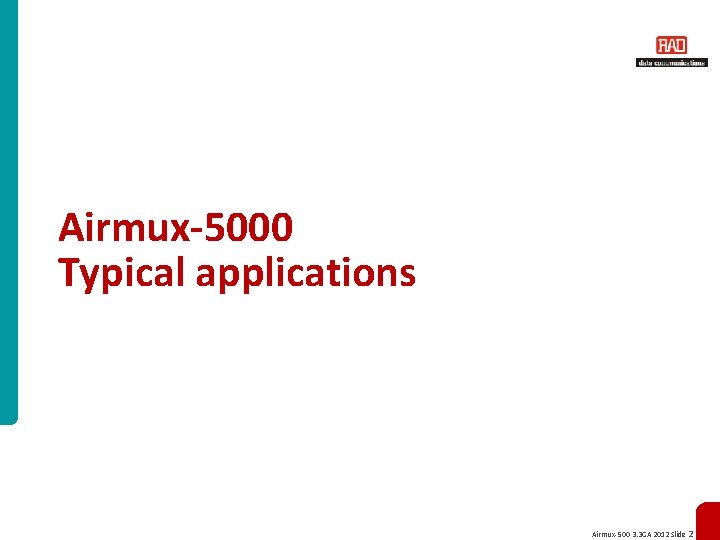

Airmux-5000 Typical applications Airmux-500 3. 3 GA 2012 Slide 2
Fixed, Nomadic & Mobility modes Fixed: • Fixed SU is permanently installed on specific location • SU synchronizes and registers only to a specific BS • Administrator manually allocates service and registers the SU to the BS only after the SU synchronized to BS BS – Base Station SU – Subscriber Unit Airmux-500 3. 3 GA 2012 Slide 3
Fixed, Nomadic & Mobility modes Nomadic: • Nomadic SU may move from one BS to another BS but gets service only while on stationary position • ETH service is provided when user is in stationary position only • Service is pre-configured on SU HBS 1 No Service HBS 2 Airmux-500 3. 3 GA 2012 Slide 4

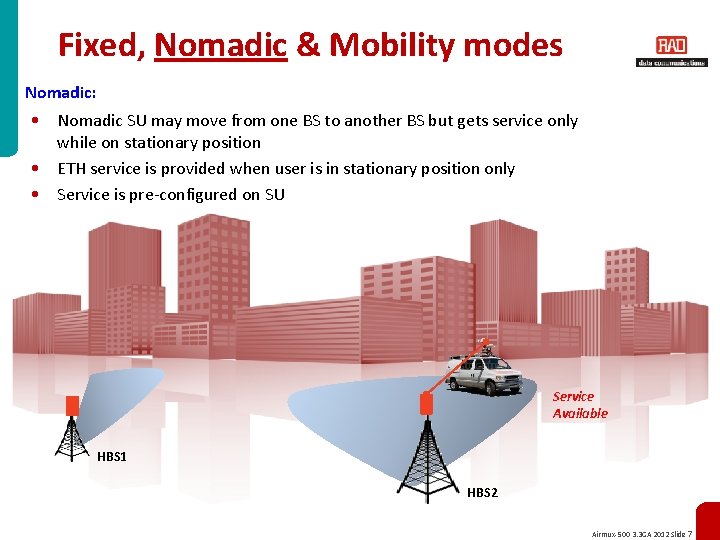

Fixed, Nomadic & Mobility modes Nomadic: • Nomadic SU may move from one BS to another BS but gets service only while on stationary position • ETH service is provided when user is in stationary position only • Service is pre-configured on SU HBS 1 Service Available HBS 2 Airmux-500 3. 3 GA 2012 Slide 5
Fixed, Nomadic & Mobility modes Nomadic: • Nomadic SU may move from one BS to another BS but gets service only while on stationary position • ETH service is provided when user is in stationary position only • Service is pre-configured on SU No Service HBS 1 HBS 2 Airmux-500 3. 3 GA 2012 Slide 6
Fixed, Nomadic & Mobility modes Nomadic: • Nomadic SU may move from one BS to another BS but gets service only while on stationary position • ETH service is provided when user is in stationary position only • Service is pre-configured on SU Service Available HBS 1 HBS 2 Airmux-500 3. 3 GA 2012 Slide 7
Fixed, Nomadic & Mobility modes Mobility: • Mobile Unit (SU-MOB) enjoys continuous service while in motion from different Base Stations (BS-MOB) in the network • Service is pre-configured Stronger Signal Weaker Signal Airmux-500 3. 3 GA 2012 Slide 8
Fixed, Nomadic & Mobility modes Mobility: § Mobile Unit (SU-MOB) enjoys continuous service while in motion from different Base Stations (BS-MOB) in the network § Service is pre-configured Weaker Signal Stronger Signal Airmux-500 3. 3 GA 2012 Slide 9
Applications for fixed connectivity Airmux-500 3. 3 GA 2012 Slide 10
Urban – High Capacity Corporate Access Airmux-5000/BS Service Provider Premises SU SU SU Service Provider Network • Multipoint environments can be backhauled by Pt. P link Airmux-500 3. 3 GA 2012 Slide 11
Rural Broadband – Connecting Communities SU Airmux-5000/BS Service Provider Premises SU Service Provider Network • Broadband connection to remote communities Airmux-500 3. 3 GA 2012 Slide 12
Solutions for Safe City Airmux-400 – Point-to-Point Airmux 5000 – Point-to-Multi-Point 400 xrmu 00 500 mu x 5 00 0 400 ux ux u rm i A ux - m Air 0 00 x 5 m Air ated Dedic idth! w Band Airm Air Ai Airmux-500 3. 3 GA 2012 Slide 13
Applications for Mobile connectivity Airmux-500 3. 3 GA 2012 Slide 14
Key Features & Benefits Feature Benefit 30 MB Full Duplex to a moving vehicle at 200 km/h Unrivaled bandwidth offering compared to other technologies Seamless handover between Base Stations and guaranteed bandwidth Continuous uninterrupted service for moving vehicles Sub-6 GHz Frequencies Supported No added cost of purchasing transmission license Airmux-500 3. 3 GA 2012 Slide 15
Mobility Solution Railway accident mitigation Single surveillance camera Airmux-500 3. 3 GA 2012 Slide 16
Mobility Solution Railway accident mitigation Command Center Approaching train alerted Radios without camera Real time video & data transmitted to train monitor Car on railway line detected using video streaming Airmux-500 3. 3 GA 2012 Slide 17
Mobility Solution Railway accident mitigation Ongoing transmission to train is secured using handover capabilities Train stops in time to prevent an accident Airmux-500 3. 3 GA 2012 Slide 18

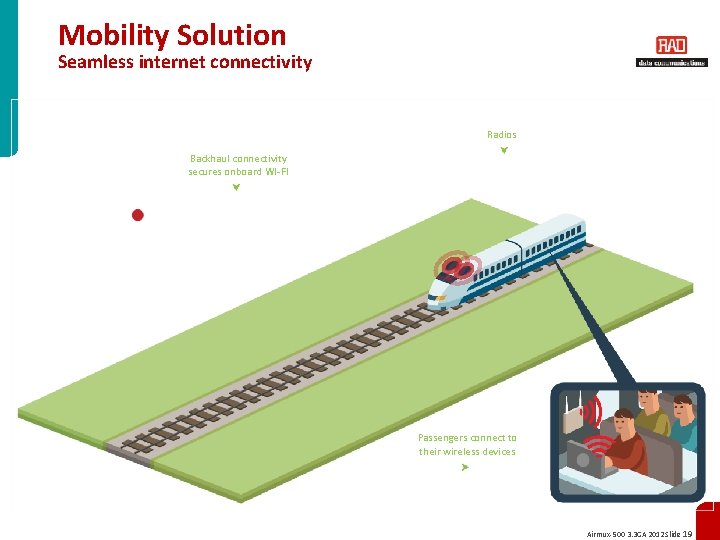

Mobility Solution Seamless internet connectivity Radios Backhaul connectivity secures onboard WI-FI Passengers connect to their wireless devices Airmux-500 3. 3 GA 2012 Slide 19
Mobility Solution Seamless internet connectivity Continuous connectivity is secured during high speed travel Airmux-500 3. 3 GA 2012 Slide 20
Mobility Solution On-board security Radios Surveillance cameras are deployed on the train Backhaul connectivity Airmux-500 3. 3 GA 2012 Slide 21
Mobility Solution On-board security Continuous high capacity video surveillance is secured Airmux-500 3. 3 GA 2012 Slide 22
Track Side Architecture • • Radio base stations along the rails (ranging in 3 -10 km’) Protected backhaul of the base stations based on Gb. E ring over Fiber Optics Support extreme environmental conditions Central management solution Airmux 5000/SU/MOB Mobile Radio Airmux 5000/BS/MOB ETX-36 Ethernet Fiber Optic Ring RADview-EMS ETX-36 Airmux-500 3. 3 GA 2012 Slide 23
Train Side Architecture • Radio Antenna in front of the train • Access points in each wagon with wireless mesh connectivity • Support for Wi. Fi internet service for the passengers • Support for Real time Video Surveillance cameras Dynamic Wireless Distribution System Train Antennas Back Hauling RAD Airmux Radio Backhaul Equipment Wi. Fi Access Point Camera Video Surveillance and Access Equipment Airmux-500 3. 3 GA 2012 Slide 24
Airmux-5000 ver. 3. 3 Main Features Airmux-500 3. 3 GA 2012 Slide 25

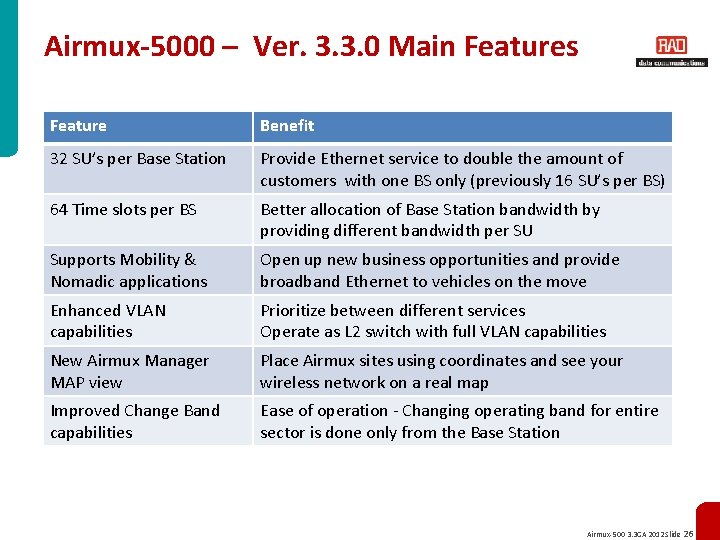

Airmux-5000 – Ver. 3. 3. 0 Main Features Feature Benefit 32 SU’s per Base Station Provide Ethernet service to double the amount of customers with one BS only (previously 16 SU’s per BS) 64 Time slots per BS Better allocation of Base Station bandwidth by providing different bandwidth per SU Supports Mobility & Nomadic applications Open up new business opportunities and provide broadband Ethernet to vehicles on the move Enhanced VLAN capabilities Prioritize between different services Operate as L 2 switch with full VLAN capabilities New Airmux Manager MAP view Place Airmux sites using coordinates and see your wireless network on a real map Improved Change Band capabilities Ease of operation - Changing operating band for entire sector is done only from the Base Station Airmux-500 3. 3 GA 2012 Slide 26
New Airmux Manager Airmux manager enables the user to manually place and view the BS and SU on a real map with a real GPS coordinates Airmux-500 3. 3 GA 2012 Slide 27
Product offering for fixed connectivity Airmux-500 3. 3 GA 2012 Slide 28
Airmux-5000 Base Station • BS-200 MIMO Base Station – 200 Mbps Net Capacity @ 40 MHz – 100 Mbps Net Capacity @20 MHz Sector Antenna 60°, 90°, 120° • BS-50 MIMO Base Station – 50 Mbps Net Capacity @10 MHz – External or Integrated antenna ODU Airmux-500 3. 3 GA 2012 Slide 29
Airmux-5000 Subscriber Units Available data rates for SU’s: • SU-5 for 5 Mbps – Small form factor antenna with optional external antenna • SU-10 for 10 Mbps – Small form factor antenna with optional external antenna • SU-20 for 20 Mbps – High Gain Integrated Antenna – Small form factor antenna with optional external antenna • SU-50 for 50 Mbps – High Gain Integrated Antenna – Connectorized (for external antenna) Airmux-500 3. 3 GA 2012 Slide 30
Airmux-5000 SU-5 NEW • Small form factor unit case – Integrated antenna (15. 5 dbi, 15° Azimuth / Elevation 30°) – Connectorized unit Product Number Product Description Basic Spec Subscriber Unit Radios Airmux 5000/SU/F 54 U/5 M/INT Airmux 5000/SU/F 54 U/5 M/EXT Product Number Integrated, 5. 4 GHz Universal Connectorized, 5. 4 GHz Universal F 54/UNI (default band), F 53/UNI, F 58/FCC, F 58/MII, F 58/WPC, F 59/UNI Product Description Basic Spec Mounting Kit AIRMUX-RMK-LC-SPARE Mounting kit for SU-5 and Airmux-400 LC radios ODU mounting kit, Including bracket adaptor and 2 x Screws Airmux-500 3. 3 GA 2012 Slide 31
Product offering for Mobile connectivity Airmux-500 3. 3 GA 2012 Slide 32
Airmux-5000 Mobility Product Number NEW Product Description Basic Spec Base Station Radios: BS-MOB Airmux. Connectorized BS-MOB series, 5. 8 GHz 5000/BS/F 58 F/MOB/EXT FCC/IC F 58/FCC (default), F 49/FCC, F 49/UNI, F 50/UNI, F 53/FCC, F 53/UNI, F 54/FCC, F 54/IC, F 54/UNI, F 58/MII, F 58/WPC, F 58/UNI, F 60/UNI Airmux. Connectorized BS-MOB series, 5. 4 GHz 5000/BS/F 54 U/MOB/EXT Universal F 54/UNI (default band), F 49/FCC, F 49/UNI, F 53/FCC, F 53/UNI, F 54/FCC, F 58/MII, F 58/WPC, F 58/UNI, F 60/UNI Mobile Unit Radios: SU-MOB Airmux. Connectorized SU-MOB series, 5. 8 GHz 5000/SU/F 58 F/MOB/EXT FCC/IC • F 58/FCC (default), F 49/FCC, F 49/UNI, F 50/UNI, F 53/FCC, F 53/UNI, F 54/FCC, F 54/IC, F 54/UNI, F 58/MII, F 58/WPC, F 58/UNI, F 60/UNI • Up to 100 Mbps Airmux. Connectorized SU-MOB series, 5. 4 GHz 5000/SU/F 54 U/MOB/EXT Universal • F 54/UNI (default band), F 49/FCC, F 49/UNI, F 53/FCC, F 53/UNI, F 54/FCC, F 58/MII, F 58/WPC, F 58/UNI, F 60/UNI • Up to 100 Mbps Airmux-500 3. 3 GA 2012 Slide 33
Mobility - Antennas Product Number Product Description Application Picture BS-MOB Antennas Airmux-5000/BSantenna, 120 degrees, ANT/15/4959/M/FP • Perimeter Security • Border Control • Oil & Gas • Ferry • Mining Single pol. Flat panel Airmux-5000/BS- antenna, 18 degrees, ANT/12/5358/M/FP 1 ft, gain 18 d. Bi, 5. 155. 875 GHz • Train • Metro • Tram / Light Train • Metro Bus Single pol. sector gain 15 d. Bi, 4. 9 -6. 1 GHz Airmux-500 3. 3 GA 2012 Slide 34
Mobility - Antennas Product Number Product Description Application Picture SU-MOB Antennas • Perimeter Security Omni-directional • Border Control AIRMUX-5000/SUantenna, gain 10 d. Bi, 4. 9 • Oil & Gas ANT/10/4958/M/FP -5. 875 GHz • Ferry • Mining Vehicular Omni. AIRMUX-5000/SUdirectional antenna, ANT/12/4959/M/FP gain 12 d. Bi, 4. 9 -5. 9 GHz • Train • Metro • Tram / Light Train • Metro Bus Airmux-500 3. 3 GA 2012 Slide 35
Mobility – Accessories Product Number Product Description Picture Ruggedized Po. E Airmux/Po. E/RUG/2060 DC Ruggedized DC-Po. E device for Airmux 5000 Mobile Units with 20 -60 VDC power feeding without mounting kit Airmux/Po. E/RUG/1030 DC Ruggedized DC-Po. E device for Airmux 5000 Mobile Units with 10 -30 VDC power feeding without mounting kit * For vehicle power supply 12/24 VDC Airmux-500 3. 3 GA 2012 Slide 36

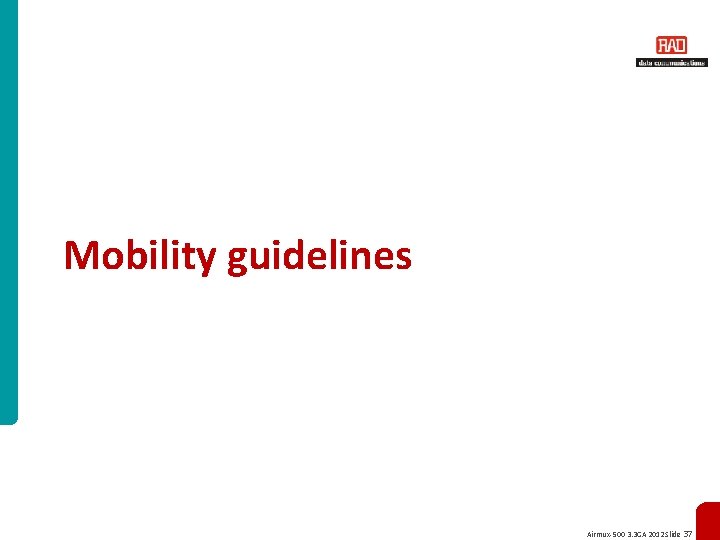

Mobility guidelines Airmux-500 3. 3 GA 2012 Slide 37
Mobility Capacity • BS-MOB in MIMO mode supports support up to 200 Mbps (for Nomadic and Fixed) topologies • BS-MOB in Diversity mode supports up to 100 Mbps (for Mobility) • SU-MOB in Diversity mode supports up to 50 Mbps (in future release 3. 3. 50 up to 100 Mbps) BS-MOB Maximum Typical 100 Mbps @ 40 MHz 50 Mbps @ 20 MHz 60 Mbps @ 40 MHz 30 Mbps @ 20 MHz SU-MOB Comment 50 Mbps @ 40 MHz 25 Mbps @ 20 MHz Diversity Mode 30 Mbps @ 40 MHz 15 Mbps @ 20 MHz Diversity Mode Max Rate 16 QAM ¾ Fixed Distance Fade margin of 10 d. B Airmux-500 3. 3 GA 2012 Slide 38

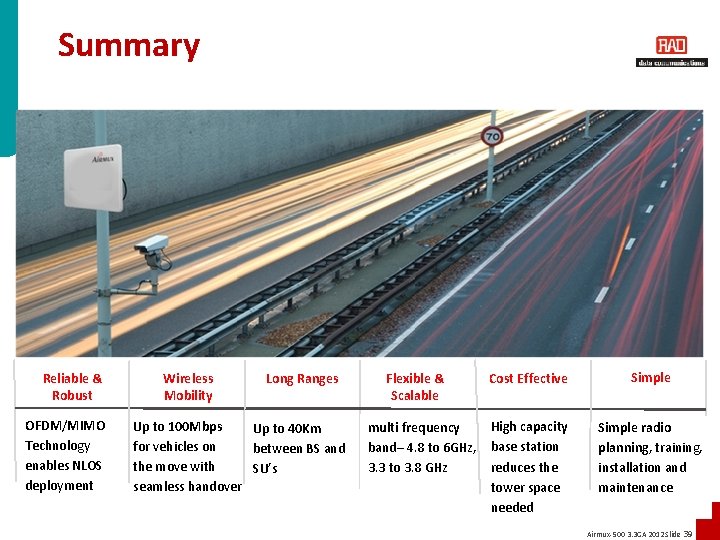

Summary Reliable & Robust OFDM/MIMO Technology enables NLOS deployment Wireless Mobility Long Ranges Up to 100 Mbps Up to 40 Km for vehicles on between BS and the move with SU’s seamless handover Flexible & Scalable multi frequency band– 4. 8 to 6 GHz, 3. 3 to 3. 8 GHz Cost Effective Simple High capacity base station reduces the tower space needed Simple radio planning, training, installation and maintenance Airmux-500 3. 3 GA 2012 Slide 39
Thank You For Your Attention www. rad. com Airmux-500 3. 3 GA 2012 Slide 40
