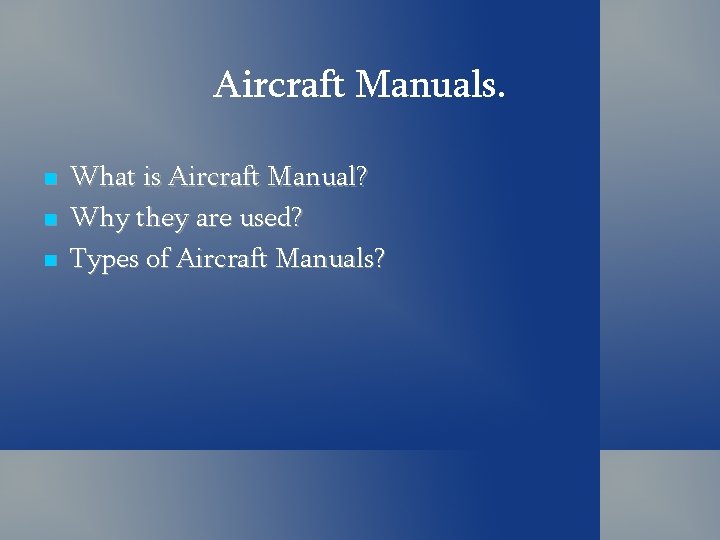

Aircraft Manuals. What is Aircraft Manual? Why they are used? Types of Aircraft Manuals?

Aircraft manual: Aircraft manual, also commonly known as a user guide, is a technical communication document intended to give assistance to people using a particular system in aircraft.

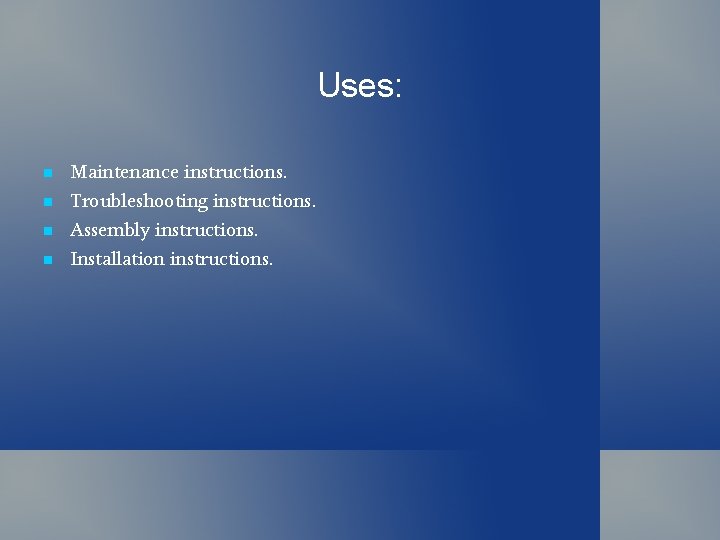

Uses: Maintenance instructions. Troubleshooting instructions. Assembly instructions. Installation instructions.

CLASSIFICATION-AIRCRAFT MANUAL: MAINTENANCE AIRCRAFT MAINTENANCE MANUALAMM COMPONENT MAINTENANCE MANUAL-CMM AIRCRAFT SCHEMATIC MANUALASM WIRING DIAGRAM MANUAL-WDM FAULT ISOLATION MANUAL-FIM MAINTENANCE PLANNING DOCUMENT-MPD MAINTENANCE TASK CARD MANUAL-MTCM MAINTENANCE FACILITIES AND EQUIPMENT PLANNING MANUALMFEPM POWER PLANT BUILD UP MANUALPPBUM TROBLE SHOOTING MANUAL-TSM REPAIR AIRCRAFT RECOVERY MANUALARM NON DESTRUCTIVE TESTING MANUAL-NDTM STRUCTURAL REPAIR MANUAL-SRM OPERATIONAL MANUAL AIRCRAFT FLIGHT MANUAL-AFM AIRCRAFT PLANNING MANUAL-APM FLIGHT CREW OPERATING MANUALFCOM FLIGHT PLANNING AND CRUISE CONTROL MANUAL MASTER MINIMUM EUIPMENT LISTMMEL WEIGHT & BALANCE MANUAL-WBM MATERIAL ILLUSTRATED PARTS CATALOGUE ILLUSTRATED TOOLS & EQUIPMENT MANUAL

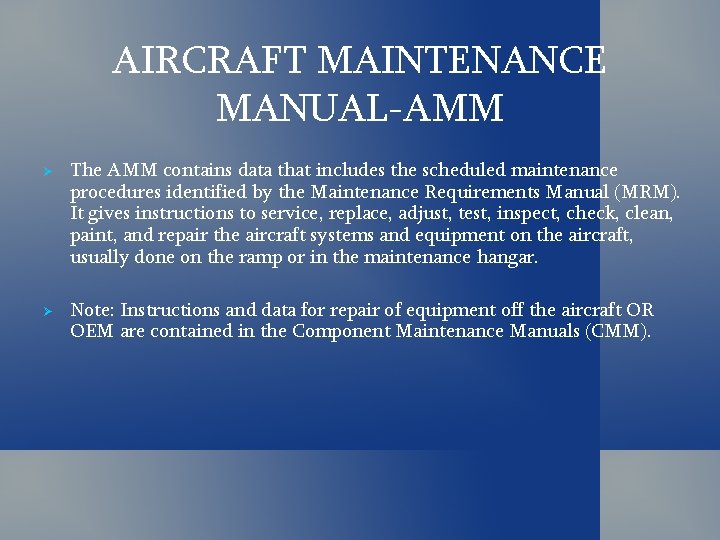

AIRCRAFT MAINTENANCE MANUAL-AMM The AMM contains data that includes the scheduled maintenance procedures identified by the Maintenance Requirements Manual (MRM). It gives instructions to service, replace, adjust, test, inspect, check, clean, paint, and repair the aircraft systems and equipment on the aircraft, usually done on the ramp or in the maintenance hangar. Note: Instructions and data for repair of equipment off the aircraft OR OEM are contained in the Component Maintenance Manuals (CMM).

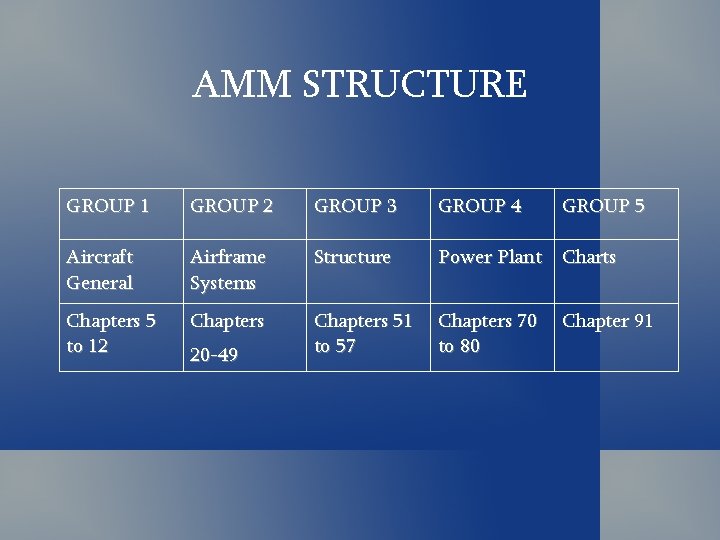

AMM STRUCTURE GROUP 1 GROUP 2 GROUP 3 GROUP 4 Aircraft General Airframe Systems Structure Power Plant Charts Chapters 5 to 12 Chapters 51 to 57 Chapters 70 to 80 20 -49 GROUP 5 Chapter 91

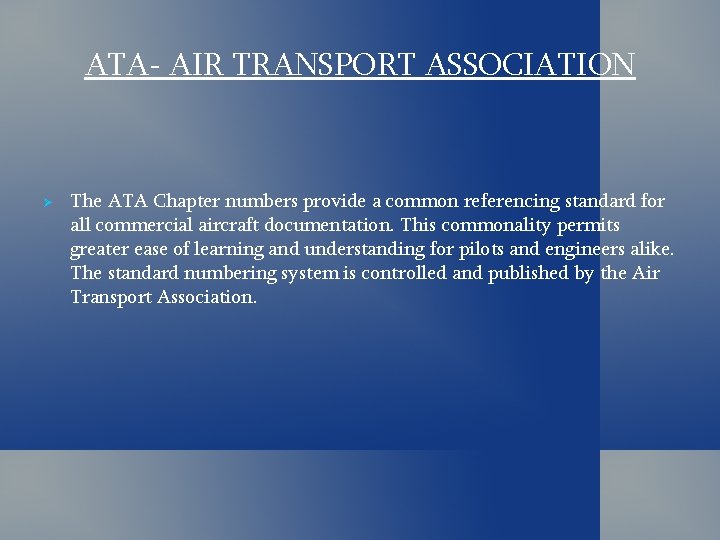

ATA- AIR TRANSPORT ASSOCIATION The ATA Chapter numbers provide a common referencing standard for all commercial aircraft documentation. This commonality permits greater ease of learning and understanding for pilots and engineers alike. The standard numbering system is controlled and published by the Air Transport Association.

ATA CHAPTERS AIRCRAFT GENERAL ATA Number ATA 05 ATA 06 ATA 07 ATA 08 ATA 09 ATA 10 ATA 11 ATA 12 ATA Chapter name TIME LIMITS/MAINTENANCE CHECKS DIMENSIONS AND AREAS LIFTING AND SHORING LEVELING AND WEIGHING TOWING AND TAXIING PARKING, MOORING, STORAGE AND RETURN TO SERVICE PLACARDS AND MARKINGS SERVICING - ROUTINE MAINTENANCE

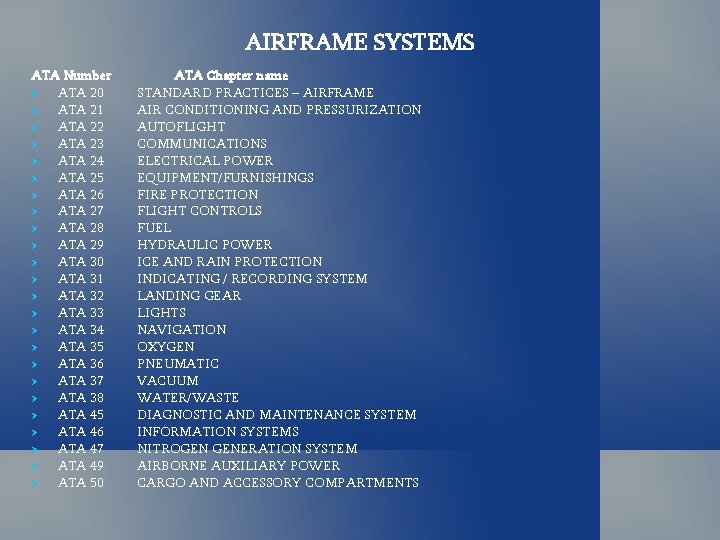

AIRFRAME SYSTEMS ATA Number ATA 20 ATA 21 ATA 22 ATA 23 ATA 24 ATA 25 ATA 26 ATA 27 ATA 28 ATA 29 ATA 30 ATA 31 ATA 32 ATA 33 ATA 34 ATA 35 ATA 36 ATA 37 ATA 38 ATA 45 ATA 46 ATA 47 ATA 49 ATA 50 ATA Chapter name STANDARD PRACTICES – AIRFRAME AIR CONDITIONING AND PRESSURIZATION AUTOFLIGHT COMMUNICATIONS ELECTRICAL POWER EQUIPMENT/FURNISHINGS FIRE PROTECTION FLIGHT CONTROLS FUEL HYDRAULIC POWER ICE AND RAIN PROTECTION INDICATING / RECORDING SYSTEM LANDING GEAR LIGHTS NAVIGATION OXYGEN PNEUMATIC VACUUM WATER/WASTE DIAGNOSTIC AND MAINTENANCE SYSTEM INFORMATION SYSTEMS NITROGEN GENERATION SYSTEM AIRBORNE AUXILIARY POWER CARGO AND ACCESSORY COMPARTMENTS

STRUCTURE ATA Number ATA 51 ATA 52 ATA 53 ATA 54 ATA 55 ATA 56 ATA 57 ATA Chapter name STANDARD PRACTICES AND STRUCTURES – GENERAL DOORS FUSELAGE NACELLES/PYLONS STABILIZERS WINDOWS WINGS
