Aircraft Inspections Richard D Mileham Airworthiness Safety Program
- Slides: 83
Aircraft Inspections Richard D. Mileham Airworthiness Safety Program Manager Great Lakes Region III-1 Downloaded from www. avhf. com
Maintenance Technician and Inspection Authorization Inspection Task • Review of the Inspection tasks will assist you in performing the task of a maintenance technician and Inspection Authorization to the requirements of the Federal Aviation Regulations • Recurrent training is the key to your success and the key to maintaining a safe aircraft. • Lets take a look at those tasks that we are required to do as a maintenance technician.
INSPECTIONS
Inspections are the most important task that we perform. It is also important that we build a working relationship with the owner and operator aircraft so we can complete the requirements of the inspection to determine that all the airworthiness requirements are met. It is just as important that the owner/operator understand their responsibility in maintaining the aircraft. Take the opportunity to explain Downloaded from www. avhf. com III-4
CUSTOMER RELATIONS. . . GET IT STRAIGHT III-5 Downloaded from www. avhf. com
Explain to the customer the requirement of the inspection and what it is going to take to accomplish the entire inspection. Remember maintenance includes inspection and items found during the inspection must have a corrective action. III-6 Downloaded from www. avhf. com
Many times there is a misunderstanding that the owner/operator has an option not to fix discrepancies found during the inspection. The regulation does not allow items to be deferred except in accordance with inoperative equipment procedures. Therefore, once you have determined it to be a discrepancy, a corrective action must be taken. Set it straight before you start the III-7 Downloaded from www. avhf. com
Piper PA 46 -310 P and Cessna 152 • Let’s take a look at the above aircraft and see what the requirements would be for an inspection of the aircraft to determine that it meets it’s type design and is in a condition for safe operation. III-8 Downloaded from www. avhf. com
REGISTRATION AND AIRWORTHINESS CERTIFICATES AIRCRAFT REGISTRATION UNITED SATES OF AMERICA DEPARTMENT OF TRANSPORTATION-FEDERAL AVIATION ADMINISTRATION STANDARD AIRWORTHINESS CERTIFICATE 1. NATIONALITY AND REGISTRATION MARKS 2. MANUFACTURER AND MODEL 3. AIRCRAFT SERIAL NUMBER 4. CATEGORY 5. AUTHORITY AND BASIS FOR ISSUANCE This airworthiness certificate is issued pursuant to the Federal aviation Act of 1958 and certifies that, as of the date of issuance, the aircraft to which issued has been inspected and found to conform to the type certificate therefor, to be in a condition for safe operation, and had been shown to meet the requirements of the applicable comprehensive and detailed airworthiness code as provided in Annex 8 to the Convention on International Civil Aviation, except as noted herein. Exceptions: 6. TERM AND CONDITIONS Unless sooner surrendered, suspended, revoked, or a termination date is otherwise established by the Administrator, this AIRWORTHINESS certificate is effective as long as the maintenance, preventive maintenance, and ALTERATIONS are performed in accordance with Parts 21, 43, and 91 of the Federal Aviation Regulations, as appropriate, and the aircraft is registered in the United States. DATE OF ISSUANCE FAA REPRESENTATIVE DESIGNATION NUMBER Any alteration, PRODUCTION, or misuse of this certificate may be punishable by a fine not exceeding $1, 000 or imprisonment not exceeding 3 years or both. THIS CERTIFICATE MUST BE DISPLAYED IN THE AIRCRAFT IN ACCORDANCE WITH APPLICABLE FEDERAL AVIATION REGULATIONS. III-9 Downloaded from www. avhf. com 91. 203(a)(1)(2)
The first thing we need to do in our research is to determine the aircraft had been registered and that is has an airworthiness certificate. FAR 91. 203 Civil Aircraft: Certification Requirements. If these are not present, we must inform the owner/operator of their responsibilit III-10 Downloaded from www. avhf. com
THE AMT and IA MUST RESEARCH: MAINTENANCE RECORDS SPECIFICATION OR DATA SHEET AIRWORTHINESS DIRECTIVES THE CURRENT MANUFACTURER’S MAINTENANCE MANUAL OR INSTRUCTIONS FOR CONTINUED AIRWORTHINESS. III-11 Downloaded from www. avhf. com FAR 43. 13, 15, 16
Maintenance record research is a time consuming task but is a must. It is important to review the work that may have been accomplished since the last inspection. As part of the inspection you will be taking responsibility for the condition of the item being inspected and you want to make sure the work accomplished meets all the regulation and airworthiness requirements. III-12 Downloaded from www. avhf. com

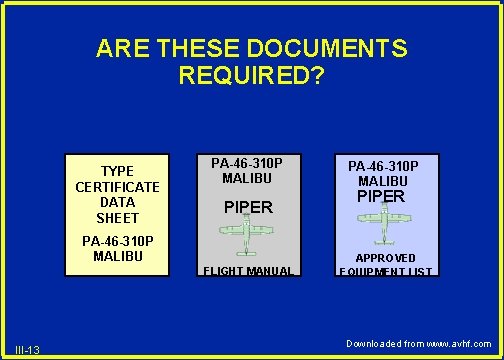

ARE THESE DOCUMENTS REQUIRED? TYPE CERTIFICATE DATA SHEET PA-46 -310 P MALIBU PIPER PA-46 -310 P MALIBU FLIGHT MANUAL III-13 PA-46 -310 P MALIBU PIPER APPROVED EQUIPMENT LIST Downloaded from www. avhf. com
Let’s take a look at each of these documents and see what the significance of the documents are to the inspection and how it will be used to determine the aircraft to meet it’s type design. III-14 Downloaded from www. avhf. com
The first document is the Aircraft Type Data Sheet. This document provides a listing of all the equipment installed at the time of manufacturing and list optional equipment that could be installed on the aircraft. Inspection of the aircraft to the type data sheet is a must. III-15 Downloaded from www. avhf. com
DEPARTMENT OF TRANSPORTATION FEDERAL AVIATION ADMINISTRATION A 25 S 0 Revision 1 Piper PA-46 -310 P December 30, 1983 TYPE CERTIFICATE DATA SHEET NO. A 25 SO This data sheet , which is part of Type Certificate No. A 25 SO, prescribes conditions and limitations under which the product for, which the type certificate was issued meets the airworthiness requirements of the Federal Aviation Regulations. III-16 Downloaded from www. avhf. com
DEPARTMENT OF TRANSPORTATION FEDERAL AVIATION ADMINISTRATION Type Certificate Holder; Piper Aircraft Corporation Vero Beach Division Vero Beach, Florida 32960 1. Model PA-46 -310 P (Malibu), 6 PCLM (Normal Category), Approved September 27, 1983) Engine Teledyne Continental Model TSIO-520 -BE Fuel 100/100 LL Minimum grade aviation gasoline III-17 Downloaded from www. avhf. com
The type data indicates the following information: Type Data Sheet Number and Revision Aircraft Make and Model Conditions and Limitations Airworthiness Requirements Engines installed Fuel Specification Engine Limits Propeller and Propeller Limits Airspeed Limits III-18 Downloaded from www. avhf. com
Engine Limits For all operations: 2600 RPM and 38” Hg MAP (310 HP), sea level to 24, 000 Ft. ; 2600 RPM and 35” Hg MAP above 24, 00 Ft. 2400 RPM and 31” Hg MAP maximum when leaned to 50 F lean of peak, any altitude. Propeller and Hartzell, Hub BHC-C 2 YF-1 BF, Blade F 8052 ( ) Propeller Limits Pitch: High 38. 0 plus/minus 1 degree, low 16. 0 plus/minus 0. 2 at 30 station Diameter: Not over 80”, not under 78”. Spinner: Hartzell D-4810 or D-4810 P 09/91 Governor: Hartzell Model E-5 -2 III-19 Downloaded from www. avhf. com
Airspeed Limits (KIAS) Vne (Never Exceed) 203 KIAS Vno (Maximum Structural Cruise) 173 KIAS Va (Maneuvering 4100 lbs. ) 135 KIAS Va (Maneuvering 2450 lbs. ) 103 KIAS Vfe (Maximum Flaps Extended) Page No. 1 2 3 4 120 KIAS Rev. No 1 1 1 09/91 III-20 Downloaded from www. avhf. com
Type Data Sheet: (Continued) Airspeed Limits Center of Gravity Ranges Empty Weight Maximum Weight III-21 Downloaded from www. avhf. com
-2 - December 31, 1983 A 25 SO Revision 1 Airspeed Limits KIAS Vlo (Maximum Landing Gear Operation Extension 170 KIAS Retraction 130 KIAS Vle (Maximum Landing Gear Extended) 200 KIA C. G. Range WT. FWD Limit AFT Limit (Gear Extended) (LBS) IN. ’S AFT OF DATUM) (IN. ’S AFT OF DATUM) 4100 143. 3 In. 147. 1 In. 3680 136. 1 In. 147. 1 In. 2450 or less 130. 7 In. 147. 1 In. III-22 Downloaded from www. avhf. com
-2 - Empty Weight C. G. Range December 31, 1983 None Maximum Weight Ramp 4118 lbs. Takeoff 4100 lbs. Landing 3900 lbs. III-23 Downloaded from www. avhf. com
Type Data Sheet: (Continued) Number of Seats and their locations Maximum baggage (Forward and Aft) Fuel Capacity (number of Gallons and location) Oil Capacity (number of Quarts and location) Maximum Operating Altitude Maximum Cabin Operating Pressure Differential Downloaded from www. avhf. com III-24
Number of Seats 6 (2 at +135. 5) (2 at +177. 0) (2 at + 218. 75) Maximum Baggage 100 lbs at + 88. 6 (Fwd. ) 100 lbs. at + 245. 1 (Aft. ) Fuel Capacity 122 gals. (2 wing tanks) at + 149. 4 See note 1 for data on fuel system. Oil Capacity 8 qts. at + 53. 5 See note 1 for data on oil system. 09/91 III-25 Downloaded from www. avhf. com
Maximum Operating Altitude 25, 000 Ft. Maximum Cabin Operating Pressure Differential Control Surface Aileron Movements Elevator Rudder Elevator Trim Tab Wing Flaps (+1) 5. 6 PSID (+1) (+0. 5) (+1, -0) (+1) Up Up Left Down Up 18 Down 18 23. 5 Down 14. 5 26 Right 30 24. 5 Up 19 (Elevator Neutral) 0 Down 35 09/91 III-26 Downloaded from www. avhf. com
Type Data Sheet: (Continued) Manufacturer’s Serial Numbers Datum Certification Basis Production Basis Equipment Noise Characteristics Current Weight and Balance Report Placards Life limit items III-27 Downloaded from www. avhf. com
-3 - December 31, 198 Manufacturer’s 46 -8408001 and up Serial Numbers Datum 100 inches forward of pressure bulkhead. Leveling Means Top or Bottom Fuselage at B. L. -0 (constant section) Certification Basis FAR Part 23 effective February 1, 1965, thru amendment 23 -25, effective Mar. 6, 1980; FAR 25. 783(e), 25. 831(c) and (d) of Amendment 12, effective Aug. 1, 1981. No equivalent safety findings. III-28 Downloaded from www. avhf. com
-3 - Production Basis: December 31, 198 Production Certificate No. 206. Production Limitation: Record issued and the manufacturer authorized to issue airworthiness certificates under the delegation option provisions of FAR 21. III-29 Downloaded from www. avhf. com
-3 - December 31, 1983 Equipment The basic required equipment prescribed in the applicable airworthiness regulations (see Certification Basis) must be installed in the aircraft for certification. In addition, one of the following items of equipment are required for S/N 46 -8408001 and up; AFM Report FT-157, Appendix D approved September 26, 1983 or POH Report VB-1200 III-30 Downloaded from www. avhf. com
Did you notice that under equipment that the Aircraft Flight Manual (AFM) or Pilot Operating Handbook (POH) is required. Therefore, when you are performing the inspection, you need to make sure these III-31 Downloaded from www. avhf. com
III-32 Noise Characteristics The corrected noise level of the Model PA-46 -310 P is 74. 8 d. BA at the Maximum Normal Operating Power at 2600 RPM. The noise level stated above has been approved by the Federal Aviation Administration in noise level test flights conducted in accordance with FAR 36. “Noise Standards: Aircraft Type and Airworthiness Certification. ” The aircraft noise is in compliance with Downloaded from www. avhf. com FAR 36 noise standards applicable to
A 25 SO -4 - December 31, 19 NOTE 1. Current Weight and Balance Report, including list of equipment included in certificated empty weight and loading instructions when necessary, must be provided for each aircraft at the time of original certification. The certified empty weight and corresponding center of gravity locations must include undrainable system oil (not included in oil capacity) and unusable fuel as noted below Fuel 09/91 -ENDDownloaded from www. avhf. com 12 lbs. at (+152. 37) Oil 2. 8 lbs. at (53. 5) III-33
A 25 SO -4 - December 31, 1983 NOTE 2. All placards required in the POH and AFM must be installed in the appropriate locations. The following placards must be displayed in clear view of the pilot: The markings and placards installed in this airplane contain operating limitations which must be complied with when operating this airplane in the normal category. Other operating limitations which must be complied with when operating this airplane in this category are contained in the airplane flight manual. No aerobatic maneuvers, including spins, approved. NOTE 3. The life limit of the fuselage assembly, P/N is 82250 is 10, 145 hours. The life limit of the wing assemble, P/N 831000 is 15, 580 hours. -ENDIII-34 09/91 Downloaded from www. avhf. com
Equipment Lists are needed to determine what is installed on the aircraft that is not included on the Type Data Sheet. III-35 Downloaded from www. avhf. com
The following equipment list is a comprehensive list of all Cessna equipment available for this airplane. A separate equipment list of items installed in your specific airplane is provided in your aircraft file. The following list and the specific list for your airplane have a similar order of listing. This equipment list provides the following information: III-36 Downloaded from www. avhf. com
An item number gives the identification number of the item. Each number is prefixed with a letter which identifies the descriptive grouping (example: A. Powerplant & Accessories) under which it is listed. Suffix letters identify the equipment as a required item, a standard item or an optional item. Suffix letters are as follows: III-37 Downloaded from www. avhf. com
- R= required items of equipment for FAA certification - S= standard equipment items - O= optional equipment items replacing required or standard items - A= optional equipment items which are in addition to required or standard items A reference drawing column provides the drawing number for the item. III-38 Downloaded from www. avhf. com
CESSNA MODEL 152 EQUIPMENT LIST SECTION 6 WEIGHT & BALANCE/ EQUIPMENT LIST The following equipment list is a comprehensive list of all Cessna equipment available for this airplane. A separate equipment list of items installed in your specific airplane is provided in your aircraft file. The following list and the specific list for your airplane have a similar order of listing. This equipment list provides the following information: An item number gives the identification number of the item. Each number is prefixed with a letter which identifies the descriptive grouping (example: A. Powerplant & Accessories) under which it is listed. Suffix letters identify the equipment as a required item, a standard item or an optional item. Suffix letters are as follows: -R= required items of equipment for FAA certification -S= standard equipment items -O= optional equipment items replacing required or standard items -A= optional equipment items which are in addition to required or standard items III-39 Downloaded from www. avhf. com A reference drawing column provides the drawing number for the item.
ITEM NO EQUIPMENT LIST DESCRIPTION REF WT ARM DRAWING LBS INS D 19 -R AMMETER S-1320 -5 0. 5 18. 0 D 25 -A CLOCK INSTALLATION 0400341 0. 4 14. 4 D 67 -A RECORDER, ENGINE HOUR METER 0401017 0. 6 III-40 5. 2 Downloaded from www. avhf. com
ITEM NO EQUIPMENT LIST DESCRIPTION REF WT ARM DRAWING LBS INS E. CABIN ACCOMMODATIONS E 05 -R SEAT, PILOT INDIVIDUAL SLIDING 0414070 11. 1 45. 2 E 05 -O SEAT, VERTICALLY ADJUSTABLE, PILOT 0414071 13. 6 45. 2 E 07 -S SEAT, COPILOT INDIVIDUAL SLIDING 0414070 11. 1 45. 2 E 07 -O SEAT, VERTICALLY ADJUSTABLE, COPILOT 0414071 13. 6 45. 2 III-41 Downloaded from www. avhf. com
NOTE If additional equipment is to be installed, it must be done in accordance with the reference drawing, accessory kit instructions, or a separate FAA approval. III-42 Downloaded from www. avhf. com
A complete equipment list will also assist in the task of accomplishing a weight and balance, Airworthiness Directive review and compliance listing. If your aircraft does not have a current equipment list it is impossible to know all the equipment make, model and serial numbers of the equipment installed. III-43 Downloaded from www. avhf. com
Airworthiness Directives • Let’s take a look at Airworthiness Directives and the compliance requirements. Guidance and information can be found in AC 39 -7 C Airworthiness Directives • Airworthiness Directives are mandatory and it is the responsibility of the owner/operator to assure the AD’s are complied with. Additionally, the maintenance technician performing an inspection is responsible to see the AD’s are complied with. Downloaded from www. avhf. com III-44
Airworthiness Directives • The person performing the compliance of an airworthiness directive is responsible to assure all airworthiness requirements are met. • Airworthiness Directive research is a must when performing any inspection. III-45 Downloaded from www. avhf. com
ISSUANCE OF AD SUMMARY EFFECTIVE 1990 CHANGES BOOK 1, SMALL AIRCRAFT AND ALL ROTORCRAFT BETWEEN THE 1940’S AND 1979 (STILL IN EFFECT) BOOK 2, SMALL AIRCRAFT AND ALL ROTORCRAFT AD’S BEGINNING WITH 1980 TO PRESENT BOOK 1, LARGE AIRCRAFT BETWEEN THE 1940’S AND 1979 (STILL IN EFFECT) BOOK 2, LARGE AIRCRAFT AD’S BEGINNING WITH 1980 TO PRESENT III-46 Downloaded from www. avhf. com AC 39 -6
AIRWORTHINESS DIRECTIVES ARE ISSUED WHEN. . . AN UNSAFE CONDITION EXISTS IN A PRODUCT, AND THAT CONDITION IS LIKELY TO EXIST OR DEVELOP IN OTHER PRODUCTS OF THE SAME TYPE DESIGN. III-47 Downloaded from www. avhf. com FAR 39. 1
AD CATEGORIES • EMERGENCY ADs • NOTICE OF PROPOSED RULEMAKING III-48 Downloaded from www. avhf. com
LET’S LOOK AT AN AD A LITTLE CLOSER III-49 Downloaded from www. avhf. com
AD’S HAVE 3 MAIN SECTIONS • THE NUMBER • APPLICABILITY • COMPLIANCE PERIOD III-50 Downloaded from www. avhf. com
BASIC ELEMENTS OF AN AD NUMBER 87 03 10 YEAR OF ORIGINAL ISSUANCE III-51 BIWEEKLY PERIOD OF ORIGINAL ISSUANCE SEQUENTIAL NUMBER ASSIGNED TO EACH AD IN THE BIWEEKLY Downloaded from www. avhf. com PERIOD
AD NUMBERING INCLUDES TWO SUPPLEMENTAL ELEMENTS 1. THE “R” NUMBER INDICATES THE NUMBER OF TIMES THE AD HAS BEEN REVISED 78 -09 - 07 R 3 AD 78 -09 -07 R 3 HAS BEEN REVISED THREE TIMES. FOR EXAMPLE: III-52 Downloaded from www. avhf. com
AD NUMBERING INCLUDES TWO SUPPLEMENTAL ELEMENTS 2. A “T” WHICH PRECEDES THE AD NUMBER MEANS THE AD WAS TELEGRAPHED TO THE OWNER OPERATOR OF THE UNSAFE PRODUCT. NOTE: 92 -02 -51 THE LAST TWO SEQUENTIAL NUMBERS OF THE TELEGRAPHIC AD BEGIN WITH THE NUMBER 51 AND CONTINUE IN ASCENDING ORDER III-53 Downloaded from www. avhf. com
IMPORTANT FACT III-54 A REVISED AD MAY INCLUDE ADDITIONAL MAINTENANCE PROCEDURES THAT WERE NOT REQUIRED IN THE ORIGINAL AD. THE INSTRUCTIONS MUST BE COMPLIED WITH AND THE REVISED AD BE SIGNED OFF EVEN THOUGH THE ORIGINAL AD WAS A ONETIME COMPLIANCE AD. Downloaded from www. avhf. com
AD APPLICABILITY • A STATEMENT IN THE AD WHICH SPECIFIES THE PRODUCT TO WHICH THE AD APPLIES. • THE AVIATION PRODUCT IS USUALLY IDENTIFIED BY MAKE, MODEL, OR SERIAL NUMBER III-55 Downloaded from www. avhf. com
REMEMBER • NOT ALL AD’S ARE WRITTEN WITH A ONE TIME COMPLIANCE ACTION!!! • MANY AD’S HAVE RECURRING OR REPETITIVE COMPLIANCE REQUIREMENTS DUE TO THE NATURE OF THE UNSAFE CONDITION. III-56 Downloaded from www. avhf. com

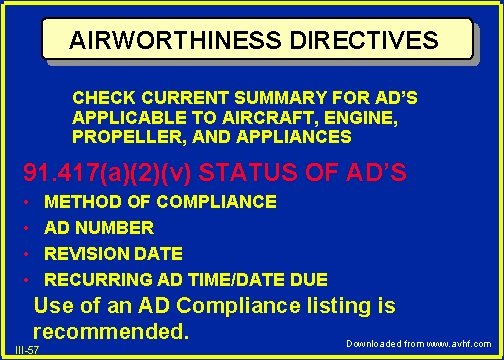

AIRWORTHINESS DIRECTIVES CHECK CURRENT SUMMARY FOR AD’S APPLICABLE TO AIRCRAFT, ENGINE, PROPELLER, AND APPLIANCES 91. 417(a)(2)(v) STATUS OF AD’S • • METHOD OF COMPLIANCE AD NUMBER REVISION DATE RECURRING AD TIME/DATE DUE Use of an AD Compliance listing is recommended. Downloaded from www. avhf. com III-57
AIRWORTHINESS DIRECTIVE COMPLIANCE LIST N________ AIRCRAFT, ENGINE, PROPELLER, ROTOR, OR APPLIANCE Make_____ Model_____ S/N_____ AD NO. REV. APPLICABLE S. B. DATE OR SUBJECT DATE AND METHOD OF HOURS AT COMPLIANCE O N E T I M E III-58 R E C U R R I N G NEXT COMP AUTHORIZED DUE DATE SIGNATURE HRS/CYCLE AND NUMBER Downloaded from www. avhf. com
Airworthiness Directives may include specific language as to how compliance with the AD is to be performed. Be sure to read the AD very close to determine the action required and if you have questions pertaining to the AD contact the person at the phone number located at the end of the AD. III-59 Downloaded from www. avhf. com
85 -20 -01 XXXXXX: Letter issued September 27, 1985. Applies to XXXXXX Model. . . (a) Prior to further flight: 1) Deactivate. . . 2) Fabricate. . . (b) Within 25 hours. . . (c) The requirements of paragraph (a). . . (d) The airplane may be flown in accordance with FAR 21. 197 to a location where this AD may be accomplished, providing the cabin heat is not used during flight. (e) An equivalent method of compliance may be used. . . III-60 Downloaded from www. avhf. com
WHAT IS YOUR RESPONSIBILITY TO AIRWORTHINESS DIRECTIVES? • 100 HOUR INSPECTIONS • ANNUAL INSPECTIONS • PROGRESSIVE INSPECTIONS • OTHER REQUIRED OR APPROVED INSPECTIONS AS APPROPRIATE III-61 Downloaded from www. avhf. com
IT IS YOUR RESPONSIBILITY TO DETERMINE BY INSPECTION OF THE AIRCRAFT RECORDS AND AIRCRAFT THAT COMPLIANCE WITH ALL APPLICABLE AD’S HAS BEEN ACCOMPLISHED. ANY NONCOMPLIANCE SHOULD BE REPORTED TO THE AIRCRAFT OWNER. IT IS THE OWNER’S RESPONSIBILITY FOR AD COMPLIANCE III-62 Downloaded from www. avhf. com FAR 43. 15(a)(1), 43. 11(b), 91. 403(a)
ARE MANUFACTURER SERVICE BULLETINS MANDATORY? ? ? III-63 Downloaded from www. avhf. com
IF THE FAA DETERMINED THE SERVICE BULLETIN SHOULD BECOME MANDATORY BY LAW, THEN IT WILL BE ADDED TO THE AIRWORTHINESS DIRECTIVE REVISION TO TYPE CERTIFICATE DATA SHEET REVISION TO AIRCRAFT FLIGHT MANUAL OPERATION SPECIFICATIONS MANUFACTURER’S INSPECTION PROGRAM III-64 Downloaded from www. avhf. com PREAMBLE TO 135. 421
AIRCRAFT INSPECTION PROGRAMS III-65 Downloaded from www. avhf. com
ANNUAL INSPECTIONS � REQUIRED FOR FAR PART 91 AND SOME AIR CARRIER OPERATORS � REQUIRED EVERY 12 CALENDAR MONTHS � REPAIR STATIONS, AIR CARRIERS, OR THE HOLDER OF AN IA MUST PERFORM THE INSPECTION � PERFORMED IN ACCORDANCE WITH FAR PART 43 AND APPENDIX D OF FAR 43 III-66 Downloaded from www. avhf. com FAR 43. 7, 13, 15, 91. 409
100 HOUR INSPECTIONS + REQUIRED FOR AIRCRAFT THAT OPERATE FOR HIRE + AN A&P MECHANIC OR REPAIR STATION MAY PERFORM THE INSPECTION + SIMILAR IN SCOPE AND DETAIL TO THE ANNUAL INSPECTION III-67 Downloaded from www. avhf. com FAR 91. 409(b) 43. 3
PROGRESSIVE INSPECTIONS * WRITTEN REQUEST MUST BE SUBMITTED TO THE FAA * MANUFACTURER, REPAIR STATION WITH AIRFRAME RATING OR A&P MECHANIC WITH AN INSPECTION AUTHORIZATION MAY SUPERVISE OR CONDUCT THE INSPECTION * PROVIDE A CURRENT INSPECTION PROCEDURES MANUAL WHICH EXPLAINS: * THE INSPECTION * WHO IS RESPONSIBLE * HOW RECORDS ARE MAINTAINED * SCHEDULE OF INSPECTION INTERVALS Downloaded from www. avhf. com III-68 FAR 43. 3, 91. 409(b), (d)
PROGRESSIVE INSPECTIONS • COMPLETE INSPECTION IN 12 MONTHS • IF THE PROGRESSIVE INSPECTION IS DISCONTINUED, THE OWNER/OPERATOR SHALL NOTIFY THE LOCAL FAA OFFICE III-69 Downloaded from www. avhf. com FAR 91. 409(d)
PROGRESSIVE INSPECTIONS • Inspection schedule must insure compliance with all applicable FAA Specifications, type certificate data sheets, airworthiness directives and other approved data. • After the discontinuance of the progressive inspection the next annual inspection is due 12 calendar months after the last complete inspection. III-70 Downloaded from www. avhf. com FAR 91. 409(d)
FAR PART 135 PROGRAMS AIRCRAFT WITH NINE OR LESS SEATS 100 -HOUR/ANNUAL APPROVED AIRCRAFT INSPECTION PROGRAM PROGRESSIVE INSPECTION III-71 Downloaded from www. avhf. com FAR 135. 411(a)(1), 135. 419
INSPECTION Requirements – Each person performing an inspection required by Part 91, 123, 125, or 135 shall perform the inspection as to determine whether the aircraft or portions thereof under inspection , meets all applicable airworthiness requirements. III-72 Downloaded from www. avhf. com
Inspection Requirements • Each person performing an inspection or maintenance specified in an Airworthiness Limitation section of the manufacturer’s maintenance manual or Instructions for Continued Airworthiness shall perform the inspection and other maintenance in accordance with that section or in accordance with the operation specifications. III-73 Downloaded from www. avhf. com
INSPECTION CHECKLIST • Each person performing a 100 hour/annual inspection shall use a checklist while performing the inspection, • May be the person’s own design • One provided by the manufacturer • One obtained from another source • Must include the scope and detail of the items in Appendix D of Part 43 III-74 Downloaded from www. avhf. com
Inspection Requirements • If the inspection is provided for FAR 123, 125 or 135 or 91. 409 e you must perform that inspection in accordance with the instructions and procedures set forth in the inspection program for the aircraft being inspected. III-75 Downloaded from www. avhf. com
Inspection Records • Records of the 100 -hour, annual, progressive and other required or approved inspections for each aircraft (including the airframe) and each engine, propeller, rotor and appliance of the aircraft , the records must include: • A description of the work performed. • The date the work was completed. • The signature and certificate number of the person approving the aircraft for return to service. III-76 Downloaded from www. avhf. com
Inspection Records • Must contain the following information: • The total time in service of each engine, each propeller and each rotor. • The current status of life-limited parts of each airframe , engine, each propeller, and each rotor. • The time since overhaul of all items installed on the aircraft which are required to be overhauled on a specified time basis. III-77 Downloaded from www. avhf. com
Inspection Records • The current inspection status of the aircraft, including the time since the last inspection required by the inspection program under which the aircraft and its appliances are maintained. • The current status of applicable airworthiness directives (AD) including for each, the method of compliance, the AD number, and revision date. If the AD involves recurring action, the time and date when the next action is required. III-78 Downloaded from www. avhf. com
Inspection Records • Except for a progressive inspection, if the aircraft was found to be airworthy and approved for return to service the record entry must include the following or similar worded statement : “ I certify that this aircraft has been inspected in accordance with (insert type) inspection and was determined to be in an airworthy condition. ” III-79 Downloaded from www. avhf. com
UNAIRWORTHY III-80 Downloaded from www. avhf. com
Inspection Records • Except for progressive inspections, if the aircraft is not approved for return to service because of needed maintenance, noncompliance with applicable specifications, airworthiness directives, or other approved data - the record must include the following or similar worded statement: “I certify that this aircraft has been inspected in accordance with (insert type) inspection and a list of discrepancies has been provided for the aircraft owner or operator. ” III-81 Downloaded from www. avhf. com
Inspection Records For progressive inspections, the following or similarly worded statement: “I certify that this aircraft has been inspected in accordance with a progressive inspection program, a routine inspection of (identify aircraft or component) and a detailed inspection of (Identify components) were performed and the (aircraft or components) are (approved or disapproved) for return to service. ” If disapproved, the entry will further state, “and a list of discrepancies have been provided to the owner/operator. ” III-82 Downloaded from www. avhf. com
Aircraft Inspections The End III-83 Downloaded from www. avhf. com
