Aircraft Galley Lavatory and Water Systems Ryan Koubek

Aircraft Galley, Lavatory, and Water Systems Ryan Koubek & Mike Maloy Team 3 September 14, 2006 Aircraft Design Class

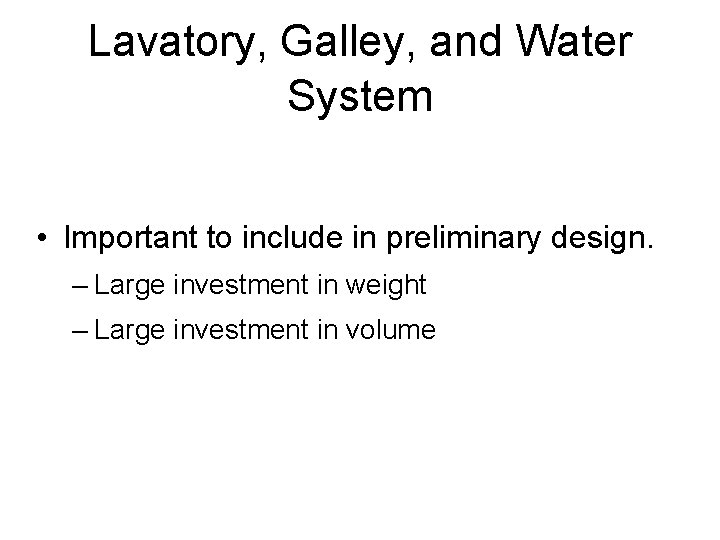

Lavatory, Galley, and Water System • Important to include in preliminary design. – Large investment in weight – Large investment in volume

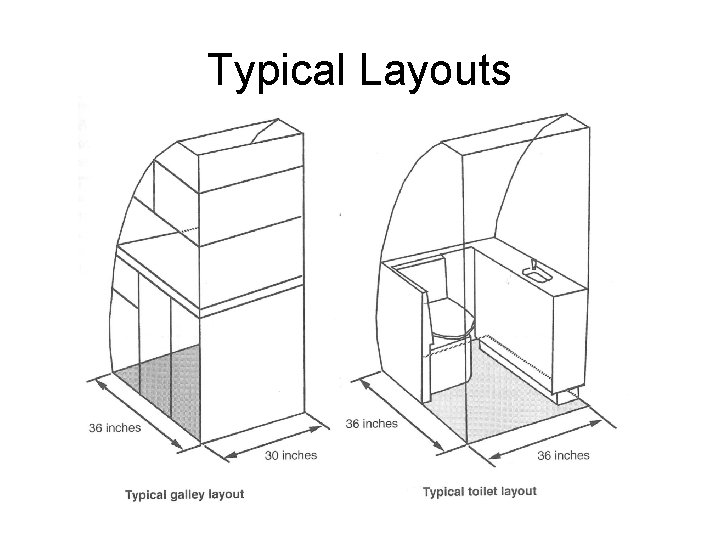

Typical Layouts

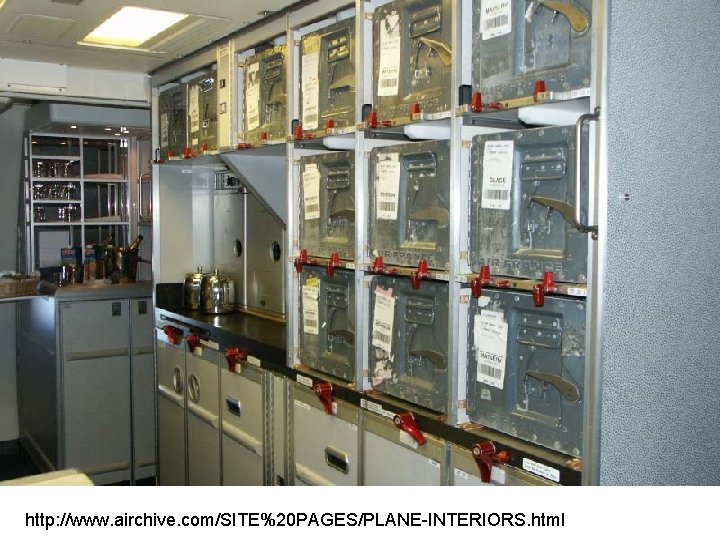

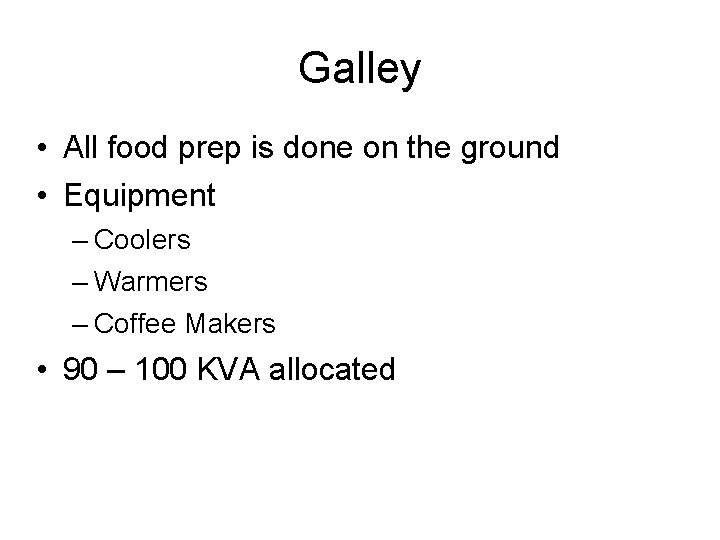

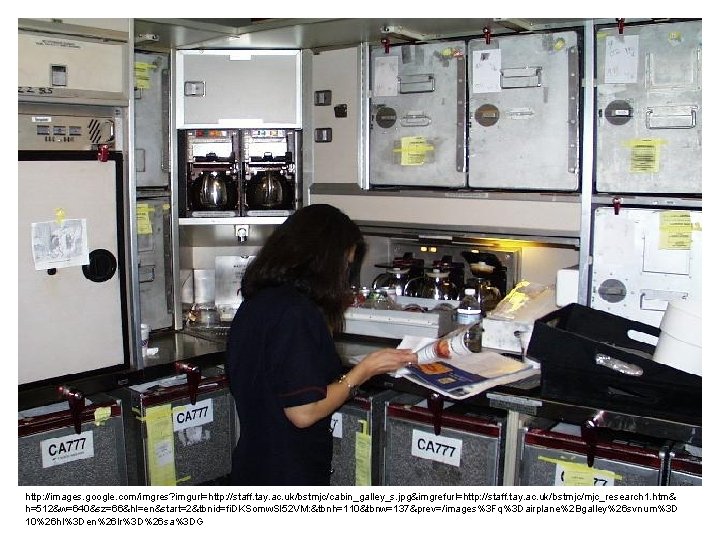

Galley • All food prep is done on the ground • Equipment – Coolers – Warmers – Coffee Makers • 90 – 100 KVA allocated

http: //www. airchive. com/SITE%20 PAGES/PLANE-INTERIORS. html

http: //images. google. com/imgres? imgurl=http: //staff. tay. ac. uk/bstmjc/cabin_galley_s. jpg&imgrefurl=http: //staff. tay. ac. uk/bstmjc/mjc_research 1. htm& h=512&w=640&sz=66&hl=en&start=2&tbnid=fi. DKSomw. SI 52 VM: &tbnh=110&tbnw=137&prev=/images%3 Fq%3 Dairplane%2 Bgalley%26 svnum%3 D 10%26 hl%3 Den%26 lr%3 D%26 sa%3 DG

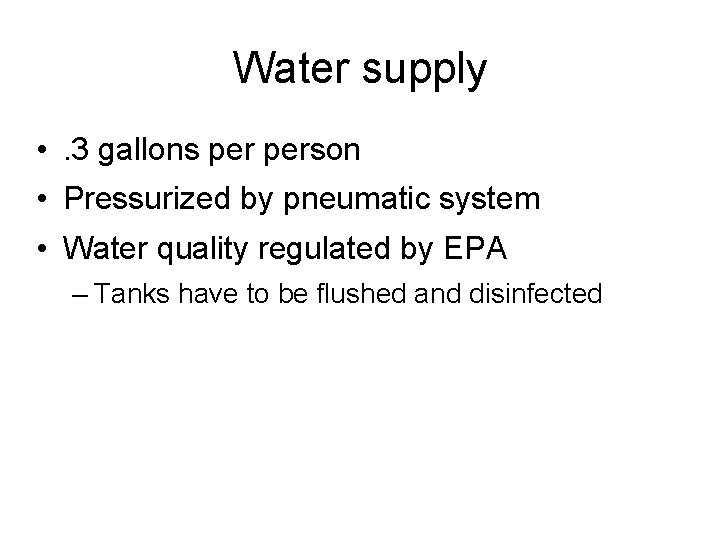

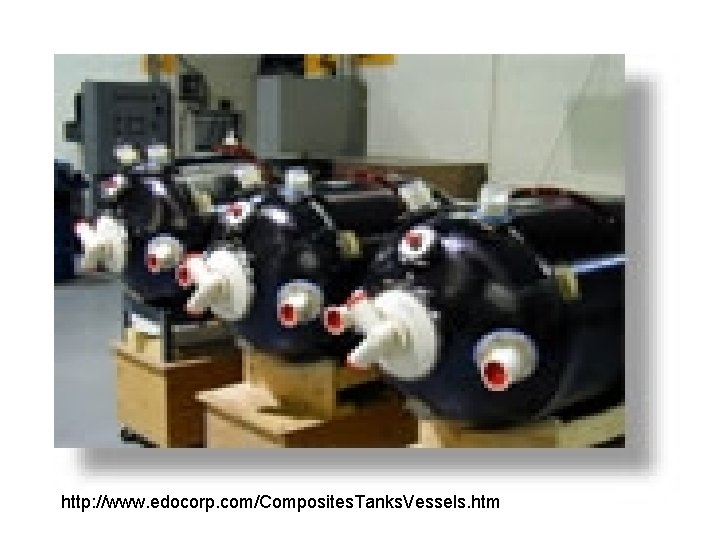

Water supply • . 3 gallons person • Pressurized by pneumatic system • Water quality regulated by EPA – Tanks have to be flushed and disinfected

http: //www. edocorp. com/Composites. Tanks. Vessels. htm

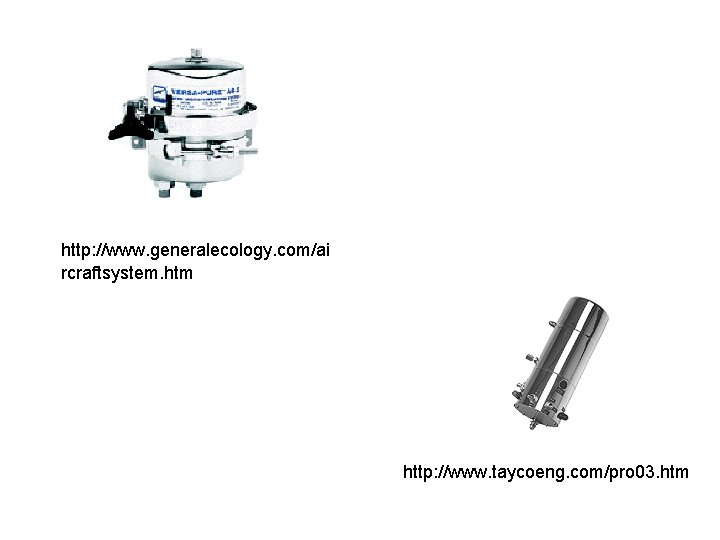

http: //www. generalecology. com/ai rcraftsystem. htm http: //www. taycoeng. com/pro 03. htm

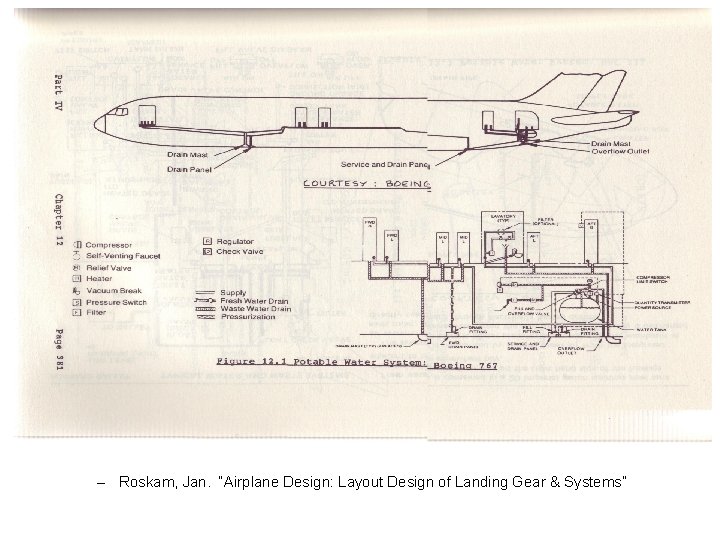

– Roskam, Jan. “Airplane Design: Layout Design of Landing Gear & Systems”

Lavatory http: //static. flickr. com/25/96134734_4 cf 183 cc 7 f_m. jpg

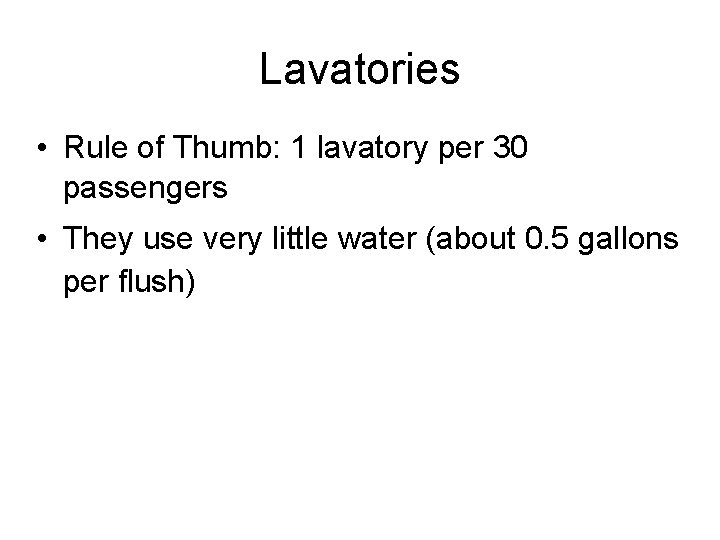

Lavatories • Rule of Thumb: 1 lavatory per 30 passengers • They use very little water (about 0. 5 gallons per flush)

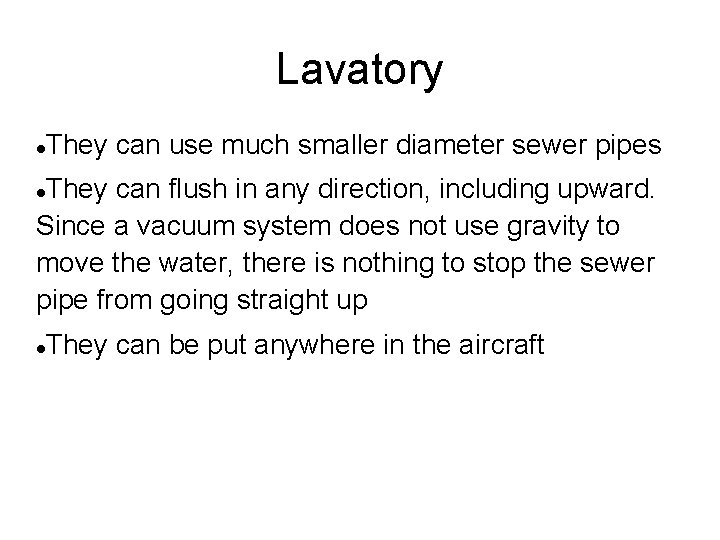

Lavatory They can use much smaller diameter sewer pipes They can flush in any direction, including upward. Since a vacuum system does not use gravity to move the water, there is nothing to stop the sewer pipe from going straight up They can be put anywhere in the aircraft

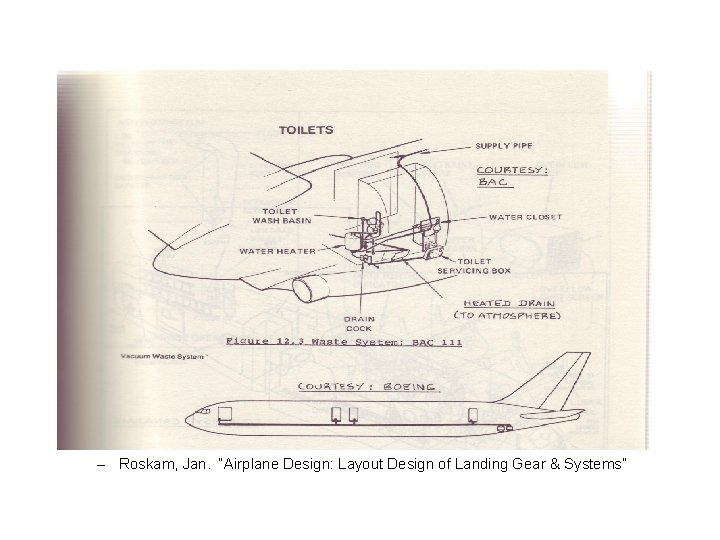

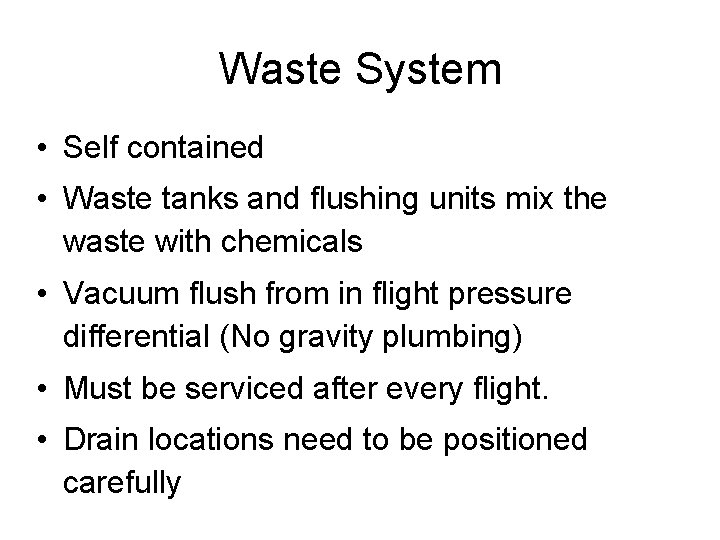

Waste System • Self contained • Waste tanks and flushing units mix the waste with chemicals • Vacuum flush from in flight pressure differential (No gravity plumbing) • Must be serviced after every flight. • Drain locations need to be positioned carefully

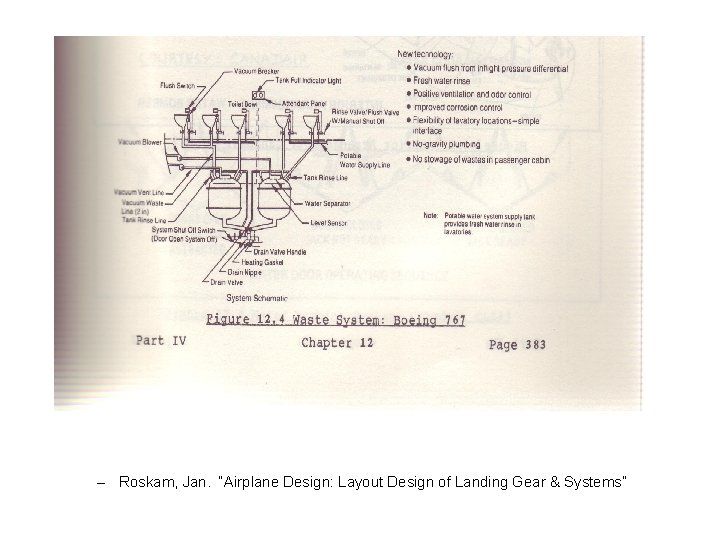

– Roskam, Jan. “Airplane Design: Layout Design of Landing Gear & Systems”

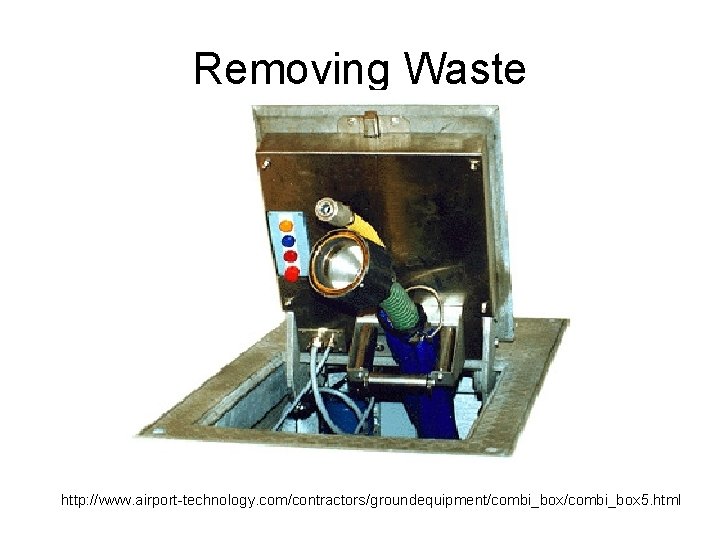

Removing Waste http: //www. airport-technology. com/contractors/groundequipment/combi_box 5. html

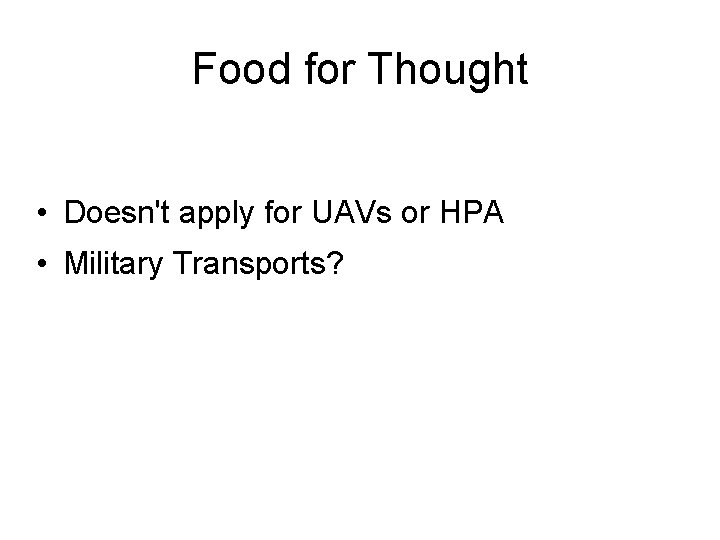

Food for Thought • Doesn't apply for UAVs or HPA • Military Transports?

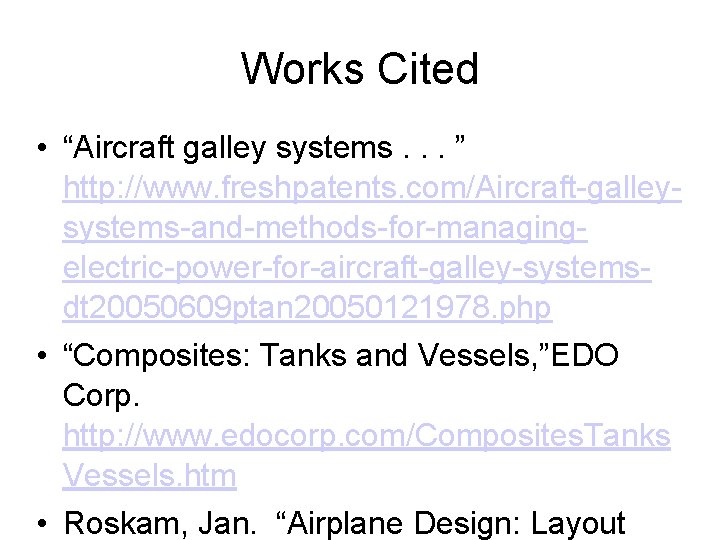

Works Cited • “Aircraft galley systems. . . ” http: //www. freshpatents. com/Aircraft-galleysystems-and-methods-for-managingelectric-power-for-aircraft-galley-systemsdt 20050609 ptan 20050121978. php • “Composites: Tanks and Vessels, ”EDO Corp. http: //www. edocorp. com/Composites. Tanks Vessels. htm • Roskam, Jan. “Airplane Design: Layout
