AIRCRAFT FAMILIARIZATION ARFF IAFF Local 62 BOMBARDIER CRJ100200

AIRCRAFT FAMILIARIZATION ARFF IAFF Local 62 BOMBARDIER CRJ-100/200

An Introduction to the CRJ 100/200 Entering service in November 1992, the Bombardier CRJ 100 pioneered the 50 seat jet-class. Today, along with the 200 series they are flown by over 30 different operators on all five continents and serve over 6 million passengers a year.

Aircraft Dimensions CRJ-100 CRJ-200 Length 87’ 10’’ 87’ 10’‘ Wing span 69’ 7’’ Height 20’ 5’’ Weight 29, 180 lbs 30, 292 lbs Takeoff 47, 450 lbs (CRJ-ER) 53, 000 lbs (CRJ-LR)

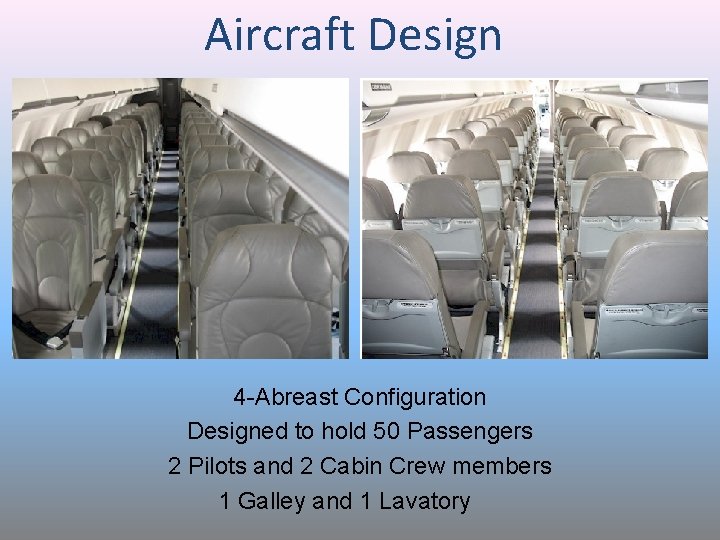

Aircraft Design 4 -Abreast Configuration Designed to hold 50 Passengers 2 Pilots and 2 Cabin Crew members 1 Galley and 1 Lavatory

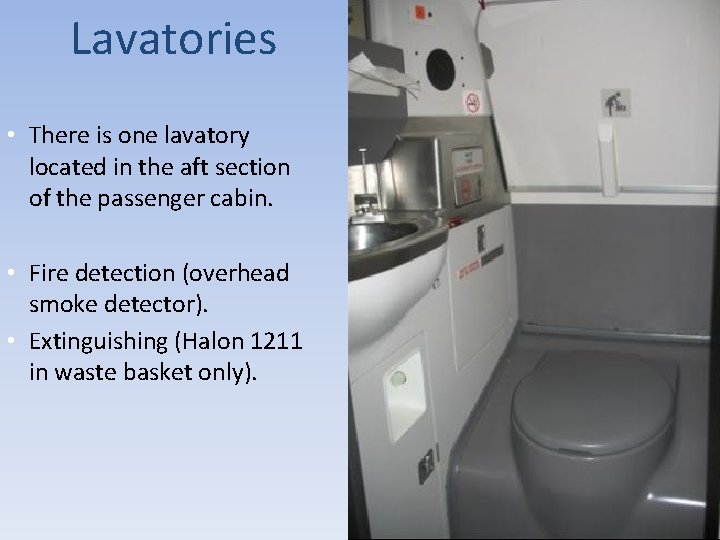

Lavatories • There is one lavatory located in the aft section of the passenger cabin. • Fire detection (overhead smoke detector). • Extinguishing (Halon 1211 in waste basket only).

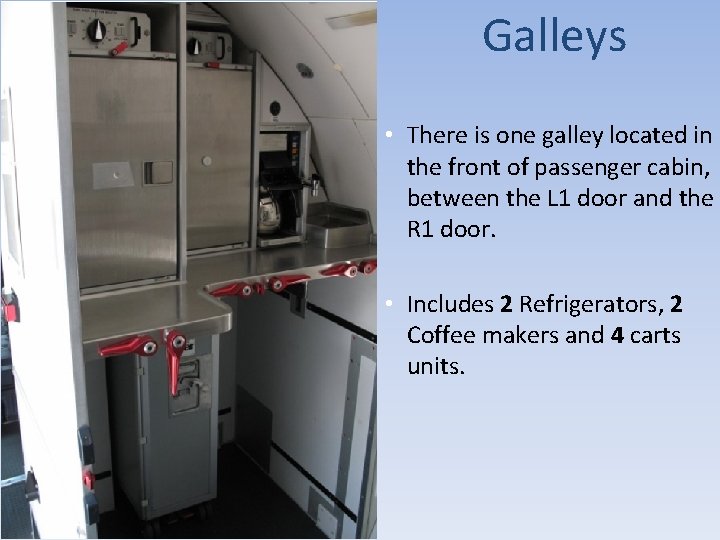

Galleys • There is one galley located in the front of passenger cabin, between the L 1 door and the R 1 door. • Includes 2 Refrigerators, 2 Coffee makers and 4 carts units.

Power Plant In 1995, the CRJ 200 series arrived carrying the new General Electric CF 34 -3 B 1 turbofan engine.

General Electric CF 34 -3 B 1 Weight: 1, 640 lbs each Thrust: 8, 729 lbs per engine The Manufacturer does not recommend specific Fire Fighting Technique(s) for their products. Use your best Judgment!

Powerplant Continued � The engine is a twin spool turbofan design. This means that if you intend to put out an engine fire do not try to extinguish it by spraying water into the front of engine. � The power plant in the CRJ 100/200 is made up of several titanium disc fans surrounded by Kevlar to protect the rest of the aircraft in case of a catastrophic engine failure. � Keep in mind that the skin of the aircraft, including the engine cowling, are made of aluminum alloy.

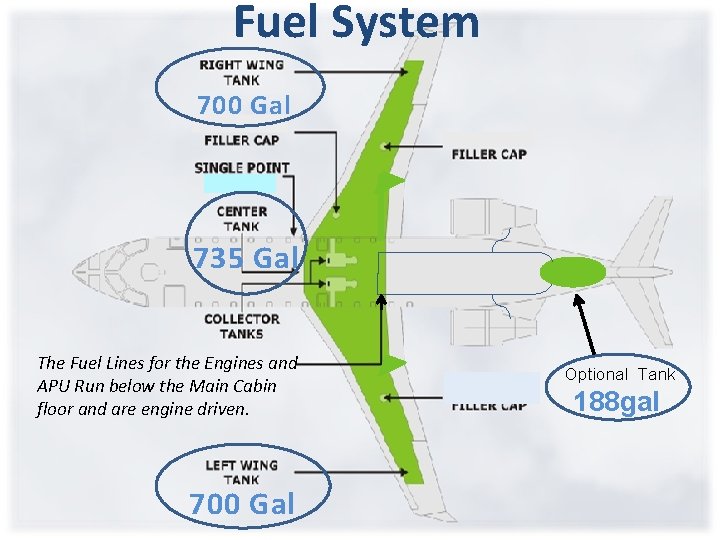

Fuel System 700 Gal 735 Gal The Fuel Lines for the Engines and APU Run below the Main Cabin floor and are engine driven. 700 Gal Optional Tank 188 gal

Oxygen System The Oxygen System can be found in the Forward Equipment Bay which can be accessed by a door under the fuselage, in the front of the wings.

There also two small cylinders stowed in the first overhead compartment of the Main Cabin which are portable for First Aid purposes.

Hydraulic System • Triple Redundant System. • Normal Pressure 3000 PSI • System 1 : Provides power to the Left side primary flight controls as well as the flight and ground spoilers on both sides. • System 2 : Provides pressure to the Right side primary flight controls, as well as the right side spoileron, right aileron, rudder and elevator, outboard brakes and the main landing gear assist and auxiliary actuators). • System 3 : Provides pressure to the flight controls on both sides, landing gear, inboard brakes, and nose wheel steering. Systems 1 and 2 are located in the aft equipment bay. System 3 is located in between the main wheel wells Each system runs independently and each contain 6 pumps. 2 of which are engine driven and 4 that are alternating current motor pumps (ACMP)

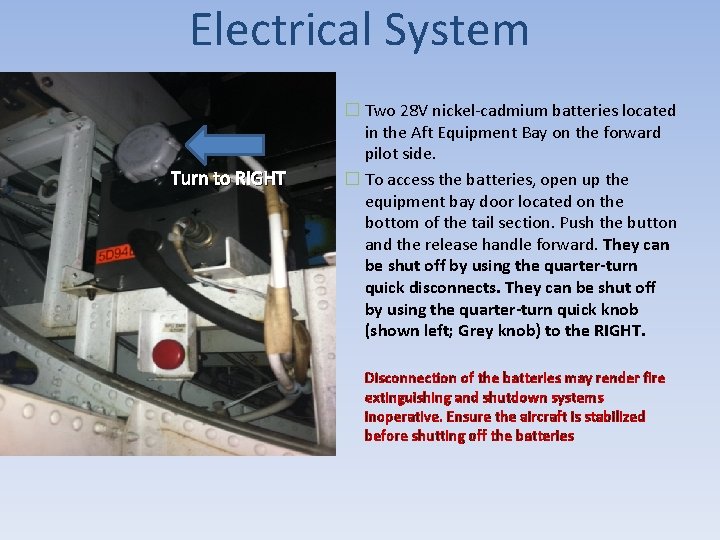

Electrical System Turn to RIGHT � Two 28 V nickel-cadmium batteries located in the Aft Equipment Bay on the forward pilot side. � To access the batteries, open up the equipment bay door located on the bottom of the tail section. Push the button and the release handle forward. They can be shut off by using the quarter-turn quick disconnects. They can be shut off by using the quarter-turn quick knob (shown left; Grey knob) to the RIGHT. Disconnection of the batteries may render fire extinguishing and shutdown systems inoperative. Ensure the aircraft is stabilized before shutting off the batteries

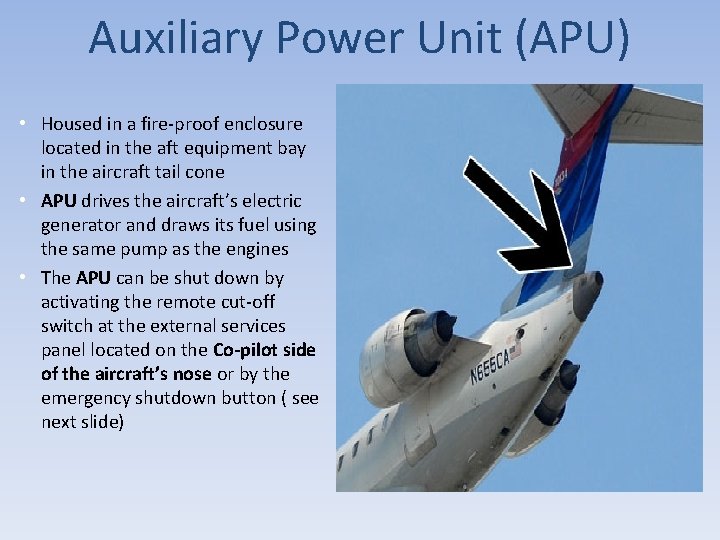

Auxiliary Power Unit (APU) • Housed in a fire-proof enclosure located in the aft equipment bay in the aircraft tail cone • APU drives the aircraft’s electric generator and draws its fuel using the same pump as the engines • The APU can be shut down by activating the remote cut-off switch at the external services panel located on the Co-pilot side of the aircraft’s nose or by the emergency shutdown button ( see next slide)

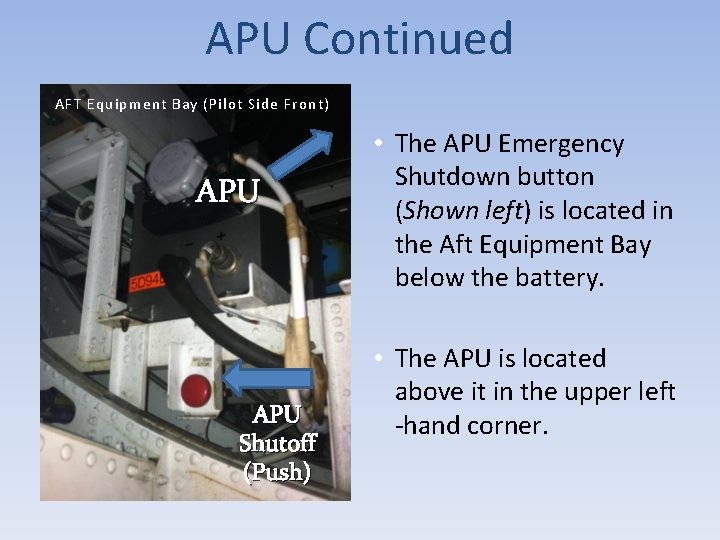

APU Continued AFT Equipment Bay (Pilot Side Front) APU Shutoff (Push) • The APU Emergency Shutdown button (Shown left) is located in the Aft Equipment Bay below the battery. • The APU is located above it in the upper left -hand corner.

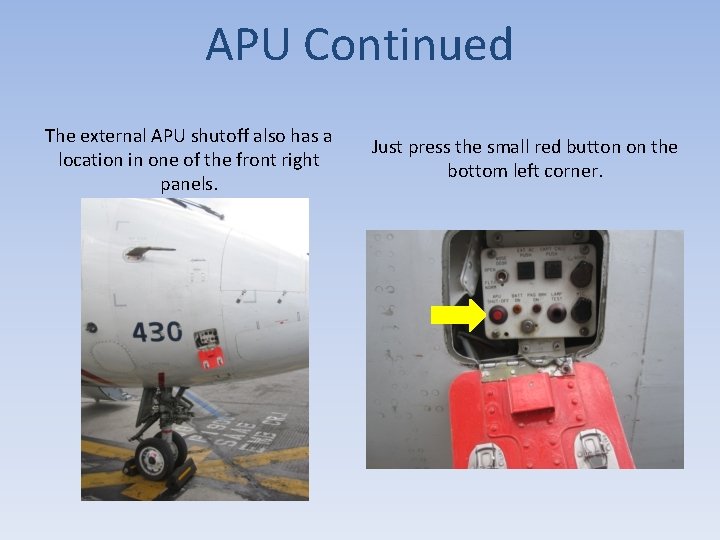

APU Continued The external APU shutoff also has a location in one of the front right panels. Just press the small red button on the bottom left corner.

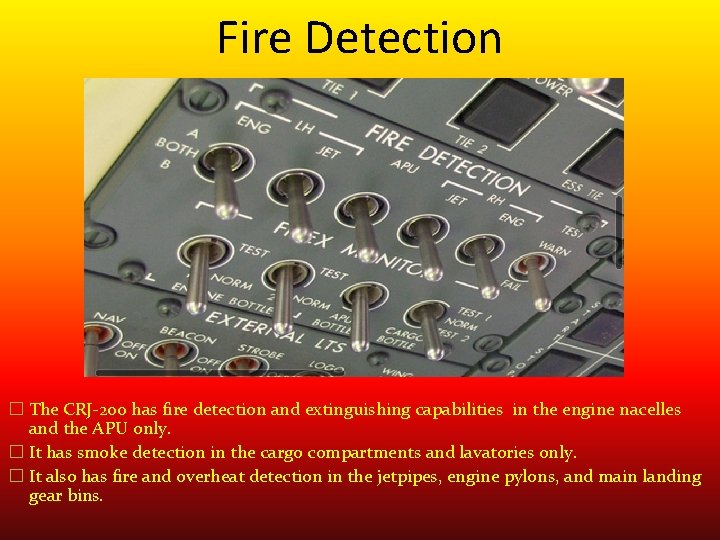

Fire Detection � The CRJ-200 has fire detection and extinguishing capabilities in the engine nacelles and the APU only. � It has smoke detection in the cargo compartments and lavatories only. � It also has fire and overheat detection in the jetpipes, engine pylons, and main landing gear bins.

Fire Suppression Lavatory (Waste Basket Only) �Fire extinguishing is available for the Engines (2 Bottles can be used for either or both) APU, cargo and lavatory (waste basket only).

Flight Deck Emergency Equipment Located Behind the F. O. • 3 Life Vests • Escape Rope (15’) • Crash Axe • Halon Fire Extinguisher • PBE Unit (Shown Right) • 3 Portable Oxygen masks

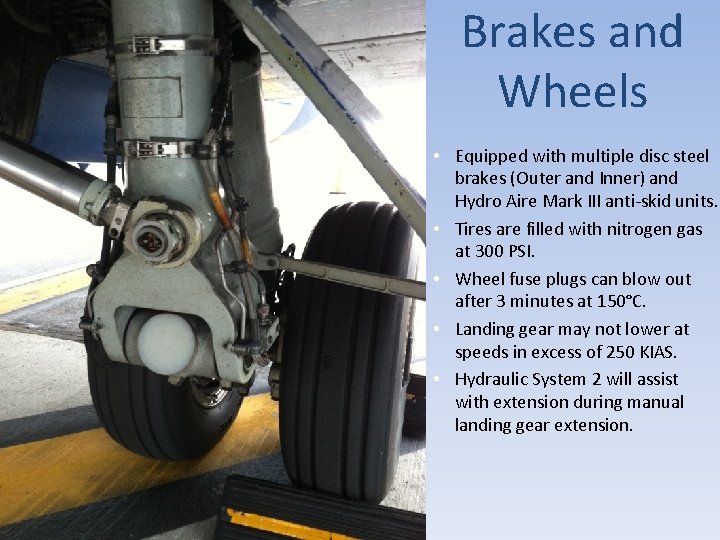

Brakes and Wheels • Equipped with multiple disc steel brakes (Outer and Inner) and Hydro Aire Mark III anti-skid units. • Tires are filled with nitrogen gas at 300 PSI. • Wheel fuse plugs can blow out after 3 minutes at 150°C. • Landing gear may not lower at speeds in excess of 250 KIAS. • Hydraulic System 2 will assist with extension during manual landing gear extension.

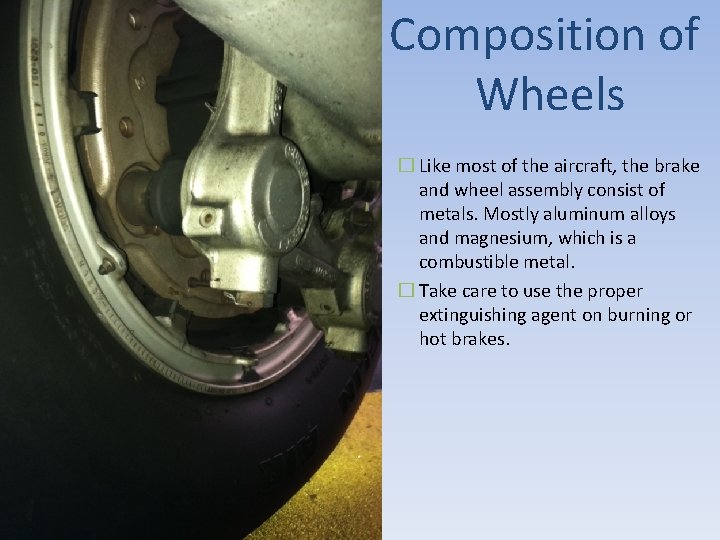

Composition of Wheels � Like most of the aircraft, the brake and wheel assembly consist of metals. Mostly aluminum alloys and magnesium, which is a combustible metal. � Take care to use the proper extinguishing agent on burning or hot brakes.

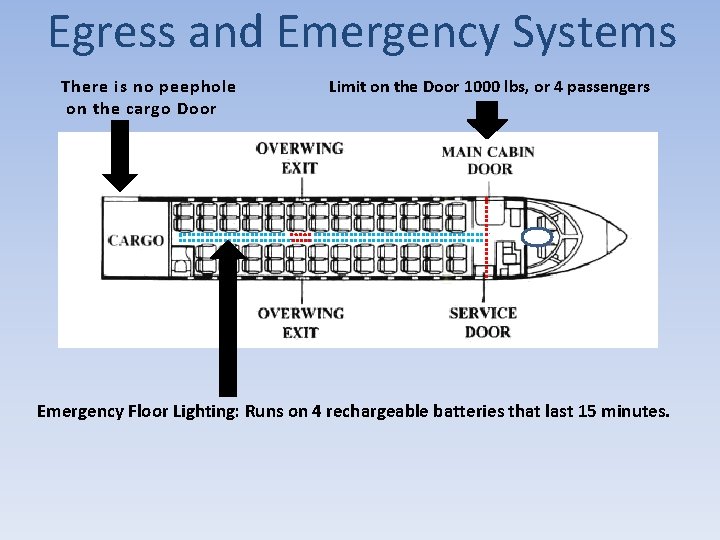

Egress and Emergency Systems There is no peephole on the cargo Door Limit on the Door 1000 lbs, or 4 passengers Emergency Floor Lighting: Runs on 4 rechargeable batteries that last 15 minutes.

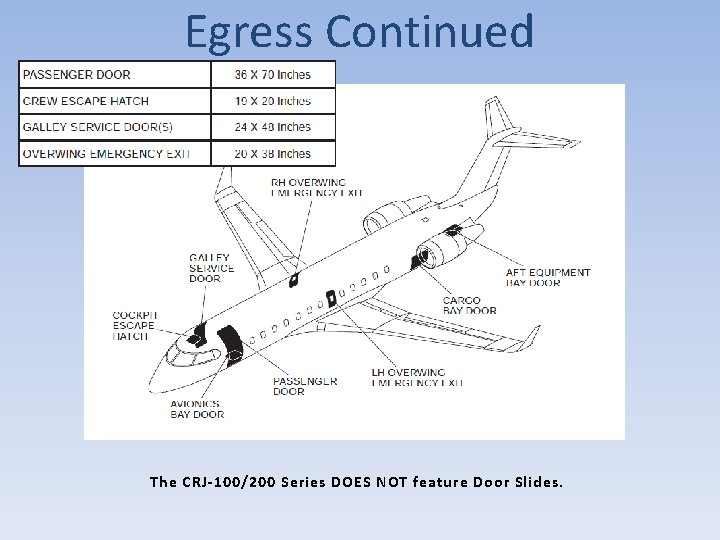

Egress Continued The CRJ-100/200 Series DOES NOT feature Door Slides.

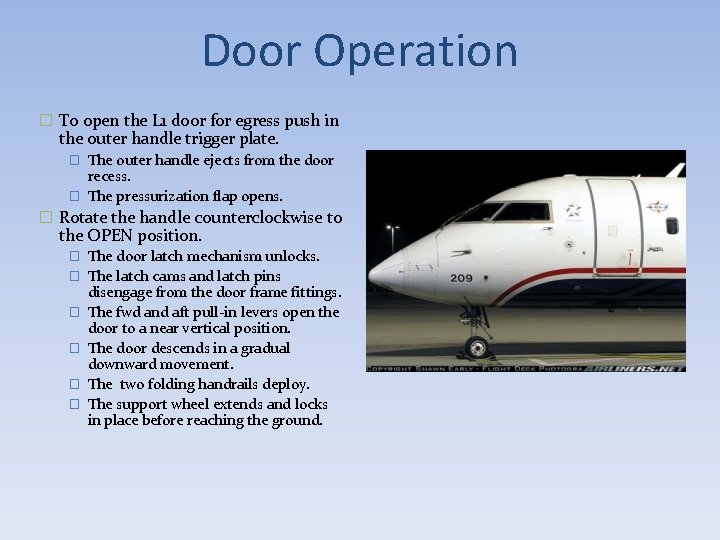

Door Operation � To open the L 1 door for egress push in the outer handle trigger plate. � The outer handle ejects from the door recess. � The pressurization flap opens. � Rotate the handle counterclockwise to the OPEN position. � The door latch mechanism unlocks. � The latch cams and latch pins � � disengage from the door frame fittings. The fwd and aft pull-in levers open the door to a near vertical position. The door descends in a gradual downward movement. The two folding handrails deploy. The support wheel extends and locks in place before reaching the ground.

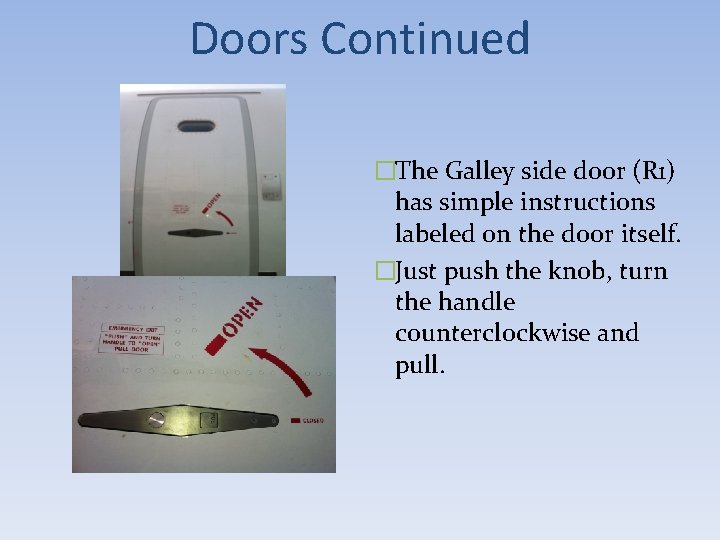

Doors Continued �The Galley side door (R 1) has simple instructions labeled on the door itself. �Just push the knob, turn the handle counterclockwise and pull.

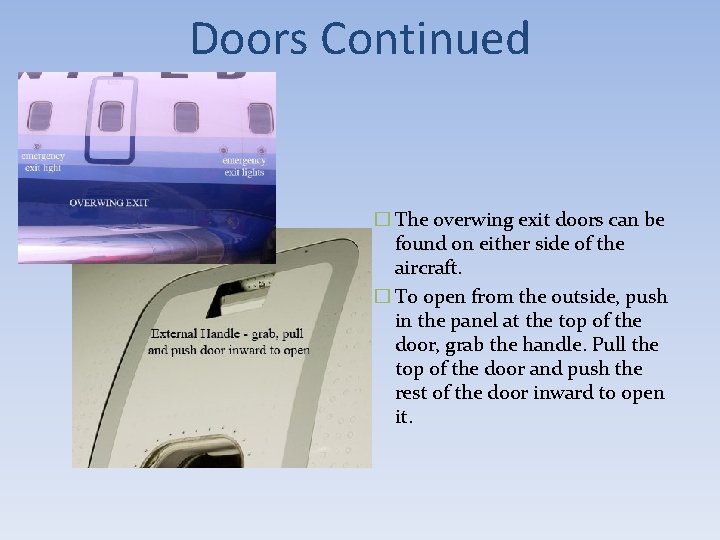

Doors Continued � The overwing exit doors can be found on either side of the aircraft. � To open from the outside, push in the panel at the top of the door, grab the handle. Pull the top of the door and push the rest of the door inward to open it.

AFT Equipment Bay (Facing the Tail Cone) Flight Data Recorder Records the most recent 25 hours of critical aircraft and flight parameter data. Cockpit Voice Recorder Monitors Pilot, Co-pilot, Mixed PA audio, the observer’s station, and ambient flight deck noise. PILOT SIDE To APU and Battery

ENGINE DANGER AREAS �Maintain a 25 -foot radius from the front and sides of engines while they are running. �Maintain a 500 -foot distance to avoid jet blast. �APU exhaust hazard extends 20 -feet to the starboard side.

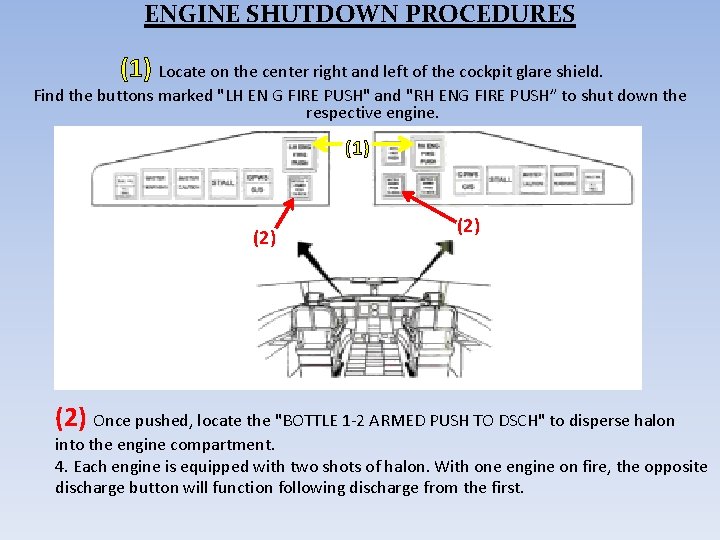

ENGINE SHUTDOWN PROCEDURES (1) Locate on the center right and left of the cockpit glare shield. Find the buttons marked "LH EN G FIRE PUSH" and "RH ENG FIRE PUSH” to shut down the respective engine. (1) (2) (2) Once pushed, locate the "BOTTLE 1 -2 ARMED PUSH TO DSCH" to disperse halon into the engine compartment. 4. Each engine is equipped with two shots of halon. With one engine on fire, the opposite discharge button will function following discharge from the first.
