AIRCONDITIONER ERROR CODES Sr No 1 2 Problem

AIRCONDITIONER ERROR CODES

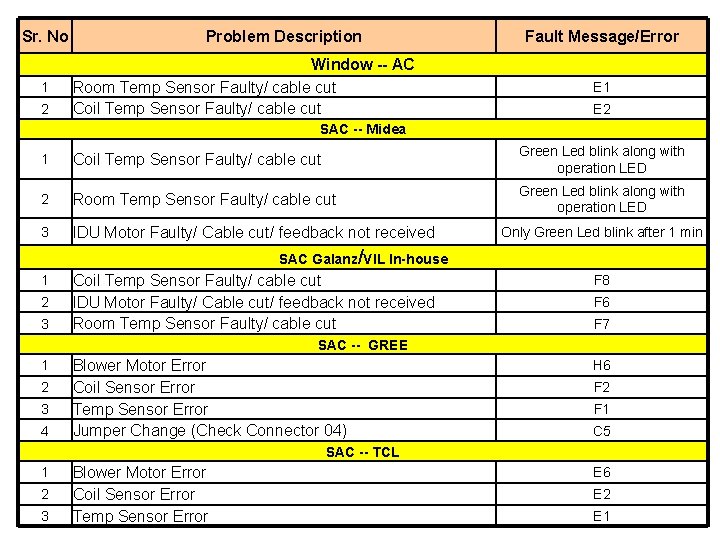

Sr. No 1 2 Problem Description Window -- AC Room Temp Sensor Faulty/ cable cut Coil Temp Sensor Faulty/ cable cut Fault Message/Error E 1 E 2 SAC -- Midea 1 Coil Temp Sensor Faulty/ cable cut Green Led blink along with operation LED 2 Room Temp Sensor Faulty/ cable cut Green Led blink along with operation LED 3 IDU Motor Faulty/ Cable cut/ feedback not received Only Green Led blink after 1 min SAC Galanz/VIL In-house 1 2 3 Coil Temp Sensor Faulty/ cable cut IDU Motor Faulty/ Cable cut/ feedback not received Room Temp Sensor Faulty/ cable cut F 8 F 6 F 7 SAC -- GREE 1 2 3 4 Blower Motor Error Coil Sensor Error Temp Sensor Error Jumper Change (Check Connector 04) H 6 F 2 F 1 C 5 SAC -- TCL 1 2 3 Blower Motor Error Coil Sensor Error Temp Sensor Error E 6 E 2 E 1

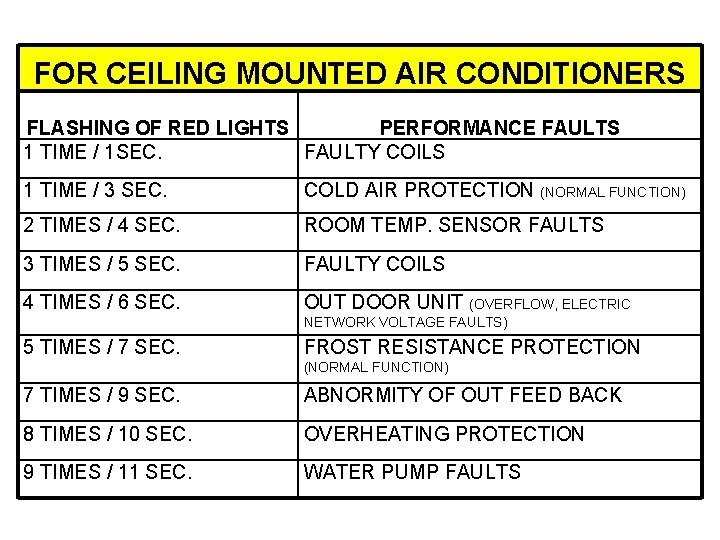

FOR CEILING MOUNTED AIR CONDITIONERS FLASHING OF RED LIGHTS PERFORMANCE FAULTS 1 TIME / 1 SEC. FAULTY COILS 1 TIME / 3 SEC. COLD AIR PROTECTION (NORMAL FUNCTION) 2 TIMES / 4 SEC. ROOM TEMP. SENSOR FAULTS 3 TIMES / 5 SEC. FAULTY COILS 4 TIMES / 6 SEC. OUT DOOR UNIT (OVERFLOW, ELECTRIC NETWORK VOLTAGE FAULTS) 5 TIMES / 7 SEC. FROST RESISTANCE PROTECTION (NORMAL FUNCTION) 7 TIMES / 9 SEC. ABNORMITY OF OUT FEED BACK 8 TIMES / 10 SEC. OVERHEATING PROTECTION 9 TIMES / 11 SEC. WATER PUMP FAULTS

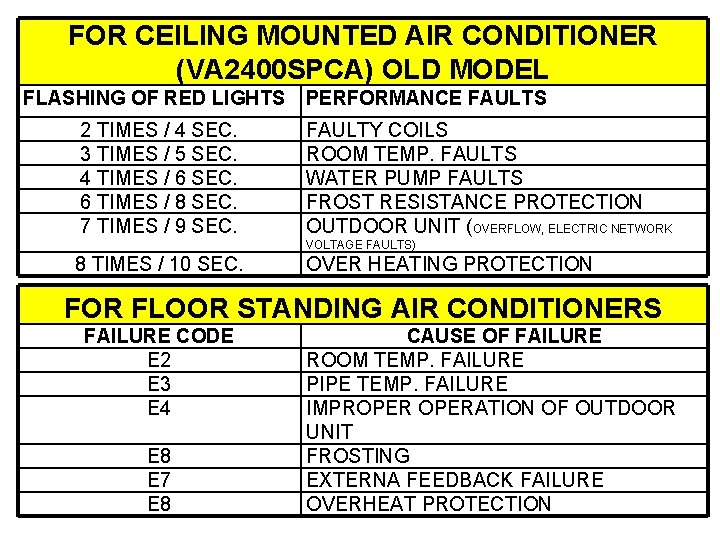

FOR CEILING MOUNTED AIR CONDITIONER (VA 2400 SPCA) OLD MODEL FLASHING OF RED LIGHTS 2 TIMES / 4 SEC. 3 TIMES / 5 SEC. 4 TIMES / 6 SEC. 6 TIMES / 8 SEC. 7 TIMES / 9 SEC. PERFORMANCE FAULTS FAULTY COILS ROOM TEMP. FAULTS WATER PUMP FAULTS FROST RESISTANCE PROTECTION OUTDOOR UNIT (OVERFLOW, ELECTRIC NETWORK VOLTAGE FAULTS) 8 TIMES / 10 SEC. OVER HEATING PROTECTION FOR FLOOR STANDING AIR CONDITIONERS FAILURE CODE E 2 E 3 E 4 E 8 E 7 E 8 CAUSE OF FAILURE ROOM TEMP. FAILURE PIPE TEMP. FAILURE IMPROPERATION OF OUTDOOR UNIT FROSTING EXTERNA FEEDBACK FAILURE OVERHEAT PROTECTION

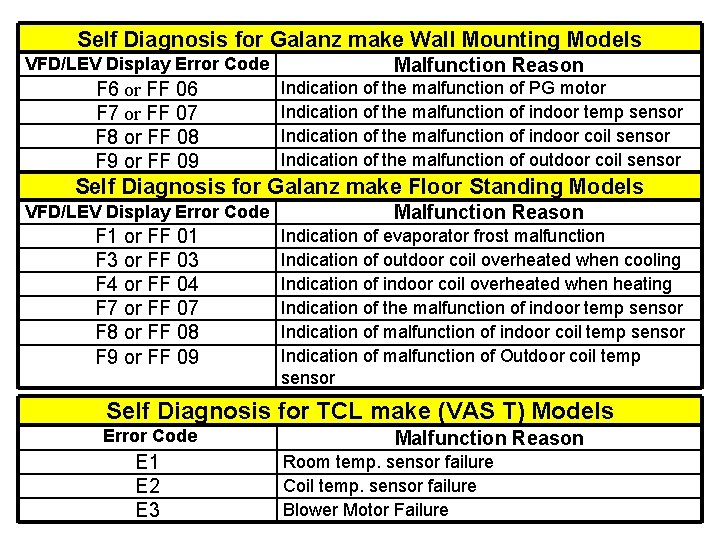

Self Diagnosis for Galanz make Wall Mounting Models VFD/LEV Display Error Code F 6 or FF 06 F 7 or FF 07 F 8 or FF 08 F 9 or FF 09 Malfunction Reason Indication of the malfunction of PG motor Indication of the malfunction of indoor temp sensor Indication of the malfunction of indoor coil sensor Indication of the malfunction of outdoor coil sensor Self Diagnosis for Galanz make Floor Standing Models VFD/LEV Display Error Code F 1 or FF 01 F 3 or FF 03 F 4 or FF 04 F 7 or FF 07 F 8 or FF 08 F 9 or FF 09 Malfunction Reason Indication of evaporator frost malfunction Indication of outdoor coil overheated when cooling Indication of indoor coil overheated when heating Indication of the malfunction of indoor temp sensor Indication of malfunction of indoor coil temp sensor Indication of malfunction of Outdoor coil temp sensor Self Diagnosis for TCL make (VAS T) Models Error Code E 1 E 2 E 3 Malfunction Reason Room temp. sensor failure Coil temp. sensor failure Blower Motor Failure

ACTION TO BE TAKEN AFTER IDENTIFICATION OF ERROR

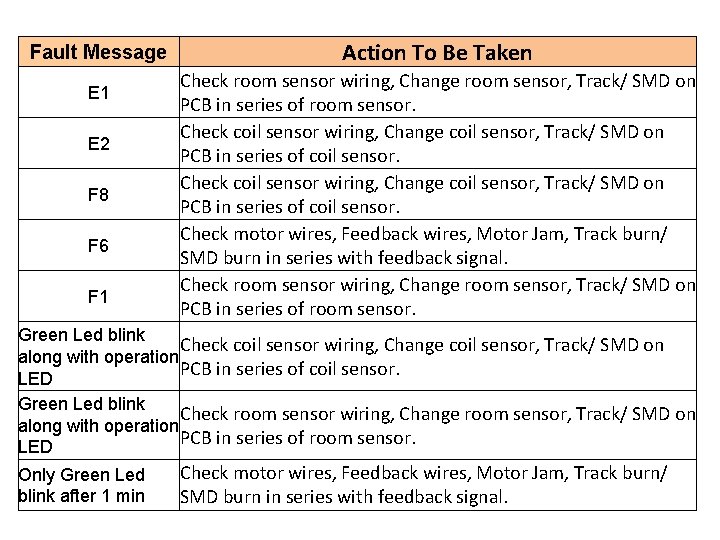

Fault Message E 1 E 2 F 8 F 6 F 1 Action To Be Taken Check room sensor wiring, Change room sensor, Track/ SMD on PCB in series of room sensor. Check coil sensor wiring, Change coil sensor, Track/ SMD on PCB in series of coil sensor. Check motor wires, Feedback wires, Motor Jam, Track burn/ SMD burn in series with feedback signal. Check room sensor wiring, Change room sensor, Track/ SMD on PCB in series of room sensor. Green Led blink Check coil sensor wiring, Change coil sensor, Track/ SMD on along with operation PCB in series of coil sensor. LED Green Led blink Check room sensor wiring, Change room sensor, Track/ SMD on along with operation PCB in series of room sensor. LED Only Green Led blink after 1 min Check motor wires, Feedback wires, Motor Jam, Track burn/ SMD burn in series with feedback signal.

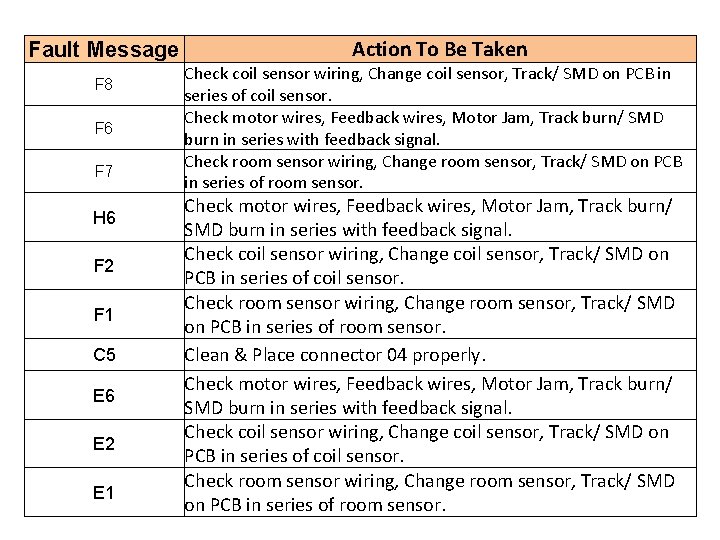

Fault Message F 8 F 6 F 7 H 6 F 2 F 1 C 5 E 6 E 2 E 1 Action To Be Taken Check coil sensor wiring, Change coil sensor, Track/ SMD on PCB in series of coil sensor. Check motor wires, Feedback wires, Motor Jam, Track burn/ SMD burn in series with feedback signal. Check room sensor wiring, Change room sensor, Track/ SMD on PCB in series of room sensor. Check motor wires, Feedback wires, Motor Jam, Track burn/ SMD burn in series with feedback signal. Check coil sensor wiring, Change coil sensor, Track/ SMD on PCB in series of coil sensor. Check room sensor wiring, Change room sensor, Track/ SMD on PCB in series of room sensor. Clean & Place connector 04 properly. Check motor wires, Feedback wires, Motor Jam, Track burn/ SMD burn in series with feedback signal. Check coil sensor wiring, Change coil sensor, Track/ SMD on PCB in series of coil sensor. Check room sensor wiring, Change room sensor, Track/ SMD on PCB in series of room sensor.

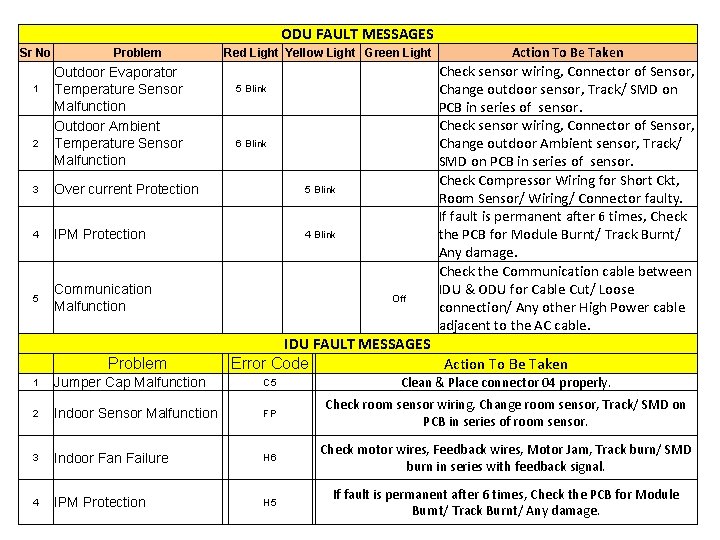

ODU FAULT MESSAGES Sr No 1 2 Problem Red Light Yellow Light Green Light Outdoor Evaporator Temperature Sensor Malfunction Outdoor Ambient Temperature Sensor Malfunction 5 Blink 6 Blink 3 Over current Protection 5 Blink 4 IPM Protection 4 Blink 5 Communication Malfunction Off Problem Action To Be Taken Check sensor wiring, Connector of Sensor, Change outdoor sensor, Track/ SMD on PCB in series of sensor. Check sensor wiring, Connector of Sensor, Change outdoor Ambient sensor, Track/ SMD on PCB in series of sensor. Check Compressor Wiring for Short Ckt, Room Sensor/ Wiring/ Connector faulty. If fault is permanent after 6 times, Check the PCB for Module Burnt/ Track Burnt/ Any damage. Check the Communication cable between IDU & ODU for Cable Cut/ Loose connection/ Any other High Power cable adjacent to the AC cable. IDU FAULT MESSAGES Action To Be Taken Error Code 1 Jumper Cap Malfunction C 5 Clean & Place connector 04 properly. 2 Indoor Sensor Malfunction FP Check room sensor wiring, Change room sensor, Track/ SMD on PCB in series of room sensor. 3 Indoor Fan Failure H 6 Check motor wires, Feedback wires, Motor Jam, Track burn/ SMD burn in series with feedback signal. 4 IPM Protection H 5 If fault is permanent after 6 times, Check the PCB for Module Burnt/ Track Burnt/ Any damage.

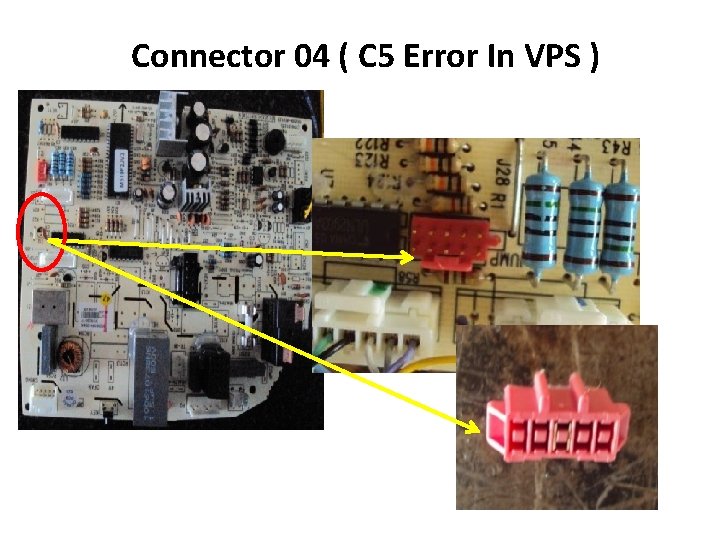

Connector 04 ( C 5 Error In VPS )

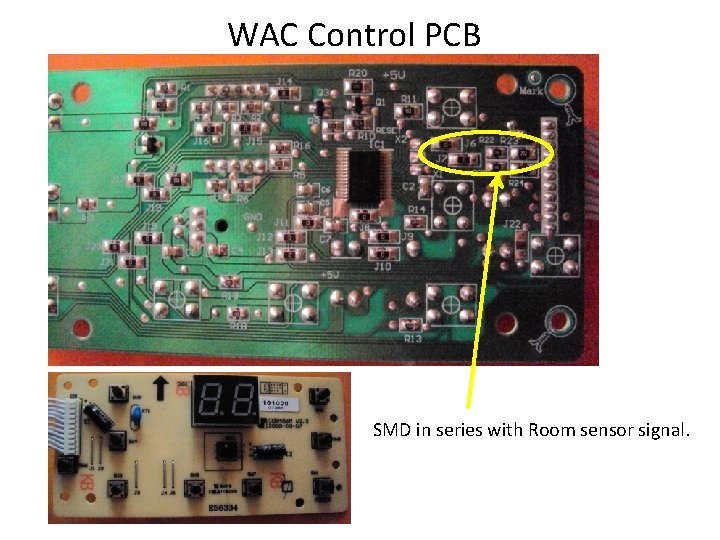

WAC Control PCB SMD in series with Room sensor signal.

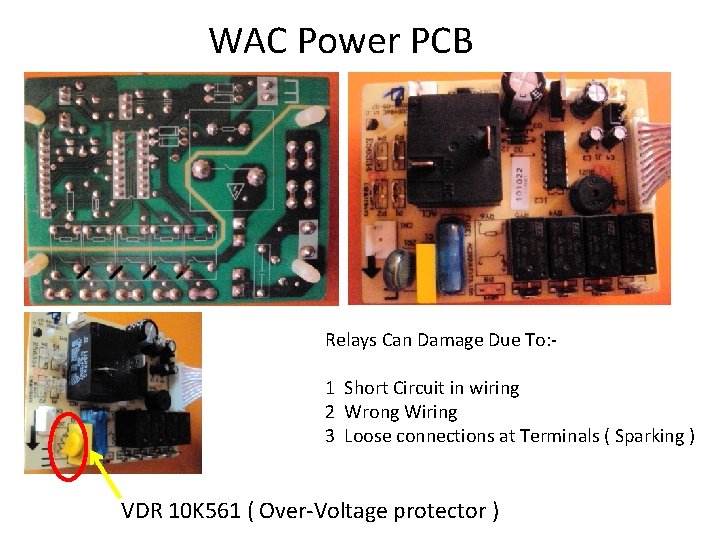

WAC Power PCB Relays Can Damage Due To: 1 Short Circuit in wiring 2 Wrong Wiring 3 Loose connections at Terminals ( Sparking ) VDR 10 K 561 ( Over-Voltage protector )

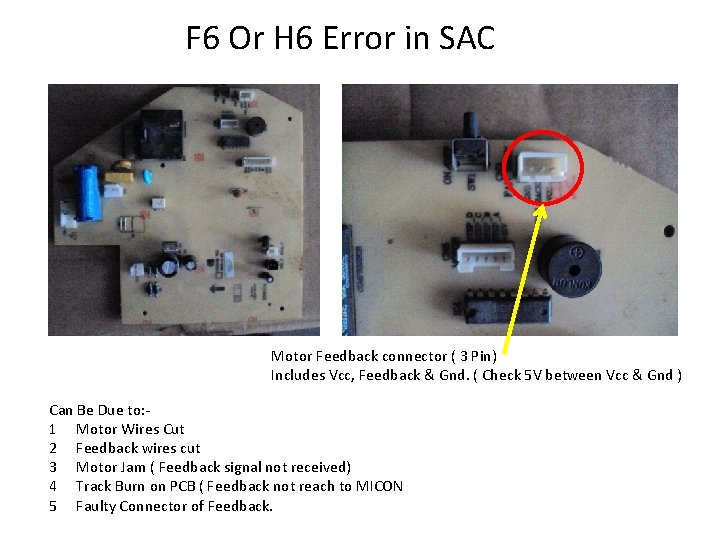

F 6 Or H 6 Error in SAC Motor Feedback connector ( 3 Pin) Includes Vcc, Feedback & Gnd. ( Check 5 V between Vcc & Gnd ) Can Be Due to: 1 Motor Wires Cut 2 Feedback wires cut 3 Motor Jam ( Feedback signal not received) 4 Track Burn on PCB ( Feedback not reach to MICON 5 Faulty Connector of Feedback.
