Air Force Materiel Command Developing, Fielding, and Sustaining America’s Aerospace Force Aging Aircraft Wiring Randy Hall Program Manager Aging Aircraft SPO Aeronautical Systems Center Integrity - Service - Excellence

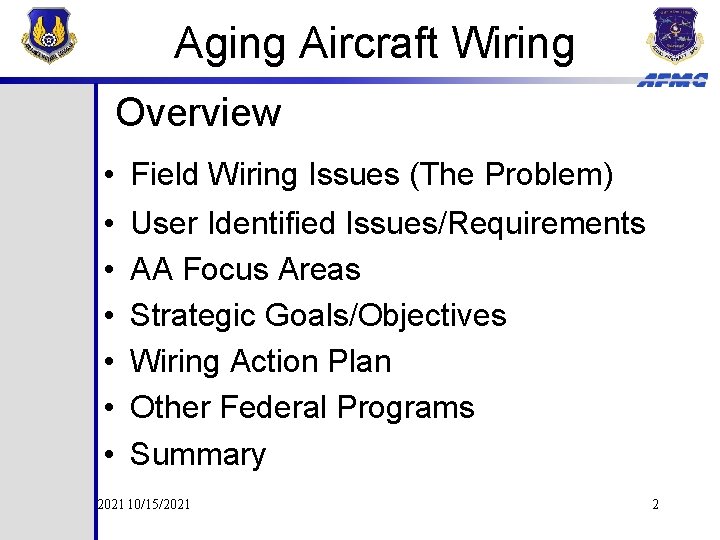

Aging Aircraft Wiring Overview • Field Wiring Issues (The Problem) • • • User Identified Issues/Requirements AA Focus Areas Strategic Goals/Objectives Wiring Action Plan Other Federal Programs Summary 10/15/2021 2

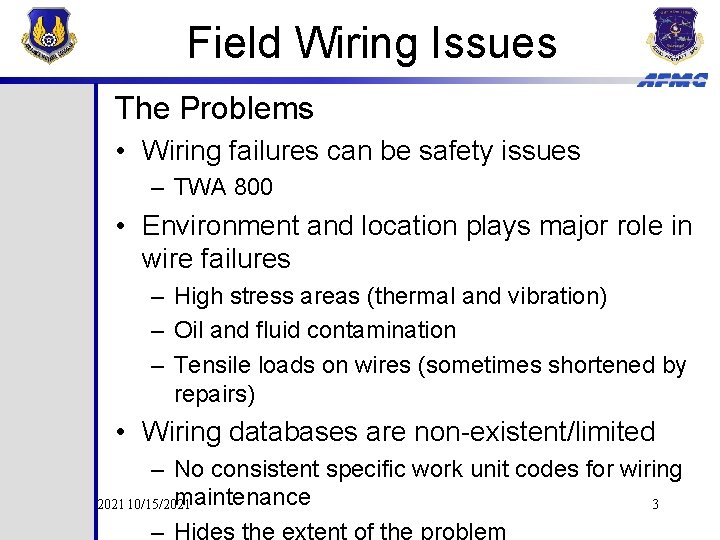

Field Wiring Issues The Problems • Wiring failures can be safety issues – TWA 800 • Environment and location plays major role in wire failures – High stress areas (thermal and vibration) – Oil and fluid contamination – Tensile loads on wires (sometimes shortened by repairs) • Wiring databases are non-existent/limited – No consistent specific work unit codes for wiring maintenance 10/15/2021 3

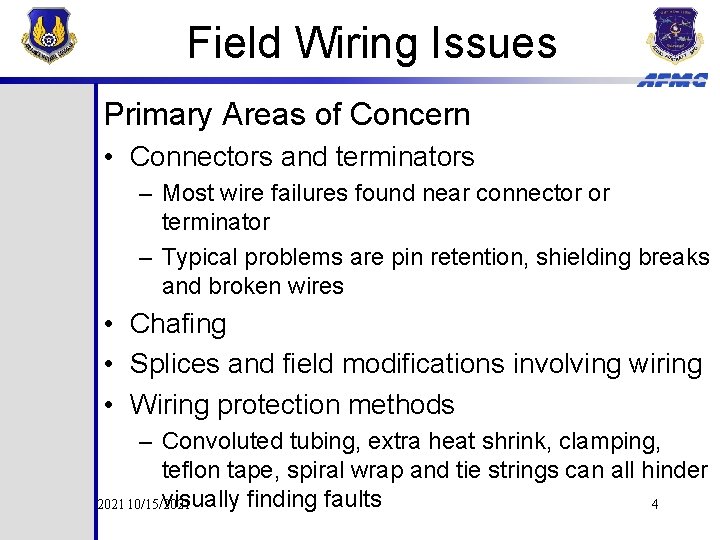

Field Wiring Issues Primary Areas of Concern • Connectors and terminators – Most wire failures found near connector or terminator – Typical problems are pin retention, shielding breaks and broken wires • Chafing • Splices and field modifications involving wiring • Wiring protection methods – Convoluted tubing, extra heat shrink, clamping, teflon tape, spiral wrap and tie strings can all hinder visually finding faults 10/15/2021 4

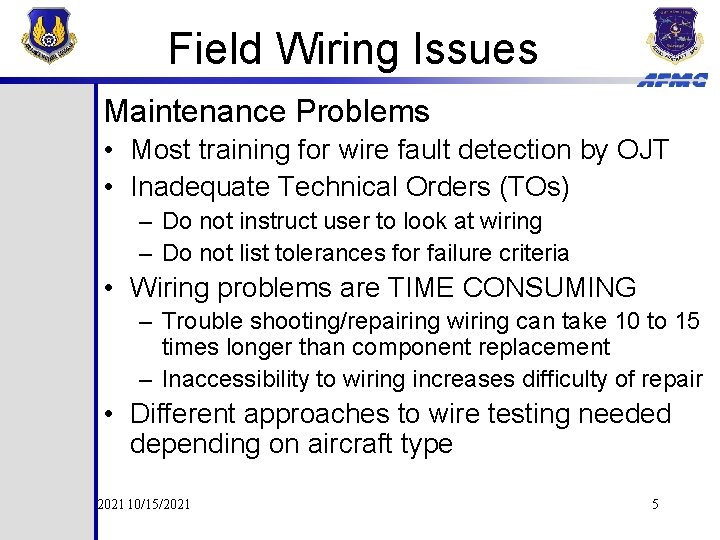

Field Wiring Issues Maintenance Problems • Most training for wire fault detection by OJT • Inadequate Technical Orders (TOs) – Do not instruct user to look at wiring – Do not list tolerances for failure criteria • Wiring problems are TIME CONSUMING – Trouble shooting/repairing wiring can take 10 to 15 times longer than component replacement – Inaccessibility to wiring increases difficulty of repair • Different approaches to wire testing needed depending on aircraft type 10/15/2021 5

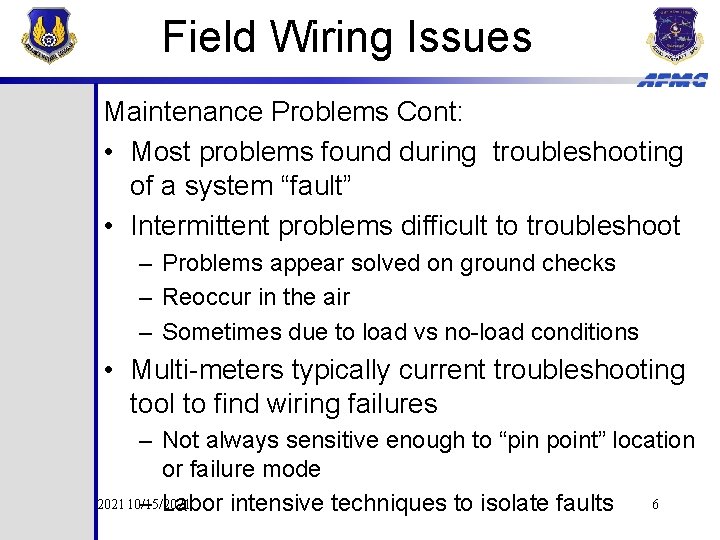

Field Wiring Issues Maintenance Problems Cont: • Most problems found during troubleshooting of a system “fault” • Intermittent problems difficult to troubleshoot – Problems appear solved on ground checks – Reoccur in the air – Sometimes due to load vs no-load conditions • Multi-meters typically current troubleshooting tool to find wiring failures – Not always sensitive enough to “pin point” location or failure mode 10/15/2021 6 – Labor intensive techniques to isolate faults

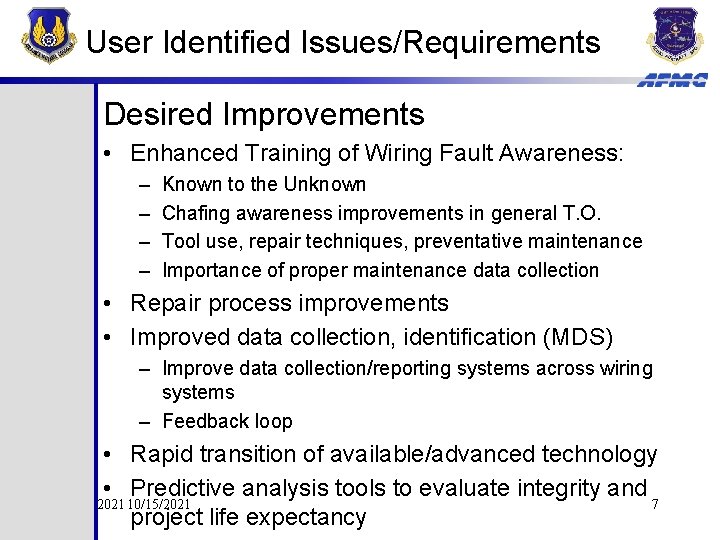

User Identified Issues/Requirements Desired Improvements • Enhanced Training of Wiring Fault Awareness: – – Known to the Unknown Chafing awareness improvements in general T. O. Tool use, repair techniques, preventative maintenance Importance of proper maintenance data collection • Repair process improvements • Improved data collection, identification (MDS) – Improve data collection/reporting systems across wiring systems – Feedback loop • Rapid transition of available/advanced technology • Predictive analysis tools to evaluate integrity and 10/15/2021 7 project life expectancy

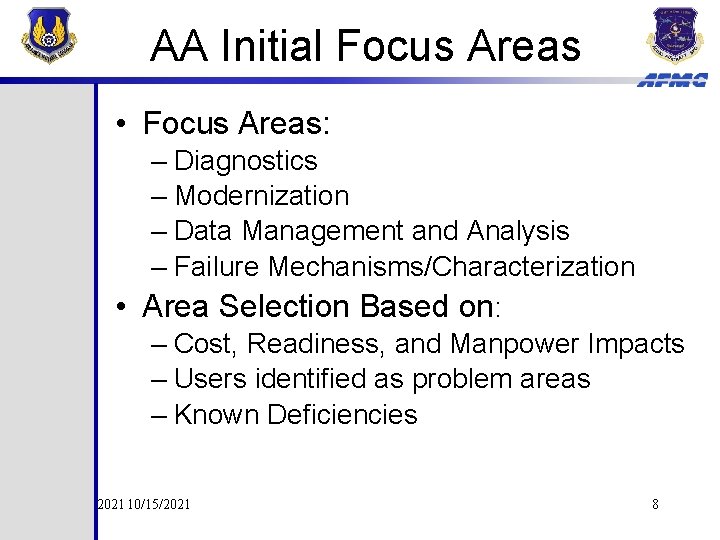

AA Initial Focus Areas • Focus Areas: – Diagnostics – Modernization – Data Management and Analysis – Failure Mechanisms/Characterization • Area Selection Based on: – Cost, Readiness, and Manpower Impacts – Users identified as problem areas – Known Deficiencies 10/15/2021 8

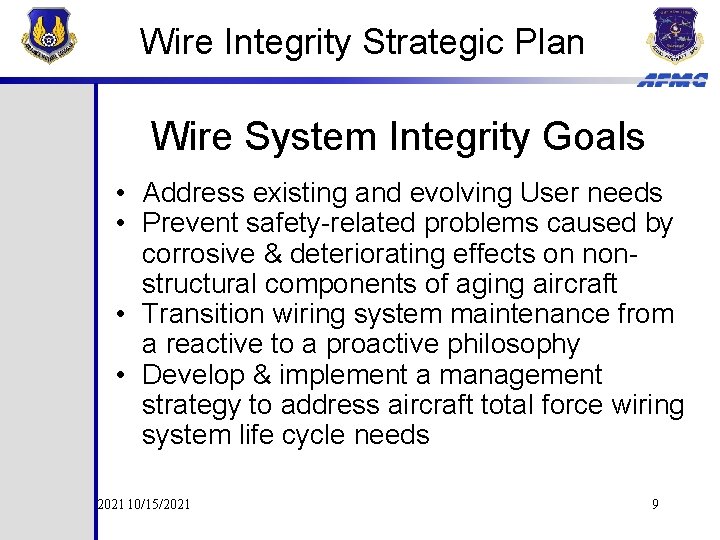

Wire Integrity Strategic Plan Wire System Integrity Goals • Address existing and evolving User needs • Prevent safety-related problems caused by corrosive & deteriorating effects on nonstructural components of aging aircraft • Transition wiring system maintenance from a reactive to a proactive philosophy • Develop & implement a management strategy to address aircraft total force wiring system life cycle needs 10/15/2021 9

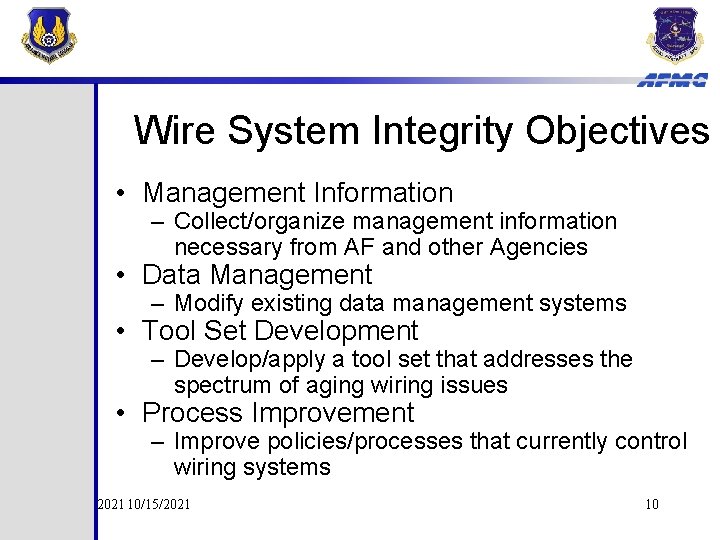

Wire System Integrity Objectives • Management Information – Collect/organize management information necessary from AF and other Agencies • Data Management – Modify existing data management systems • Tool Set Development – Develop/apply a tool set that addresses the spectrum of aging wiring issues • Process Improvement – Improve policies/processes that currently control wiring systems 10/15/2021 10

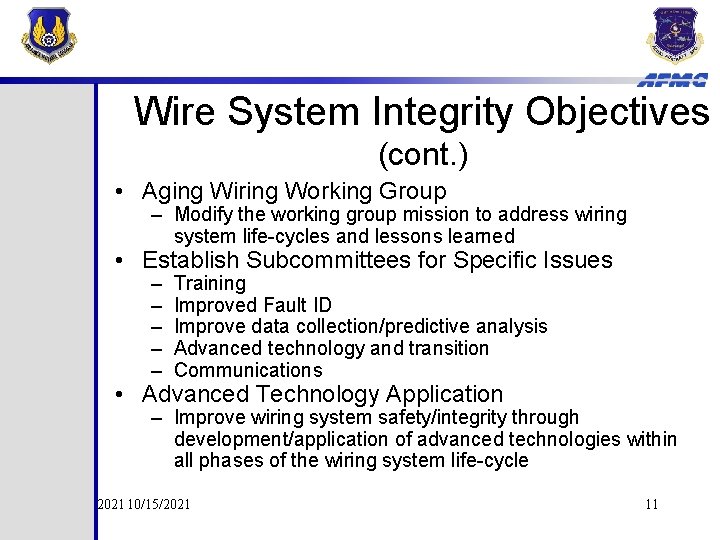

Wire System Integrity Objectives (cont. ) • Aging Wiring Working Group – Modify the working group mission to address wiring system life-cycles and lessons learned • Establish Subcommittees for Specific Issues – – – Training Improved Fault ID Improve data collection/predictive analysis Advanced technology and transition Communications • Advanced Technology Application – Improve wiring system safety/integrity through development/application of advanced technologies within all phases of the wiring system life-cycle 10/15/2021 11

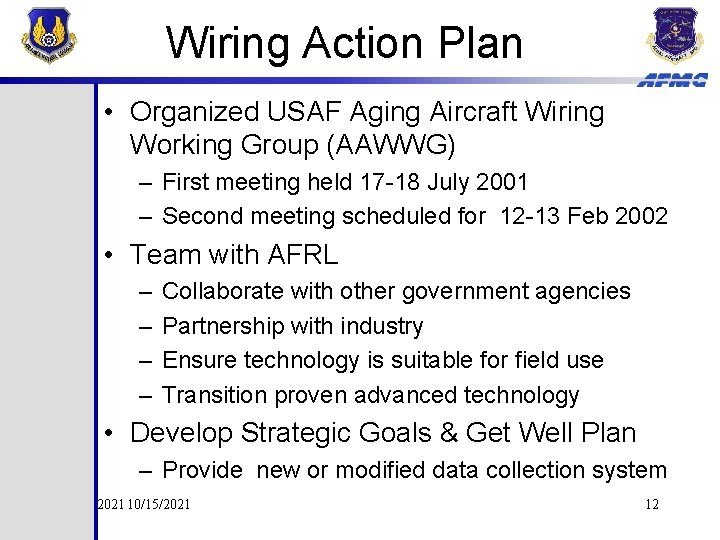

Wiring Action Plan • Organized USAF Aging Aircraft Wiring Working Group (AAWWG) – First meeting held 17 -18 July 2001 – Second meeting scheduled for 12 -13 Feb 2002 • Team with AFRL – – Collaborate with other government agencies Partnership with industry Ensure technology is suitable for field use Transition proven advanced technology • Develop Strategic Goals & Get Well Plan – Provide new or modified data collection system 10/15/2021 12

Wiring Action Plan • Develop Strategic Goals & Get Well Plan (continued) – Form subcommittees to the AAWWG to identify issues and recommend possible solutions to aging wiring issues – Share AAWWG ideas and lessons learned with other weapon systems that may be experiencing similar wiring issues – Develop an AF strategy that addresses aging wiring system issues based on User, Depot and Program Office needs and priorities 10/15/2021 13

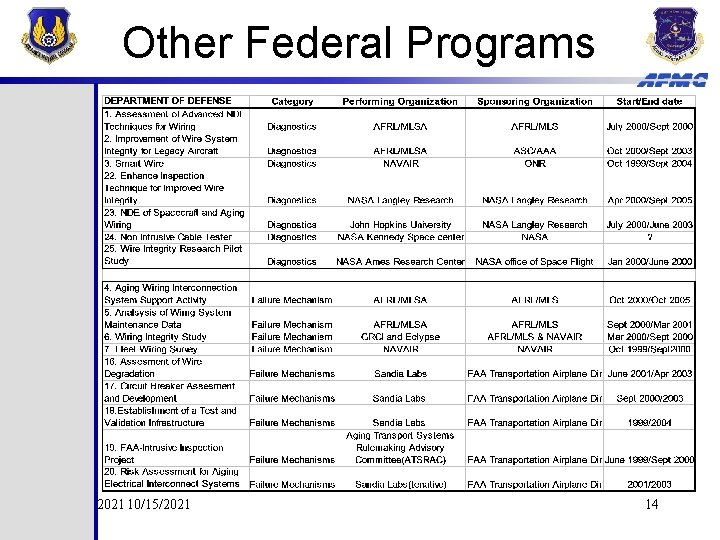

Other Federal Programs 10/15/2021 14

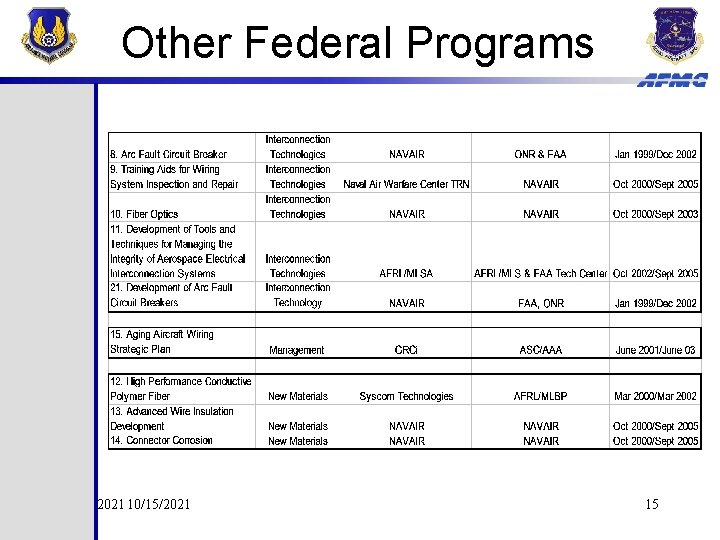

Other Federal Programs 10/15/2021 15

Current Forums • Aging Wire and Inert Gas Generator Group (AWIGG) • Aging Aircraft Wiring Working Group (AAWWG) • Naval Aerospace Vehicle Wiring Action Group (NAVWAG) • Cable Harness Repair or Manufacturing Equivalent (CHROME) • ASC/AFRL IPT • Society of Automotive Engineering (SAE) Committee AE-8 A • Aging Transport Systems Oversight Committee (ATSRAC FAA) 10/15/2021 16

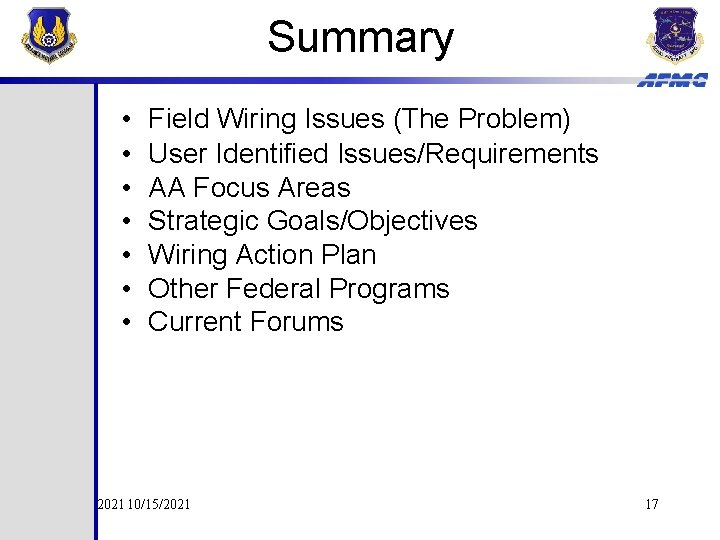

Summary • • Field Wiring Issues (The Problem) User Identified Issues/Requirements AA Focus Areas Strategic Goals/Objectives Wiring Action Plan Other Federal Programs Current Forums 10/15/2021 17
