Air Data System Total Air Temperature Probe Use

Air Data System Total Air Temperature Probe Use of NCEP Warm Bias Data Presented by David Cole

BUG

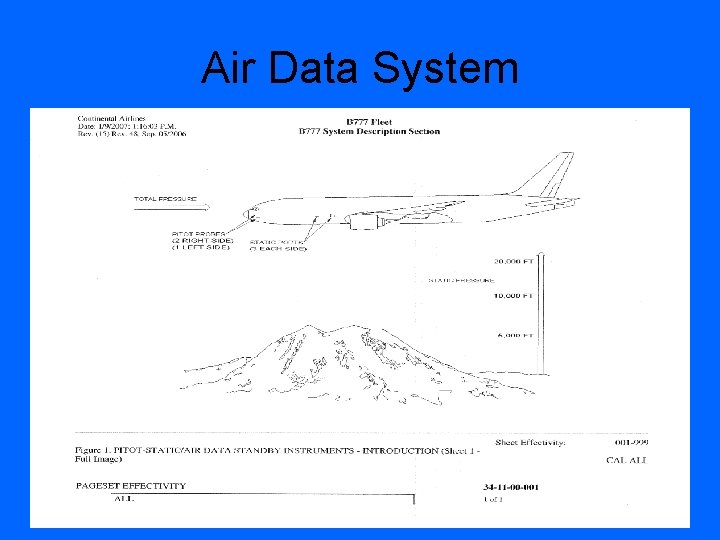

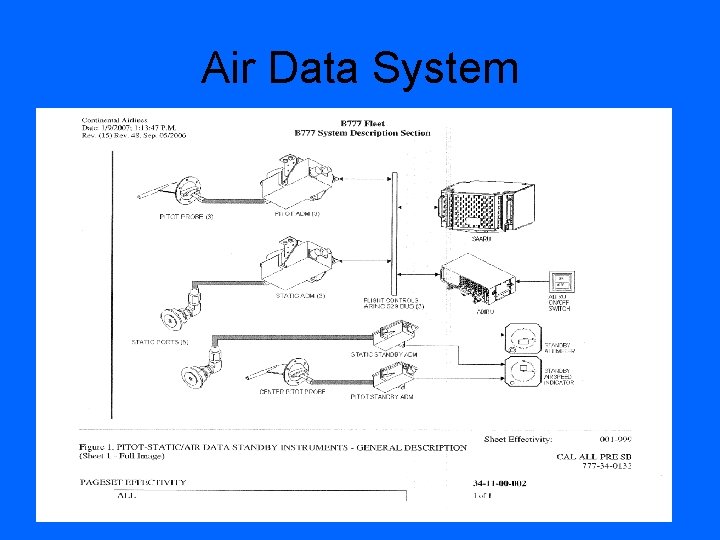

Air Data System

Air Data System

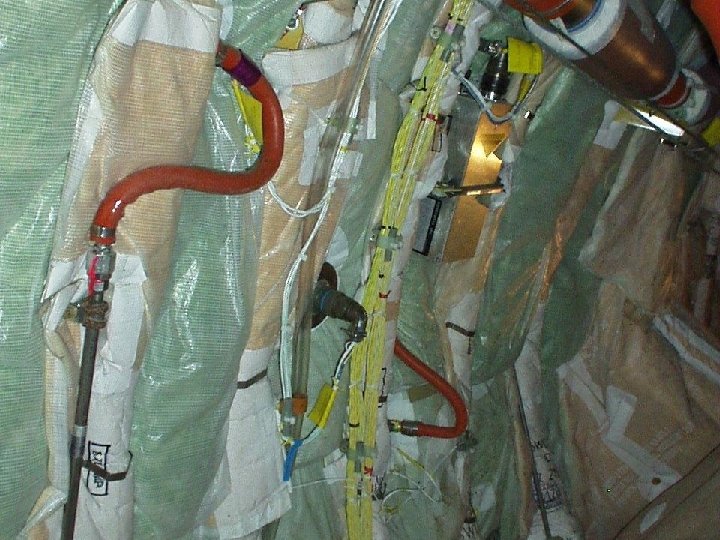

AIR DATA MODULE

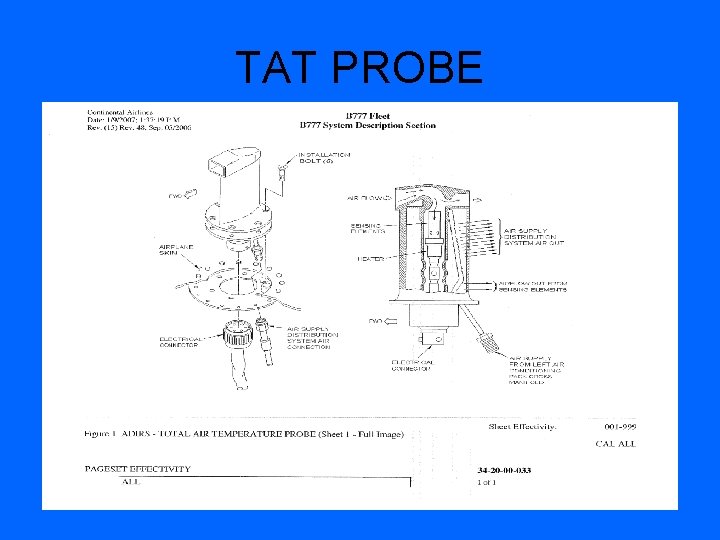

TAT PROBE

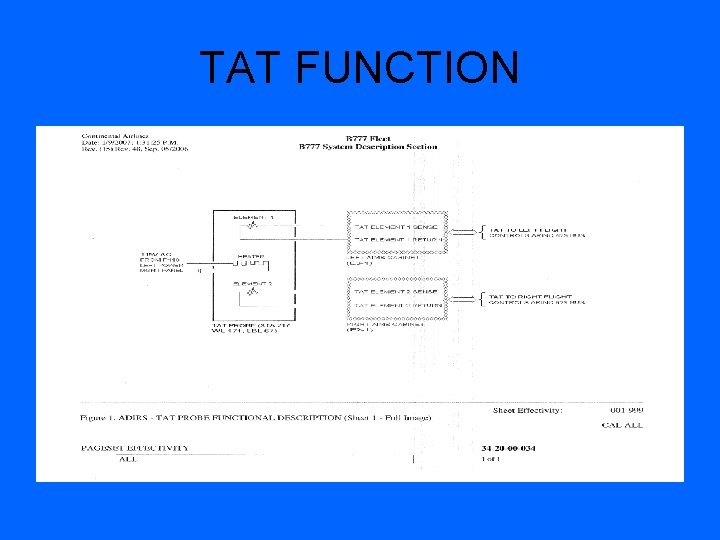

TAT FUNCTION

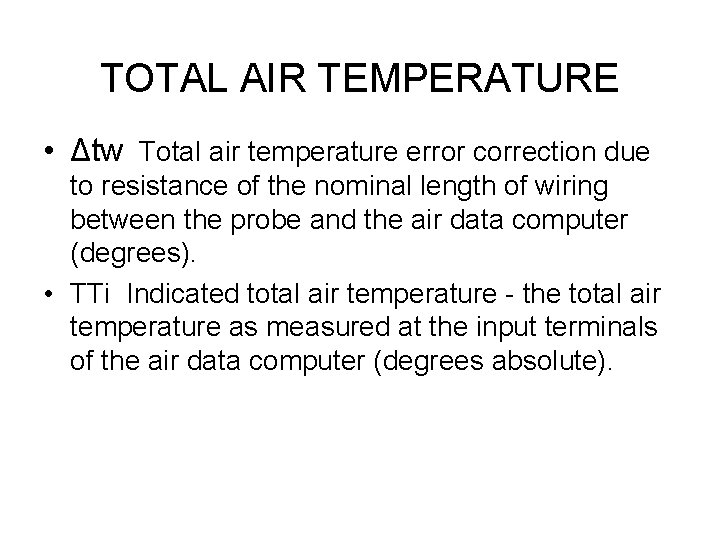

TOTAL AIR TEMPERATURE • Δtw Total air temperature error correction due to resistance of the nominal length of wiring between the probe and the air data computer (degrees). • TTi Indicated total air temperature - the total air temperature as measured at the input terminals of the air data computer (degrees absolute).

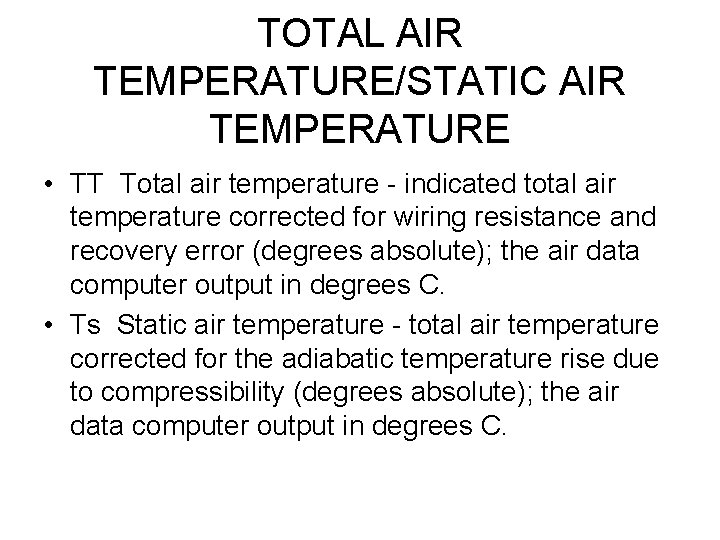

TOTAL AIR TEMPERATURE/STATIC AIR TEMPERATURE • TT Total air temperature - indicated total air temperature corrected for wiring resistance and recovery error (degrees absolute); the air data computer output in degrees C. • Ts Static air temperature - total air temperature corrected for the adiabatic temperature rise due to compressibility (degrees absolute); the air data computer output in degrees C.

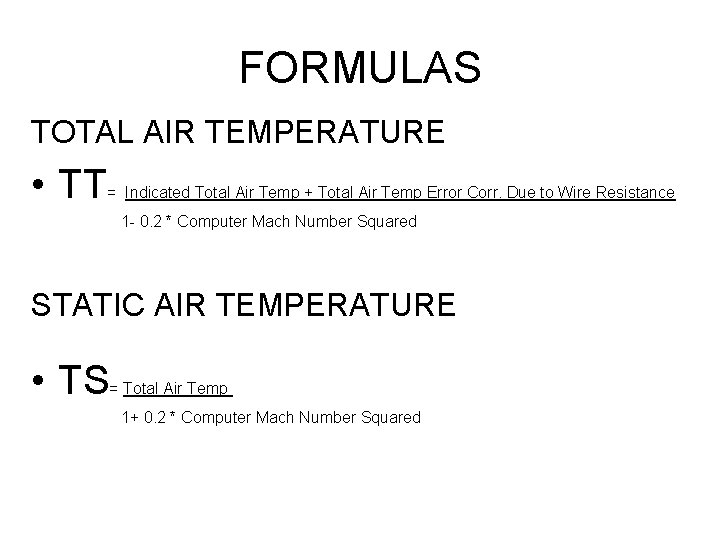

FORMULAS TOTAL AIR TEMPERATURE • TT = Indicated Total Air Temp + Total Air Temp Error Corr. Due to Wire Resistance 1 - 0. 2 * Computer Mach Number Squared STATIC AIR TEMPERATURE • TS = Total Air Temp 1+ 0. 2 * Computer Mach Number Squared

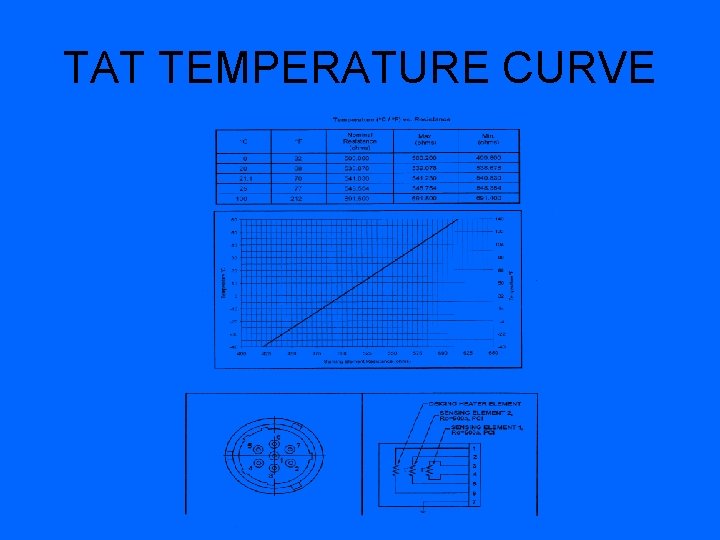

TAT TEMPERATURE CURVE

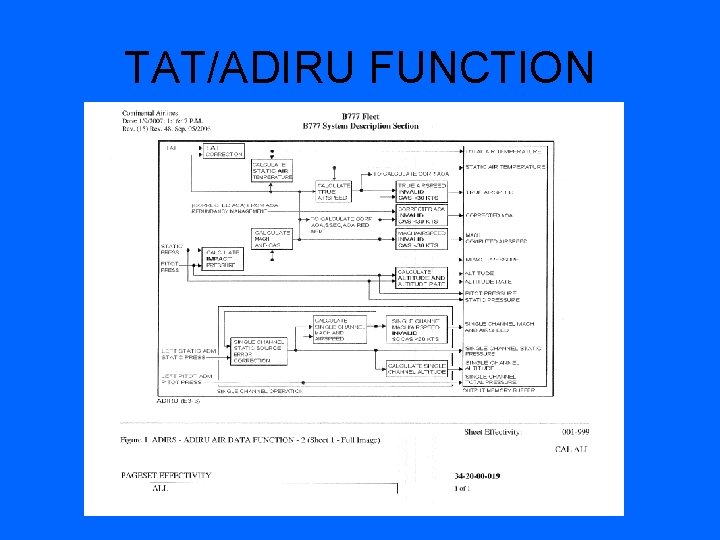

TAT/ADIRU FUNCTION

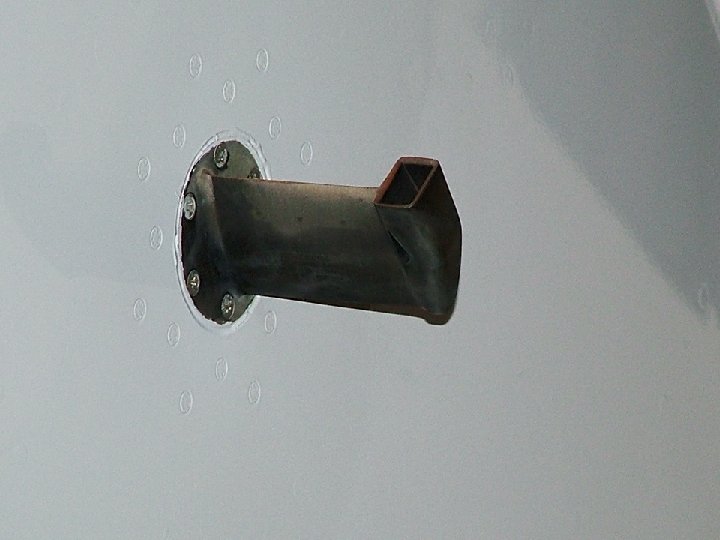

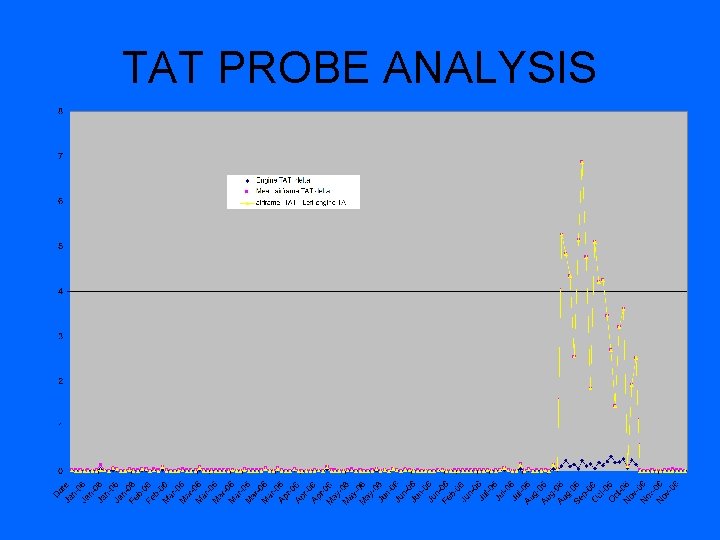

TAT PROBE ANALYSIS

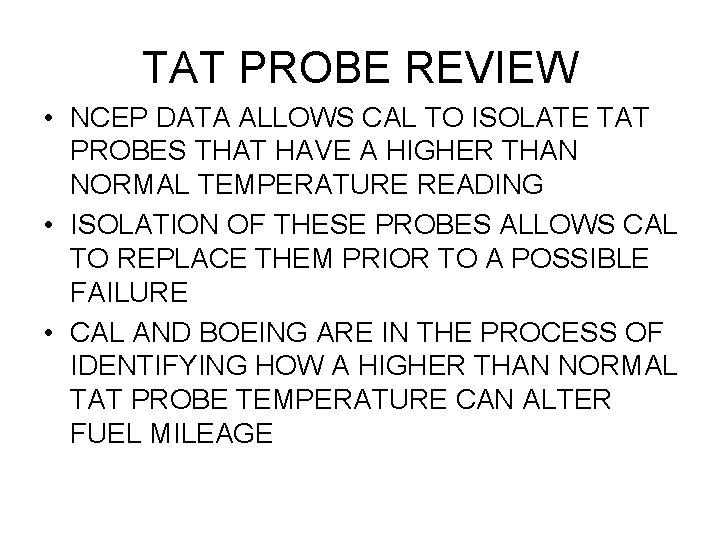

TAT PROBE REVIEW • NCEP DATA ALLOWS CAL TO ISOLATE TAT PROBES THAT HAVE A HIGHER THAN NORMAL TEMPERATURE READING • ISOLATION OF THESE PROBES ALLOWS CAL TO REPLACE THEM PRIOR TO A POSSIBLE FAILURE • CAL AND BOEING ARE IN THE PROCESS OF IDENTIFYING HOW A HIGHER THAN NORMAL TAT PROBE TEMPERATURE CAN ALTER FUEL MILEAGE
