Aimetis Symphony Gold ADP Application Workshop www axis

Aimetis Symphony Gold ADP Application Workshop www. axis. com

This is > Company Overview > Founded: 2003 > Ownership > Private, 50% owned by institutional funds > Business > Network video management & analytics software & services > Offices > Waterloo, Canada (HQ); Shanghai, China; Frankfurt, Germany > 450+ Certified Resellers in 100 countries > Support for +40 IP camera manufacturers > Key Verticals > Education, Government, Retail, Transportation www. axis. com 2 11/25/2020

Aimetis Products - Symphony > Single product, three license versions to choose from – Symphony Standard: IP Video Recording – Symphony Professional: IP Video & Integrated Alarm Management – Symphony Enterprise: Video analytics > License Strategy – Mix & match different licenses on same server – One Camera. One License. – Unrestricted camera replacement (license tied to MAC address of server not cameras) – Easy upgrades: simple license purchase > Projects – Munich Airport (2000 cameras); Novi Sad, Serbia (1000 cameras); ICA Supermarket, etc. www. axis. com 3 11/25/2020

Aimetis Products > Other products – Aimetis People Counter – Running on Axis Camera Application Platform – Aimetis SDK – Enables solution providers to customize solutions, ensure system interoperability and centralize event management across multiple systems, including: – Access Control – Intrusion Detection – ATM – Building Management www. axis. com 4 11/25/2020

System Architecture • • Web Client: http: //SERVERNAME: 50000 PDA Client: Windows Mobile, win. CE www. axis. com 5 11/25/2020

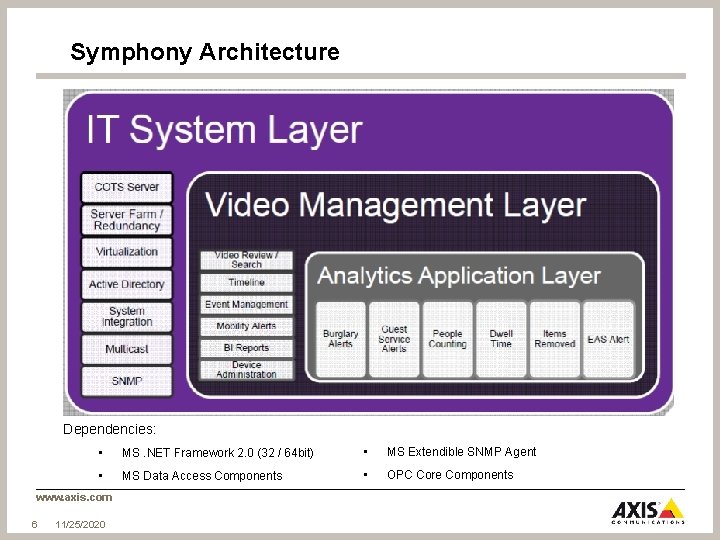

Symphony Architecture Dependencies: • MS. NET Framework 2. 0 (32 / 64 bit) • MS Extendible SNMP Agent • MS Data Access Components • OPC Core Components www. axis. com 6 11/25/2020

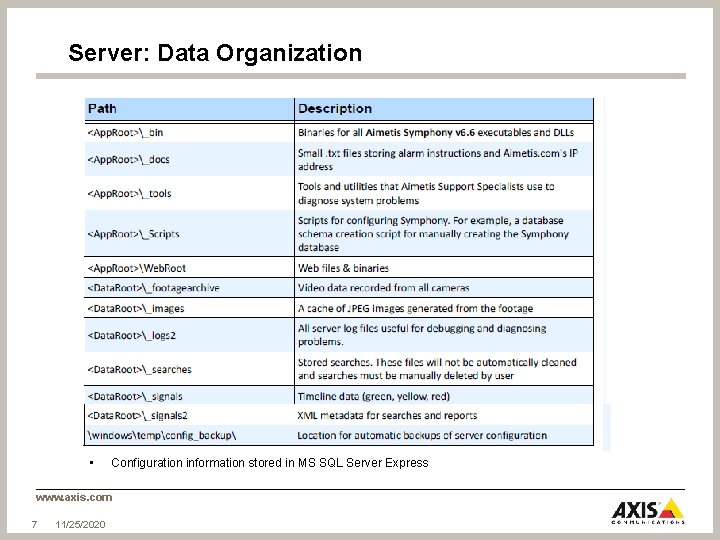

Server: Data Organization • Configuration information stored in MS SQL Server Express www. axis. com 7 11/25/2020

Server: Core Services www. axis. com 8 11/25/2020

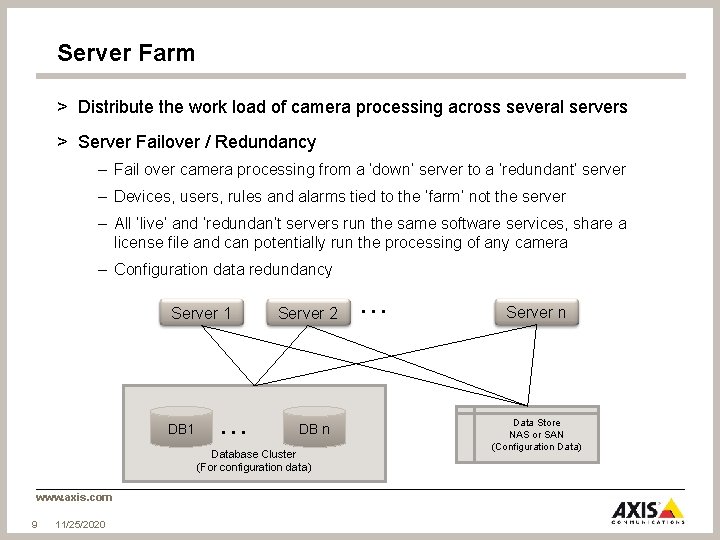

Server Farm > Distribute the work load of camera processing across several servers > Server Failover / Redundancy – Fail over camera processing from a ’down’ server to a ’redundant’ server – Devices, users, rules and alarms tied to the ‘farm’ not the server – All ’live’ and ’redundan’t servers run the same software services, share a license file and can potentially run the processing of any camera – Configuration data redundancy Server 1 DB 1 . . . Server 2 DB n Database Cluster (For configuration data) www. axis. com 9 11/25/2020 . . . Server n Data Store NAS or SAN (Configuration Data)

Main View www. axis. com

Live View / Playback > Live & playback mode integrated in main view > Overlay – Tracking boxes, tracking paths, time, camera messages, etc. > Multiview – Can display up to 25 cameras simultaneously – >1 multiviews can be opened > Carousel – Loop through multiple cameras across multiple servers in a single view, pausing on each camera for a defined period of time. www. axis. com 11 11/25/2020

PTZ > Mechanical PTZ > Camera Tour > Digital PTZ – Digital Tracking(Digitally zoom in on hot spots) > Support for Axis Joysticks www. axis. com 12 11/25/2020

Analytics > Differenciate between foreground movement & environmental change > Process video and produce metadata used by search engine or rule engine > More than one analytic can be enabled per camera Video Source Video Engine Metadata Rule Engine Alarms Search Engine Search Results > Applications – Motion Tracking, Object Classification, People / Vehicle Counting, Virtual Fence, Alarm zone(s) / restricted areas, Left/Removed Object, Wrong Direction, Loitering, Dwell Time, Occupancy, Auto-PTZ Tracking, Automatic License Plate Recognition www. axis. com 13 11/25/2020

Analytics: Three Key factors > 1. Selecting the right engine for different environment 14 11/25/2020

Analytics: Three Key factors > 2. Camera placement & image quality www. axis. com 15 11/25/2020

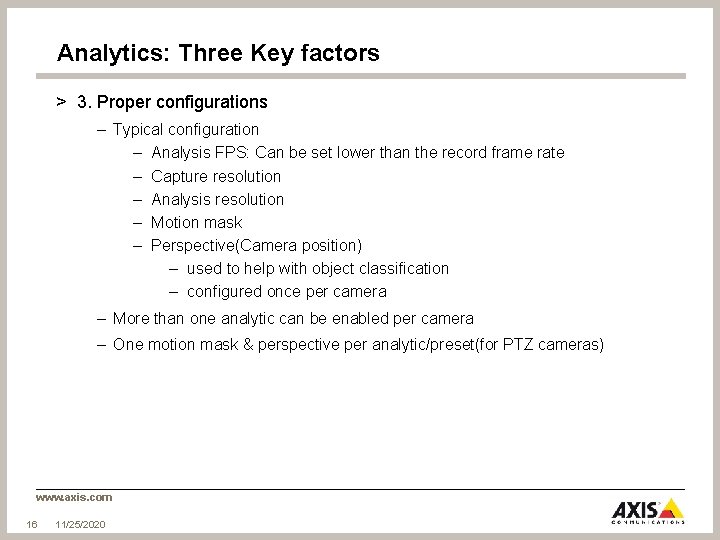

Analytics: Three Key factors > 3. Proper configurations – Typical configuration – Analysis FPS: Can be set lower than the record frame rate – Capture resolution – Analysis resolution – Motion mask – Perspective(Camera position) – used to help with object classification – configured once per camera – More than one analytic can be enabled per camera – One motion mask & perspective per analytic/preset(for PTZ cameras) www. axis. com 16 11/25/2020

Analytics > Hardware requirements – Depending on: – Type of analytics running – Number of analytics running – Image size & frame rate – Typically 12 cameras can be analyzed on a single Intel Core 2 Duo www. axis. com 17 11/25/2020

Event Management > Rules – Uses meta-data created by video engine – Allows combination of sub-events > Events must occur in sequence/within a specified time period > Typical configurations > Alarm mask(zone), actions, alarm schedule > Many alarm masks can be set per analytic > More than one Rule can be enabled per analytic > Special Actions – Enable another rule – PTZ Auto-tracking – Launch external program on the server (no GUI) – OPC www. axis. com 18 11/25/2020

Video Search > Event-driven Video Search – Pinpoint specific events by setting search parameters such as: – Search by time, location, activity – Review and export qualifying snippets of video – Export as. aira file (together with Symphony Player) – Export as MPEG files > Recurring Search www. axis. com 19 11/25/2020

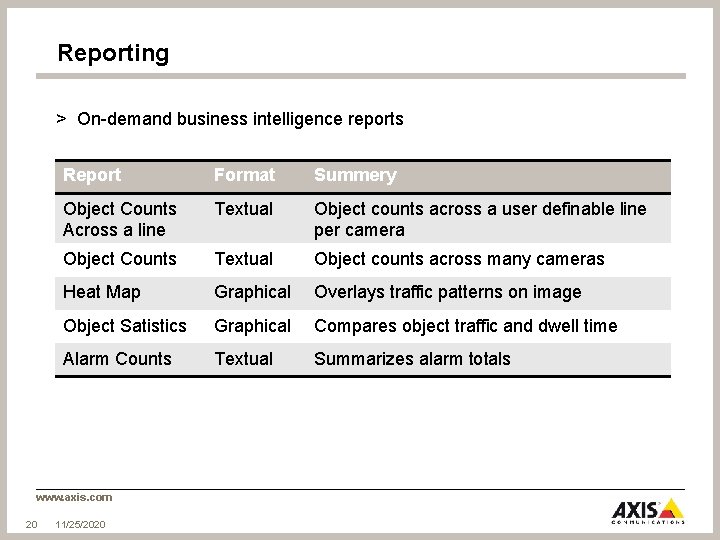

Reporting > On-demand business intelligence reports Report Format Summery Object Counts Across a line Textual Object counts across a user definable line per camera Object Counts Textual Object counts across many cameras Heat Map Graphical Overlays traffic patterns on image Object Satistics Graphical Compares object traffic and dwell time Alarm Counts Textual Summarizes alarm totals www. axis. com 20 11/25/2020

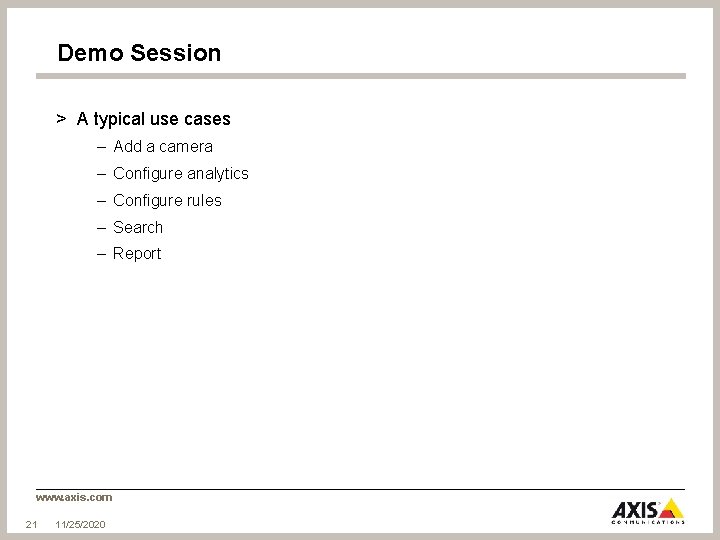

Demo Session > A typical use cases – Add a camera – Configure analytics – Configure rules – Search – Report www. axis. com 21 11/25/2020

Resources > Application Video Samples > http: //aimetis. com/Symphony/sample-video. aspx > Documentations – Downloadable from Aimetis Xnet (http: //www. aimetis. com/xnet/) www. axis. com 22 11/25/2020

Gold ADP Application Validation > Why we are doing it – Ensuring Gold ADP applications have early support for our new products – Ensuring Gold ADP applications work well with our products – Ensuring Gold ADP applications support our market driving functions > How we are doing it – Test tool: QACE – Wireshark – Scripts > Validation results – Validation reports – API coverage report www. axis. com 23 11/25/2020

Questions & Answers Thank you! www. axis. com 24 11/25/2020
