Aim Understand the concept of lumped element modelling
- Slides: 29
Aim • Understand the concept of lumped element modelling • Understand variational solution in the mechanical domain • Understand Rayleigh Ritz in the mechanical domain
What is lumped element modelling? • Reduction of the number of variables Lowrie et. al 2005 • Mapping onto electrical domain (optional)
It involves • Turning partial differential equations into ordinary differential equations • Approximations and more approximations • (Ab-)use of available tools
Procedure x Partitioning and choice of variables (x, v) Find values for the parameters (m, k, γ) Couple Analyze

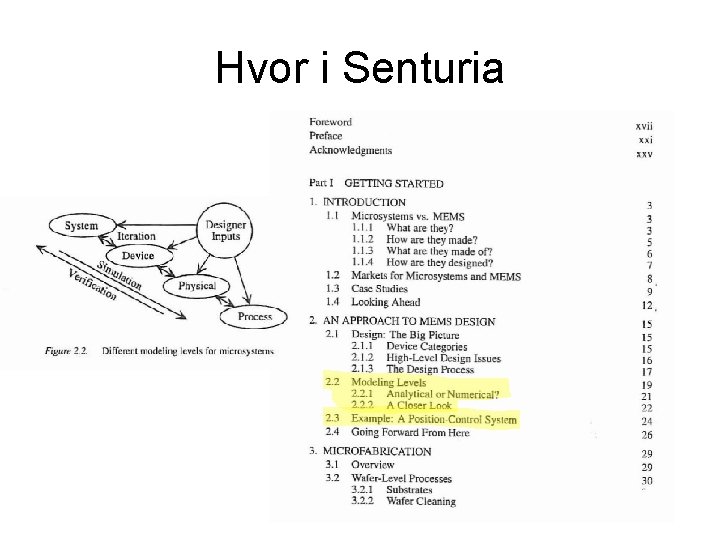

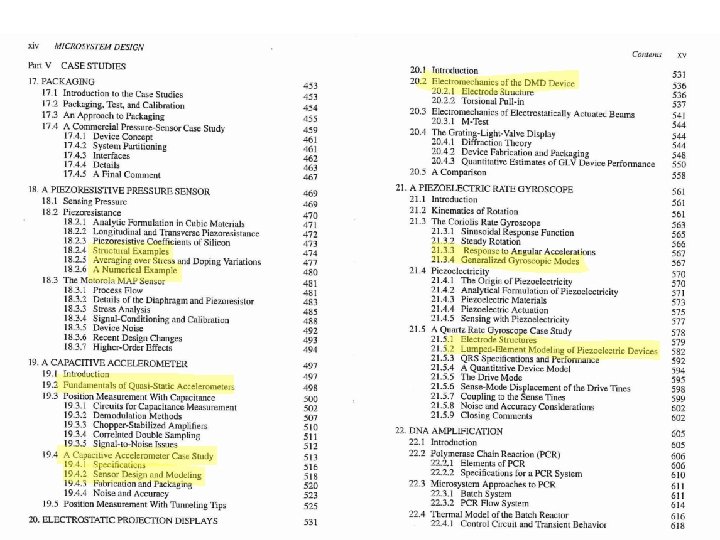

Hvor i Senturia

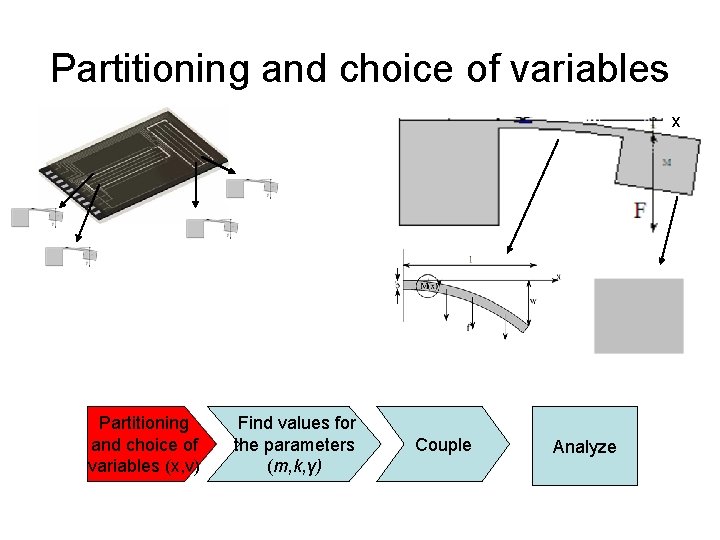

Partitioning and choice of variables x Partitioning and choice of variables (x, v) Find values for the parameters (m, k, γ) Couple Analyze
Parameter extraction • • Solution of partial differential equations Formulas Experiment Guesswork Partitioning and choice of variables (x, v) Find values for the parameters (m, k, γ) Couple Analyze
Løsning av partielle differensialligninger Fokus – på kobling – på dynamikk (egenmoder) Verktøy – FEM/BEM – Analytisk • Eksakt • Tilnærmet
Variational principle Weak form of the differential equation: Minimize U Trial function: Parameters k

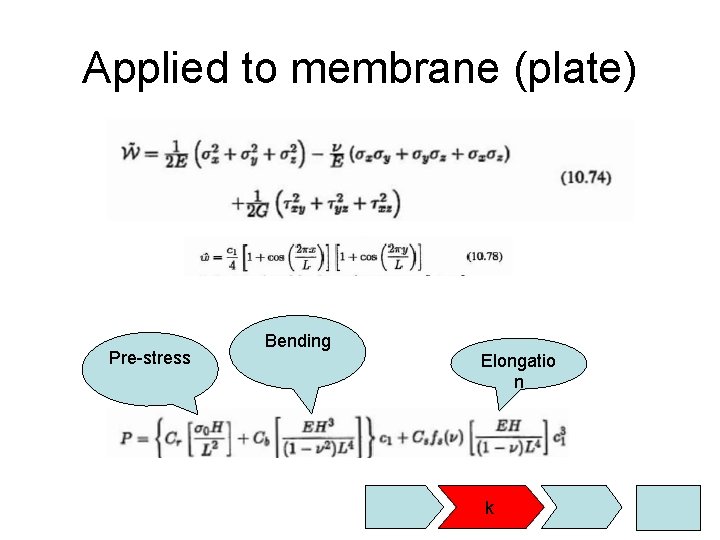

Applied to membrane (plate) Pre-stress Bending Elongatio n k
Rayleigh-Ritz - basis Approximate eigenmode Best trial function Approximate eigenfrequency t=0 m, ω

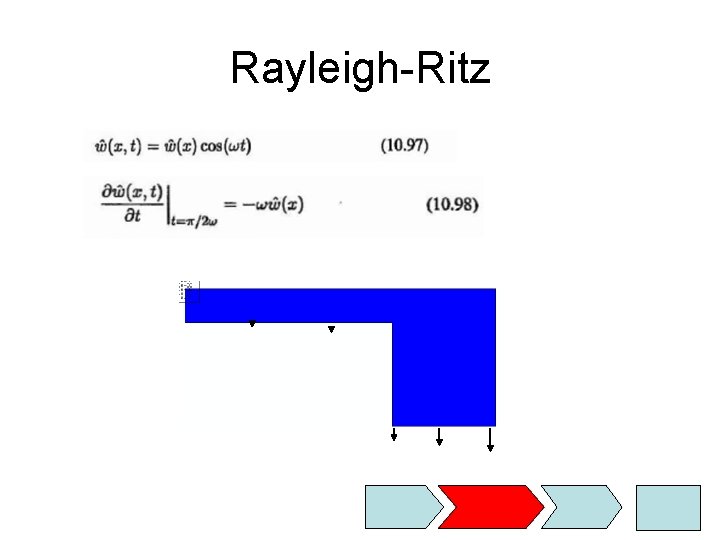

Rayleigh-Ritz

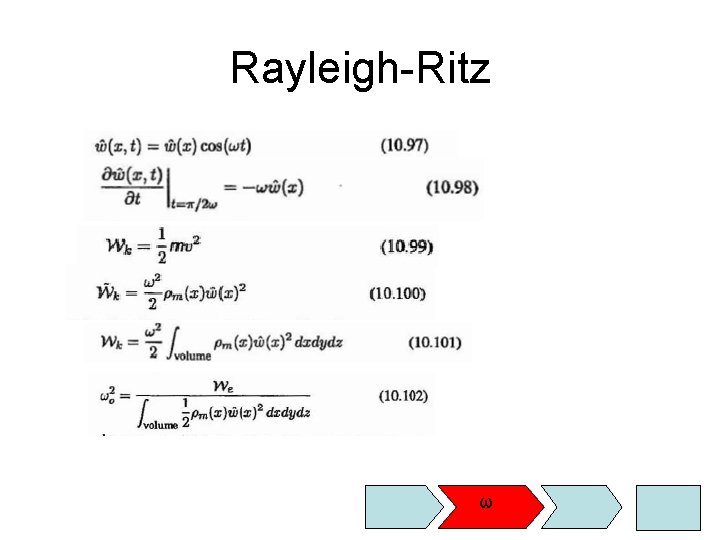

Rayleigh-Ritz ω
Rayleigh-Ritz m= 2 x 2 m
Motstand R

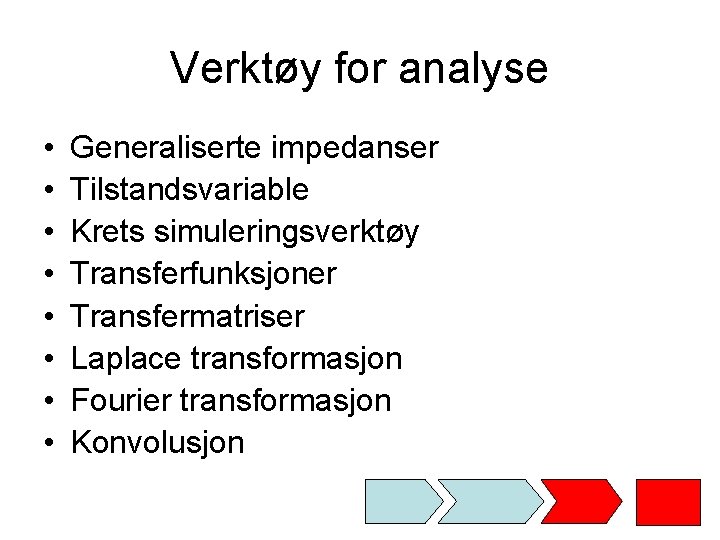

Verktøy for analyse • • Generaliserte impedanser Tilstandsvariable Krets simuleringsverktøy Transferfunksjoner Transfermatriser Laplace transformasjon Fourier transformasjon Konvolusjon
Mekanisk svingesystem x
Elektrisk svingesystem

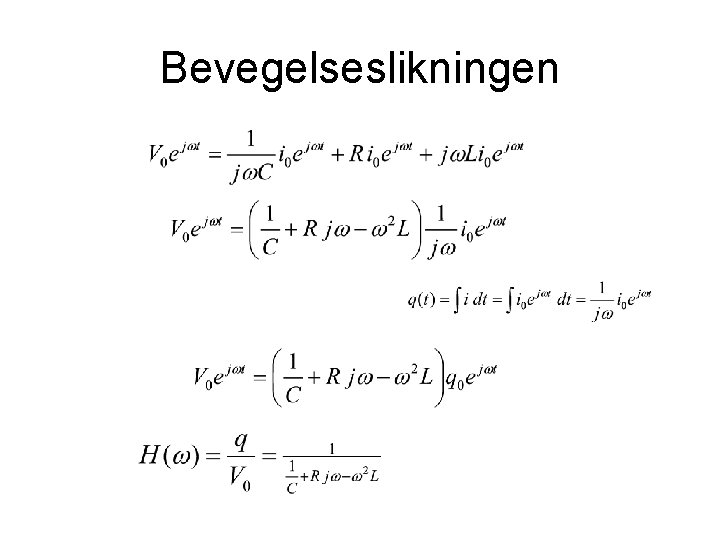

Bevegelseslikningen

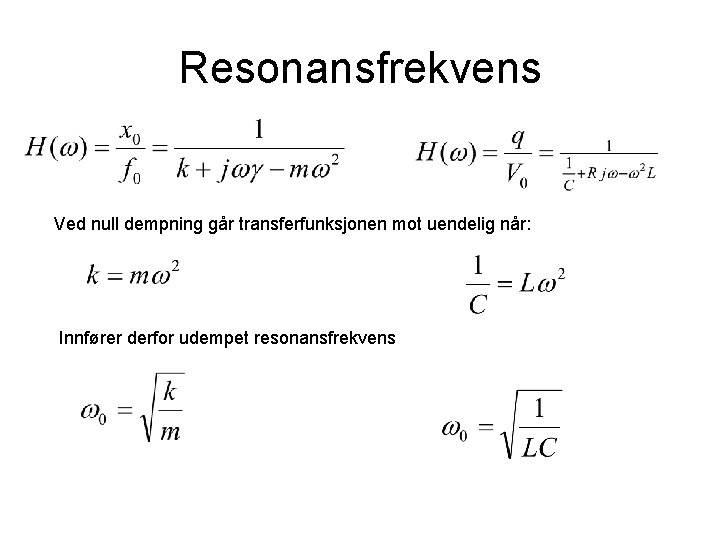

Resonansfrekvens Ved null dempning går transferfunksjonen mot uendelig når: Innfører derfor udempet resonansfrekvens
Q-faktor
Eksperiment Q, f

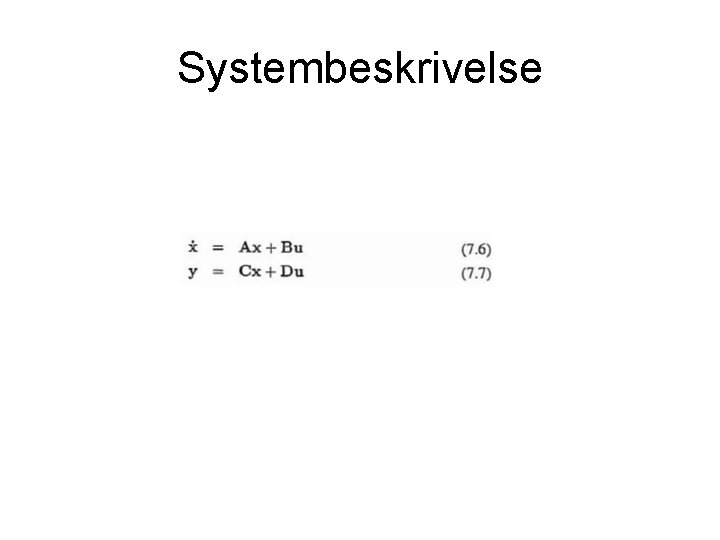

Systembeskrivelse
Observerbarhet
Two port elements
