AI – CS 289 Fuzzy Logic - Labs Fuzzy Logic – Lab 3 19 th October 2006 Dr Bogdan L. Vrusias b. vrusias@surrey. ac. uk 19 th October 2006 Bogdan L. Vrusias © 2006
AI – CS 289 Fuzzy Logic - Labs Exercise • Cart Pole Problem From week 7 (week 7_Fuzzy_Logic_Tutorial. ppt) m w g M The problem is to balance an upright pole, with a mass m at its head and mass M at its base. A weightless shaft connects these two masses. The base can be moved on a horizontal axis. The task is to determine the force (F) necessary to balance the pole. The calculation of the force F involves the measurement of the angle θ and the angular velocity ω of the pole. 19 th October 2006 Bogdan L. Vrusias © 2006 2
AI – CS 289 Fuzzy Logic - Labs Exercise: Cart Pole Problem nb nm nb ns az ns pb nm w 19 th October 2006 pm pb pm ns nm ns ps az nb ns az ps ps ns ps pm nm pb nb nm nb: negative big, nm: negative medium, ps: positive small, pm: positive medium, IF AND THEN ps θ w F is is is pm ps ns: negative small az: approximately zero pb: positive big negative medium approximately zero negative medium Bogdan L. Vrusias © 2006 3
AI – CS 289 Fuzzy Logic - Labs Exercise: Cart Pole Problem The fuzzy sets for θ, and F are based on the linear equation μ(x)=ax + b, and are defined based on the following table: w w m(w)=1 if w= m(w)=0 if w 19 th October 2006 Bogdan L. Vrusias © 2006 4
AI – CS 289 Fuzzy Logic - Labs Example – Getting Started • • • Start Matlab and the Fuzzy Inference System (FIS) editor (see previous Lab how to launch Matlab). Encode the rules and fuzzy sets into Matlab’s FIS. Try to save the system to your home directory as cartpole. fis Use the Rule Viewer to test your system with different inputs. Follow the next slides to test your system using Matlab’s command line. 19 th October 2006 Bogdan L. Vrusias © 2006 5

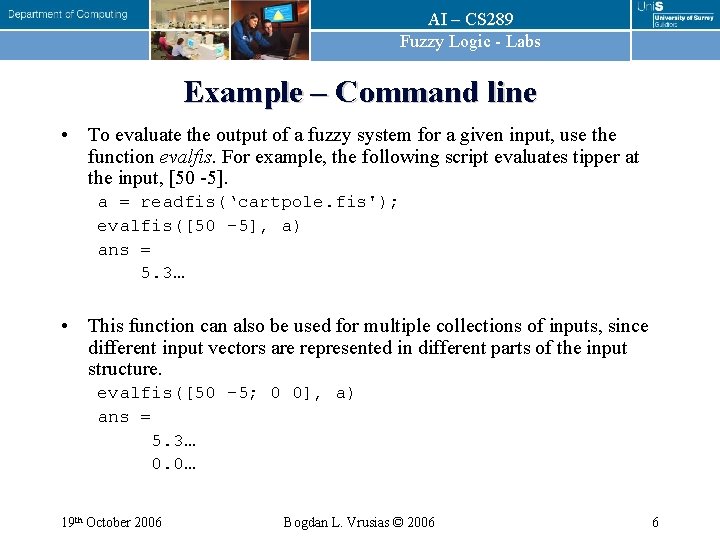

AI – CS 289 Fuzzy Logic - Labs Example – Command line • To evaluate the output of a fuzzy system for a given input, use the function evalfis. For example, the following script evaluates tipper at the input, [50 -5]. a = readfis(‘cartpole. fis'); evalfis([50 -5], a) ans = 5. 3… • This function can also be used for multiple collections of inputs, since different input vectors are represented in different parts of the input structure. evalfis([50 -5; 0 0], a) ans = 5. 3… 0. 0… 19 th October 2006 Bogdan L. Vrusias © 2006 6
AI – CS 289 Fuzzy Logic - Labs Example – Command line • Set some initial variables as: b = 45; (that will be your angle) c = 45; (that will be your angular velocity) f = 7. 5; (that will be the output force) • Write a loop statement to balance the pole between -5 and 5 degrees: a = readfis(‘cartpole. fis'); while -5 > f || f > 5 f = evalfis([b c], a) b = -b*90/100; %this reduces the angle by 10% c = -c*90/100; %this reduces the velocity by 10% end • This example assumes that the complicated formulae that calculates the new angle and velocity of the pole is 10% less, in the opposite direction, each time we apply the output force. 19 th October 2006 Bogdan L. Vrusias © 2006 7
