agile affordable accurate Hematology Cellcounting Basics Hematology is

agile - affordable - accurate

Hematology Cellcounting - Basics • Hematology, is the part of internal medicine, that is concerned with the study of blood, the blood-forming organs, and blood diseases. • The bunch of methods for counting, measuring and evaluating blood cells suspended in fluid is known as Hematology Cellcounting. • A blood cell analyzer, is used to perform one of medicine's most oftenrequested and informative diagnostic tests, the complete blood count (CBC). agile - affordable - accurate

Blood is a specialized fluid, „liquid tissue”, that circulates around the body in blood vessels. It’s main functions: - Transport through the body of – oxygen and carbon dioxide – nutrient molecules, ions, hormones – „wastes” – Heat - Defense of the body against infections, injuries and other foreign materials. agile - affordable - accurate

Composition of blood Liquid Plasma: over 90% of plasma is water, it also contains proteins, salts, metabolits etc. After centrifuging it is called serum. Cells: Erythrocytes(Red Blood Cells, RBC) Leukocytes(White Blood Cells, WBC) Thrombocytes(Platelets, PLT) Erythrocytes The most numerous and common type of blood cells. Non nucleated in mammals, with biconcave shape, erythrocytes are responsible for the transport of oxygen. Contain hemoglobin(HGB), iron, and structures on the cell membrane determine blood group systems. agile - affordable - accurate

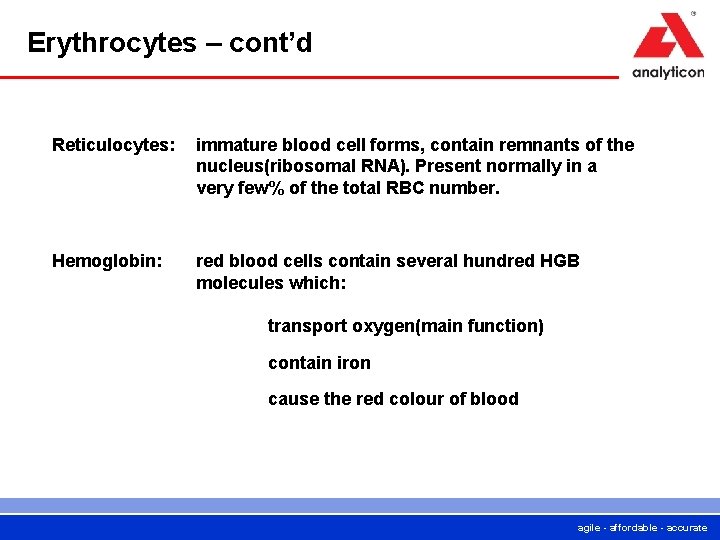

Erythrocytes – cont’d Reticulocytes: immature blood cell forms, contain remnants of the nucleus(ribosomal RNA). Present normally in a very few% of the total RBC number. Hemoglobin: red blood cells contain several hundred HGB molecules which: transport oxygen(main function) contain iron cause the red colour of blood agile - affordable - accurate

Thrombocytes and other parameters Thrombocytes: thrombocytes or platelets play an important role in the cellular part of the hemostazis(coagulation) trying to prevent excessive blood loss. Non nucleated cells in mammals and the smallest ones in the same time. Contain specific granules. Hematocrit – HCT or Packed Cell Volume – PCV: Shows the volume of blood in % occupied by cells. It can be measured after separation in a centrifuge, or calculated after cell counting. Shows the degree of anemia. Mean Corpuscular Volume – MCV: Average volume of individual erythrocytes Mean Corpuscular Hemoglobin – MCH: Average hemoglobin content of erythrocytes, calculated from RBC and HGB values. MCH = HGB / RBC agile - affordable - accurate

Other parameters Mean Corpuscular Haemoglobin Concentration – MCHC: Calculated from the HGB and HCT values. MCHC = HGB / HCTabsolute Red cell Distribut. Width - RDW-SD Platelet Distribut. Width - PDW-SD and Red cell Distribut. Width - RDW-CV Platelet Distribut. Width - PDW-CV The distribution width of the erythrocyte or platelet population derived from the histogram at 20% of peak agile - affordable - accurate

Mean Platelet Volume – MPV: Average volume of individual platelets derived from the PLT histogram. Thrombocrit – PCT: Calculated from the PLT and MPV values. PCTpercentage = PLT x MPV x 100; PCTabsolute = PLT x MPV Hemolysis: rupture of the cell membrane followed by destruction of the cell. When RBC-s are lysed hemoglobin is released. Hemolytic agents: detergents, PH, osmotic pressure, drugs, immunsystem, diseases etc. agile - affordable - accurate

Leukocytes - WBC White blood cells are a very important part of the immune system defending the body against infectious diseases and foreign materials. By complexity of the internal structure : - Granulocytes (complex nucleus, granules in the cytoplasm) Agranulocytes (simple nucleus, non granulated) By cell size: - „Small” „Medium” „Big” cells There are 5 main WBC populations: (see next page… ) agile - affordable - accurate

Leukocytes – cont’d § Lymphocytes: mononuclear cell with round, dense nucleus and slight cytoplasm Monocytes: mononuclear cells with oval, nucleus and variable cytoplasm (vacuoles) Neutrophils granulocytes: polimorphonuclear cells with neutral cytoplasm & granules Eosinophil granulocytes: polimorphonuclear cells with basic (alkaline) cytoplasm & granules Basophil granulocyte: polimorphonuclear cell with acid cytoplasm & granules agile - affordable - accurate

Types of blood cells agile - affordable - accurate

Measurement principles Name RBC WBC PLT Population 4. 5 -5. 5 million/µl 5 -10. 000/µl 150 -300. 000/µl Shape, diameter Biconcave shape Diameter 8 µm Thickness 2 µm NE, EO, BA 15 µm Fragments Diameter 2 -4 µm LYM 8 -15 µm MON 15 -25 µm Mean volume 90 fl various 12 fl agile - affordable - accurate

Measurement principles Blood sample: whole blood mixed with EDTA, anticoagulants are necessary to prevent forming of clots agile - affordable - accurate

Measurement principles 3. Hemolyser 1. a Sample preparation: from the whole blood a small amount (20 -25 ul) of primary sample is aspirated. 2. b c Diluent is added to the sample first (WBC&HGB) dilution is obtained From this first dilution a second sample(100 ul) is aspirated Blood 1. 2. 3. Diluent is added to the second sample àRBC&PLT dilution is obtained WBC & HGB 1: 200 a + diluent → b b + diluent → c → RBC/PLT b + Lyser → WBC/HGB RBC & PLT 1: 32. 000 Lyse reagent is added to the WBC&HGB dilution RBCs are destroyed (see next slide) agile - affordable - accurate

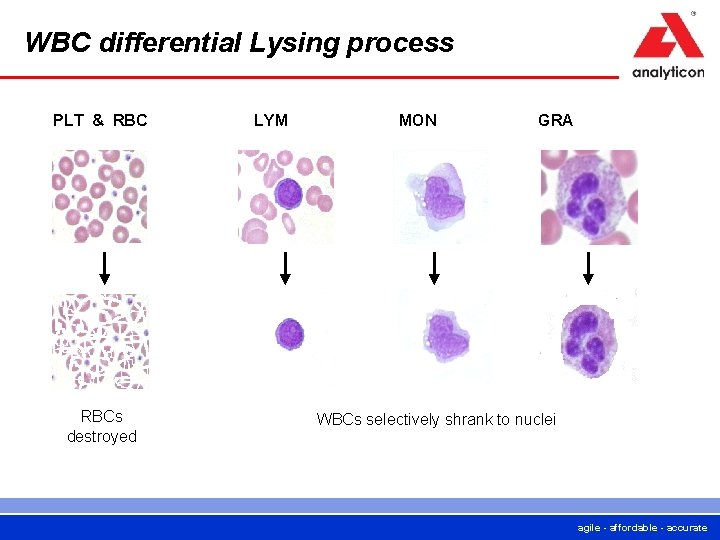

WBC differential Lysing process PLT & RBCs destroyed LYM MON GRA WBCs selectively shrank to nuclei agile - affordable - accurate

Impedance cell counting principle agile - affordable - accurate

3 -part Differential WBC Histogram & HGB agile - affordable - accurate

Hemoglobin measurement principle agile - affordable - accurate
