AGGLUTINATION Agglutination The interaction between an antibody and

AGGLUTINATION

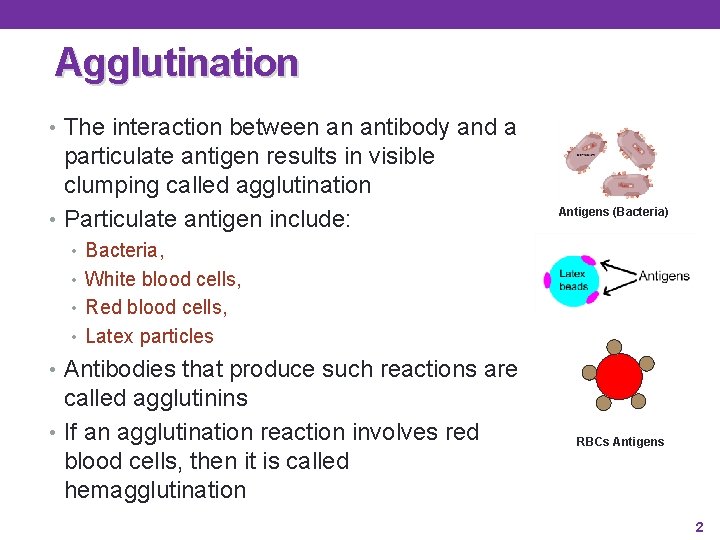

Agglutination • The interaction between an antibody and a particulate antigen results in visible clumping called agglutination • Particulate antigen include: Antigens (Bacteria) • Bacteria, • White blood cells, • Red blood cells, • Latex particles • Antibodies that produce such reactions are called agglutinins • If an agglutination reaction involves red blood cells, then it is called hemagglutination RBCs Antigens 2

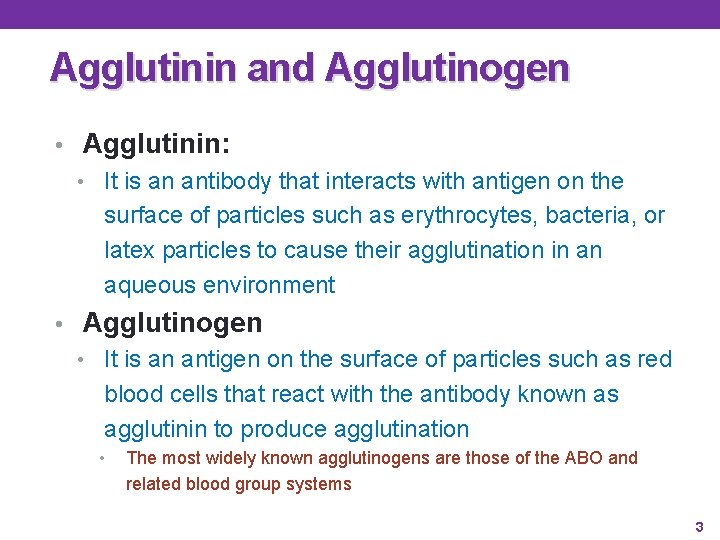

Agglutinin and Agglutinogen • Agglutinin: • It is an antibody that interacts with antigen on the surface of particles such as erythrocytes, bacteria, or latex particles to cause their agglutination in an aqueous environment • Agglutinogen • It is an antigen on the surface of particles such as red blood cells that react with the antibody known as agglutinin to produce agglutination • The most widely known agglutinogens are those of the ABO and related blood group systems 3

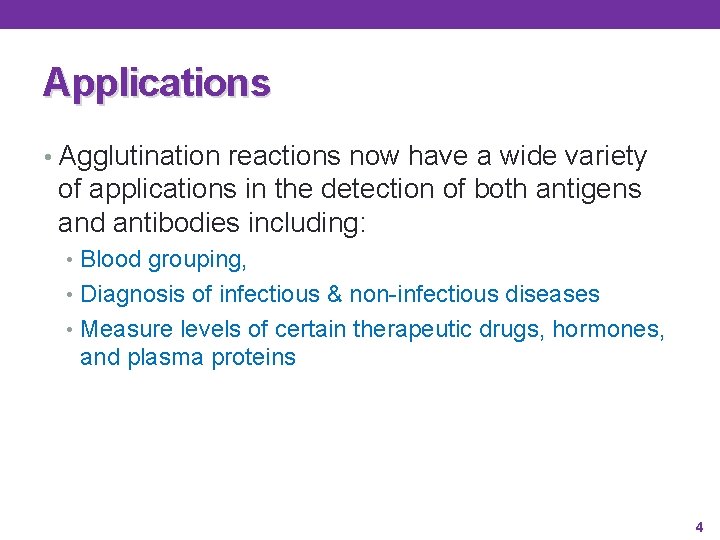

Applications • Agglutination reactions now have a wide variety of applications in the detection of both antigens and antibodies including: • Blood grouping, • Diagnosis of infectious & non-infectious diseases • Measure levels of certain therapeutic drugs, hormones, and plasma proteins 4

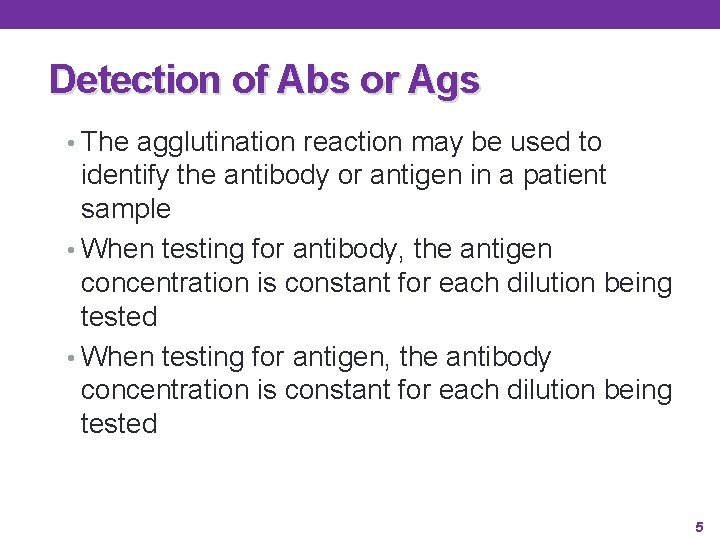

Detection of Abs or Ags • The agglutination reaction may be used to identify the antibody or antigen in a patient sample • When testing for antibody, the antigen concentration is constant for each dilution being tested • When testing for antigen, the antibody concentration is constant for each dilution being tested 5

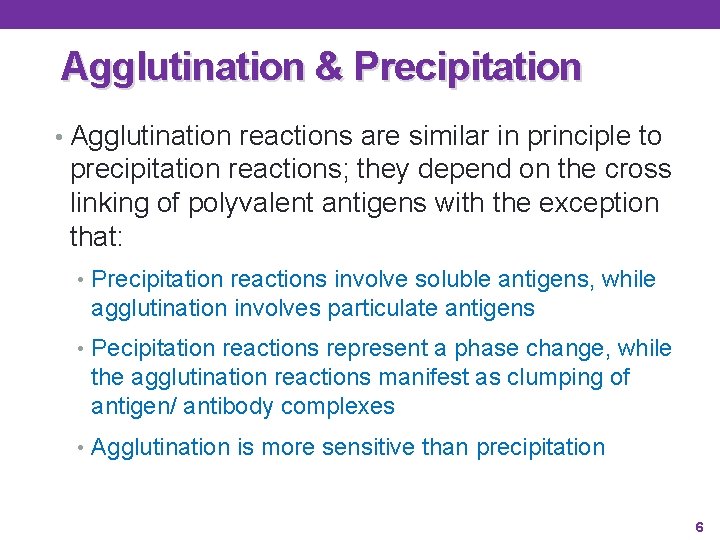

Agglutination & Precipitation • Agglutination reactions are similar in principle to precipitation reactions; they depend on the cross linking of polyvalent antigens with the exception that: • Precipitation reactions involve soluble antigens, while agglutination involves particulate antigens • Pecipitation reactions represent a phase change, while the agglutination reactions manifest as clumping of antigen/ antibody complexes • Agglutination is more sensitive than precipitation 6

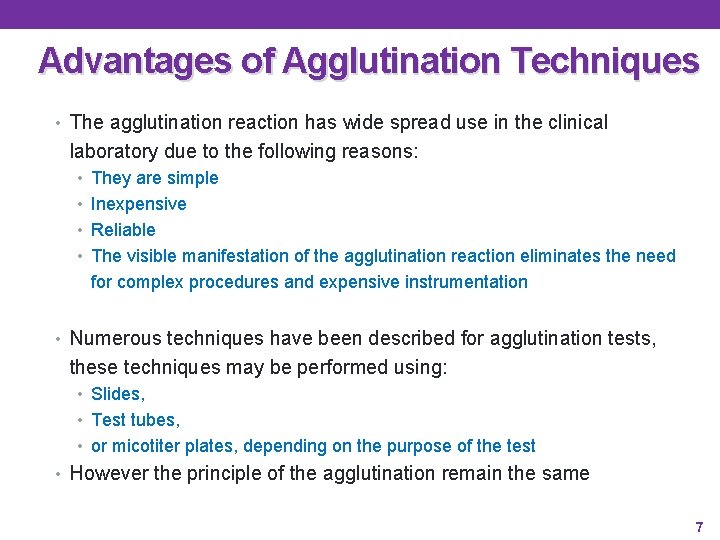

Advantages of Agglutination Techniques • The agglutination reaction has wide spread use in the clinical laboratory due to the following reasons: • They are simple • Inexpensive • Reliable • The visible manifestation of the agglutination reaction eliminates the need for complex procedures and expensive instrumentation • Numerous techniques have been described for agglutination tests, these techniques may be performed using: • Slides, • Test tubes, • or micotiter plates, depending on the purpose of the test • However the principle of the agglutination remain the same 7

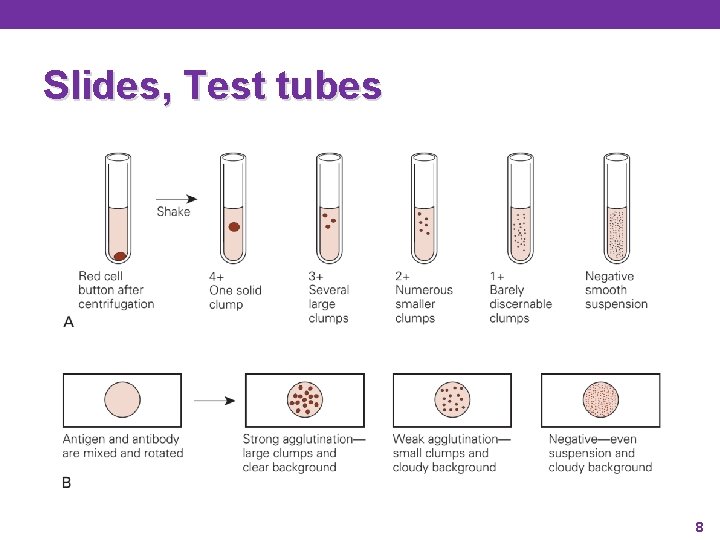

Slides, Test tubes 8

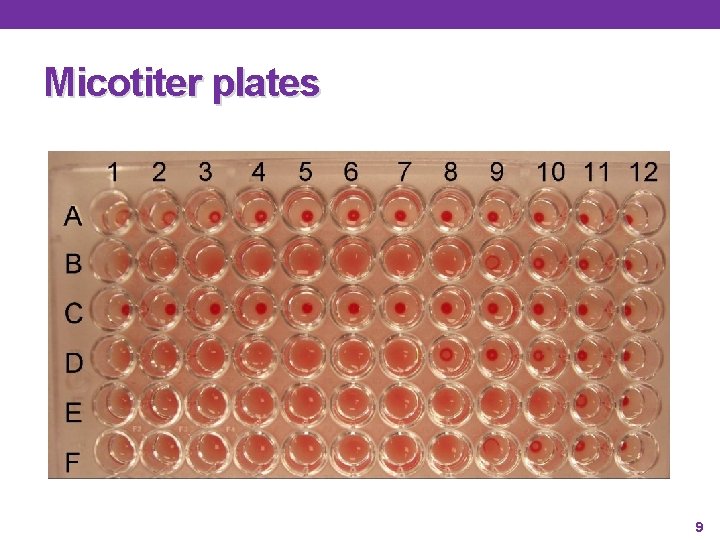

Micotiter plates 9

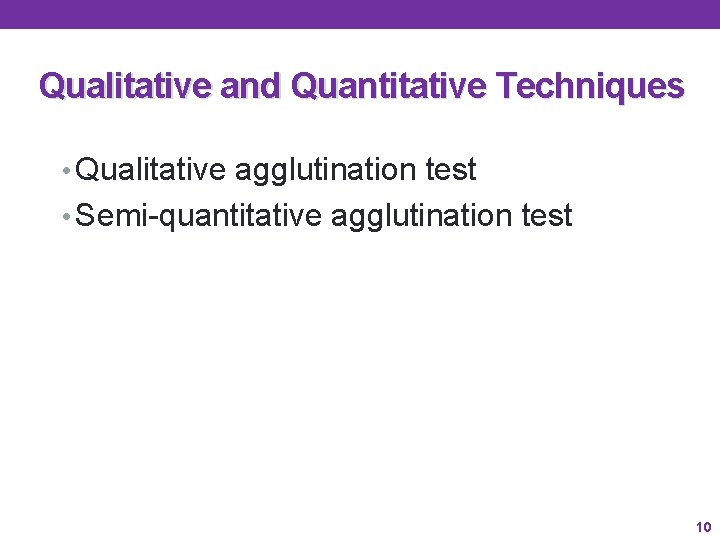

Qualitative and Quantitative Techniques • Qualitative agglutination test • Semi-quantitative agglutination test 10

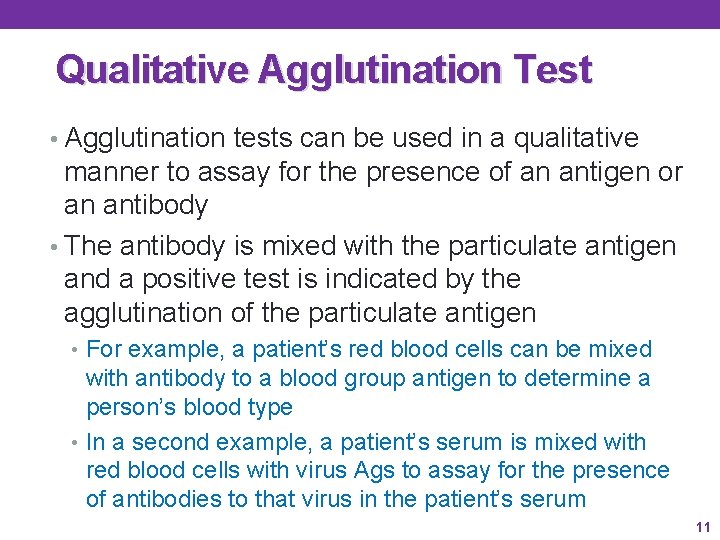

Qualitative Agglutination Test • Agglutination tests can be used in a qualitative manner to assay for the presence of an antigen or an antibody • The antibody is mixed with the particulate antigen and a positive test is indicated by the agglutination of the particulate antigen • For example, a patient’s red blood cells can be mixed with antibody to a blood group antigen to determine a person’s blood type • In a second example, a patient’s serum is mixed with red blood cells with virus Ags to assay for the presence of antibodies to that virus in the patient’s serum 11

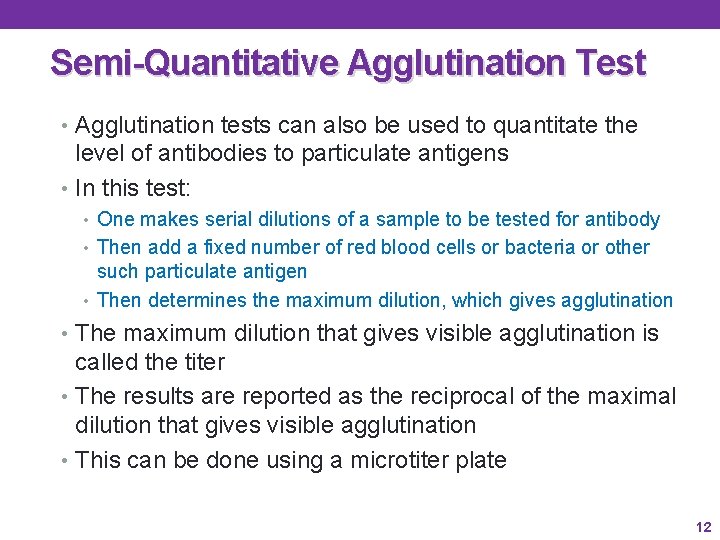

Semi-Quantitative Agglutination Test • Agglutination tests can also be used to quantitate the level of antibodies to particulate antigens • In this test: • One makes serial dilutions of a sample to be tested for antibody • Then add a fixed number of red blood cells or bacteria or other such particulate antigen • Then determines the maximum dilution, which gives agglutination • The maximum dilution that gives visible agglutination is called the titer • The results are reported as the reciprocal of the maximal dilution that gives visible agglutination • This can be done using a microtiter plate 12

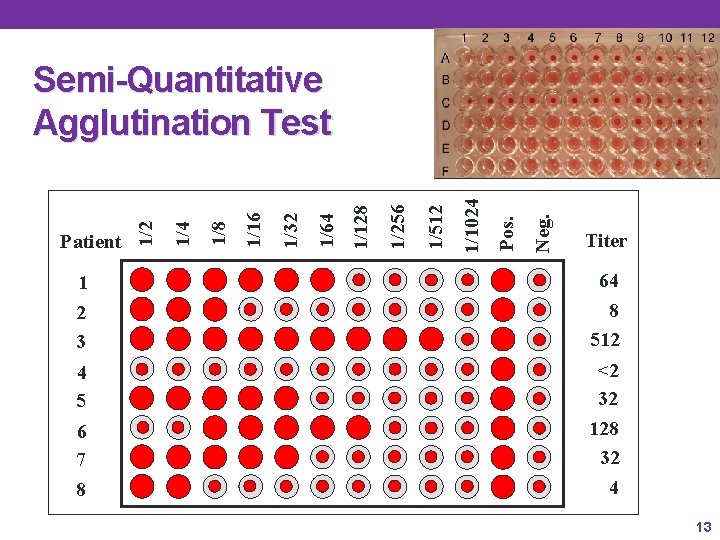

Neg. Pos. 1/1024 1/512 1/256 1/128 1/64 1/32 1/16 1/8 1/4 Patient 1/2 Semi-Quantitative Agglutination Test Titer 1 2 3 64 8 512 4 5 <2 32 6 7 8 128 32 4 13

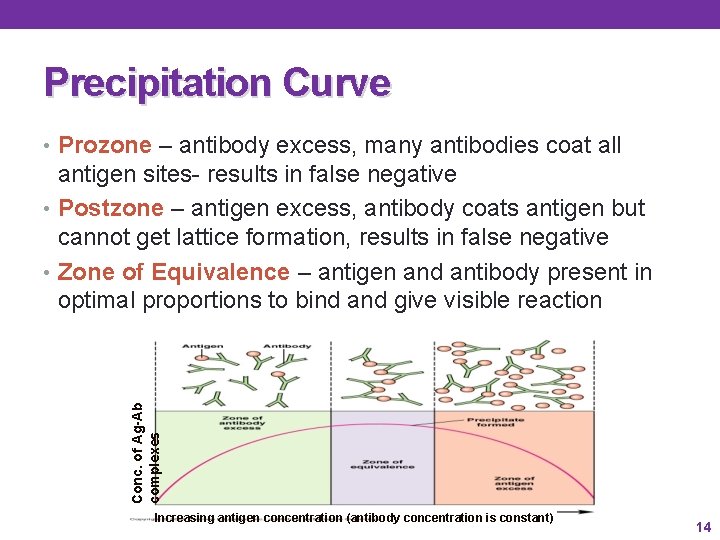

Precipitation Curve • Prozone – antibody excess, many antibodies coat all Conc. of Ag-Ab complexes antigen sites- results in false negative • Postzone – antigen excess, antibody coats antigen but cannot get lattice formation, results in false negative • Zone of Equivalence – antigen and antibody present in optimal proportions to bind and give visible reaction Increasing antigen concentration (antibody concentration is constant) 14

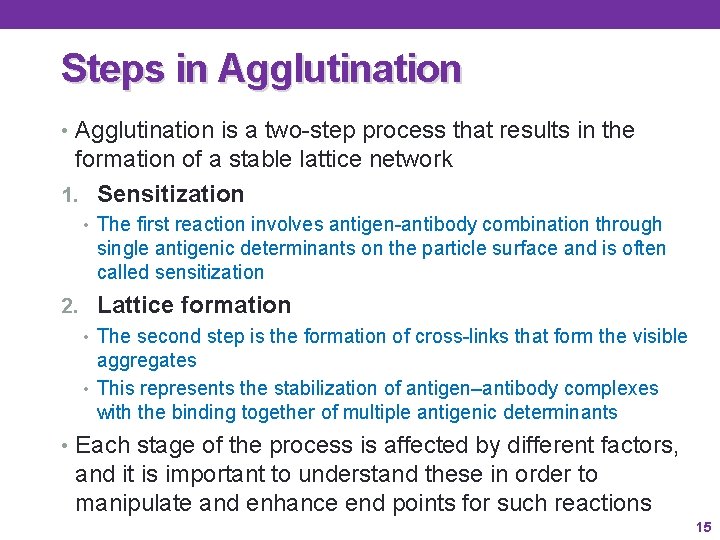

Steps in Agglutination • Agglutination is a two-step process that results in the formation of a stable lattice network 1. Sensitization • The first reaction involves antigen-antibody combination through single antigenic determinants on the particle surface and is often called sensitization 2. Lattice formation • The second step is the formation of cross-links that form the visible aggregates • This represents the stabilization of antigen–antibody complexes with the binding together of multiple antigenic determinants • Each stage of the process is affected by different factors, and it is important to understand these in order to manipulate and enhance end points for such reactions 15

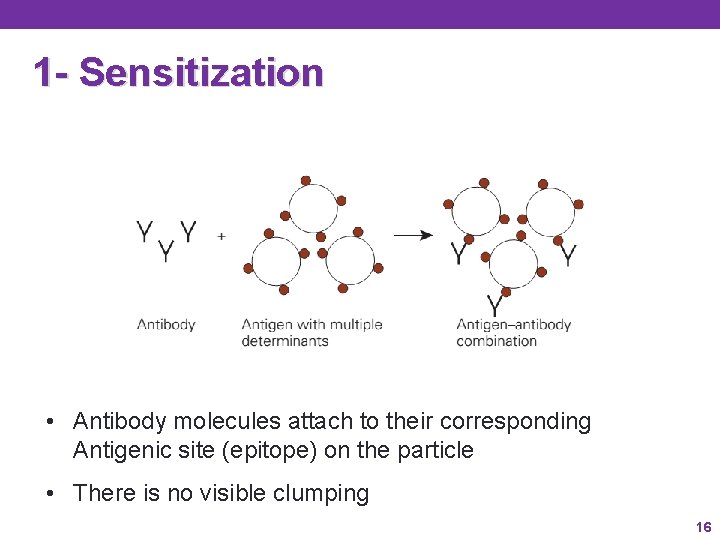

1 - Sensitization • Antibody molecules attach to their corresponding Antigenic site (epitope) on the particle • There is no visible clumping 16

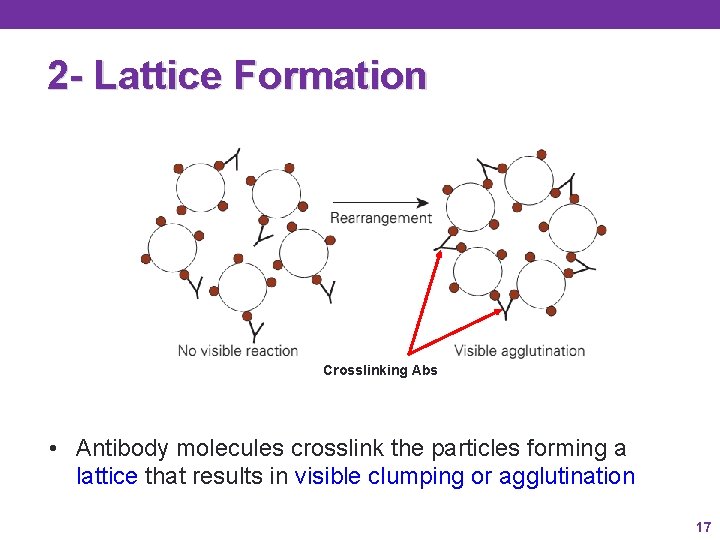

2 - Lattice Formation Crosslinking Abs • Antibody molecules crosslink the particles forming a lattice that results in visible clumping or agglutination 17

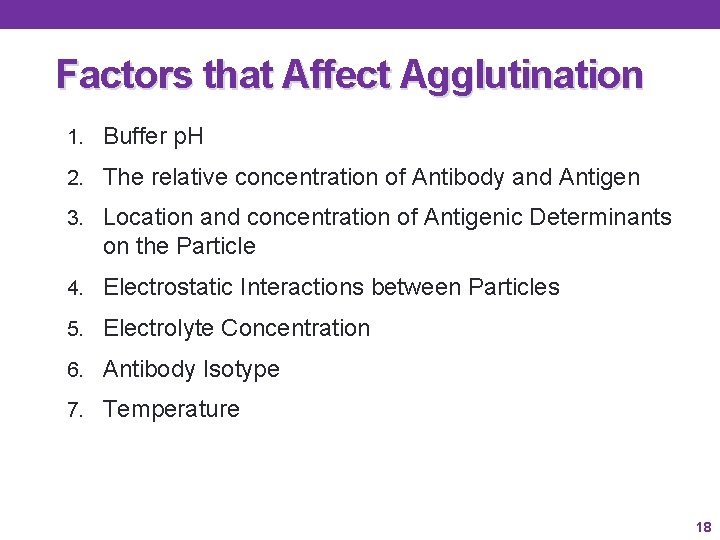

Factors that Affect Agglutination 1. Buffer p. H 2. The relative concentration of Antibody and Antigen 3. Location and concentration of Antigenic Determinants on the Particle 4. Electrostatic Interactions between Particles 5. Electrolyte Concentration 6. Antibody Isotype 7. Temperature 18

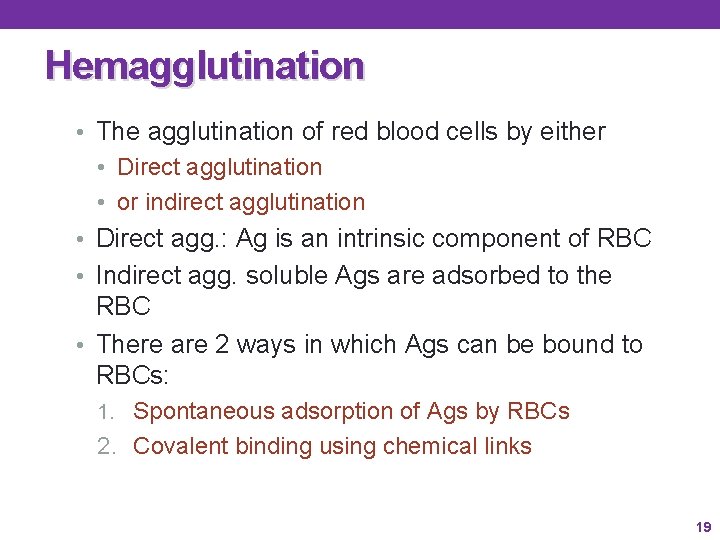

Hemagglutination • The agglutination of red blood cells by either • Direct agglutination • or indirect agglutination • Direct agg. : Ag is an intrinsic component of RBC • Indirect agg. soluble Ags are adsorbed to the RBC • There are 2 ways in which Ags can be bound to RBCs: 1. Spontaneous adsorption of Ags by RBCs 2. Covalent binding using chemical links 19

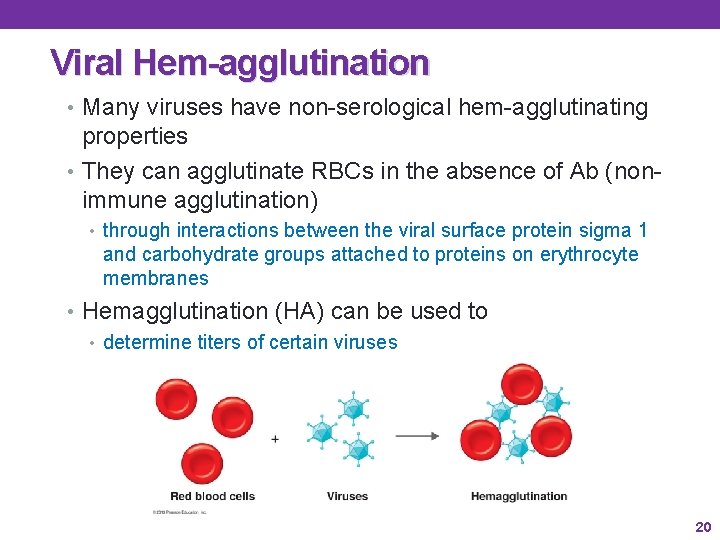

Viral Hem-agglutination • Many viruses have non-serological hem-agglutinating properties • They can agglutinate RBCs in the absence of Ab (nonimmune agglutination) • through interactions between the viral surface protein sigma 1 and carbohydrate groups attached to proteins on erythrocyte membranes • Hemagglutination (HA) can be used to • determine titers of certain viruses 20

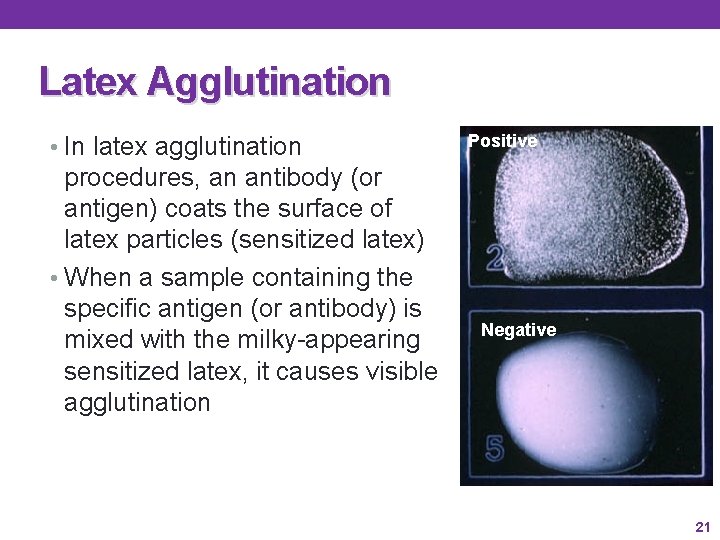

Latex Agglutination • In latex agglutination procedures, an antibody (or antigen) coats the surface of latex particles (sensitized latex) • When a sample containing the specific antigen (or antibody) is mixed with the milky-appearing sensitized latex, it causes visible agglutination Positive Negative 21

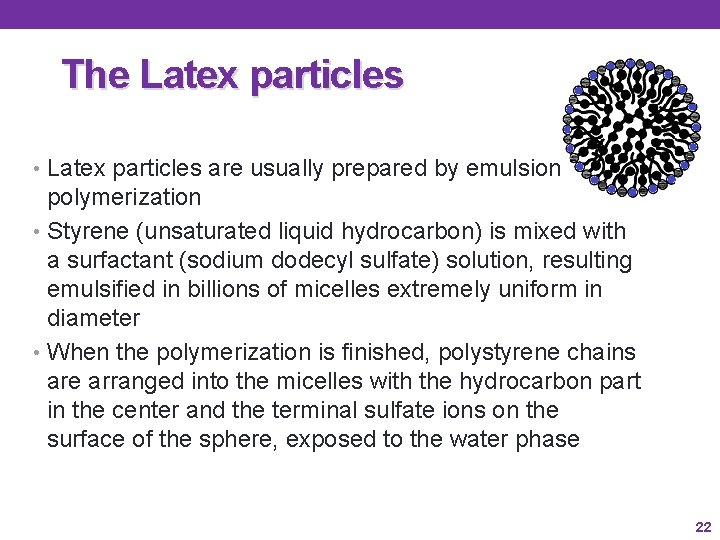

The Latex particles • Latex particles are usually prepared by emulsion polymerization • Styrene (unsaturated liquid hydrocarbon) is mixed with a surfactant (sodium dodecyl sulfate) solution, resulting emulsified in billions of micelles extremely uniform in diameter • When the polymerization is finished, polystyrene chains are arranged into the micelles with the hydrocarbon part in the center and the terminal sulfate ions on the surface of the sphere, exposed to the water phase 22

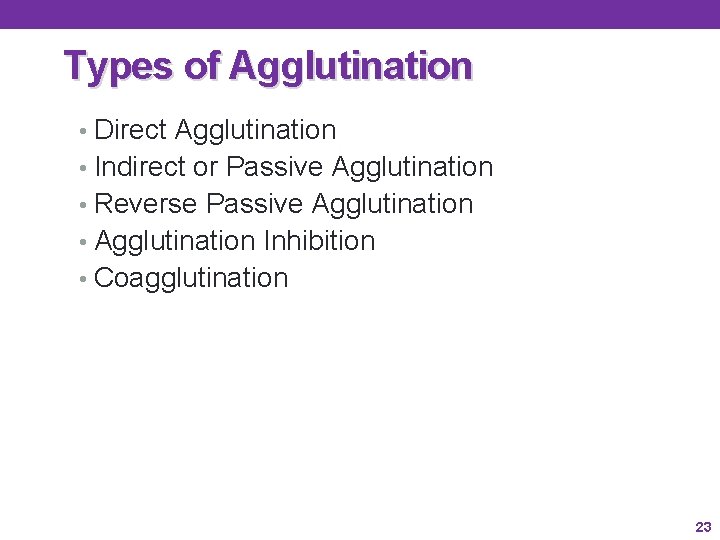

Types of Agglutination • Direct Agglutination • Indirect or Passive Agglutination • Reverse Passive Agglutination • Agglutination Inhibition • Coagglutination 23

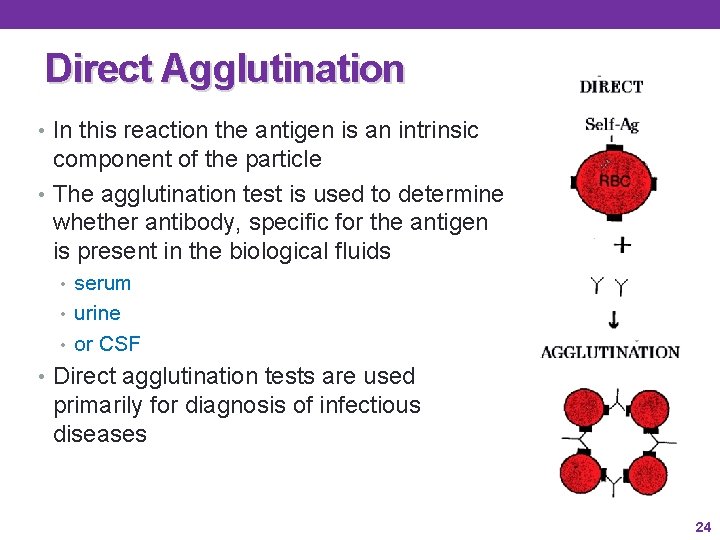

Direct Agglutination • In this reaction the antigen is an intrinsic component of the particle • The agglutination test is used to determine whether antibody, specific for the antigen is present in the biological fluids • serum • urine • or CSF • Direct agglutination tests are used primarily for diagnosis of infectious diseases 24

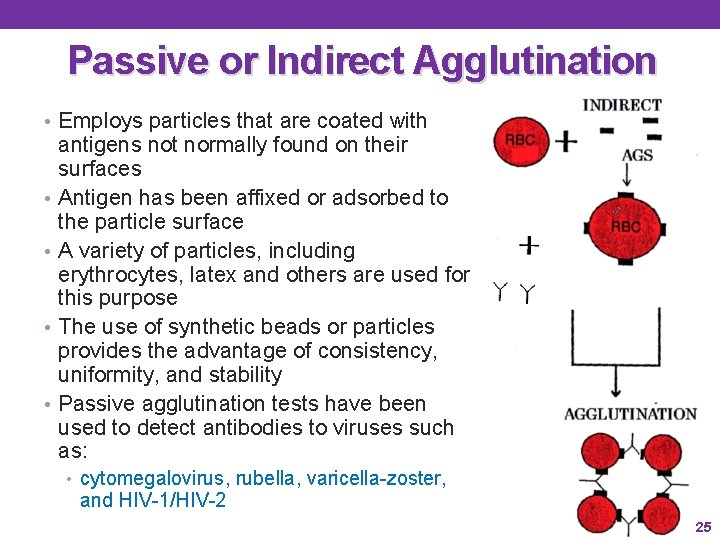

Passive or Indirect Agglutination • Employs particles that are coated with • • antigens not normally found on their surfaces Antigen has been affixed or adsorbed to the particle surface A variety of particles, including erythrocytes, latex and others are used for this purpose The use of synthetic beads or particles provides the advantage of consistency, uniformity, and stability Passive agglutination tests have been used to detect antibodies to viruses such as: • cytomegalovirus, rubella, varicella-zoster, and HIV-1/HIV-2 25

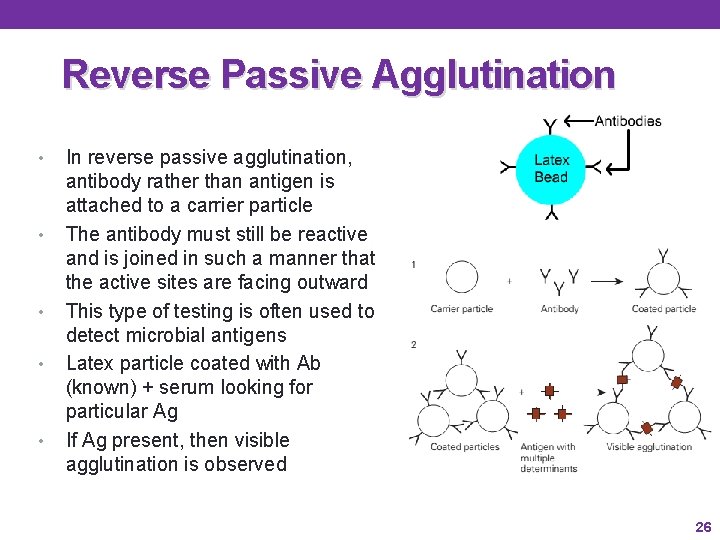

Reverse Passive Agglutination • • • In reverse passive agglutination, antibody rather than antigen is attached to a carrier particle The antibody must still be reactive and is joined in such a manner that the active sites are facing outward This type of testing is often used to detect microbial antigens Latex particle coated with Ab (known) + serum looking for particular Ag If Ag present, then visible agglutination is observed 26

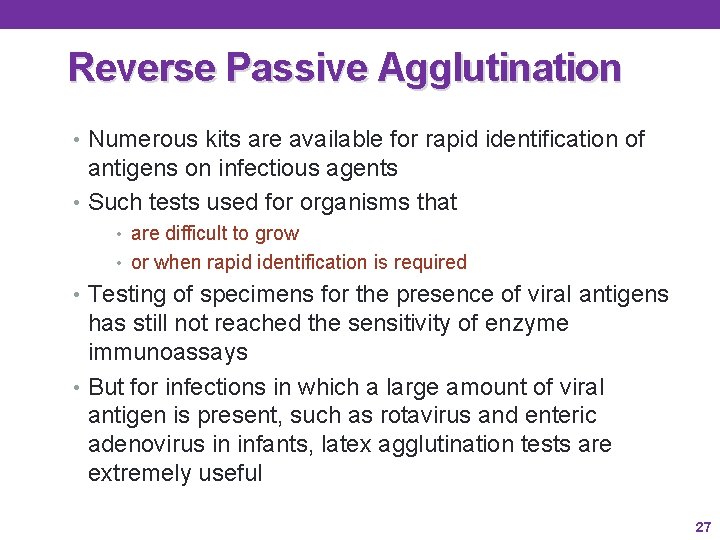

Reverse Passive Agglutination • Numerous kits are available for rapid identification of antigens on infectious agents • Such tests used for organisms that • are difficult to grow • or when rapid identification is required • Testing of specimens for the presence of viral antigens has still not reached the sensitivity of enzyme immunoassays • But for infections in which a large amount of viral antigen is present, such as rotavirus and enteric adenovirus in infants, latex agglutination tests are extremely useful 27

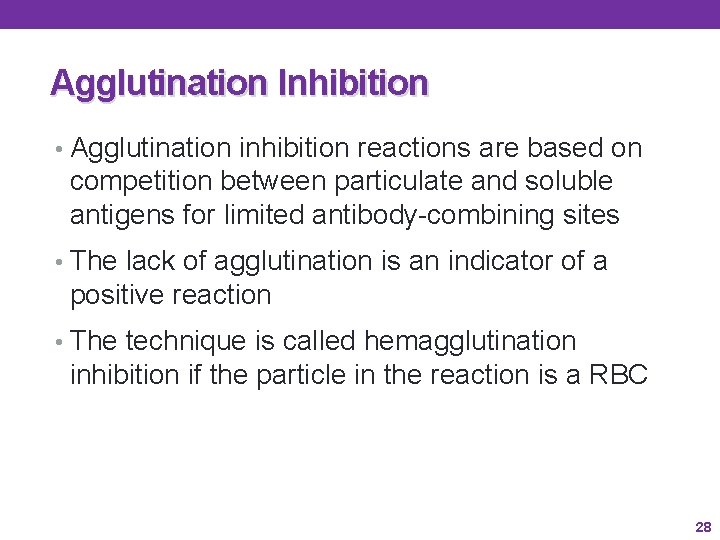

Agglutination Inhibition • Agglutination inhibition reactions are based on competition between particulate and soluble antigens for limited antibody-combining sites • The lack of agglutination is an indicator of a positive reaction • The technique is called hemagglutination inhibition if the particle in the reaction is a RBC 28

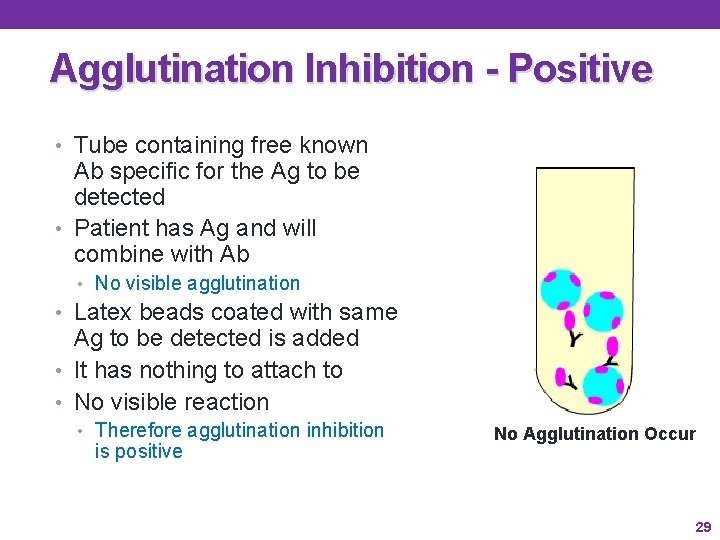

Agglutination Inhibition - Positive • Tube containing free known Ab specific for the Ag to be detected • Patient has Ag and will combine with Ab • No visible agglutination • Latex beads coated with same Ag to be detected is added • It has nothing to attach to • No visible reaction • Therefore agglutination inhibition is positive No Agglutination Occur 29

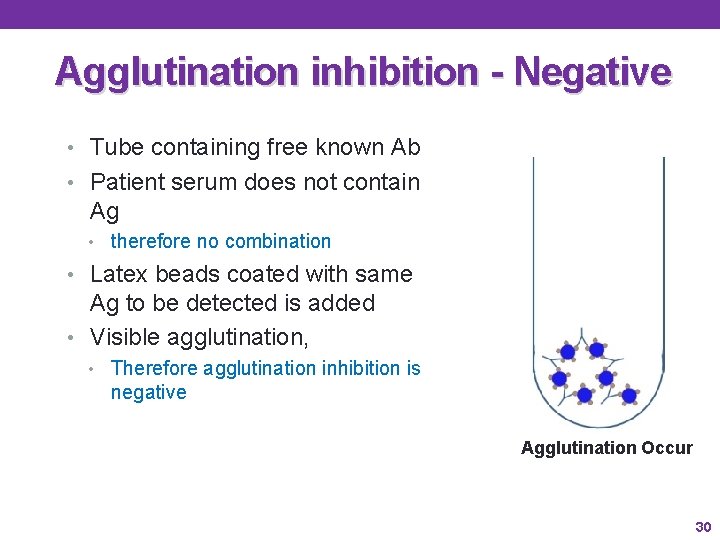

Agglutination inhibition - Negative • Tube containing free known Ab • Patient serum does not contain Ag • therefore no combination • Latex beads coated with same Ag to be detected is added • Visible agglutination, • Therefore agglutination inhibition is negative Agglutination Occur 30

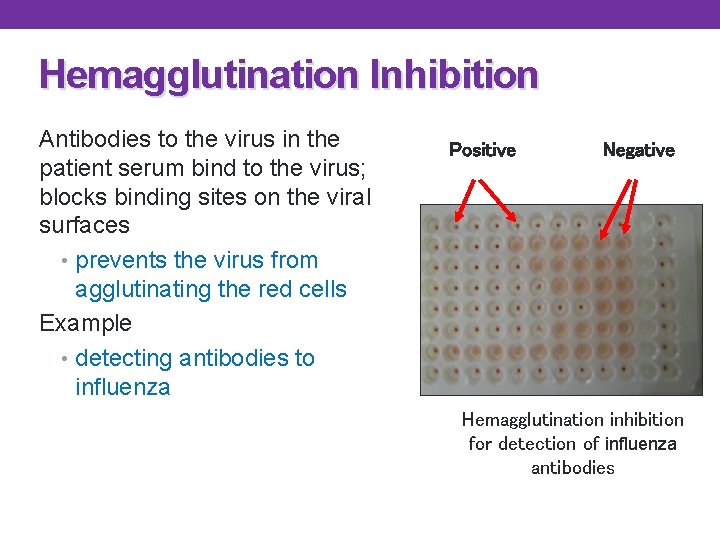

Hemagglutination Inhibition Antibodies to the virus in the patient serum bind to the virus; blocks binding sites on the viral surfaces • prevents the virus from agglutinating the red cells Example • detecting antibodies to influenza Positive Negative Hemagglutination inhibition for detection of influenza antibodies

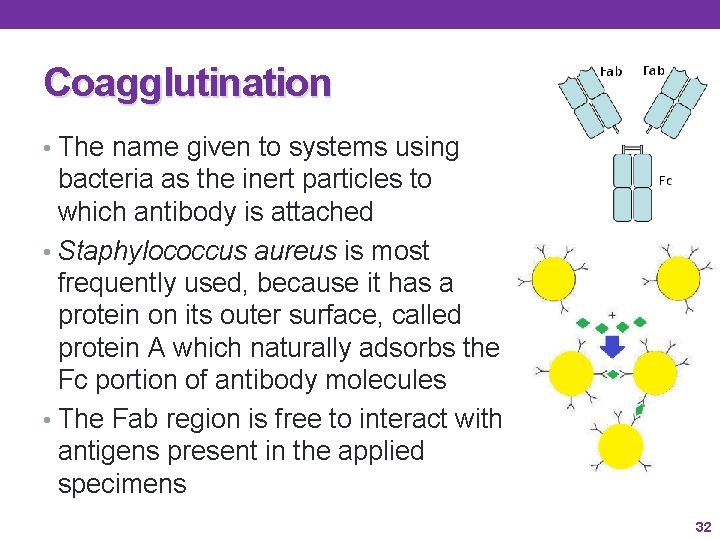

Coagglutination • The name given to systems using bacteria as the inert particles to which antibody is attached • Staphylococcus aureus is most frequently used, because it has a protein on its outer surface, called protein A which naturally adsorbs the Fc portion of antibody molecules • The Fab region is free to interact with antigens present in the applied specimens 32

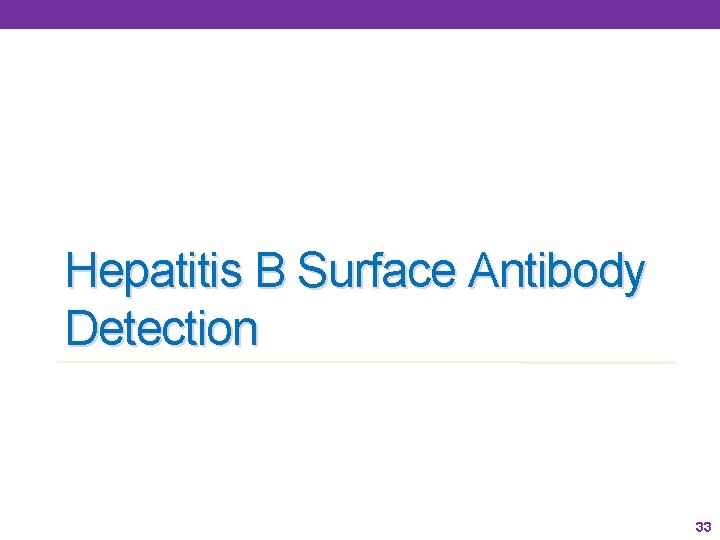

Hepatitis B Surface Antibody Detection 33

Summary • Hepatitis B surface antigen (HBs. Ag) is the first serologic marker, appearing in the serum 6 to 16 weeks following HBV infection • In acute cases, HBs. Ag usually disappears 1 to 2 months after the onset of symptoms with the appearance of hepatitis B surface antibody (anti. HBs) • Anti-HBs also appears as the immune response following hepatitis B vaccination 34

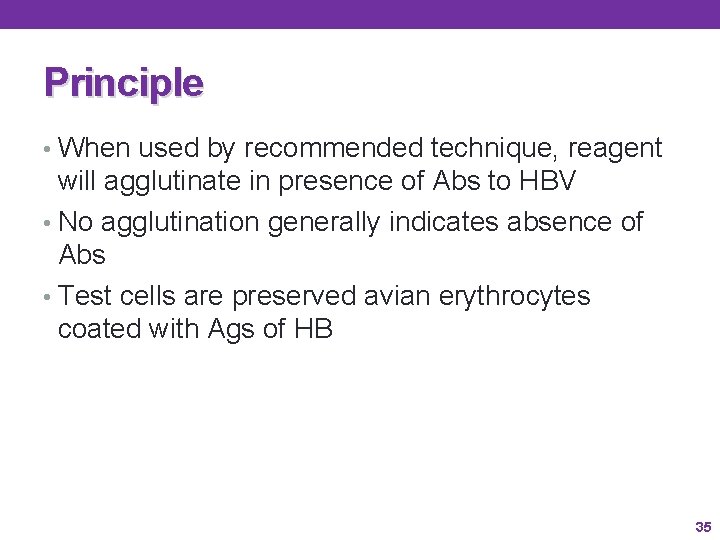

Principle • When used by recommended technique, reagent will agglutinate in presence of Abs to HBV • No agglutination generally indicates absence of Abs • Test cells are preserved avian erythrocytes coated with Ags of HB 35

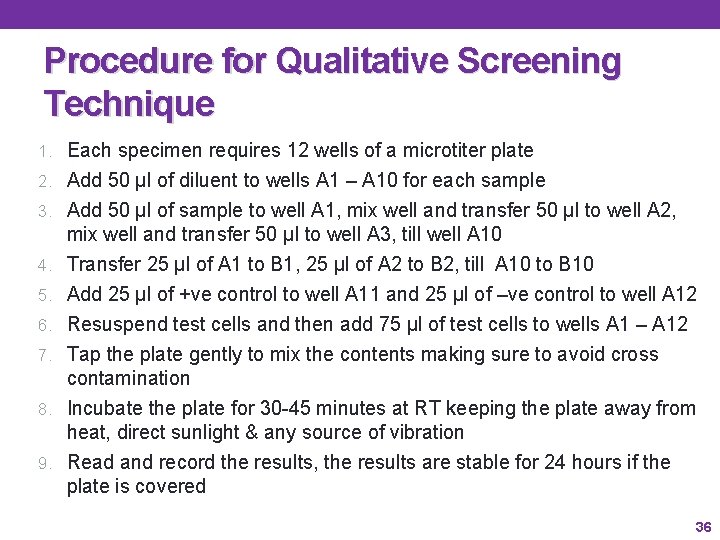

Procedure for Qualitative Screening Technique 1. Each specimen requires 12 wells of a microtiter plate 2. Add 50 µl of diluent to wells A 1 – A 10 for each sample 3. Add 50 µl of sample to well A 1, mix well and transfer 50 µl to well A 2, 4. 5. 6. 7. 8. 9. mix well and transfer 50 µl to well A 3, till well A 10 Transfer 25 µl of A 1 to B 1, 25 µl of A 2 to B 2, till A 10 to B 10 Add 25 µl of +ve control to well A 11 and 25 µl of –ve control to well A 12 Resuspend test cells and then add 75 µl of test cells to wells A 1 – A 12 Tap the plate gently to mix the contents making sure to avoid cross contamination Incubate the plate for 30 -45 minutes at RT keeping the plate away from heat, direct sunlight & any source of vibration Read and record the results, the results are stable for 24 hours if the plate is covered 36

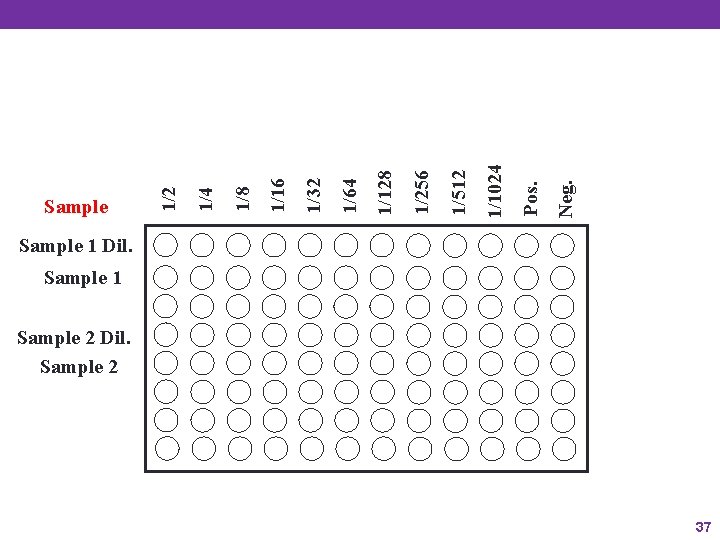

Neg. Pos. 1/1024 1/512 1/256 1/128 1/64 1/32 1/16 1/8 1/4 1/2 Sample 1 Dil. Sample 1 Sample 2 Dil. Sample 2 37

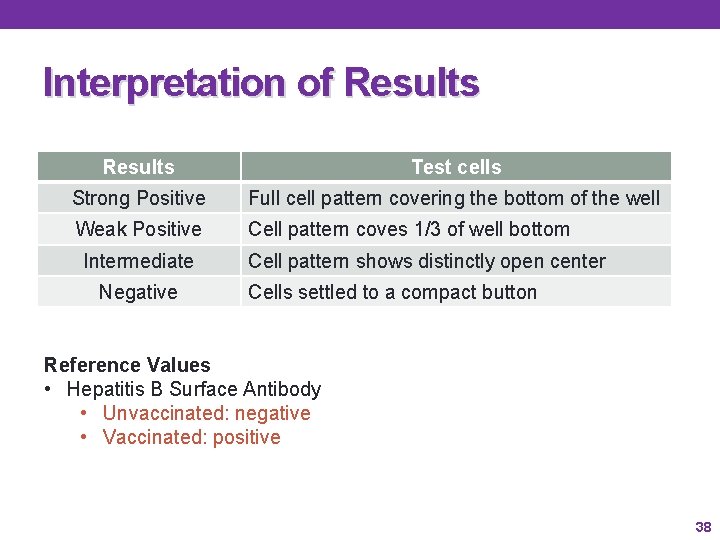

Interpretation of Results Test cells Strong Positive Full cell pattern covering the bottom of the well Weak Positive Cell pattern coves 1/3 of well bottom Intermediate Negative Cell pattern shows distinctly open center Cells settled to a compact button Reference Values • Hepatitis B Surface Antibody • Unvaccinated: negative • Vaccinated: positive 38
