Agenda Victrex Overview Technical information on VICTREX Market

Agenda • • • Victrex Overview Technical information on VICTREX® Market and Application Review Aptiv. TMFilms Vicote. TMCoatings Discussions

Who is Victrex Plc? • • • Manufacturer of VICTREX® PEEK™ and PEEK-HT® Polymers Public, London Stock Exchange (VCT) £ 142. 0 million 2008 Revenue 500+ Employees, 90+ Global Employees Three Manufacturing Sites (all UK based)

Driving Market Growth with Around the World…. . • Victrex’s strengths: • Focus and dedication to the development and innovation of VICTREX® PEEK™ polymers. • Proactive strategy to engage with customers and end users to develop new applications for high performance polymers, supported by extensive application technology - “win-win” mentality. • Global footprint, relationship-driven culture. • Passion, Innovation, Performance - for and with our customers. Passionately exploring new products, applications, and business opportunities – creating the future! VICTREX® is a registered trademark of Victrex Manufacturing Limited. PEEK™ and PEEK-HT™ are trademarks of Victrex plc.

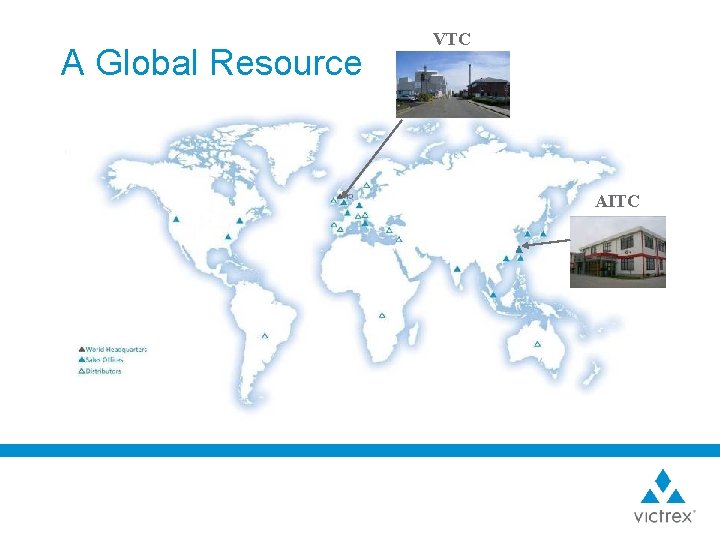

A Global Resource VTC AITC

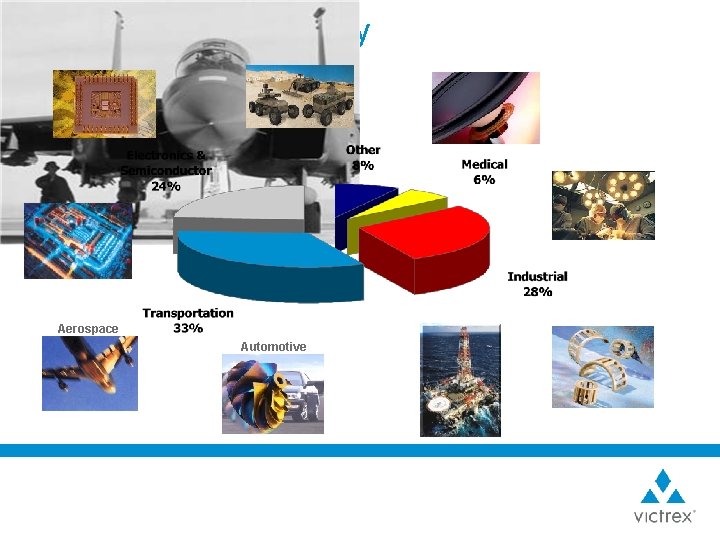

Victrex Sales by Industry Aerospace Automotive

• Wear at elevated temp • Oil and Gas seals Performance T Series MAX- Series VICTREX® PEEK™ polymer VICTREX PEEK-HT® • • • Down hole connectors Back up rings and seals Chip trays and carriers non-ESD $40/lbs Value to Performance for Victrex Products $120/lbs

Polymer Hierarchy Continuous Use Temperature UL 746 B PBI Temperature Performance (polybenzimidazole) PI (Polyimide) 600°F Victrex PEEK™ Tseries Victrex PEEK™ polymer 400°F PAI PEI (Polyamide imide) (Polyetherimide) PPS 200°F PES (Polyphenylene sulfide) (polyether sulfone) Nylon Amorphous PPA (polyphthalamide) Crystalline

® VICTREX PEEK Properties VICTREX PLC MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, A WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR OF INTELLECTUAL PROPERTY NONINFRINGEMENT, INCLUDING, BUT NOT LIMITED TO PATENT NON-INFRINGEMENT, WHICH ARE EXPRESSLY DISCLAIMED, WHETHER EXPRESS OR IMPLIED, IN FACT OR BY LAW. FURTHER, VICTREX PLC MAKES NO WARRANTY TO YOUR CUSTOMERS OR AGENTS, AND HAS NOT AUTHORIZED ANYONE TO MAKE ANY REPRESENTATION OR WARRANTY OTHER THAN AS PROVIDED ABOVE. VICTREX PLC SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT, SPECIAL, CONSEQUENTIAL, PUNITIVE, INCIDENTAL OR SIMILAR DAMAGES, INCLUDING WITHOUT LIMITATION, DAMAGES FOR HARM TO BUSINESS, LOST PROFITS OR LOST SAVINGS, EVEN IF VICTREX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, REGARDLESS OF THE FORM OF ACTION.

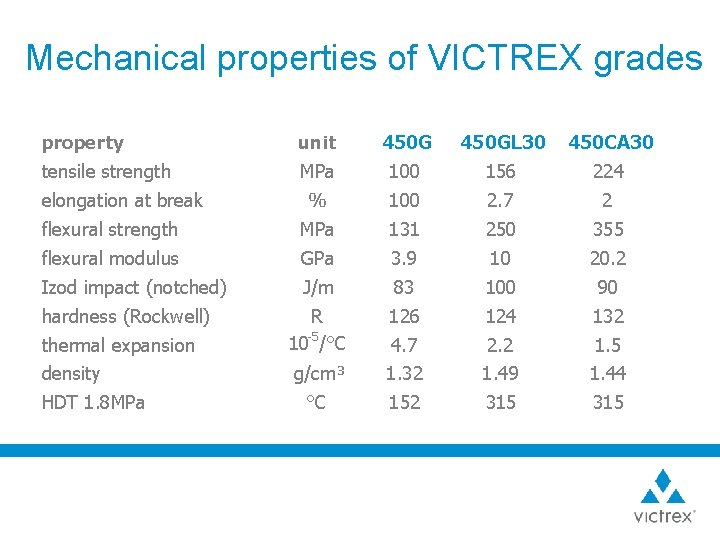

Mechanical properties of VICTREX grades property unit 450 GL 30 450 CA 30 tensile strength MPa 100 156 224 % 100 2. 7 2 flexural strength MPa 131 250 355 flexural modulus GPa 3. 9 10 20. 2 Izod impact (notched) J/m 83 100 90 126 124 132 thermal expansion R 10 -5/°C 4. 7 2. 2 1. 5 density g/cm³ 1. 32 1. 49 1. 44 °C 152 315 elongation at break hardness (Rockwell) HDT 1. 8 MPa

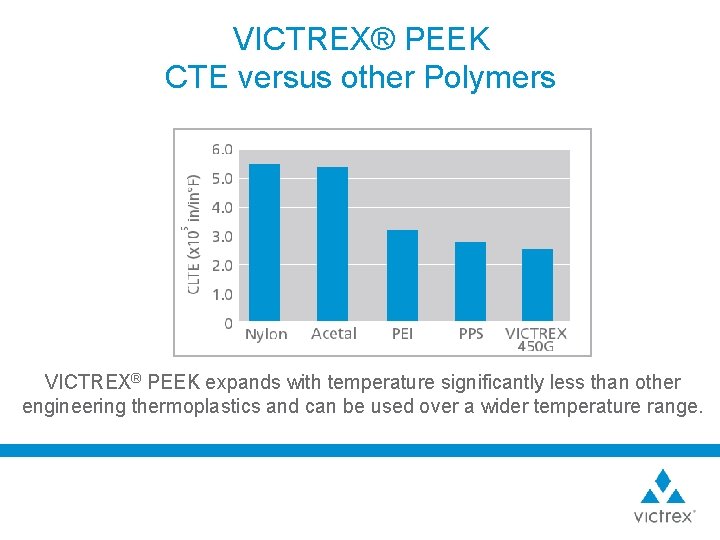

VICTREX® PEEK CTE versus other Polymers VICTREX® PEEK expands with temperature significantly less than other engineering thermoplastics and can be used over a wider temperature range.

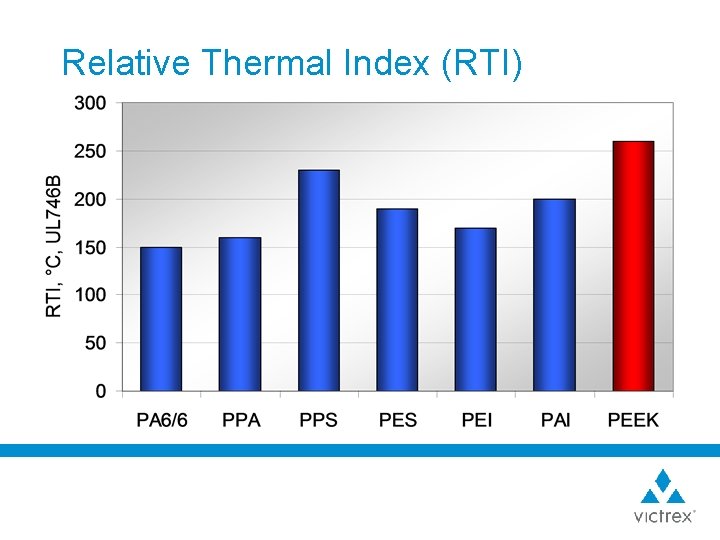

Relative Thermal Index (RTI)

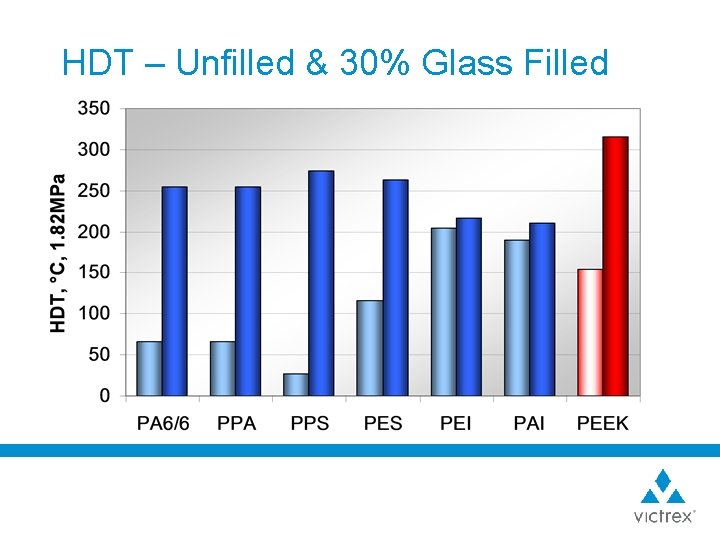

HDT – Unfilled & 30% Glass Filled

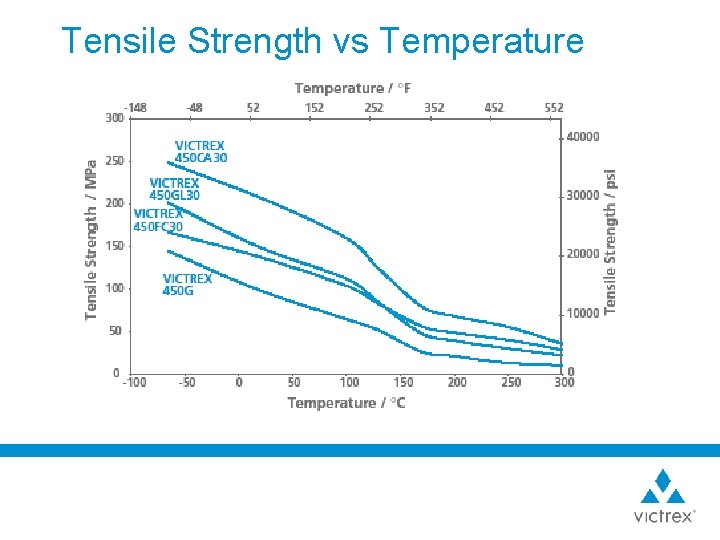

Tensile Strength vs Temperature

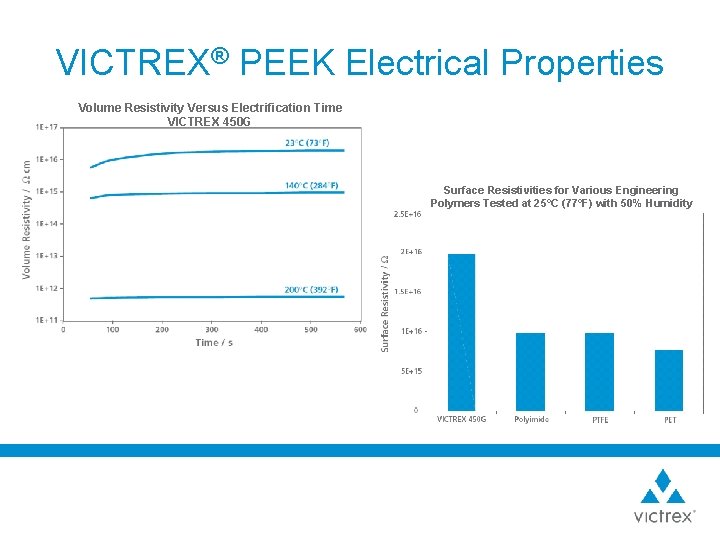

VICTREX® PEEK Electrical Properties Volume Resistivity Versus Electrification Time VICTREX 450 G Surface Resistivities for Various Engineering Polymers Tested at 25°C (77°F) with 50% Humidity

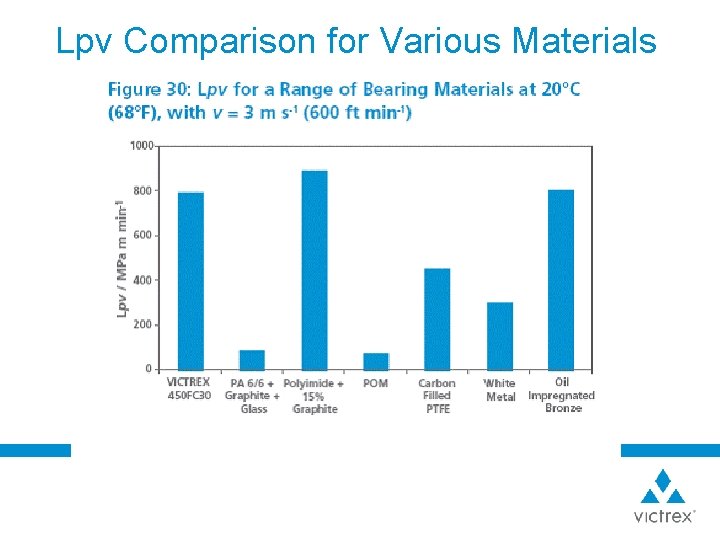

Lpv Comparison for Various Materials

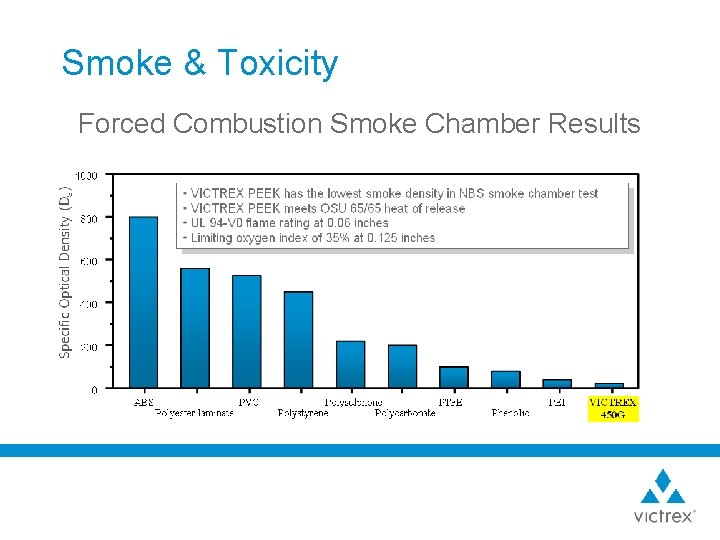

Smoke & Toxicity Forced Combustion Smoke Chamber Results

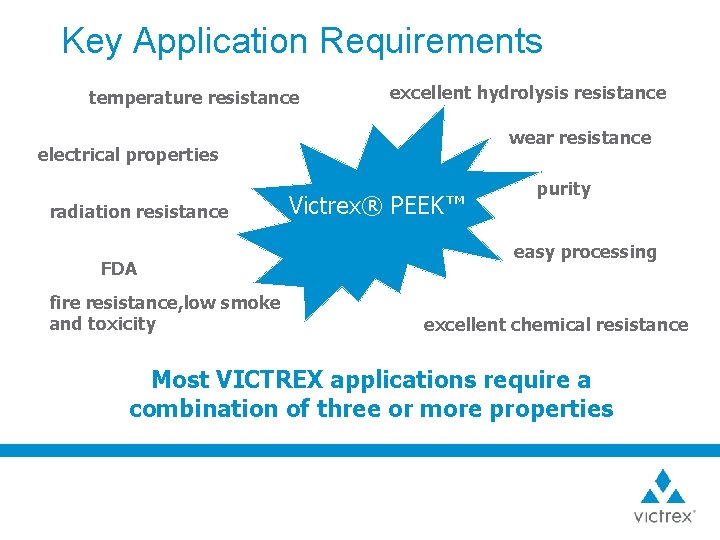

Key Application Requirements temperature resistance excellent hydrolysis resistance wear resistance electrical properties radiation resistance FDA fire resistance, low smoke and toxicity Victrex® PEEK™ purity easy processing excellent chemical resistance Most VICTREX applications require a combination of three or more properties

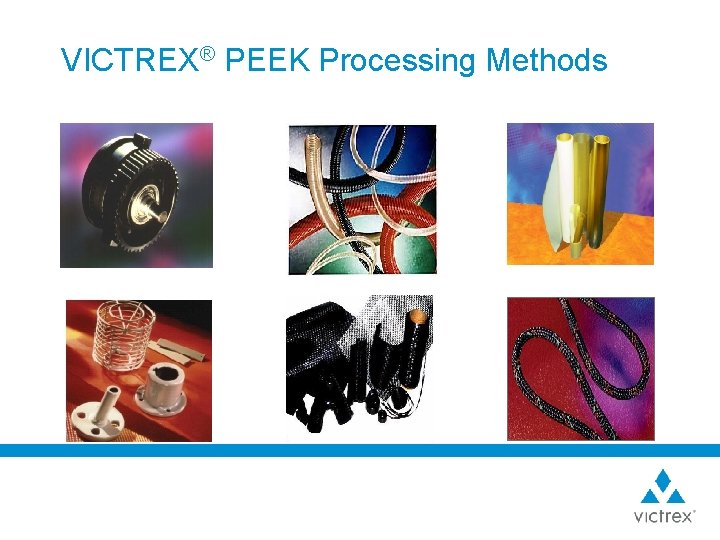

VICTREX® PEEK Processing Methods

Processing Victrex® PEEK™ can be processed by all thermoplastic techniques: • Injection molding • Extrusion – Sheet, Profile, Tube, Rod – Mono-, and Multi-Filament – Film – Capillary – Wire coating • Compression molding • Coating – Powder and Dispersion

Applications 24

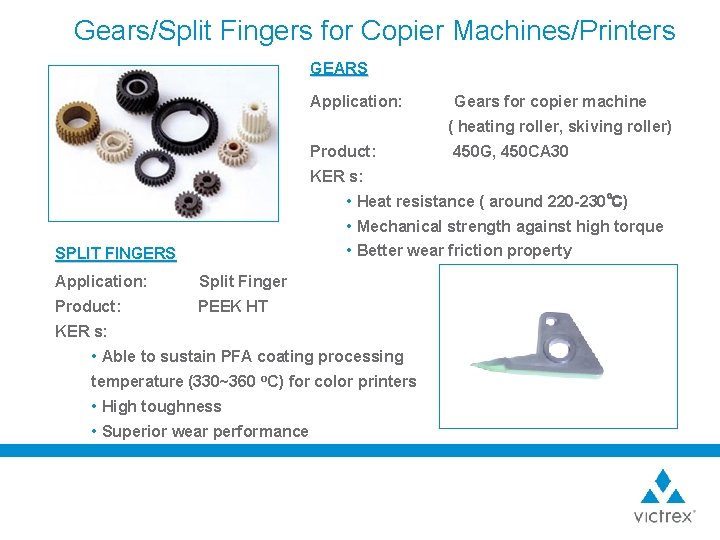

Gears/Split Fingers for Copier Machines/Printers GEARS Application: Gears for copier machine ( heating roller, skiving roller) Product: 450 G, 450 CA 30 KER s: • Heat resistance ( around 220 -230℃) • Mechanical strength against high torque • Better wear friction property SPLIT FINGERS Application: Split Finger Product: PEEK HT KER s: • Able to sustain PFA coating processing temperature (330~360 o. C) for color printers • High toughness • Superior wear performance

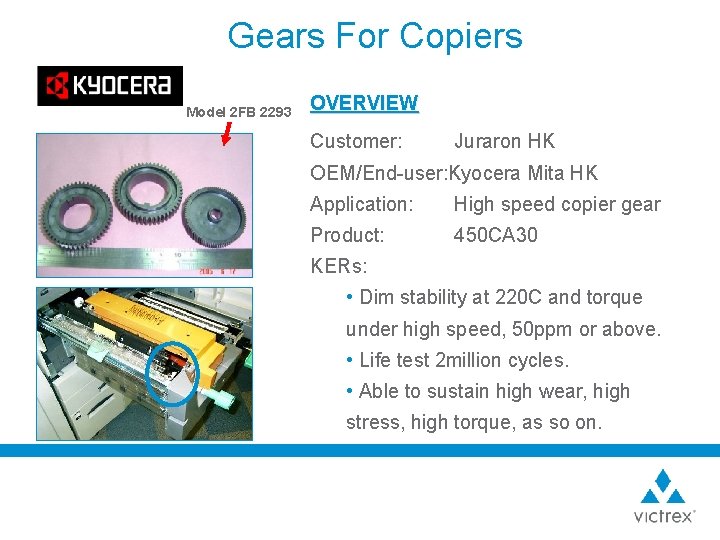

Gears For Copiers Model 2 FB 2293 OVERVIEW Customer: Juraron HK OEM/End-user: Kyocera Mita HK Application: High speed copier gear Product: 450 CA 30 KERs: • Dim stability at 220 C and torque under high speed, 50 ppm or above. • Life test 2 million cycles. • Able to sustain high wear, high stress, high torque, as so on.

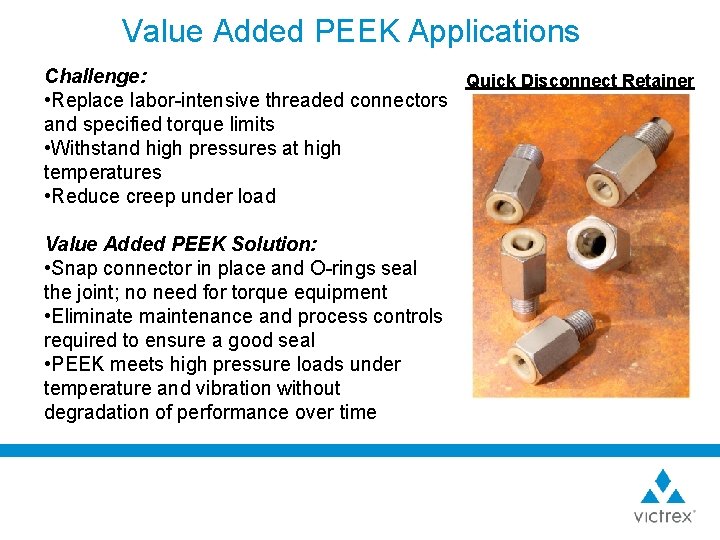

Value Added PEEK Applications Challenge: Quick Disconnect Retainer • Replace labor-intensive threaded connectors and specified torque limits • Withstand high pressures at high temperatures • Reduce creep under load Value Added PEEK Solution: • Snap connector in place and O-rings seal the joint; no need for torque equipment • Eliminate maintenance and process controls required to ensure a good seal • PEEK meets high pressure loads under temperature and vibration without degradation of performance over time

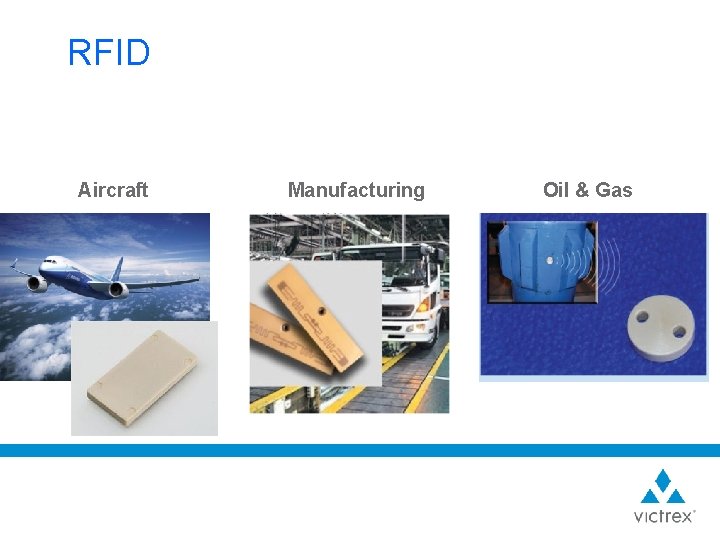

RFID Aircraft Manufacturing Oil & Gas

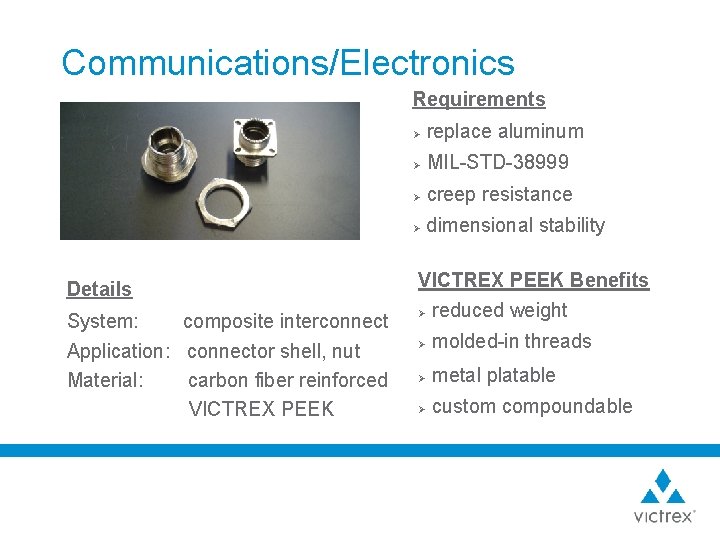

Communications/Electronics Requirements Details System: composite interconnect Application: connector shell, nut Material: carbon fiber reinforced VICTREX PEEK Ø replace aluminum Ø MIL-STD-38999 Ø creep resistance Ø dimensional stability VICTREX PEEK Benefits Ø reduced weight Ø molded-in threads Ø metal platable Ø custom compoundable

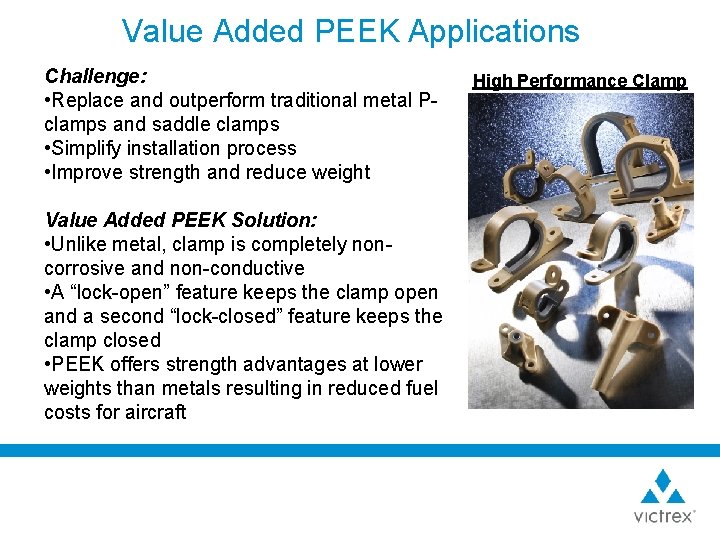

Value Added PEEK Applications Challenge: • Replace and outperform traditional metal Pclamps and saddle clamps • Simplify installation process • Improve strength and reduce weight Value Added PEEK Solution: • Unlike metal, clamp is completely noncorrosive and non-conductive • A “lock-open” feature keeps the clamp open and a second “lock-closed” feature keeps the clamp closed • PEEK offers strength advantages at lower weights than metals resulting in reduced fuel costs for aircraft High Performance Clamp

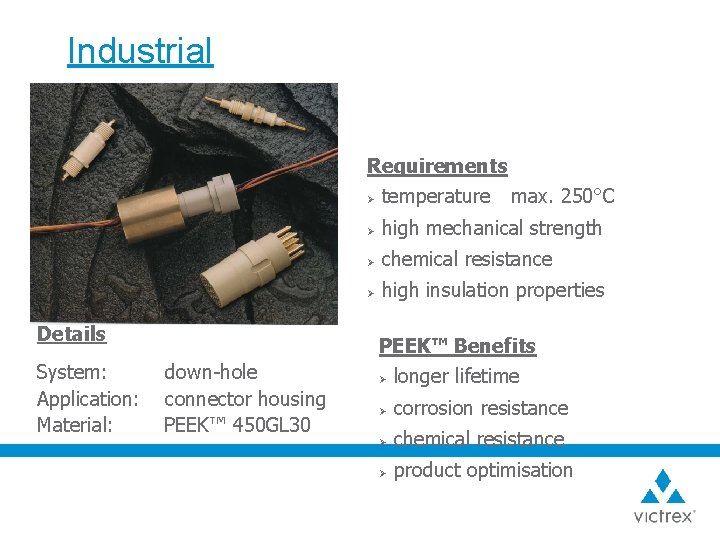

Industrial Requirements Ø temperature max. 250°C Details System: Application: Material: down-hole connector housing PEEK™ 450 GL 30 Ø high mechanical strength Ø chemical resistance Ø high insulation properties PEEK™ Benefits Ø longer lifetime Ø corrosion resistance Ø chemical resistance Ø product optimisation

Diesel Exhaust Gas Sensor Connector Requirements HI-STAT LEXINGTON, A Stoneridge Company § Temperature >250° C § Resistance to Diesel Exhaust Gases Victrex® PEEK™ Benefits Details System: Exhaust Gas Sensor Application: Electrical Connector Housing Material: Victrex® PEEK™ 150 GL 30 § Impact resistance § Heat Resistance § Chemical Resistance

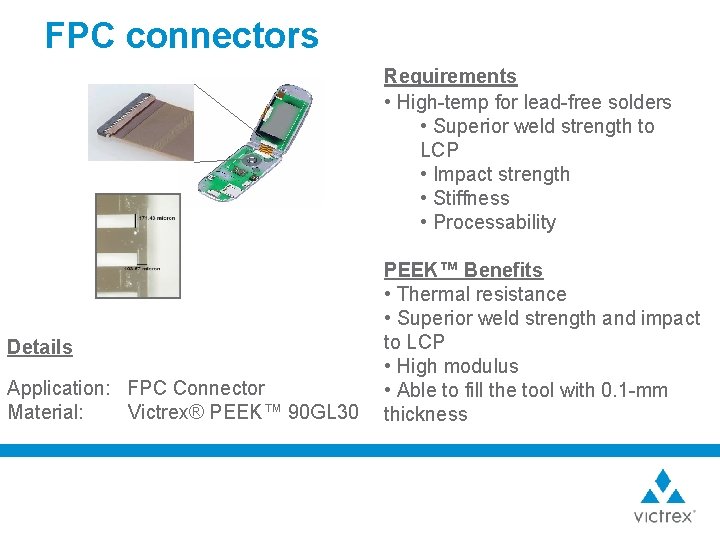

FPC connectors Requirements • High-temp for lead-free solders • Superior weld strength to LCP • Impact strength • Stiffness • Processability Details Application: FPC Connector Material: Victrex® PEEK™ 90 GL 30 PEEK™ Benefits • Thermal resistance • Superior weld strength and impact to LCP • High modulus • Able to fill the tool with 0. 1 -mm thickness

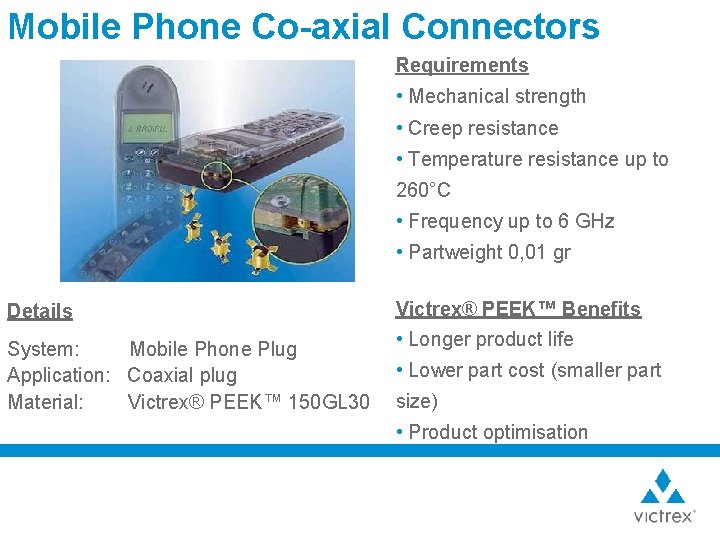

Mobile Phone Co-axial Connectors Requirements • Mechanical strength • Creep resistance • Temperature resistance up to 260°C • Frequency up to 6 GHz • Partweight 0, 01 gr Details System: Mobile Phone Plug Application: Coaxial plug Material: Victrex® PEEK™ 150 GL 30 Victrex® PEEK™ Benefits • Longer product life • Lower part cost (smaller part size) • Product optimisation

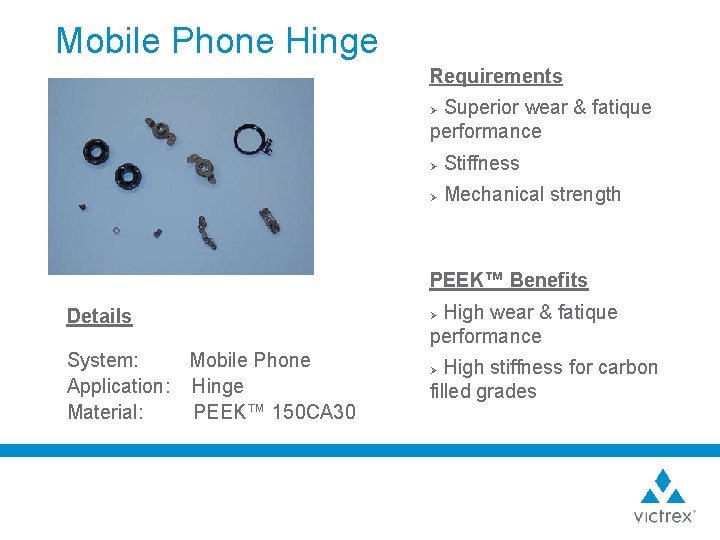

Mobile Phone Hinge Requirements Superior wear & fatique performance Ø Ø Stiffness Ø Mechanical strength PEEK™ Benefits Details System: Mobile Phone Application: Hinge Material: PEEK™ 150 CA 30 High wear & fatique performance Ø High stiffness for carbon filled grades Ø

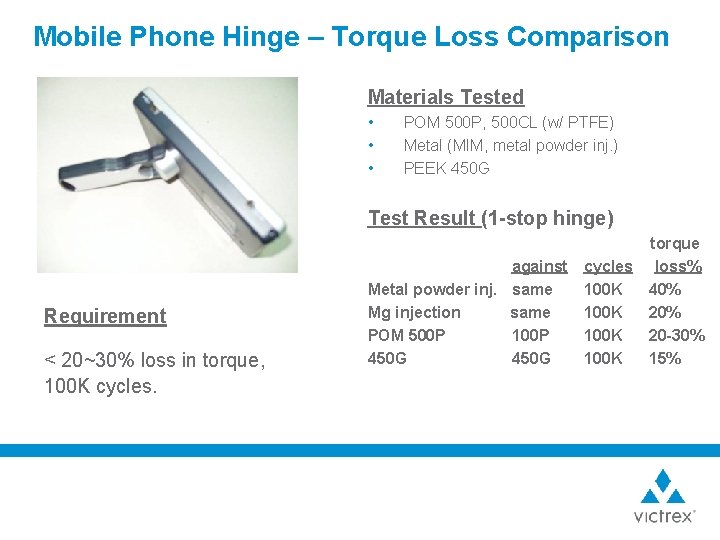

Mobile Phone Hinge – Torque Loss Comparison Materials Tested • • • POM 500 P, 500 CL (w/ PTFE) Metal (MIM, metal powder inj. ) PEEK 450 G Test Result (1 -stop hinge) Requirement < 20~30% loss in torque, 100 K cycles. against Metal powder inj. same Mg injection same POM 500 P 100 P 450 G torque cycles loss% 100 K 40% 100 K 20 -30% 100 K 15%

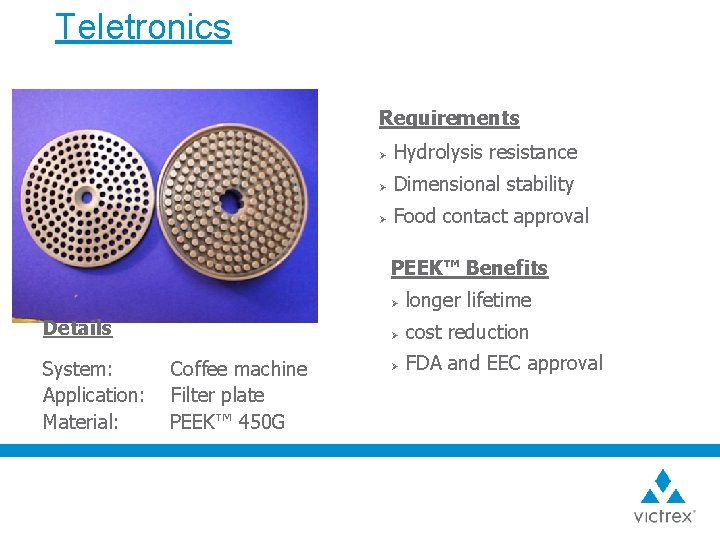

Teletronics Requirements Ø Hydrolysis resistance Ø Dimensional stability Ø Food contact approval PEEK™ Benefits Details System: Application: Material: Coffee machine Filter plate PEEK™ 450 G Ø longer lifetime Ø cost reduction Ø FDA and EEC approval

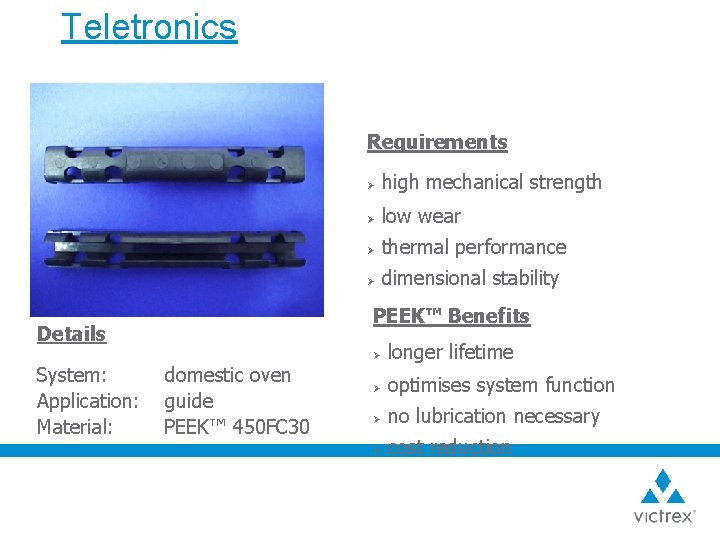

Teletronics Requirements high mechanical strength Ø low wear Ø thermal performance Ø dimensional stability PEEK™ Benefits Details System: Application: Material: Ø domestic oven guide PEEK™ 450 FC 30 Ø longer lifetime Ø optimises system function Ø no lubrication necessary Ø cost reduction

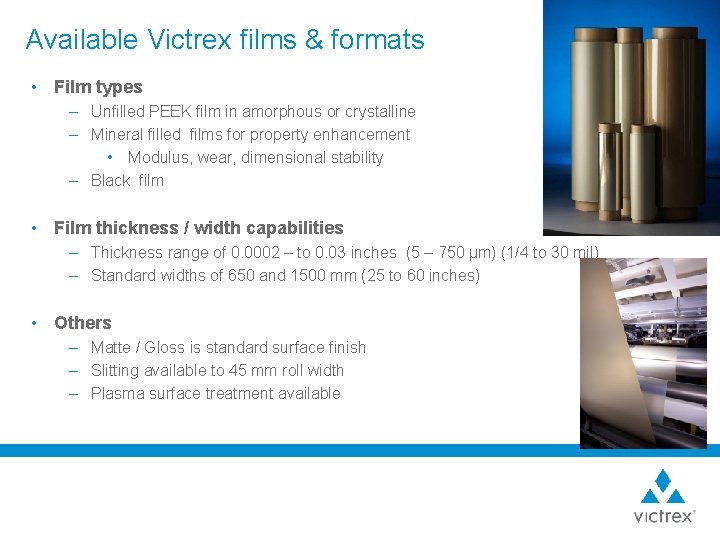

Available Victrex films & formats • Film types – Unfilled PEEK film in amorphous or crystalline – Mineral filled films for property enhancement • Modulus, wear, dimensional stability – Black film • Film thickness / width capabilities – Thickness range of 0. 0002 – to 0. 03 inches (5 – 750 µm) (1/4 to 30 mil) – Standard widths of 650 and 1500 mm (25 to 60 inches) • Others – Matte / Gloss is standard surface finish – Slitting available to 45 mm roll width – Plasma surface treatment available

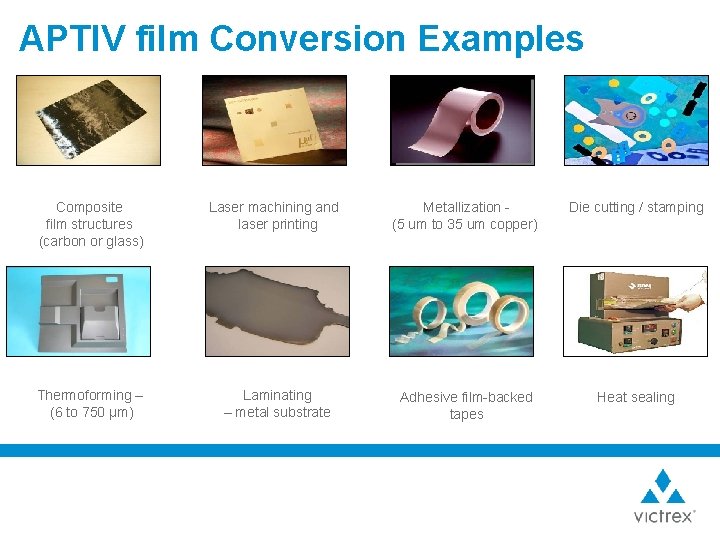

APTIV film Conversion Examples Composite film structures (carbon or glass) Laser machining and laser printing Metallization (5 um to 35 um copper) Die cutting / stamping Thermoforming – (6 to 750 µm) Laminating – metal substrate Adhesive film-backed tapes Heat sealing

APTIV film Properties

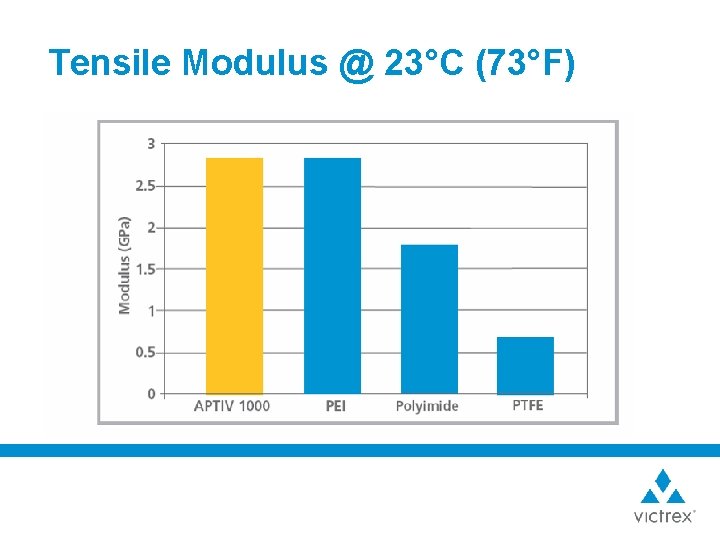

Tensile Modulus @ 23°C (73°F)

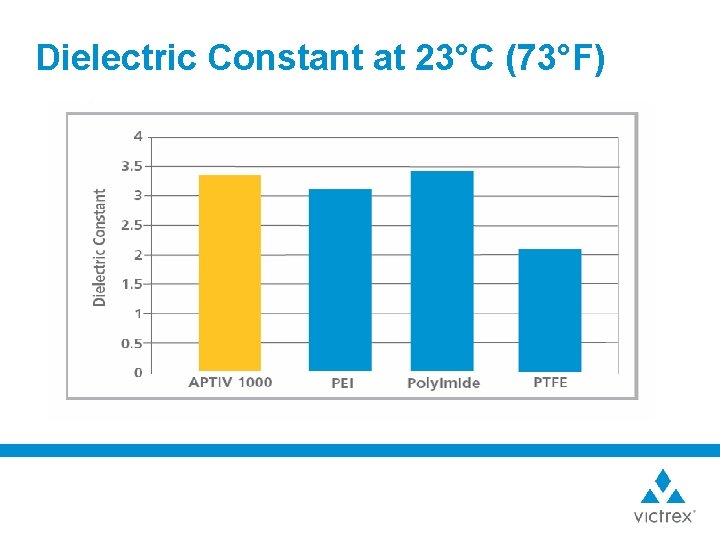

Dielectric Constant at 23°C (73°F)

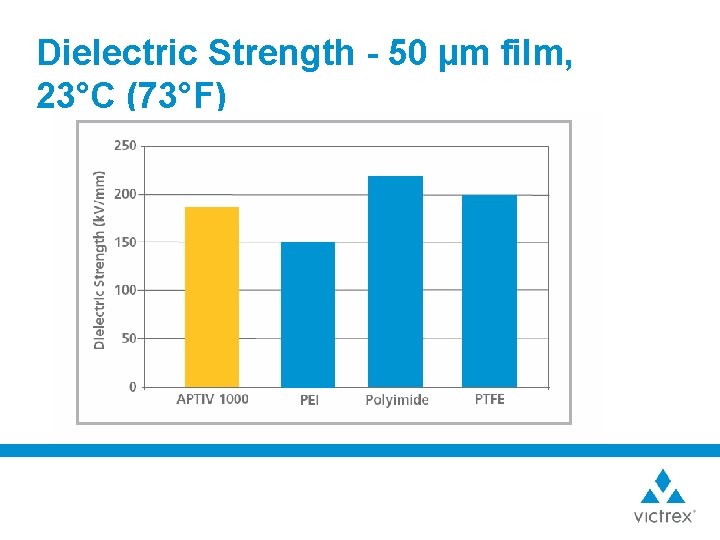

Dielectric Strength - 50 µm film, 23°C (73°F)

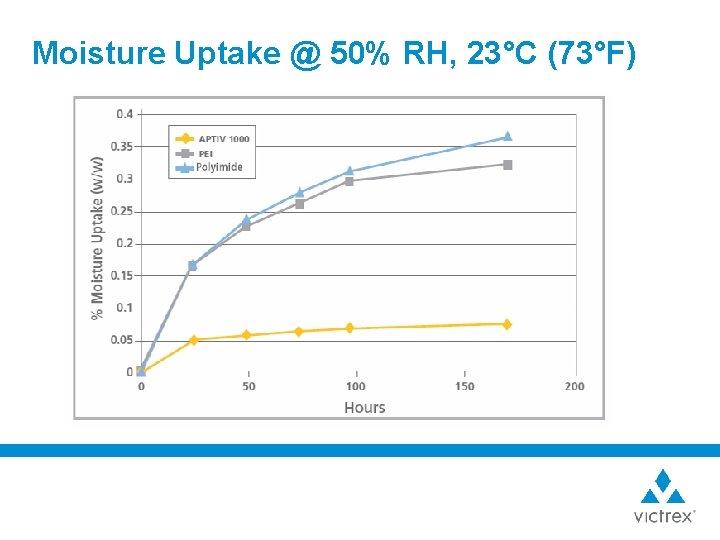

Moisture Uptake @ 50% RH, 23°C (73°F)

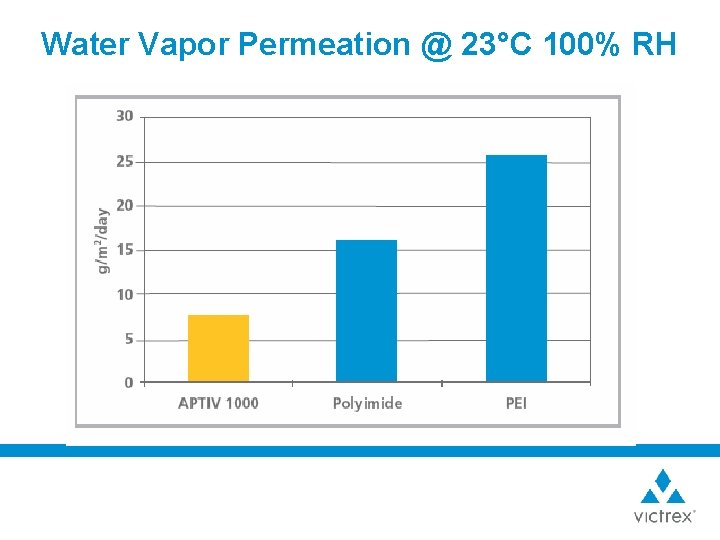

Water Vapor Permeation @ 23°C 100% RH

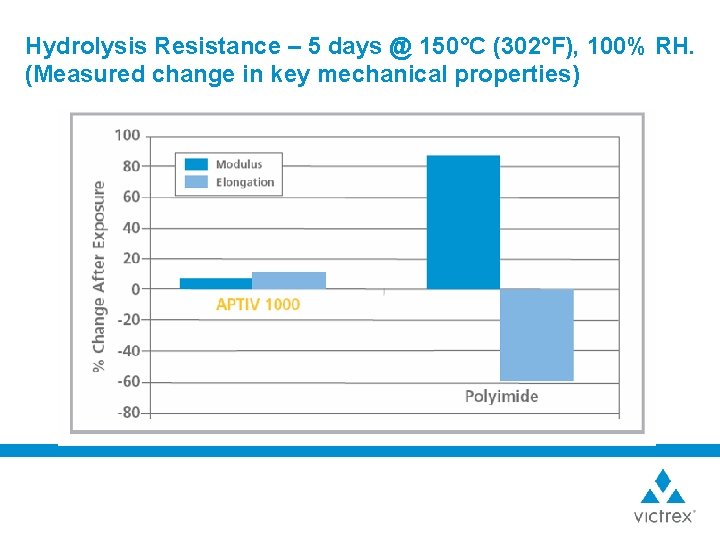

Hydrolysis Resistance – 5 days @ 150°C (302°F), 100% RH. (Measured change in key mechanical properties)

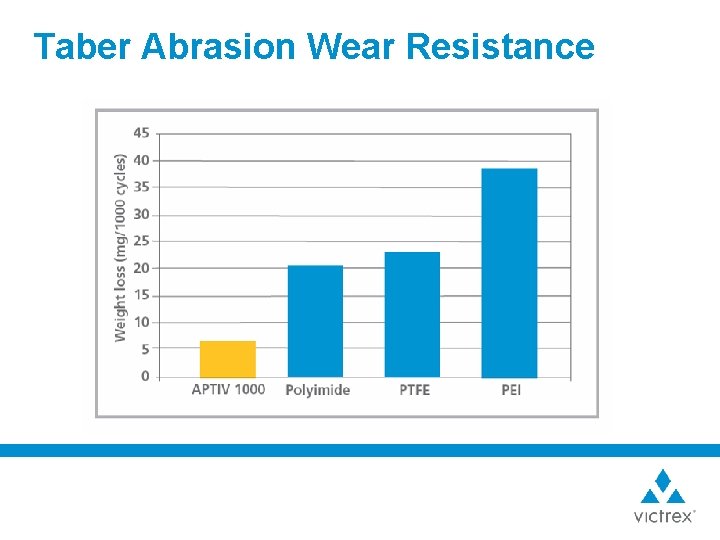

Taber Abrasion Wear Resistance

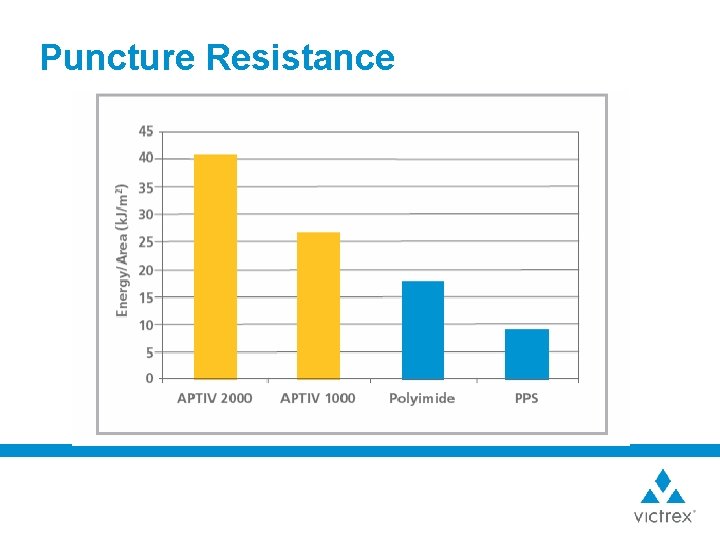

Puncture Resistance

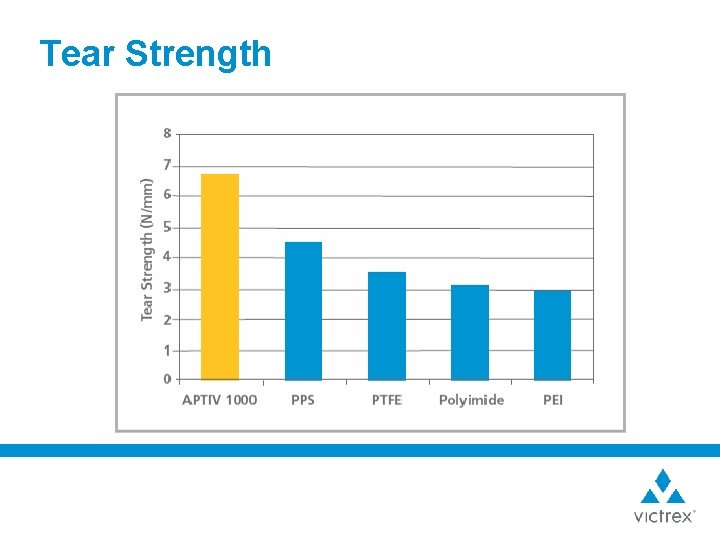

Tear Strength

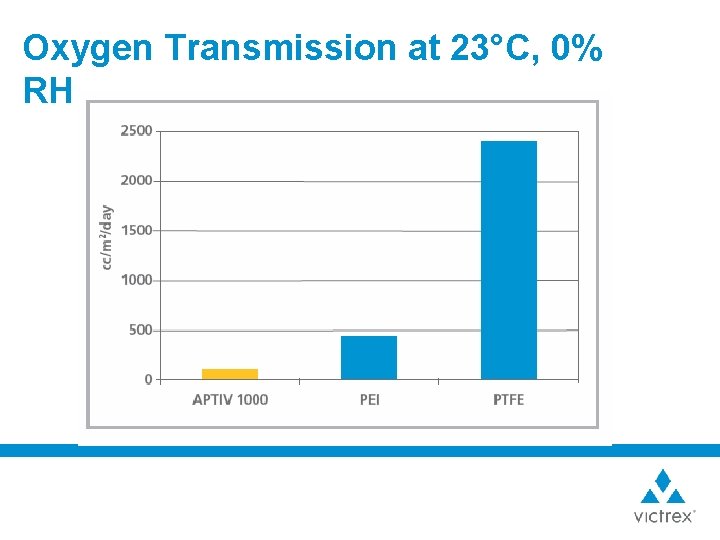

Oxygen Transmission at 23°C, 0% RH

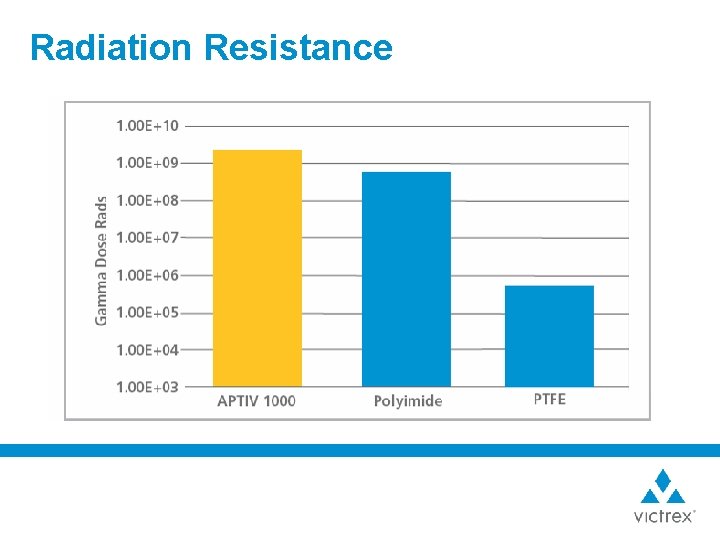

Radiation Resistance

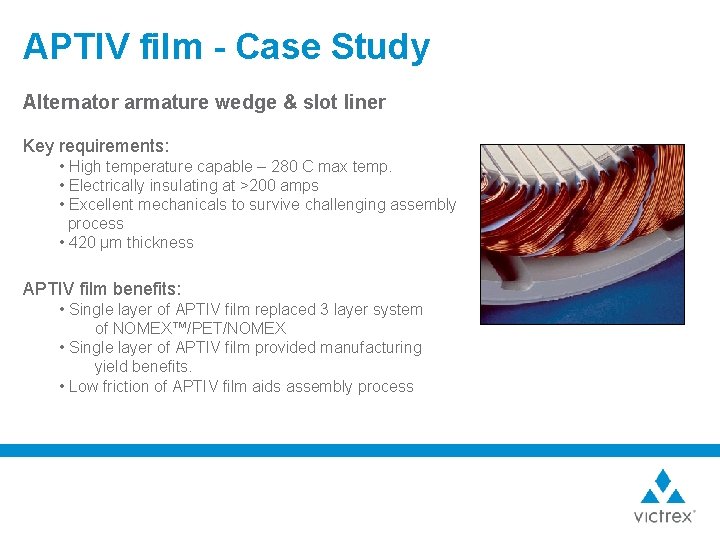

APTIV film - Case Study Alternator armature wedge & slot liner Key requirements: • High temperature capable – 280 C max temp. • Electrically insulating at >200 amps • Excellent mechanicals to survive challenging assembly process • 420 µm thickness APTIV film benefits: • Single layer of APTIV film replaced 3 layer system of NOMEX™/PET/NOMEX • Single layer of APTIV film provided manufacturing yield benefits. • Low friction of APTIV film aids assembly process

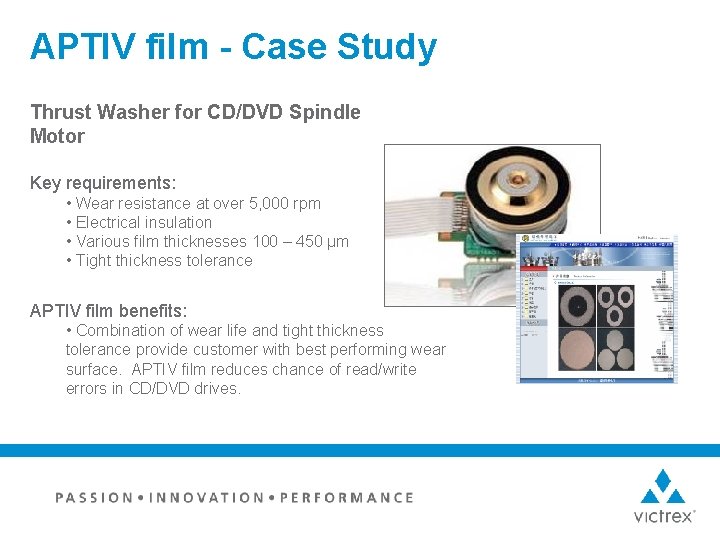

APTIV film - Case Study Thrust Washer for CD/DVD Spindle Motor Key requirements: • Wear resistance at over 5, 000 rpm • Electrical insulation • Various film thicknesses 100 – 450 µm • Tight thickness tolerance APTIV film benefits: • Combination of wear life and tight thickness tolerance provide customer with best performing wear surface. APTIV film reduces chance of read/write errors in CD/DVD drives.

APTIV film – Case Study Speaker tweeter dome using mineral filled APTIV film Key requirements: • Exacting acoustic characteristics • Thermo-formable • High temperature performance • Excellent fatigue properties APTIV film benefits: • Cabasse required a film which met a challenging set of requirements. It had to have extremely high modulus with light weight for excellent sound characteristics while being formable in standard processing equipment.

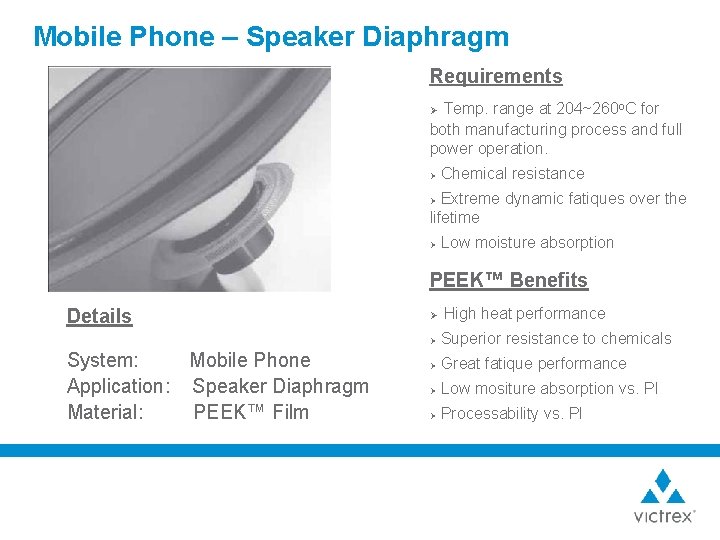

Mobile Phone – Speaker Diaphragm Requirements Temp. range at 204~260 o. C for both manufacturing process and full power operation. Ø Ø Chemical resistance Extreme dynamic fatiques over the lifetime Ø Ø Low moisture absorption PEEK™ Benefits Details System: Mobile Phone Application: Speaker Diaphragm Material: PEEK™ Film Ø High heat performance Ø Superior resistance to chemicals Ø Great fatique performance Ø Low mositure absorption vs. PI Ø Processability vs. PI

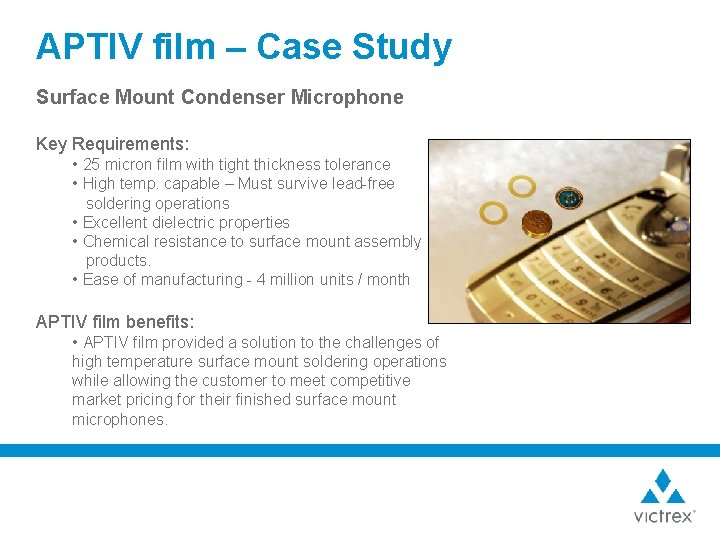

APTIV film – Case Study Surface Mount Condenser Microphone Key Requirements: • 25 micron film with tight thickness tolerance • High temp. capable – Must survive lead-free soldering operations • Excellent dielectric properties • Chemical resistance to surface mount assembly products. • Ease of manufacturing - 4 million units / month APTIV film benefits: • APTIV film provided a solution to the challenges of high temperature surface mount soldering operations while allowing the customer to meet competitive market pricing for their finished surface mount microphones.

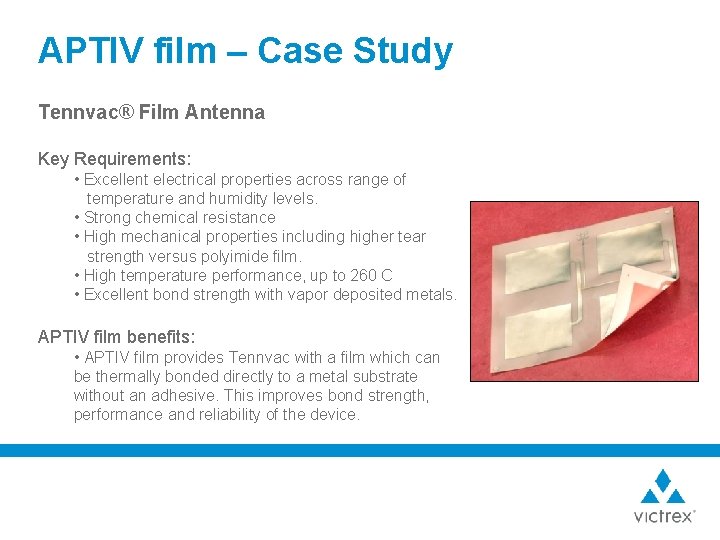

APTIV film – Case Study Tennvac® Film Antenna Key Requirements: • Excellent electrical properties across range of temperature and humidity levels. • Strong chemical resistance • High mechanical properties including higher tear strength versus polyimide film. • High temperature performance, up to 260 C • Excellent bond strength with vapor deposited metals. APTIV film benefits: • APTIV film provides Tennvac with a film which can be thermally bonded directly to a metal substrate without an adhesive. This improves bond strength, performance and reliability of the device.

The Next Generation of Coatings for Durability and Long Life

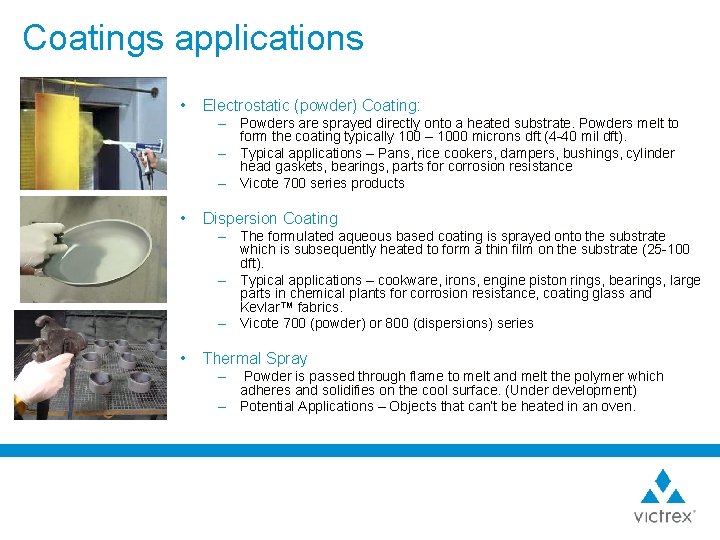

Coatings applications • Electrostatic (powder) Coating: – Powders are sprayed directly onto a heated substrate. Powders melt to form the coating typically 100 – 1000 microns dft (4 -40 mil dft). – Typical applications – Pans, rice cookers, dampers, bushings, cylinder head gaskets, bearings, parts for corrosion resistance – Vicote 700 series products • Dispersion Coating – The formulated aqueous based coating is sprayed onto the substrate which is subsequently heated to form a thin film on the substrate (25 -100 dft). – Typical applications – cookware, irons, engine piston rings, bearings, large parts in chemical plants for corrosion resistance, coating glass and Kevlar™ fabrics. – Vicote 700 (powder) or 800 (dispersions) series • Thermal Spray – – Powder is passed through flame to melt and melt the polymer which adheres and solidifies on the cool surface. (Under development) Potential Applications – Objects that can’t be heated in an oven.

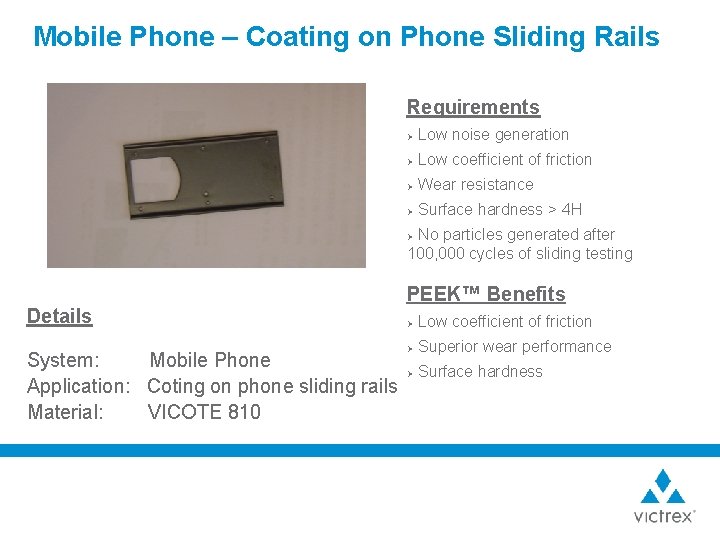

Mobile Phone – Coating on Phone Sliding Rails Requirements Ø Low noise generation Ø Low coefficient of friction Ø Wear resistance Ø Surface hardness > 4 H No particles generated after 100, 000 cycles of sliding testing Ø Details System: Mobile Phone Application: Coting on phone sliding rails Material: VICOTE 810 PEEK™ Benefits Ø Low coefficient of friction Ø Superior wear performance Ø Surface hardness

Cleaning Roller Gear OVERVIEW • Kyocera is using a-Si photoconductive drum in order to achieve longer file (resulted from higher wear resistance). • Oxide forms on the surface of the a-Si drum, which results in cleaning roller subjected to high torque while scrubbing the oxide films from the a-Si photoconductive drum. • The gears fabricated from Victrex PEEK materials had high mechanical strength and is able to with stand the torques without deformation. Cleaning Roller Gear
