Agenda n n VLI Profile Allinone USBC Connector

Agenda n n VLI Profile All-in-one USB-C Connector VLI Total Solution for mobile device peripherals Hi kika! In-car AI Driving Assistant and Smart backpack solution

VIA Group Portfolio Smart Cities Video Wall Audio Guide x 86 CPU IGP Chipset Embedded Systems USB 3. 1 Gen 1/Gen 2, USB-C, USB PD & Power

VLI Industry Recognition 2015 San Diego & Taipei 2017 Vancouver & Taipei 2016 Houston & Hong Kong

Gen 1 KGH: Known Good Hub VL 811+

Gen 2 KGH: Known Good Hub VL 820

Gen 2 KGD: Known Good Device VL 716

VLI Customers ODM OBM OEM

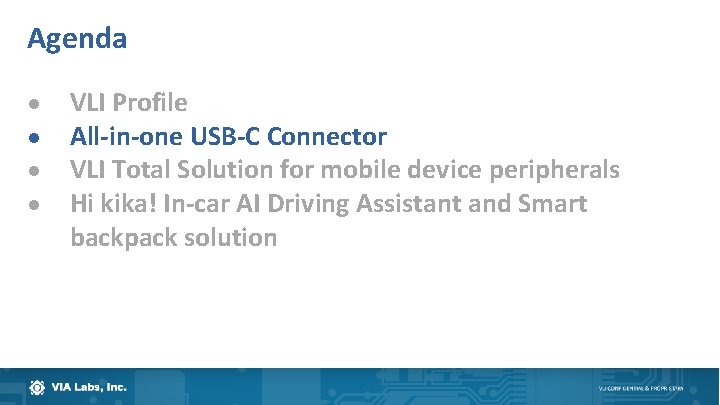

Agenda n n VLI Profile All-in-one USB-C Connector VLI Total Solution for mobile device peripherals Hi kika! In-car AI Driving Assistant and Smart backpack solution

USB TYPE-C Connects Everything!

Single Connector for Power, Audio, Video, and Data A 12 GND A 11 Rx 2+ A 10 Rx 2 - A 9 VBUS A 8 SBU 1 A 7 D- A 6 D+ A 5 CC A 4 VBUS A 3 Tx 1 - A 2 Tx 1+ A 1 GND B 9 VBUS B 10 Rx 1 - B 11 Rx 1+ B 12 GND USB-C Plug Front View B 1 GND B 2 Tx 2+ B 3 Tx 2 - B 4 VBUS B 5 VCON N B 6 B 7 B 8 SBU 2

USB-C Connector for Power, Audio, Video, and Data A 12 GND A 11 Rx 2+ A 10 Rx 2 - A 9 VBUS A 8 SBU 1 A 7 D- A 6 D+ A 5 CC A 4 VBUS A 3 Tx 1 - A 2 Tx 1+ A 1 GND B 9 VBUS B 10 Rx 1 - B 11 Rx 1+ B 12 GND USB-C Plug Front View B 1 GND B 2 Tx 2+ B 3 Tx 2 - B 4 VBUS B 5 VCON N B 6 B 7 B 8 SBU 2 C PD C

USB-C Connector for Power, Audio, Video, and Data A 12 GND A 11 Rx 2+ A 10 Rx 2 - A 9 VBUS A 8 SBU 1 A 7 D- A 6 D+ A 5 CC A 4 VBUS A 3 Tx 1 - A 2 Tx 1+ A 1 GND B 9 VBUS B 10 Rx 1 - B 11 Rx 1+ B 12 GND USB-C Plug Front View B 1 GND B 2 Tx 2+ B 3 Tx 2 - B 4 VBUS B 5 VCON N B 6 B 7 B 8 SBU 2 C

USB-C Connector for Power, Audio, Video, and Data A 12 GND A 11 Rx 2+ A 10 Rx 2 - A 8 SBU 1 A 9 VBUS A 7 D- A 6 D+ A 5 CC A 4 VBUS A 3 Tx 1 - A 2 Tx 1+ A 1 GND B 9 VBUS B 10 Rx 1 - B 11 Rx 1+ B 12 GND USB-C Plug Front View B 1 GND B 2 Tx 2+ B 3 Tx 2 - B 5 VCON B 4 VBUS N B 6 B 7 B 8 SBU 2 C B PDUS PD Hub C C C

USB-C Connector for Power, Audio, Video, and Data A 12 GND A 11 Rx 2+ A 10 Rx 2 - A 9 VBUS A 8 SBU 1 A 7 D- A 6 D+ A 5 CC A 4 VBUS A 3 Tx 1 - A 2 Tx 1+ A 1 GND B 9 VBUS B 10 Rx 1 - B 11 Rx 1+ B 12 GND USB-C Plug Front View B 1 GND B 2 Tx 2+ B 3 Tx 2 - B 4 VBUS N I M HD MI HD t Ou B 5 VCON B 6 B 7 B 8 SBU 2 C

USB-C Connector for Power, Audio, Video, and Data A 12 GND A 11 Rx 2+ A 10 Rx 2 - A 9 VBUS A 8 SBU 1 A 7 D- A 6 D+ A 5 CC A 4 VBUS A 3 Tx 1 - A 2 Tx 1+ A 1 GND B 9 VBUS B 10 Rx 1 - B 11 Rx 1+ B 12 GND USB-C Plug Front View B 1 GND B 2 Tx 2+ B 3 Tx 2 - B 4 VBUS B 5 VCON B 6 N B 7 B 8 SBU 2 C C HDMI USB-C Multi. Function Dock US SS B D A PD C

Agenda n n VLI Profile All-in-one USB-C Connector VLI Total Solution for mobile device peripherals Hi kika! In-car AI Driving Assistant and Smart backpack solution

VP 302 PD Charger Solution (PD 3. 0+PPS) Key Features: USB Type-C and USB PD Support • Compliant to USB Type-C 1. 3 • Compliant to USB PD 3. 0 High Integration • Integrated USB Type-C baseband transceiver PHY • Built-in Vconn switch • Operating voltage from 2. 8~5. 5 V • Built-in 2. 8~5. 5 V to 1. 8 V LDO • ADC for Vbus voltage monitor • External NTC input for thermal protection • CC 1/CC 2 pins rated up to 25 V • System level ESD 15 KV for Air-discharge , 8 KV for contact • D+/D- bonding optional (to support other Proprietary Charging Protocol) n n Application: n USB Type-C and USB PD Adapter/Charger for Mobile, Tablet, NB… Associated with Power Integrations Inno. Switch 3 -Pro USB-IF Certified!!

Electronic Marker for Passive Cables New VL 151 VL 152 Single-Chip SOP’ Endpoint Solution Integrated Vconn Diodes & Ra Resistors Automatic Ra removal for Power Saving OTP Programming via I 2 C or CC No External Components USB-IF Certified (PD 2. 0) DFN 10 3 x 3 mm DFN 8 2 x 3 mm WLCSP-6 VL 152 Function-Compatible & Pin-2 -Pin w/ VL 151 Same Programming Method as VL 151 Supports Wide Vconn Range (2. 7 V to 5. 5 V) USB-IF Certified (PD 3. 0) Suspend Power < 1 m. A DFN 8 2 x 3 mm WLCSP-6 Mass Production VL 154 Function-compatible & Pin-2 -Pin w/ VL 152 Add SVID and Modal Support Reporting Supports Thunderbolt 3 Passive Cables DFN 8 2 x 3 mm WLCSP-6 2018 Q 2 ES

App 1 - USB-C Video Dongle USB-C USB 4 -Lane DP VL 103 Q 3 HPD CC DP to HDMI Connector Source: 华为商城

App 1 - 4 Kx 60 fps Experience Source: 华为商城

App 1 - Productivity Source: 华为商城

VL 103 Auto-Standby Power Consumption VL 103 -Q 3 App 1 (Pure Video Dongle) Vbus Power (m. A) Note Port 1 ON, HDMI not ON 0. 34 m. A About 1/100 to VL 100 -Q 3 Port 1 ON, HDMI ON (BB enabled for FW update) 0. 5 m. A About 1/70 to VL 100 -Q 3 VL 103 -Q 4 App 5 (Charging-thru Dongle) Vbus Power (m. A) Note Port 1 ON, HDMI not ON, Port 2 not ON 0. 75 m. A About 1/40 to VL 102 -Q 4 Port 1 ON, HDMI ON, Port 2 not ON 0. 75 m. A BB enabled on Hub ~1/40 to VL 102 -Q 4 Port 1 ON, HDMI ON, Port 2 ON 1. 47 m. A Self-powered mode ~1/20 to VL 102 -Q 4

App 3 - USB-C Charge Thru Video Dongle Single-chip for 2 USB-C ports enabling charge thru and 4 K video output at the same time. USB-C USB DC-DC Vbus CC VL 103 Q 4 CC HPD USB-C (Charger) 4 -Lane DP DP to HDMI Connector

App 5 - USB-C Charge Thru MF Dongle Adding a USB hub to enable video, audio, data, and power all at the same time. USB-C CC DC-DC Vbus CC VL 103 Q 4 HPD USB-C (Charger) 2 -Lane DP BB USB VLI Hub DP to HDMI Connector USB Type-A

App 5 Applications Data, Video, Audio, and Power, All on Single USB-C C HD MI VL 10 x Mini Dock C USB C PD

App 5 for Gaming C C PD HD MI USB-C Multi. Function Dock B US C

Better Gaming Experience!

App 6 - Interchangeable Charge Thru Audio New USB-C CC Vbus D+/D- VL 104 Q 6 P-SWT CC CC D+/D- USB-C Vbus Source: Belkin Lightning Audio + Charge Rockstar USB-C Interchangeable

App 7 - Any-port Charge Thru MF Dongle USB-C VL 104 Q 6 Vbus CC BB 2 -Lane DP USB HPD DP to HDMI VL 820 Q 8 USB-C USB Type-A HDMI Connector CC P-SWT VL 104 -Q 6 for APP 7 New • Two USB-C DFPs • Built-in buck controller to save BOM • Any-port charge chru by firstplugin-first-serve basis • HV protection up to 22 V • Low idle power • Crystal-less & can share SPI with VLI Hub

VL 10 x DP Alt-mode and PD Controllers USB PD 3. 0 Interchangeable New VL 102 VL 103 One USB-C UFP and One DFP DP video out PD Charge Thru & Data-link Fast-Role-Swap Built-in USB Billboard Crystal-less QFN 48 6 x 6 mm One USB-C UFP and One DFP VL 102 + Auto-Standby for ultra low idle power Pin-compatible to VL 102 QFN 48 6 x 6 mm Mass Production VL 104 One USB-C UFP and Two DFPs Interchangeable DFPs Auto-Standby mode HV process up to 22 V Sync Buck controller QFN 48/60 & VFBGA 69 5 x 5 mm CS June/18’ CS 2018/Q 2

USB 3. 1 Gen 1 Hub Products USB 3. 1 Gen 1 (5 Gbps) VL 817 Q 7 VL 817 Q 5 VL 817 (4 -Port/ 2 -Port) USB 3. 1 Gen 1, 5 Gbps Smart Charging 2 Low Power Integrated DC-DC QFN 76 9 x 9 mm (4 -port) QFN 56 7 x 7 mm (2 -port) USB PD Support VL 211 (1+3 Port) USB 3. 1 Gen 1, 5 Gbps 4 x DFP: 1 x SS, 3 x HS Smart Charging 2 Smart Management Integrated BB + HID Integrated DC-DC Pin Compatibility with VL 210 QFN 48 6 x 6 mm Mass Production VL 212 (1+3 Port) Enhanced VL 210 4 x DFP: 1 x SS, 3 x HS USB-PD + Alt Modes 2 x Integrated TCPM, DPM, PPM Integrated BB + HID Supports PD Bridge Integrated DC-DC QFN 48 6 x 6 mm

USB 3. 1 Gen 2 Hub Products USB 3. 1 Gen 2 (10 Gbps) VL 820 Q 8 VL 820 Q 7 USB PD Support VL 820 -Q 8 (4 -Port) USB Type-C Support UFP/2 x DFP Switch Integrated BB + HID QFN 88 10 x 10 mm VL 821 Q 8 VL 820 -Q 7 (4 -Port) Standard-A USB Hub Smart Charging 2 QFN 76 9 x 9 mm VL 821 Q 7 Mass Production VL 821 -Q 8 (4 -Port) USB Type-C + PD + Alt-Mode UFP/ 2 x DFP Switch Integrated TCPM, DPM, PPM Integrated BB + HID Supports PD Bridge QFN 88 10 x 10 mm VL 821 -Q 7 (4 -Port) Standard-A USB Hub w/ USB-PD + Alt-Mode Integrated TCPM, DPM, PPM Integrated BB + HID Supports PD Bridge QFN 76 9 x 9 mm

Agenda n n VLI Profile All-in-one USB-C Connector VLI Total Solution for mobile device peripherals Hi kika! In-car AI Driving Assistant and Smart backpack solution

Power Back Pack is popular for i. Phone

VL 104 - Smart Backpack Solution for Type-C USB-C Devices VL 104

Driving Assistant

Pains for Drivers Communication • Send, listen, and answer messages (Messenger, Whats. App…) • Answer and make calls Navigation • Navigate and change destination Music • Find and play music

kika. GO Powering Hands-free Communications Smart Voice Assistant Listen and Answer Messages Multitasking Support

kika. GO: In-car AI Voice Control Solution Creates a safer, more convenient, and effortless way to communicate on the road Speech Recognition Voice UI Speech Synthesis Kika. Go App Noise Cancellation Natural Language Understanding Smart Noise Cancellation 2 x Smart Microphones Smart Mic + Charging Cable offerings: USB Type-C/ USB Type-A/ Micro USB

2018 CES Innovation Award Winner ♦ In-Vehicle Audio/Video ♦ Tech for a Better World ♦ Software and Mobile Apps ♦ Smart Home

VL 630 + VL 102 for kika. GO VL 630: Single Chip USB Audio Controller, Audio Codec, and Headphone Amplifier n n n 2 independent channel outputs for playback & 2 independent channel inputs for recording 5 -band programmable EQ & Independent Dynamic Range Compression for both DAC and ADC HP filter for low frequency noise suppression Customized audio handling for Smart Mic VL 102: Charge Thru PD Controller n n USB PD DRP ports for Audio data + charging at the same time over USB-C

VLI USB-C Summary USB Type-C Cable n n USB Type-C Switch n USB-C E-Marker for Passive Cables: VL 151, VL 152, VL 154 n n n 4 -to-2/2 -to-4 switch with CC Logic: VL 160 4 -to-2/2 -to-4 switch: VL 161 6 -to-4/4 -to-6 switch: VL 170 USB Type-C Accessory n n n n Video Dongle: VL 100, VL 103 USB-C HUB: VL 820, VL 817 USB-C HUB w/ PD: VL 821 Multi-function Dock/Dongle: VL 102, VL 103, VL 104 + VLI Hub controllers USB-C external HDD: VL 716, VL 713 USB-C mobile/tablet/OTG: VP 240 USB Type-C Charging n n PD charging (5 V, 9 V, 15 V, 20 V; Programmable): VP 300 USB-C charging (500/900 m. A, 1. 5 A, 3 A@5 V): VP 222, VP 223, VP 224 USB-C Power Bank (3 A@5 V; Source & Sink): VP 240, VP 242

Thank you !
